Cayin - N3Ultra
Portable Digital Audio PlayerGET 18% GST INPUT
One of the reasons headphones and earphones in India are more expensive than overseas is because of the Goods &
Services Tax in India.
Don't let the GST input go to waste especially if you can avail an offset.
All products sold on Headphone Zone carry a GST compliant invoice and all products sold include an 18% GST.
Simply enter your GST number at the time of checkout.
Browse EMI Plans
Low Cost EMI Options through Credit Cards
ICICI Bank
3
Low Cost EMI
₹ 17,112
₹ 1,338
₹ 1,079
6
Low Cost EMI
₹ 8,726
₹ 2,358
₹ 1,907
9
15.99%
₹ 5,932
₹ 3,390
12
15.99%
₹ 4,536
₹ 4,436
18
15.99%
₹ 3,143
₹ 6,566
24
15.99%
₹ 2,448
₹ 8,750
HDFC Bank
3
Low Cost EMI
₹ 17,113
₹ 1,339
₹ 1,079
6
Low Cost EMI
₹ 8,726
₹ 2,359
₹ 1,907
9
16%
₹ 5,932
₹ 3,392
12
16%
₹ 4,536
₹ 4,438
18
16%
₹ 3,143
₹ 6,571
24
16%
₹ 2,448
₹ 8,756
SBI Bank
3
Low Cost EMI
₹ 17,127
₹ 1,381
₹ 1,111
6
Low Cost EMI
₹ 8,702
₹ 2,210
₹ 1,780
9
15%
₹ 5,908
₹ 3,177
12
15%
₹ 4,513
₹ 4,155
18
16%
₹ 3,143
₹ 6,571
24
16%
₹ 2,448
₹ 8,756
Axis Bank
3
Low Cost EMI
₹ 17,113
₹ 1,339
₹ 1,079
6
Low Cost EMI
₹ 8,726
₹ 2,359
₹ 1,907
9
16%
₹ 5,932
₹ 3,392
12
16%
₹ 4,489
₹ 3,872
18
16%
₹ 3,143
₹ 6,571
24
16%
₹ 2,448
₹ 8,756
Other EMI Options through Credit Cards
Citi Bank
3
14%
₹ 17,057
₹ 1,171
6
14%
₹ 8,677
₹ 2,061
9
16%
₹ 5,932
₹ 3,392
12
16%
₹ 4,536
₹ 4,438
18
16%
₹ 3,143
₹ 6,571
24
16%
₹ 2,448
₹ 8,756
Kotak Mahindra Bank
Tenure
Interest%
Installment
Interest
3
16%
₹ 17,113
₹ 1,339
6
16%
₹ 8,726
₹ 2,359
9
16%
₹ 5,932
₹ 3,392
12
16%
₹ 4,536
₹ 4,438
18
16%
₹ 3,143
₹ 6,571
24
16%
₹ 2,448
₹ 8,756
RBL Bank
3
13%
₹ 17,029
₹ 1,087
6
14%
₹ 8,677
₹ 2,061
9
15%
₹ 5,908
₹ 3,177
12
15%
₹ 4,513
₹ 4,155
18
15%
₹ 3,119
₹ 6,146
24
15%
₹ 2,424
₹ 8,184
Standard Chartered Bank
3
13%
₹ 17,029
₹ 1,087
6
13%
₹ 8,652
₹ 1,913
9
14%
₹ 5,885
₹ 2,962
12
14%
₹ 4,489
₹ 3,872
INDUSIND Bank
3
14%
₹ 17,057
₹ 1,171
6
14%
₹ 8,677
₹ 2,061
9
15%
₹ 5,908
₹ 3,177
12
15%
₹ 4,513
₹ 4,155
18
15%
₹ 3,119
₹ 6,146
24
15%
₹ 2,424
₹ 8,184
HSBC Bank
3
12.50%
₹ 17,015
₹ 1,045
6
12.50%
₹ 8,640
₹ 1,839
9
13.50%
₹ 5,873
₹ 2,854
12
13.50%
₹ 4,478
₹ 3,731
18
13.50%
₹ 3,084
₹ 5,513
YES Bank
3
13%
₹ 17,029
₹ 1,087
6
13%
₹ 8,652
₹ 1,913
9
14%
₹ 5,885
₹ 2,962
12
14%
₹ 4,489
₹ 3,872
18
15%
₹ 3,119
₹ 6,146
24
15%
₹ 2,424
₹ 8,184
Bank of Baroda
3
13%
₹ 17,029
₹ 1,087
6
14%
₹ 8,677
₹ 2,061
9
14%
₹ 5,885
₹ 2,962
12
15%
₹ 4,513
₹ 4,155
18
15%
₹ 3,119
₹ 6,146
24
16%
₹ 2,448
₹ 8,756
American Express
3
14%
₹ 17,057
₹ 1,171
6
14%
₹ 8,677
₹ 2,061
9
14%
₹ 5,885
₹ 2,962
12
14%
₹ 4,489
₹ 3,872
18
15%
₹ 3,119
₹ 6,146
24
15%
₹ 2,424
₹ 8,184
Talk to a Headphone Guru
Club Audiophile
Join Club Audiophile to begin your pursuit of great sound. Earn points and save on every purchase.
READ MORE
Why Cayin is Special
Designed in China
Established & Reputed
Trust us, our reputation in the audio world speaks for itself!
This headphone or gear comes from a well-respected brand known for its high-quality audio equipment, so you can be confident in your purchase.
If you see a product marked as “🎖️ Established & Reputed”, it means you're getting a top-tier device from a brand that's earned its stripes in the audio industry.
Revered by Audiophiles
Audiophiles can be really picky and tough to impress and if the audiophile community says something sounds good, you can bet it's great!
This headphone or gear has gained recognition and admiration from audiophiles, who are known for their discerning taste in high-fidelity audio. They appreciate its precision, attention to detail and its ability to deliver an immersive sonic experience.
If you see a product marked as "🙌🏻 Revered by Audiophiles", it means that it meets the highest standards of sound quality and performance, making it a top choice for anyone who values exceptional audio experiences.
Born in 1993
Why we love this DAP
Value for Money
Great sound always doesn't have to come with a fancy price tag.
Every once in a while we come across a product that give you a lot more value for the price.
If you see products marked as "🥜 Value For Money" you can be sure you're getting a great bang for your buck.
Ideal for Beginners
Lost in the Audio Maze? Let Us Guide Your Beginner Audiophile Journey!
If you are a newcomer in the audio world, this headphone or gear is a stepping stone for those overwhelmed by the plethora of options available.
If you see a product marked with “🌱 Ideal for Beginners," it indicates that this device is perfect for starting your audiophile journey.
Incredibly Popular
Some things deserve all the attention.
This headphone or gear is a crowd favourite, winning over fans everywhere with its undeniable audio quality.
If you see products marked as “🥇 Incredibly Popular”, you’re opting for a tried-and-true choice that’s loved by many, ensuring you're getting something that’s proven to be awesome and widely acclaimed.
Battery Life
No need to be connected to the power socket with these devices.
This headphone or gear promises long-lasting battery performance, ensuring your device keeps up with your adventures without missing a beat.
If you see products marked as “⏳ Battery Life”, be rest assured that you'll enjoy extended usage time, whether it's for uninterrupted music playback, extended gaming sessions, or all-day productivity, keeping you powered up throughout your day.
Battery Capacity
Power that keeps your music going.
This headphone or gear has ample battery capacity, promising you plenty of juice to power through your day with gusto.
If you see products marked as “🔋 Battery Capacity”, rejoice in the knowledge that your device is equipped with a robust battery, providing you with extended usage time and reducing the frequency of recharges, so you can focus on your favourite tracks.
Storage
Storage is important. Even in this era of streaming music, you’d want to make sure you have enough space to store your amazing collection of music on your player. Imagine a long flight, it’s your offline files you’re going to be listening to.
Keeping your entire collection of Hi-Resolution music in one place is the most convenient way of carrying your music library. However, Hi-Resolution files are heavy. Most songs in a FLAC format can be about 100mb per track. So more space is always better.
Most players support both internal storage and expandable storage via an external memory card. Make sure you check both - the internal memory on players, and consider the maximum supported size of the expandable storage. It’s best to keep your library of offline files in expandable storage and use the internal storage for saving files from streaming apps.
At the time of writing this article, MicroSD cards for 256 GB were easily available and affordable for less than Rs. 2000. Higher capacity cards are also available, but that seems to be the sweet spot.
Built like a Tank
No need to worry about durability.
If you're seeking a headphone or gear with a strong, rugged build, this snapshot indicates that this is the one for you.
If you see a product marked with “🪖 Built like a Tank", it means this product is crafted with metal in its design, ensuring exceptional robustness and durability.
Why it Sounds Amazing
DAC Chip
Know the secret to your pristine audio.
This headphone or gear reveals the secret sauce behind superior audio quality, highlighting the presence of a high-performance DAC chip for pristine sound reproduction.
If you see products marked as “⚙️ DAC Chip”, expect to experience your music with unparalleled clarity, detail, and fidelity, ensuring that every note and nuance is faithfully reproduced for your listening pleasure.
Power Output
When you need that juice to get the best out of your products.
This headphone or gear packs a punch, revealing the product's impressive power output capabilities, ensuring it can handle even the most demanding products with ease.
If you see products marked as “🚀 Power Output”, you're in for a treat with robust performance for driving high-fidelity products without breaking a sweat.
Balanced Output
Upgrading from single-ended to balanced can be the easiest way to improve your sound.
This DAC, Amp or Hi-Res player offers a balanced output, ensuring pristine audio quality with minimised interference and enhanced clarity for your listening pleasure.
If you see a product marked as "⚖️ Balanced Output”, get ready for a symphony of crystal-clear tunes, free from any unwanted noise drama!
The Cayin N3 Ultra is a unique DAP that blends cutting-edge digital technology with the warmth of vacuum tubes. Featuring triple timbre options and balanced design, it's the perfect choice for anyone looking for a portable DAP with a distinct sound.
About RAGHAV SOMANI
Raghav Somani is the Founder & CEO of Headphone Zone. An avid audiophile and musician since 2008, his choice of headphones include STAX Electrostats, Audeze LCD 3, and for music on the go, the JH Audio Roxanne + Astell&Kern SP1000 is never too far away. On his playlist, you'll find A.R. Rahman, Michael Jackson, and the Eagles.
DESCRIPTION

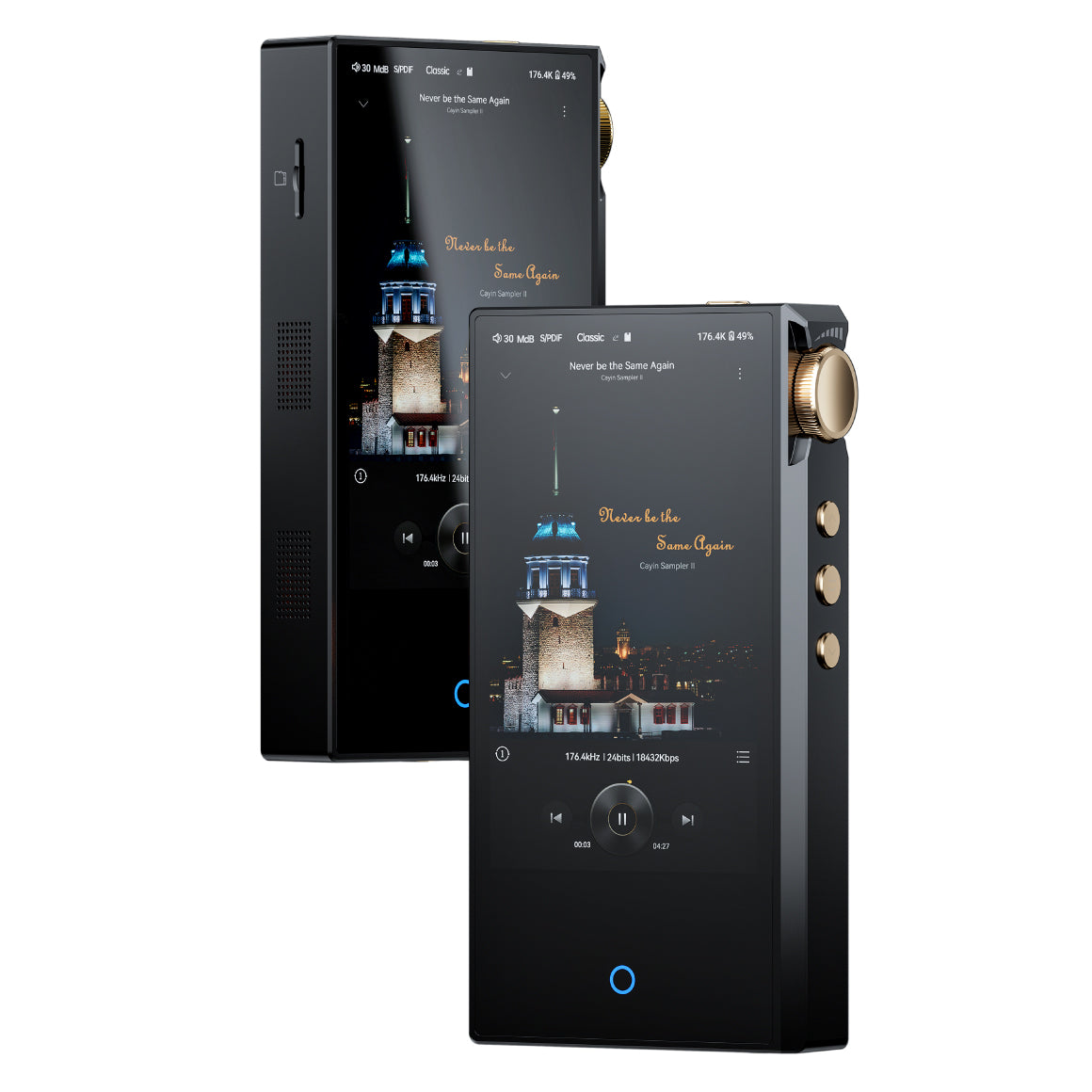

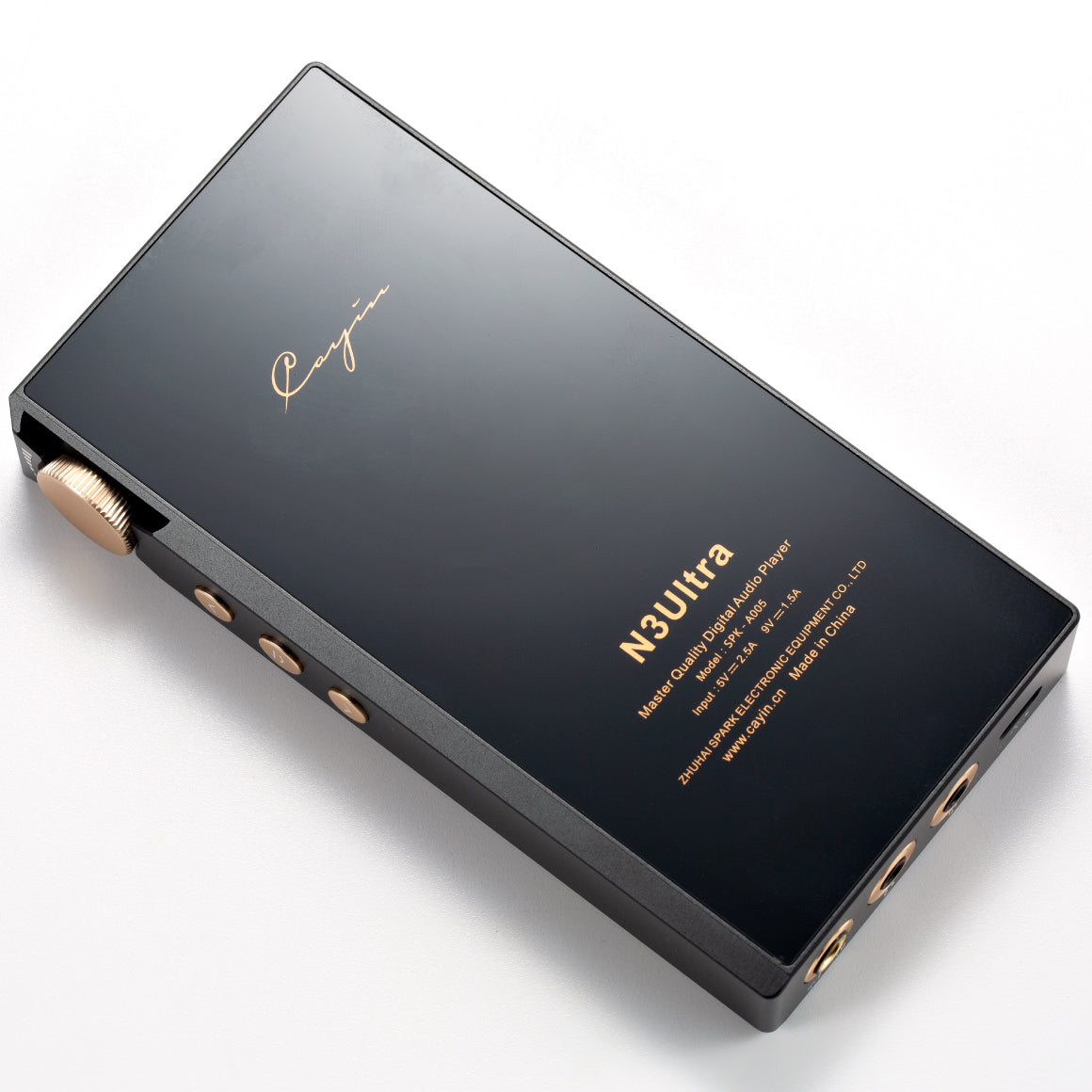

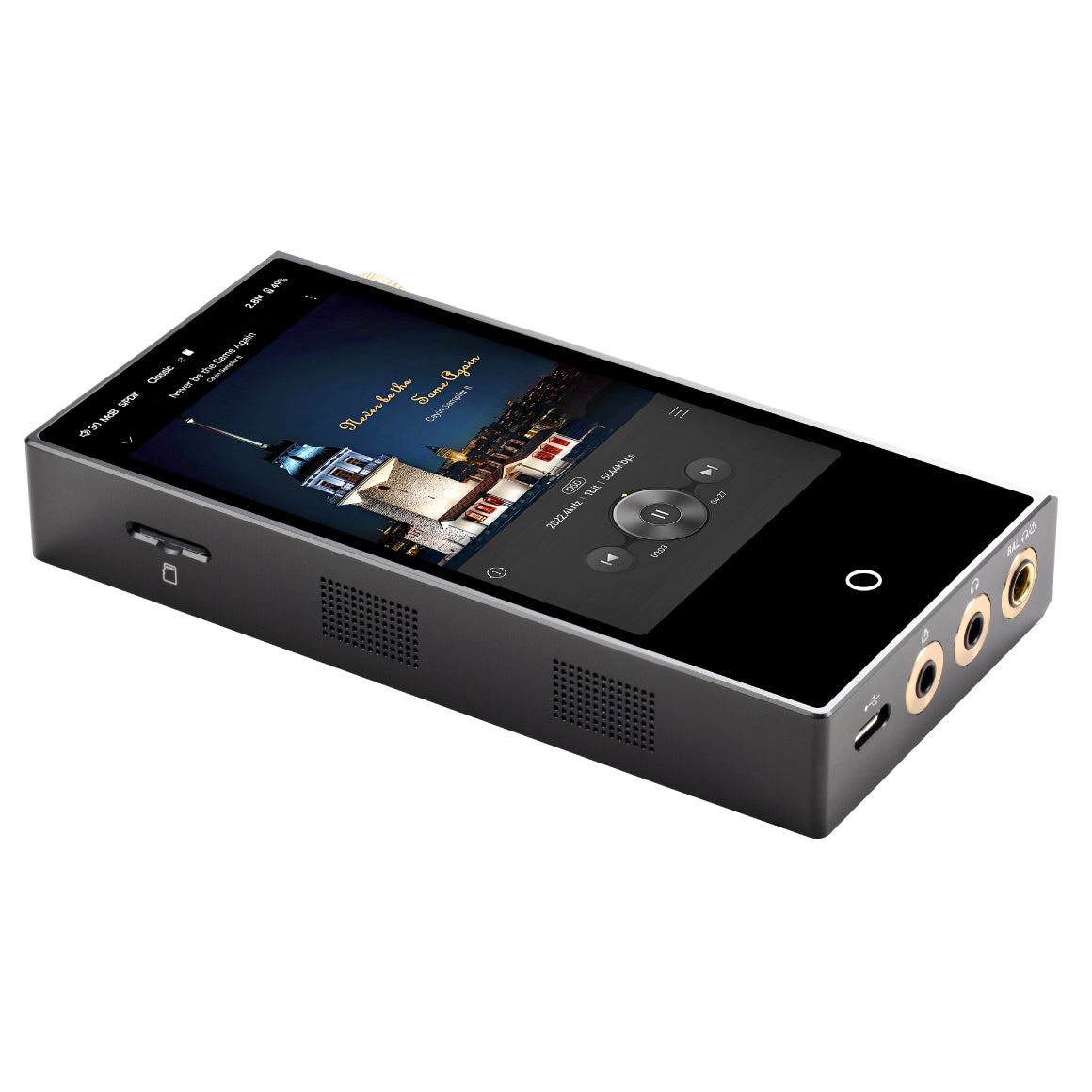

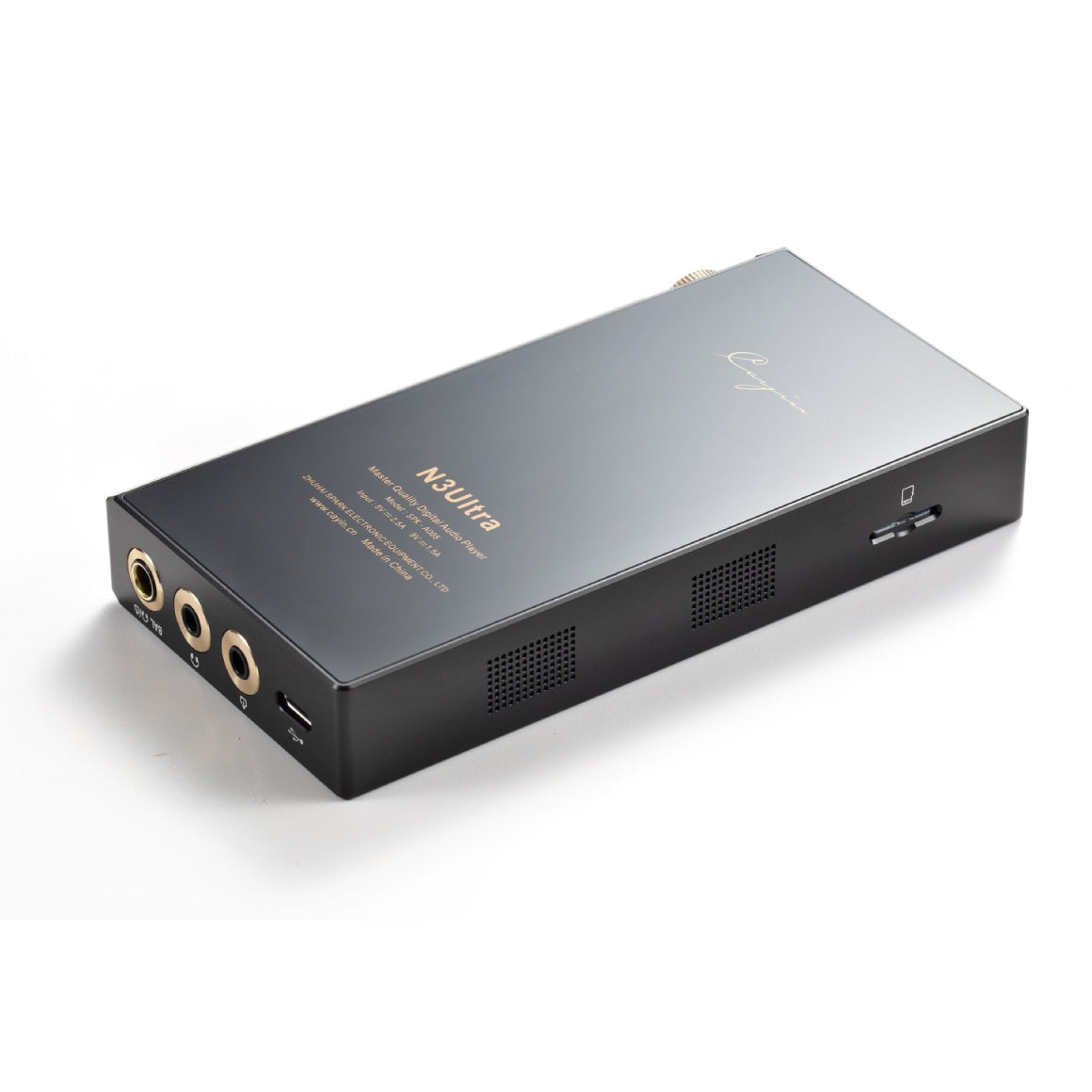

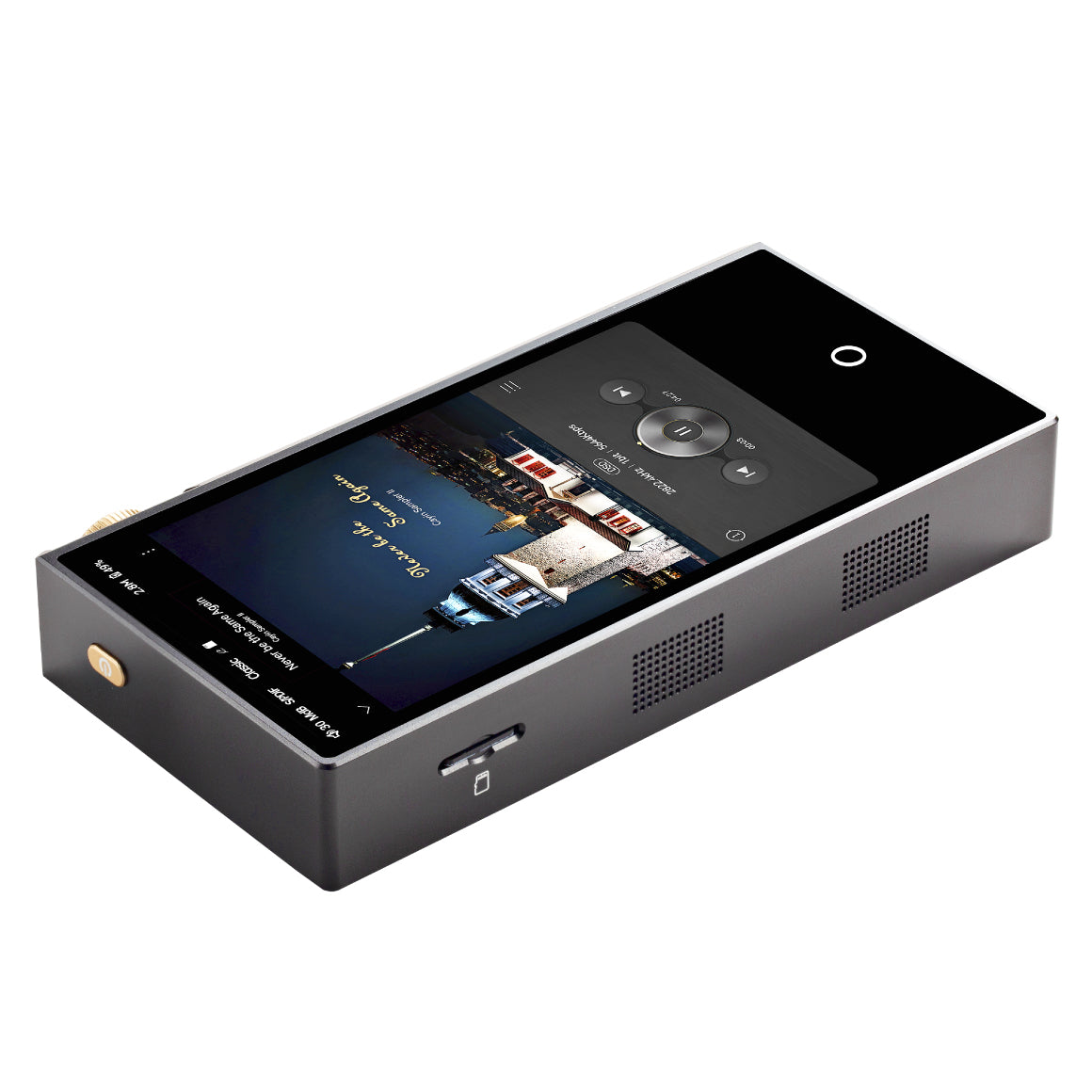

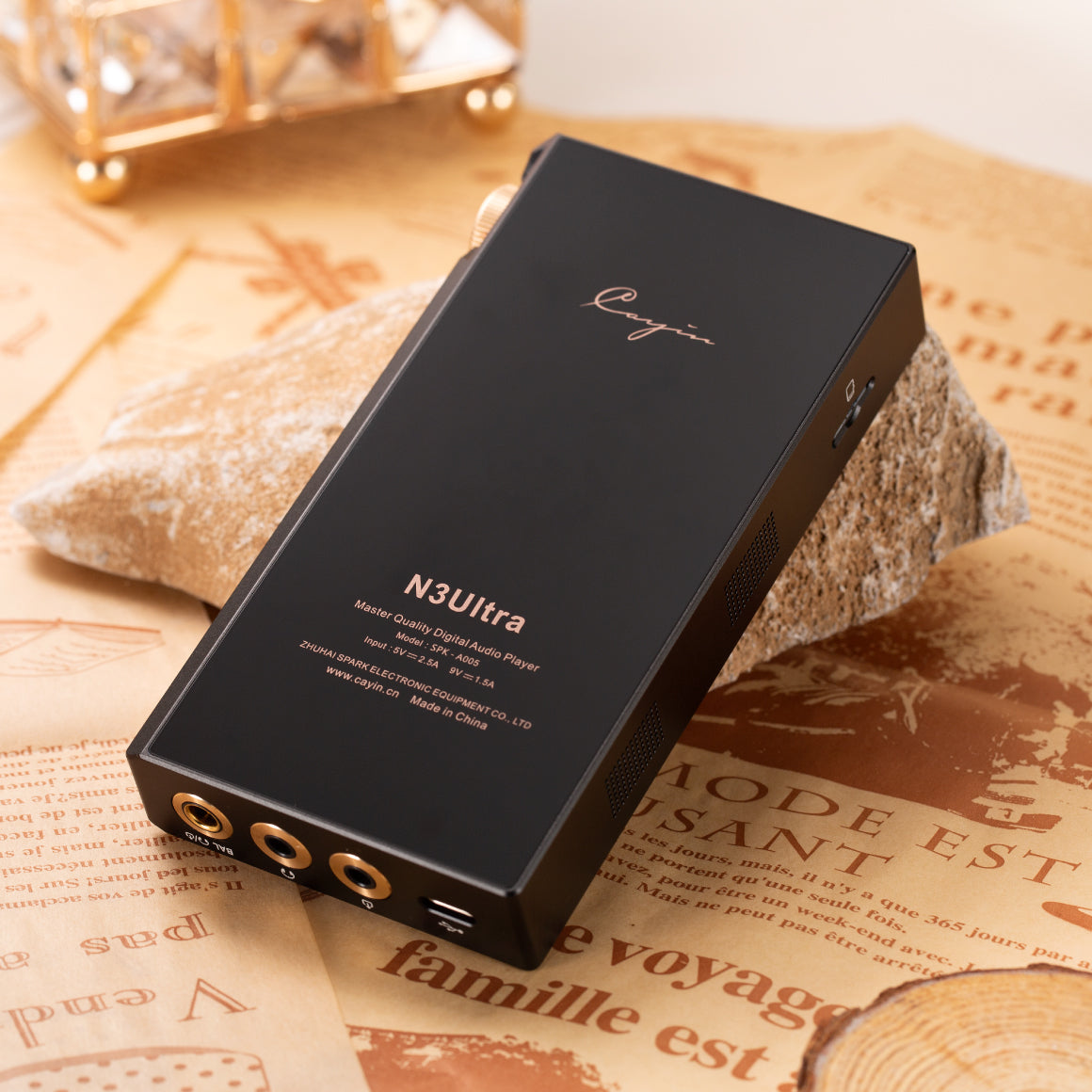

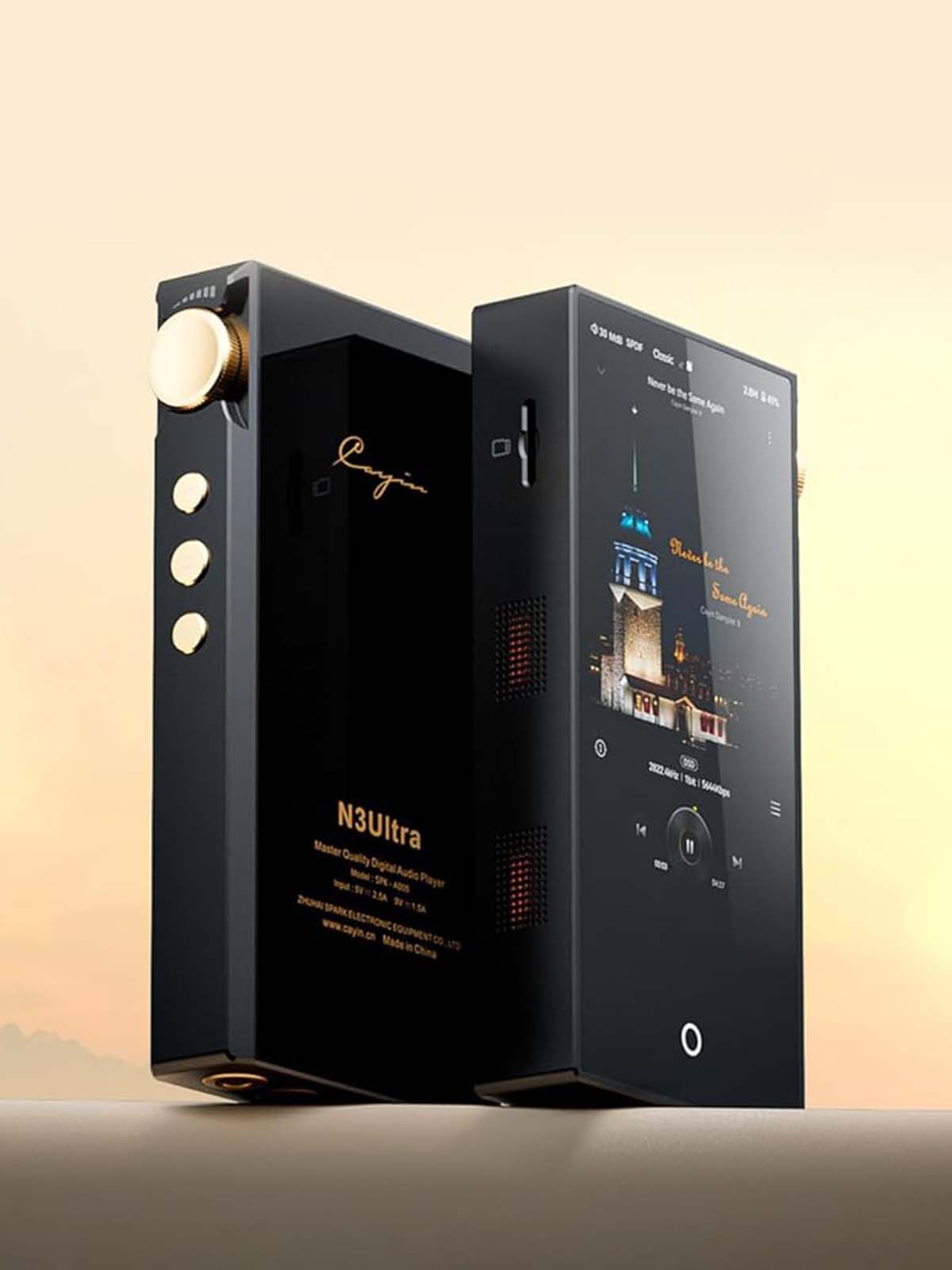

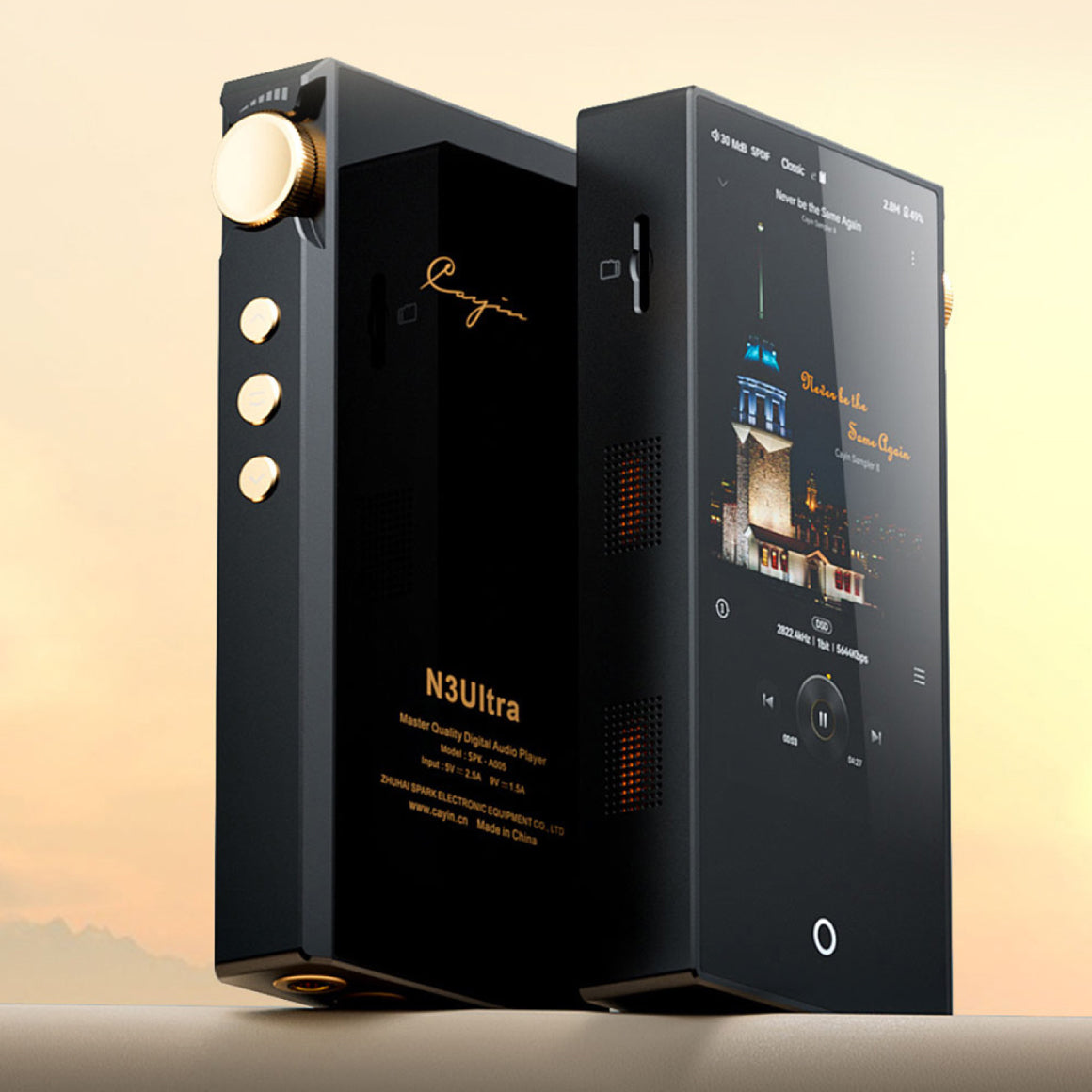

PRESENTING THE CAYIN N3ULTRA - THE ALL-NEW ON-THE-GO MUSIC COMPANION
Cayin launches a digital audio player, the all-new N3Ultra. Crafted with meticulous attention to detail, this portable music player is designed with high-performance components to deliver an exceptional on-the-go music listening experience. The Cayin N3Ultra houses vintage JAN6418 vacuum tubes, providing a warm and rich sound signature. Its dual AK4493SEQ DAC chips ensure high-resolution audio playback, supporting formats up to DSD512 and PCM 768kHz/32Bit. It also features a precision volume controller, customizable parametric EQ, and versatile headphone and line-level outputs that cater to individual preferences, offering a personalized audio journey. This portable excellence provides fast-charging capability and long battery life and is compatible with amplifiers, active speakers, and DAC setups. It is a versatile audio device and an indispensable companion for music enthusiasts seeking uncompromising audio quality and control.
NOTE: Cayin N3Ultra Firmware V1.4 - Optimized performance for a more stable connection. Click here to download

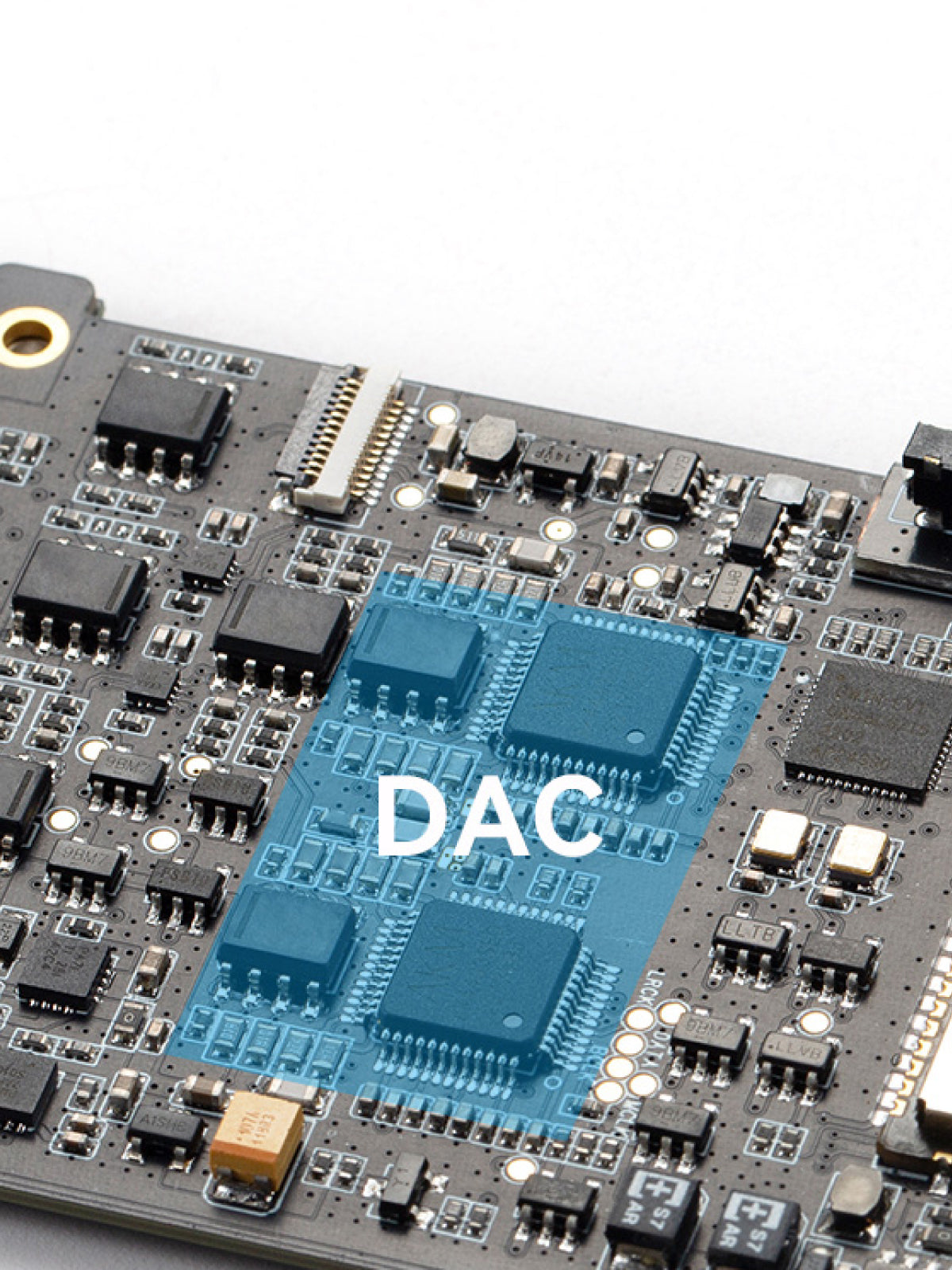

EQUIPPED WITH DUAL AK4493SEQ CHIPSETS FOR EXCEPTIONAL DECODING PERFORMANCE
Cayin has equipped the N3Ultra with exceptional DAC from AKM technologies. The AK4493SEQ chipset had earned its name in the audio-fidelity realm for its capability to deliver detailed, natural sound with clarity and fidelity. The Cayin N3Ultra supports high-resolution audio decoding formats like DSD512 and PCM 768kHz/32Bit, allowing you to listen to music in its purest form. The dual AK4493SEQ chipsets and analog circuits work independently in each channel, ensuring that your Cayin N3Ultra efficiently reduces crosstalk, enhancing audio clarity and stereo separation. The dual AK4493SEQ chipsets in the Cayin N3Ultra operate in Mono mode in fully differential output, providing precise and detailed sound reproduction. This thoughtful design contributes towards a more immersive and lifelike music listening experience with your Cayin N3Ultra.

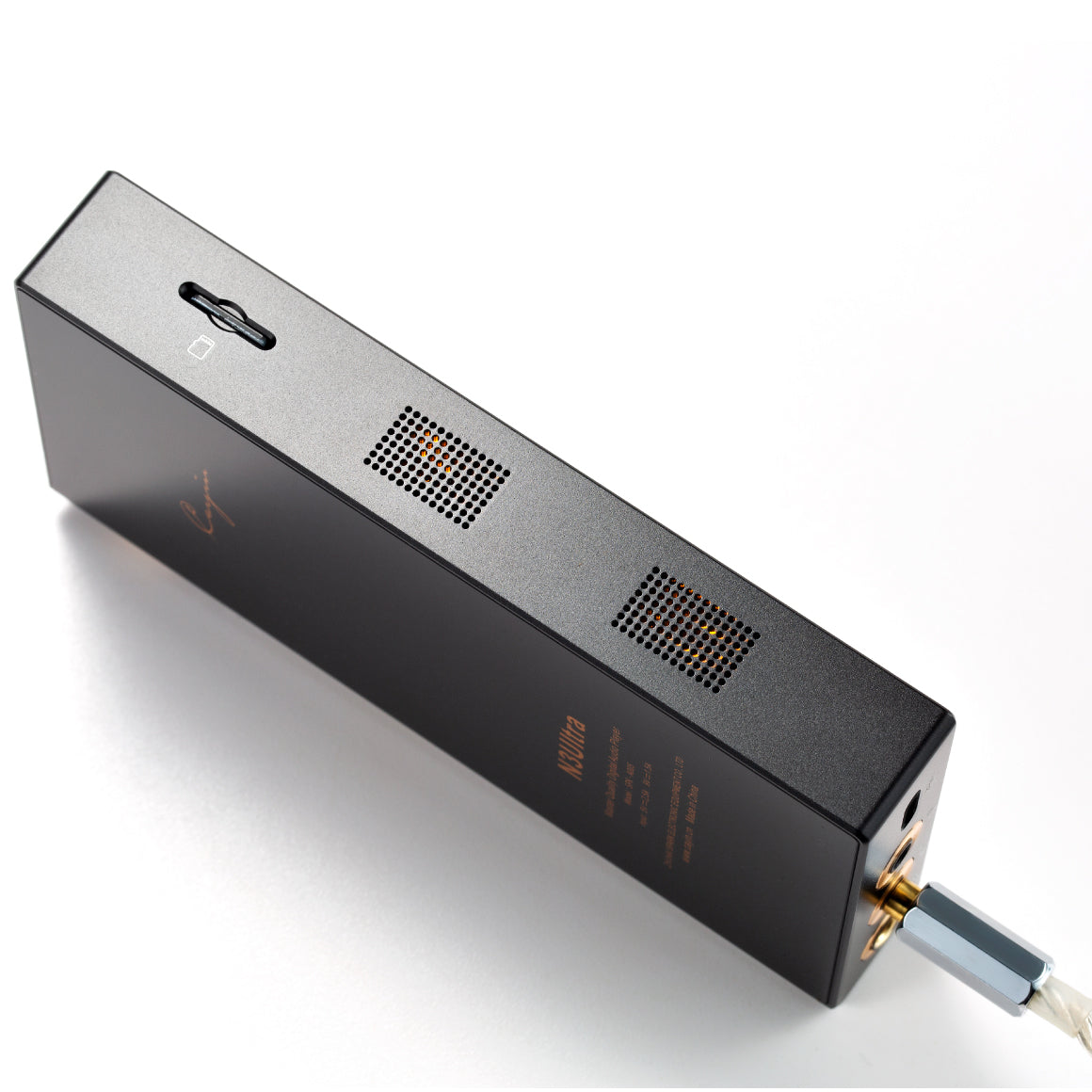

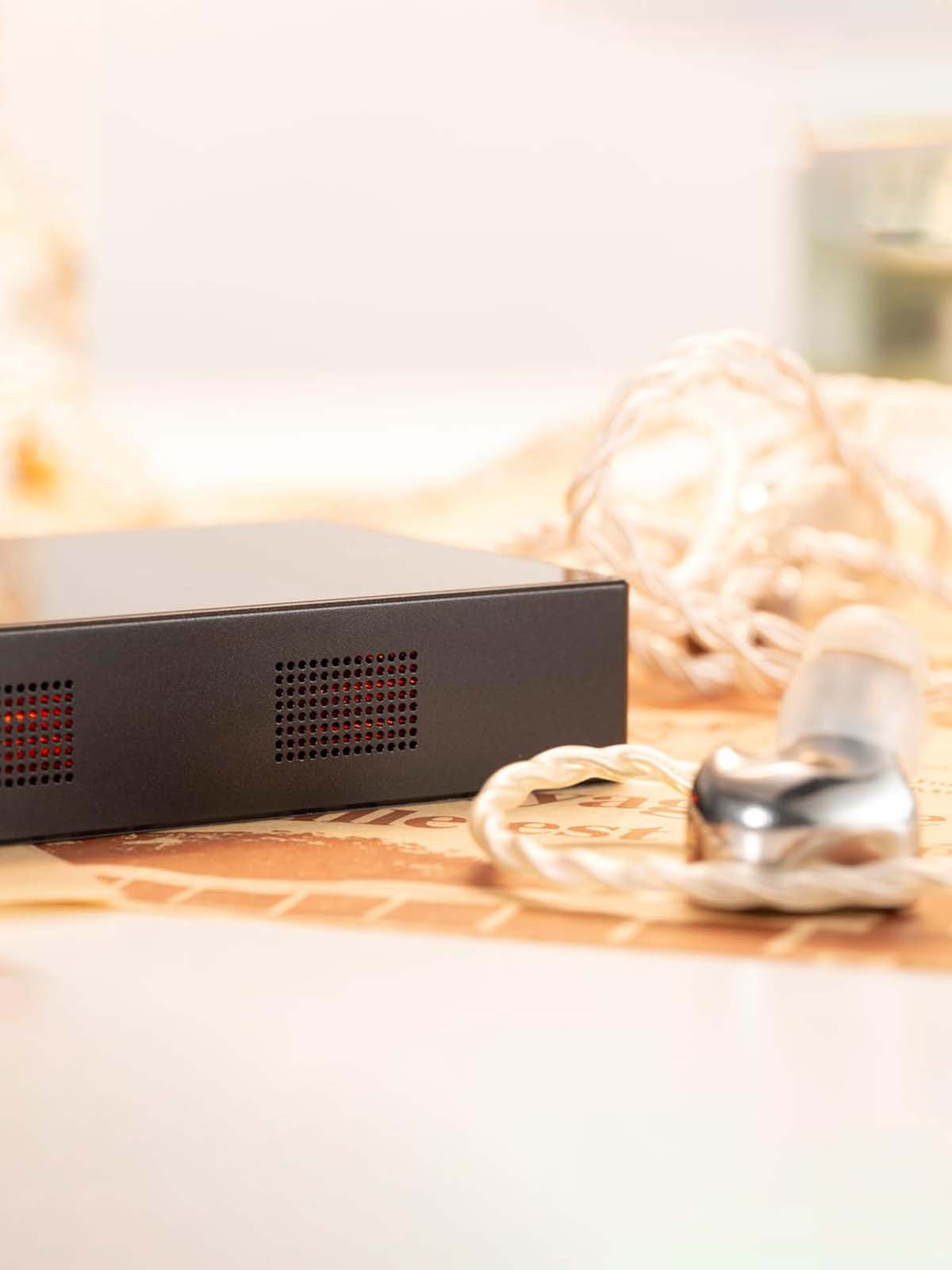

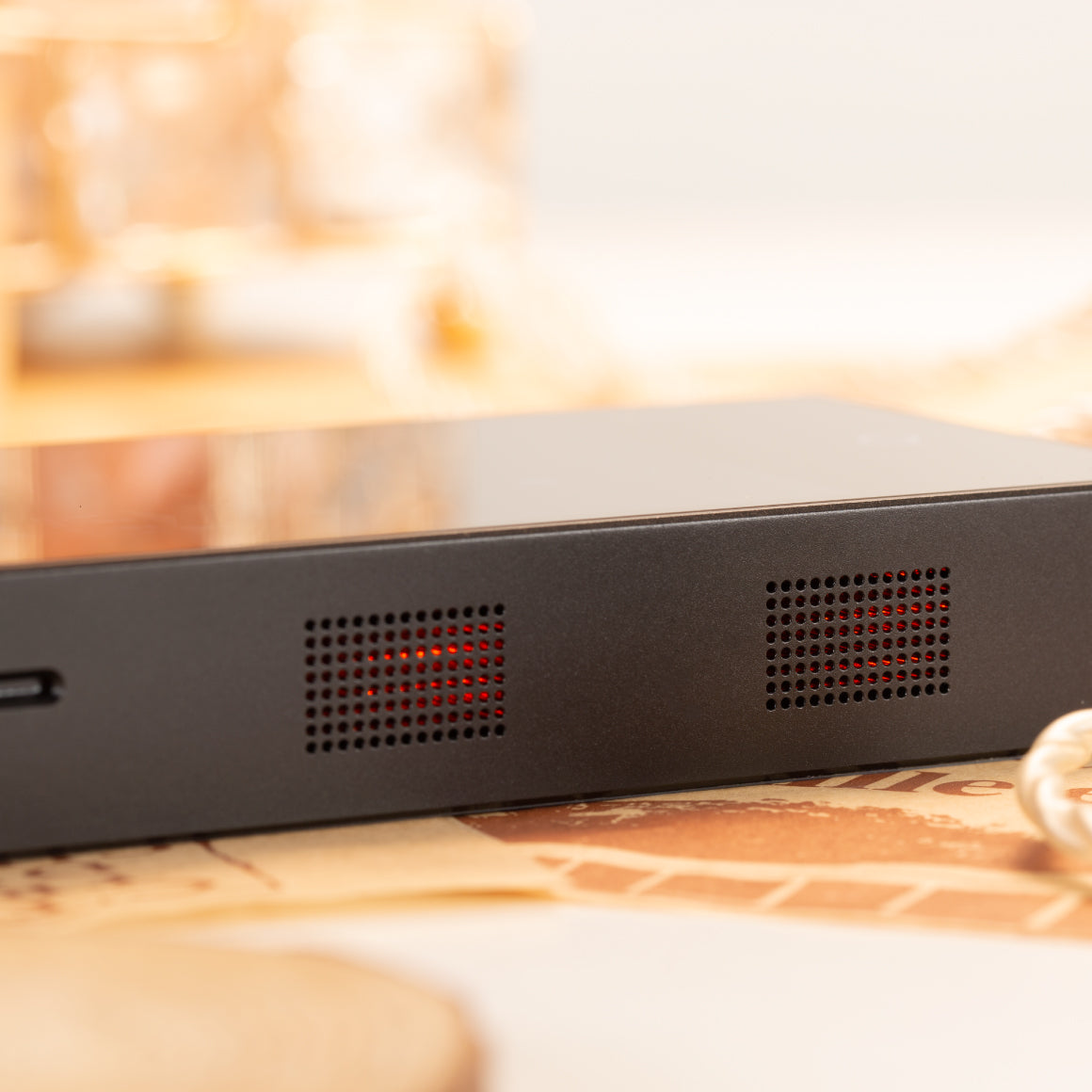

POWERFUL AMPLIFICATION CAPABILITIES WITH MILITARY-GRADE NOS VACUUM TUBES
Cayin's expertise in tube amplifier engineering is evident in the N3Ultra, which features vintage JAN6418 vacuum tubes and Raytheon military-grade NOS tubes. The former vintage tube amps aim to provide a classic tube sound with rich overtones. And the military-grade NOS tubes from Raytheon ensure high-quality analog outputs across all channels. Unlike traditional setups, the N3Ultra equips Cayin's 3rd generation vacuum tube technology in a two-stage timbre circuit. These tubes enhance the low gain voltage amplification and driving capability. This setup allows you to choose from three distinct timbre options - Classic Tube for a warm and full-bodied sound, Modern Tube for a lively soundstage with impressive linearity and Solid-State for a balanced and clear audio experience. The Cayin N3Ultra caters to your preferences with these sound customisation characteristics, giving you an authentic music listening experience.
CUSTOMIZE THE SOUND OF YOUR MUSIC ALONGWITH PRECISE VOLUME CONTROL AND PEQ ADJUSTMENTS
The Cayin N3Ultra digital audio player provides a unique level of customization through its tube amps, offering three distinct sound signatures. With options like classic tube timbre for a warm and rich sound, modern tube timbre for a lively and linear soundstage and solid-state timbre for a balanced and clear audio experience. Along with this, it features precise volume control and accurate sound-delivering components, along with customizable features. It equips the JRC NJW1195A four-channel volume controller, known for its low noise and distortion, ensuring high-quality sound output. The Cayin N3Ultra also features two accusilicon AS318 femtosecond oscillators, reducing jitter and maintaining signal accuracy with ultra-low phase noise (-100dBC) for an authentic listening experience. The volume control chip minimizes digital artefacts and enhances musicality during playback. Also with precise volume control, the Cayin N3Ultra provides 10-band parametric EQ customization, allowing you to fine-tune sound according to your preferences and listening style taste.

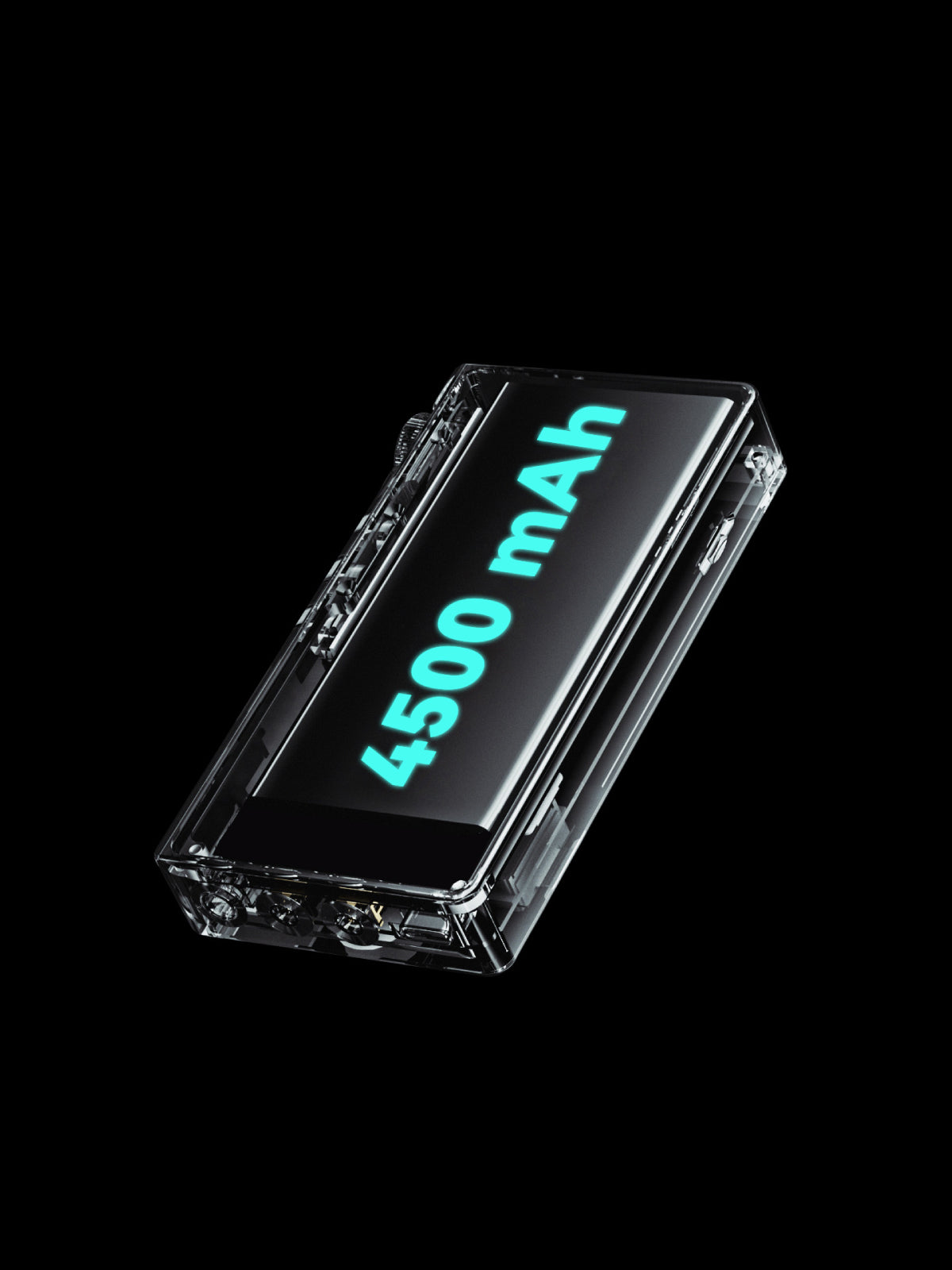

EMBEDDED WITH A MASSIVE 4500MAH BATTERY AND ANDROID-BASED OPERATING SYSTEM
The compact yet powerful Cayin N3Ultra provides a robust battery life with its 3.85V 4500mAH Lithium battery. This efficient power management system provides a playback time of up to 11.8 hours with 3.5mm single-ended IEM in solid-state timbre and 7.6 hours with 4.4mm balanced IEM in vacuum tube timbre. It supports fast charging with QC3.0, allowing you to charge from 20% to 80% in around 1 hour, ensuring minimal downtime. The Cayin N3Ultra runs on an Android-based system with a Qualcomm 425 CPU, delivering a smooth and responsive user interface. Along with all its high-performance features and components, the portable Cayin N3Ultra supports up to 1TB storage expansion via TF card and OTG USB.

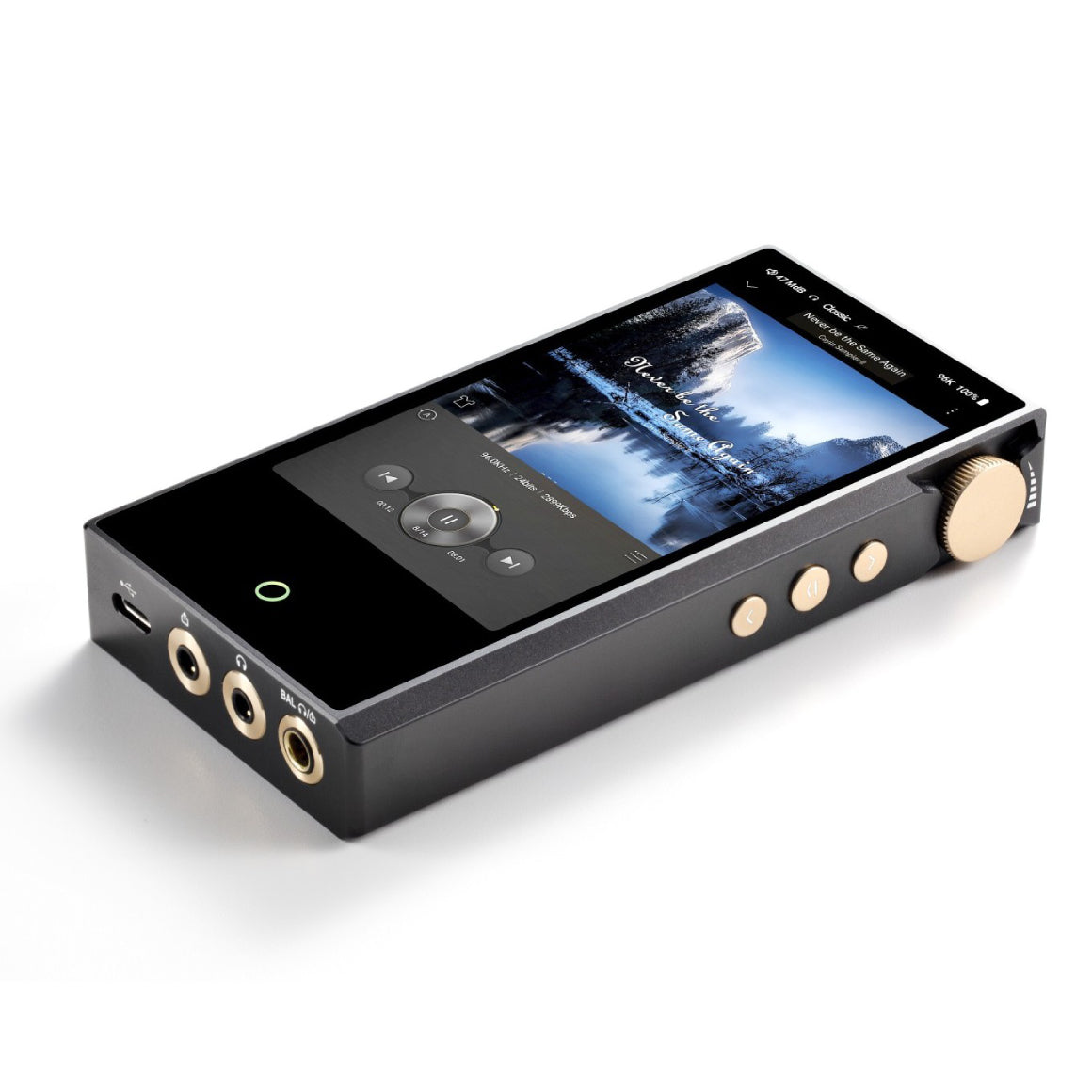

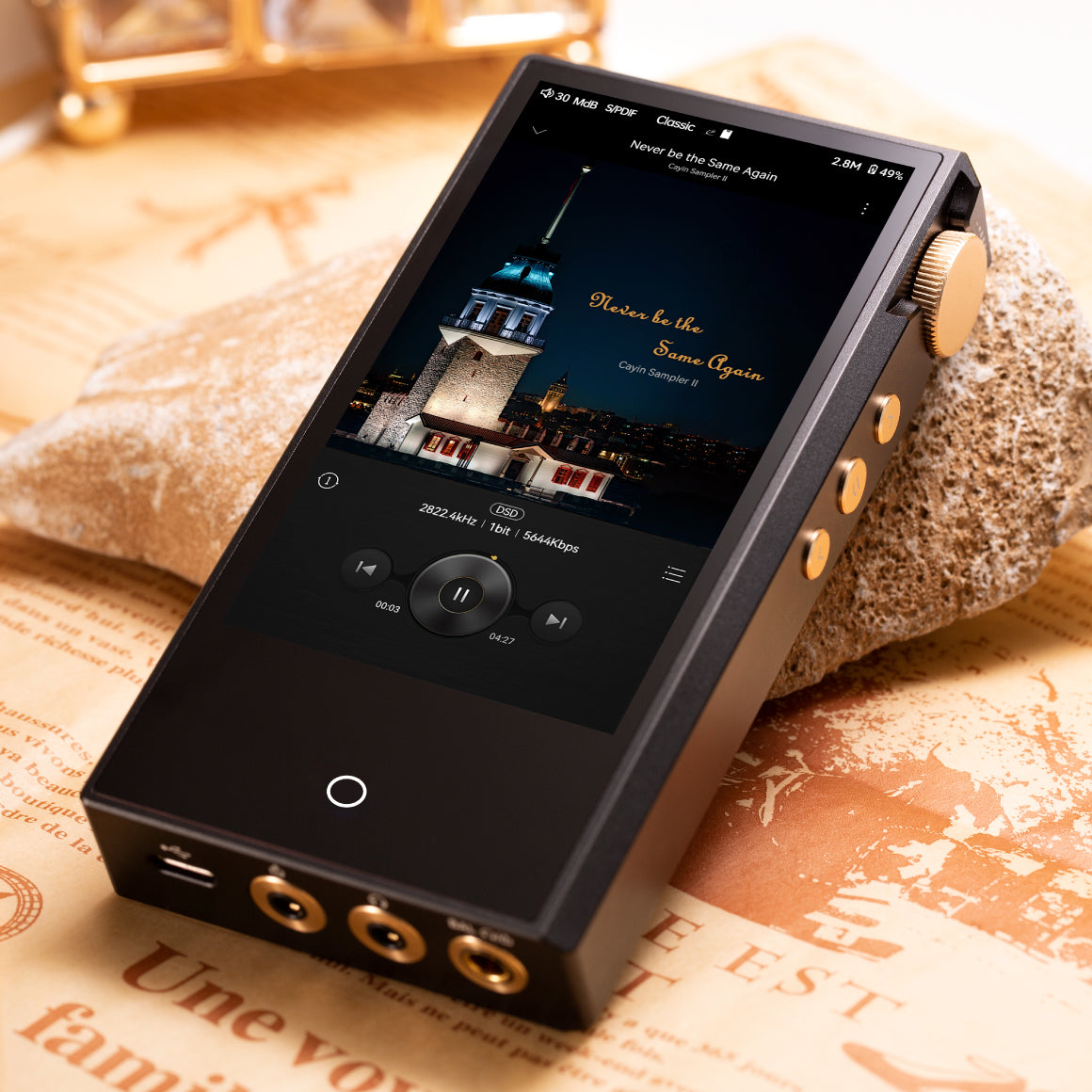

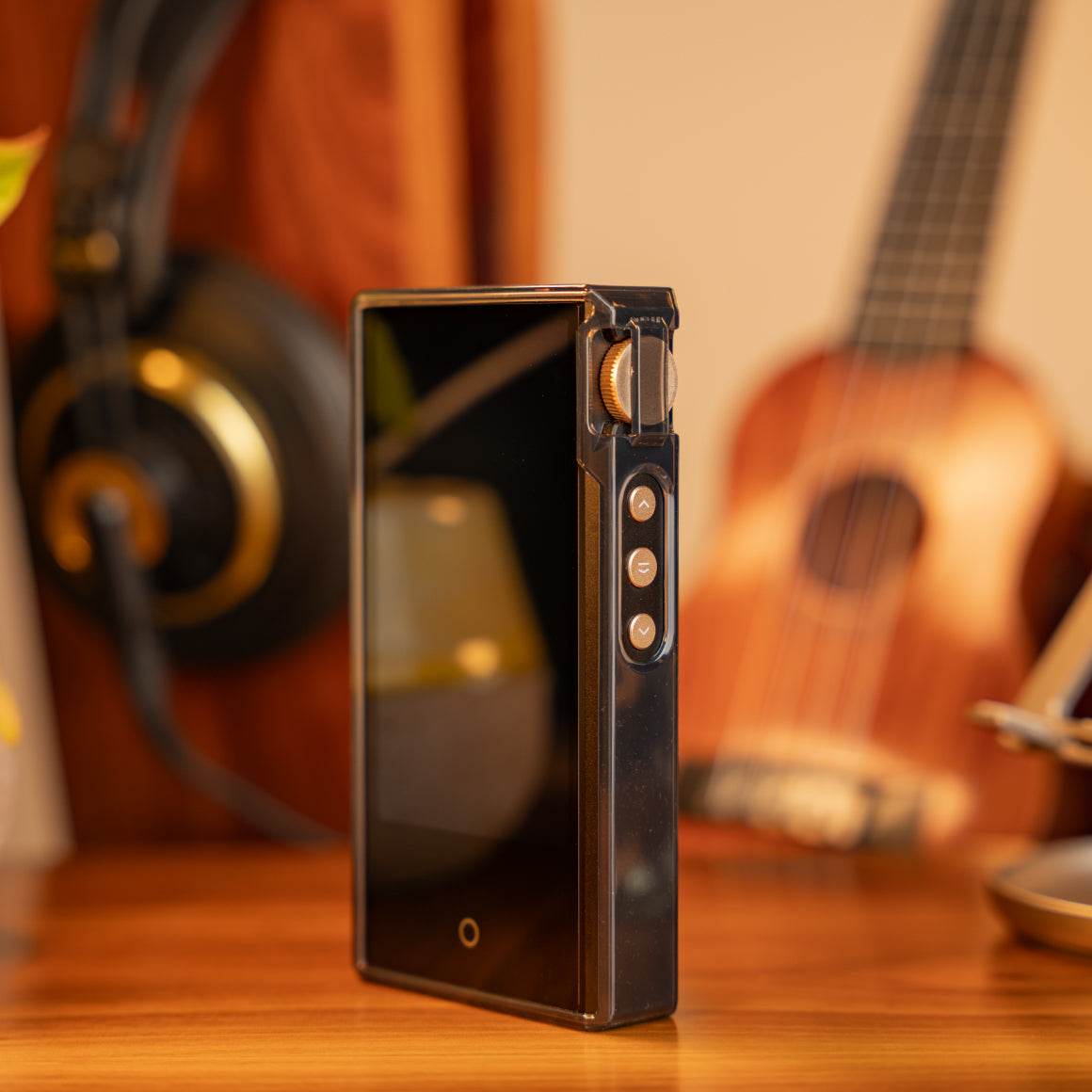

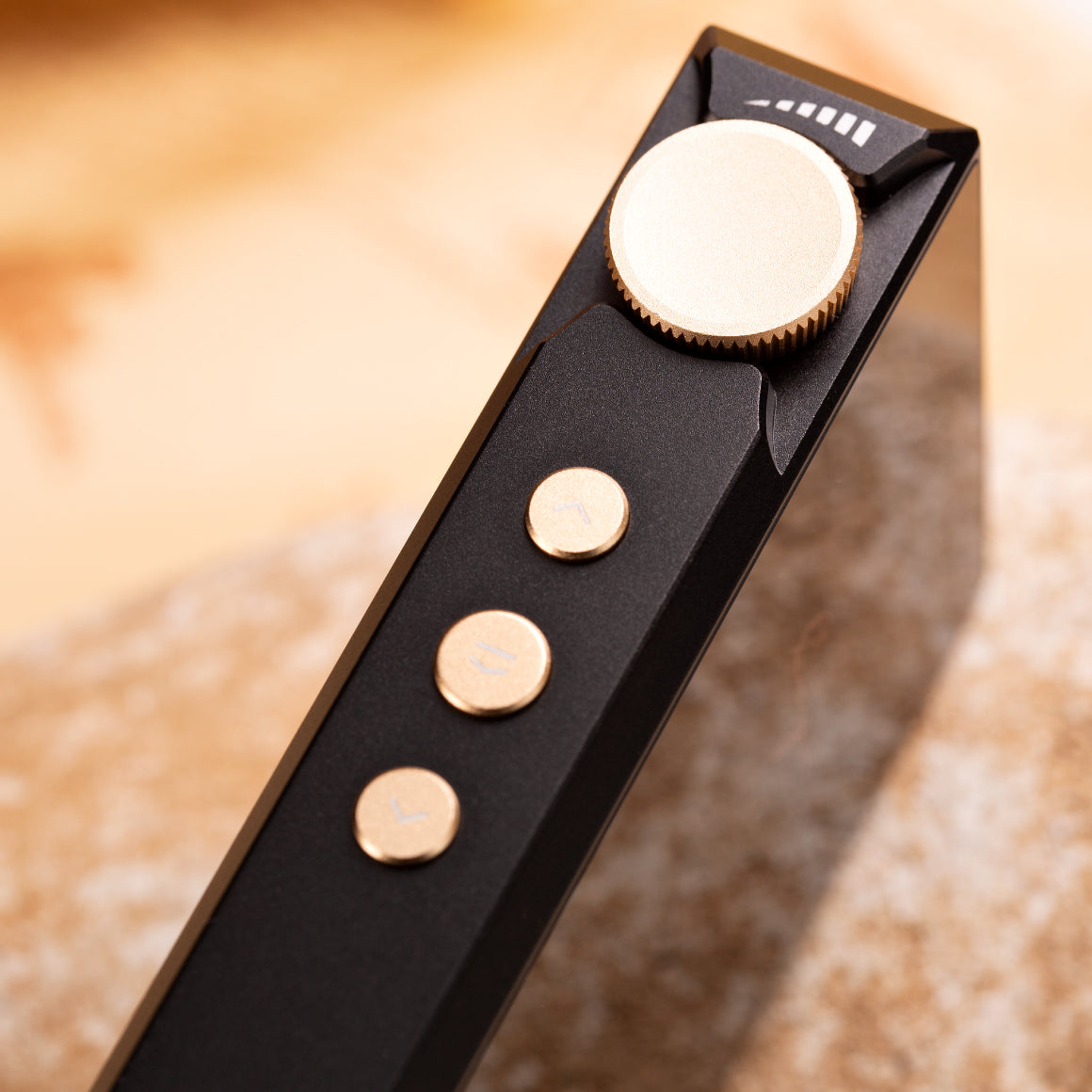

OFFERS EASY CONTROLS AND SMART INDICATOR FOR ELEVATED USER EXPERIENCE
For a user-friendly experience, the Cayin N3Ultra features a 4.1" 720x1280 responsive touch screen, physical knobs and buttons for intuitive operation, all in a compact and lightweight design. It also equips a glowing HOME button functioning as a sampling rate indicator. To ensure seamless navigation, it includes a BACK key for easy access to files and menus. Above all, to showcase visual design appeals complementing the CNC precision build, the Cayin N3Ultra features a laser-drilled side-mounted tube window, adding a warm glow to enhance the immersive musical experience during playback.

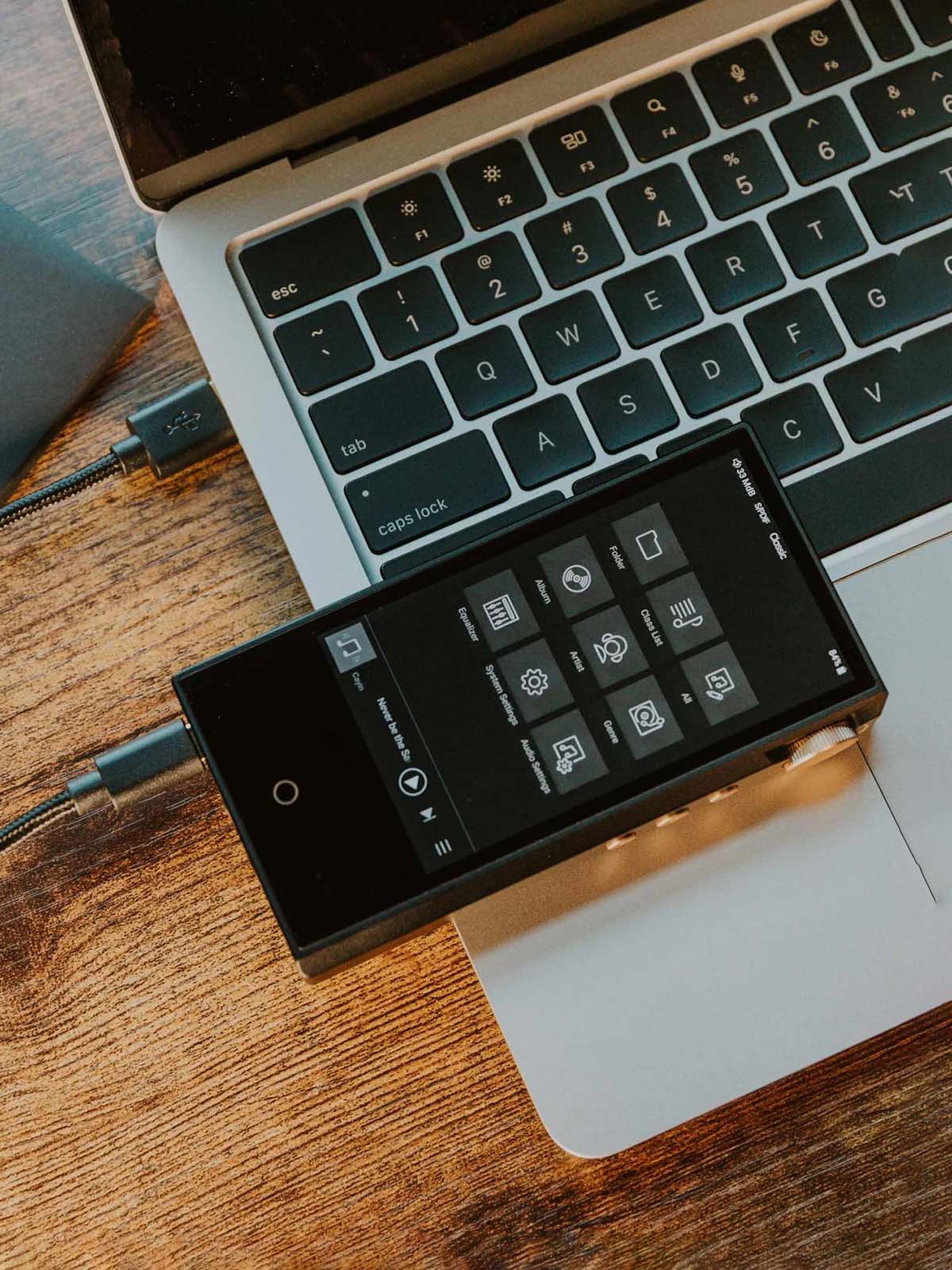

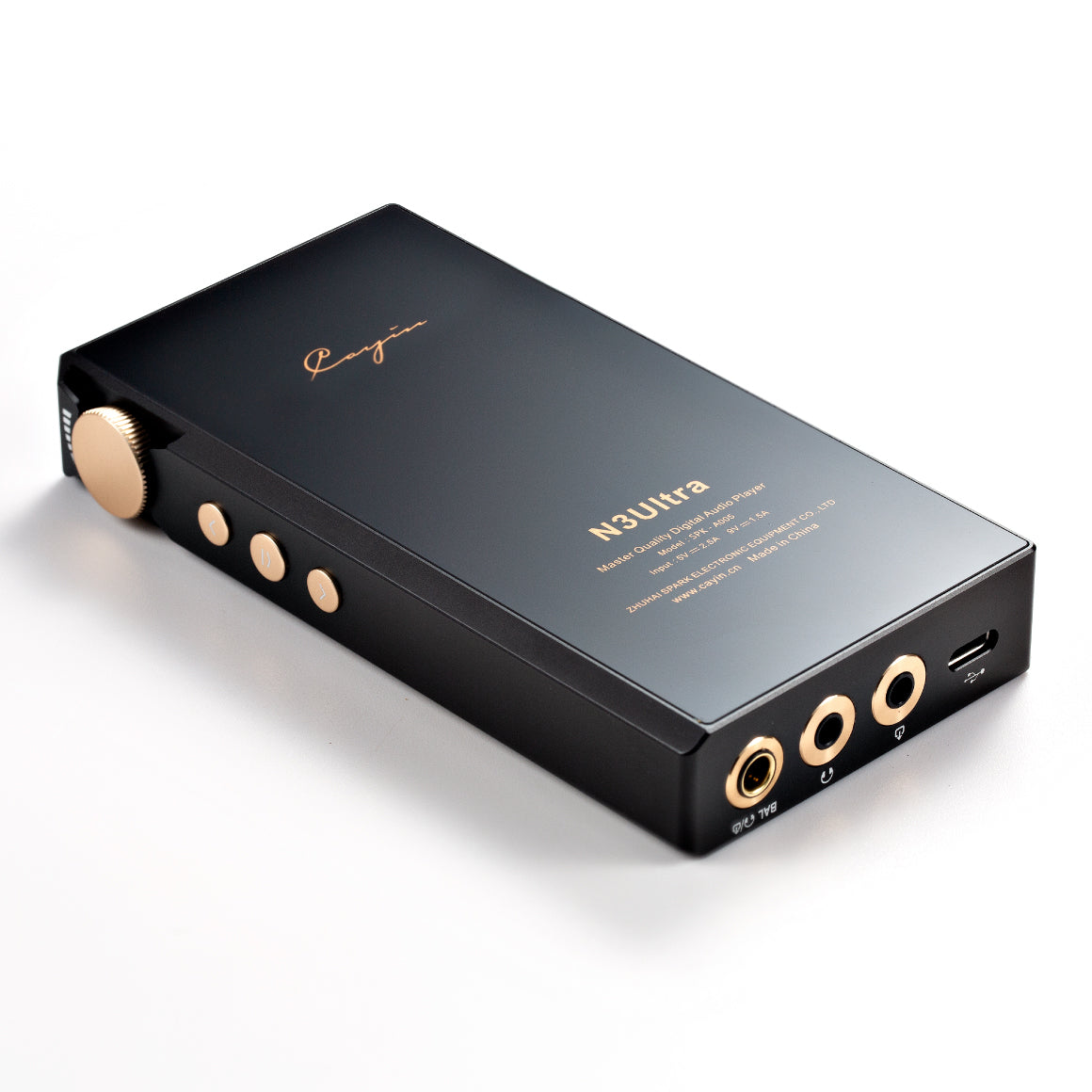

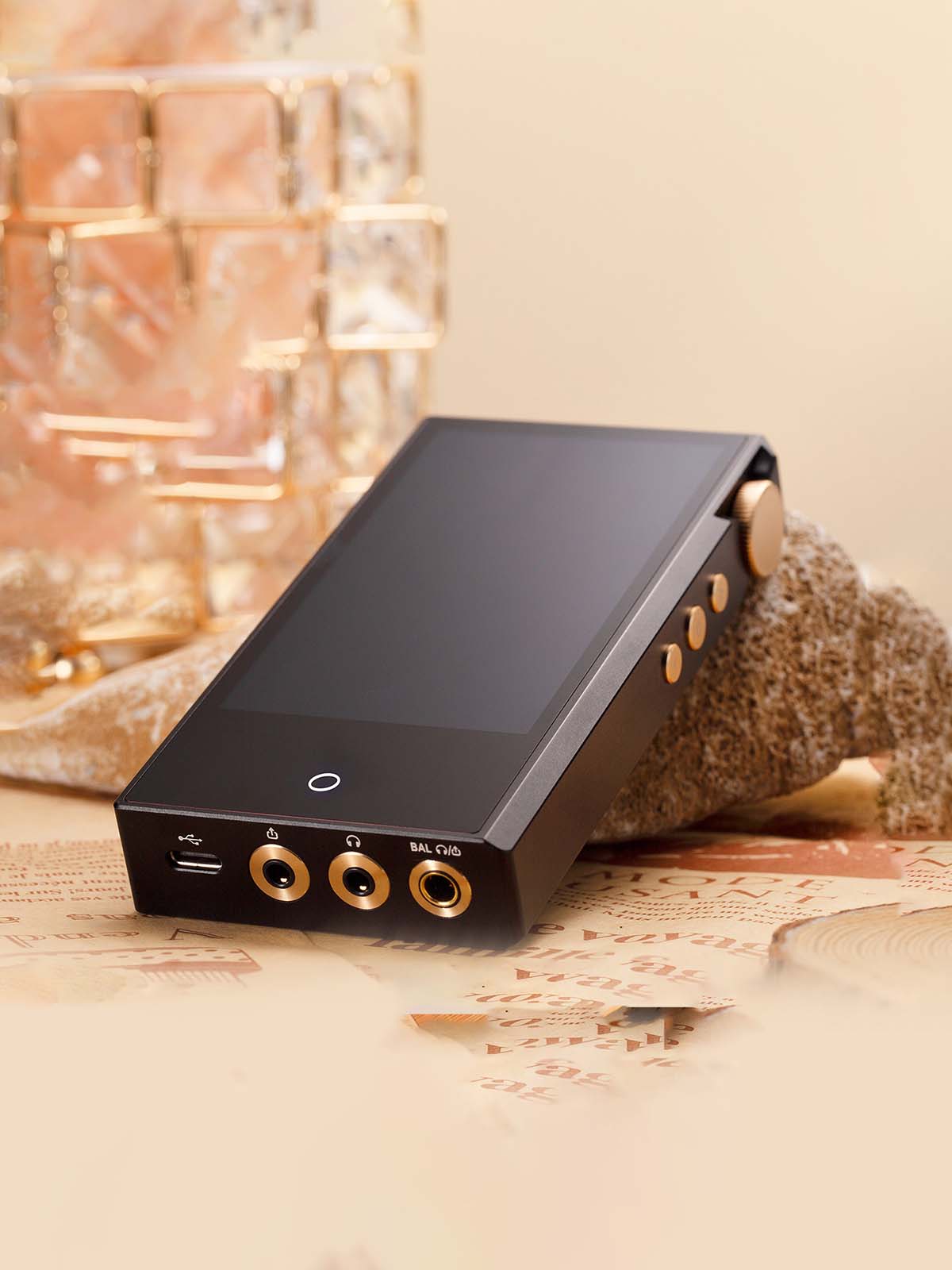

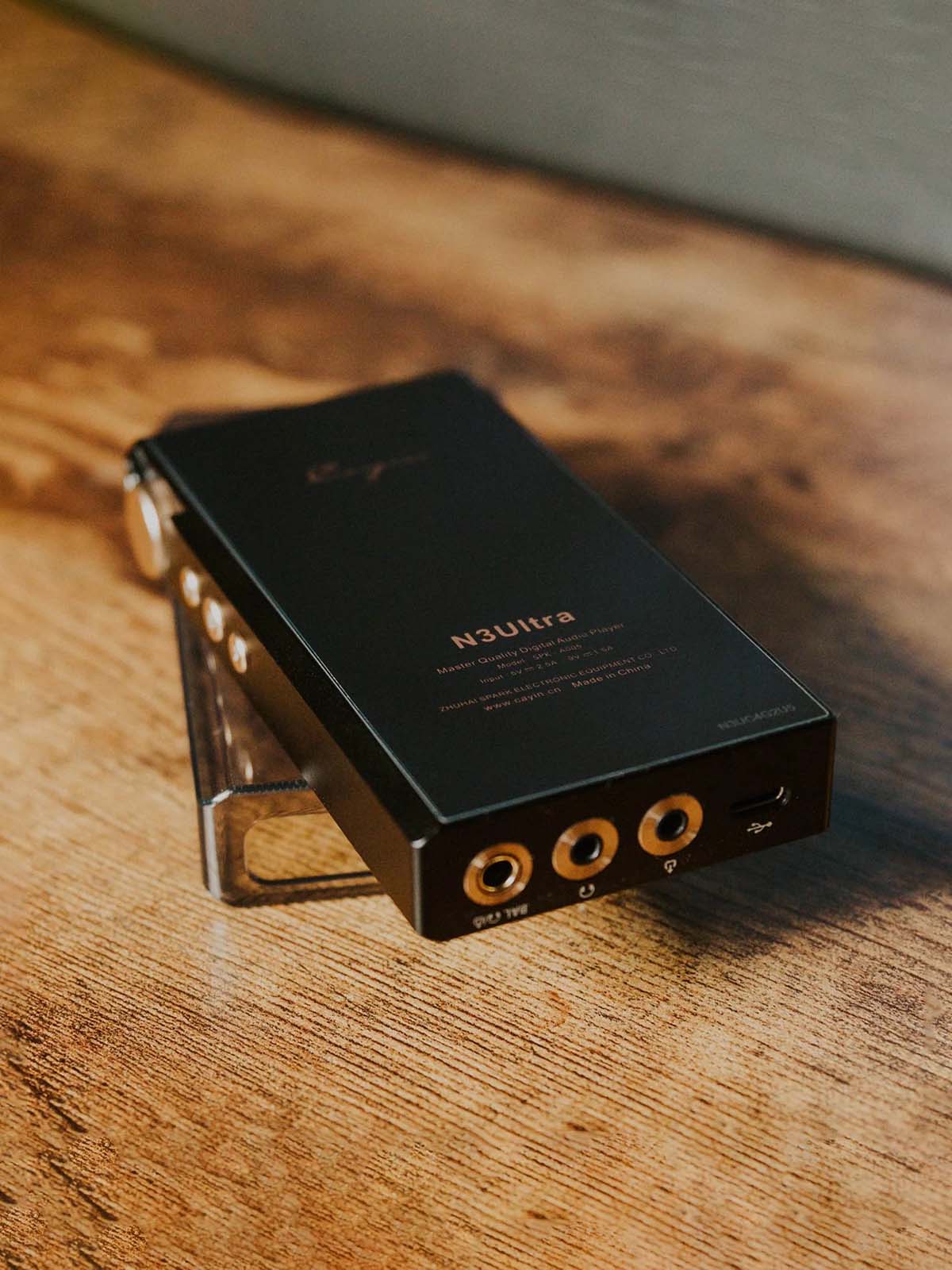

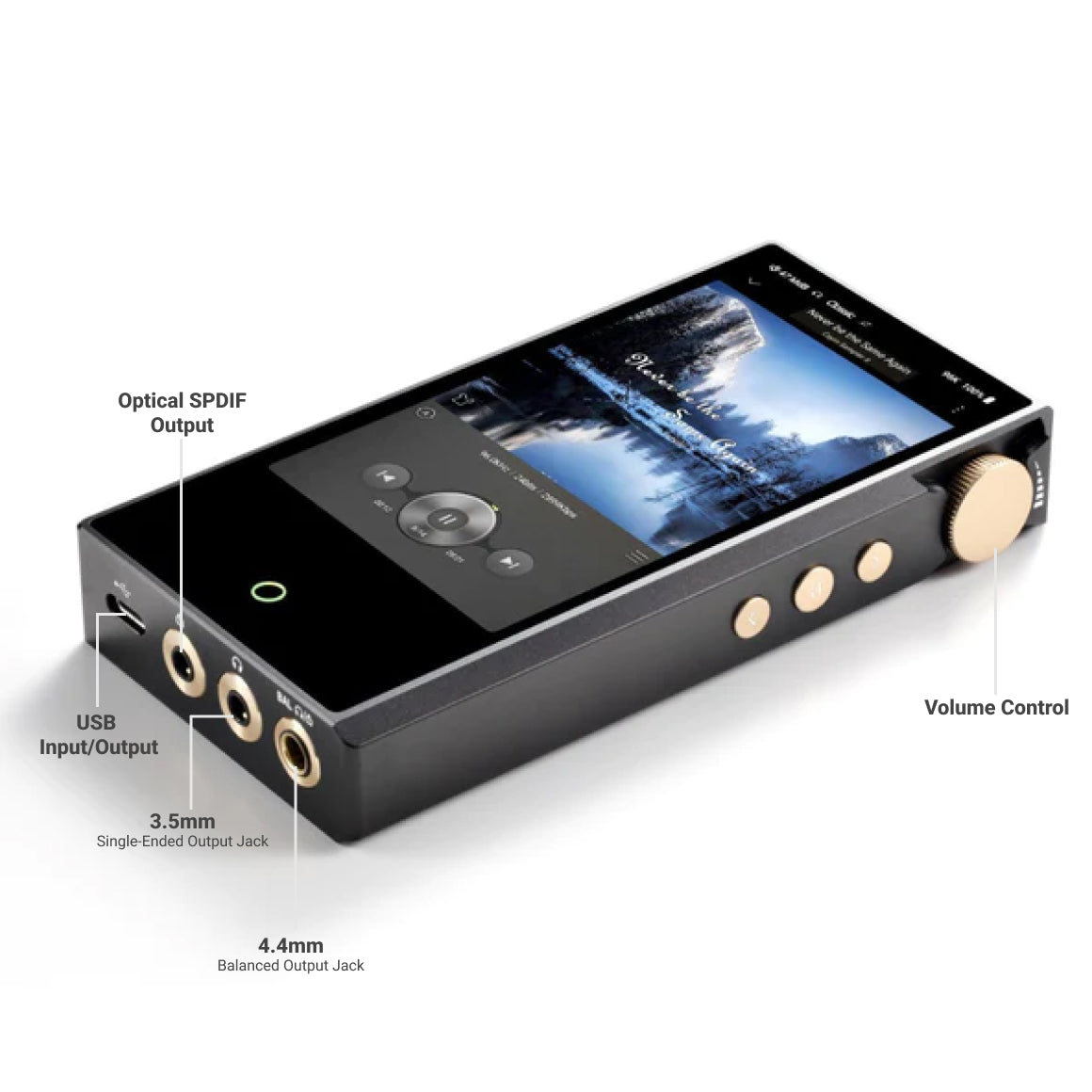

THOUGHTFUL INPUT AND OUTPUT STAGE FOR CONNECTIVITY WITH VARIOUS DEVICES
The portable Cayin N3Ultra provides versatile headphone and line-level outputs, with single-ended 3.5mm and balanced 4.4mm options. These outputs can produce either vacuum tubes or solid-state timbres, providing diverse sound listening experiences. The Cayin N3Ultra also features dual line outputs, with the 4.4mm balanced output configurable as either a headphone out or line out. You can adjust the output levels for maximum compatibility with various audio devices. The line out provides a clean, unamplified fixed voltage signal, ideal for connecting to external headphone amplifiers or integrated amplifiers in home audio systems. The Cayin N3Ultra equips a versatile connectivity interface, including USB audio input and output and S/PDIF coaxial output. This expands the compatibility of the Cayin N3Ultra to pair with amplifiers, active speakers and DAC setups, making it capable of operating with a diverse range of devices.
DESIGNED WITH SAFETY-ENSURING COMPONENTS FOR SMOOTH OPERATION
The Cayin N3Ultra digital audio player features innovative shock-absorbing mechanisms and suspension design to minimize vibrations and microphonic effects. It utilizes custom-molded shock absorption Silicon housing to shield and hold the JAN6418 vacuum tube, reducing external interference. The device integrates suspension pins into its CNC aluminium frame, providing a vertical suspension effect for the tube, which helps relieve stress and enhances stability. The Cayin N3Ultra equips an inter-stage loop negative feedback (NFB) and FET control for the vacuum tube's power supply, ensuring consistent performance and stability.
SPECS
DAC | AK4493SEQ x2 (Mono Mode) |
MCU | Snapdragon 425 |
VACUUM TUBE | Raytheon JAN6418 x2 |
SYSTEM | Customized Android 8.1 |
TIMBRE CIRCUIT | Gen3 Vacuum Tube Audio Circuit |
LOSSLESS | DTA bypass Android SRC |
VOL. CONTROL | JRC NJW1195A 4 Channels E-volume |
LPF | Dual Op-Amp x2 |
STORAGE | TF x1 (support up to 1TB) |
MEMORY | 2GB RAM |
FPGA | Re-clock, De-jitter, Re-shaping DDC |
BATTERY | 3.85V 4500mAh (17.3Wh) |
HEAD AMP. | Parallel Amplification, 4 Pieces Of Low Noise Op-Amp, 2 Amplifiers In Parallel |
DISPLAY | 4.1" (720 x 1280) TFT Multi-point Touch Screen |
PHONE OUT | 3.5mm (Single-Ended) 4.4mm (Balanced, Shared) |
BUNDLED PLAYER | Cayin Music App |
LINE OUT | 3.5mm (Single-Ended) 4.4mm (Balanced, Shared) |
PHYSICAL CONTROL | Volume Knob, Power On/Off, Playback Control |
DIGITAL INTERFACE | USB Audio (In And Out) SPDIF Coaxial (USB-embedded) |
COLORED LED | Playback Sampling Rate, Home, Charging Indicator |
USB TYPE-C | USB3.1, OTG Storage, Digital Audio QC3.0 (PD2.0 Not Supported) |
CHASSIS | Sandblasted CNC-machined Aluminum |
DIMENSION | 125 x 65.5 x 19.5 (mm) |
WEIGHT | ~204g (±10g) |
BATTERY DURATION | |
3.5MM (SINGLE-ENDED) | Solid- State Headphone: ≈11.8 Hr Line Out: ≈13.5Hr Modern Headphone: ≈9.4 Hr Line Out: ≈10.8Hr Classic Tube Headphone: ≈9.2Hr Line Out: ≈10.5Hr |
4.4MM (BALANCED) | Solid- State Headphone: ≈9.7 Hr Line Out: ≈13.2H Modern Headphone: ≈8.1Hr Line Out: ≈10.6Hr Classic Tube Headphone: ≈7.6 Hr Line Out: ≈10.3Hr |
Condition: Screen Off, 32Ω, Mid Gain, Volume 30, Playback 44.1kHz WAV Files | |
CHARGING | Standard Charger (5V-2A): ≈3.5 Hr Quick Charge QC3.0: 0-100%~2 Hr 20-80%~1Hr |
USB AUDIO OUT | Connector USB-C PCM: up to 32Bit/768kHz*; DSD: up to DSD512 (Native) or DSD256 (DOP) or PCM88.2kHz (D2P) |
USB AUDIO DAC | Connector USB-C, PCM: up to 32Bit/768kHz*; DSD: up to DSD512 (Native) or DSD256 (DOP) Systems: Windows (drivers required), MacOS, Android (partial), iOS Asynchronous USB Audio Class 2.0 |
S/PDIF COAXIAL | Connector: Embedded into USB-C (75Ω) PCM: up to 24Bit/192kHz; DSD: up to DSD64 (DOP) |
*PCM not support 64kHz sampling* |
OUTPUT | 3.5mm Single-ended 4.4mm Balanced |
3.5MM SINGLE-ENDED SOLID STATE | Power Rating (@32Ω): 250mW Output Impedance: 0.5Ω Frequency Response: 20Hz-20kHz (±0.2dB) THD+N (1kHz, 32Ω, A-Weighted): 0.008% Dynamic Range (A-Weighted): 120dB SNR (20Hz-20kHz, A-weighted): 120dB Channel Separation (@1kHz, 32Ω): 77dB |
3.5MM SINGLE-ENDED VACUUM TUBE | Power Rating (@32Ω): 250mW Output Impedance: 0.5Ω Frequency Response: 20Hz-20kHz (±0.6dB) THD+N (1kHz, 32Ω, A-Weighted): 2.0% Dynamic Range (A-Weighted): 113dB SNR (20Hz-20kHz, A-weighted): 113dB Channel Separation (@1kHz, 32Ω): 76dB |
4.4MM BALANCED SOLID STATE | Power Rating (@32Ω): 600mW Output Impedance: 1.0Ω Frequency Response: 20Hz-20kHz (±0.2dB) THD+N (1kHz, 32Ω, A-Weighted): 0.008% Dynamic Range (A-Weighted): 121dB SNR (20Hz-20kHz, A-weighted): 121dB Channel Separation (@1kHz, 32Ω): 116dB |
4.4MM BALANCED VACUUM TUBE | Power Rating (@32Ω): 600mW Output Impedance: 1.0Ω Frequency Response: 20Hz-20kHz (±0.6dB) THD+N (1kHz, 32Ω, A-Weighted): 2.0% Dynamic Range (A-Weighted): 113dB SNR (20Hz-20kHz, A-weighted): 113dB Channel Separation (@1kHz, 32Ω): 92dB |
OUTPUT | 3.5mm Single-ended 4.4mm Balanced |
3.5MM SINGLE-ENDED SOLID STATE | Output Level: High: 2.1V, Medium: 1.6V, Low: 1.0V Output Impedance: 100Ω Frequency Response: 20Hz-20kHz (±0.2dB) THD+N (1kHz, 47kΩ, A-Weighted): 0.004% Dynamic Range (A-Weighted): 122dB SNR (20Hz-20kHz, A-weighted): 122dB Channel Separation (@1kHz, 47kΩ): 100dB |
3.5MM SINGLE-ENDED VACUUM TUBE | Output Level: High: 2.1V, Medium: 1.6V, Low: 1.0V Output Impedance: 100Ω Frequency Response: 20Hz-20kHz (±0.6dB) THD+N (1kHz, 47kΩ, A-Weighted): 2.0% Dynamic Range (A-Weighted): 113dB SNR (20Hz-20kHz, A-weighted): 113dB Channel Separation (@1kHz, 47kΩ): 96dB |
4.4MM BALANCED SOLID STATE | Output Level: High: 4.2V Medium: 3.2V Low: 2.0V Output Impedance: 200Ω Frequency Response: 20Hz-20kHz (±0.2dB) THD+N (1kHz, 47kΩ, A-Weighted): 0.004% Dynamic Range (A-Weighted): 125dB SNR (20Hz-20kHz, A-weighted): 125dB Channel Separation (@1kHz, 47kΩ): 122dB |
4.4MM BALANCED VACUUM TUBE | Output Level: High: 4.2V Medium: 3.2V Low: 2.0V Output Impedance: 200Ω Frequency Response: 20Hz-20kHz (±0.6dB) THD+N (1kHz, 47kΩ, A-Weighted): 2.0% Dynamic Range (A-Weighted): 113dB SNR (20Hz-20kHz, A-weighted): 113dB Channel Separation (@1kHz, 47kΩ): 98dB |
DSD | Format : Bit-Rate : Sampling Freq. DSF : 1bit : 2.8MHz-22.6MHz DFF : 1bit : 2.8MHz-22.6MHz SACD-ISO : 1bit : 2.8MHz Remark : Native, DoP, D2P (88.2kHz) Supports DST Encoded DFF and SACD-ISO |
PCM | Format : Bit-Rate : Sampling Freq. WAV : 16bit - 32bit : 32kHz - 768kHz AIF/AIFF : 16bit - 32bit : 32kHz - 768kHz FLAC : 16bit - 24bit : 32kHz - 192kHz M4A (ALAC) : 16bit - 24bit : 32kHz - 192kHz APE (Fast/Normal/High) : 16bit - 24bit : 32kHz - 768kHz APE (Extra High) : 16bit - 24bit : 32kHz - 192kHz APE (Insane) : 16bit - 24bit : 32kHz - 192kHz WMA Lossless : 16bit - 24bit : 32kHz - 192kHz WMA : 16bit - 24bit : 32kHz - 192kHz MP3 : 8bit - 16bit : 32kHz - 48kHz AAC : 8bit - 16bit : 32kHz - 48kHz OGG : 8bit - 16bit : 32kHz - 48kHz OPUS : 16bit : 32kHz - 48kHz Remark : Supports DTS encoded/ WAV Supports CUE and LRC 64kHz Sampling not supported |

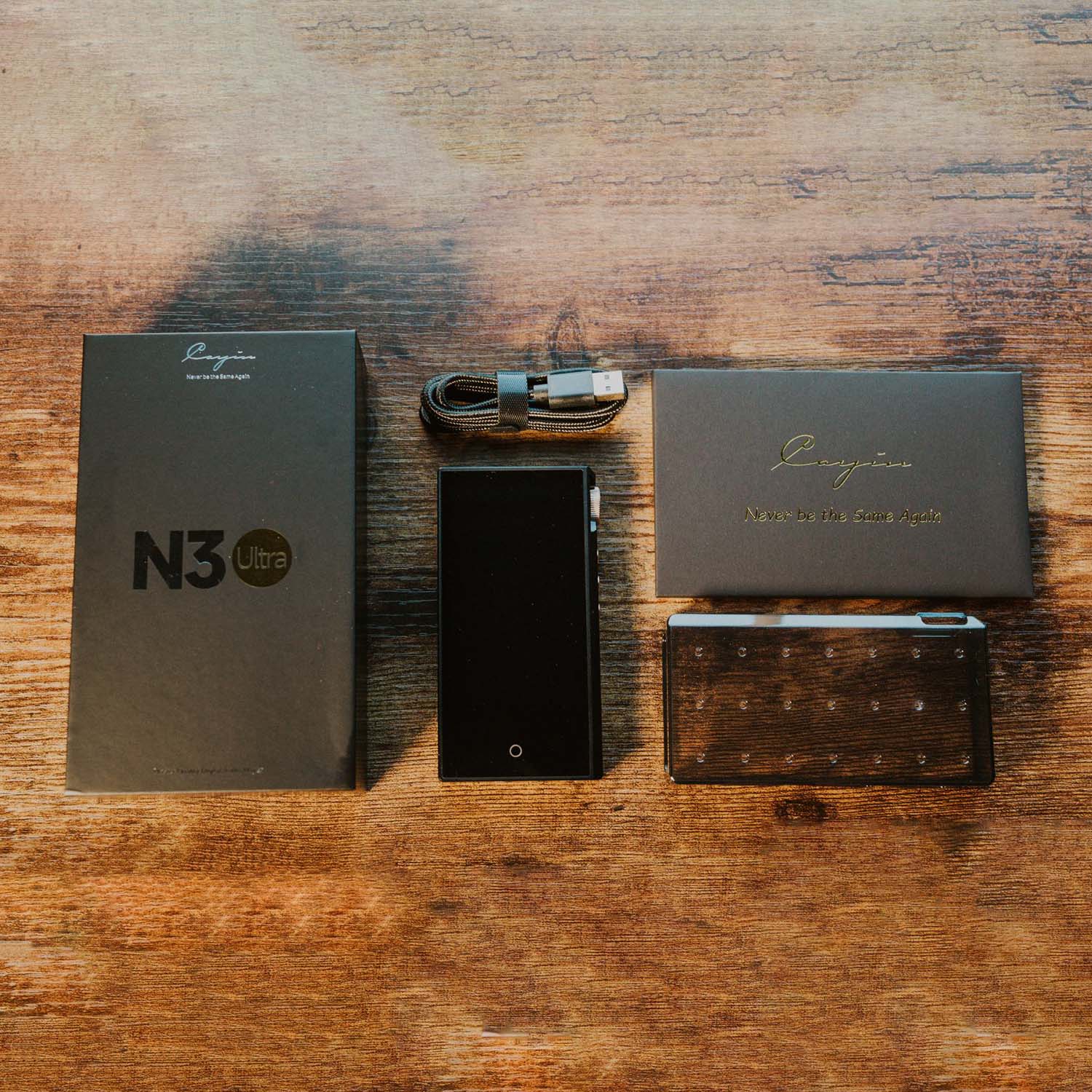

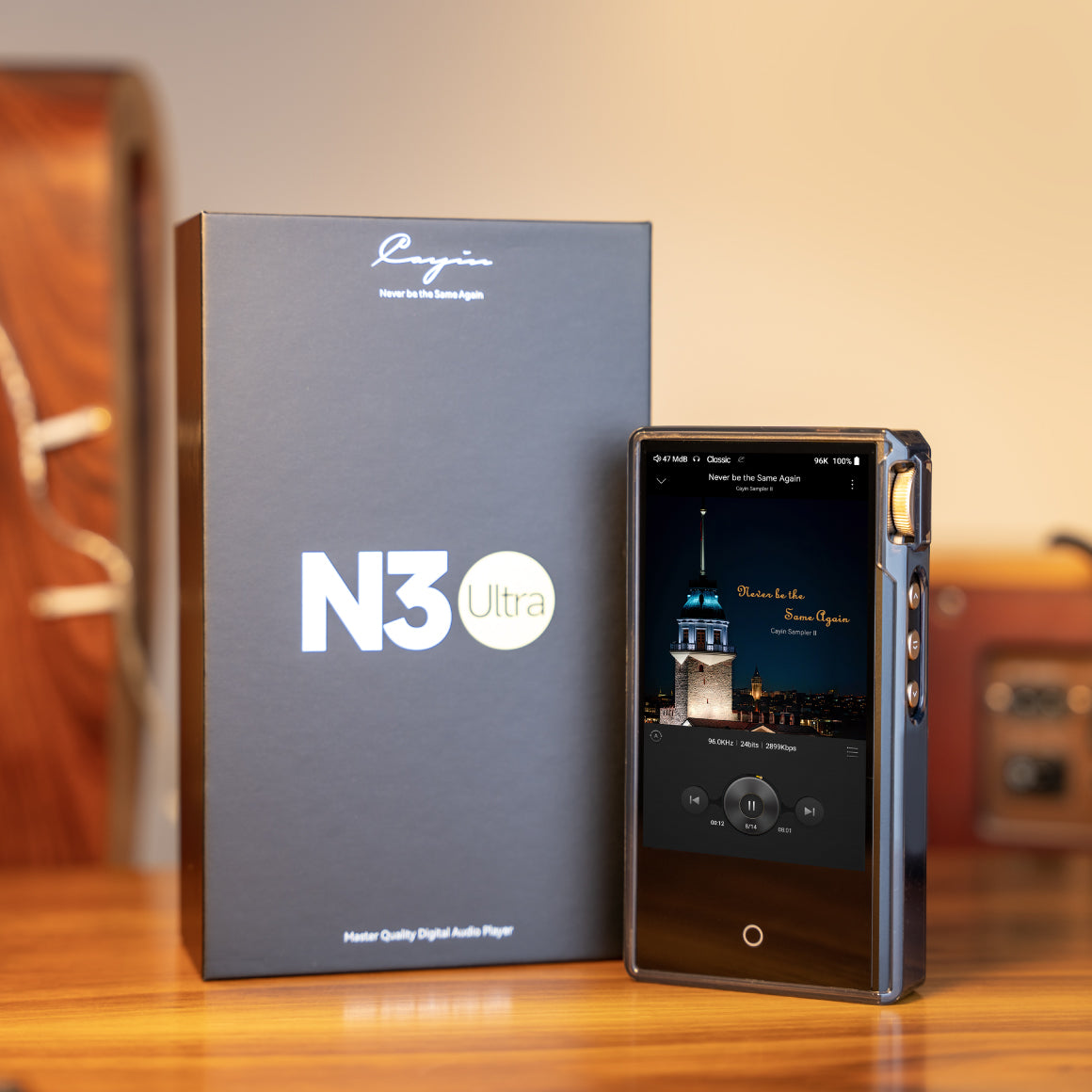

BOX CONTENTS | 1. Cayin N3Ultra Digital Audio Player |
2. N3Ultra Silicon Protective Case | |
3. Temper Glass Screen Protector x1 | |
4. USB-C Cable x1 | |
5. User Manual | |
6. Hi-Res label x2 |
OTHER DETAILS
GENERIC NAME | Digital Audio Player |
IMPORTER DETAILS | Importers Name: Ferrari Video Address: 63/18, 1st Main Road, Gandhi Nagar, Chennai - 600020 Contact No: 044-24420733 |
NET QUANTITY | 1 |
MANUFACTURER DETAILS | Name: Zhuhai Spark Electronic Equipment Co.,Ltd. Address: No.9 Lianfa Road Shuanglin Zone Liangang Industrial Park Zhuhai City Guangdong Province China, Postcode: 519045 |
PACKAGE CONTENTS | Cayin N3Ultra Digital Audio Player N3Ultra Silicon Protective Case Temper Glass Screen Protector X1 USB-C Cable X1 User ManuaL Hi-Res Label X2 |
PRESENTING THE CAYIN N3ULTRA - THE ALL-NEW ON-THE-GO MUSIC COMPANION
Cayin launches a digital audio player, the all-new N3Ultra. Crafted with meticulous attention to detail, this portable music player is designed with high-performance components to deliver an exceptional on-the-go music listening experience. The Cayin N3Ultra houses vintage JAN6418 vacuum tubes, providing a warm and rich sound signature. Its dual AK4493SEQ DAC chips ensure high-resolution audio playback, supporting formats up to DSD512 and PCM 768kHz/32Bit. It also features a precision volume controller, customizable parametric EQ, and versatile headphone and line-level outputs that cater to individual preferences, offering a personalized audio journey. This portable excellence provides fast-charging capability and long battery life and is compatible with amplifiers, active speakers, and DAC setups. It is a versatile audio device and an indispensable companion for music enthusiasts seeking uncompromising audio quality and control.
NOTE: Cayin N3Ultra Firmware V1.4 - Optimized performance for a more stable connection. Click here to download
EQUIPPED WITH DUAL AK4493SEQ CHIPSETS FOR EXCEPTIONAL DECODING PERFORMANCE
Cayin has equipped the N3Ultra with exceptional DAC from AKM technologies. The AK4493SEQ chipset had earned its name in the audio-fidelity realm for its capability to deliver detailed, natural sound with clarity and fidelity. The Cayin N3Ultra supports high-resolution audio decoding formats like DSD512 and PCM 768kHz/32Bit, allowing you to listen to music in its purest form. The dual AK4493SEQ chipsets and analog circuits work independently in each channel, ensuring that your Cayin N3Ultra efficiently reduces crosstalk, enhancing audio clarity and stereo separation. The dual AK4493SEQ chipsets in the Cayin N3Ultra operate in Mono mode in fully differential output, providing precise and detailed sound reproduction. This thoughtful design contributes towards a more immersive and lifelike music listening experience with your Cayin N3Ultra.
POWERFUL AMPLIFICATION CAPABILITIES WITH MILITARY-GRADE NOS VACUUM TUBES
Cayin's expertise in tube amplifier engineering is evident in the N3Ultra, which features vintage JAN6418 vacuum tubes and Raytheon military-grade NOS tubes. The former vintage tube amps aim to provide a classic tube sound with rich overtones. And the military-grade NOS tubes from Raytheon ensure high-quality analog outputs across all channels. Unlike traditional setups, the N3Ultra equips Cayin's 3rd generation vacuum tube technology in a two-stage timbre circuit. These tubes enhance the low gain voltage amplification and driving capability. This setup allows you to choose from three distinct timbre options - Classic Tube for a warm and full-bodied sound, Modern Tube for a lively soundstage with impressive linearity and Solid-State for a balanced and clear audio experience. The Cayin N3Ultra caters to your preferences with these sound customisation characteristics, giving you an authentic music listening experience.
CUSTOMIZE THE SOUND OF YOUR MUSIC ALONGWITH PRECISE VOLUME CONTROL AND PEQ ADJUSTMENTS
The Cayin N3Ultra digital audio player provides a unique level of customization through its tube amps, offering three distinct sound signatures. With options like classic tube timbre for a warm and rich sound, modern tube timbre for a lively and linear soundstage and solid-state timbre for a balanced and clear audio experience. Along with this, it features precise volume control and accurate sound-delivering components, along with customizable features. It equips the JRC NJW1195A four-channel volume controller, known for its low noise and distortion, ensuring high-quality sound output. The Cayin N3Ultra also features two accusilicon AS318 femtosecond oscillators, reducing jitter and maintaining signal accuracy with ultra-low phase noise (-100dBC) for an authentic listening experience. The volume control chip minimizes digital artefacts and enhances musicality during playback. Also with precise volume control, the Cayin N3Ultra provides 10-band parametric EQ customization, allowing you to fine-tune sound according to your preferences and listening style taste.
EMBEDDED WITH A MASSIVE 4500MAH BATTERY AND ANDROID-BASED OPERATING SYSTEM
The compact yet powerful Cayin N3Ultra provides a robust battery life with its 3.85V 4500mAH Lithium battery. This efficient power management system provides a playback time of up to 11.8 hours with 3.5mm single-ended IEM in solid-state timbre and 7.6 hours with 4.4mm balanced IEM in vacuum tube timbre. It supports fast charging with QC3.0, allowing you to charge from 20% to 80% in around 1 hour, ensuring minimal downtime. The Cayin N3Ultra runs on an Android-based system with a Qualcomm 425 CPU, delivering a smooth and responsive user interface. Along with all its high-performance features and components, the portable Cayin N3Ultra supports up to 1TB storage expansion via TF card and OTG USB.
OFFERS EASY CONTROLS AND SMART INDICATOR FOR ELEVATED USER EXPERIENCE
For a user-friendly experience, the Cayin N3Ultra features a 4.1" 720x1280 responsive touch screen, physical knobs and buttons for intuitive operation, all in a compact and lightweight design. It also equips a glowing HOME button functioning as a sampling rate indicator. To ensure seamless navigation, it includes a BACK key for easy access to files and menus. Above all, to showcase visual design appeals complementing the CNC precision build, the Cayin N3Ultra features a laser-drilled side-mounted tube window, adding a warm glow to enhance the immersive musical experience during playback.
THOUGHTFUL INPUT AND OUTPUT STAGE FOR CONNECTIVITY WITH VARIOUS DEVICES
The portable Cayin N3Ultra provides versatile headphone and line-level outputs, with single-ended 3.5mm and balanced 4.4mm options. These outputs can produce either vacuum tubes or solid-state timbres, providing diverse sound listening experiences. The Cayin N3Ultra also features dual line outputs, with the 4.4mm balanced output configurable as either a headphone out or line out. You can adjust the output levels for maximum compatibility with various audio devices. The line out provides a clean, unamplified fixed voltage signal, ideal for connecting to external headphone amplifiers or integrated amplifiers in home audio systems. The Cayin N3Ultra equips a versatile connectivity interface, including USB audio input and output and S/PDIF coaxial output. This expands the compatibility of the Cayin N3Ultra to pair with amplifiers, active speakers and DAC setups, making it capable of operating with a diverse range of devices.
DESIGNED WITH SAFETY-ENSURING COMPONENTS FOR SMOOTH OPERATION
The Cayin N3Ultra digital audio player features innovative shock-absorbing mechanisms and suspension design to minimize vibrations and microphonic effects. It utilizes custom-molded shock absorption Silicon housing to shield and hold the JAN6418 vacuum tube, reducing external interference. The device integrates suspension pins into its CNC aluminium frame, providing a vertical suspension effect for the tube, which helps relieve stress and enhances stability. The Cayin N3Ultra equips an inter-stage loop negative feedback (NFB) and FET control for the vacuum tube's power supply, ensuring consistent performance and stability.
DAC | AK4493SEQ x2 (Mono Mode) |
MCU | Snapdragon 425 |
VACUUM TUBE | Raytheon JAN6418 x2 |
SYSTEM | Customized Android 8.1 |
TIMBRE CIRCUIT | Gen3 Vacuum Tube Audio Circuit |
LOSSLESS | DTA bypass Android SRC |
VOL. CONTROL | JRC NJW1195A 4 Channels E-volume |
LPF | Dual Op-Amp x2 |
STORAGE | TF x1 (support up to 1TB) |
MEMORY | 2GB RAM |
FPGA | Re-clock, De-jitter, Re-shaping DDC |
BATTERY | 3.85V 4500mAh (17.3Wh) |
HEAD AMP. | Parallel Amplification, 4 Pieces Of Low Noise Op-Amp, 2 Amplifiers In Parallel |
DISPLAY | 4.1" (720 x 1280) TFT Multi-point Touch Screen |
PHONE OUT | 3.5mm (Single-Ended) 4.4mm (Balanced, Shared) |
BUNDLED PLAYER | Cayin Music App |
LINE OUT | 3.5mm (Single-Ended) 4.4mm (Balanced, Shared) |
PHYSICAL CONTROL | Volume Knob, Power On/Off, Playback Control |
DIGITAL INTERFACE | USB Audio (In And Out) SPDIF Coaxial (USB-embedded) |
COLORED LED | Playback Sampling Rate, Home, Charging Indicator |
USB TYPE-C | USB3.1, OTG Storage, Digital Audio QC3.0 (PD2.0 Not Supported) |
CHASSIS | Sandblasted CNC-machined Aluminum |
DIMENSION | 125 x 65.5 x 19.5 (mm) |
WEIGHT | ~204g (±10g) |
BATTERY DURATION | |
3.5MM (SINGLE-ENDED) | Solid- State Headphone: ≈11.8 Hr Line Out: ≈13.5Hr Modern Headphone: ≈9.4 Hr Line Out: ≈10.8Hr Classic Tube Headphone: ≈9.2Hr Line Out: ≈10.5Hr |
4.4MM (BALANCED) | Solid- State Headphone: ≈9.7 Hr Line Out: ≈13.2H Modern Headphone: ≈8.1Hr Line Out: ≈10.6Hr Classic Tube Headphone: ≈7.6 Hr Line Out: ≈10.3Hr |
Condition: Screen Off, 32Ω, Mid Gain, Volume 30, Playback 44.1kHz WAV Files | |
CHARGING | Standard Charger (5V-2A): ≈3.5 Hr Quick Charge QC3.0: 0-100%~2 Hr 20-80%~1Hr |
USB AUDIO OUT | Connector USB-C PCM: up to 32Bit/768kHz*; DSD: up to DSD512 (Native) or DSD256 (DOP) or PCM88.2kHz (D2P) |
USB AUDIO DAC | Connector USB-C, PCM: up to 32Bit/768kHz*; DSD: up to DSD512 (Native) or DSD256 (DOP) Systems: Windows (drivers required), MacOS, Android (partial), iOS Asynchronous USB Audio Class 2.0 |
S/PDIF COAXIAL | Connector: Embedded into USB-C (75Ω) PCM: up to 24Bit/192kHz; DSD: up to DSD64 (DOP) |
*PCM not support 64kHz sampling* |
OUTPUT | 3.5mm Single-ended 4.4mm Balanced |
3.5MM SINGLE-ENDED SOLID STATE | Power Rating (@32Ω): 250mW Output Impedance: 0.5Ω Frequency Response: 20Hz-20kHz (±0.2dB) THD+N (1kHz, 32Ω, A-Weighted): 0.008% Dynamic Range (A-Weighted): 120dB SNR (20Hz-20kHz, A-weighted): 120dB Channel Separation (@1kHz, 32Ω): 77dB |
3.5MM SINGLE-ENDED VACUUM TUBE | Power Rating (@32Ω): 250mW Output Impedance: 0.5Ω Frequency Response: 20Hz-20kHz (±0.6dB) THD+N (1kHz, 32Ω, A-Weighted): 2.0% Dynamic Range (A-Weighted): 113dB SNR (20Hz-20kHz, A-weighted): 113dB Channel Separation (@1kHz, 32Ω): 76dB |
4.4MM BALANCED SOLID STATE | Power Rating (@32Ω): 600mW Output Impedance: 1.0Ω Frequency Response: 20Hz-20kHz (±0.2dB) THD+N (1kHz, 32Ω, A-Weighted): 0.008% Dynamic Range (A-Weighted): 121dB SNR (20Hz-20kHz, A-weighted): 121dB Channel Separation (@1kHz, 32Ω): 116dB |
4.4MM BALANCED VACUUM TUBE | Power Rating (@32Ω): 600mW Output Impedance: 1.0Ω Frequency Response: 20Hz-20kHz (±0.6dB) THD+N (1kHz, 32Ω, A-Weighted): 2.0% Dynamic Range (A-Weighted): 113dB SNR (20Hz-20kHz, A-weighted): 113dB Channel Separation (@1kHz, 32Ω): 92dB |
OUTPUT | 3.5mm Single-ended 4.4mm Balanced |
3.5MM SINGLE-ENDED SOLID STATE | Output Level: High: 2.1V, Medium: 1.6V, Low: 1.0V Output Impedance: 100Ω Frequency Response: 20Hz-20kHz (±0.2dB) THD+N (1kHz, 47kΩ, A-Weighted): 0.004% Dynamic Range (A-Weighted): 122dB SNR (20Hz-20kHz, A-weighted): 122dB Channel Separation (@1kHz, 47kΩ): 100dB |
3.5MM SINGLE-ENDED VACUUM TUBE | Output Level: High: 2.1V, Medium: 1.6V, Low: 1.0V Output Impedance: 100Ω Frequency Response: 20Hz-20kHz (±0.6dB) THD+N (1kHz, 47kΩ, A-Weighted): 2.0% Dynamic Range (A-Weighted): 113dB SNR (20Hz-20kHz, A-weighted): 113dB Channel Separation (@1kHz, 47kΩ): 96dB |
4.4MM BALANCED SOLID STATE | Output Level: High: 4.2V Medium: 3.2V Low: 2.0V Output Impedance: 200Ω Frequency Response: 20Hz-20kHz (±0.2dB) THD+N (1kHz, 47kΩ, A-Weighted): 0.004% Dynamic Range (A-Weighted): 125dB SNR (20Hz-20kHz, A-weighted): 125dB Channel Separation (@1kHz, 47kΩ): 122dB |
4.4MM BALANCED VACUUM TUBE | Output Level: High: 4.2V Medium: 3.2V Low: 2.0V Output Impedance: 200Ω Frequency Response: 20Hz-20kHz (±0.6dB) THD+N (1kHz, 47kΩ, A-Weighted): 2.0% Dynamic Range (A-Weighted): 113dB SNR (20Hz-20kHz, A-weighted): 113dB Channel Separation (@1kHz, 47kΩ): 98dB |
DSD | Format : Bit-Rate : Sampling Freq. DSF : 1bit : 2.8MHz-22.6MHz DFF : 1bit : 2.8MHz-22.6MHz SACD-ISO : 1bit : 2.8MHz Remark : Native, DoP, D2P (88.2kHz) Supports DST Encoded DFF and SACD-ISO |
PCM | Format : Bit-Rate : Sampling Freq. WAV : 16bit - 32bit : 32kHz - 768kHz AIF/AIFF : 16bit - 32bit : 32kHz - 768kHz FLAC : 16bit - 24bit : 32kHz - 192kHz M4A (ALAC) : 16bit - 24bit : 32kHz - 192kHz APE (Fast/Normal/High) : 16bit - 24bit : 32kHz - 768kHz APE (Extra High) : 16bit - 24bit : 32kHz - 192kHz APE (Insane) : 16bit - 24bit : 32kHz - 192kHz WMA Lossless : 16bit - 24bit : 32kHz - 192kHz WMA : 16bit - 24bit : 32kHz - 192kHz MP3 : 8bit - 16bit : 32kHz - 48kHz AAC : 8bit - 16bit : 32kHz - 48kHz OGG : 8bit - 16bit : 32kHz - 48kHz OPUS : 16bit : 32kHz - 48kHz Remark : Supports DTS encoded/ WAV Supports CUE and LRC 64kHz Sampling not supported |
BOX CONTENTS | 1. Cayin N3Ultra Digital Audio Player |
2. N3Ultra Silicon Protective Case | |
3. Temper Glass Screen Protector x1 | |
4. USB-C Cable x1 | |
5. User Manual | |
6. Hi-Res label x2 |
OTHER DETAILS
GENERIC NAME | Digital Audio Player |
IMPORTER DETAILS | Importers Name: Ferrari Video Address: 63/18, 1st Main Road, Gandhi Nagar, Chennai - 600020 Contact No: 044-24420733 |
NET QUANTITY | 1 |
MANUFACTURER DETAILS | Name: Zhuhai Spark Electronic Equipment Co.,Ltd. Address: No.9 Lianfa Road Shuanglin Zone Liangang Industrial Park Zhuhai City Guangdong Province China, Postcode: 519045 |
PACKAGE CONTENTS | Cayin N3Ultra Digital Audio Player N3Ultra Silicon Protective Case Temper Glass Screen Protector X1 USB-C Cable X1 User ManuaL Hi-Res Label X2 |
Don't sweat it, this
Cayin - N3Ultra comes with a 1 Year warranty
from Cayin that covers manufacturing defects.
All products featured on Headphone Zone are backed by an original manufacturer's warranty.
Read more about Cayin's warranty in India.
Elevating Hi-Fi Experiences Since 1993
Explore Collection"Be it a DAP or a portable DAC, the Cayin N3Ultra offers exceptional sound in three different flavors and is the only one with tubes at this price point."
Read More"If you’re looking for a DAC/Amp combo under $5000 that can easily drive the most power-hungry headphones and deliver top of the line sound to top of the line headphones, Conductor 3X GT should put it at the top of your list."
Read MoreDual AKM AK4493SEQ
Dual ESS Sabre ES9068AS
Dual AKM AK4191EQ + AK4499EX
Battery Life: Upto 13.5 Hours
Battery Capacity: 4500mAh
Battery Life: Upto 14 Hours
Battery Capacity: 6000mAh
Battery Life: Upto 11 Hours
Battery Capacity: 6000mAh
3.5mm (Single-Ended)
4.4mm (Balanced)
3.5mm (Single-Ended)
2.5mm (Balanced)
4.4mm (Balanced)
3.5mm (Single-Ended)
4.4mm (Balanced)
Upto 600mW @ 32 Ohms
Upto 660mW @ 32 Ohms
Upto 1100mW @ 32 Ohms
Upto 1 TB Storage
Upto 2 TB Storage
-
USB Type-C
USB Type-C & Bluetooth
USB Type-C & Bluetooth
DSD512
PCM 768kHz/32Bit
DSD512
PCM 768kHz
DSD512
PCM 32bit/768kHz
1. Cayin N3Ultra Digital Audio Player
2. N3Ultra Silicon Protective Case
3. Temper Glass Screen Protector x1
4. USB-C Cable x1
5. User Manual
6. Hi-Res label x2
1. FiiO M11 Plus ESS Digital Audio Player
2. Tempered Glass Screen Protector
3. Leatherette Case
4. USB 3.0 Cable
5. Coaxial Adaptor Cable
6. Warranty Card
7. Quick Start Guide
8. Ejector Pin
1. Shanling M5 Ultra
2. USB A to C Cable
3. Rear And Front Glass Protectors
4. Manuals
Have a question? Get in touch!
Check out the most common questions our customers ask. Still have questions? Talk to our Headphone Gurus.
What is the warranty period on the Cayin N3Ultra and how do I claim warranty?
What tube technology does the Cayin N3Ultra utilize?
How does the Cayin N3Ultra provide customization for sound preferences?
What is the battery life of the Cayin N3Ultra?
What connectivity options does the Cayin N3Ultra offer?
Can the Cayin N3Ultra be paired with external amplifiers or DAC setups?
What is the significance of the glowing HOME button on the Cayin N3Ultra?
This product is rated 4.8 of 5.0 stars.
It has received 6 reviews.
