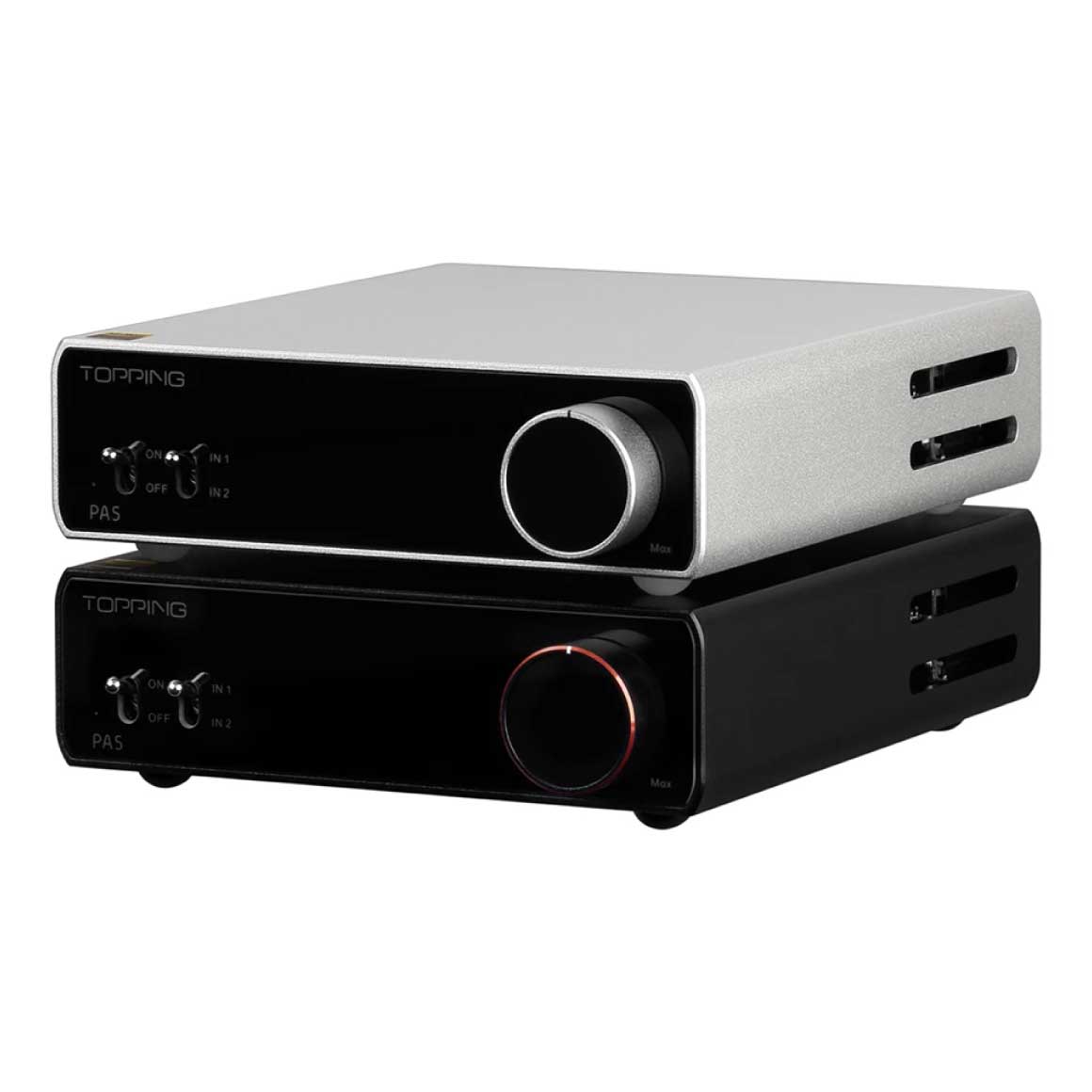

Topping - PA5
Class D Balanced AmplifierGET 18% GST INPUT
One of the reasons headphones and earphones in India are more expensive than overseas is because of the Goods &
Services Tax in India.
Don't let the GST input go to waste especially if you can avail an offset.
All products sold on Headphone Zone carry a GST compliant invoice and all products sold include an 18% GST.
Simply enter your GST number at the time of checkout.
Browse EMI Plans
Low Cost EMI Options through Credit Cards
ICICI Bank
3
Low Cost EMI
₹ 8,214
₹ 642
₹ 518
6
Low Cost EMI
₹ 4,188
₹ 1,132
₹ 916
9
15.99%
₹ 2,847
₹ 1,627
12
15.99%
₹ 2,177
₹ 2,129
18
15.99%
₹ 1,508
₹ 3,152
24
15.99%
₹ 1,175
₹ 4,200
HDFC Bank
3
Low Cost EMI
₹ 8,214
₹ 643
₹ 518
6
Low Cost EMI
₹ 4,189
₹ 1,132
₹ 916
9
16%
₹ 2,847
₹ 1,628
12
16%
₹ 2,177
₹ 2,130
18
16%
₹ 1,508
₹ 3,154
24
16%
₹ 1,175
₹ 4,203
SBI Bank
3
Low Cost EMI
₹ 8,221
₹ 663
₹ 533
6
Low Cost EMI
₹ 4,177
₹ 1,061
₹ 854
9
15%
₹ 2,836
₹ 1,525
12
15%
₹ 2,166
₹ 1,994
18
16%
₹ 1,508
₹ 3,154
24
16%
₹ 1,175
₹ 4,203
Axis Bank
3
Low Cost EMI
₹ 8,214
₹ 643
₹ 518
6
Low Cost EMI
₹ 4,189
₹ 1,132
₹ 916
9
16%
₹ 2,847
₹ 1,628
12
16%
₹ 2,155
₹ 1,859
18
16%
₹ 1,508
₹ 3,154
24
16%
₹ 1,175
₹ 4,203
Other EMI Options through Credit Cards
Citi Bank
3
14%
₹ 8,187
₹ 562
6
14%
₹ 4,165
₹ 989
9
16%
₹ 2,847
₹ 1,628
12
16%
₹ 2,177
₹ 2,130
18
16%
₹ 1,508
₹ 3,154
24
16%
₹ 1,175
₹ 4,203
Kotak Mahindra Bank
Tenure
Interest%
Installment
Interest
3
16%
₹ 8,214
₹ 643
6
16%
₹ 4,189
₹ 1,132
9
16%
₹ 2,847
₹ 1,628
12
16%
₹ 2,177
₹ 2,130
18
16%
₹ 1,508
₹ 3,154
24
16%
₹ 1,175
₹ 4,203
RBL Bank
3
13%
₹ 8,174
₹ 522
6
14%
₹ 4,165
₹ 989
9
15%
₹ 2,836
₹ 1,525
12
15%
₹ 2,166
₹ 1,994
18
15%
₹ 1,497
₹ 2,950
24
15%
₹ 1,164
₹ 3,928
Standard Chartered Bank
3
13%
₹ 8,174
₹ 522
6
13%
₹ 4,153
₹ 918
9
14%
₹ 2,825
₹ 1,422
12
14%
₹ 2,155
₹ 1,859
INDUSIND Bank
3
14%
₹ 8,187
₹ 562
6
14%
₹ 4,165
₹ 989
9
15%
₹ 2,836
₹ 1,525
12
15%
₹ 2,166
₹ 1,994
18
15%
₹ 1,497
₹ 2,950
24
15%
₹ 1,164
₹ 3,928
HSBC Bank
3
12.50%
₹ 8,167
₹ 502
6
12.50%
₹ 4,147
₹ 883
9
13.50%
₹ 2,819
₹ 1,370
12
13.50%
₹ 2,149
₹ 1,791
18
13.50%
₹ 1,480
₹ 2,646
YES Bank
3
13%
₹ 8,174
₹ 522
6
13%
₹ 4,153
₹ 918
9
14%
₹ 2,825
₹ 1,422
12
14%
₹ 2,155
₹ 1,859
18
15%
₹ 1,497
₹ 2,950
24
15%
₹ 1,164
₹ 3,928
Bank of Baroda
3
13%
₹ 8,174
₹ 522
6
14%
₹ 4,165
₹ 989
9
14%
₹ 2,825
₹ 1,422
12
15%
₹ 2,166
₹ 1,994
18
15%
₹ 1,497
₹ 2,950
24
16%
₹ 1,175
₹ 4,203
American Express
3
14%
₹ 8,187
₹ 562
6
14%
₹ 4,165
₹ 989
9
14%
₹ 2,825
₹ 1,422
12
14%
₹ 2,155
₹ 1,859
18
15%
₹ 1,497
₹ 2,950
24
15%
₹ 1,164
₹ 3,928
Talk to a Headphone Guru
Club Audiophile
Join Club Audiophile to begin your pursuit of great sound. Earn points and save on every purchase.
READ MORE
Why Topping is Special
Designed in China
Established & Reputed
Trust us, our reputation in the audio world speaks for itself!
This headphone or gear comes from a well-respected brand known for its high-quality audio equipment, so you can be confident in your purchase.
If you see a product marked as “🎖️ Established & Reputed”, it means you're getting a top-tier device from a brand that's earned its stripes in the audio industry.
Revered by Audiophiles
Audiophiles can be really picky and tough to impress and if the audiophile community says something sounds good, you can bet it's great!
This headphone or gear has gained recognition and admiration from audiophiles, who are known for their discerning taste in high-fidelity audio. They appreciate its precision, attention to detail and its ability to deliver an immersive sonic experience.
If you see a product marked as "🙌🏻 Revered by Audiophiles", it means that it meets the highest standards of sound quality and performance, making it a top choice for anyone who values exceptional audio experiences.
Specialist
A masterpiece from the experts who know audio inside and out!
This headphone or gear is crafted by specialists who know their stuff, ensuring every detail is perfect.
If you see a product marked as “🌟 Specialist”, it means you're choosing a device designed by experts who specialize in creating this specific category of device.
Why we love this DAC/Amp
Value for Money
Great sound always doesn't have to come with a fancy price tag.
Every once in a while we come across a product that give you a lot more value for the price.
If you see products marked as "🥜 Value For Money" you can be sure you're getting a great bang for your buck.
For Enthusiasts on a Budget
We are here to help you find the best bang for your buck.
This headphone or gear is made for all passionate hobbyists who want top-notch gear without breaking the bank.
If you see a product marked as “🪴 For Enthusiasts on a Budget”, get ready to indulge in your music with high-quality, affordable products that keep your wallet happy and your enthusiasm alive!
For Audiophiles at Home
Cause music hit differently when you are in your own space.
This headphone or gear is perfect for those who demand exceptional sound quality in their personal sanctuary.
If you see products marked as “🏠 For Audiophiles at Home”, get ready to transform your living space into an audiophile's paradise, with rich, immersive sound that makes every listening session a masterpiece.
Connect With Cable
This device comes with multiple connectivity options. Be sure to check if your source and output support these input and output options.
Why it Sounds Amazing
Power Output
When you need that juice to get the best out of your products.
This headphone or gear packs a punch, revealing the product's impressive power output capabilities, ensuring it can handle even the most demanding products with ease.
If you see products marked as “🚀 Power Output”, you're in for a treat with robust performance for driving high-fidelity products without breaking a sweat.
DESCRIPTION
HIGHLY EFFICIENT AND FULLY BALANCED CLASS D AMPLIFIER
Topping introduces the latest desktop power amplifier, the all-new Topping PA5. Topping has designed the PA5 with a self-developed Class D amplification circuit. It uses many novel optimisation technologies to push the performance and output power from the device. This new circuit helps the device to provide top-quality audio signal amplification with ultra-low distortion and high SNR ratings. As a balanced amplifier, it powers each incoming channel with a separate amplifier chip. As a Class D amp, it uses far less power than Class A amps, making it super-efficient.
CLEAN OUTPUT WITH LOW DISTORTION AND HIGH SNR RATINGS
Topping PA5's professional design enables it to achieve ultra-low THD+N distortion as well as high SNR(signal-to-noise ratio) ratings. The device has <0.0003% THD+N ratings at 8Ω of load. It also achieves 124dB SNR ratings. Both of these reflect the quality performance that PA5 holds within it. If you are looking for an efficient power amplifier for your stereo speakers, PA5 will serve you well with its high-resolution performance.
POWERFUL OUTPUT TO DRIVE THE MOST DEMANDING SYSTEMS
Topping PA5 has powerful output ratings of up to 140Wx2 @ 4Ω and 10% THD+N. Even at high-quality 1% THD+N, PA5 provides up to 125Wx2 @ 4Ω. This is adequate to drive HiFi speaker systems and power-hungry headphones while maintaining clarity and resolution for the audio signal. With its high-quality signal amplification, your HiFi speakers will sound their best, ensuring you get excellent dynamics and a noise-free background in the amplified signal.
OFFERING BALANCED TRS INPUTS FOR EFFICIENT CONNECTIVITY
The PA5 does not overdo its connectivity but proposes simple and efficient connectivity. Thus, it offers two balanced inputs in a 6.35mm TRS stereo jack format. The output is possible on the speaker terminals. The device houses dual TRS input options selectable via a toggle switch on the front. You can switch between the two inputs via the toggle switch available. The dual inputs connect many sources via TRS balanced inputs. The balanced input connection eliminates potential ground loop problems, providing pristine audio without hum.
ELEVATE THE PERFORMANCE WITH TOPPINGS LATEST DACS AND AMPS
Topping PA5 is a balanced power amplifier with TRS input ports. The device houses dual TRS input options selectable via a toggle switch on the front. Topping has designed it particularly for their latest E50 and D10 Balanced desktop DAC systems. Both of these DACs have TRS balanced line-out ports. Complete a powerful Desktop HiFi speaker system with the Topping PA5 for exceptional performance. When you need a more comprehensive system, a combination of PA5, E50 DAC and 50 headphone amplifier is most efficient.
SPECS

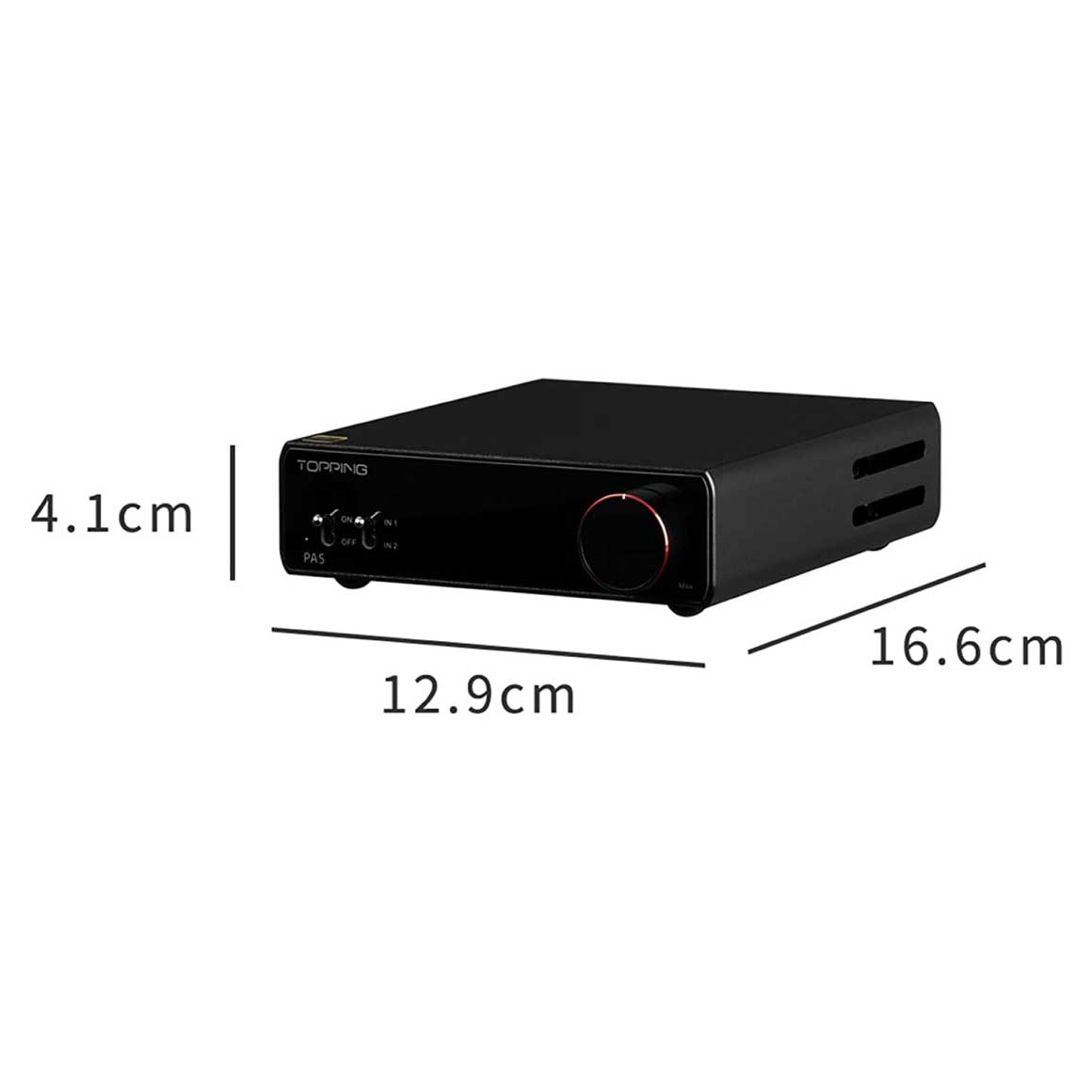

DIMENSIONS | 6.6 x 12.9 x 4.1 cm |
WEIGHT | 0.68kg |
POWER INPUT | DC38V/4.0A |

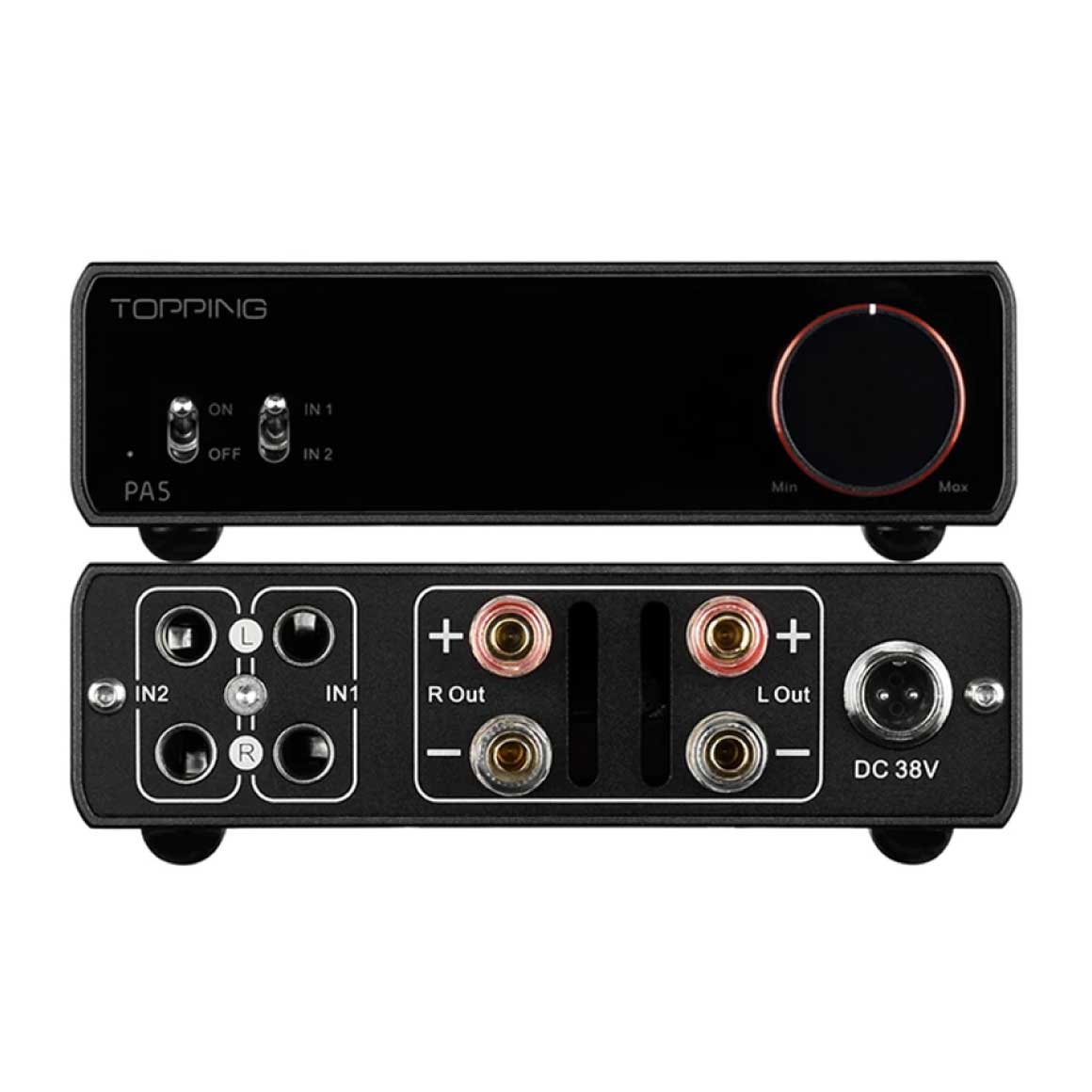

SIGNAL INPUTS | Bal 1 (TRS), Bal 2 (TRS) |
SIGNAL OUTPUT | Speaking terminal (BTL output) |
DISPLAY | LED |
STANDBY POWER CONSUMPTION | <0.1W |
THD+N @1KHZ (A-WT) | <0.0005% @4Ω 5W <0.0004% @8Ω 5W |
THD+N @NO-WT (20KBW) | <0.0015% @4Ω 5W <0.0006% @8Ω 5W |
SNR @ A-WT | 124dB |
DYNAMIC RANGE @ A-WT | 124dB |
FREQUENCY RESPONSE | 20Hz - 40kHz (å±0.3dB) |
OUTPUT LEVEL | 65Vpp @RL=4Ω 68Vpp @RL=8Ω |
NOISE @ A-WT | <16uVrms |
CHANNEL CROSSTALK @1KHZ | -106dB |
INPUT SENSITIVITY | 2.6 Vrms |
GAIN | 19.1dB |
CHANNEL BALANCE | 0.1dB |
OUTPUT IMPEDANCE | <0.01Ω |
OUTPUT POWER | 140W x2 @4Ω THD+N<10% 125W x2 @4Ω THD+N<1% 85W x2 @8Ω THD+N<10% 65W x2 @8Ω THD+N<1% |
ADAPTER IMPEDANCE | 3-8Ω |

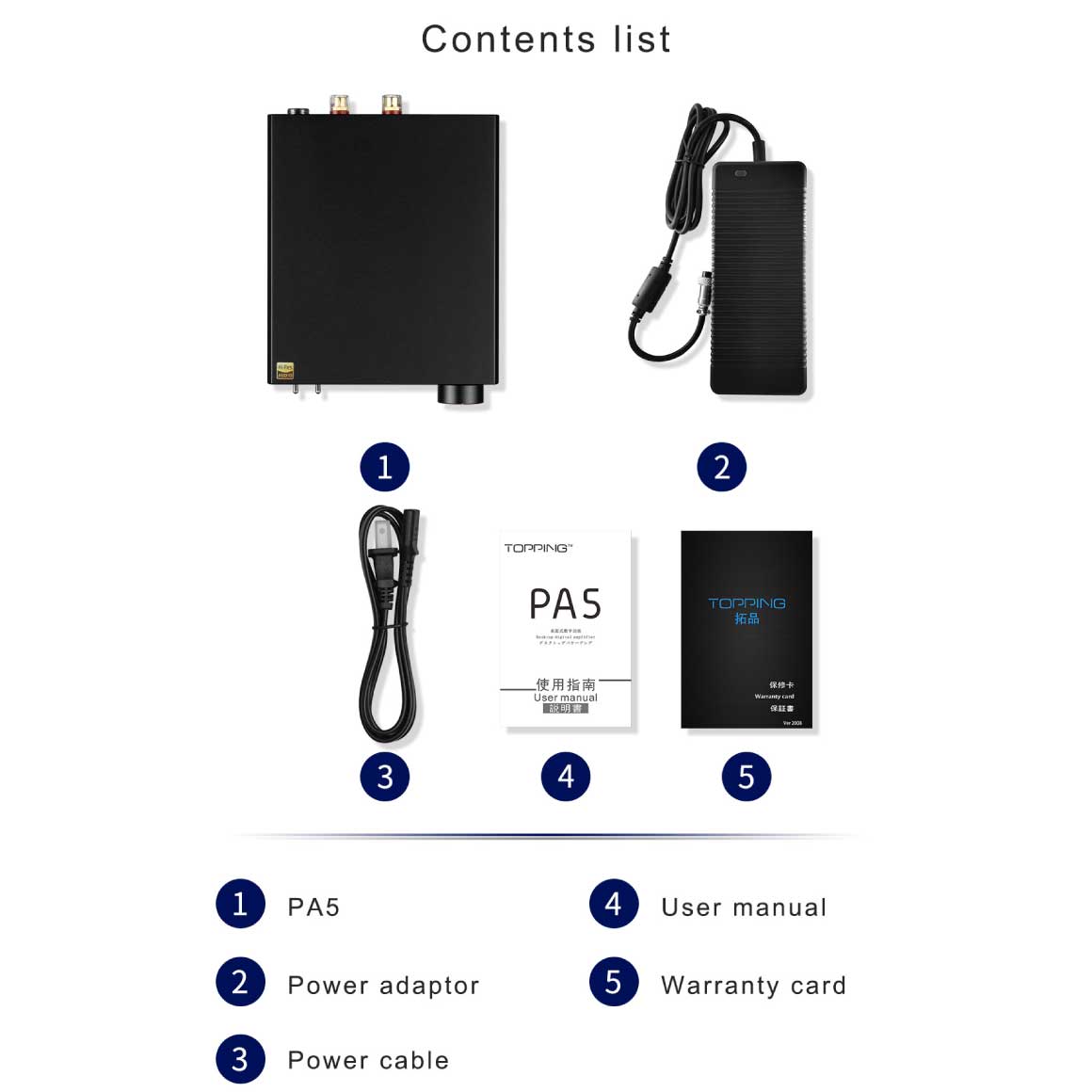

BOX CONTENTS | 1. TOPPING PA5 |
2. Power adapter | |
3. Power cable | |
4. User manual | |
5. Warranty card |
OTHER DETAILS
GENERIC NAME | Speaker Amplifier |
COUNTRY OF ORIGIN | China |
IMPORTER DETAILS | Importers Name: Ferrari Video Address: 63/18, 1st Main Road, Gandhi Nagar, Chennai - 600020 Contact No: 044-24420733 |
DIMENSIONS | 16.6 x 12.9 x 4.1 CM |
NET QUANTITY | 1 |
MANUFACTURER DETAILS | Name: Tok Shun Co., Limited Address: 1318-19, 13/F, Hollywood Plaza, 610 Nathan Road, HK. |
PACKAGE CONTENTS | TOPPING PA5 Power Adapter Power Cable User ManuaL, Warranty Card |
User Manual | PA5
Class D Balanced Amplifier
|
FAQs
What is the warranty period on the TOPPING PA5?
All TOPPING products come with 1 year of warranty. To claim warranty read more on TOPPING Warranty here.
Which devices are best paired with Topping PA5?
Topping has designed PA5 particularly for their latest E50 and D10 Balanced desktop DAC systems. Both of these DACs have TRS balanced line-out ports. Complete a powerful Desktop HiFi speaker system with the Topping PA5 for exceptional performance. When you need a more comprehensive system, a combination of PA5, E50 DAC and L50 headphone amplifier is most efficient.
Does TOPPING PA5 support MQA?
No, TOPPING PA5 does not support MQA.
What are the inputs for the TOPPING PA5?
TOPPING PA5 comes with 6.35mm TRS Input.
