DESCRIPTION
HI-RES SOUND AT AN AFFORDABLE PRICE
iFi Audio's new ZEN DAC is definitely your companion when it comes to great music
at an affordable price. With this super-compact Amp/DAC you can chill anywhere, whether be it your home or
the office. Just plug in your favourite headphones and experience the hi-res audio with this USB
DAC.
SUPPORTS TRUE-TO-LIFE, HI-RES AUDIO
The ZEN DAC supports up to 32-bit/384kHZ PCM and DXD files. It even supports DSD256
and MQA for true-to-life audio. The True Native Burr-Brown chip and advanced circuitry offer Hi-Res
playback.
HIGH-QUALITY COMPONENTS TO UNLOCK GREAT SOUND
The ZEN DAC uses TDK C0G (Class 1 ceramic) capacitors that are highly stable and offer low losses for resonant circuit applications. It includes the GTO filter that has been used in the flagship Pro iDSD. Want to connect it with a Mac or Linux device? Simply download the ‘Limoncello’ 5.2A to unlock DoP256.
CONVENIENT BALANCED CONNECTIONS
The iFi Audio ZEN DAC has a Pentaconn 4.4mm balanced output at both the front and back. It also has a 6.3mm headphone socket that lets you choose both the headphones options very effortlessly.
IT’S VARIABLE BUT NOT FROM THE MATHS!
You can switch your ZEN DAC from Variable to Fixed in just a moment. Set it to variable and use it as a pre-amp for an active speaker or power amp. You can adjust the volume over the fixed mode and can use it as an external pre-amp or integrated amp.
POWER IT. DRIVE IT.
This headphone amp has Powermatch—A switch which adjusts the gain to match that of the headphone. Leave it at a lower setting for hiss-free audio with highly sensitive IEMs. Boost it for low impedance on/over-ears that need that extra oomph.
EXPERIENCE BASS LIKE AN ACE
The ZEN DAC gives you a TrueBass experience. It has a switchable ‘bass
boost’ which operates in the analogue domain. It enhances the bass without muddying the mid-range.
Perfect for use with IEMs or open-back headphones which often lose out on bass. It does not have
DSP.
SPECS
INPUT | USB3.0 B Socket (USB2.0 compatible) |
FORMATS | DSD256/128/64, Octa/Quad/Double/Single-Speed DSD DXD(384/352.8kHz), PCM(384/352.8/192/176.4/96/88.2/48/44.1kHz) MQA |
DAC | Bit-Perfect DSD & DXD DAC by Burr Brown |
OUTPUT | Audio RCA (SE) — 2.1V fixed 1V / 3.3V max. (variable) 4.4mm Pentaconn (BAL) — 4.2V fixed 2V / 6.2V max. (variable) |
ZOUT | <= 200 Ohm (BAL) <= 100 Ohm (SE) |
SNR | < -116dB(A) @ 0dBFS (BAL/SE) |
DNR | > 116dB(A) @ -60dBFS (BAL/SE) |
THD+N | < 0.0015% @ 0dBFS (BAL/SE) |
OUTPUT POWER (@1% THD) | 4.4mm Pentaconn (BAL) 330mW@32 Ohm; 6.6V@600 Ohm; 16 Ohm - 600 Ohm Headphone 6.3mm S-BAL (SE) 230mW@32 Ohm; 3.3V@600 Ohm 16 Ohm - 600 Ohm Headphone Note: Using 5v power. If powered from USB, power output may vary. |
OUTPUT IMPEDANCE | < 1 Ω (BAL/SE) |
THD & N | < 0.005% (125mW @ 32R) |
SNR | > 113dBA (6.2V BAL/3.3V SE) |
POWER CONSUMPTION | < 1.5W via USB power OR 5v DC (power supply not included) |
DIMENSIONS | 117(l) x 100(w) x 30(h)mm |
WEIGHT | 0.8 kg (1.8 lbs) |

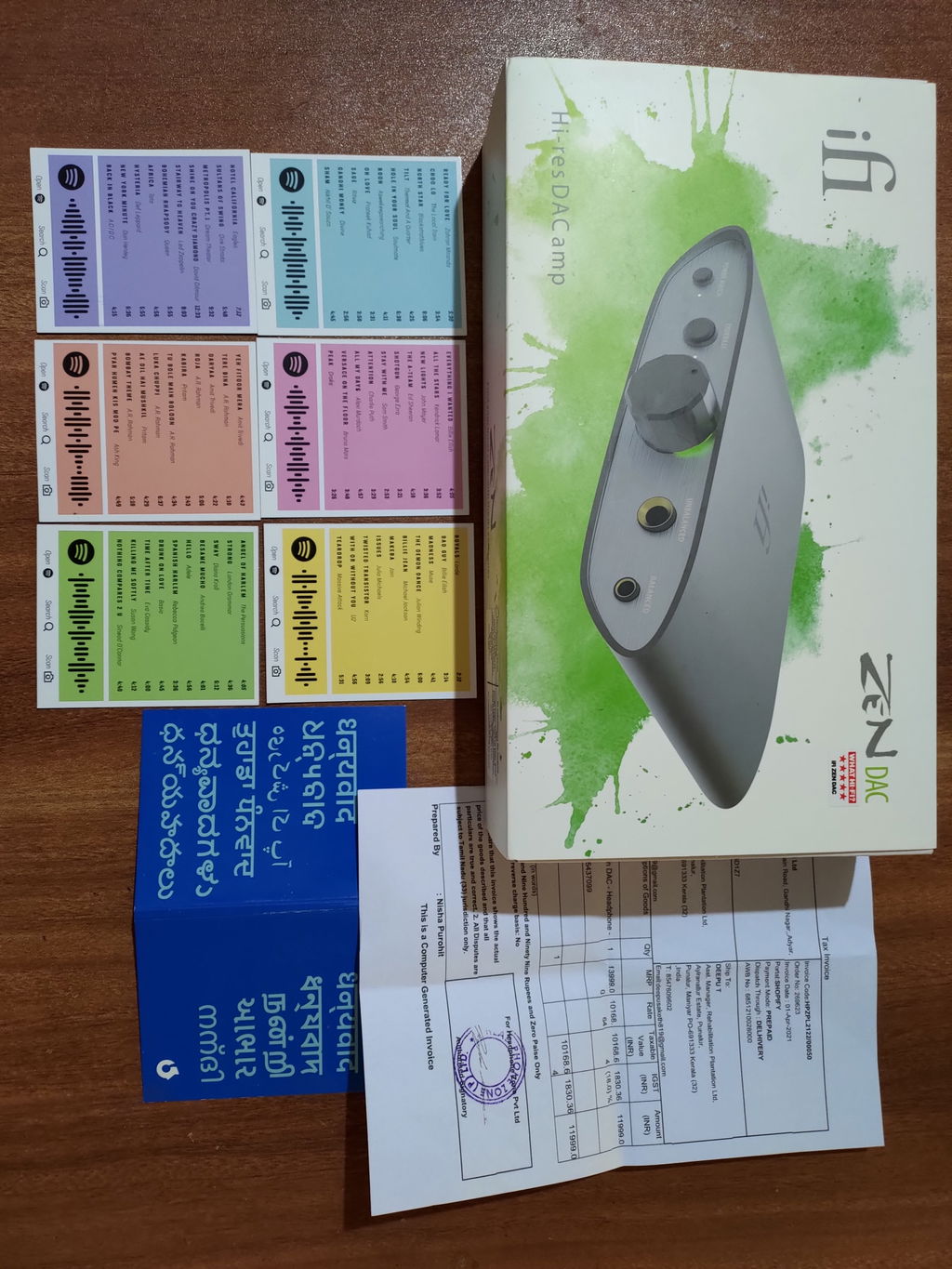

BOX CONTENTS | 1. IFi Audio - ZEN DAC |
2. RCA cable | |
3. USB type A - USB 3.0 B cable | |
4. 6.3mm male to 3.5mm female adapter |
