Talk to a Headphone Guru
Club Audiophile
Join Club Audiophile to begin your pursuit of great sound. Earn points and save on every purchase.
READ MORE
Chi-Fi
Excellence
Ideal for Audiophiles
Ideal for Taking Calls
Best Suited for Portable Use
Bluetooth with LDAC, aptX HD
aptX Adaptive & aptx LL
Battery Life
4.4mm
Balanced Output
ESS Sabre ES9219MQ
Dual DAC Chip

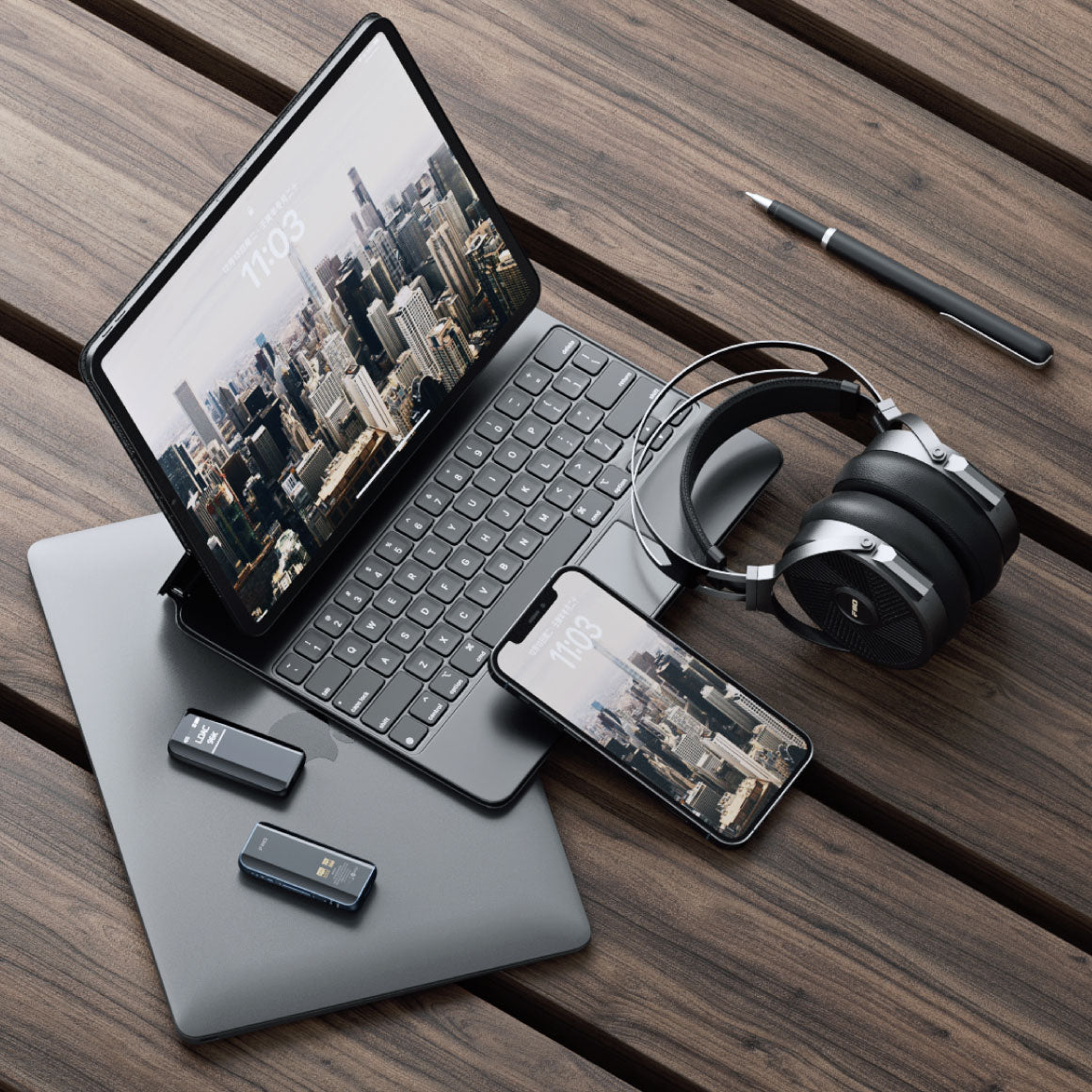

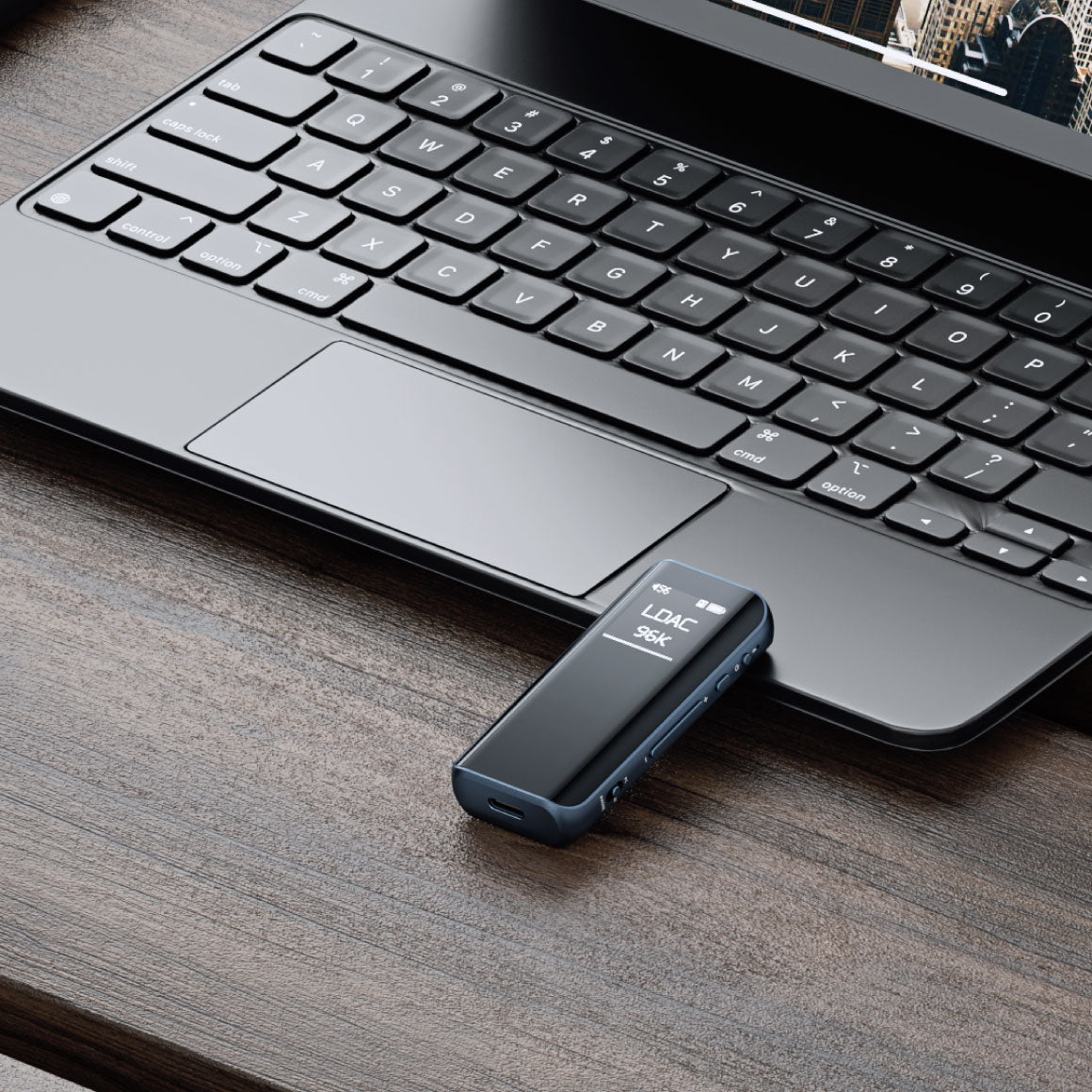

Pair with Laptop via USB
A majority of people use a laptop as the primary source device to listen to music or watch movies. Since the laptop is an essential part of the audio chain there are headphones and devices designed to work a laptop or computer system flawlessly. With the availability of USB connectivity, it becomes easier to pair various devices like an Amp, DAC or even headphones without worrying about drivers or any additional piece of software.
Upto 340mW+340mW @32Ω
Power Output
Battery Capacity of
550mAh
UNBOXED
Headphone Zone Certified Unboxed Units
Unboxed units are as good as new products with the product's packaging being unavailable. These products give you the same satisfaction of new products - but at down-to-earth prices. Usually, the product's packaging may have gotten damaged in transit. Customers use a product once or twice and then return it with opened up packaging.
Customer Returns
Returned headphones are fully functional products that have left the warehouse and therefore can no longer be sold as new as their packaging has been opened. The product may have been used once or twice by the customer who returned it.
Transit Damages
Sometimes we receive headphones in damaged packaging due to shipping accidents. These are brand new headphones with cosmetic flaws on the packaging.
Save Upto 15%
Since you won't get the original packaging, we give you a good discount compared to a new headphone.
Professionally Inspected
A thorough inspection means you receive a 100% working headphone with no sound output issues.
Original Warranty
All unboxed headphones carry the same warranty period as a brand new headphone would.
Unbiased Customer Service
We have the same Headphone Zone customer support experience for Unboxed Products or new products.
Unchanged Replacement Policy
Received a defective Unboxed unit? Return it under our Replacement Policy.
All Original Accessories
The unboxed headphones itself comes with all original accessories.
DESCRIPTION

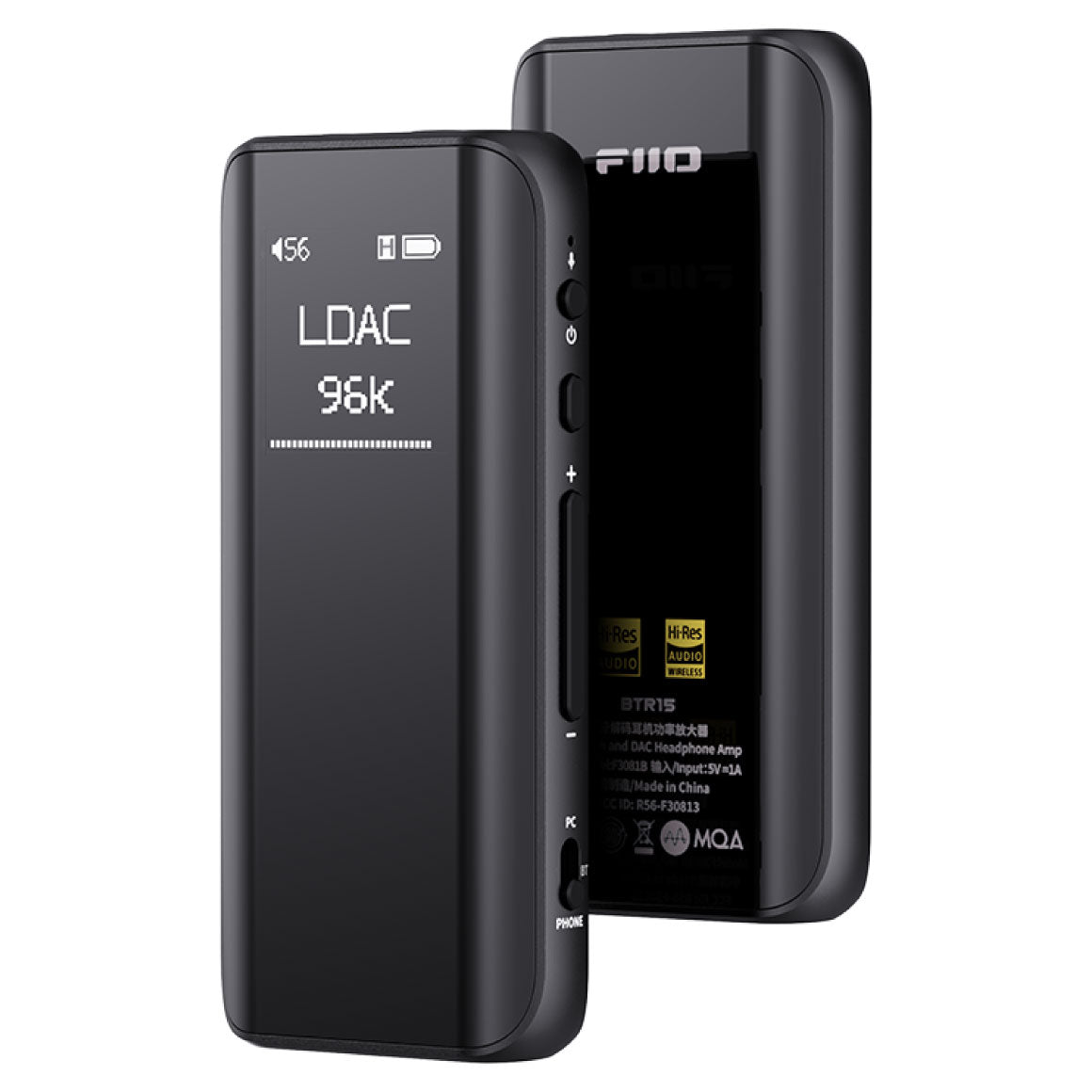

UPGRADE TO HI-RESOLUTION SOUND TODAY WITH THE ALL-NEW FIIO BTR15
Elevate your wireless audio experience with the FiiO BTR15, which seamlessly integrates your Bluetooth device into a Hi-Res wireless setup. Featuring Bluetooth 5.1, the BTR15 provides support for premium Bluetooth codecs such as AAC, SBC, aptX, aptX LL, aptX Adaptive, aptX HD, and LDAC up to 96 kHz. Whether you're seeking a top-tier audiophile configuration, the FiiO BTR15 offers a fantastic solution to enhance your sound quality with your existing device.
UPGRADED WITH MQA FULL DECODER FOR MASTER-QUALITY AUDIO OUTPUT
The enhanced FiiO BTR15 now delivers an even more accurate audio playback experience. This upgraded version, introduces support for the MQA protocol, enabling the decoding of high-resolution, master-quality sound even in conveniently sized files. With the BTR15, you can enjoy music in lifelike quality, as it supports decoding with a sampling rate of up to 384 kHz using any music app.
UNCOMPROMISED SOUND QUALITY WITH TWO ES9219MQ AND XMOS XUF316 CHIPS
The FiiO BTR15 has undergone a significant upgrade at its core, featuring two ESS SABRE ES9219MQ DAC chips that offer improved decoding performance compared to the previous generation. These chips also provide a higher signal-to-noise ratio and lower power consumption. The audio architecture is further enhanced by the integration of a 16-core XMOS XUF316 control chip. With this chip, the BTR15 can perform asynchronous audio decoding, supporting a maximum sampling rate of 384kHz and native DSD via USB 2.0. Additionally, it offers Asynchronous USB DAC support for 384kHz sampling rates and native DSD256 decoding.
EFFICIENT POWER MANAGEMENT AND CONNECTIVITY WITH QUALCOMM QCC5125 CHIP
Incorporating the updated Qualcomm QCC5125 chip into the FiiO BTR15 offers significant advantages, including enhanced audio capabilities and lower power consumption. This chip enables the BTR15 to decode 24-bit audio in Bluetooth mode. It supports various high-resolution Bluetooth formats like LDAC, aptX Adaptive, aptX LL, aptX HD, aptX, AAC, and SBC, with sampling rates of up to 96kHz. Whether you're watching videos, gaming, or enjoying music, the BTR15 ensures excellent sound quality for your audio experience.

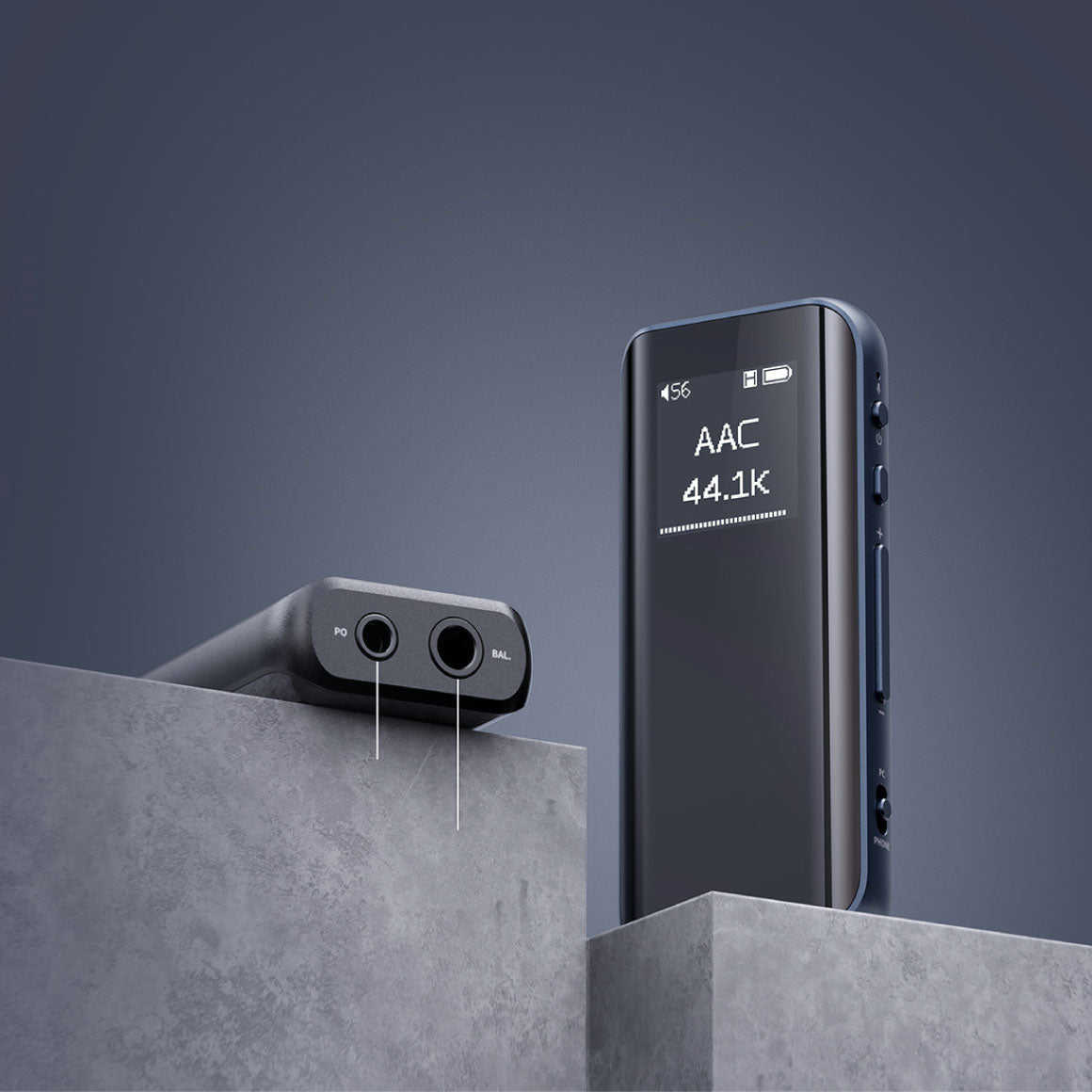

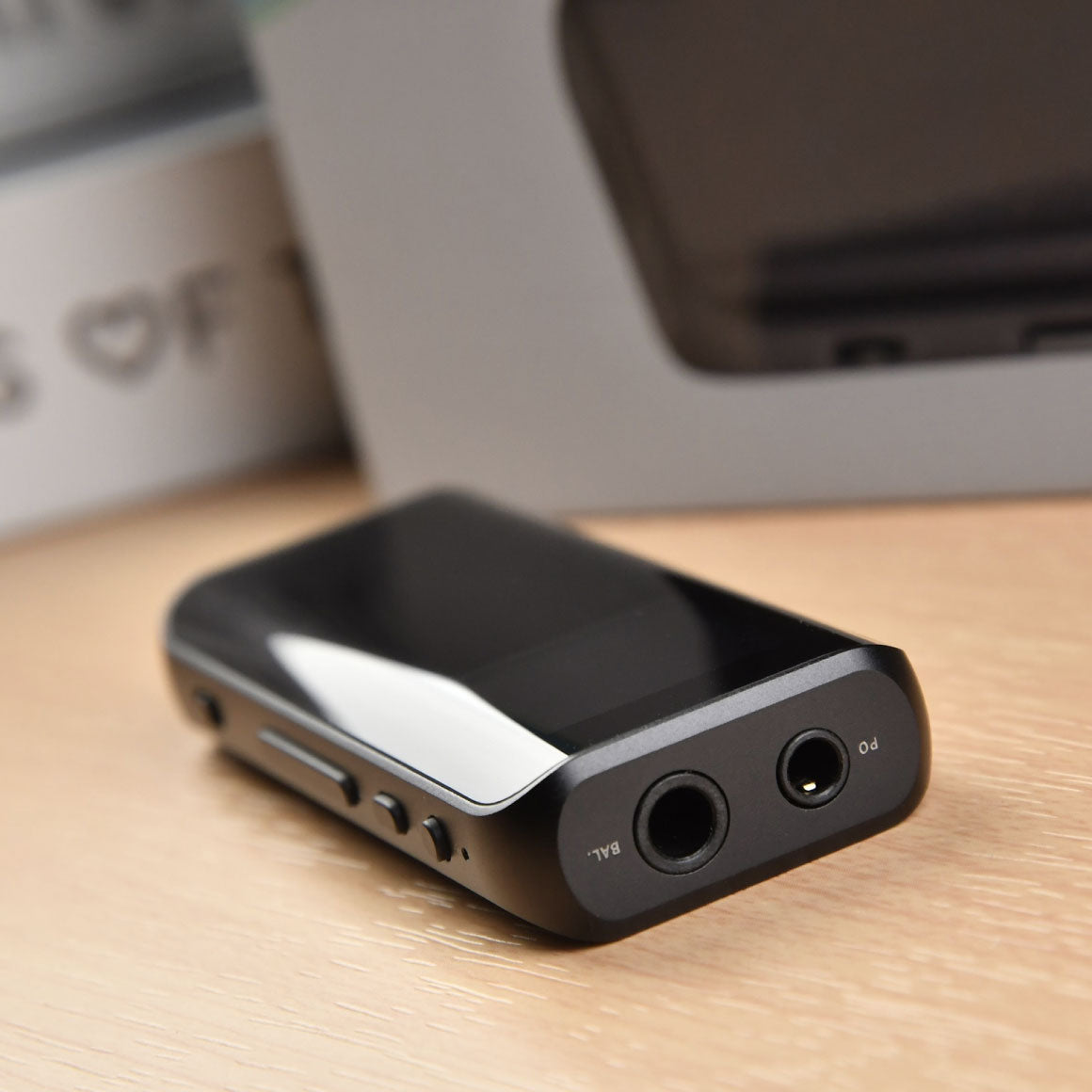

EXPERIENCE POWERFUL AMPLIFICATION WITH DUAL OUTPUT CONNECTORS
FiiO engineers developed an independent power supply system for the BTR15's DAC ES9219MQ, ensuring a cleaner power source. The external power supply, designed for low noise and high current, enhances the BTR15's balanced output power by 40% to 340 mW, perfect for portable use. The BTR15 offers both 3.5mm single-ended and 4.4mm balanced headphone outputs, boosting contact reliability. These dual outputs support various headphones, elevating your listening experience. Even if you're not using the 4.4mm balanced output, FIIO connected the headphone outputs in parallel to enhance the 3.5mm single-ended output's power, making it ideal for driving low-impedance headphones and unleashing their potential.
NOTE : It is advised to use DC 5V 2A to charge your BTR15.

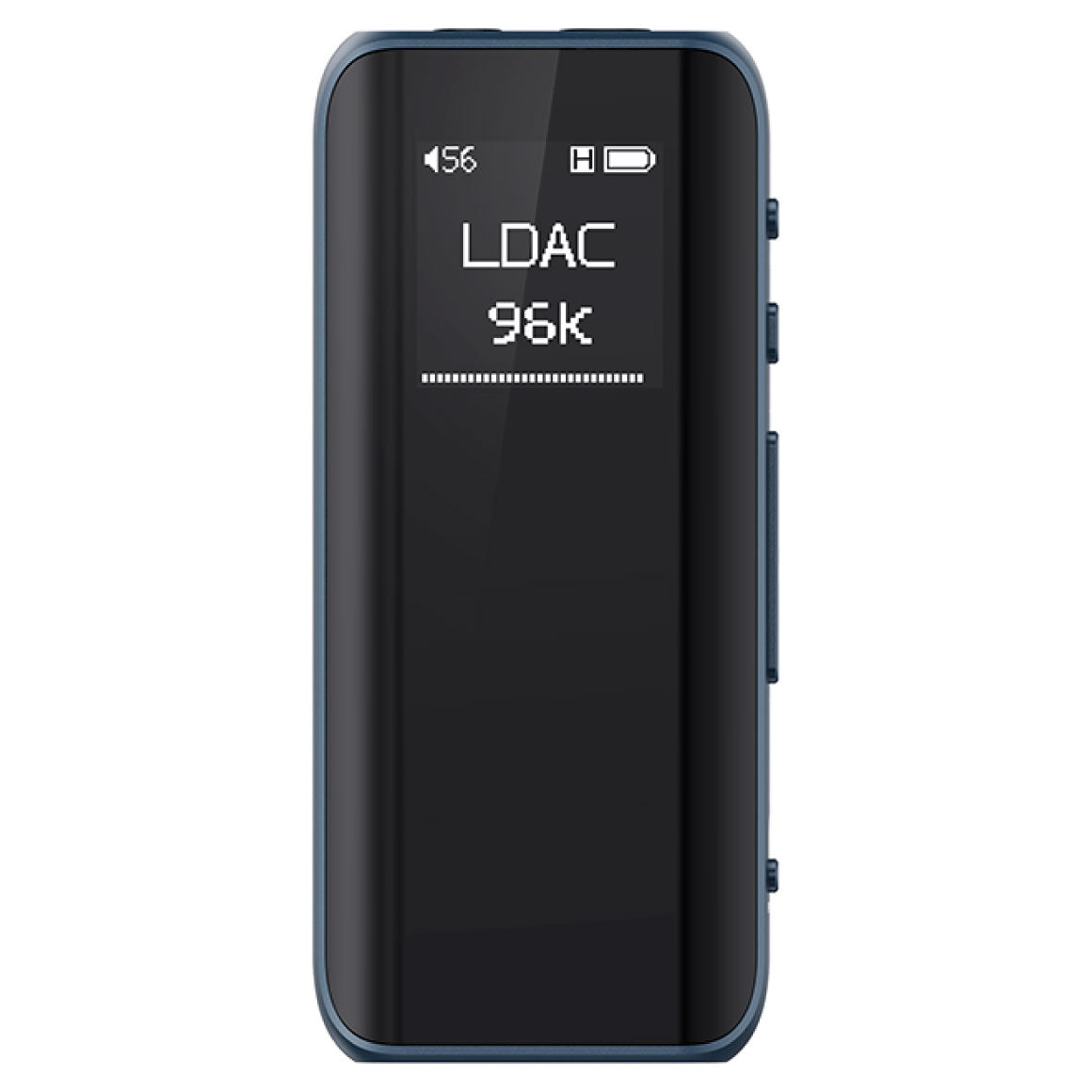

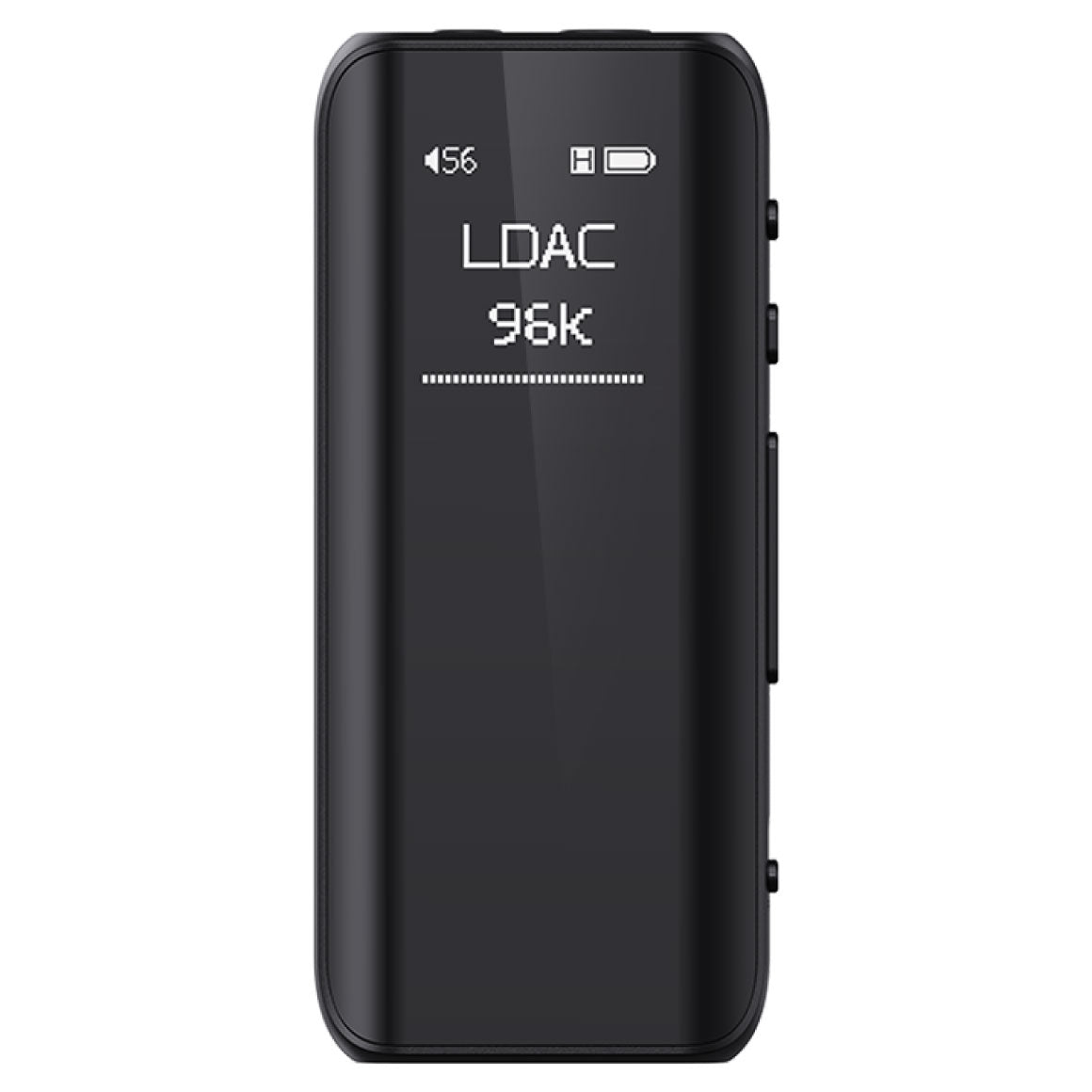

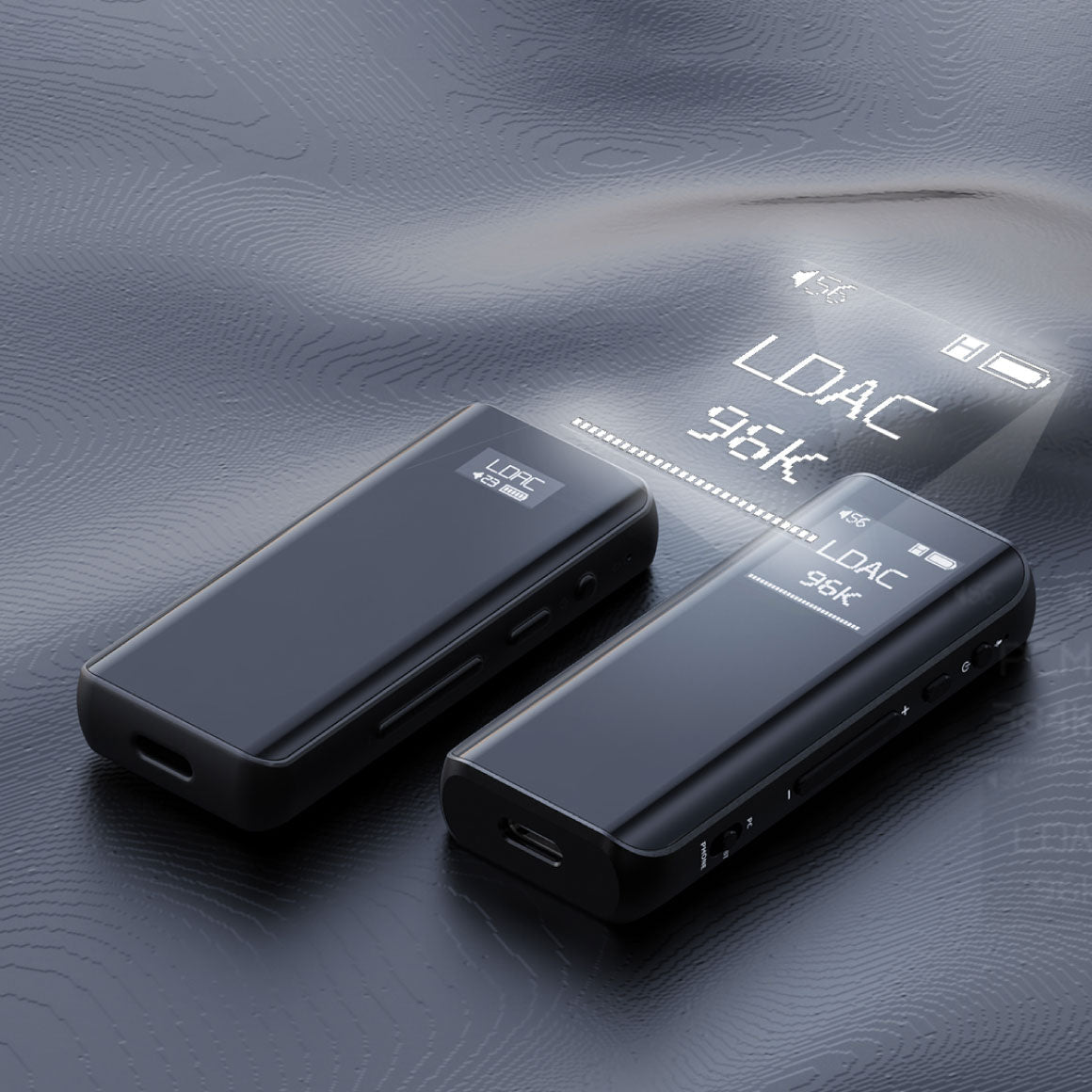

FEATURES AN OLED DISPLAY AND DUAL CURVED GLASS PANELS IN AN ALUMINIUM FRAME
The BTR15 by FIIO introduces hot-bent curved glass, adorning both the front and rear of the device. This not only enhances grip but also gives the BTR15 an appealing 3D look. Combined with the aluminium alloy middle frame, it provides a comfortable and irresistible feel. Similar to its sibling, the BTR7, the BTR15 features a spacious 0.96-inch OLED display that allows for more information to be shown simultaneously and provides larger fonts for easy device status checks and setting adjustments. Additionally, it stands out by offering bilingual language support in both Chinese and English, a rarity among similar products.

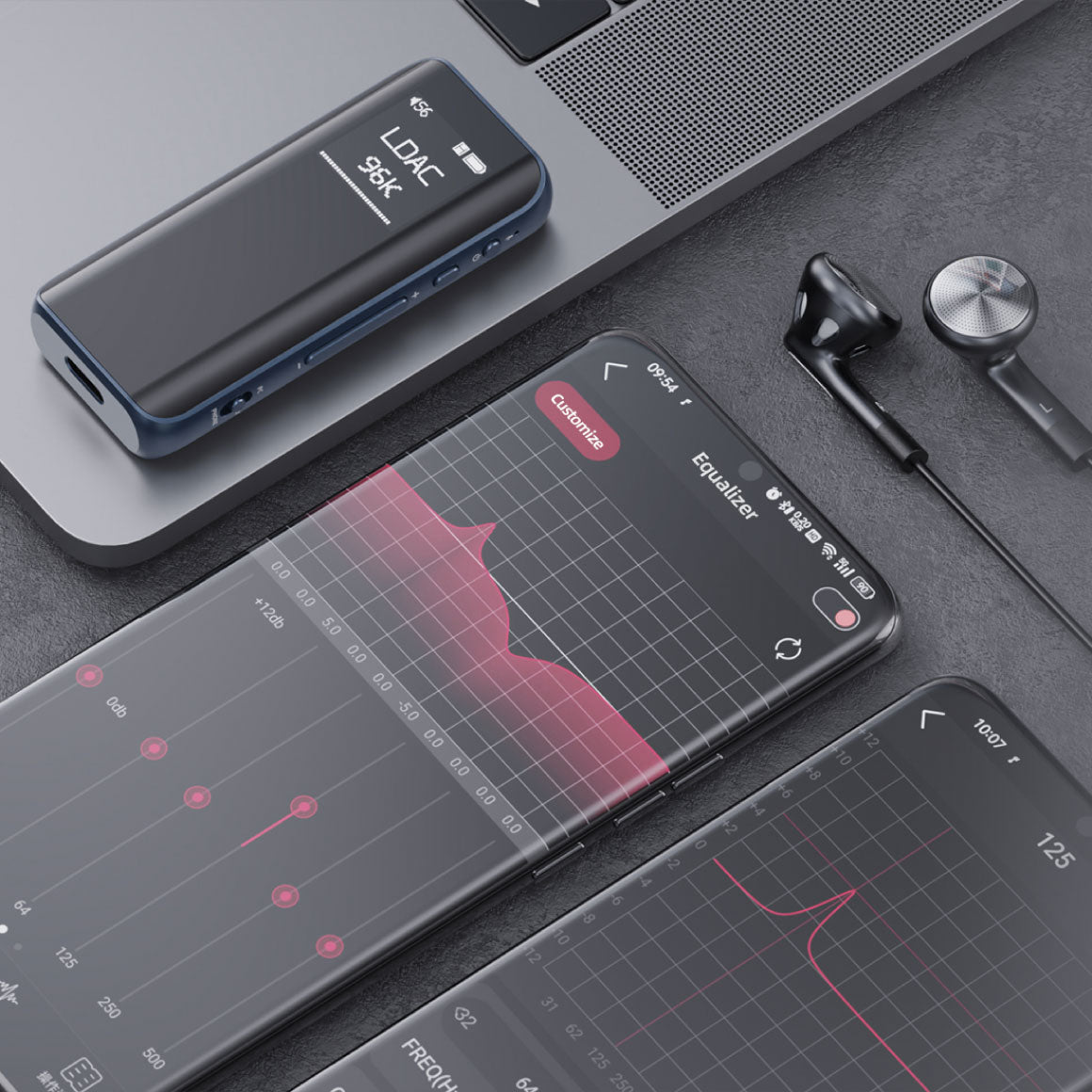

8 HOURS OF BATTERY LIFE AND A GLOBAL PARAMETRIC EQ TO TAILOR YOUR SOUND
Charge your FiiO BTR15's 550mAh battery in just 1.5 hours, and enjoy up to 8 hours of use on a full charge. The BTR15 incorporates a global parametric equaliser (PEQ) offering precision sound customisation. Utilising FiiO's proprietary PEQ algorithm and user-friendly interface, you can adjust specific frequencies, gain levels, and bandwidth to finely tune your sound in any mode to meet your preferences. Note that in BT mode, PEQ adjustments are achieved through the QCC5125 DSP, supporting LDAC and other Bluetooth formats up to 96kHz/24bit, while in PC and Phone mode, PEQ adjustments happen via the XMOS XU316 with support for up to PCM 192kHz.
COMPREHENSIVE BATTERY PROTECTION AND BUILT-IN TEMPERATURE SENSOR
FiiO has taken extensive steps to ensure the longevity and health of the BTR15's battery. In USB DAC mode, when connected to a computer for extended periods, the BTR15 intelligently prevents battery charging and relies on the computer's power source to avoid battery wear. Additionally, the device's robust, high-temperature-resistant battery enhances durability under challenging thermal conditions. A built-in temperature sensor offers dynamic monitoring, adjusting charging currents based on temperature to safeguard the battery from heat-related damage.

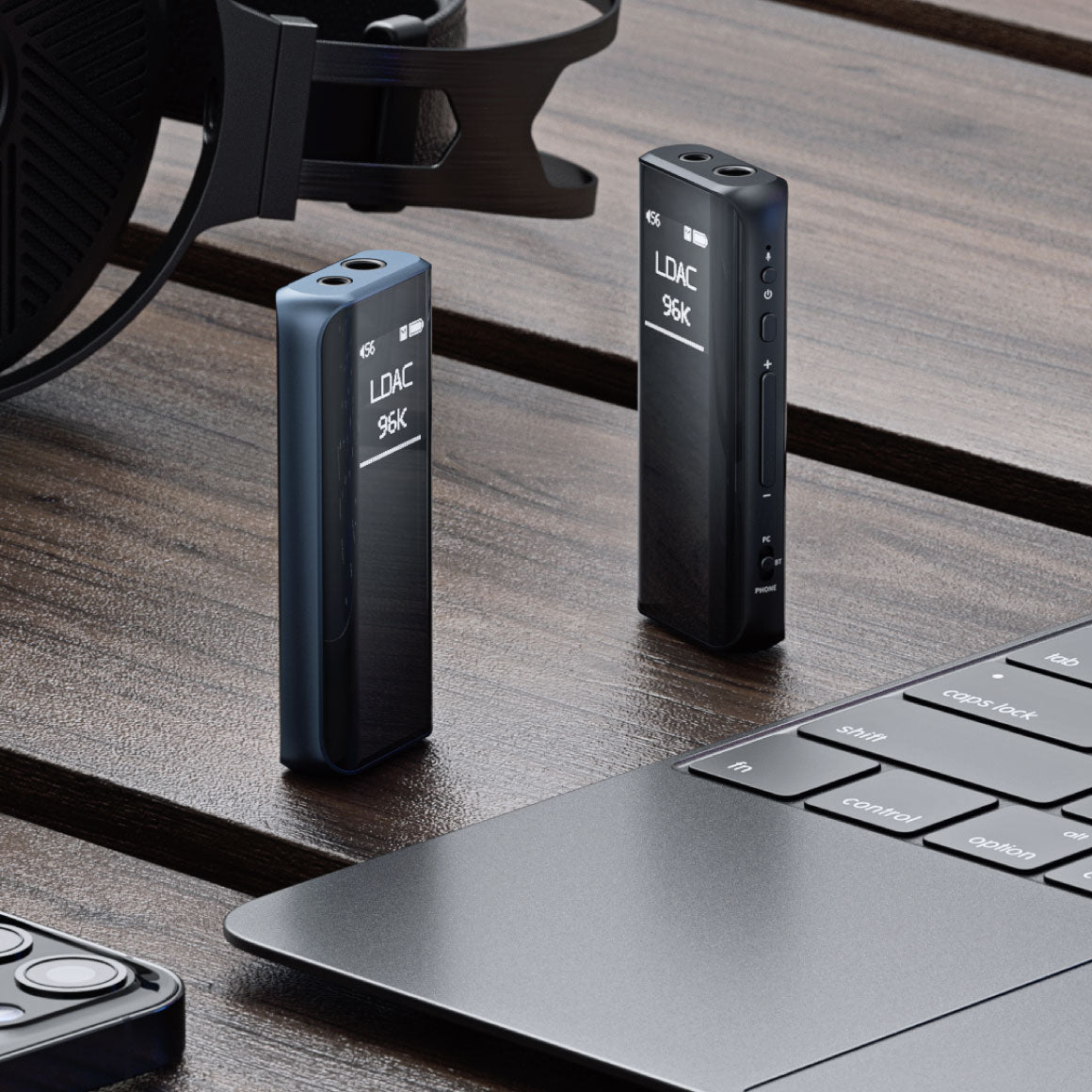

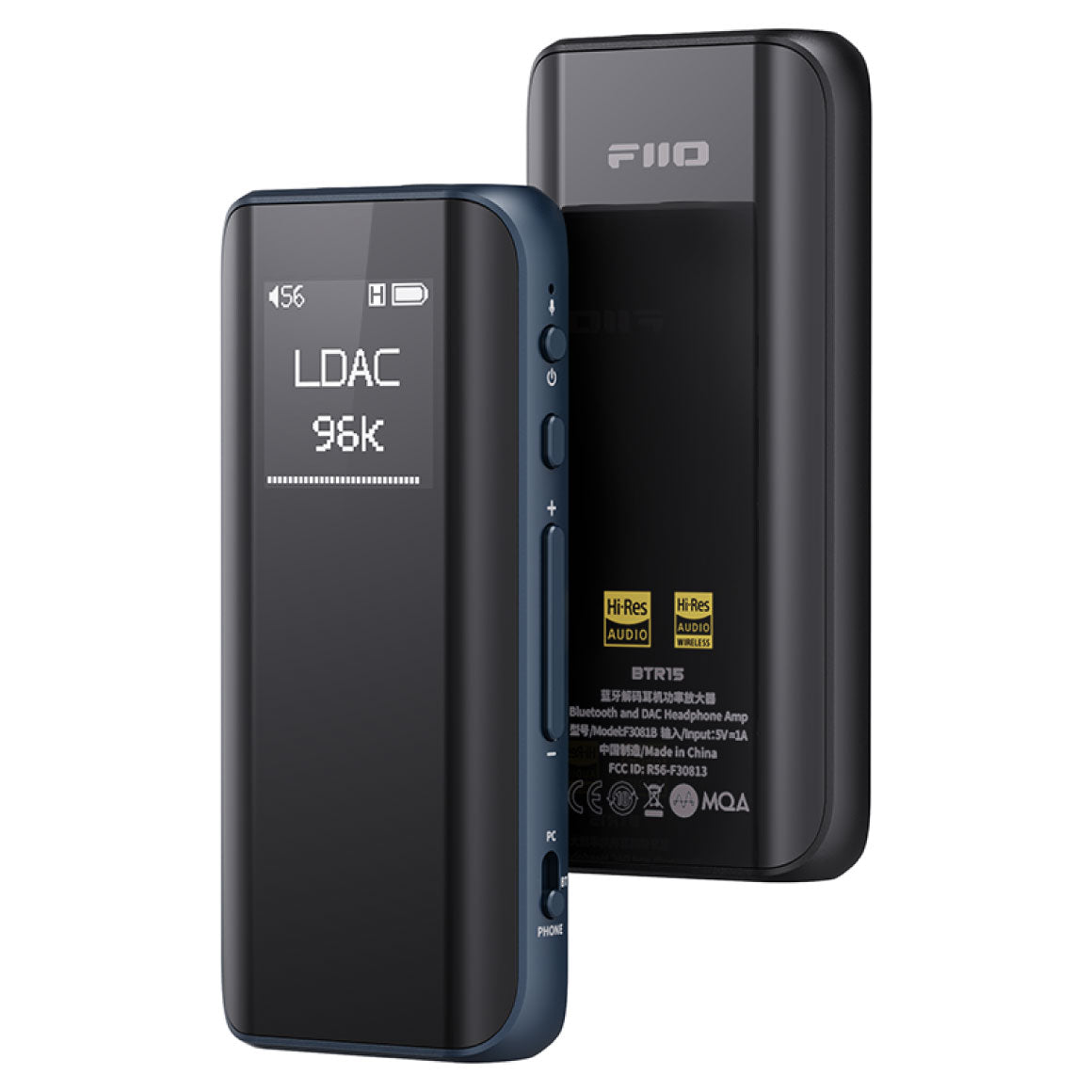

EXPERTLY DESIGNED IN TWO COLOURS AND FEATURES AN EASY-TO-USE BUTTON AND CLIP

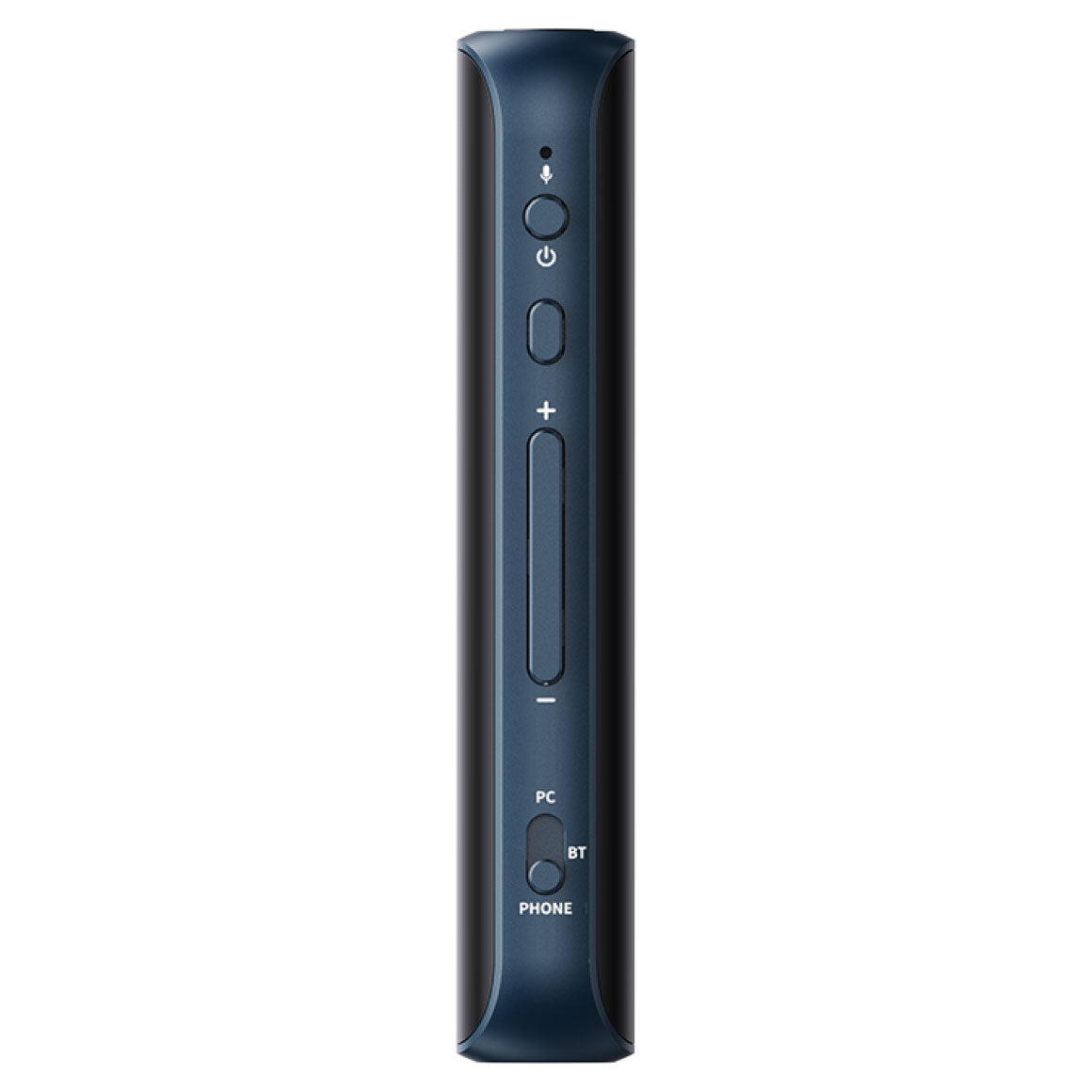

Switching modes on the BTR15 is a breeze with the dedicated PC/BT/PHONE mode button, allowing you to effortlessly transition between Bluetooth receiver and USB DAC modes, aligning with your specific music playback needs. The BTR15 offers a choice of two stylish colours, Black and Blue, and includes a transparent clip for added convenience during portable listening sessions.
SPECS
| MODEL | BTR15 |
| COLOR AVAILABLE | Black Blue |

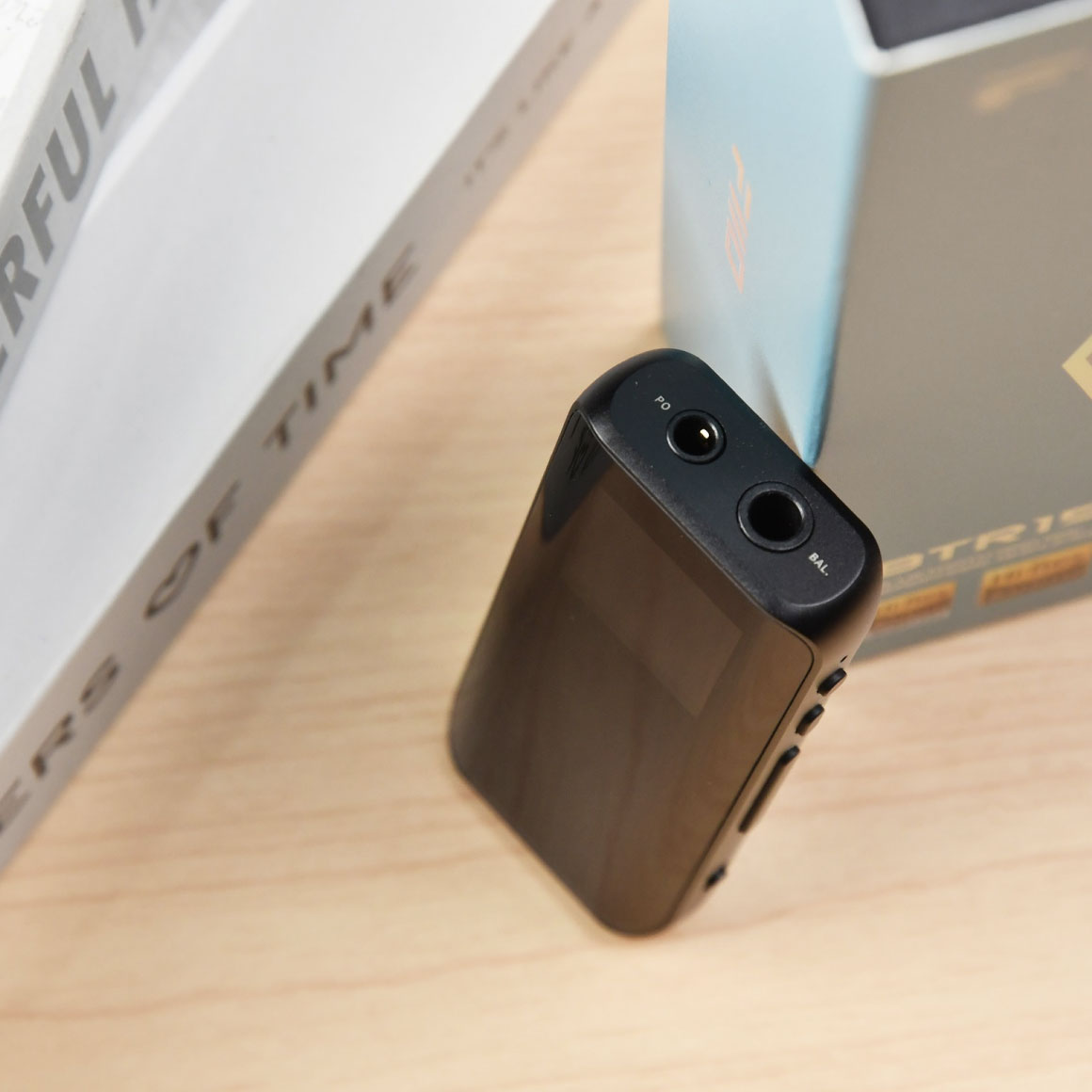

| HEADPHONE OUTPUT | Single-ended 3.5mm + Balanced 4.4mm |
| MICROPHONE PASS-THROUGH | Only Supported in Bluetooth Mode |
| BLUETOOTH CHIP | QCC5125 (CPU+DSP dual-core architecture) |
| BLUETOOTH VERSION | 5.1 |
| USB CHIP | XMOS XU316 |
| DAC | ES9219MQ*2 |
| BLUETOOTH CODECS | AAC/SBC/aptX/aptX LL/aptX Adaptive/aptX HD/LDAC |

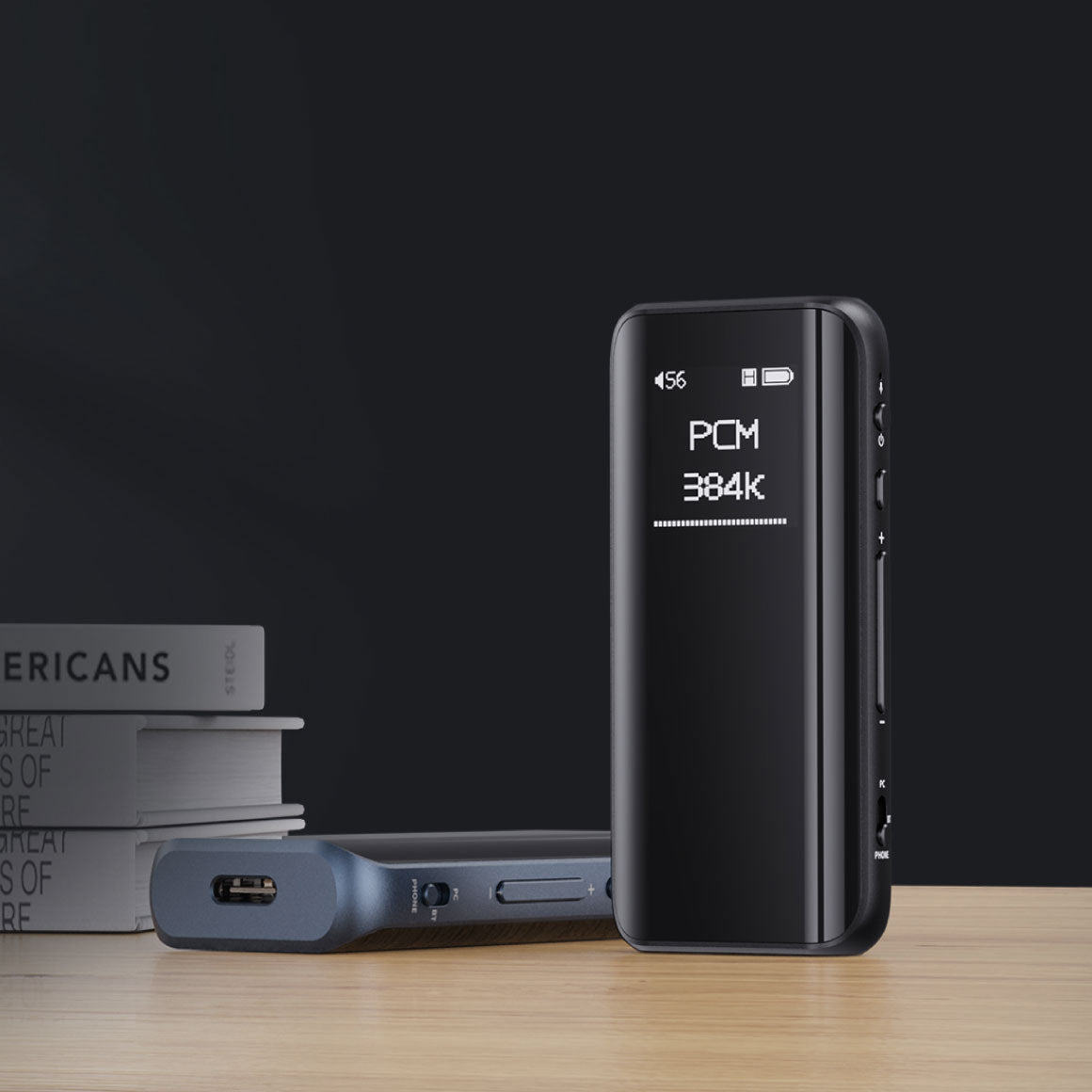

| USB DAC | Asynchronous 384kHz-32bit, DSD256 |
| USB DAC DRIVER-FREE MODE | Supported |
| DISPLAY | 0.96-inch 96×96 resolution OLED |
| DIMENSIONS | About 32.0mmx72.2mmx12.5mm |
| WEIGHT | About 37.3g |
| CHARGING TIME | <2H |
| BATTERY | 550mAh high-temperature resistant lithium-ion |
| BATTERY LIFE | About 8 hours |
| OUTPUT POWER 1 | L+R≥125mW+125mW (32Ω single-ended/THD+N<1%) |
| OUTPUT POWER 2 | L+R≥15mW+15mW (300Ω single-ended/THD+N<1%) |
| OUTPUT POWER 3 | L+R≥340mW+340mW (32Ω balanced/THD+N<1%) |
| OUTPUT POWER 4 | L+R≥50mW+50mW (300Ω balanced/THD+N<1%) |
| FREQUENCY RESPONSE | 20Hz~50kHz (-0.8dB) |
| SIGNAL-TO-NOISE RATIO | ≥122dB (A-weighted) |
| NOISE FLOOR | PO<2μV (A-weighted); BAL <2.7μV (A-weighted) |
| OUTPUT IMPEDANCE | PO<1Ω (32Ω load), BAL <1.5Ω (32Ω load) |
| FREQUENCY RESPONSE | <0.0008% (1kHz/32kΩ ) |

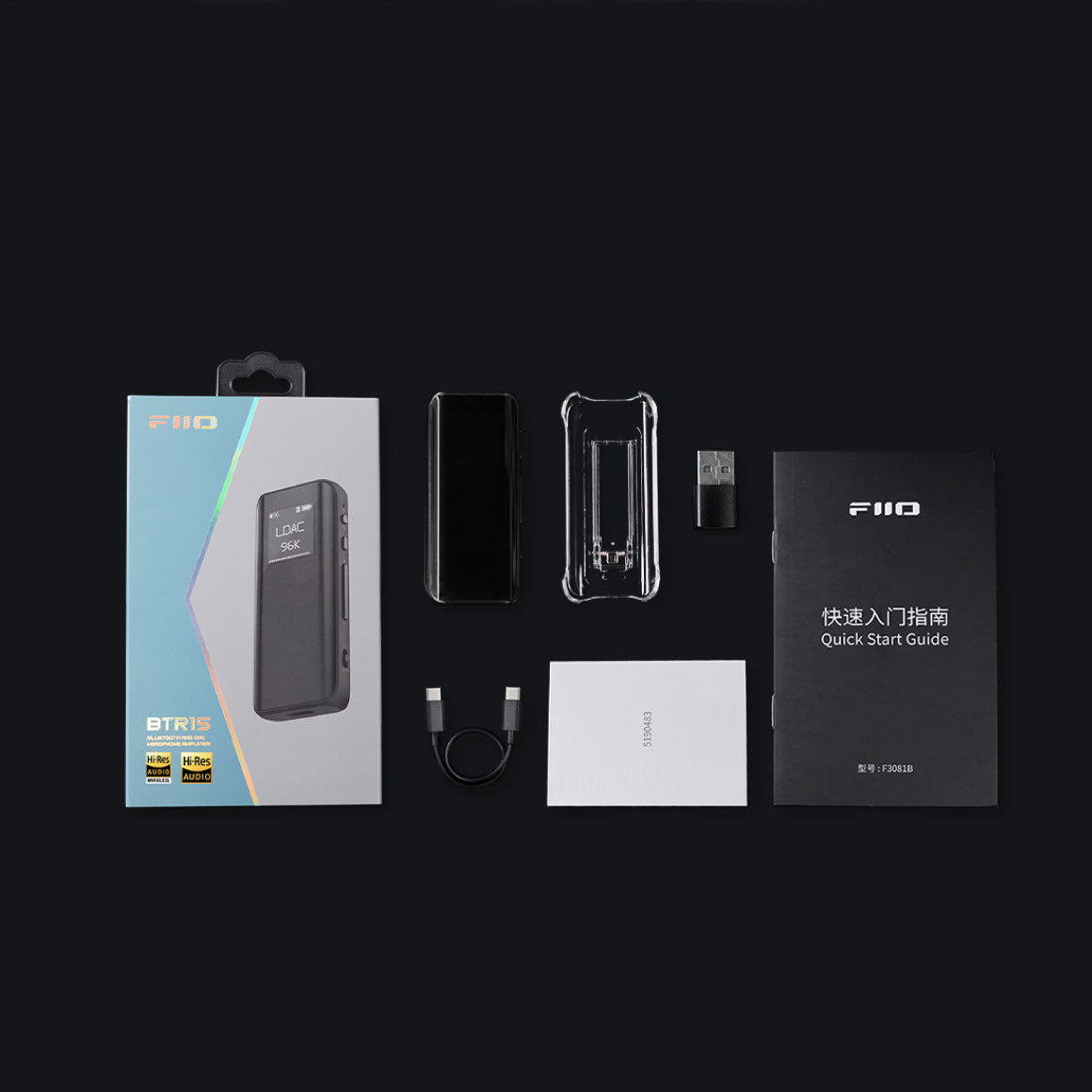

| WHAT YOU WILL GET | 1. FiiO BTR15 |
| 2. Type-C to Type-C data cable*1 | |
| 3. USB adapter * 1 | |
| 4. Removable back clip * 1 | |
| 5. Quick start guide | |
| 6. Warranty Card | |
| WHAT YOU WILL NOT GET | Original packaging of FiiO BTR15 |
OTHER DETAILS
| GENERIC NAME | Headphone Amplifier |
| IMPORTER DETAILS | Importers Name: Ferrari Video Address: 63/18, 1st Main Road, Gandhi Nagar, Chennai - 600020 Contact No: 044-24420733 |
| NET QUANTITY | 1 |
Quick Start Guide | BTR15
Portable Bluetooth DAC & Amp
|
FAQs
What is the warranty like and who should I contact?
FiiO offers a one year warranty. If you need to claim warranty, you can contact us. We are quite friendly people, just sayin. You can read more about warranty here.
Why can't BTR15 be paired and connected to my phone? How to reset?
[Clear the pairing information on your phone]
Go to Settings-Bluetooth to delete the BTR15 pairing information and reconnect it to BTR15.
[Clear the pairing information on BTR15]
When it is on, hold both the volume- and volume+ buttons at the same time for about 5s.
[Reset operation]
Hold the Power button for at least 10 seconds to reset it.
Introduction of the three modes
Toggle the mode switch to select the mode you want to use.
PC mode: Toggle the switch to the top. The BTR15 will enter the USB decoding mode for desktop devices, and can be powered through USB.
BT mode: Toggle the switch to the middle. The BTR15 will enter the Bluetooth receiving mode, and can be powered through USB.
PHONE mode: Toggle the mode switch to the bottom. The BTR15 will enter the decoding mode for mobile phones, and will be disabled from USB charging (The device will be forced to charge if it is powered off for low battery).
How to enter pairing mode in BT mode? How to clear the pairing list of BTR15?
BT mode: Toggle the switch to the middle. The BTR15 will enter the Bluetooth receiving mode, and can be powered through USB.

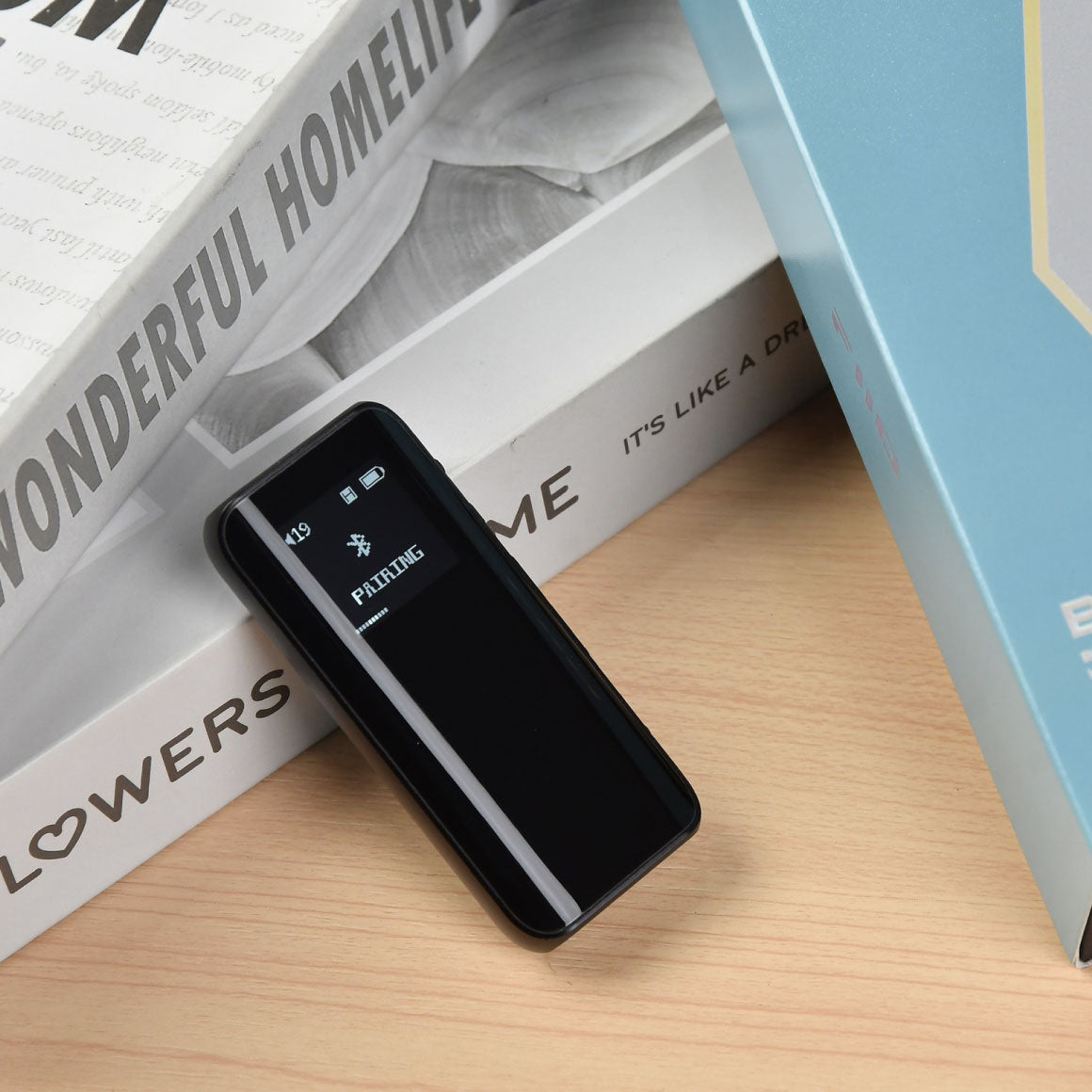

[How to enter Bluetooth pairing mode?(not on the menu page)]
1.If the device is never paired: After the device powers on, it will automatically enter the pairing mode with the display showing “PAIRING”;After the device restarted, it will reconnect to the last connected device automatically.
2. Force the device to enter pairing mode: After the device is successfully connected, hold the Multifunction button for about 5s until the display shows “PAIRING”.
[How to clear the pairing list of BTR15?]
When it is on, hold both the volume- and volume+ buttons at the same time for about 5s.

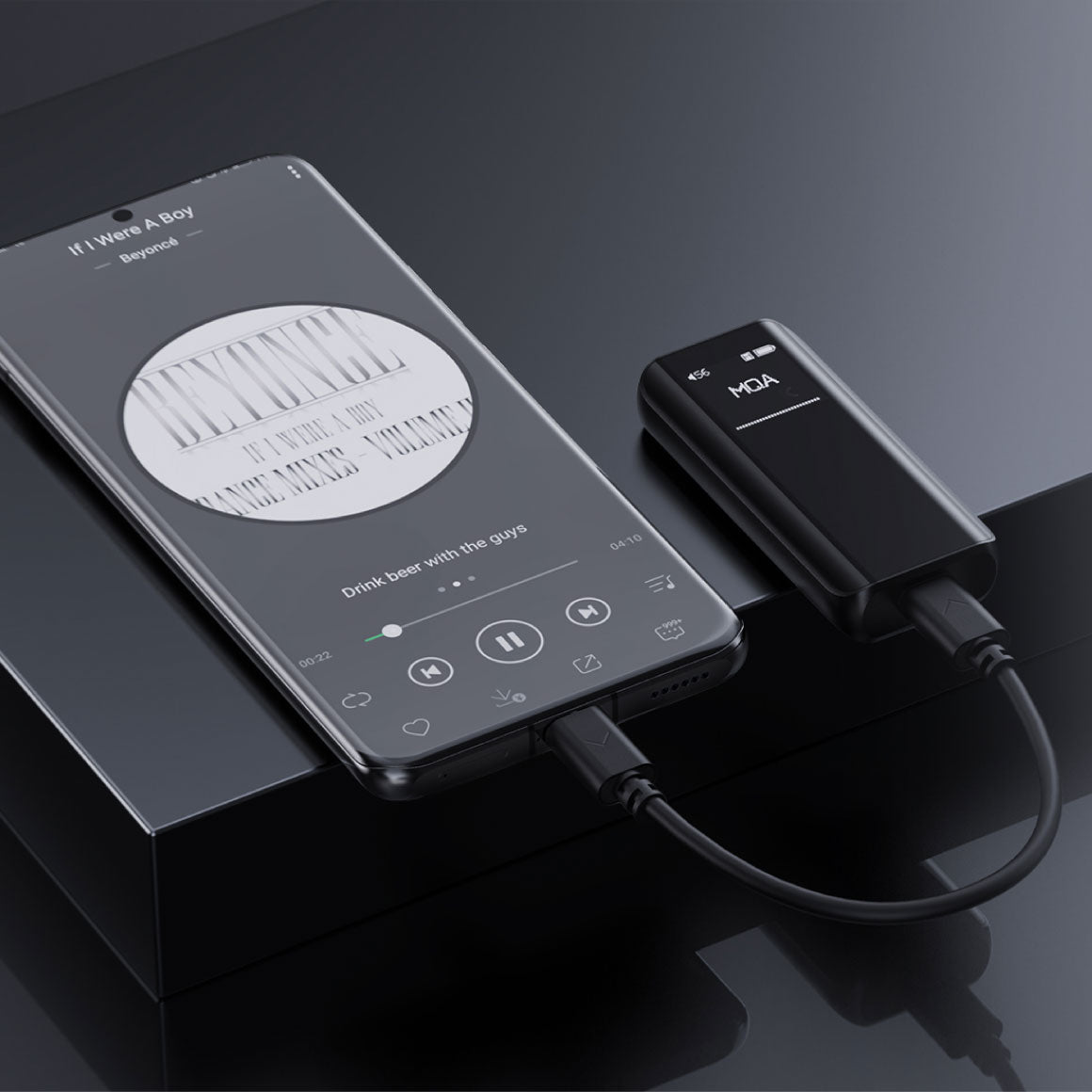

How to use the BTR15 as a USB DAC for mobile phones in PHONE mode?
PHONE mode: Toggle the mode switch to the bottom. The BTR15 will enter the decoding mode for mobilephones, and will be disabled from USB charging (The device will be forced to charge if it is powered off for low battery).
[Android phone]
Use the Type-C to Type-C cable included in the package to connect the BTR15 to your mobile phone. Play music to directly enjoy high-quality music.
Note: If there is no sound after connecting, you need to pay attention to the following points:
1. Settings on apps, such as FiiO Music, there is a USB output that needs to be enabled, but some devices will have sound only with the USB output turned off.
2. Please check if the USB debugging is enabled in developer modeYou may need to open 'Developer Options' in 'Other Advanced Settings', and then enable the 'USB Debugging' or 'OTG' function
3. Please confirm whether the cable is FiiO's C to C cable, whether the cable is reversed as there is a direction indication.
4. After the above settings are completed, you can try to re-plug the data cable, or play the track, play another track to make sure whether it is a hardware or software issue. If your issue remains, please contact our customer service to confirm whether it needs to be returned.
[iPhone/iPad]
Please buy an extra Lightning to Type-C OTG cable.
Connect the BTR15 to the iPhone/iPad/iPod via this cable to enjoy high-quality music.
Note: IOS devices won't need too many settings. If there is no sound, it may be the adapter cable or the data port is in poor contact.
How to use the car mode?
Enable the Car mode and connect the BTR15 to an on-board USB port. When the vehicle engine starts, theBTR15 will power on automatically, and power off when the engine stops.
The car mode could be available in BT, PC or PHONE mode.
How to connect the BTR15 to two Bluetooth devices simultaneously in BT mode?
After a successful pairing with device 1, hold the Multifunction button for about 5s to enter the pairing mode again. Search for 'BTR15' on device 2 and pair it with the BTR15. Back to device 1, select 'FIIO BTR15' in the Bluetooth device list and reconnect them; or, after connecting the BTR15 with device 1 successfully, reenter the pairing mode and connect to device 2. After a successful pairing with device 2, short press the Multifunction button to reconnect to device 1; or, restart the BTR15 after a successful pairing with device 2, so the BTR15 can be connected to two Bluetooth devices simultaneously.
About the remote control and microphone function in BTR15
Microphone is not supported in USB DAC mode. When connecting via Bluetooth connection, you could use the microphone in BTR15 for calling.
The in-line remote control and microphone function in headphone are not supported by the BTR15.
Headphone Zone Certified Unboxed Units
Unboxed units are as good as new products with the product's packaging being unavailable. These products give you the same satisfaction of new products - but at down-to-earth prices. Usually, the product's packaging may have gotten damaged in transit. Customers use a product once or twice and then return it with opened up packaging.
Customer Returns
Returned headphones are fully functional products that have left the warehouse and therefore can no longer be sold as new as their packaging has been opened. The product may have been used once or twice by the customer who returned it.
Transit Damages
Sometimes we receive headphones in damaged packaging due to shipping accidents. These are brand new headphones with cosmetic flaws on the packaging.
Save Upto 15%
Since you won't get the original packaging, we give you a good discount compared to a new headphone.
Professionally Inspected
A thorough inspection means you receive a 100% working headphone with no sound output issues.
Original Warranty
All unboxed headphones carry the same warranty period as a brand new headphone would.
Unbiased Customer Service
We have the same Headphone Zone customer support experience for Unboxed Products or new products.
Unchanged Replacement Policy
Received a defective Unboxed unit? Return it under our Replacement Policy.
All Original Accessories
The unboxed headphones itself comes with all original accessories.
UPGRADE TO HI-RESOLUTION SOUND TODAY WITH THE ALL-NEW FIIO BTR15
Elevate your wireless audio experience with the FiiO BTR15, which seamlessly integrates your Bluetooth device into a Hi-Res wireless setup. Featuring Bluetooth 5.1, the BTR15 provides support for premium Bluetooth codecs such as AAC, SBC, aptX, aptX LL, aptX Adaptive, aptX HD, and LDAC up to 96 kHz. Whether you're seeking a top-tier audiophile configuration, the FiiO BTR15 offers a fantastic solution to enhance your sound quality with your existing device.
UPGRADED WITH MQA FULL DECODER FOR MASTER-QUALITY AUDIO OUTPUT
The enhanced FiiO BTR15 now delivers an even more accurate audio playback experience. This upgraded version, introduces support for the MQA protocol, enabling the decoding of high-resolution, master-quality sound even in conveniently sized files. With the BTR15, you can enjoy music in lifelike quality, as it supports decoding with a sampling rate of up to 384 kHz using any music app.
UNCOMPROMISED SOUND QUALITY WITH TWO ES9219MQ AND XMOS XUF316 CHIPS
The FiiO BTR15 has undergone a significant upgrade at its core, featuring two ESS SABRE ES9219MQ DAC chips that offer improved decoding performance compared to the previous generation. These chips also provide a higher signal-to-noise ratio and lower power consumption. The audio architecture is further enhanced by the integration of a 16-core XMOS XUF316 control chip. With this chip, the BTR15 can perform asynchronous audio decoding, supporting a maximum sampling rate of 384kHz and native DSD via USB 2.0. Additionally, it offers Asynchronous USB DAC support for 384kHz sampling rates and native DSD256 decoding.
EFFICIENT POWER MANAGEMENT AND CONNECTIVITY WITH QUALCOMM QCC5125 CHIP
Incorporating the updated Qualcomm QCC5125 chip into the FiiO BTR15 offers significant advantages, including enhanced audio capabilities and lower power consumption. This chip enables the BTR15 to decode 24-bit audio in Bluetooth mode. It supports various high-resolution Bluetooth formats like LDAC, aptX Adaptive, aptX LL, aptX HD, aptX, AAC, and SBC, with sampling rates of up to 96kHz. Whether you're watching videos, gaming, or enjoying music, the BTR15 ensures excellent sound quality for your audio experience.
EXPERIENCE POWERFUL AMPLIFICATION WITH DUAL OUTPUT CONNECTORS
FiiO engineers developed an independent power supply system for the BTR15's DAC ES9219MQ, ensuring a cleaner power source. The external power supply, designed for low noise and high current, enhances the BTR15's balanced output power by 40% to 340 mW, perfect for portable use. The BTR15 offers both 3.5mm single-ended and 4.4mm balanced headphone outputs, boosting contact reliability. These dual outputs support various headphones, elevating your listening experience. Even if you're not using the 4.4mm balanced output, FIIO connected the headphone outputs in parallel to enhance the 3.5mm single-ended output's power, making it ideal for driving low-impedance headphones and unleashing their potential.
NOTE : It is advised to use DC 5V 2A to charge your BTR15.

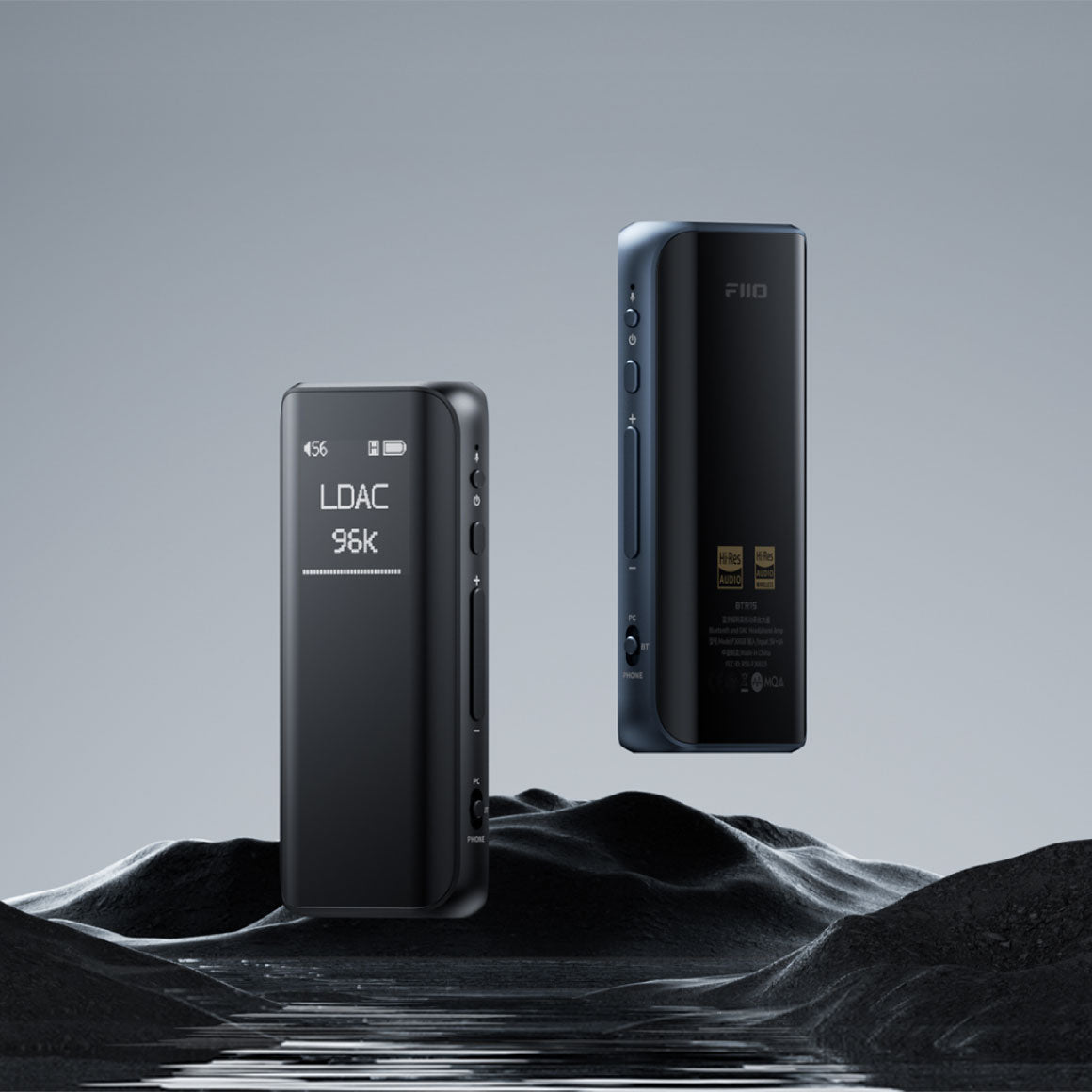

FEATURES AN OLED DISPLAY AND DUAL CURVED GLASS PANELS IN AN ALUMINIUM FRAME
The BTR15 by FIIO introduces hot-bent curved glass, adorning both the front and rear of the device. This not only enhances grip but also gives the BTR15 an appealing 3D look. Combined with the aluminium alloy middle frame, it provides a comfortable and irresistible feel. Similar to its sibling, the BTR7, the BTR15 features a spacious 0.96-inch OLED display that allows for more information to be shown simultaneously and provides larger fonts for easy device status checks and setting adjustments. Additionally, it stands out by offering bilingual language support in both Chinese and English, a rarity among similar products.
8 HOURS OF BATTERY LIFE AND A GLOBAL PARAMETRIC EQ TO TAILOR YOUR SOUND
Charge your FiiO BTR15's 550mAh battery in just 1.5 hours, and enjoy up to 8 hours of use on a full charge. The BTR15 incorporates a global parametric equaliser (PEQ) offering precision sound customisation. Utilising FiiO's proprietary PEQ algorithm and user-friendly interface, you can adjust specific frequencies, gain levels, and bandwidth to finely tune your sound in any mode to meet your preferences. Note that in BT mode, PEQ adjustments are achieved through the QCC5125 DSP, supporting LDAC and other Bluetooth formats up to 96kHz/24bit, while in PC and Phone mode, PEQ adjustments happen via the XMOS XU316 with support for up to PCM 192kHz.
COMPREHENSIVE BATTERY PROTECTION AND BUILT-IN TEMPERATURE SENSOR
FiiO has taken extensive steps to ensure the longevity and health of the BTR15's battery. In USB DAC mode, when connected to a computer for extended periods, the BTR15 intelligently prevents battery charging and relies on the computer's power source to avoid battery wear. Additionally, the device's robust, high-temperature-resistant battery enhances durability under challenging thermal conditions. A built-in temperature sensor offers dynamic monitoring, adjusting charging currents based on temperature to safeguard the battery from heat-related damage.

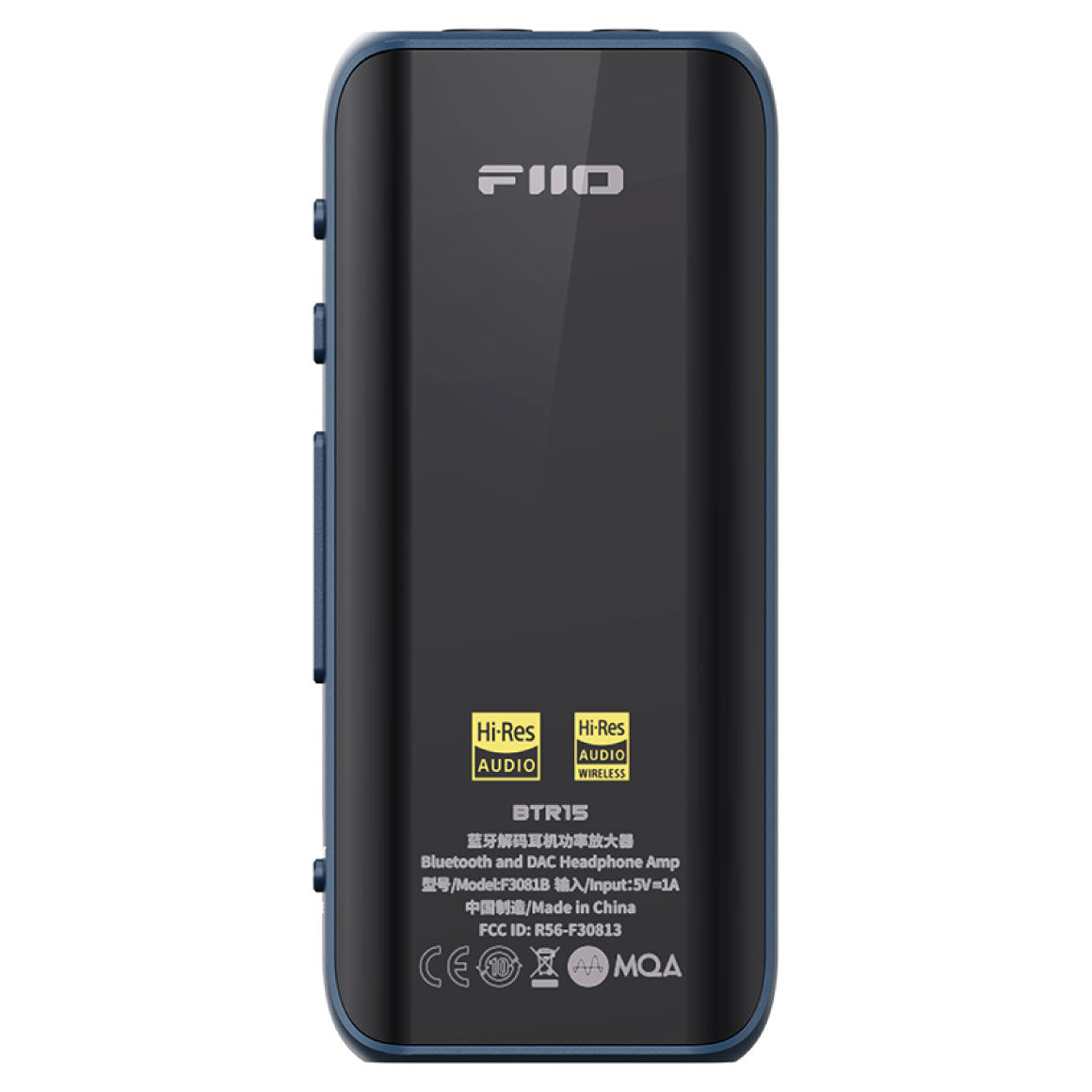

EXPERTLY DESIGNED IN TWO COLOURS AND FEATURES AN EASY-TO-USE BUTTON AND CLIP
Switching modes on the BTR15 is a breeze with the dedicated PC/BT/PHONE mode button, allowing you to effortlessly transition between Bluetooth receiver and USB DAC modes, aligning with your specific music playback needs. The BTR15 offers a choice of two stylish colours, Black and Blue, and includes a transparent clip for added convenience during portable listening sessions.
| MODEL | BTR15 |
| COLOR AVAILABLE | Black Blue |
| HEADPHONE OUTPUT | Single-ended 3.5mm + Balanced 4.4mm |
| MICROPHONE PASS-THROUGH | Only Supported in Bluetooth Mode |
| BLUETOOTH CHIP | QCC5125 (CPU+DSP dual-core architecture) |
| BLUETOOTH VERSION | 5.1 |
| USB CHIP | XMOS XU316 |
| DAC | ES9219MQ*2 |
| BLUETOOTH CODECS | AAC/SBC/aptX/aptX LL/aptX Adaptive/aptX HD/LDAC |
| USB DAC | Asynchronous 384kHz-32bit, DSD256 |
| USB DAC DRIVER-FREE MODE | Supported |
| DISPLAY | 0.96-inch 96×96 resolution OLED |
| DIMENSIONS | About 32.0mmx72.2mmx12.5mm |
| WEIGHT | About 37.3g |
| CHARGING TIME | <2H |
| BATTERY | 550mAh high-temperature resistant lithium-ion |
| BATTERY LIFE | About 8 hours |
| OUTPUT POWER 1 | L+R≥125mW+125mW (32Ω single-ended/THD+N<1%) |
| OUTPUT POWER 2 | L+R≥15mW+15mW (300Ω single-ended/THD+N<1%) |
| OUTPUT POWER 3 | L+R≥340mW+340mW (32Ω balanced/THD+N<1%) |
| OUTPUT POWER 4 | L+R≥50mW+50mW (300Ω balanced/THD+N<1%) |
| FREQUENCY RESPONSE | 20Hz~50kHz (-0.8dB) |
| SIGNAL-TO-NOISE RATIO | ≥122dB (A-weighted) |
| NOISE FLOOR | PO<2μV (A-weighted); BAL <2.7μV (A-weighted) |
| OUTPUT IMPEDANCE | PO<1Ω (32Ω load), BAL <1.5Ω (32Ω load) |
| FREQUENCY RESPONSE | <0.0008% (1kHz/32kΩ ) |

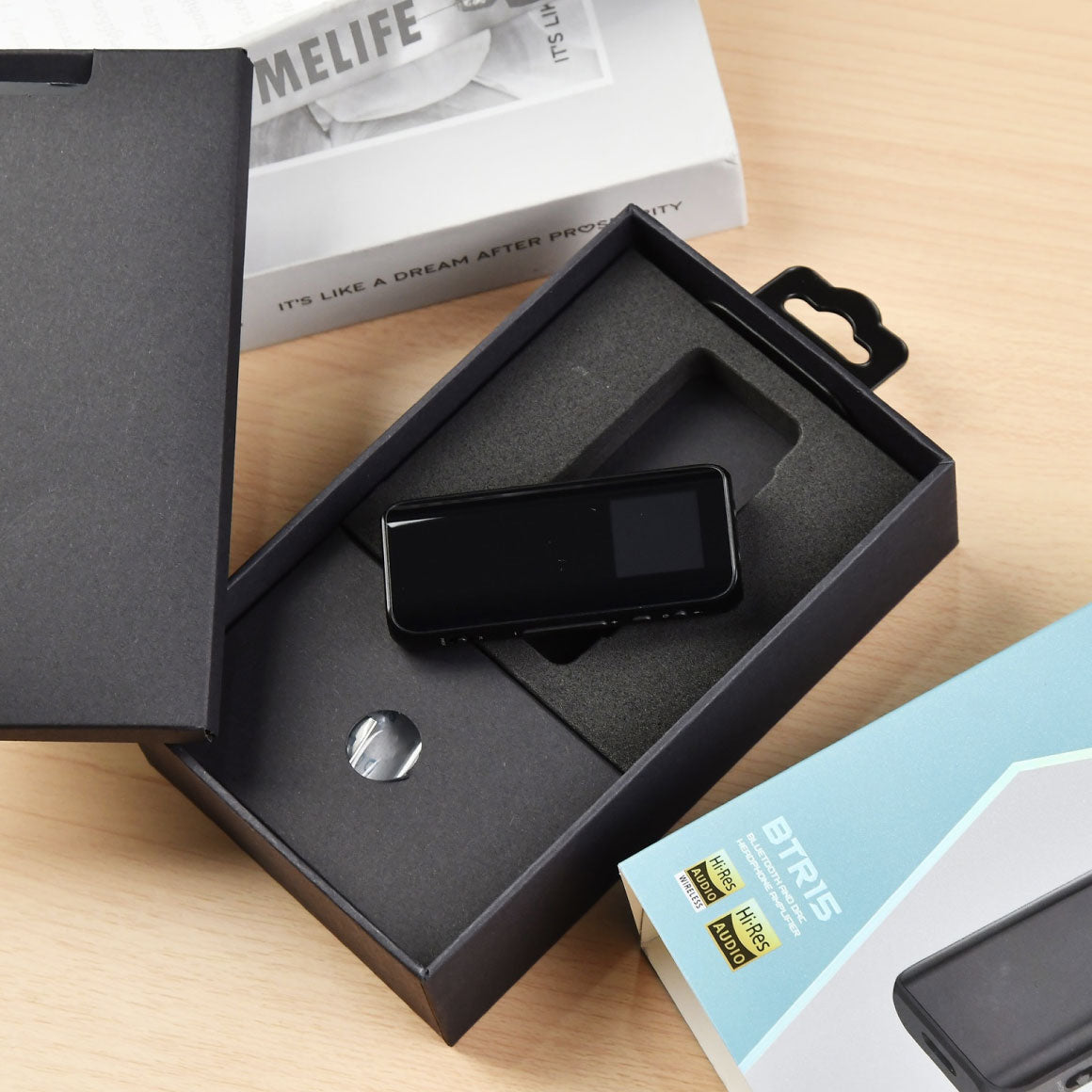

| WHAT YOU WILL GET | 1. FiiO BTR15 |
| 2. Type-C to Type-C data cable*1 | |
| 3. USB adapter * 1 | |
| 4. Removable back clip * 1 | |
| 5. Quick start guide | |
| 6. Warranty Card | |
| WHAT YOU WILL NOT GET | Original packaging of FiiO BTR15 |
OTHER DETAILS
| GENERIC NAME | Headphone Amplifier |
| IMPORTER DETAILS | Importers Name: Ferrari Video Address: 63/18, 1st Main Road, Gandhi Nagar, Chennai - 600020 Contact No: 044-24420733 |
| NET QUANTITY | 1 |
|
Quick Start Guide | BTR15
Portable Bluetooth DAC & Amp
|
What is the warranty like and who should I contact?
FiiO offers a one year warranty. If you need to claim warranty, you can contact us. We are quite friendly people, just sayin. You can read more about warranty here.
Why can't BTR15 be paired and connected to my phone? How to reset?
[Clear the pairing information on your phone]
Go to Settings-Bluetooth to delete the BTR15 pairing information and reconnect it to BTR15.
[Clear the pairing information on BTR15]
When it is on, hold both the volume- and volume+ buttons at the same time for about 5s.
[Reset operation]
Hold the Power button for at least 10 seconds to reset it.
Introduction of the three modes
Toggle the mode switch to select the mode you want to use.
PC mode: Toggle the switch to the top. The BTR15 will enter the USB decoding mode for desktop devices, and can be powered through USB.
BT mode: Toggle the switch to the middle. The BTR15 will enter the Bluetooth receiving mode, and can be powered through USB.
PHONE mode: Toggle the mode switch to the bottom. The BTR15 will enter the decoding mode for mobile phones, and will be disabled from USB charging (The device will be forced to charge if it is powered off for low battery).
How to enter pairing mode in BT mode? How to clear the pairing list of BTR15?
BT mode: Toggle the switch to the middle. The BTR15 will enter the Bluetooth receiving mode, and can be powered through USB.
[How to enter Bluetooth pairing mode?(not on the menu page)]
1.If the device is never paired: After the device powers on, it will automatically enter the pairing mode with the display showing “PAIRING”;After the device restarted, it will reconnect to the last connected device automatically.
2. Force the device to enter pairing mode: After the device is successfully connected, hold the Multifunction button for about 5s until the display shows “PAIRING”.
[How to clear the pairing list of BTR15?]
When it is on, hold both the volume- and volume+ buttons at the same time for about 5s.
How to use the BTR15 as a USB DAC for mobile phones in PHONE mode?
PHONE mode: Toggle the mode switch to the bottom. The BTR15 will enter the decoding mode for mobilephones, and will be disabled from USB charging (The device will be forced to charge if it is powered off for low battery).
[Android phone]
Use the Type-C to Type-C cable included in the package to connect the BTR15 to your mobile phone. Play music to directly enjoy high-quality music.
Note: If there is no sound after connecting, you need to pay attention to the following points:
1. Settings on apps, such as FiiO Music, there is a USB output that needs to be enabled, but some devices will have sound only with the USB output turned off.
2. Please check if the USB debugging is enabled in developer modeYou may need to open 'Developer Options' in 'Other Advanced Settings', and then enable the 'USB Debugging' or 'OTG' function
3. Please confirm whether the cable is FiiO's C to C cable, whether the cable is reversed as there is a direction indication.
4. After the above settings are completed, you can try to re-plug the data cable, or play the track, play another track to make sure whether it is a hardware or software issue. If your issue remains, please contact our customer service to confirm whether it needs to be returned.
[iPhone/iPad]
Please buy an extra Lightning to Type-C OTG cable.
Connect the BTR15 to the iPhone/iPad/iPod via this cable to enjoy high-quality music.
Note: IOS devices won't need too many settings. If there is no sound, it may be the adapter cable or the data port is in poor contact.
How to use the car mode?
Enable the Car mode and connect the BTR15 to an on-board USB port. When the vehicle engine starts, theBTR15 will power on automatically, and power off when the engine stops.
The car mode could be available in BT, PC or PHONE mode.
How to connect the BTR15 to two Bluetooth devices simultaneously in BT mode?
After a successful pairing with device 1, hold the Multifunction button for about 5s to enter the pairing mode again. Search for 'BTR15' on device 2 and pair it with the BTR15. Back to device 1, select 'FIIO BTR15' in the Bluetooth device list and reconnect them; or, after connecting the BTR15 with device 1 successfully, reenter the pairing mode and connect to device 2. After a successful pairing with device 2, short press the Multifunction button to reconnect to device 1; or, restart the BTR15 after a successful pairing with device 2, so the BTR15 can be connected to two Bluetooth devices simultaneously.
About the remote control and microphone function in BTR15
Microphone is not supported in USB DAC mode. When connecting via Bluetooth connection, you could use the microphone in BTR15 for calling.
The in-line remote control and microphone function in headphone are not supported by the BTR15.
Don't sweat it, this
FiiO - BTR15 (Unboxed) comes with a 1 Year warranty
from FiiO that covers manufacturing defects.
All products featured on Headphone Zone are backed by an original manufacturer's warranty.
Read more about FiiO's warranty in India.
"FiiO BTR15 checks all the right boxes. With tons of power and a clean, detailed delivery, the BTR15 is the perfect device for audiophiles who want Bluetooth on-the-go."
Read More
