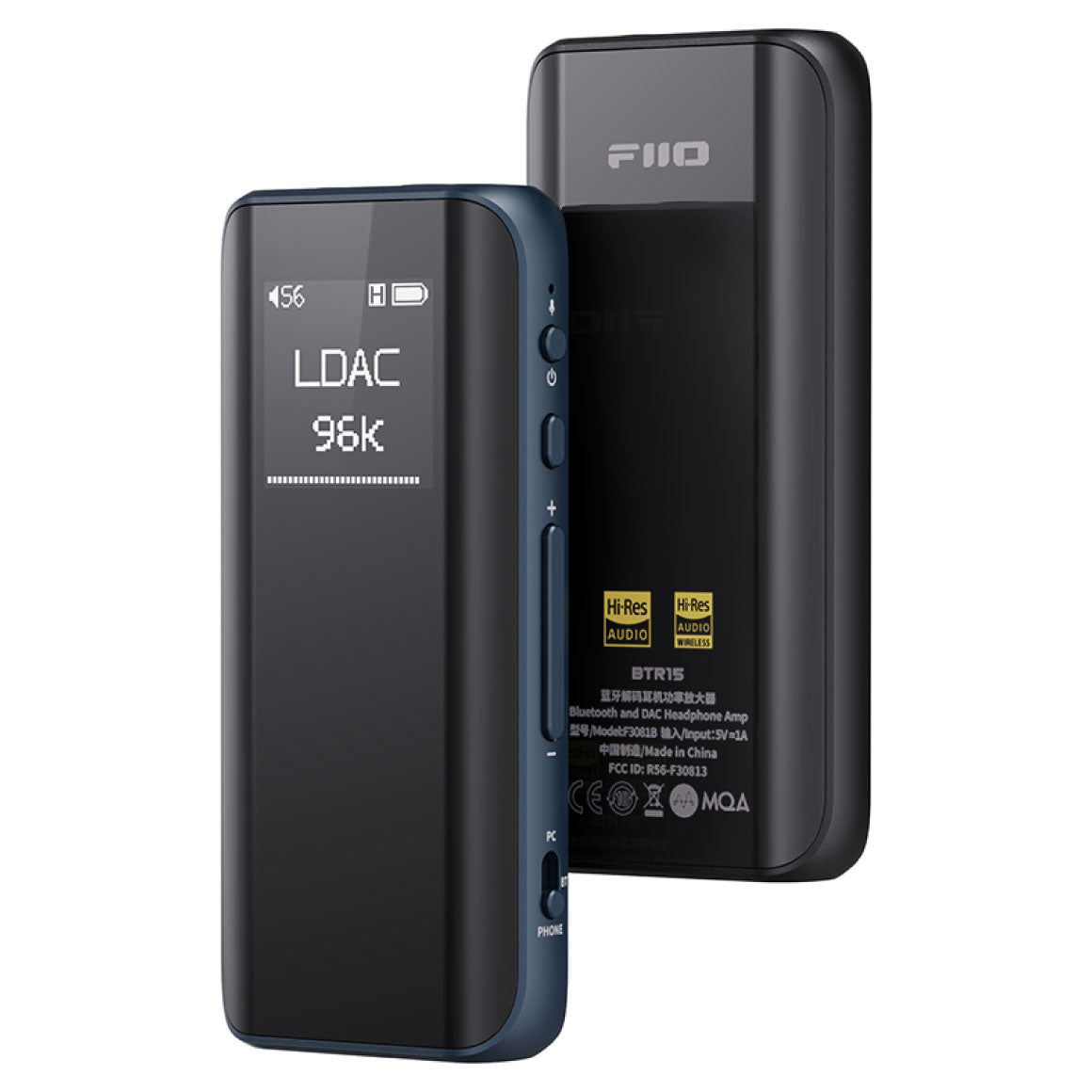

FiiO - BTR15
Portable Bluetooth DAC & AmpGET 18% GST INPUT
One of the reasons headphones and earphones in India are more expensive than overseas is because of the Goods &
Services Tax in India.
Don't let the GST input go to waste especially if you can avail an offset.
All products sold on Headphone Zone carry a GST compliant invoice and all products sold include an 18% GST.
Simply enter your GST number at the time of checkout.
Browse EMI Plans
ICICI Bank
3
15.99%
₹ 3,080
₹ 241
6
15.99%
₹ 1,571
₹ 424
9
15.99%
₹ 1,068
₹ 610
12
15.99%
₹ 816
₹ 798
18
15.99%
₹ 566
₹ 1,182
24
15.99%
₹ 441
₹ 1,575
HDFC Bank
3
16%
₹ 3,080
₹ 241
6
16%
₹ 1,571
₹ 425
9
16%
₹ 1,068
₹ 611
12
16%
₹ 816
₹ 799
18
16%
₹ 566
₹ 1,183
24
16%
₹ 441
₹ 1,576
SBI Bank
3
16.5%
₹ 3,083
₹ 249
6
15%
₹ 1,566
₹ 398
9
15%
₹ 1,063
₹ 572
12
15%
₹ 812
₹ 748
18
16%
₹ 566
₹ 1,183
24
16%
₹ 441
₹ 1,576
Axis Bank
3
16%
₹ 3,080
₹ 241
6
16%
₹ 1,571
₹ 425
9
16%
₹ 1,068
₹ 611
12
16%
₹ 808
₹ 697
18
16%
₹ 566
₹ 1,183
24
16%
₹ 441
₹ 1,576
Citi Bank
3
14%
₹ 3,070
₹ 211
6
14%
₹ 1,562
₹ 371
9
16%
₹ 1,068
₹ 611
12
16%
₹ 816
₹ 799
18
16%
₹ 566
₹ 1,183
24
16%
₹ 441
₹ 1,576
Kotak Mahindra Bank
Tenure
Interest%
Installment
Interest
3
16%
₹ 3,080
₹ 241
6
16%
₹ 1,571
₹ 425
9
16%
₹ 1,068
₹ 611
12
16%
₹ 816
₹ 799
18
16%
₹ 566
₹ 1,183
24
16%
₹ 441
₹ 1,576
RBL Bank
3
13%
₹ 3,065
₹ 196
6
14%
₹ 1,562
₹ 371
9
15%
₹ 1,063
₹ 572
12
15%
₹ 812
₹ 748
18
15%
₹ 561
₹ 1,106
24
15%
₹ 436
₹ 1,473
Standard Chartered Bank
3
13%
₹ 3,065
₹ 196
6
13%
₹ 1,557
₹ 344
9
14%
₹ 1,059
₹ 533
12
14%
₹ 808
₹ 697
INDUSIND Bank
3
14%
₹ 3,070
₹ 211
6
14%
₹ 1,562
₹ 371
9
15%
₹ 1,063
₹ 572
12
15%
₹ 812
₹ 748
18
15%
₹ 561
₹ 1,106
24
15%
₹ 436
₹ 1,473
HSBC Bank
3
12.50%
₹ 3,062
₹ 188
6
12.50%
₹ 1,555
₹ 331
9
13.50%
₹ 1,057
₹ 514
12
13.50%
₹ 806
₹ 672
18
13.50%
₹ 555
₹ 992
YES Bank
3
13%
₹ 3,065
₹ 196
6
13%
₹ 1,557
₹ 344
9
14%
₹ 1,059
₹ 533
12
14%
₹ 808
₹ 697
18
15%
₹ 561
₹ 1,106
24
15%
₹ 436
₹ 1,473
Bank of Baroda
3
13%
₹ 3,065
₹ 196
6
14%
₹ 1,562
₹ 371
9
14%
₹ 1,059
₹ 533
12
15%
₹ 812
₹ 748
18
15%
₹ 561
₹ 1,106
24
16%
₹ 441
₹ 1,576
American Express
3
14%
₹ 3,070
₹ 211
6
14%
₹ 1,562
₹ 371
9
14%
₹ 1,059
₹ 533
12
14%
₹ 808
₹ 697
18
15%
₹ 561
₹ 1,106
24
15%
₹ 436
₹ 1,473
Talk to a Headphone Guru
Club Audiophile
Join Club Audiophile to begin your pursuit of great sound. Earn points and save on every purchase.
READ MORE
Why FiiO is Special
Designed in China
Established & Reputed
Trust us, our reputation in the audio world speaks for itself!
This headphone or gear comes from a well-respected brand known for its high-quality audio equipment, so you can be confident in your purchase.
If you see a product marked as “🎖️ Established & Reputed”, it means you're getting a top-tier device from a brand that's earned its stripes in the audio industry.
Revered by Audiophiles
Audiophiles can be really picky and tough to impress and if the audiophile community says something sounds good, you can bet it's great!
This headphone or gear has gained recognition and admiration from audiophiles, who are known for their discerning taste in high-fidelity audio. They appreciate its precision, attention to detail and its ability to deliver an immersive sonic experience.
If you see a product marked as "🙌🏻 Revered by Audiophiles", it means that it meets the highest standards of sound quality and performance, making it a top choice for anyone who values exceptional audio experiences.
Born in 2007
Why we love this DAC/Amp
Premium Economy
Sensible spending and class above in quality.
This headphone or gear offers top-notch sound and performance without much impact on your pocket, promising a delightful experience that exceeds your expectations at an economical price point.
If you see a product marked as “💎 Premium Economy," it indicates that you're getting a high-quality audio product with exceptional sound clarity and reliable performance, all at a budget-friendly price.
For Enthusiasts on a Budget
We are here to help you find the best bang for your buck.
This headphone or gear is made for all passionate hobbyists who want top-notch gear without breaking the bank.
If you see a product marked as “🪴 For Enthusiasts on a Budget”, get ready to indulge in your music with high-quality, affordable products that keep your wallet happy and your enthusiasm alive!
Audiophile Community Favourite
This headphone or gear has a seal of approval from our audiophile community.
It is hit among the pickiest of audio enthusiasts. It comes with two thumbs up and is the community’s and one of our favourites.
If you see a product marked as “🦋 Audiophile Community Favourite”, you're in for a sonic treat with top-tier sound quality that will make your ears swoon and elevate your listening experience to new heights!
Incredibly Popular
Some things deserve all the attention.
This headphone or gear is a crowd favourite, winning over fans everywhere with its undeniable audio quality.
If you see products marked as “🥇 Incredibly Popular”, you’re opting for a tried-and-true choice that’s loved by many, ensuring you're getting something that’s proven to be awesome and widely acclaimed.
Our Team's Favourite
Cause after all, we are audiophiles first!
This headphone or gear has won the hearts of our team, standing out as a top pick among our gurus.
If you see products marked as “💙 Our Team’s Favourite”, you're choosing a product that’s been tested, loved, and enthusiastically recommended by our team, giving you confidence that it’s a standout choice!
Use Wirelessly with Bluetooth
Enjoy the convenience of seamless wireless connectivity
This headphone or gear indicates that the product supports wireless connectivity via Bluetooth, freeing you from the tangles of cords and cables.
If you see products marked as “✂️ Use Wirelessly with Bluetooth”, enjoy the freedom to stream music, make calls, and more, all without being tethered to your device, giving you the flexibility to move around and multitask with ease.
Battery Life
No need to be connected to the power socket with these devices.
This headphone or gear promises long-lasting battery performance, ensuring your device keeps up with your adventures without missing a beat.
If you see products marked as “⏳ Battery Life”, be rest assured that you'll enjoy extended usage time, whether it's for uninterrupted music playback, extended gaming sessions, or all-day productivity, keeping you powered up throughout your day.
Battery Capacity
Power that keeps your music going.
This headphone or gear has ample battery capacity, promising you plenty of juice to power through your day with gusto.
If you see products marked as “🔋 Battery Capacity”, rejoice in the knowledge that your device is equipped with a robust battery, providing you with extended usage time and reducing the frequency of recharges, so you can focus on your favourite tracks.
Why it Sounds Amazing
DAC Chip
Know the secret to your pristine audio.
This headphone or gear reveals the secret sauce behind superior audio quality, highlighting the presence of a high-performance DAC chip for pristine sound reproduction.
If you see products marked as “⚙️ DAC Chip”, expect to experience your music with unparalleled clarity, detail, and fidelity, ensuring that every note and nuance is faithfully reproduced for your listening pleasure.
Power Output
When you need that juice to get the best out of your products.
This headphone or gear packs a punch, revealing the product's impressive power output capabilities, ensuring it can handle even the most demanding products with ease.
If you see products marked as “🚀 Power Output”, you're in for a treat with robust performance for driving high-fidelity products without breaking a sweat.
Balanced Output
Upgrading from single-ended to balanced can be the easiest way to improve your sound.
This DAC, Amp or Hi-Res player offers a balanced output, ensuring pristine audio quality with minimised interference and enhanced clarity for your listening pleasure.
If you see a product marked as "⚖️ Balanced Output”, get ready for a symphony of crystal-clear tunes, free from any unwanted noise drama!
The FiiO BTR15 offers exceptional value as a Bluetooth-enabled DAC & amp. With its feature-packed design, portability, and the inclusion of a 4.4mm balanced output, it comes highly recommended.
About RAGHAV SOMANI
Raghav Somani is the Founder & CEO of Headphone Zone. An avid audiophile and musician since 2008, his choice of headphones include STAX Electrostats, Audeze LCD 3, and for music on the go, the JH Audio Roxanne + Astell&Kern SP1000 is never too far away. On his playlist, you'll find A.R. Rahman, Michael Jackson, and the Eagles.
DESCRIPTION
UPGRADE TO HI-RESOLUTION SOUND TODAY WITH THE ALL-NEW FIIO BTR15
Elevate your wireless audio experience with the FiiO BTR15, which seamlessly integrates your Bluetooth device into a Hi-Res wireless setup. Featuring Bluetooth 5.1, the BTR15 provides support for premium Bluetooth codecs such as AAC, SBC, aptX, aptX LL, aptX Adaptive, aptX HD, and LDAC up to 96 kHz. Whether you're seeking a top-tier audiophile configuration, the FiiO BTR15 offers a fantastic solution to enhance your sound quality with your existing device.

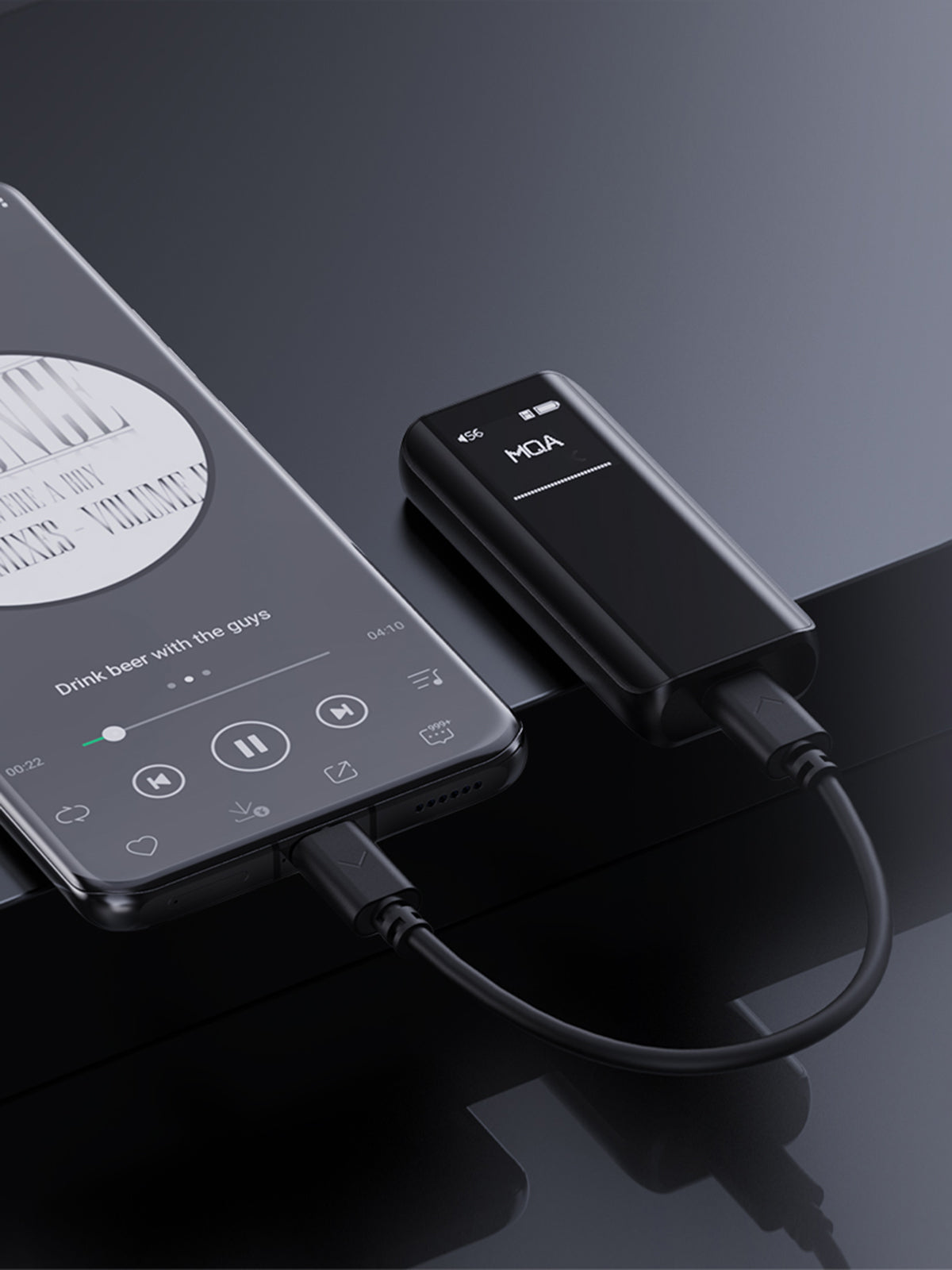

UPGRADED WITH MQA FULL DECODER FOR MASTER-QUALITY AUDIO OUTPUT
The enhanced FiiO BTR15 now delivers an even more accurate audio playback experience. This upgraded version, introduces support for the MQA protocol, enabling the decoding of high-resolution, master-quality sound even in conveniently sized files. With the BTR15, you can enjoy music in lifelike quality, as it supports decoding with a sampling rate of up to 384 kHz using any music app.

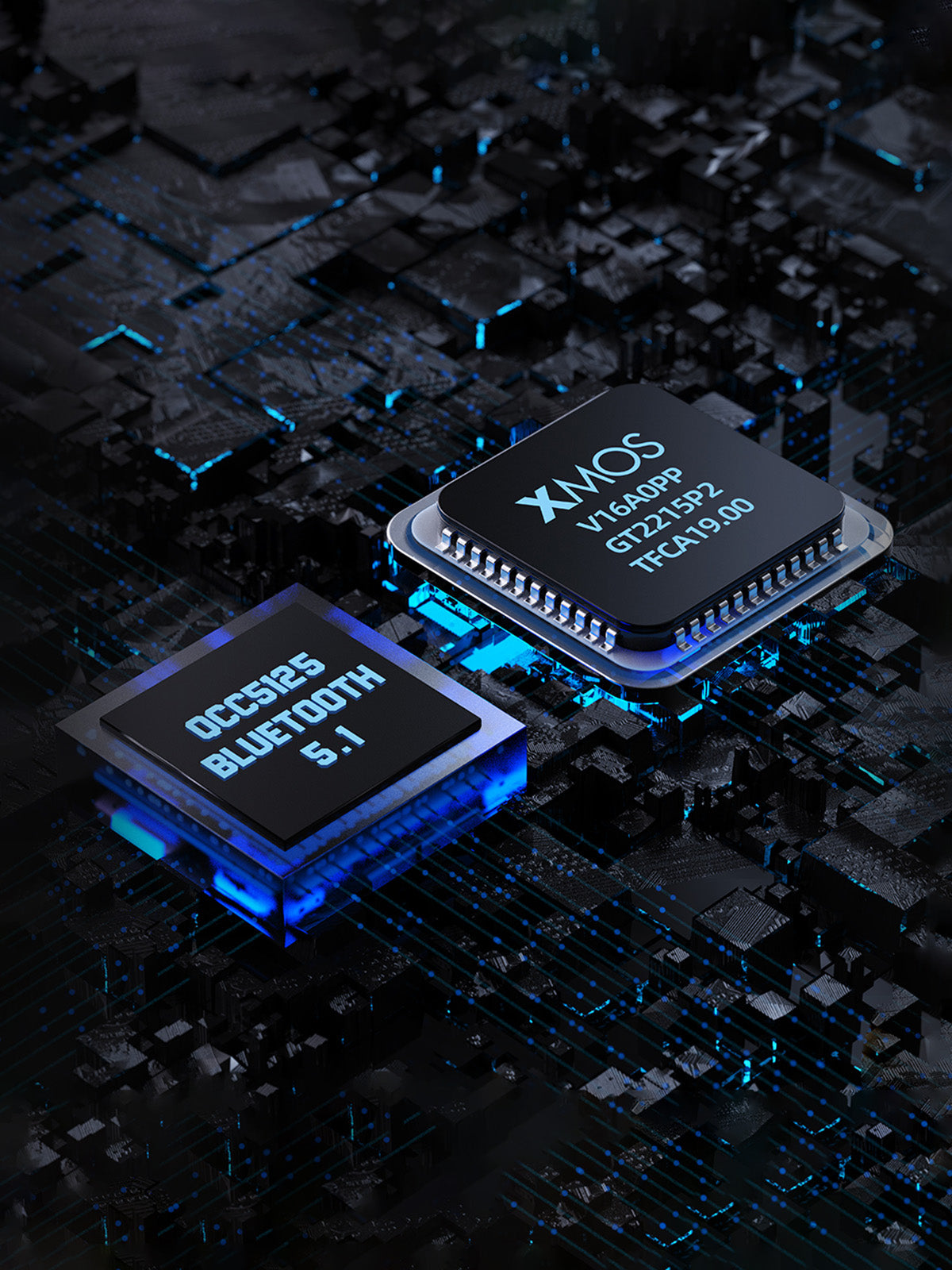

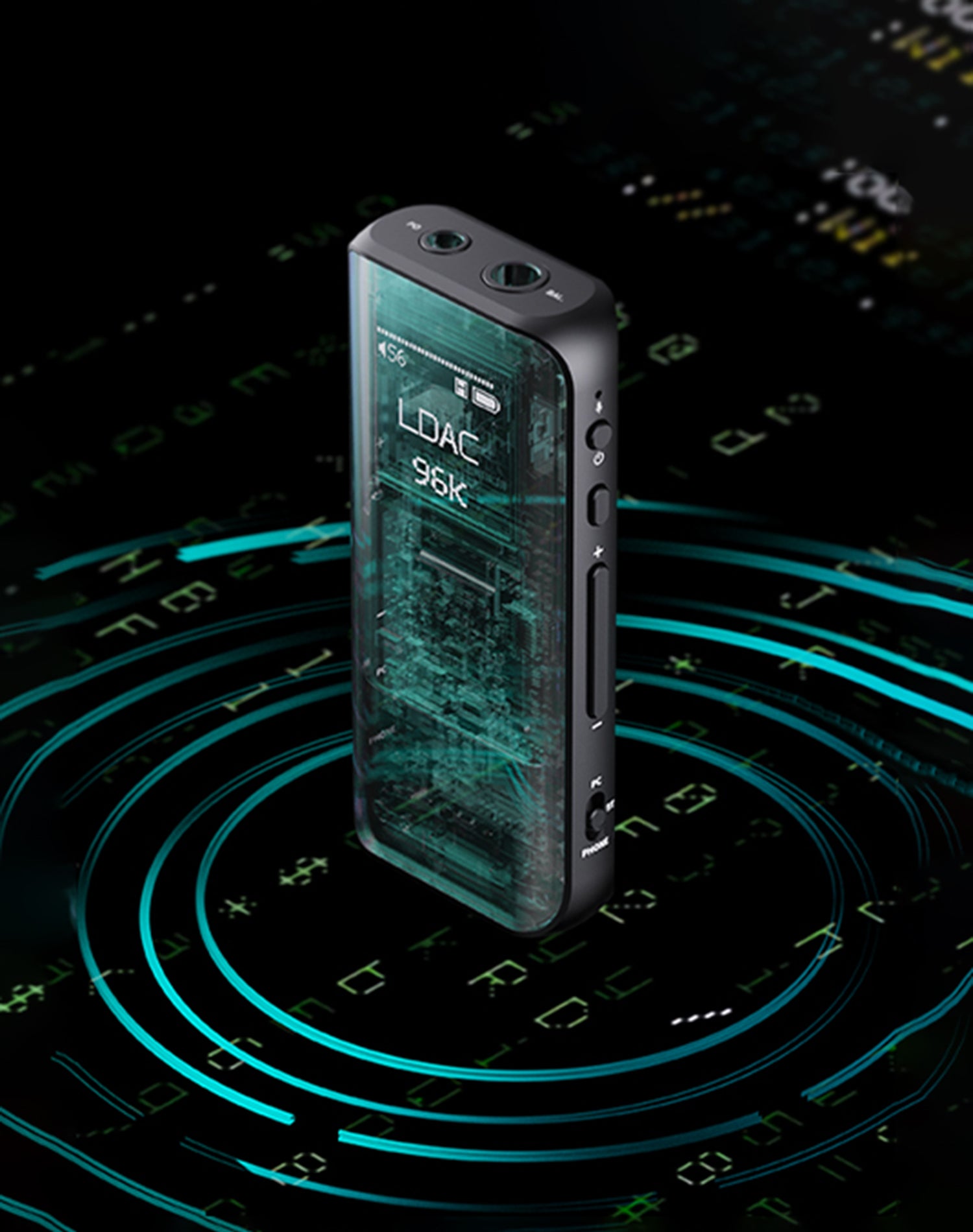

UNCOMPROMISED SOUND QUALITY WITH TWO ES9219MQ AND XMOS XUF316 CHIPS
The FiiO BTR15 has undergone a significant upgrade at its core, featuring two ESS SABRE ES9219MQ DAC chips that offer improved decoding performance compared to the previous generation. These chips also provide a higher signal-to-noise ratio and lower power consumption. The audio architecture is further enhanced by the integration of a 16-core XMOS XUF316 control chip. With this chip, the BTR15 can perform asynchronous audio decoding, supporting a maximum sampling rate of 384kHz and native DSD via USB 2.0. Additionally, it offers Asynchronous USB DAC support for 384kHz sampling rates and native DSD256 decoding.
EFFICIENT POWER MANAGEMENT AND CONNECTIVITY WITH QUALCOMM QCC5125 CHIP
Incorporating the updated Qualcomm QCC5125 chip into the FiiO BTR15 offers significant advantages, including enhanced audio capabilities and lower power consumption. This chip enables the BTR15 to decode 24-bit audio in Bluetooth mode. It supports various high-resolution Bluetooth formats like LDAC, aptX Adaptive, aptX LL, aptX HD, aptX, AAC, and SBC, with sampling rates of up to 96kHz. Whether you're watching videos, gaming, or enjoying music, the BTR15 ensures excellent sound quality for your audio experience.

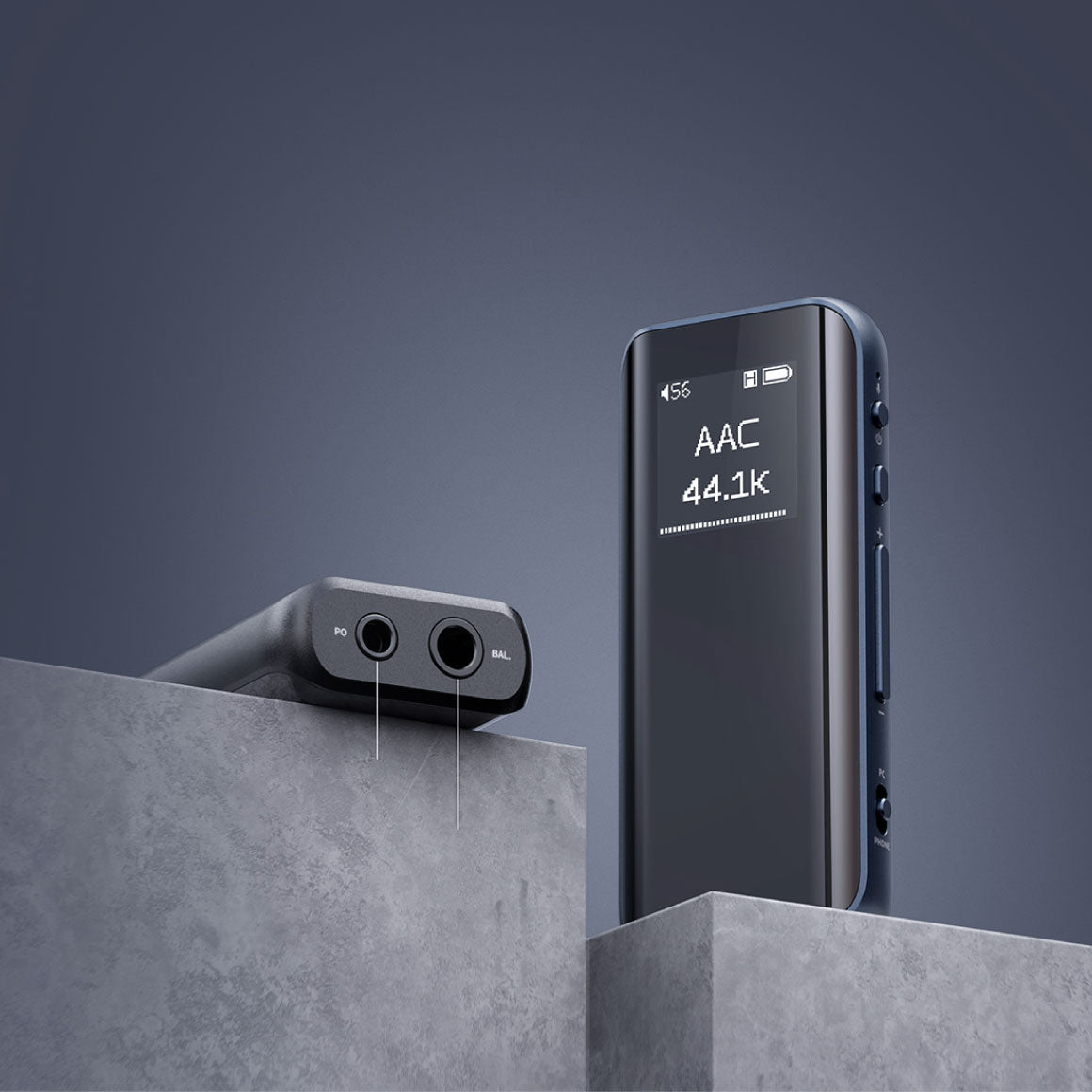

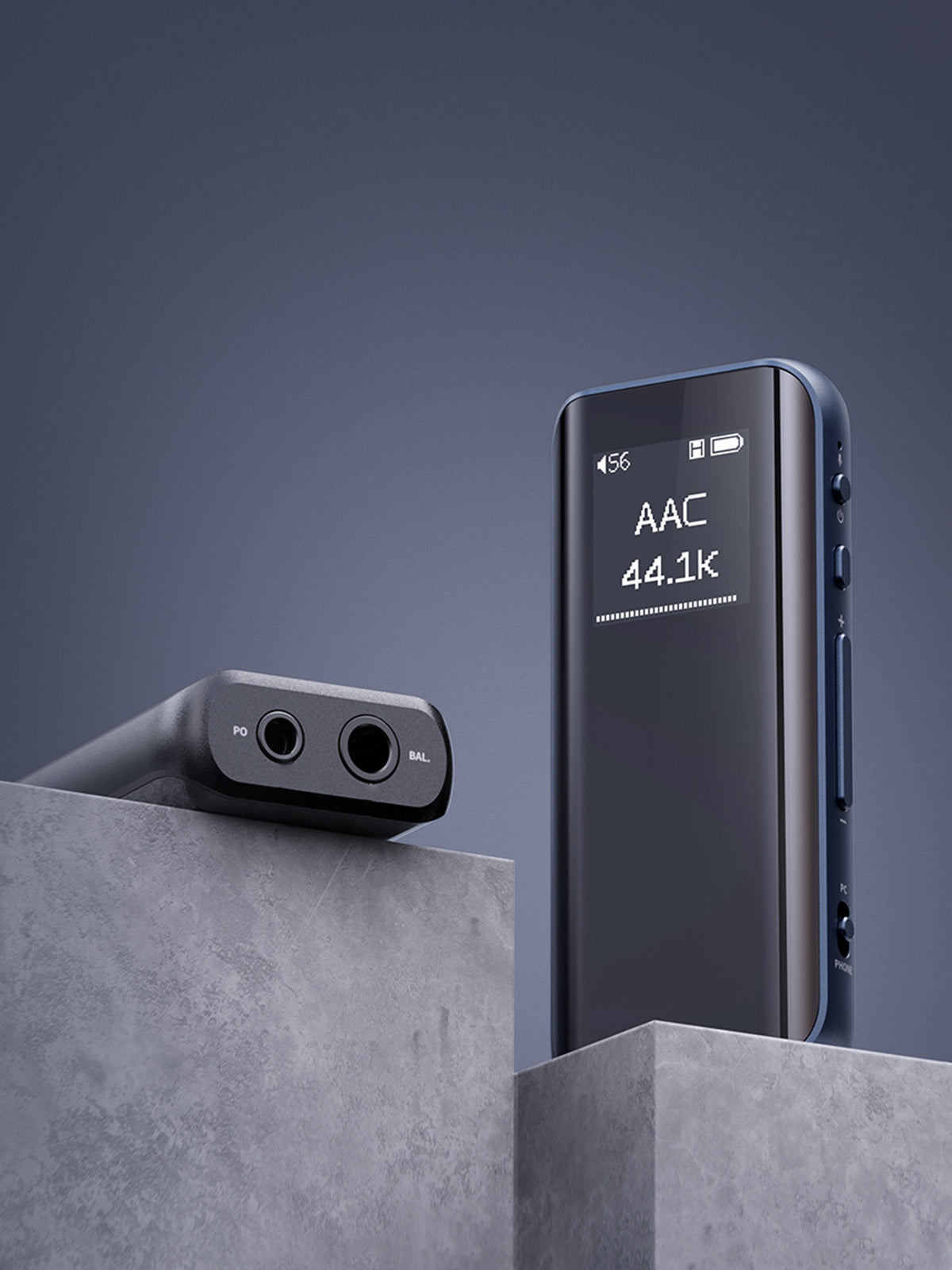

EXPERIENCE POWERFUL AMPLIFICATION WITH DUAL OUTPUT CONNECTORS
FiiO engineers developed an independent power supply system for the BTR15's DAC ES9219MQ, ensuring a cleaner power source. The external power supply, designed for low noise and high current, enhances the BTR15's balanced output power by 40% to 340 mW, perfect for portable use. The BTR15 offers both 3.5mm single-ended and 4.4mm balanced headphone outputs, boosting contact reliability. These dual outputs support various headphones, elevating your listening experience. Even if you're not using the 4.4mm balanced output, FIIO connected the headphone outputs in parallel to enhance the 3.5mm single-ended output's power, making it ideal for driving low-impedance headphones and unleashing their potential.
NOTE : It is advised to use DC 5V 2A to charge your BTR15.

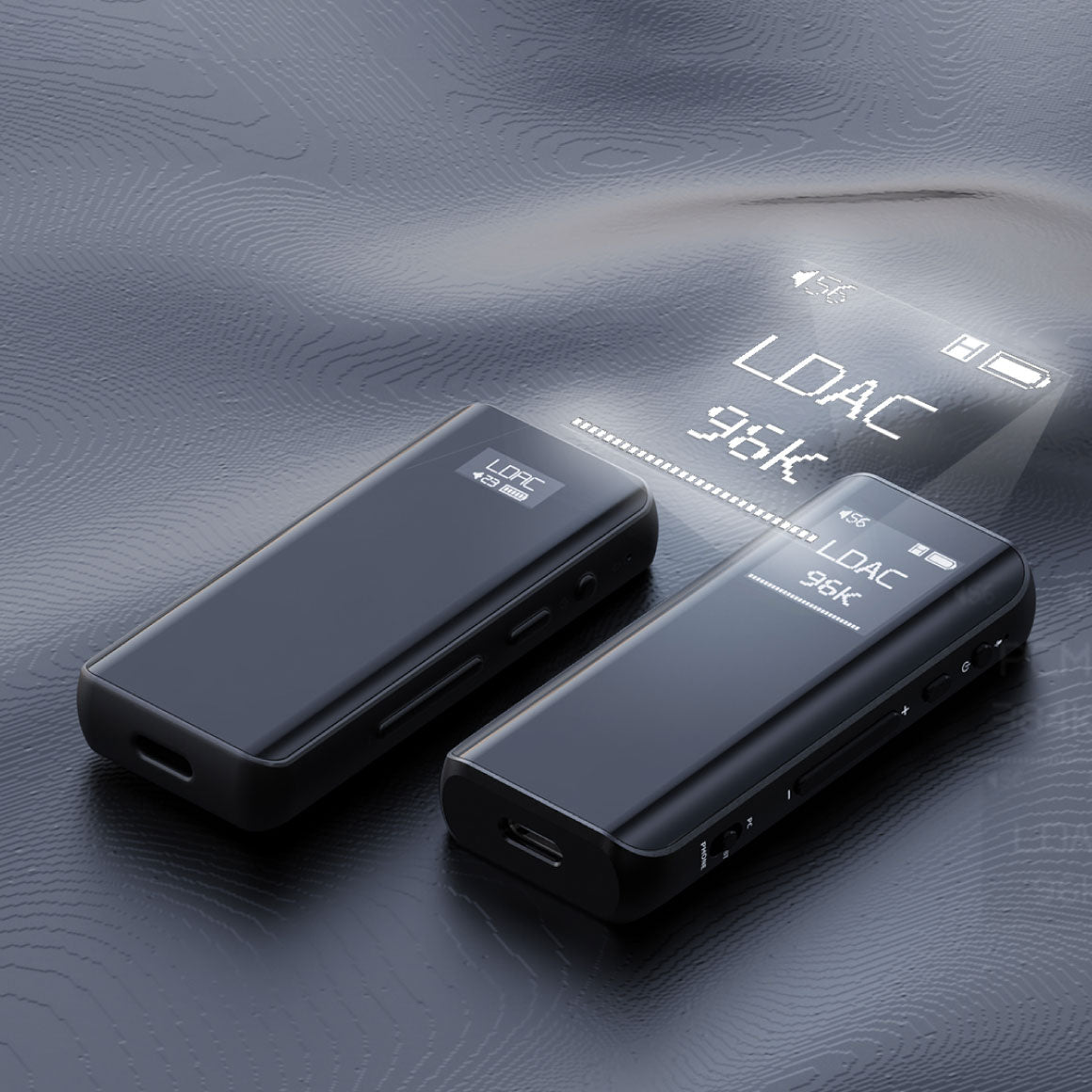

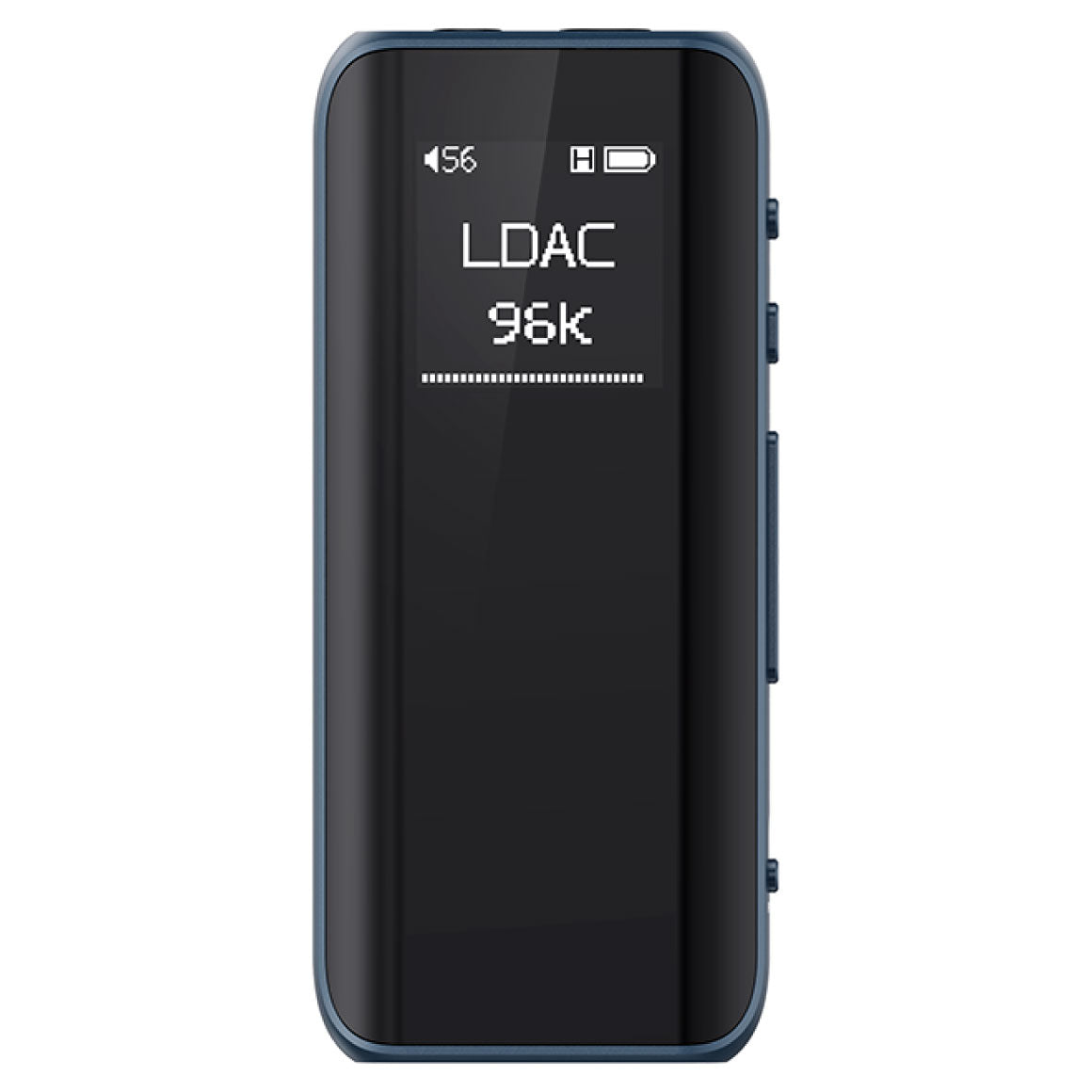

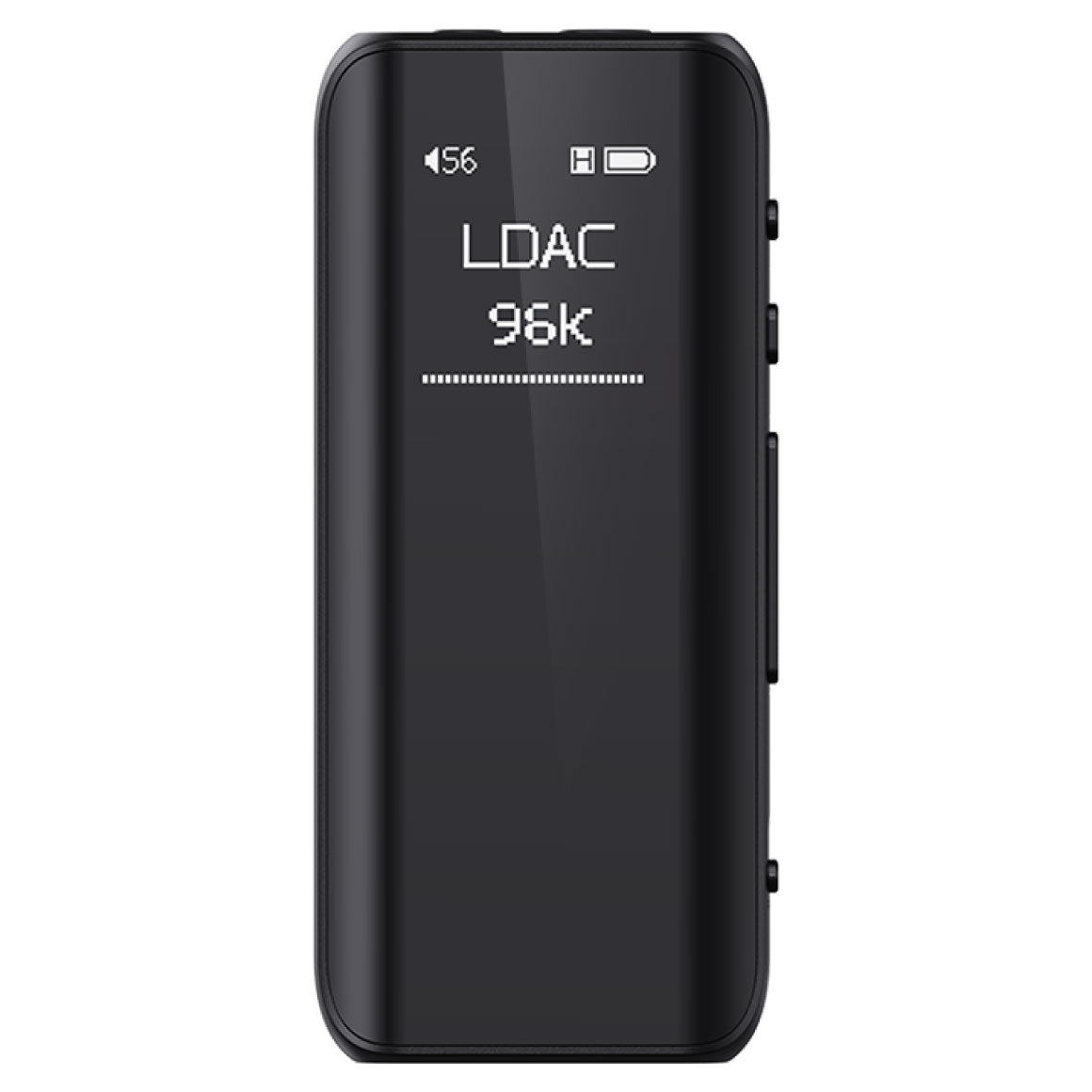

FEATURES AN OLED DISPLAY AND DUAL CURVED GLASS PANELS IN AN ALUMINIUM FRAME
The BTR15 by FIIO introduces hot-bent curved glass, adorning both the front and rear of the device. This not only enhances grip but also gives the BTR15 an appealing 3D look. Combined with the aluminium alloy middle frame, it provides a comfortable and irresistible feel. Similar to its sibling, the BTR7, the BTR15 features a spacious 0.96-inch OLED display that allows for more information to be shown simultaneously and provides larger fonts for easy device status checks and setting adjustments. Additionally, it stands out by offering bilingual language support in both Chinese and English, a rarity among similar products.

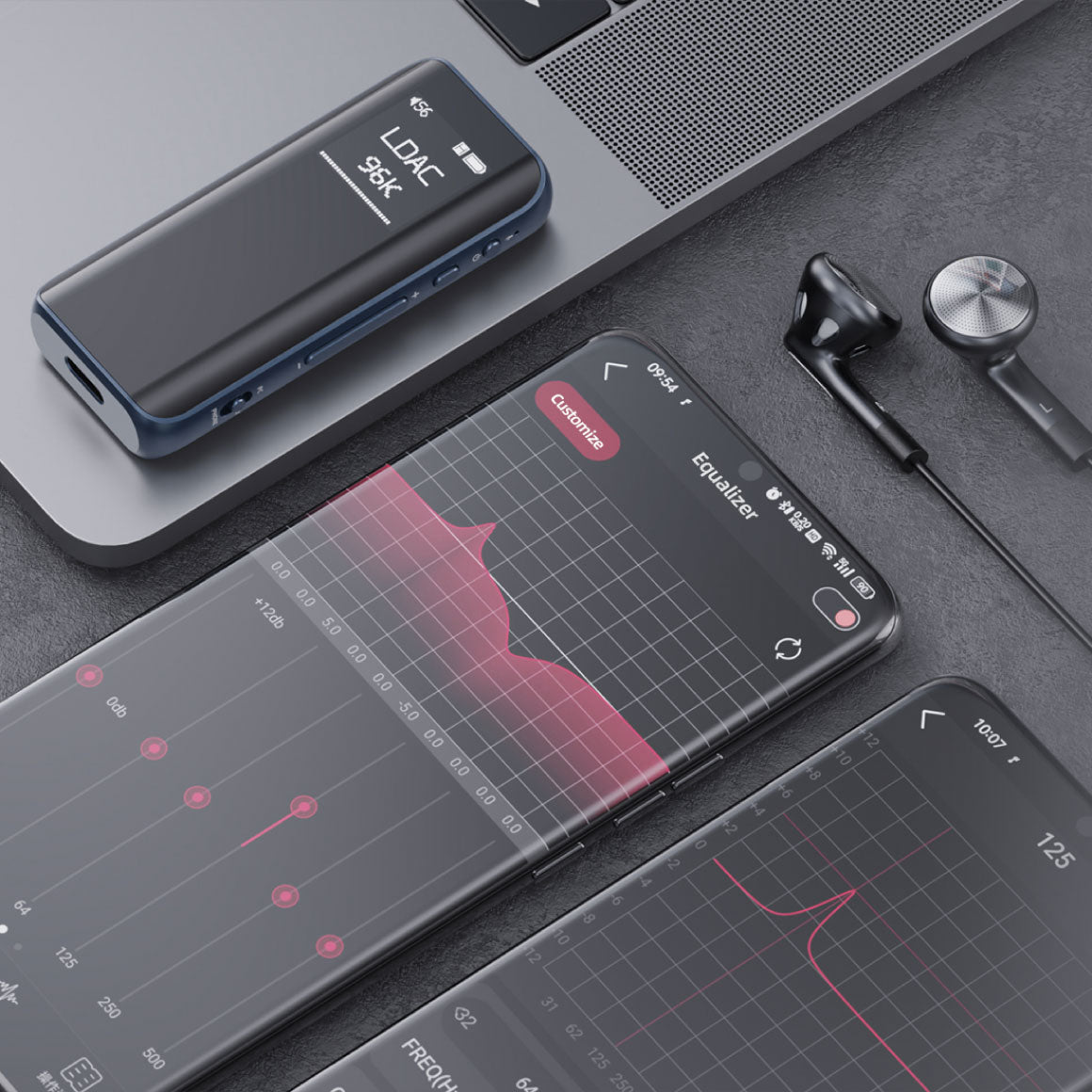

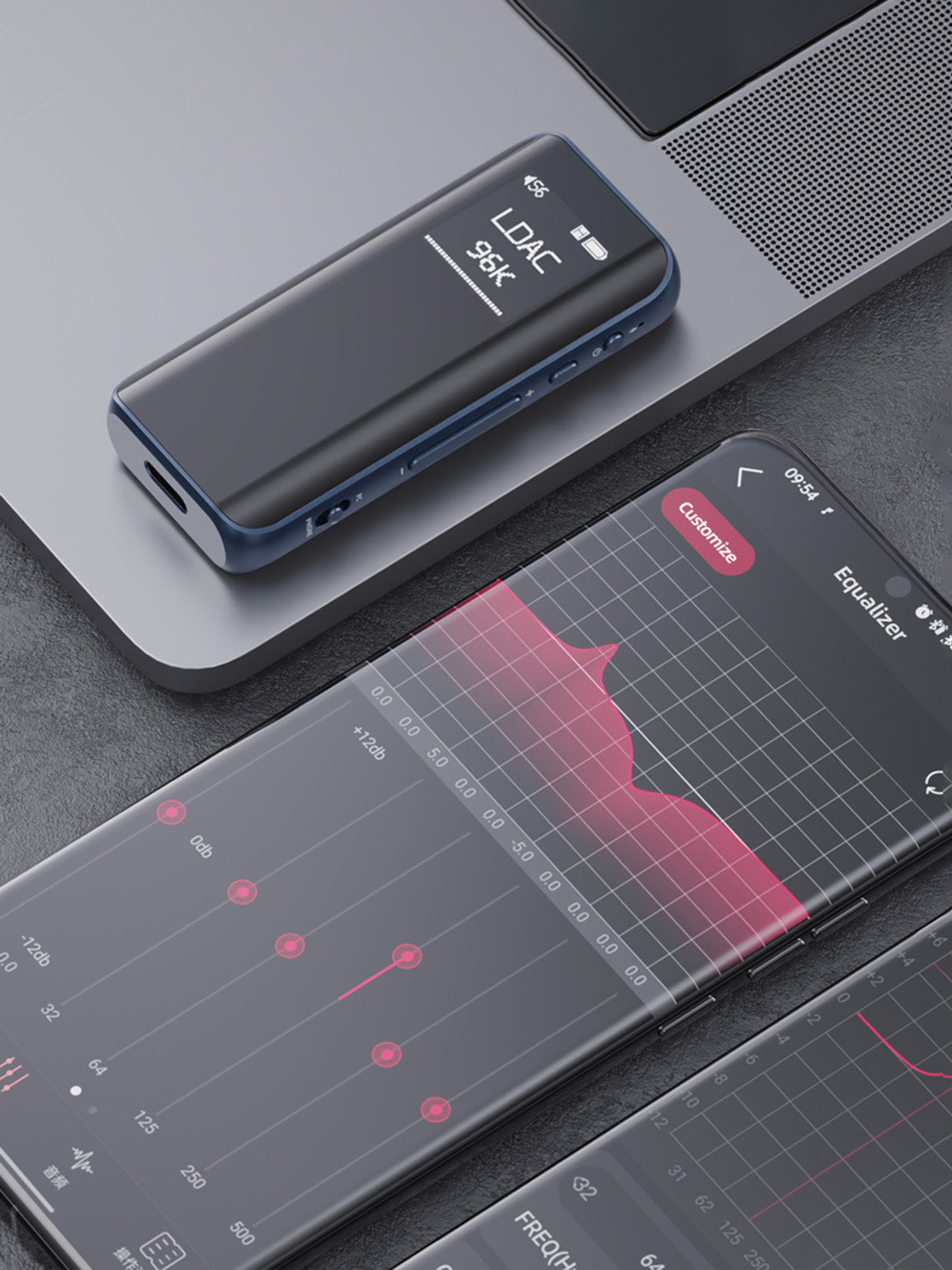

8 HOURS OF BATTERY LIFE AND A GLOBAL PARAMETRIC EQ TO TAILOR YOUR SOUND
Charge your FiiO BTR15's 550mAh battery in just 1.5 hours, and enjoy up to 8 hours of use on a full charge. The BTR15 incorporates a global parametric equaliser (PEQ) offering precision sound customisation. Utilising FiiO's proprietary PEQ algorithm and user-friendly interface, you can adjust specific frequencies, gain levels, and bandwidth to finely tune your sound in any mode to meet your preferences. Note that in BT mode, PEQ adjustments are achieved through the QCC5125 DSP, supporting LDAC and other Bluetooth formats up to 96kHz/24bit, while in PC and Phone mode, PEQ adjustments happen via the XMOS XU316 with support for up to PCM 192kHz.
COMPREHENSIVE BATTERY PROTECTION AND BUILT-IN TEMPERATURE SENSOR
FiiO has taken extensive steps to ensure the longevity and health of the BTR15's battery. In USB DAC mode, when connected to a computer for extended periods, the BTR15 intelligently prevents battery charging and relies on the computer's power source to avoid battery wear. Additionally, the device's robust, high-temperature-resistant battery enhances durability under challenging thermal conditions. A built-in temperature sensor offers dynamic monitoring, adjusting charging currents based on temperature to safeguard the battery from heat-related damage.

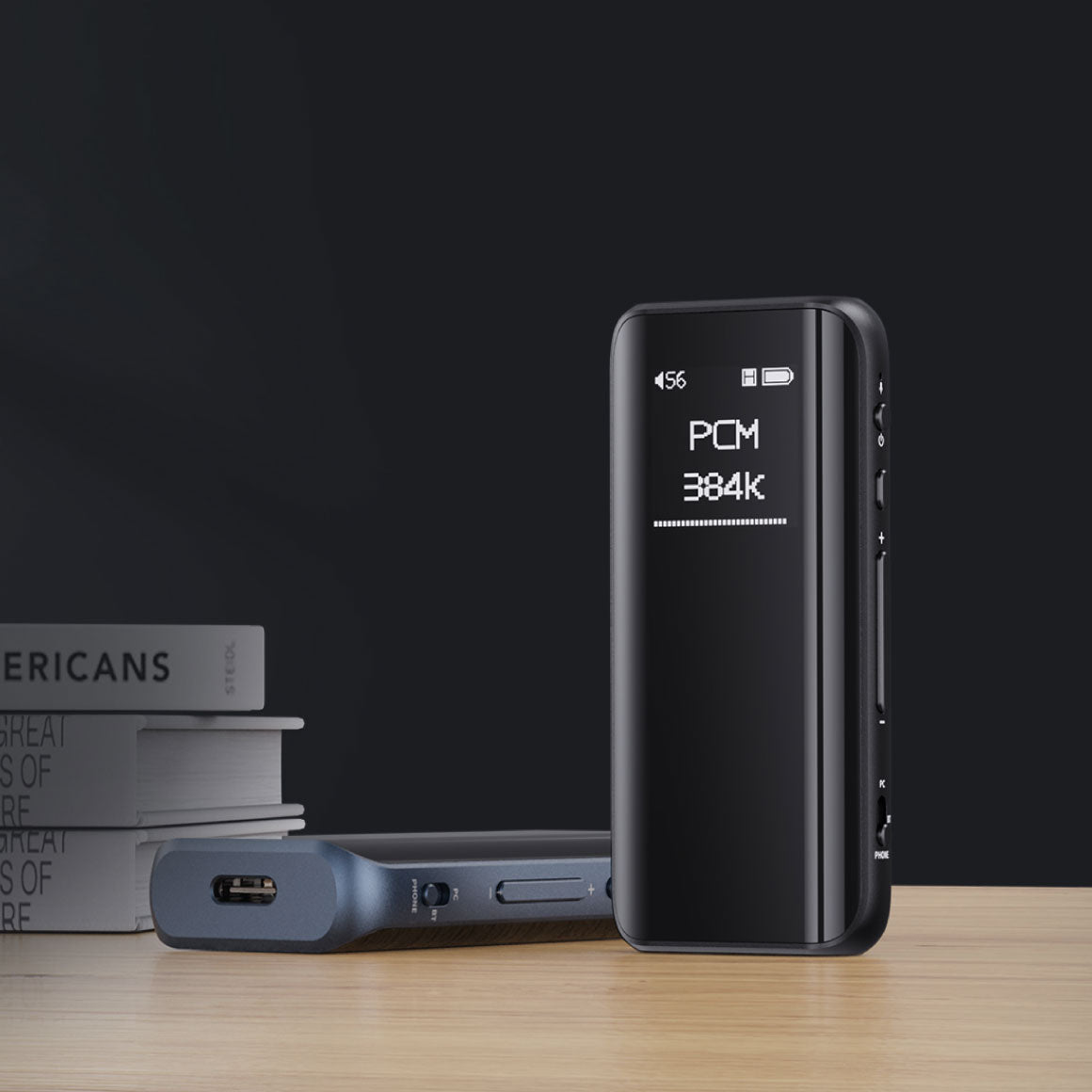

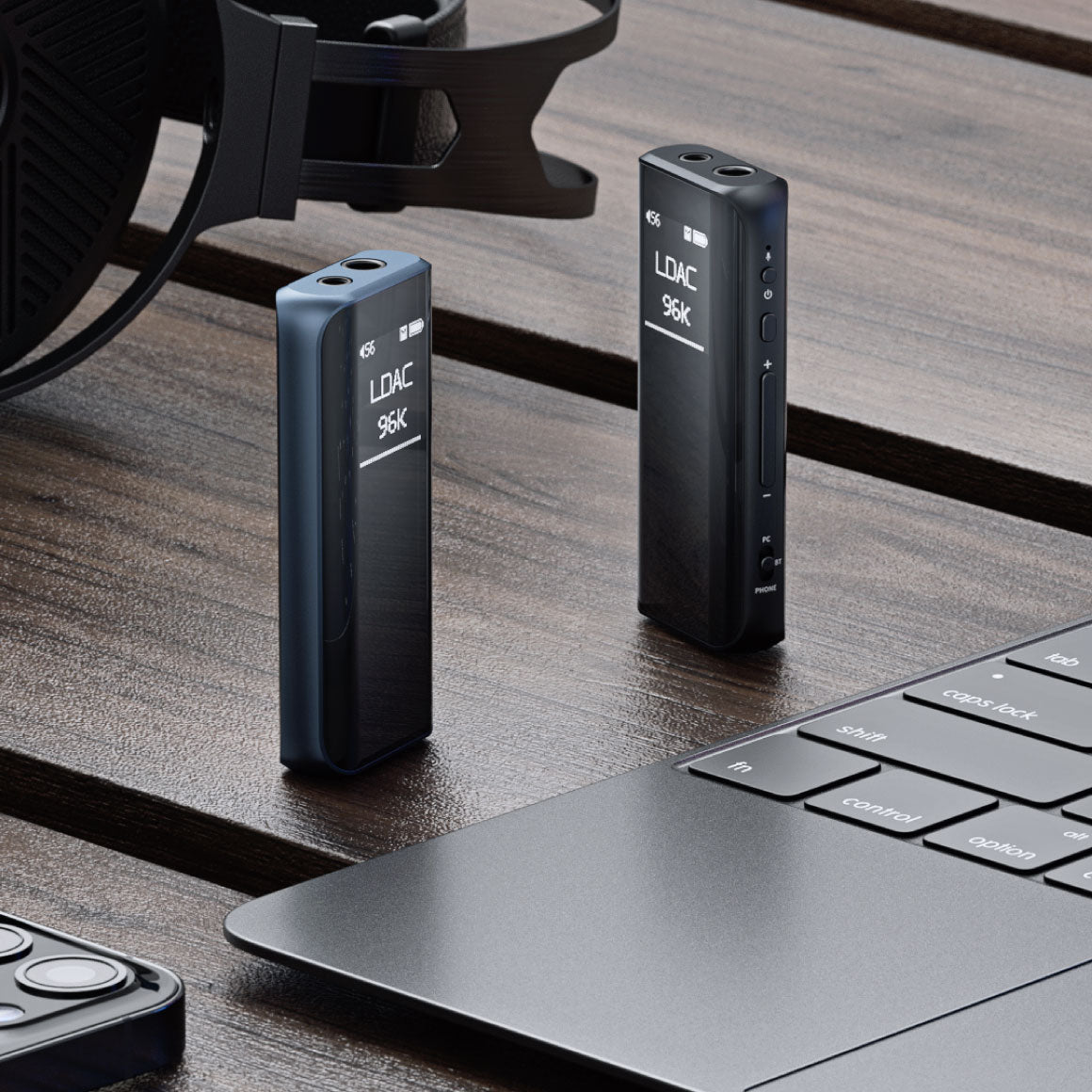

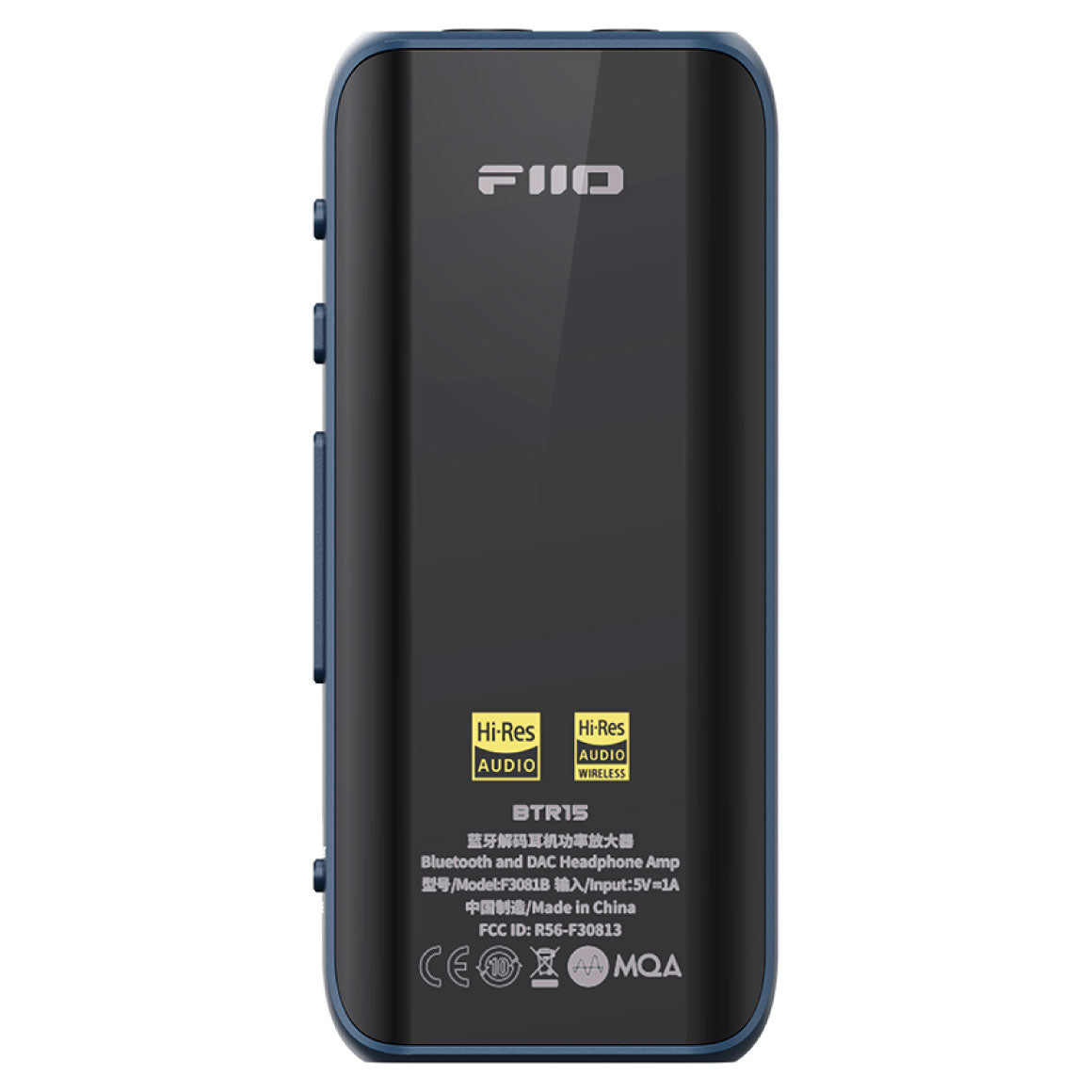

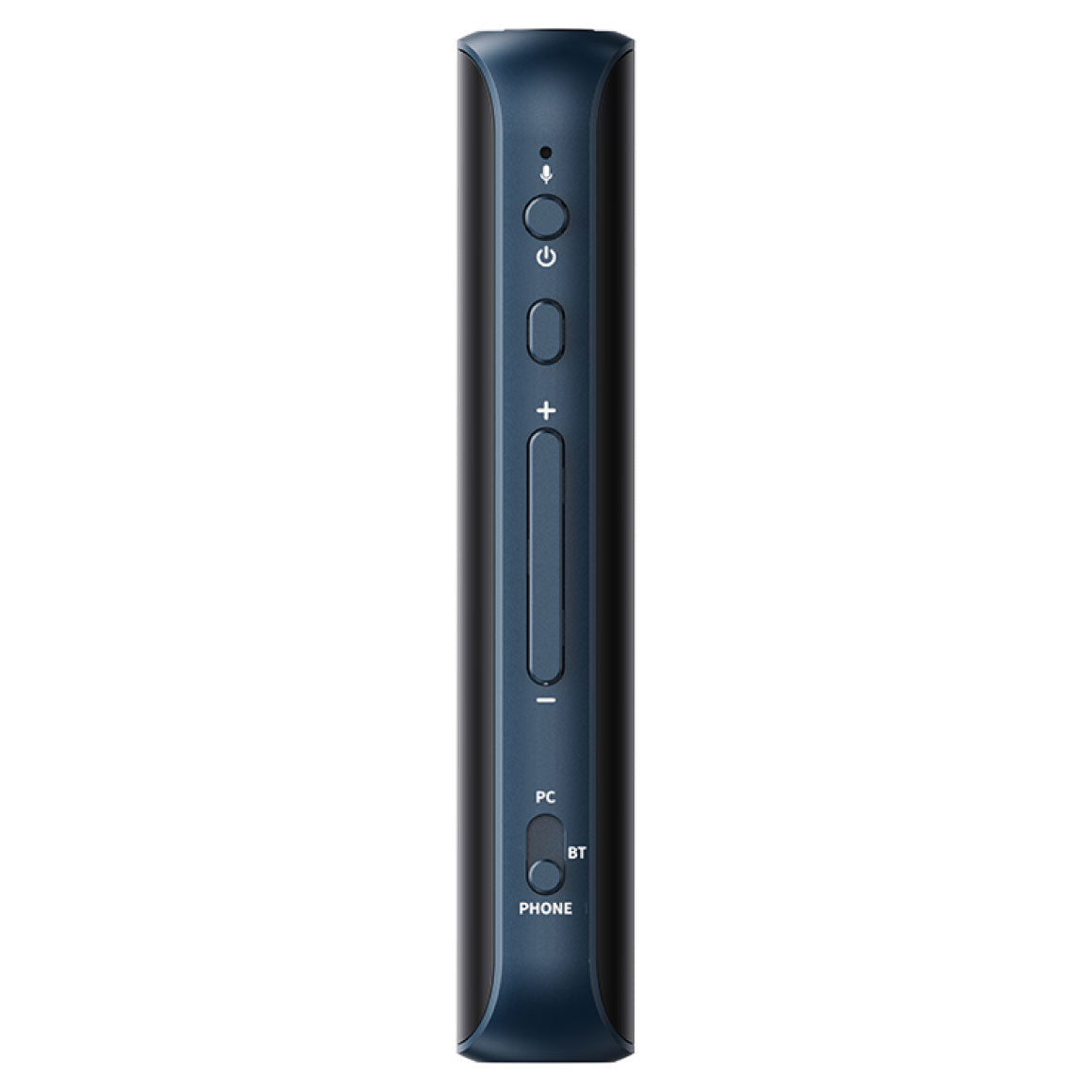

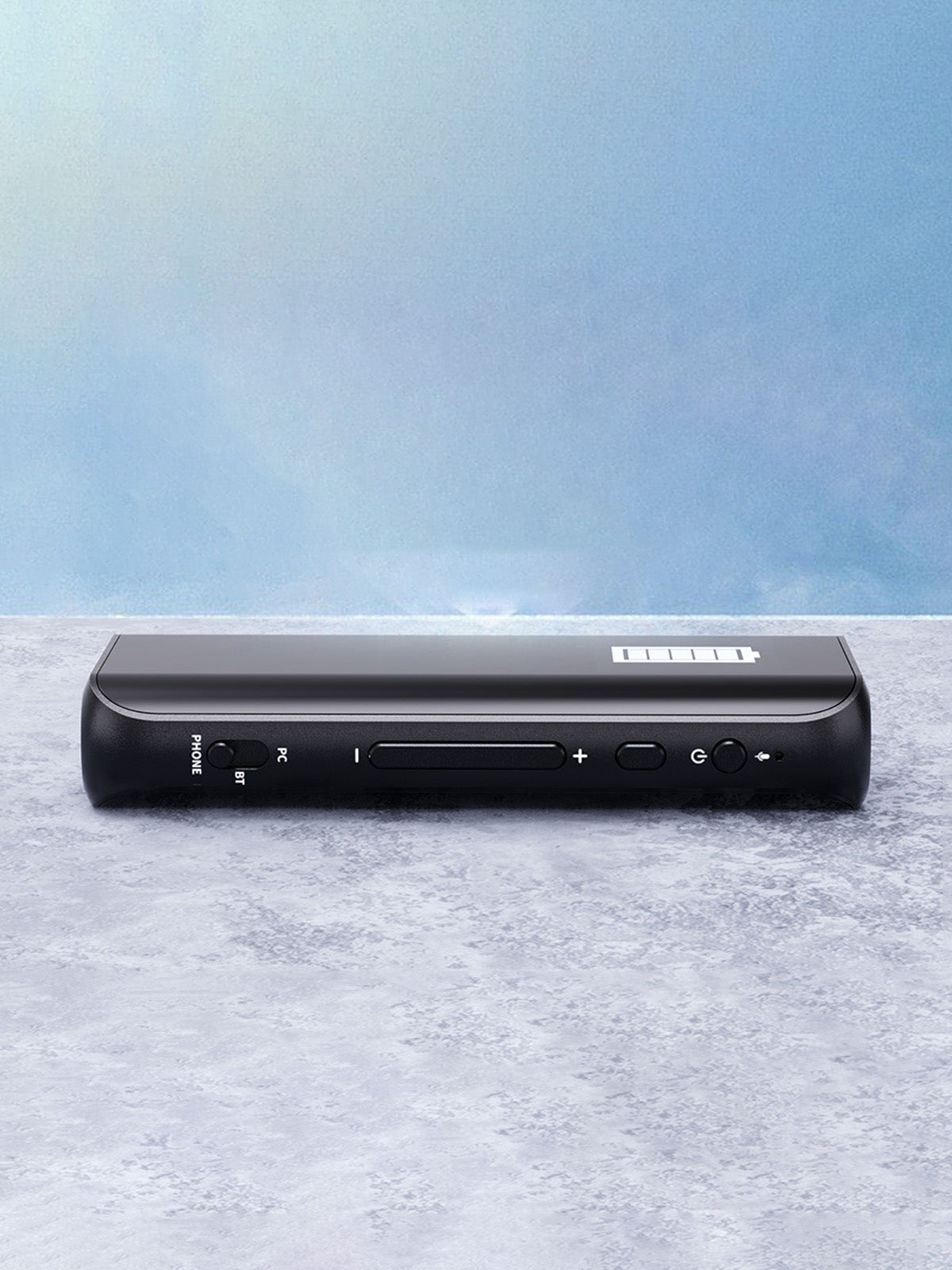

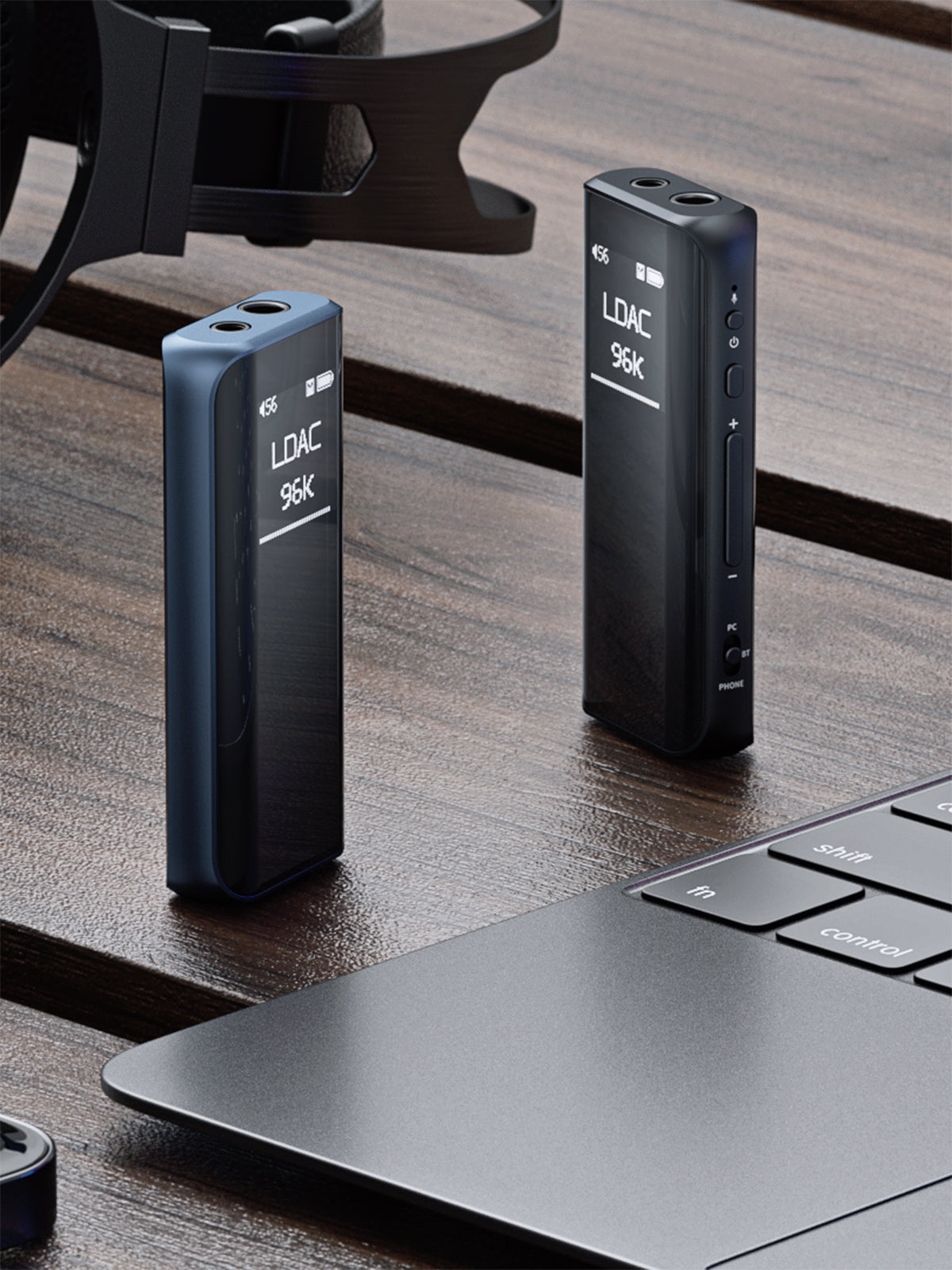

EXPERTLY DESIGNED IN TWO COLOURS AND FEATURES AN EASY-TO-USE BUTTON AND CLIP

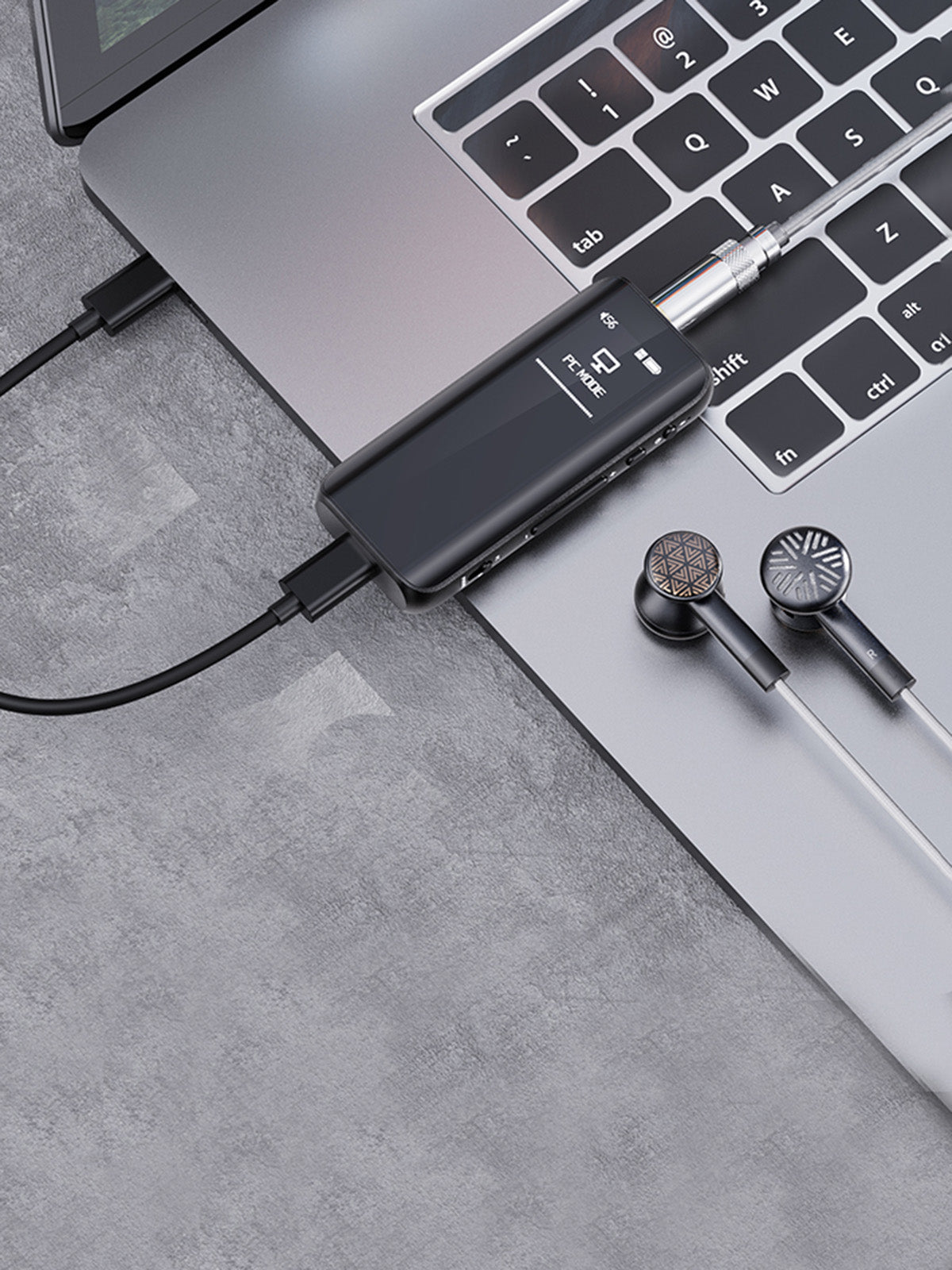

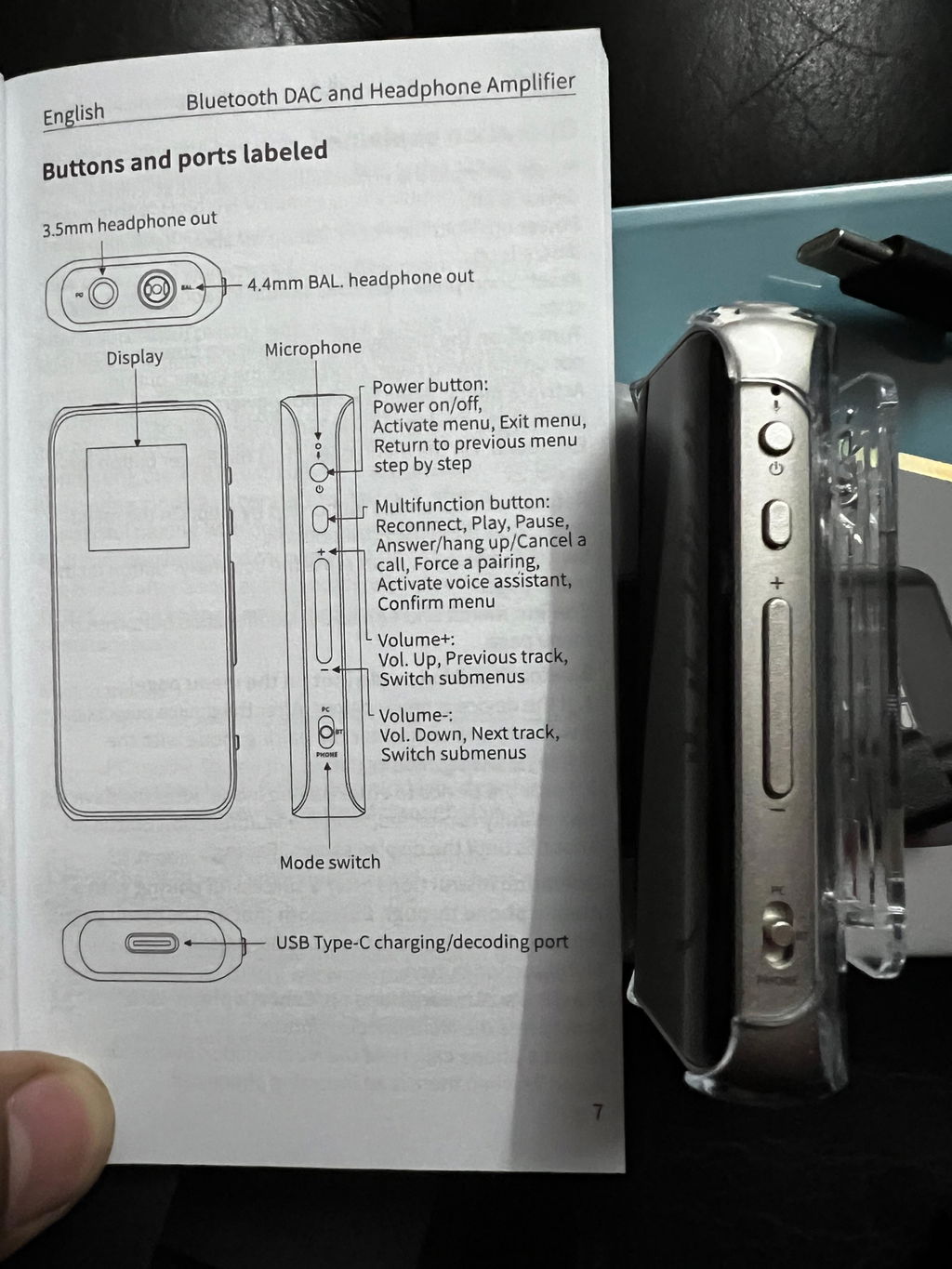

Switching modes on the BTR15 is a breeze with the dedicated PC/BT/PHONE mode button, allowing you to effortlessly transition between Bluetooth receiver and USB DAC modes, aligning with your specific music playback needs. The BTR15 offers a choice of two stylish colours, Black and Blue, and includes a transparent clip for added convenience during portable listening sessions.
SPECS
MODEL | BTR15 |
COLOR AVAILABLE | Black Blue |

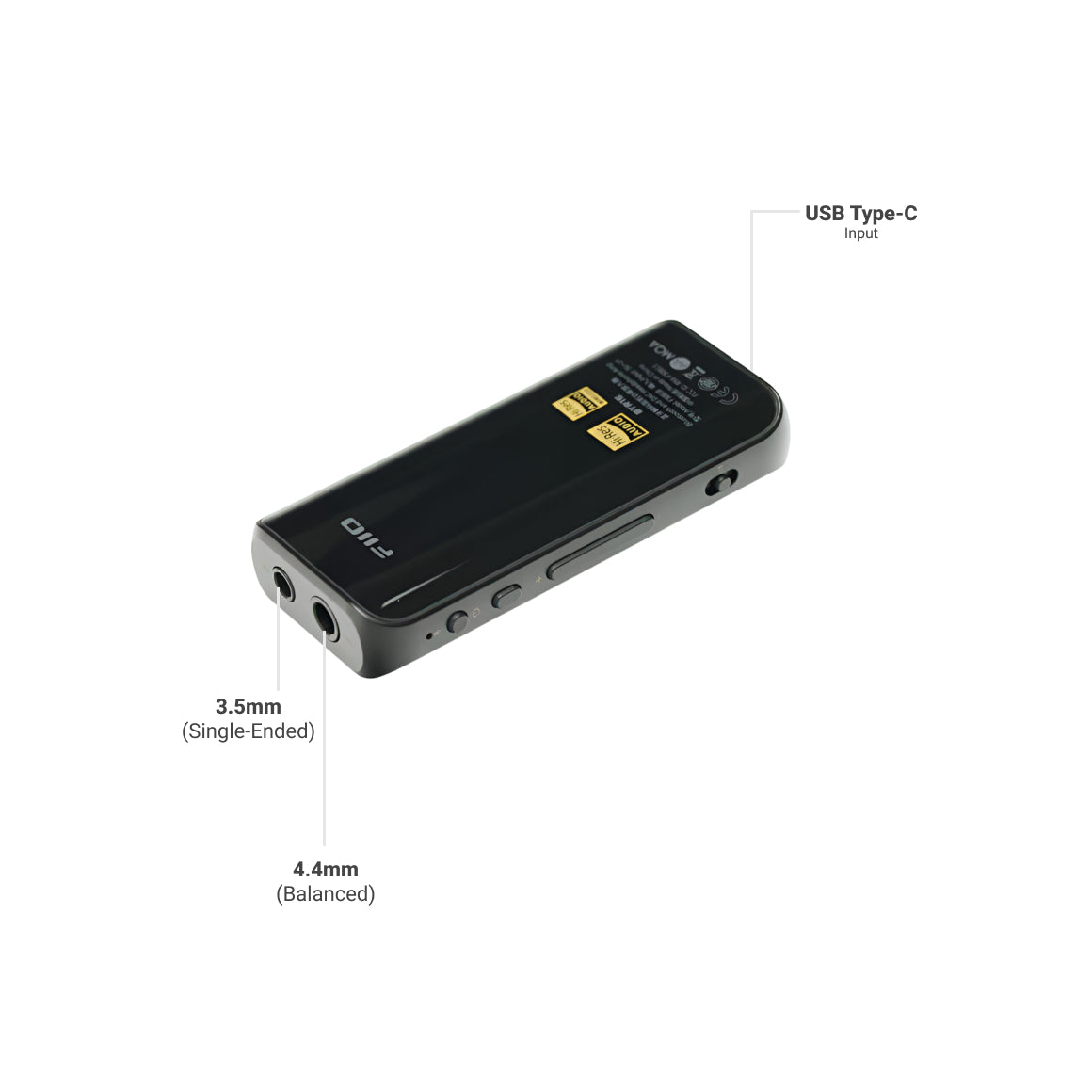

HEADPHONE OUTPUT | Single-ended 3.5mm + Balanced 4.4mm |
MICROPHONE PASS-THROUGH | Only Supported in Bluetooth Mode |
BLUETOOTH CHIP | QCC5125 (CPU+DSP dual-core architecture) |
BLUETOOTH VERSION | 5.1 |
USB CHIP | XMOS XU316 |
DAC | ES9219MQ*2 |
BLUETOOTH CODECS | AAC/SBC/aptX/aptX LL/aptX Adaptive/aptX HD/LDAC |
USB DAC | Asynchronous 384kHz-32bit, DSD256 |
USB DAC DRIVER-FREE MODE | Supported |
DISPLAY | 0.96-inch 96×96 resolution OLED |
DIMENSIONS | About 32.0mmx72.2mmx12.5mm |
WEIGHT | About 37.3g |
CHARGING TIME | <2H |
BATTERY | 550mAh high-temperature resistant lithium-ion |
BATTERY LIFE | About 8 hours |
OUTPUT POWER 1 | L+R≥125mW+125mW (32Ω single-ended/THD+N<1%) |
OUTPUT POWER 2 | L+R≥15mW+15mW (300Ω single-ended/THD+N<1%) |
OUTPUT POWER 3 | L+R≥340mW+340mW (32Ω balanced/THD+N<1%) |
OUTPUT POWER 4 | L+R≥50mW+50mW (300Ω balanced/THD+N<1%) |
FREQUENCY RESPONSE | 20Hz~50kHz (-0.8dB) |
SIGNAL-TO-NOISE RATIO | ≥122dB (A-weighted) |
NOISE FLOOR | PO<2μV (A-weighted); BAL <2.7μV (A-weighted) |
OUTPUT IMPEDANCE | PO<1Ω (32Ω load), BAL <1.5Ω (32Ω load) |
FREQUENCY RESPONSE | <0.0008% (1kHz/32kΩ ) |

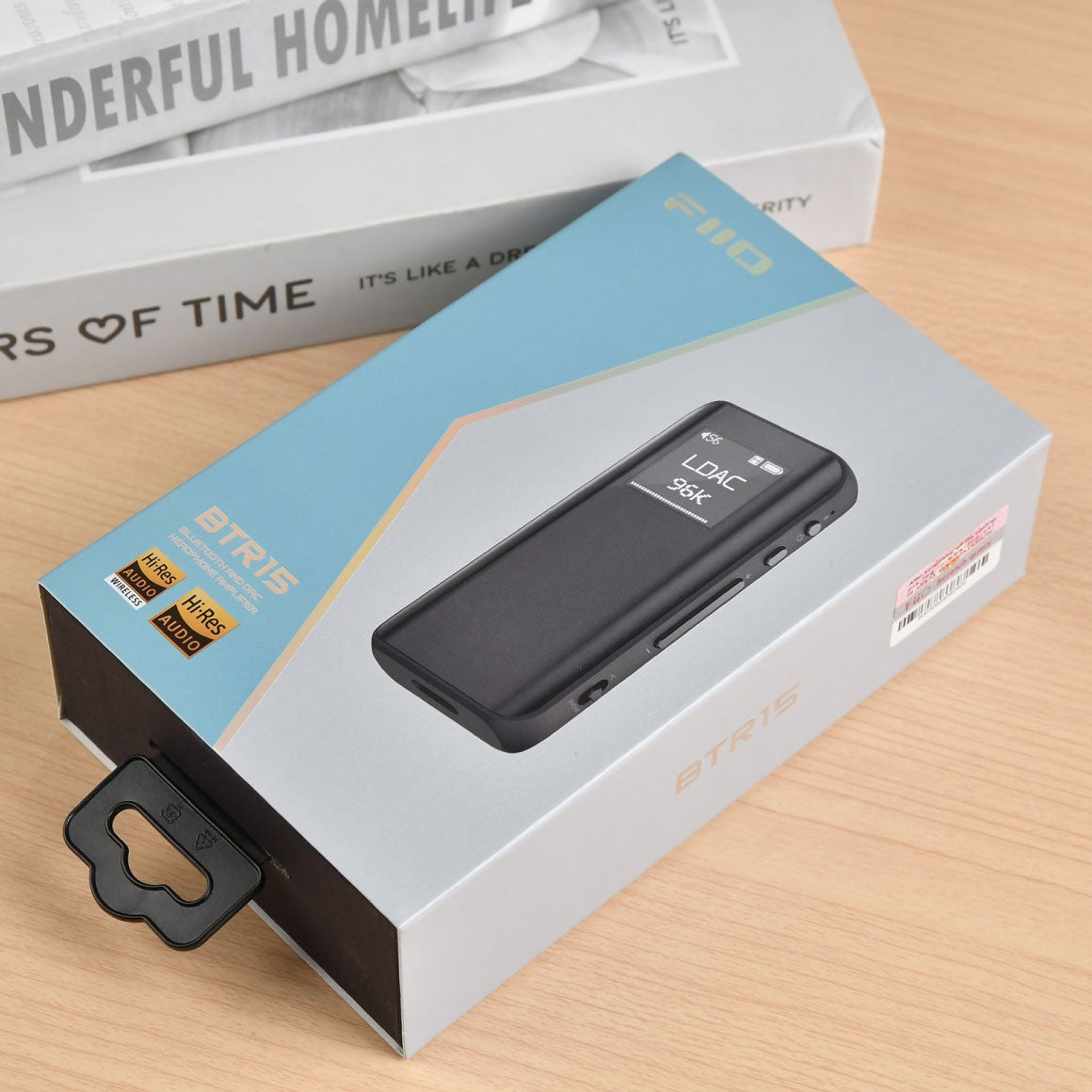

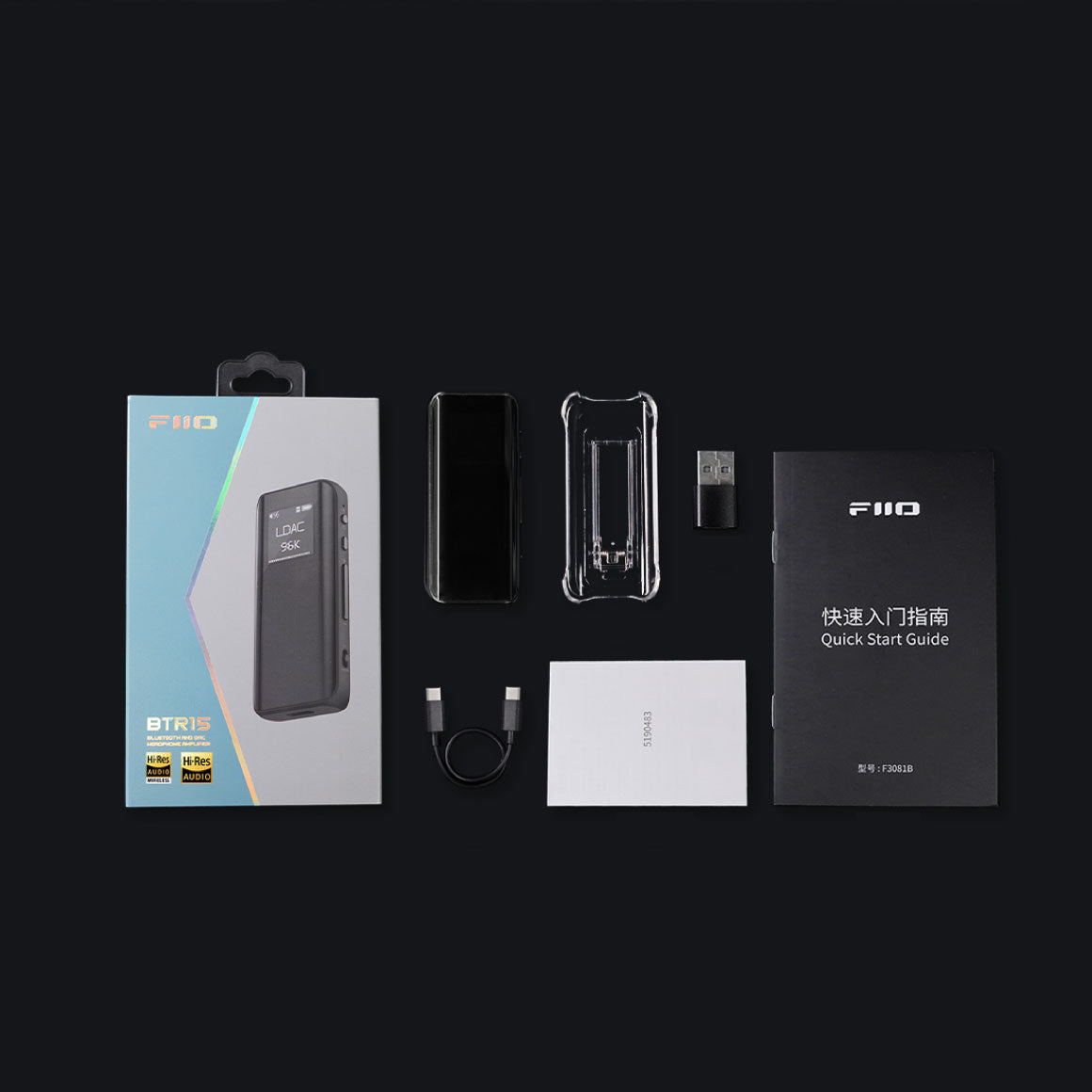

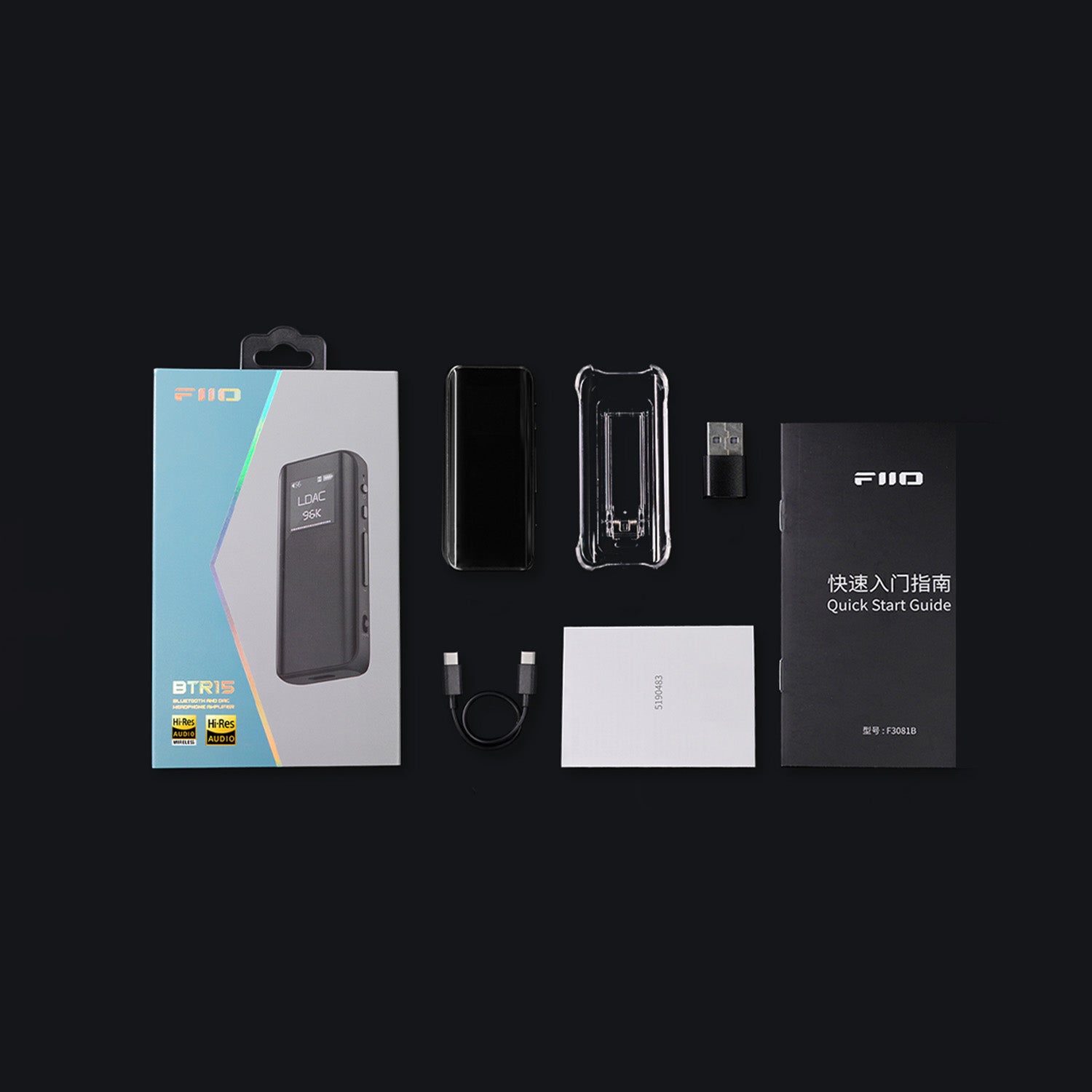

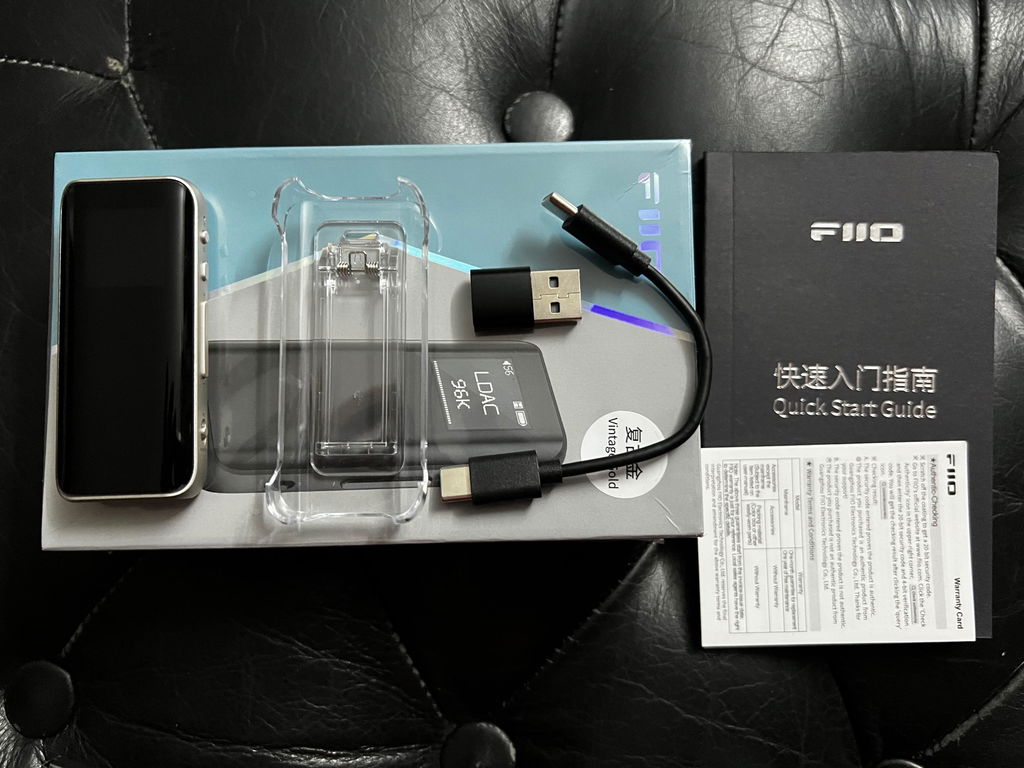

BOX CONTENTS | 1. FiiO BTR15 |
2. Type-C to Type-C data cable*1 | |

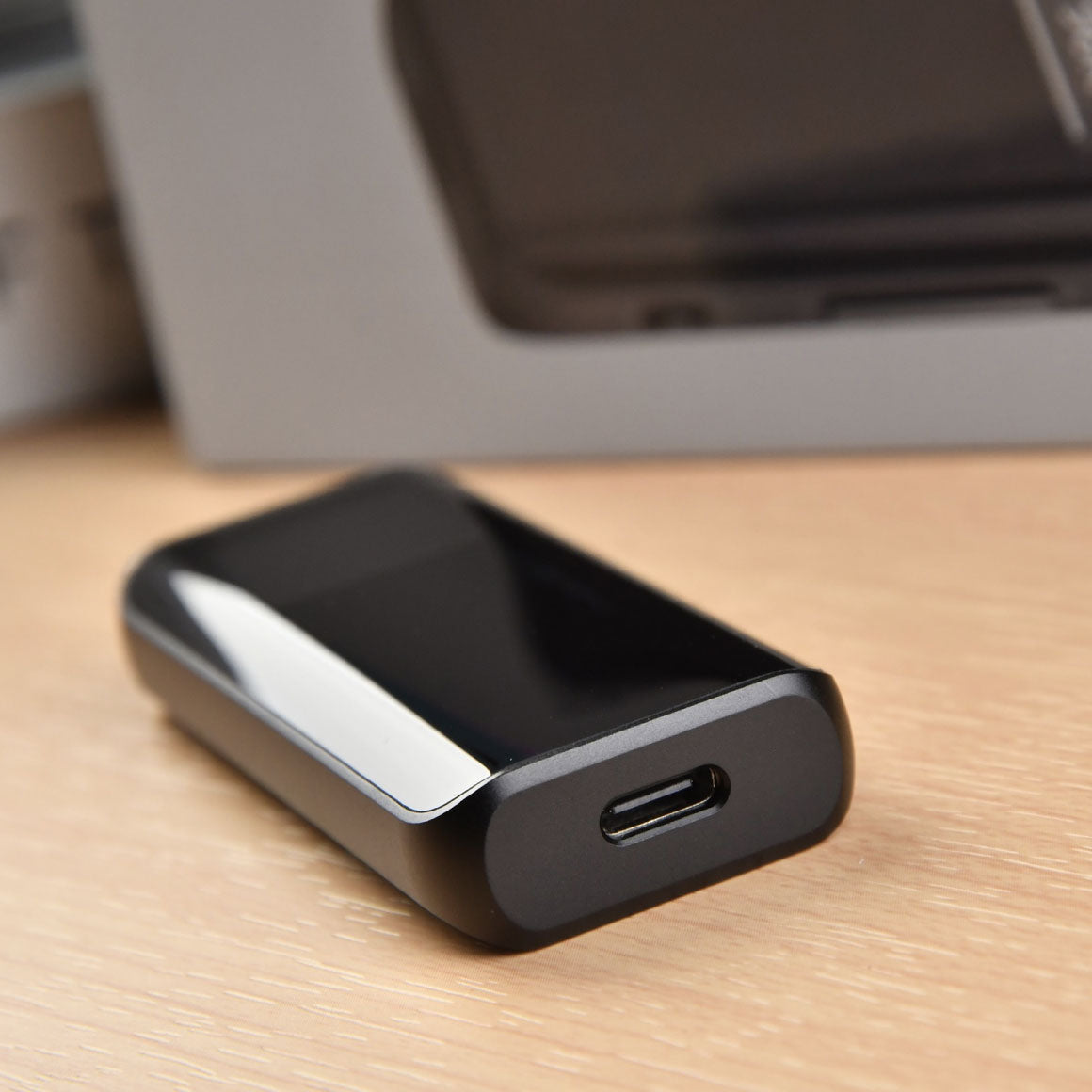

3. USB adapter * 1 | |
4. Removable back clip * 1 | |
5. Quick start guide | |
6. Warranty Card |
OTHER DETAILS
GENERIC NAME | DAC & Amp |
IMPORTER DETAILS | Importers Name: Ferrari Video Address: 63/18, 1st Main Road, Gandhi Nagar, Chennai - 600020 Contact No: 044-24420733 |
DIMENSIONS | 39.6 x 83.6 x 14.6mm |
NET QUANTITY | 1 |
MANUFACTURER DETAILS | Name: HK JADE Audio Technology CO., Limited Address: Room 1508, 15/F, Yalam Central Studio II, 625 Nathan Road, Kowloon, CHINA |
PACKAGE CONTENTS | FiiO BTR15 Type-C To Type-C Data Cable*1 USB Adapter * 1 Removable Back Clip * 1 Quick Start Guide 6. Warranty Card |
Quick Start Guide | BTR15
Portable Bluetooth DAC & Amp
|
UPGRADE TO HI-RESOLUTION SOUND TODAY WITH THE ALL-NEW FIIO BTR15
Elevate your wireless audio experience with the FiiO BTR15, which seamlessly integrates your Bluetooth device into a Hi-Res wireless setup. Featuring Bluetooth 5.1, the BTR15 provides support for premium Bluetooth codecs such as AAC, SBC, aptX, aptX LL, aptX Adaptive, aptX HD, and LDAC up to 96 kHz. Whether you're seeking a top-tier audiophile configuration, the FiiO BTR15 offers a fantastic solution to enhance your sound quality with your existing device.
UPGRADED WITH MQA FULL DECODER FOR MASTER-QUALITY AUDIO OUTPUT
The enhanced FiiO BTR15 now delivers an even more accurate audio playback experience. This upgraded version, introduces support for the MQA protocol, enabling the decoding of high-resolution, master-quality sound even in conveniently sized files. With the BTR15, you can enjoy music in lifelike quality, as it supports decoding with a sampling rate of up to 384 kHz using any music app.
UNCOMPROMISED SOUND QUALITY WITH TWO ES9219MQ AND XMOS XUF316 CHIPS
The FiiO BTR15 has undergone a significant upgrade at its core, featuring two ESS SABRE ES9219MQ DAC chips that offer improved decoding performance compared to the previous generation. These chips also provide a higher signal-to-noise ratio and lower power consumption. The audio architecture is further enhanced by the integration of a 16-core XMOS XUF316 control chip. With this chip, the BTR15 can perform asynchronous audio decoding, supporting a maximum sampling rate of 384kHz and native DSD via USB 2.0. Additionally, it offers Asynchronous USB DAC support for 384kHz sampling rates and native DSD256 decoding.
EFFICIENT POWER MANAGEMENT AND CONNECTIVITY WITH QUALCOMM QCC5125 CHIP
Incorporating the updated Qualcomm QCC5125 chip into the FiiO BTR15 offers significant advantages, including enhanced audio capabilities and lower power consumption. This chip enables the BTR15 to decode 24-bit audio in Bluetooth mode. It supports various high-resolution Bluetooth formats like LDAC, aptX Adaptive, aptX LL, aptX HD, aptX, AAC, and SBC, with sampling rates of up to 96kHz. Whether you're watching videos, gaming, or enjoying music, the BTR15 ensures excellent sound quality for your audio experience.
EXPERIENCE POWERFUL AMPLIFICATION WITH DUAL OUTPUT CONNECTORS
FiiO engineers developed an independent power supply system for the BTR15's DAC ES9219MQ, ensuring a cleaner power source. The external power supply, designed for low noise and high current, enhances the BTR15's balanced output power by 40% to 340 mW, perfect for portable use. The BTR15 offers both 3.5mm single-ended and 4.4mm balanced headphone outputs, boosting contact reliability. These dual outputs support various headphones, elevating your listening experience. Even if you're not using the 4.4mm balanced output, FIIO connected the headphone outputs in parallel to enhance the 3.5mm single-ended output's power, making it ideal for driving low-impedance headphones and unleashing their potential.
NOTE : It is advised to use DC 5V 2A to charge your BTR15.
FEATURES AN OLED DISPLAY AND DUAL CURVED GLASS PANELS IN AN ALUMINIUM FRAME
The BTR15 by FIIO introduces hot-bent curved glass, adorning both the front and rear of the device. This not only enhances grip but also gives the BTR15 an appealing 3D look. Combined with the aluminium alloy middle frame, it provides a comfortable and irresistible feel. Similar to its sibling, the BTR7, the BTR15 features a spacious 0.96-inch OLED display that allows for more information to be shown simultaneously and provides larger fonts for easy device status checks and setting adjustments. Additionally, it stands out by offering bilingual language support in both Chinese and English, a rarity among similar products.
8 HOURS OF BATTERY LIFE AND A GLOBAL PARAMETRIC EQ TO TAILOR YOUR SOUND
Charge your FiiO BTR15's 550mAh battery in just 1.5 hours, and enjoy up to 8 hours of use on a full charge. The BTR15 incorporates a global parametric equaliser (PEQ) offering precision sound customisation. Utilising FiiO's proprietary PEQ algorithm and user-friendly interface, you can adjust specific frequencies, gain levels, and bandwidth to finely tune your sound in any mode to meet your preferences. Note that in BT mode, PEQ adjustments are achieved through the QCC5125 DSP, supporting LDAC and other Bluetooth formats up to 96kHz/24bit, while in PC and Phone mode, PEQ adjustments happen via the XMOS XU316 with support for up to PCM 192kHz.
COMPREHENSIVE BATTERY PROTECTION AND BUILT-IN TEMPERATURE SENSOR
FiiO has taken extensive steps to ensure the longevity and health of the BTR15's battery. In USB DAC mode, when connected to a computer for extended periods, the BTR15 intelligently prevents battery charging and relies on the computer's power source to avoid battery wear. Additionally, the device's robust, high-temperature-resistant battery enhances durability under challenging thermal conditions. A built-in temperature sensor offers dynamic monitoring, adjusting charging currents based on temperature to safeguard the battery from heat-related damage.
EXPERTLY DESIGNED IN TWO COLOURS AND FEATURES AN EASY-TO-USE BUTTON AND CLIP
Switching modes on the BTR15 is a breeze with the dedicated PC/BT/PHONE mode button, allowing you to effortlessly transition between Bluetooth receiver and USB DAC modes, aligning with your specific music playback needs. The BTR15 offers a choice of two stylish colours, Black and Blue, and includes a transparent clip for added convenience during portable listening sessions.
MODEL | BTR15 |
COLOR AVAILABLE | Black Blue |
HEADPHONE OUTPUT | Single-ended 3.5mm + Balanced 4.4mm |
MICROPHONE PASS-THROUGH | Only Supported in Bluetooth Mode |
BLUETOOTH CHIP | QCC5125 (CPU+DSP dual-core architecture) |
BLUETOOTH VERSION | 5.1 |
USB CHIP | XMOS XU316 |
DAC | ES9219MQ*2 |
BLUETOOTH CODECS | AAC/SBC/aptX/aptX LL/aptX Adaptive/aptX HD/LDAC |
USB DAC | Asynchronous 384kHz-32bit, DSD256 |
USB DAC DRIVER-FREE MODE | Supported |
DISPLAY | 0.96-inch 96×96 resolution OLED |
DIMENSIONS | About 32.0mmx72.2mmx12.5mm |
WEIGHT | About 37.3g |
CHARGING TIME | <2H |
BATTERY | 550mAh high-temperature resistant lithium-ion |
BATTERY LIFE | About 8 hours |
OUTPUT POWER 1 | L+R≥125mW+125mW (32Ω single-ended/THD+N<1%) |
OUTPUT POWER 2 | L+R≥15mW+15mW (300Ω single-ended/THD+N<1%) |
OUTPUT POWER 3 | L+R≥340mW+340mW (32Ω balanced/THD+N<1%) |
OUTPUT POWER 4 | L+R≥50mW+50mW (300Ω balanced/THD+N<1%) |
FREQUENCY RESPONSE | 20Hz~50kHz (-0.8dB) |
SIGNAL-TO-NOISE RATIO | ≥122dB (A-weighted) |
NOISE FLOOR | PO<2μV (A-weighted); BAL <2.7μV (A-weighted) |
OUTPUT IMPEDANCE | PO<1Ω (32Ω load), BAL <1.5Ω (32Ω load) |
FREQUENCY RESPONSE | <0.0008% (1kHz/32kΩ ) |

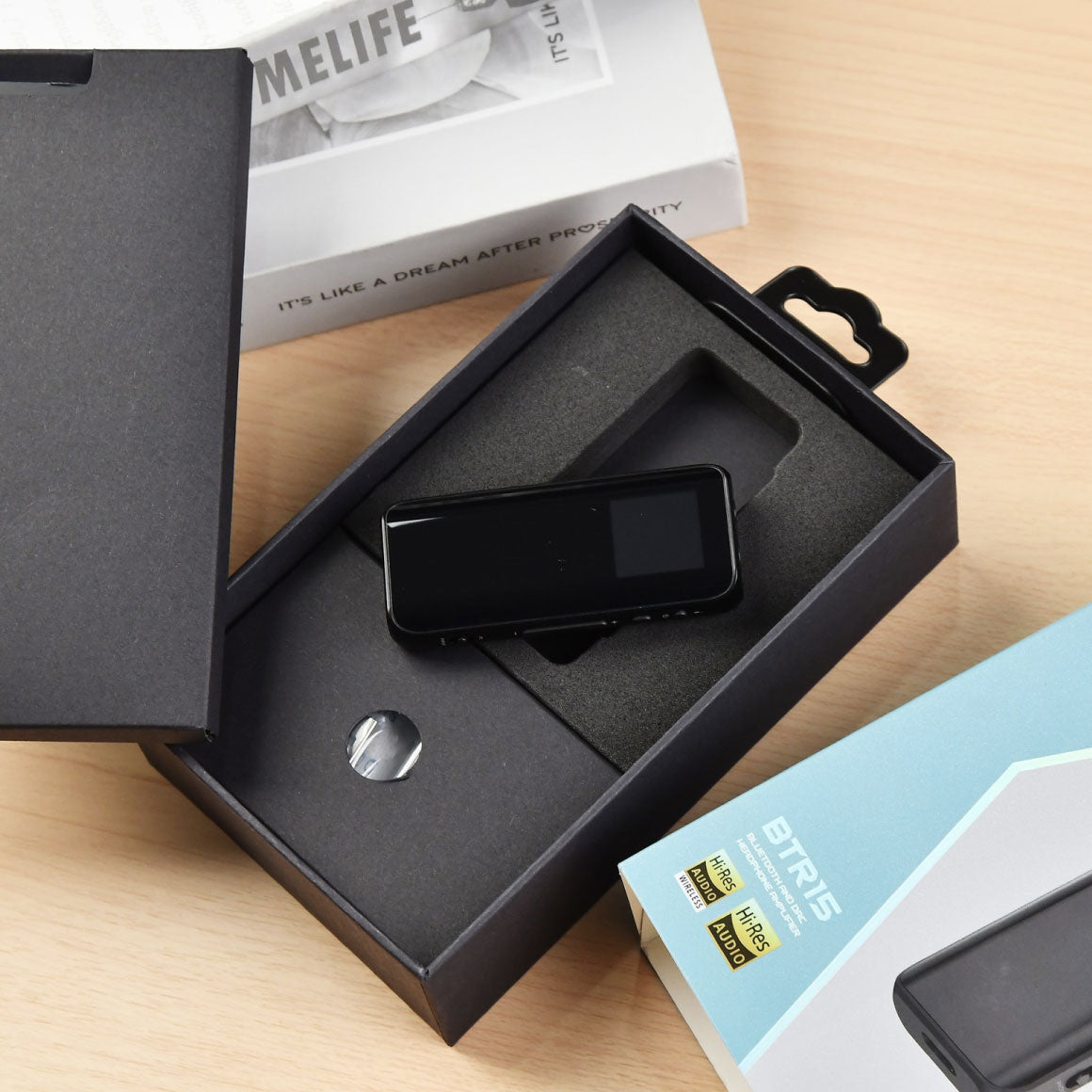

BOX CONTENTS | 1. FiiO BTR15 |
2. Type-C to Type-C data cable*1 | |
3. USB adapter * 1 | |
4. Removable back clip * 1 | |
5. Quick start guide | |
6. Warranty Card |
OTHER DETAILS
GENERIC NAME | DAC & Amp |
IMPORTER DETAILS | Importers Name: Ferrari Video Address: 63/18, 1st Main Road, Gandhi Nagar, Chennai - 600020 Contact No: 044-24420733 |
DIMENSIONS | 39.6 x 83.6 x 14.6mm |
NET QUANTITY | 1 |
MANUFACTURER DETAILS | Name: HK JADE Audio Technology CO., Limited Address: Room 1508, 15/F, Yalam Central Studio II, 625 Nathan Road, Kowloon, CHINA |
PACKAGE CONTENTS | FiiO BTR15 Type-C To Type-C Data Cable*1 USB Adapter * 1 Removable Back Clip * 1 Quick Start Guide 6. Warranty Card |
Quick Start Guide | BTR15
Portable Bluetooth DAC & Amp
|
Don't sweat it, this
FiiO - BTR15 comes with a 1 Year warranty
from FiiO that covers manufacturing defects.
All products featured on Headphone Zone are backed by an original manufacturer's warranty.
Read more about FiiO's warranty in India.
Inspiring Audio Excellence Worldwide
Explore Collection"FiiO BTR15 checks all the right boxes. With tons of power and a clean, detailed delivery, the BTR15 is the perfect device for audiophiles who want Bluetooth on-the-go."
Read MoreDual ESS Sabre ES9219MQ
Dual ESS Sabre ES9219C
Cirrus Logic CS43198

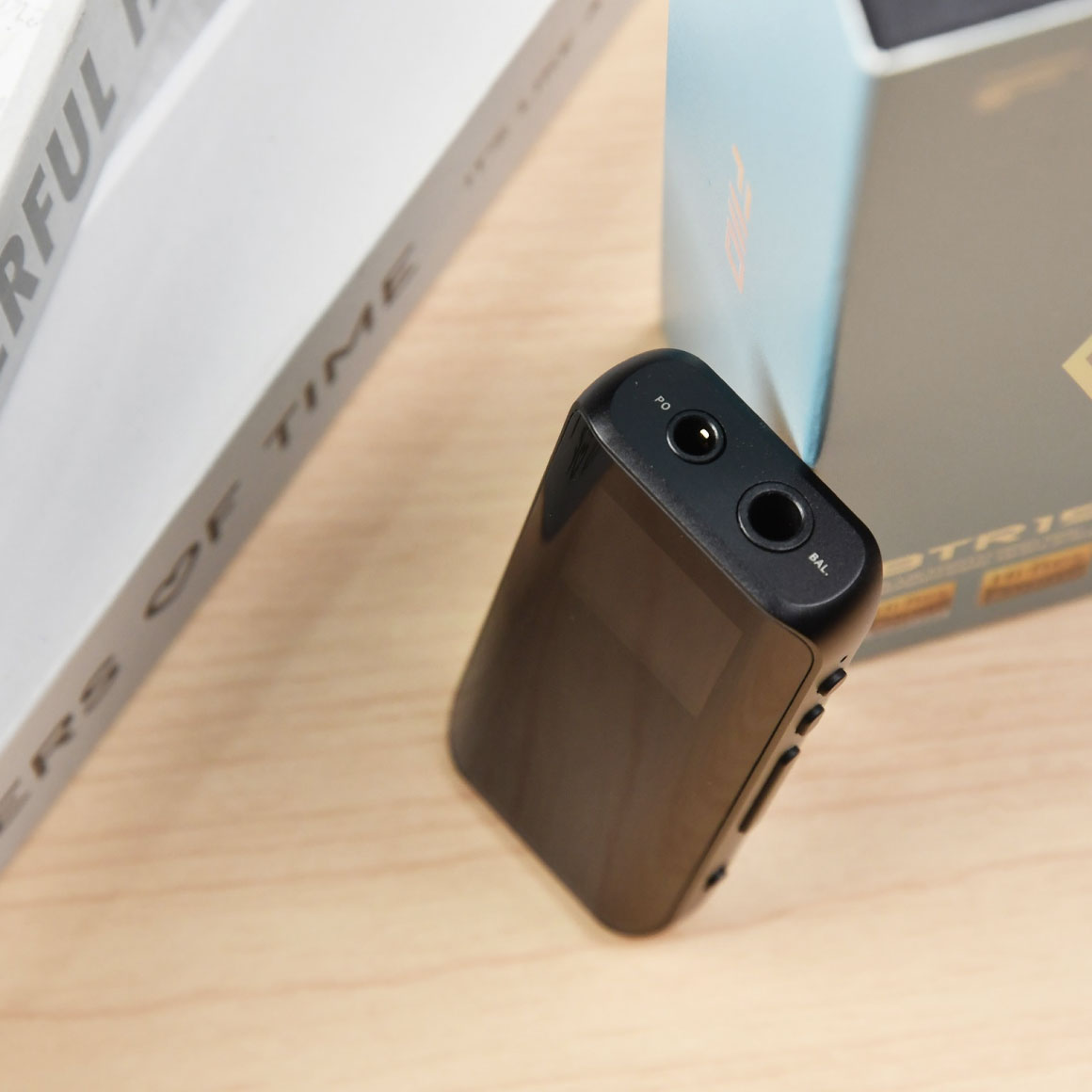

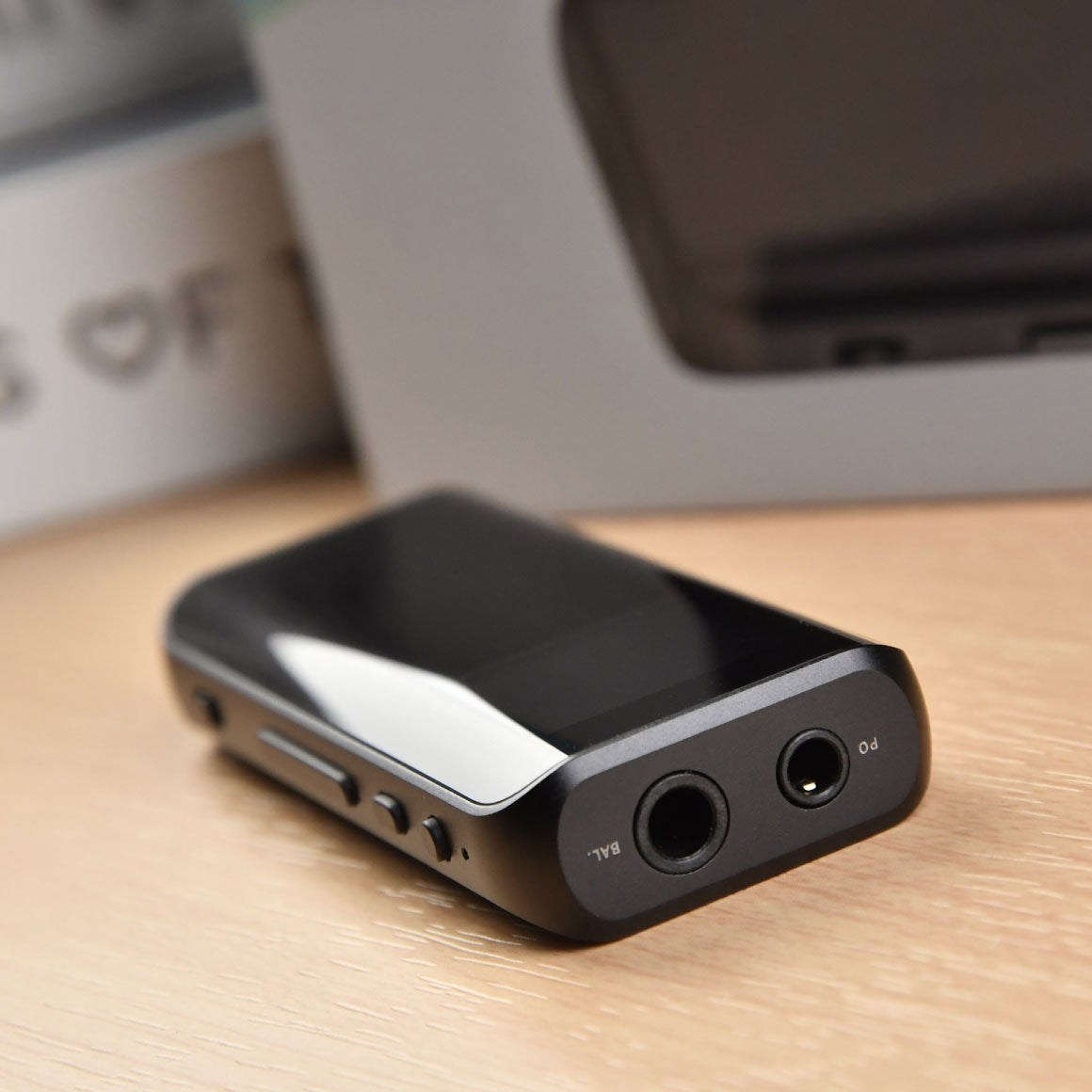

3.5mm (Single-Ended)
4.4mm (Balanced)
4.4mm (Balanced)
3.5mm (Single-Ended)
4.4mm (Balanced)
3.5mm (Single-Ended)
Upto 340mW + 340mW @ 32 Ohms
Upto 320mW @ 32 Ohms
Upto 680mW @ 32 Ohms
Bluetooth Version: V5.1
Bluetooth codecs: AAC/SBC/aptX/aptX LL/aptX Adaptive/aptX HD/LDAC
Bluetooth Version: V5.1
Bluetooth codecs: AAC/SBC/aptX/aptX LL/aptX adaptive/aptX HD/LDAC
Bluetooth Version: V5.0 Receiver
Bluetooth codecs: LDAC / SBC / AAC
Upto 8 Hours
Upto 9 Hours
Upto 12.5 Hours
Yes
Yes
Yes
🪴 Budding Enthusiasts
🦈 Serious Audiophiles Only
🦈 Serious Audiophiles Only
1. FiiO BTR15
2. Type-C to Type-C data cable*1
3. USB adapter * 1
4. Removable back clip * 1
5. Quick start guide
6. Warranty Card
1. FiiO BTR7
2. Type-C USB Cable * 1
3. Type-C To Type-C Data Cable*1
4. Lightning To Type-C*1 (With Lightning Version)
5. Leatherette Case * 1
6. Manual
7. Warranty Card
1. Shanling H2
2. Short USB C-to-C cable for connecting to Smartphones
3. Long USB-A to USB-C cable for charging or connecting to PC
4. Product Documents
Have a question? Get in touch!
Check out the most common questions our customers ask. Still have questions? Talk to our Headphone Gurus.
What is the warranty like and who should I contact?
Why can't BTR15 be paired and connected to my phone? How to reset?
Go to Settings-Bluetooth to delete the BTR15 pairing information and reconnect it to BTR15.
[Clear the pairing information on BTR15]
When it is on, hold both the volume- and volume+ buttons at the same time for about 5s.
[Reset operation]
Hold the Power button for at least 10 seconds to reset it.
Introduction of the three modes

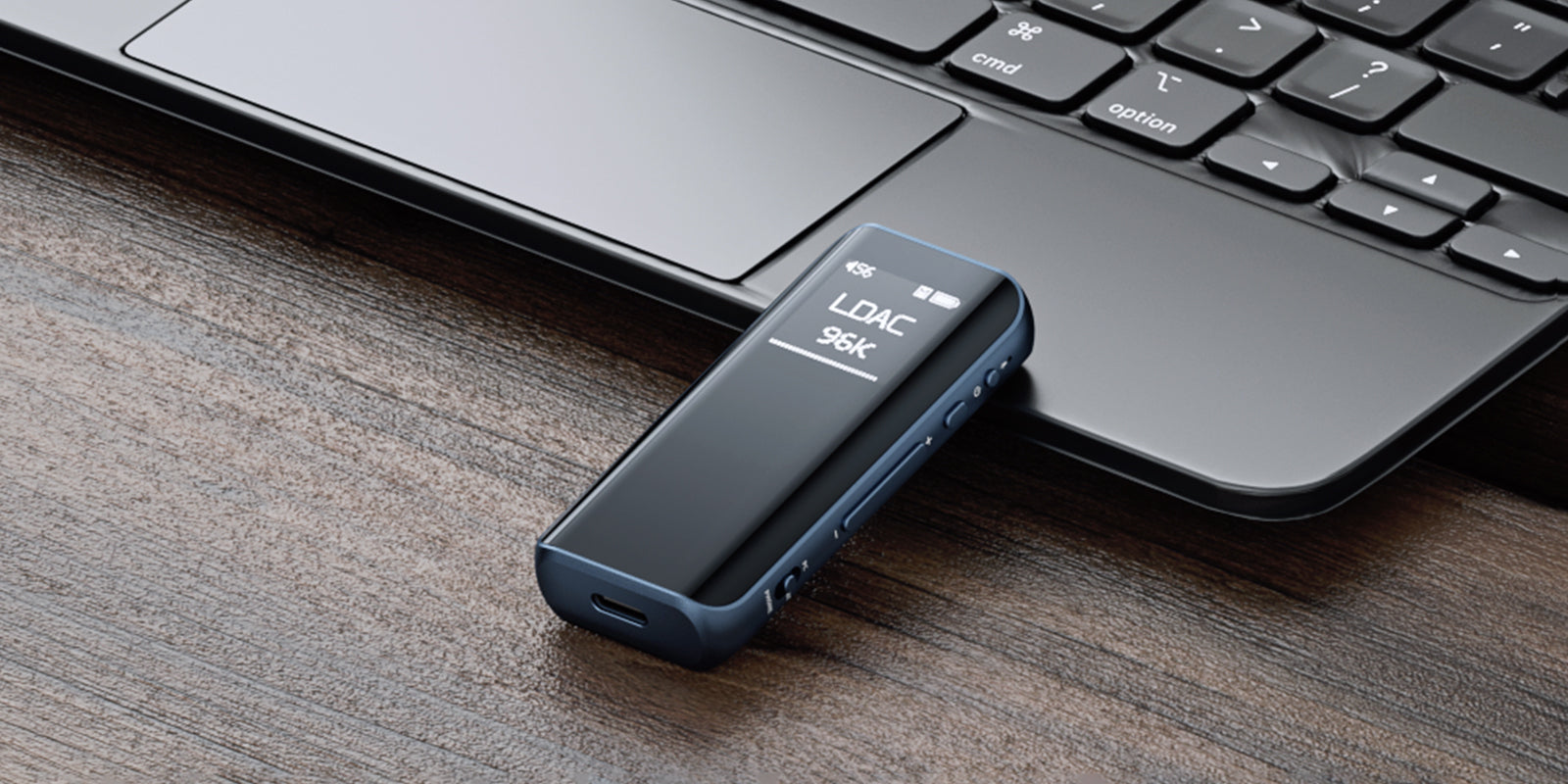

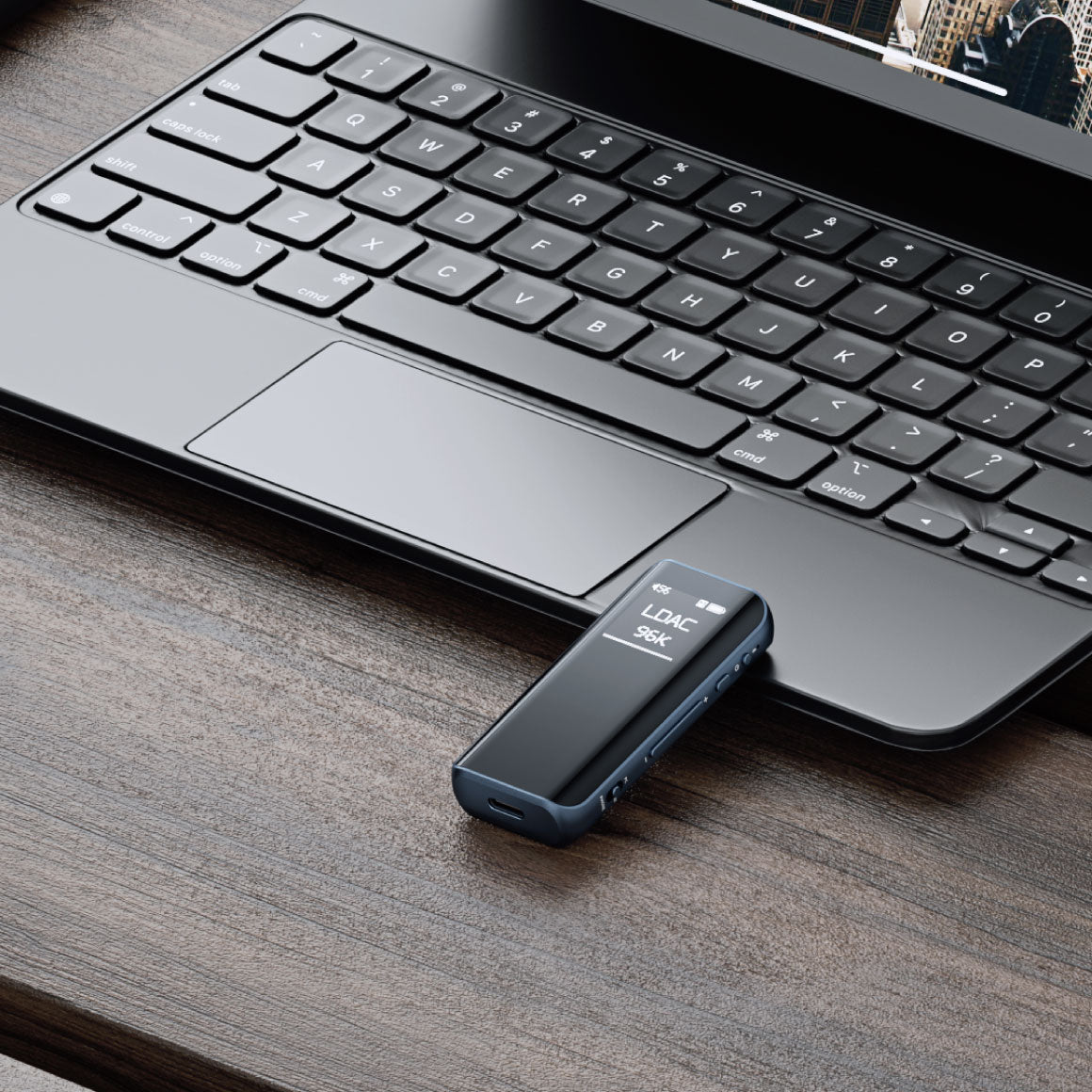

PC mode: Toggle the switch to the top. The BTR15 will enter the USB decoding mode for desktop devices, and can be powered through USB.
BT mode: Toggle the switch to the middle. The BTR15 will enter the Bluetooth receiving mode, and can be powered through USB.
PHONE mode: Toggle the mode switch to the bottom. The BTR15 will enter the decoding mode for mobile phones, and will be disabled from USB charging (The device will be forced to charge if it is powered off for low battery).
How to enter pairing mode in BT mode? How to clear the pairing list of BTR15?
[How to enter Bluetooth pairing mode?(not on the menu page)]

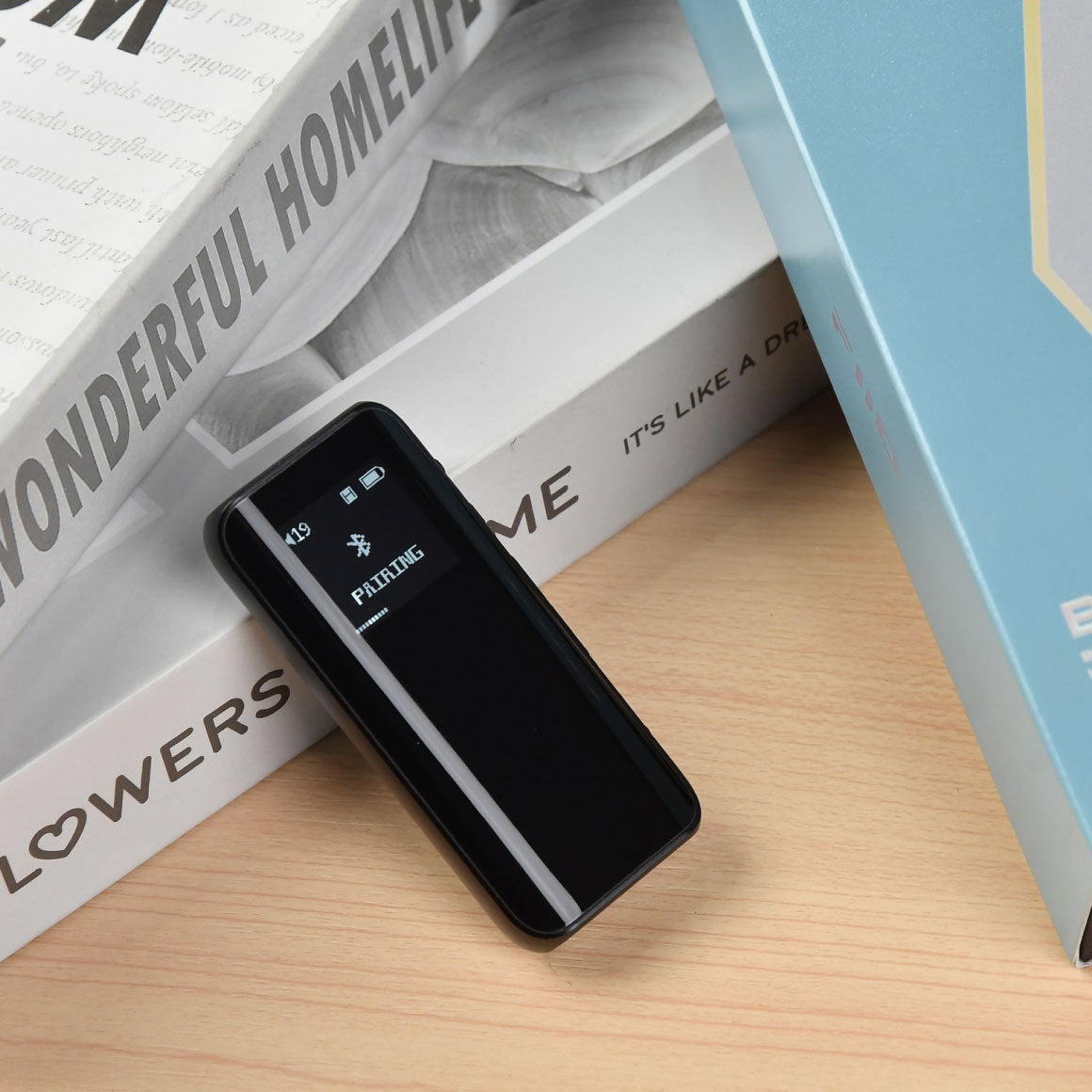

1.If the device is never paired: After the device powers on, it will automatically enter the pairing mode with the display showing “PAIRING”;After the device restarted, it will reconnect to the last connected device automatically.
2. Force the device to enter pairing mode: After the device is successfully connected, hold the Multifunction button for about 5s until the display shows “PAIRING”.
[How to clear the pairing list of BTR15?]
When it is on, hold both the volume- and volume+ buttons at the same time for about 5s.

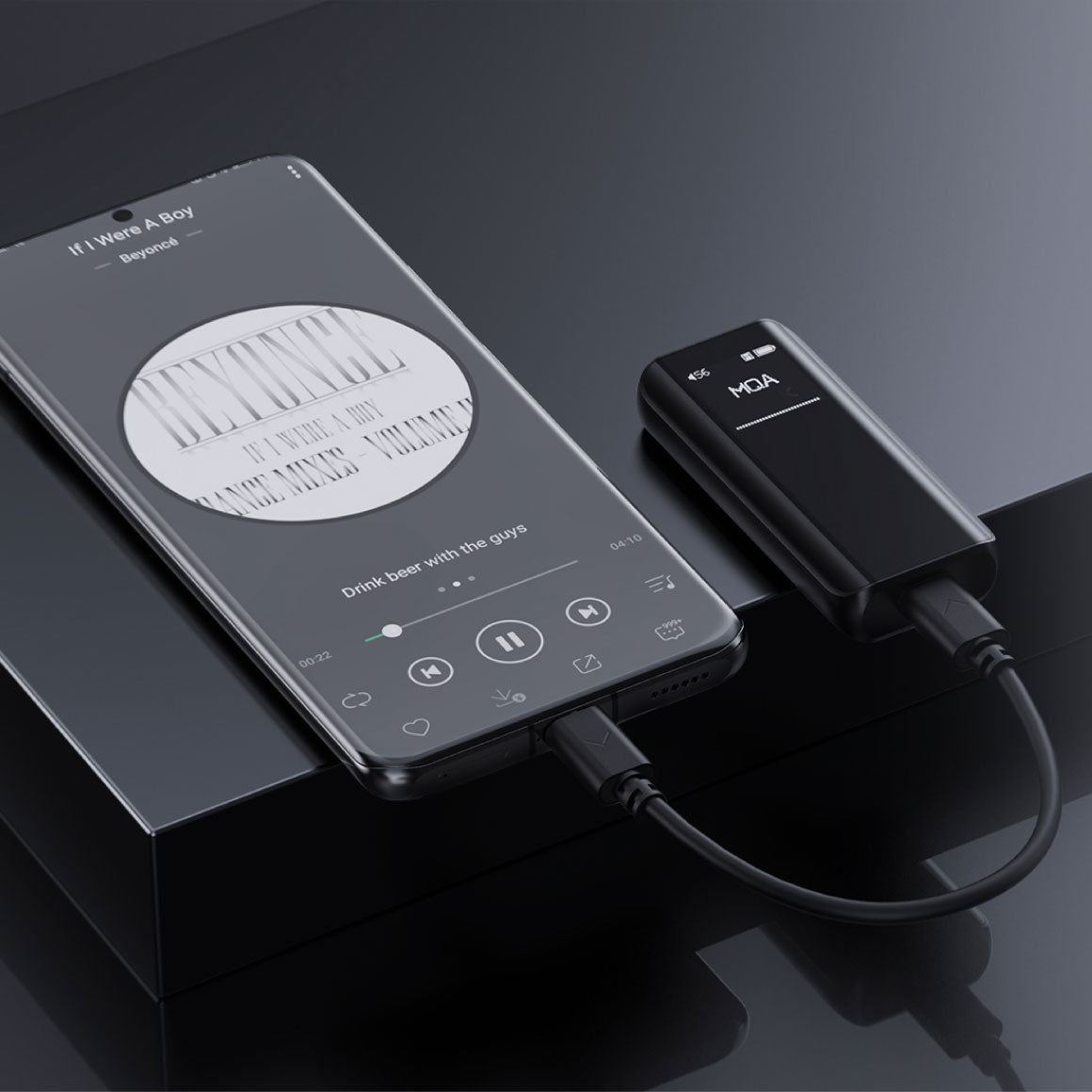

How to use the BTR15 as a USB DAC for mobile phones in PHONE mode?
[Android phone]
Use the Type-C to Type-C cable included in the package to connect the BTR15 to your mobile phone. Play music to directly enjoy high-quality music.
Note: If there is no sound after connecting, you need to pay attention to the following points:
1. Settings on apps, such as FiiO Music, there is a USB output that needs to be enabled, but some devices will have sound only with the USB output turned off.
2. Please check if the USB debugging is enabled in developer modeYou may need to open 'Developer Options' in 'Other Advanced Settings', and then enable the 'USB Debugging' or 'OTG' function
3. Please confirm whether the cable is FiiO's C to C cable, whether the cable is reversed as there is a direction indication.
4. After the above settings are completed, you can try to re-plug the data cable, or play the track, play another track to make sure whether it is a hardware or software issue. If your issue remains, please contact our customer service to confirm whether it needs to be returned.
[iPhone/iPad]
Please buy an extra Lightning to Type-C OTG cable.
Connect the BTR15 to the iPhone/iPad/iPod via this cable to enjoy high-quality music.
Note: IOS devices won't need too many settings. If there is no sound, it may be the adapter cable or the data port is in poor contact.
How to use the car mode?
The car mode could be available in BT, PC or PHONE mode.
How to connect the BTR15 to two Bluetooth devices simultaneously in BT mode?
About the remote control and microphone function in BTR15
The in-line remote control and microphone function in headphone are not supported by the BTR15.
This product is rated 4.5 of 5.0 stars.
It has received 26 reviews.
