Denafrips - Terminator 15th
Desktop R-2R Digital to Analog Converter (DAC)GET 18% GST INPUT
One of the reasons headphones and earphones in India are more expensive than overseas is
because of the Goods & Services Tax in India.
Don't let the GST input go to waste
especially if you can avail an offset.
All products sold on Headphone Zone carry
a GST compliant invoice and all products sold include an 18% GST.
Simply enter
your GST number at the time of checkout.
Browse EMI Plans
Low Cost EMI Options through Credit Cards
ICICI Bank
3
Low Cost EMI
₹ 239,579
₹ 18,737
₹ 15,101
6
Low Cost EMI
₹ 122,168
₹ 33,006
₹ 26,704
9
15.99%
₹ 83,051
₹ 47,460
12
15.99%
₹ 63,508
₹ 62,099
18
15.99%
₹ 43,996
₹ 91,931
24
15.99%
₹ 34,271
₹ 122,500
HDFC Bank
3
Low Cost EMI
₹ 239,583
₹ 18,749
₹ 15,101
6
Low Cost EMI
₹ 122,171
₹ 33,027
₹ 26,704
9
16%
₹ 83,054
₹ 47,491
12
16%
₹ 63,512
₹ 62,139
18
16%
₹ 43,999
₹ 91,991
24
16%
₹ 34,274
₹ 122,580
SBI Bank
3
Low Cost EMI
₹ 239,779
₹ 19,338
₹ 15,550
6
Low Cost EMI
₹ 121,823
₹ 30,942
₹ 24,917
9
15%
₹ 82,719
₹ 44,474
12
15%
₹ 63,181
₹ 58,170
18
16%
₹ 43,999
₹ 91,991
24
16%
₹ 34,274
₹ 122,580
Axis Bank
3
Low Cost EMI
₹ 239,583
₹ 18,749
₹ 15,101
6
Low Cost EMI
₹ 122,171
₹ 33,027
₹ 26,704
9
16%
₹ 83,054
₹ 47,491
12
16%
₹ 62,851
₹ 54,212
18
16%
₹ 43,999
₹ 91,991
24
16%
₹ 34,274
₹ 122,580
Other EMI Options through Credit Cards
Citi Bank
3
14%
₹ 238,798
₹ 16,396
6
14%
₹ 121,476
₹ 28,860
9
16%
₹ 83,054
₹ 47,491
12
16%
₹ 63,512
₹ 62,139
18
16%
₹ 43,999
₹ 91,991
24
16%
₹ 34,274
₹ 122,580
Kotak Mahindra Bank
Tenure
Interest%
Installment
Interest
3
16%
₹ 239,583
₹ 18,749
6
16%
₹ 122,171
₹ 33,027
9
16%
₹ 83,054
₹ 47,491
12
16%
₹ 63,512
₹ 62,139
18
16%
₹ 43,999
₹ 91,991
24
16%
₹ 34,274
₹ 122,580
RBL Bank
3
13%
₹ 238,407
₹ 15,221
6
14%
₹ 121,476
₹ 28,860
9
15%
₹ 82,719
₹ 44,474
12
15%
₹ 63,181
₹ 58,170
18
15%
₹ 43,669
₹ 86,048
24
15%
₹ 33,941
₹ 114,576
Standard Chartered Bank
3
13%
₹ 238,407
₹ 15,221
6
13%
₹ 121,130
₹ 26,780
9
14%
₹ 82,385
₹ 41,465
12
14%
₹ 62,851
₹ 54,212
INDUSIND Bank
3
14%
₹ 238,798
₹ 16,396
6
14%
₹ 121,476
₹ 28,860
9
15%
₹ 82,719
₹ 44,474
12
15%
₹ 63,181
₹ 58,170
18
15%
₹ 43,669
₹ 86,048
24
15%
₹ 33,941
₹ 114,576
HSBC Bank
3
12.50%
₹ 238,211
₹ 14,634
6
12.50%
₹ 120,957
₹ 25,741
9
13.50%
₹ 82,218
₹ 39,962
12
13.50%
₹ 62,686
₹ 52,237
18
13.50%
₹ 43,177
₹ 77,182
YES Bank
3
13%
₹ 238,407
₹ 15,221
6
13%
₹ 121,130
₹ 26,780
9
14%
₹ 82,385
₹ 41,465
12
14%
₹ 62,851
₹ 54,212
18
15%
₹ 43,669
₹ 86,048
24
15%
₹ 33,941
₹ 114,576
Bank of Baroda
3
13%
₹ 238,407
₹ 15,221
6
14%
₹ 121,476
₹ 28,860
9
14%
₹ 82,385
₹ 41,465
12
15%
₹ 63,181
₹ 58,170
18
15%
₹ 43,669
₹ 86,048
24
16%
₹ 34,274
₹ 122,580
American Express
3
14%
₹ 238,798
₹ 16,396
6
14%
₹ 121,476
₹ 28,860
9
14%
₹ 82,385
₹ 41,465
12
14%
₹ 62,851
₹ 54,212
18
15%
₹ 43,669
₹ 86,048
24
15%
₹ 33,941
₹ 114,576
Talk to a Headphone Guru
Club Audiophile
Join Club Audiophile to begin your pursuit of great sound. Earn points and save on every purchase.
READ MORE

Why Denafrips is Special
Designed in China
🎖️ Established & Reputed
Trust us, our reputation speaks for itself 🏆!
I believe that when a brand has decades of proven excellence, you can invest with confidence knowing your purchase is backed by years of audio engineering expertise. These products come from manufacturers with extensive histories of innovation and unwavering commitment to sonic excellence. Think of them like luxury watch brands - their reputation has been earned through decades of consistent quality and innovation.
With their extensive history of innovation and countless satisfied customers worldwide, you can be confident your investment is backed by proven audio engineering expertise and industry leadership 📈.
When you see "🎖️ Established & Reputed" products, expect time-tested excellence from manufacturers who've consistently demonstrated mastery in audio engineering for generations.
🌟 Specialist
A masterpiece from experts who know audio inside and out 🔧!
I tend to describe specialist manufacturers as "audio artisans" who focus exclusively on perfecting specific categories of equipment. These products are meticulously crafted by dedicated experts who possess deep knowledge of sound reproduction, ensuring every technical aspect is refined to perfection. Think of them like master craftsmen who spend their entire careers perfecting one specific skill - their focused expertise shows in every detail.
These dedicated experts bring years of specialised knowledge to the design process, resulting in products that consistently achieve exceptional performance standards through focused engineering excellence 🎯.
When you see "🌟 Specialist" products, expect focused expertise from manufacturers who dedicate their entire efforts to perfecting specific audio equipment categories.
Born in 2012
Why we love this DAC/Amp
💎 Premium Economy
Sensible spending meets sophisticated quality in perfect harmony 💫.
I tend to describe premium economy products as finding that sweet spot where exceptional value meets refined performance. Think of it like business class comfort at economy prices - you're getting significantly more than what you paid for. These headphones deliver a refined listening experience that rivals more expensive alternatives, making them an intelligent choice for discerning listeners who appreciate both value and excellence.
This thoughtfully curated selection demonstrates our commitment to bringing you outstanding sound quality and robust construction without requiring a significant financial investment. Each product has been meticulously evaluated to ensure it delivers performance characteristics typically associated with higher price brackets.
When you see "💎 Premium Economy" products, expect refined audio experiences that bridge the gap between entry-level and high-end offerings, delivering impressive clarity and features at accessible price points.
🦈 Serious Audiophiles Only
For those who have ventured deep into high-fidelity audio 🎯, the pursuit of sonic excellence becomes an endless journey of discovery and refinement. I believe that serious audiophiles demand equipment that can satisfy the most exacting standards and deliver performance that pushes boundaries. These products represent the pinnacle of acoustic engineering, incorporating advanced technologies and meticulous craftsmanship that enable them to reproduce music with utmost fidelity.
Each product has undergone rigorous evaluation to ensure it delivers exceptional performance that discerning listeners demand, from precise frequency response to impeccable detail retrieval and sophisticated sound staging. These devices incorporate premium components and engineering excellence that justify their position at the apex of audio performance.
When you encounter "🦈 Serious Audiophiles Only" products, expect uncompromising performance that satisfies the most demanding requirements and elevates critical listening to new heights.
🏠 For Audiophiles at Home
I’ve always loved the ritual of coming home, settling into my favourite chair, and firing up a dedicated setup. Gear labelled For Audiophiles at Home is made for those moments — when you can really sit back and appreciate music in its purest form 🛋️. These products tend to be more powerful, larger, and often require wall power — perfect for a stationary rig.
Here’s the trade-off: these setups often involve external DACs, amps, or full-size headphones, which means more space, more power, but also more immersive listening. They shine when used in quiet environments, where detail, depth, and dynamics can truly be appreciated.
When you see '🏠 For Audiophiles at Home' products, expect: exceptional fidelity, stronger output, and the kind of soundstage that makes you never want to leave your listening chair.
🔗 Connect With Cable
In my experience, there’s still nothing like the dependability of a wired connection when it comes to audio 🎧. I love describing it as the direct flight of music — no delays, no turbulence. When a product says “Connect with Cable,” it means you’re getting the most reliable signal path, with zero wireless compression and minimal interference.
Here’s what’s actually happening: a physical cable transmits uncompressed analog or digital signals directly from your source to your gear. This results in lower latency, no signal drops, and consistently better sound — especially when paired with a good DAC or amp. It’s ideal for critical listening, gaming, and professional use. The trade-off? You’re tethered — but for a lot of audiophiles, that’s a small price to pay for sonic purity.
When you see '🔗 Connect With Cable' products, expect: pure, uninterrupted sound quality that lets your gear perform at its full potential — perfect for focused, high-fidelity listening.
🪖 Built like a Tank
Durability concerns? Rest assured 💪.
I tend to describe these products as audio equipment that's built to survive anything you can throw at them. These headphones incorporate high-grade metal components and reinforced design elements that ensure they can handle demanding conditions while maintaining structural integrity. Think of them as the military-grade vehicles of the audio world - over-engineered for reliability and built to last decades, not just years.
The metal construction provides exceptional strength and longevity while contributing to a premium feel that serious audio enthusiasts appreciate. Whether you're a professional who needs reliable daily-use equipment or someone who values long-term investment in audio gear 🏗️.
When you encounter "🪖 Built like a Tank" products, expect unmatched robustness and durability you can count on for years of intensive use.
Why it Sounds Amazing
DAC: R2R Ladder
⚖️ Balanced Output
I often say balanced output is like using both hands to carry something heavy — it distributes power evenly and keeps things stable. In audio gear, balanced output helps reduce unwanted noise and interference, especially over longer cables. Think of it as a cleaner, more efficient way to transmit your music, ideal for anyone using high-end DACs, amps, or studio-grade headphones 🎧. You’ll typically find it on gear with XLR or 4.4mm connectors, and it's a must-have if you’re chasing that ultra-clean signal path.
Here’s what’s actually happening: a balanced output uses two separate signals, one inverted, so when interference is picked up along the cable, it gets cancelled out when the signals are recombined. The result? Cleaner audio, better dynamic range, and more power output — especially when paired with balanced headphones. The trade-off? You’ll need gear that supports balanced connections on both ends to really enjoy the benefits.
When you see '⚖️ Balanced Output' products, expect: ultra-low noise, more headroom, and better synergy with high-impedance headphones or sensitive IEMs — ideal for serious listening setups.
🔬 Decodes Upto
When I see "Decodes up to" listed in product specs, I think of it like a music translator that speaks more languages than you’ll ever need. It tells you how far a DAC or audio device can go in handling hi-res formats—think PCM, DSD, or MQA—and at what resolution. 🧠🎶
Technically, this refers to the maximum bit depth and sample rate a DAC can process—like 32-bit/768kHz PCM or DSD512. The higher these numbers, the more detailed and lifelike the audio can potentially sound. But remember, real-world improvements depend on the recording quality and your headphones, not just specs alone.
DESCRIPTION
DENAFRIPS MARKS 15 YEARS OF AUDIO EXCELLENCE WITH THE LAUNCH OF THE TERMINATOR 15TH R-2R DAC
Founded in 2012 and headquartered in the picturesque city of Guangzhou, Denafrips
began as a manufacturer and designer of high-end audio equipment with a mission to make exceptional sound
quality accessible without a hefty price tag. Their unwavering commitment to audio perfection has garnered a
dedicated following among audiophiles, particularly for their acclaimed line of R-2R DACs. The current
product range includes DACs, DDCs, pre-amplifiers, power amplifiers, and headphone amplifiers, all of which
have made a significant impact in the high-end audio market. To celebrate 15 years of continuous excellence,
Denafrips proudly introduces the Terminator 15th R-2R DAC, continuing its legacy of innovation and superior
sound quality.
EXPERIENCE TRUE-TO-LIFE AUDIO QUALITY WITH UTMOST CLARITY AND DETAIL
The Denafrips Terminator 15th R-2R DAC builds upon the acclaimed original
Terminator DAC, pushing the boundaries of audio performance to new heights. Designed for serious audiophiles
seeking the pinnacle of refinement, the Terminator 15th R-2R DAC offers an unparalleled listening
experience. Central to its exceptional sound quality is its proprietary USB Audio Solution, powered by the
advanced STM32F446 AMR-based MCU. Denafrips has meticulously redesigned and optimised the circuitry, making
it a top-tier DAC for use with computers and streamers. It supports up to 24bit/1536kHz PCM data streams and
native decoding of DSD up to DSD1024, with a licensed THESYCON USB driver for Windows. The Terminator 15th
R-2R DAC also features selectable NOS and OS modes, with OS mode offering up-sampling of PCM 44.1kHz or
48kHz audio data to PCM1411.2 or PCM1536, while DSD signals remain unaltered. Experience the ultimate in
musicality with the all-new Terminator 15th R-2R DAC.
ENJOY HI-RES AUDIO WITH PROPRIETARY R-2R AND DSD DECODING ARCHITECTURE
The Terminator 15th R-2R is designed with an R-2R DAC to flawlessly decode both PCM and DSD data streams, a rare feature in the current market. The DAC's digital-to-analog conversion module and R2R ladder networks are perfectly isolated, linked only by the OCXO clock module. This physical isolation reduces background noise and enhances the signal-to-noise ratio, ensuring superior sound quality. The Terminator 15th R-2R supports decoding up to 24bit/1536kHz PCM data streams and native decoding of DSD up to DSD1024. The Terminator 15th R-2R DAC also features selectable NOS and OS modes, with OS mode offering up-sampling of PCM 44.1kHz or 48kHz audio data to PCM1411.2 or PCM1536, while DSD signals remain unaltered.
DEDICATED LINEAR POWER SUPPLY UNIT FOR DISTORTION-FREE SOUND
Clean power is the cornerstone of superior sound quality. The Denafrips Terminator 15th R-2R features a dedicated linear power supply stage, positioned below the DAC board and separated by a steel partition to prevent interference. The power supply includes two large O-Core toroidal transformers for the digital and analog sections and low ESR capacitors to supply a clean electrical signal to all audio circuits. This box-within-box design not only addresses the issues of dual-box solutions but also showcases Denafrips's meticulous attention to detail in the Terminator 15th R-2R DAC.
FEATURES OCXO AND ADAPTIVE FIFO BUFFER RECLOCKING FOR ACCURATE SOUND REPRODUCTION
The Denafrips Terminator 15th R-2R DAC features OCXO (Oven-Controlled Crystal Oscillators) and Adaptive FIFO Buffer Reclocking to ensure precise sound reproduction. The OCXO module physically links the isolated R-2R ladder network arrays and Digital Processor Board, which lowers the noise floor and enhances the signal-to-noise ratio. It includes dual OCXOs operating at 45.1584MHz and 49.152MHz—1024 times the base sampling rates of 44.1kHz and 48kHz. These OCXOs are housed in a metal casing centrally located within the DAC for ultra-low phase noise and exceptional accuracy, powered by a redesigned, shielded power supply that maintains constant current, linearity, and stability. The FIFO Buffer Reclocking technology addresses jitter issues by storing digital audio data in memory and reading it with the ultra-accurate OCXO, minimising jitter and eliminating hiss or noise floor. The Terminator 15th R-2R also includes an OCXO clock output for perfect synchronisation of multiple audio devices.

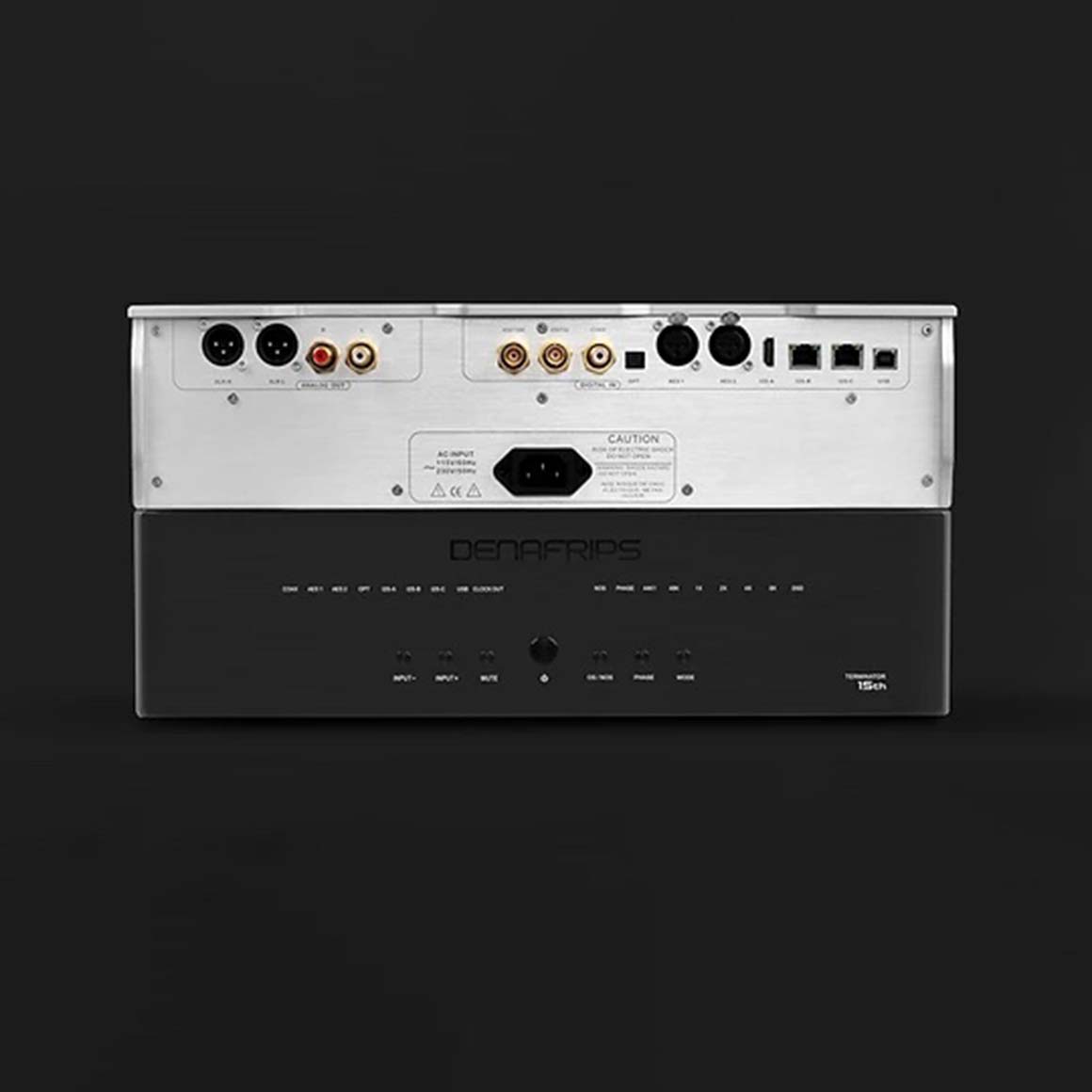

EXPERTLY DESIGNED TO BE SCALABLE WITH CAREFULLY IMPLEMENTED INPUTS & OUTPUTS
The Denafrips Terminator 15th R-2R now comes in a sleek anodised aluminium chassis, available in silver and black, offering a compact yet elegant design. Building on the success of its predecessor, this model further enhances the already impressive build quality. It features comprehensive connectivity options, making it easy to integrate into most audio systems. Inputs include USB-B, I2S RJ45 LVCMOS, I2S RJ45 LVDS, I2S HDMI LVDS, AES/EBU, Toslink Optical, and coaxial. Outputs consist of unbalanced stereo RCA and balanced stereo XLR. Additionally, two clock outputs allow for perfect synchronisation between the Terminator and another audio device, ensuring optimal system performance.
SPECS
| R-2R DAC | Proprietary R2R + DSD Architecture True balanced 26BIT R2R + 6BIT DSD (32 steps FIR Filters) Matched Precision Thin Film 0.005% R-2R Network Arrays |
| HIGHLIGHTS | Encapsulated Ultra Low Noise Power Supply
High-end Oven Controlled Crystals OCXO Total isolation of Digital and R-2R Boards Adaptive FIFO Buffer and Reclocking DSD1024, PCM1536 Supports On USB & I²S Input Proprietary USB Audio Solution via STM32F446 Advanced AMR Based MCU Licensed Thesycon USB Driver For Windows Platform Driverless On Mac & Linux Dual AES/EBU Input Supports Sharp/Slow Filters Option I²S Pinout Configuration I²S DSD Channel Swap Configuration |
| DSD | DSD64 / 2.8224MHz (DoP) on Coax/AES/Opt Input DSD1024 / 45.1584MHz * On USB & I²S Input Only |
| PCM | 24bits / 44.1, 48, 88.2, 96, 176.4, 192KHz On All Input 1536kHz* On USB & I²S Input |

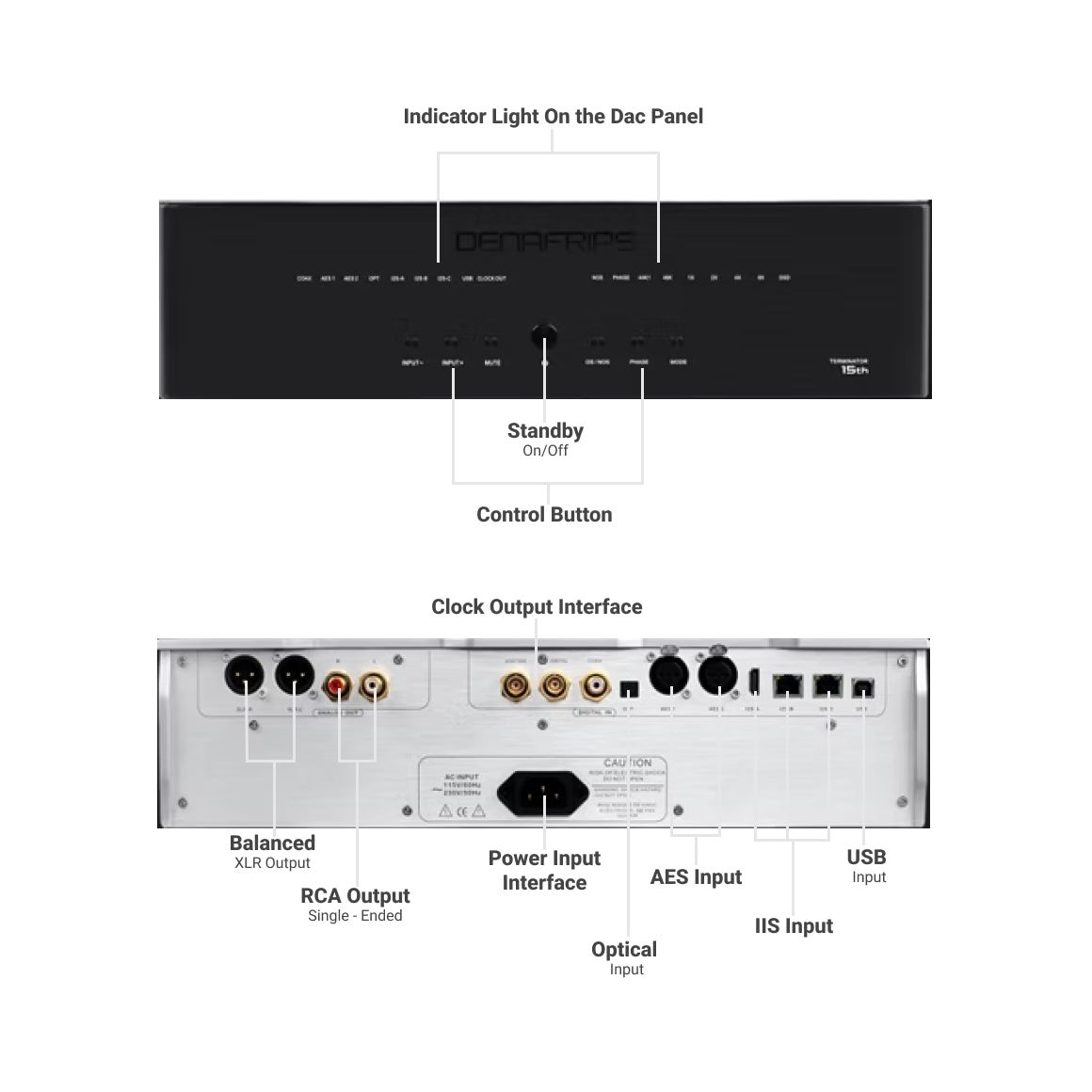

| DIGITAL INPUT | Coax via RCA TOSLink x 1 AES/EBU x 2 (Dual AES/EBU L/R Channel Input Supported) USB2.0 Type B I²S via HDMI LVDS I²S via RJ45 LVDS I²S via RJ45 LVCMOS |
| ANALOG OUTPUT | RCA at 2.2Vrms, 625 Ω XLR at 4.4Vrms, 1250 Ω |
| SAMPLING MODE | Non-Oversampling NOS Oversampling OS |
| AC POWER REQUIREMENT | 100-240VAC, 50/60Hz (Worldwide Voltage) |
| POWER CONSUMPTION | ≤20W |
| FREQUENCY RESPONSE | 20-40KHz -0.2dB |
| THD+N | 0.001% |
| S/N RATIO | 127dB |
| DYNAMIC RANGE | >132dB |
| STEREO CROSSTALK | -110dB |
| DIMENSIONS | 430 x 380 x 105 mm |
| WEIGHT | 19 Kg |
| COLOR | Black / Silver |
| BOX CONTENTS | 1. Denafrips Terminator 15th |
OTHER DETAILS
| GENERIC NAME | Digital Audio Converter |
| IMPORTER DETAILS | Importers Name: Ferrari Video Address: 63/18, 1st Main Road, Gandhi Nagar, Chennai - 600020 Contact No: 044-24420733 |
| NET QUANTITY | 1 |
| MANUFACTURER DETAILS | Name: Vinshine Audio PTE. LTD. Address: 33 Ubi Ave 3 Vertex, Tower A #07-62, Singapore 408868 |
| PACKAGE CONTENTS | Denafrips Terminator 15th |
DENAFRIPS MARKS 15 YEARS OF AUDIO EXCELLENCE WITH THE LAUNCH OF THE TERMINATOR 15TH R-2R DAC
Founded in 2012 and headquartered in the picturesque city of Guangzhou, Denafrips
began as a manufacturer and designer of high-end audio equipment with a mission to make exceptional sound
quality accessible without a hefty price tag. Their unwavering commitment to audio perfection has garnered a
dedicated following among audiophiles, particularly for their acclaimed line of R-2R DACs. The current
product range includes DACs, DDCs, pre-amplifiers, power amplifiers, and headphone amplifiers, all of which
have made a significant impact in the high-end audio market. To celebrate 15 years of continuous excellence,
Denafrips proudly introduces the Terminator 15th R-2R DAC, continuing its legacy of innovation and superior
sound quality.
EXPERIENCE TRUE-TO-LIFE AUDIO QUALITY WITH UTMOST CLARITY AND DETAIL
The Denafrips Terminator 15th R-2R DAC builds upon the acclaimed original
Terminator DAC, pushing the boundaries of audio performance to new heights. Designed for serious audiophiles
seeking the pinnacle of refinement, the Terminator 15th R-2R DAC offers an unparalleled listening
experience. Central to its exceptional sound quality is its proprietary USB Audio Solution, powered by the
advanced STM32F446 AMR-based MCU. Denafrips has meticulously redesigned and optimised the circuitry, making
it a top-tier DAC for use with computers and streamers. It supports up to 24bit/1536kHz PCM data streams and
native decoding of DSD up to DSD1024, with a licensed THESYCON USB driver for Windows. The Terminator 15th
R-2R DAC also features selectable NOS and OS modes, with OS mode offering up-sampling of PCM 44.1kHz or
48kHz audio data to PCM1411.2 or PCM1536, while DSD signals remain unaltered. Experience the ultimate in
musicality with the all-new Terminator 15th R-2R DAC.
ENJOY HI-RES AUDIO WITH PROPRIETARY R-2R AND DSD DECODING ARCHITECTURE
The Terminator 15th R-2R is designed with an R-2R DAC to flawlessly decode both PCM and DSD data streams, a rare feature in the current market. The DAC's digital-to-analog conversion module and R2R ladder networks are perfectly isolated, linked only by the OCXO clock module. This physical isolation reduces background noise and enhances the signal-to-noise ratio, ensuring superior sound quality. The Terminator 15th R-2R supports decoding up to 24bit/1536kHz PCM data streams and native decoding of DSD up to DSD1024. The Terminator 15th R-2R DAC also features selectable NOS and OS modes, with OS mode offering up-sampling of PCM 44.1kHz or 48kHz audio data to PCM1411.2 or PCM1536, while DSD signals remain unaltered.
DEDICATED LINEAR POWER SUPPLY UNIT FOR DISTORTION-FREE SOUND
Clean power is the cornerstone of superior sound quality. The Denafrips Terminator 15th R-2R features a dedicated linear power supply stage, positioned below the DAC board and separated by a steel partition to prevent interference. The power supply includes two large O-Core toroidal transformers for the digital and analog sections and low ESR capacitors to supply a clean electrical signal to all audio circuits. This box-within-box design not only addresses the issues of dual-box solutions but also showcases Denafrips's meticulous attention to detail in the Terminator 15th R-2R DAC.
FEATURES OCXO AND ADAPTIVE FIFO BUFFER RECLOCKING FOR ACCURATE SOUND REPRODUCTION
The Denafrips Terminator 15th R-2R DAC features OCXO (Oven-Controlled Crystal Oscillators) and Adaptive FIFO Buffer Reclocking to ensure precise sound reproduction. The OCXO module physically links the isolated R-2R ladder network arrays and Digital Processor Board, which lowers the noise floor and enhances the signal-to-noise ratio. It includes dual OCXOs operating at 45.1584MHz and 49.152MHz—1024 times the base sampling rates of 44.1kHz and 48kHz. These OCXOs are housed in a metal casing centrally located within the DAC for ultra-low phase noise and exceptional accuracy, powered by a redesigned, shielded power supply that maintains constant current, linearity, and stability. The FIFO Buffer Reclocking technology addresses jitter issues by storing digital audio data in memory and reading it with the ultra-accurate OCXO, minimising jitter and eliminating hiss or noise floor. The Terminator 15th R-2R also includes an OCXO clock output for perfect synchronisation of multiple audio devices.
EXPERTLY DESIGNED TO BE SCALABLE WITH CAREFULLY IMPLEMENTED INPUTS & OUTPUTS
The Denafrips Terminator 15th R-2R now comes in a sleek anodised aluminium chassis, available in silver and black, offering a compact yet elegant design. Building on the success of its predecessor, this model further enhances the already impressive build quality. It features comprehensive connectivity options, making it easy to integrate into most audio systems. Inputs include USB-B, I2S RJ45 LVCMOS, I2S RJ45 LVDS, I2S HDMI LVDS, AES/EBU, Toslink Optical, and coaxial. Outputs consist of unbalanced stereo RCA and balanced stereo XLR. Additionally, two clock outputs allow for perfect synchronisation between the Terminator and another audio device, ensuring optimal system performance.
| R-2R DAC | Proprietary R2R + DSD Architecture True balanced 26BIT R2R + 6BIT DSD (32 steps FIR Filters) Matched Precision Thin Film 0.005% R-2R Network Arrays |
| HIGHLIGHTS | Encapsulated Ultra Low Noise Power Supply
High-end Oven Controlled Crystals OCXO Total isolation of Digital and R-2R Boards Adaptive FIFO Buffer and Reclocking DSD1024, PCM1536 Supports On USB & I²S Input Proprietary USB Audio Solution via STM32F446 Advanced AMR Based MCU Licensed Thesycon USB Driver For Windows Platform Driverless On Mac & Linux Dual AES/EBU Input Supports Sharp/Slow Filters Option I²S Pinout Configuration I²S DSD Channel Swap Configuration |
| DSD | DSD64 / 2.8224MHz (DoP) on Coax/AES/Opt Input DSD1024 / 45.1584MHz * On USB & I²S Input Only |
| PCM | 24bits / 44.1, 48, 88.2, 96, 176.4, 192KHz On All Input 1536kHz* On USB & I²S Input |

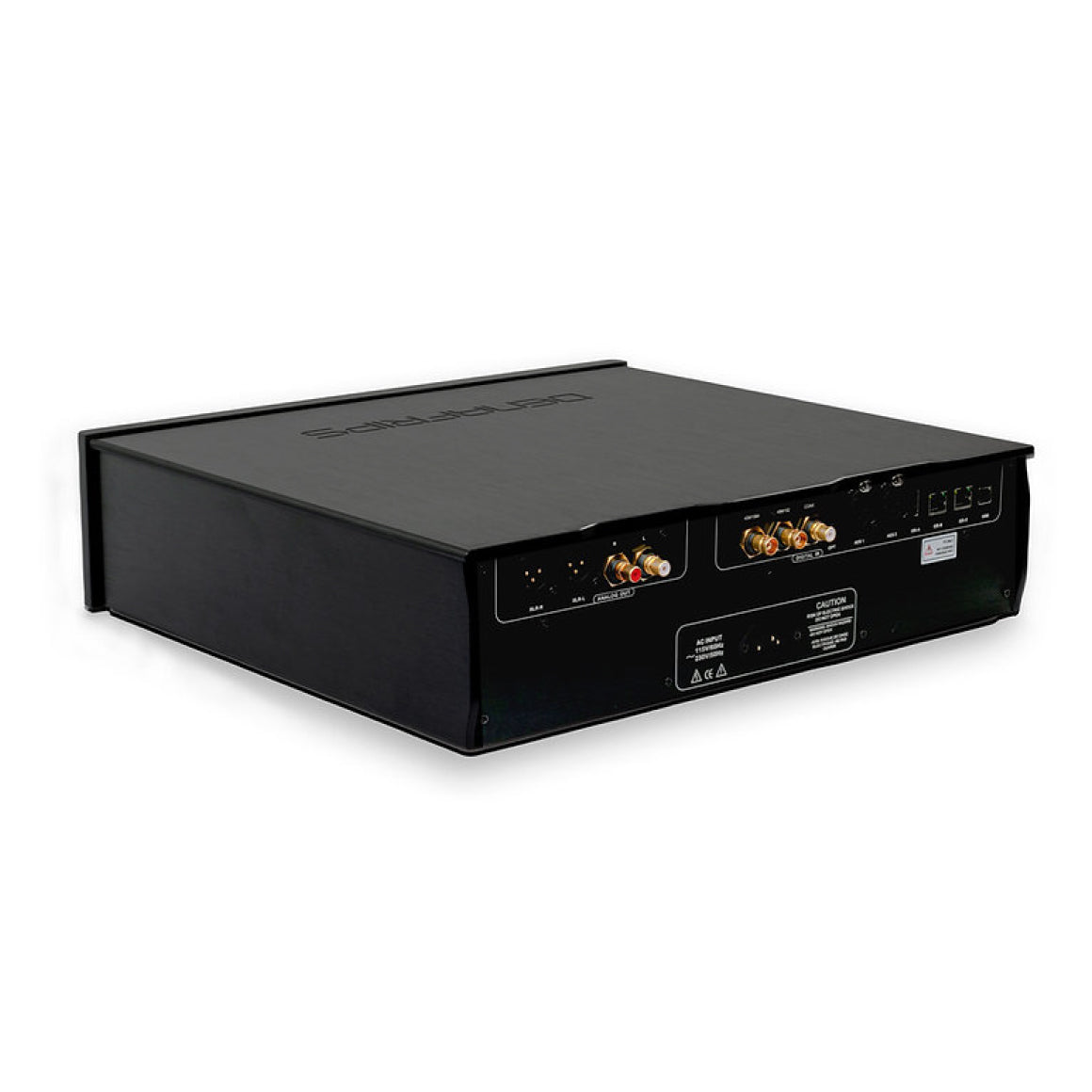

| DIGITAL INPUT | Coax via RCA TOSLink x 1 AES/EBU x 2 (Dual AES/EBU L/R Channel Input Supported) USB2.0 Type B I²S via HDMI LVDS I²S via RJ45 LVDS I²S via RJ45 LVCMOS |
| ANALOG OUTPUT | RCA at 2.2Vrms, 625 Ω XLR at 4.4Vrms, 1250 Ω |
| SAMPLING MODE | Non-Oversampling NOS Oversampling OS |
| AC POWER REQUIREMENT | 100-240VAC, 50/60Hz (Worldwide Voltage) |
| POWER CONSUMPTION | ≤20W |
| FREQUENCY RESPONSE | 20-40KHz -0.2dB |
| THD+N | 0.001% |
| S/N RATIO | 127dB |
| DYNAMIC RANGE | >132dB |
| STEREO CROSSTALK | -110dB |
| DIMENSIONS | 430 x 380 x 105 mm |
| WEIGHT | 19 Kg |

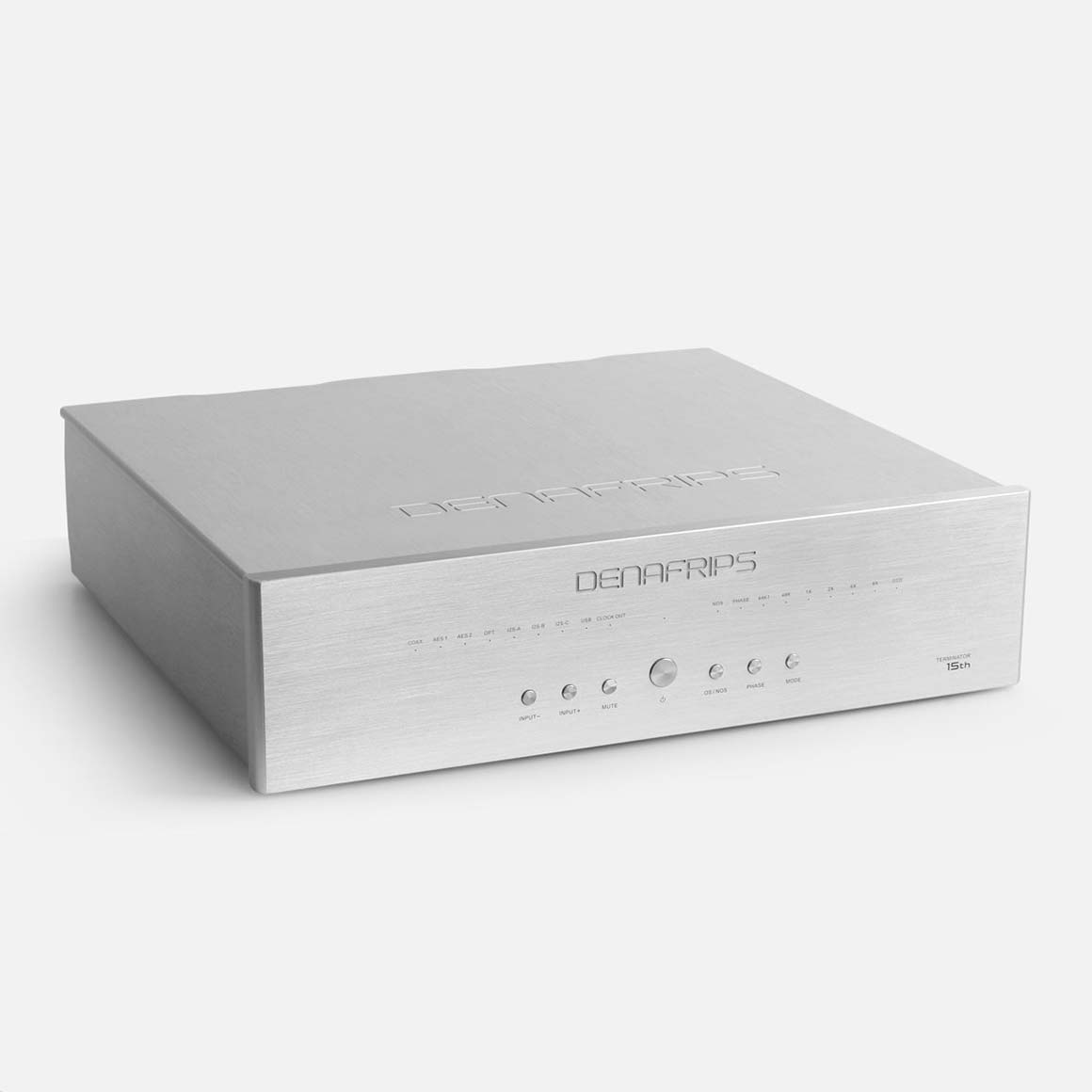

| COLOR | Black / Silver |
| BOX CONTENTS | 1. Denafrips Terminator 15th |
OTHER DETAILS
| GENERIC NAME | Digital Audio Converter |
| IMPORTER DETAILS | Importers Name: Ferrari Video Address: 63/18, 1st Main Road, Gandhi Nagar, Chennai - 600020 Contact No: 044-24420733 |
| NET QUANTITY | 1 |
| MANUFACTURER DETAILS | Name: Vinshine Audio PTE. LTD. Address: 33 Ubi Ave 3 Vertex, Tower A #07-62, Singapore 408868 |
| PACKAGE CONTENTS | Denafrips Terminator 15th |
Don't sweat it, this
Denafrips - Terminator 15th comes with a 1 Year warranty
from Denafrips that covers manufacturing defects.
All products featured on Headphone Zone are backed by an original manufacturer's warranty.
Read more about Denafrips's warranty in India.

Accessories You Must Have
Don't Forget To Add This
Have a question? Get in touch!
Check out the most common questions our customers ask. Still have questions? Talk to our Headphone Gurus.

What is the warranty period on Denafrips Terminator 15th and how do I claim warranty?
What types of audio formats does the Denafrips Terminator 15th R-2R support?
What are NOS and OS modes?
What are the connectivity options available on the Denafrips Terminator 15th R-2R?
What is the recommended usage scenario for the Denafrips Terminator 15th R-2R?
Can the Denafrips Terminator 15th R-2R be synchronized with other audio devices?
How does the FIFO Buffer Reclocking technology in the Denafrips Terminator 15th R-2R work?
