Topping - L30 II
Desktop Headphone AmplifierGET 18% GST INPUT
One of the reasons headphones and earphones in India are more expensive than overseas is because of the Goods &
Services Tax in India.
Don't let the GST input go to waste especially if you can avail an offset.
All products sold on Headphone Zone carry a GST compliant invoice and all products sold include an 18% GST.
Simply enter your GST number at the time of checkout.
Browse EMI Plans
Low Cost EMI Options through Credit Cards
ICICI Bank
3
Low Cost EMI
₹ 4,449
₹ 348
₹ 280
6
Low Cost EMI
₹ 2,269
₹ 613
₹ 496
9
15.99%
₹ 1,542
₹ 881
12
15.99%
₹ 1,179
₹ 1,153
18
15.99%
₹ 817
₹ 1,707
24
15.99%
₹ 636
₹ 2,275
HDFC Bank
3
Low Cost EMI
₹ 4,449
₹ 348
₹ 280
6
Low Cost EMI
₹ 2,269
₹ 613
₹ 496
9
16%
₹ 1,542
₹ 882
12
16%
₹ 1,179
₹ 1,154
18
16%
₹ 817
₹ 1,708
24
16%
₹ 636
₹ 2,276
SBI Bank
3
Low Cost EMI
₹ 4,453
₹ 359
₹ 289
6
Low Cost EMI
₹ 2,262
₹ 575
₹ 463
9
15%
₹ 1,536
₹ 826
12
15%
₹ 1,173
₹ 1,080
18
16%
₹ 817
₹ 1,708
24
16%
₹ 636
₹ 2,276
Axis Bank
3
Low Cost EMI
₹ 4,449
₹ 348
₹ 280
6
Low Cost EMI
₹ 2,269
₹ 613
₹ 496
9
16%
₹ 1,542
₹ 882
12
16%
₹ 1,167
₹ 1,007
18
16%
₹ 817
₹ 1,708
24
16%
₹ 636
₹ 2,276
Other EMI Options through Credit Cards
Citi Bank
3
14%
₹ 4,434
₹ 304
6
14%
₹ 2,256
₹ 536
9
16%
₹ 1,542
₹ 882
12
16%
₹ 1,179
₹ 1,154
18
16%
₹ 817
₹ 1,708
24
16%
₹ 636
₹ 2,276
Kotak Mahindra Bank
Tenure
Interest%
Installment
Interest
3
16%
₹ 4,449
₹ 348
6
16%
₹ 2,269
₹ 613
9
16%
₹ 1,542
₹ 882
12
16%
₹ 1,179
₹ 1,154
18
16%
₹ 817
₹ 1,708
24
16%
₹ 636
₹ 2,276
RBL Bank
3
13%
₹ 4,427
₹ 283
6
14%
₹ 2,256
₹ 536
9
15%
₹ 1,536
₹ 826
12
15%
₹ 1,173
₹ 1,080
18
15%
₹ 811
₹ 1,598
24
15%
₹ 630
₹ 2,128
Standard Chartered Bank
3
13%
₹ 4,427
₹ 283
6
13%
₹ 2,249
₹ 497
9
14%
₹ 1,530
₹ 770
12
14%
₹ 1,167
₹ 1,007
INDUSIND Bank
3
14%
₹ 4,434
₹ 304
6
14%
₹ 2,256
₹ 536
9
15%
₹ 1,536
₹ 826
12
15%
₹ 1,173
₹ 1,080
18
15%
₹ 811
₹ 1,598
24
15%
₹ 630
₹ 2,128
HSBC Bank
3
12.50%
₹ 4,424
₹ 272
6
12.50%
₹ 2,246
₹ 478
9
13.50%
₹ 1,527
₹ 742
12
13.50%
₹ 1,164
₹ 970
18
13.50%
₹ 802
₹ 1,433
YES Bank
3
13%
₹ 4,427
₹ 283
6
13%
₹ 2,249
₹ 497
9
14%
₹ 1,530
₹ 770
12
14%
₹ 1,167
₹ 1,007
18
15%
₹ 811
₹ 1,598
24
15%
₹ 630
₹ 2,128
Bank of Baroda
3
13%
₹ 4,427
₹ 283
6
14%
₹ 2,256
₹ 536
9
14%
₹ 1,530
₹ 770
12
15%
₹ 1,173
₹ 1,080
18
15%
₹ 811
₹ 1,598
24
16%
₹ 636
₹ 2,276
American Express
3
14%
₹ 4,434
₹ 304
6
14%
₹ 2,256
₹ 536
9
14%
₹ 1,530
₹ 770
12
14%
₹ 1,167
₹ 1,007
18
15%
₹ 811
₹ 1,598
24
15%
₹ 630
₹ 2,128
Talk to a Headphone Guru
Club Audiophile
Join Club Audiophile to begin your pursuit of great sound. Earn points and save on every purchase.
READ MORE
Why Topping is Special
Designed in China
Established & Reputed
Trust us, our reputation in the audio world speaks for itself!
This headphone or gear comes from a well-respected brand known for its high-quality audio equipment, so you can be confident in your purchase.
If you see a product marked as “🎖️ Established & Reputed”, it means you're getting a top-tier device from a brand that's earned its stripes in the audio industry.
Revered by Audiophiles
Audiophiles can be really picky and tough to impress and if the audiophile community says something sounds good, you can bet it's great!
This headphone or gear has gained recognition and admiration from audiophiles, who are known for their discerning taste in high-fidelity audio. They appreciate its precision, attention to detail and its ability to deliver an immersive sonic experience.
If you see a product marked as "🙌🏻 Revered by Audiophiles", it means that it meets the highest standards of sound quality and performance, making it a top choice for anyone who values exceptional audio experiences.
Specialist
A masterpiece from the experts who know audio inside and out!
This headphone or gear is crafted by specialists who know their stuff, ensuring every detail is perfect.
If you see a product marked as “🌟 Specialist”, it means you're choosing a device designed by experts who specialize in creating this specific category of device.
Why we love this DAC/Amp
Value for Money
Great sound always doesn't have to come with a fancy price tag.
Every once in a while we come across a product that give you a lot more value for the price.
If you see products marked as "🥜 Value For Money" you can be sure you're getting a great bang for your buck.
For Enthusiasts on a Budget
We are here to help you find the best bang for your buck.
This headphone or gear is made for all passionate hobbyists who want top-notch gear without breaking the bank.
If you see a product marked as “🪴 For Enthusiasts on a Budget”, get ready to indulge in your music with high-quality, affordable products that keep your wallet happy and your enthusiasm alive!
Incredibly Popular
Some things deserve all the attention.
This headphone or gear is a crowd favourite, winning over fans everywhere with its undeniable audio quality.
If you see products marked as “🥇 Incredibly Popular”, you’re opting for a tried-and-true choice that’s loved by many, ensuring you're getting something that’s proven to be awesome and widely acclaimed.
For Audiophiles at Home
Cause music hit differently when you are in your own space.
This headphone or gear is perfect for those who demand exceptional sound quality in their personal sanctuary.
If you see products marked as “🏠 For Audiophiles at Home”, get ready to transform your living space into an audiophile's paradise, with rich, immersive sound that makes every listening session a masterpiece.
Connect With Cable
This device comes with multiple connectivity options. Be sure to check if your source and output support these input and output options.
Why it Sounds Amazing
Power Output
When you need that juice to get the best out of your products.
This headphone or gear packs a punch, revealing the product's impressive power output capabilities, ensuring it can handle even the most demanding products with ease.
If you see products marked as “🚀 Power Output”, you're in for a treat with robust performance for driving high-fidelity products without breaking a sweat.

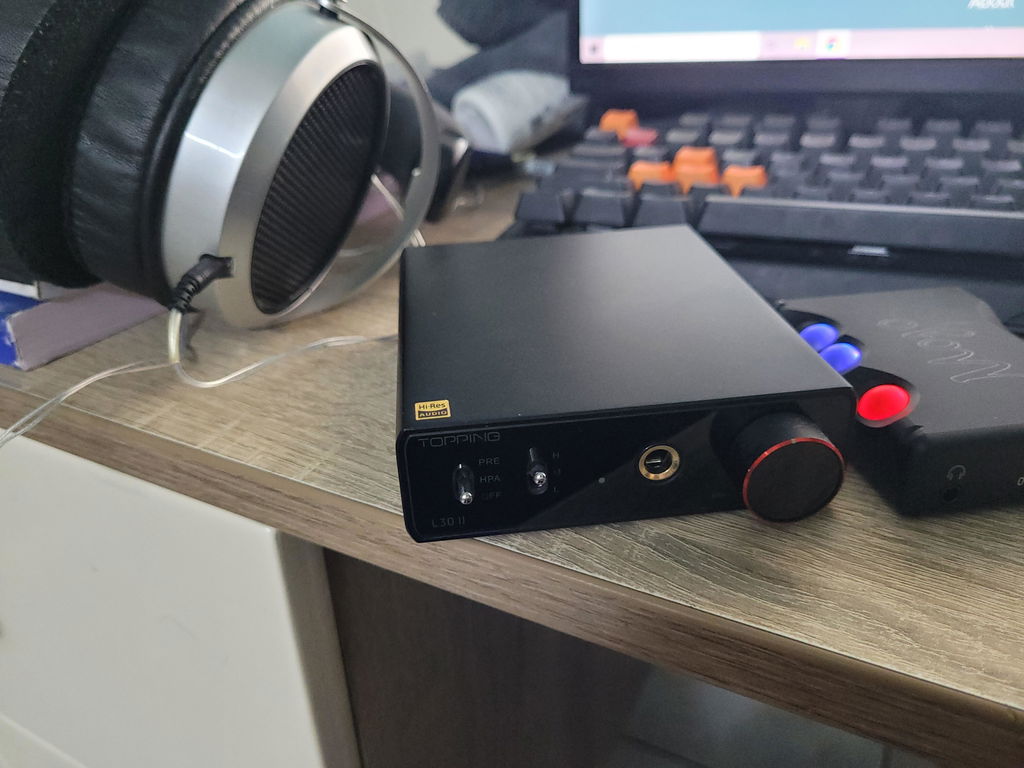

Topping L30 II is a powerful NFCA-based headphone amplifier designed to be paired with the E30 II. With the updated NFCA circuit, the Topping L30 II produces a powerful output with ultra-low distortion and high dynamic range. L30 II is perfect for full-sized headphones and IEMs alike.
About RAGHAV SOMANI
Raghav Somani is the Founder & CEO of Headphone Zone. An avid audiophile and musician since 2008, his choice of headphones include STAX Electrostats, Audeze LCD 3, and for music on the go, the JH Audio Roxanne + Astell&Kern SP1000 is never too far away. On his playlist, you'll find A.R. Rahman, Michael Jackson, and the Eagles.
DESCRIPTION
TOPPING INTRODUCES THE ALL-NEW AND IMPROVED HEADPHONE AMPLIFIER L30 II, THE SUCCESSOR TO THE WIDELY POPULAR L30
TOPPING is renowned for revolutionising the audio industry by creating some of the most power-efficient and clean headphone amplifiers. The audiophile community has always relied on TOPPING for their phenomenal amplifier line-up. TOPPING proudly introduces the L30 II, an NFCA (Nested Feedback Composite Amplifier) amplifier successor to the widely popular L30. The TOPPING L30 II has seen significant improvements throughout; It features an improved NFCA module with a low THD+N of less than 0.00006%, in contrast to less than 0.00007% on the L30. It also has an improved dynamic range of 144dB compared to 141dB on L30. The major improvement is in the amount of power; that the L30 II can deliver with precision. It delivers a power output of 560mW*2 in contrast to 280mW*2 on L30. The gain settings have also been improved with -14dB/0dB/16.5dB (L/M/H) in contrast to -9.9dB/0dB/9.5dB on the L30. Lastly, the L30 II has a 37 Vpp output voltage compared to 26Vpp on the L30. Experience pure, raw, and clean power delivery with the all-new L30 II, which will drive even the most power-demanding headphones; that you throw at
FEATURES AN IMPROVED NFCA HEADPHONE AMPLIFIER MODULE THAT DELIVERS PHENOMENAL OUTPUT POWER AND IS COMPATIBLE WITH MOST HEADPHONES
TOPPING has included an all-improved NFCA (Nested Feedback Composite Amplifier) headphone amplifier module in the L30 II. A composite amplifier consists of two or more operational amplifiers cascaded together, with a negative-feedback loop around the entire network. The Composite amplifiers (also described as nested-feedback amplifiers) widen the bandwidth at high gain, boost slew rates, lower distortion, reduce output DC offset, and lessen noise. It provides 2x output power at a 300-ohm load compared to L30. The new circuit has 0.3uV ultra-low noise and 144dB dynamic range, and 0.00006% THD+N. With the help of NFCA, L30 II excels and has almost perfect performance regardless of distortion, dynamic range, and multi-tone testing. L30 II's output has high output voltage, high current, and low output impedance, which can drive most headphones. It is also possible to drive headphones with a high output current and a low output impedance. Due to its high output voltage, it can drive high-impedance headphones.
EXPERIENCE LOW DISTORTION AND HIGH OUTPUT POWER WITH THREE GAIN SETTINGS AND EASY COMPATIBILITY WITH E30 II
When designing the L30 II, TOPPING engineers paid close attention to avoiding compromises while offering high output power because high power causes distortion. The L30 II can maintain ultra-low distortion output under a high power load. THD+N is less than 0.00008% at a 32-ohm with 2500mW output power and less than 0.00007% at a 300-ohm load and 300mW output. L30 II has three gain settings: -14dB, OdB, and 16.5dB. Improved gain settings can cover a range of needs to meet the needs of different headphones, from low-sensitivity full-sized over-ears to high-sensitivity IEMs. With the help of low noise 0.3uV, even IEMs will not hear any background noise. The TOPPING L30 II best pairs with TOPPING's new DAC E30 II. The TOPPING L30 II and E30 II have fully matched design languages and styles, and L30 II is suitable for almost all kinds of headphones and pairs well with E30 II. This DAC & Amp pairing will take your listening experience to new heights. Active speakers can be conjugated using the L30 II and E30 II. Connect the two outputs of L30 II to headphones & active speakers. You can listen to music on active speakers or headphones by toggling the L30 II's outputs.
DESIGNED TO BE FUNCTIONAL WITH NUMEROUS INPUTS & OUTPUTS AND BUNDLED WITH ACCESSORIES
TOPPING has designed the L30 II to have a compact form factor. The TOPPING L30 II builds on the lineage and is easy to use, generating confidence for it to last for years. The front panel consists of an output switch to toggle between PRE output (RCA output) or HPA output (Headphone Output) or turn off. It also has a gain switch with H/M/L respectively to 16.5dB/0dB/-14dB. The L30 II has a power indicator on which the light will always be ON when the L30 II is turning ON and will turn OFF when the unit; is turned OFF. It also blinks to indicate unexpected output. The front panel also has a 6.35mm headphone output jack and a volume knob to adjust the volume. The rear panel has numerous inputs and outputs for easy connectivity and compatibility. It consists of right and left channel single-ended RCA input and output and a power input socket (AC15V/1A 50Hz/60Hz). The TOPPING L30 II comes with thoughtful accessories to get you started. The package includes an AC adapter, a 6.35mm to 3.5mm converter, a user manual, and a warranty card.
SPECS
| THD+N@1 kHz A-WT | <0.00006% @Output=500 mW (32Ω) <0.00005% @Output=80 mW (300Ω) |
| THD @20-20 KHZ 90 KBW | <0.00008% @Output=500 mW (32Ω) <0.00007% @Output=80 mW (300Ω) |
| SNR@MAX OUT 1 KHZ A-WT | 144dB |
| DYNAMIC RANGE @1 KHZ A-WT | 144dB |
| FREQUENCY RESPONSE | 20 Hz-40 kHz(±0.05dB) |
| OUTPUT LEVEL | 14Vpp @G=L 31Vpp @G=M 37Vpp @G=H |
| AP MEASURED NOISE LEVEL (A-WT) | <0.7uVrms @G=L <0.7uVrmsuVrms @G=M <1.5uVrms @G=H |
| ACTUAL NOISE LEVEL* (A-WT) | <0.3uVrms @G=L <0.3uVrms @G=M <1.4uVrms @G=H |
| *The actual noise level is obtained by boosting the noise of L30 by 40 dB using a low noise amplifier in front of the APx555B then dividing the measured noise by 100 times. | |
| CHANNEL CROSSTALK @1 KHZ | -92dB |
| INPUT SENSITIVITY | 25Vrms @G=L 11.2Vrms @G=M 2.0Vrms @G=H |
| GAIN | -14.0dB @G=L 0dB @G=M 16.5dB @G=H |
| OUTPUT IMPEDANCE | <0.1Ω |
| OUTPUT POWER | 3500 mW X 2 @16Ω THD+N<0.1% 2700 mW X 2 @32Ω THD+N<0.1% 2000 mW X 2 @64Ω THD+N<0.1% 560 mW X 2 @300Ω THD+N<0.1% |
| LOAD IMPEDANCE | >8Ω |
| THD+N@1 KHZ A-WT | <0.00006% |
| THD @20-20 KHZ 90 kBW | <0.00007% |
| SNR@MAX OUT 1 KHZ A-WT | 144dB |
| DYNAMIC RANGE @1 KHZ A-WT | 144dB |
| FREQUENCY RESPONSE | 20 Hz-40 kHz(±0.05dB) |
| OUTPUT LEVEL | 14Vpp @G=L 31Vpp @G=M 37Vpp @G=H |
| AP MEASURED NOISE LEVEL (A-WT) | <0.7uVrms @G=L <0.7uVrms @G=M <1.5uVrms @G=H |
| ACTUAL NOISE LEVEL* (A-WT) | <0.3uVrms @G=L <0.3uVrms @G=M <1.4uVrms @G=H |
| *The actual noise level is obtained by boosting the noise of L30 by 40 dB using a low noise amplifier in front of the APx555B then dividing the measured noise by 100 times. | |
| CHANNEL CROSSTALK @1 KHZ | -92dB |
| INPUT SENSITIVITY | 25Vrms @G=L 11.2Vrms @G=M 2.0Vrms @G=H |
| GAIN | -14.0dB @G=L 0dB @G=M 16.5dB @G=H |
| OUTPUT IMPEDANCE | 20Ω |
| BOX CONTENTS | 1. TOPPING L30 II |
| 2. AC Adapter | |
| 3. 6.35 mm to 3.5 mm adapter | |
| 4. User Manual | |
| 5. Warranty card |
OTHER DETAILS
| GENERIC NAME | Headphone Amplifier |
| COUNTRY OF ORIGIN | China |
| IMPORTER DETAILS | Importers Name: Ferrari Video Address: 63/18, 1st Main Road, Gandhi Nagar, Chennai - 600020 Contact No: 044-24420733 |
| DIMENSIONS | 29 x 21 x 8 CM |
| NET QUANTITY | 1 |
| MANUFACTURER DETAILS | Name: Tok Shun Co., Limited Address: 1318-19, 13/F, Hollywood Plaza, 610 Nathan Road, HK. |
| PACKAGE CONTENTS | TOPPING L30 II AC Adapter 6.35 Mm To 3.5 Mm Adapter User ManuaL, Warranty Card |
User Manual | L30 II
Desktop Headphone Amplifier
|
FAQs
What isthe warranty period on the TOPPING L30 II?
All TOPPING products come with 1 year of warranty. To claim warranty read more on TOPPINGWarranty here.
Where is the TOPPING brand based?
Topping is a brand based in Guangzhou, China.
What is the amplifier module used in TOPPING L30 II?
The TOPPING L30 II has an NFCA headphone amplifier module.
How is the NFCA module better than the others?
A composite amplifier consists of two or more operational amplifiers cascaded together, with a negative-feedback loop around the entire network. The Composite amplifiers (also described as nested-feedback amplifiers) widen the bandwidth at high gain, boost slew rates, lower distortion, reduce output DC offset, and lessen noise.
How many gain settings are available with the TOPPING L30 II?
The TOPPING L30 II has 3 level gain settings H/M/L respectively to 16.5dB/0dB/-14dB.
What is the output power like on L30 II?
3500mW x 2 @16 Ohms THD+N<0.1%
2700mW x 2 @32 Ohms THD+N<0.1%
2000mW x 2 @64 Ohms THD+N<0.1%
560mW x 2 @300 Ohms THD+N<0.1%
Is it compatible with TOPPING E30 II?
Yes, The TOPPING L30 II and E30 II have fully matched design languages and styles, and L30 II is suitable for almost all kinds of headphones and pairs well with E30 II. This DAC & Amp pairing will take your listening experience to new heights. The L30 II and E30 II can be used in conjugation with active speakers. Connect the two outputs of L30 II to headphones & active speakers. You can listen to music on active speakers or headphones by toggling the L30 II's outputs.
What does the package include?
The TOPPING L30 II comes with thoughtful accessories to get you started. The package includes an AC adapter, a 6.35mm to 3.5mm adapter, a user manual, and a warranty card.
TOPPING INTRODUCES THE ALL-NEW AND IMPROVED HEADPHONE AMPLIFIER L30 II, THE SUCCESSOR TO THE WIDELY POPULAR L30
TOPPING is renowned for revolutionising the audio industry by creating some of the most power-efficient and clean headphone amplifiers. The audiophile community has always relied on TOPPING for their phenomenal amplifier line-up. TOPPING proudly introduces the L30 II, an NFCA (Nested Feedback Composite Amplifier) amplifier successor to the widely popular L30. The TOPPING L30 II has seen significant improvements throughout; It features an improved NFCA module with a low THD+N of less than 0.00006%, in contrast to less than 0.00007% on the L30. It also has an improved dynamic range of 144dB compared to 141dB on L30. The major improvement is in the amount of power; that the L30 II can deliver with precision. It delivers a power output of 560mW*2 in contrast to 280mW*2 on L30. The gain settings have also been improved with -14dB/0dB/16.5dB (L/M/H) in contrast to -9.9dB/0dB/9.5dB on the L30. Lastly, the L30 II has a 37 Vpp output voltage compared to 26Vpp on the L30. Experience pure, raw, and clean power delivery with the all-new L30 II, which will drive even the most power-demanding headphones; that you throw at
FEATURES AN IMPROVED NFCA HEADPHONE AMPLIFIER MODULE THAT DELIVERS PHENOMENAL OUTPUT POWER AND IS COMPATIBLE WITH MOST HEADPHONES
TOPPING has included an all-improved NFCA (Nested Feedback Composite Amplifier) headphone amplifier module in the L30 II. A composite amplifier consists of two or more operational amplifiers cascaded together, with a negative-feedback loop around the entire network. The Composite amplifiers (also described as nested-feedback amplifiers) widen the bandwidth at high gain, boost slew rates, lower distortion, reduce output DC offset, and lessen noise. It provides 2x output power at a 300-ohm load compared to L30. The new circuit has 0.3uV ultra-low noise and 144dB dynamic range, and 0.00006% THD+N. With the help of NFCA, L30 II excels and has almost perfect performance regardless of distortion, dynamic range, and multi-tone testing. L30 II's output has high output voltage, high current, and low output impedance, which can drive most headphones. It is also possible to drive headphones with a high output current and a low output impedance. Due to its high output voltage, it can drive high-impedance headphones.
EXPERIENCE LOW DISTORTION AND HIGH OUTPUT POWER WITH THREE GAIN SETTINGS AND EASY COMPATIBILITY WITH E30 II
When designing the L30 II, TOPPING engineers paid close attention to avoiding compromises while offering high output power because high power causes distortion. The L30 II can maintain ultra-low distortion output under a high power load. THD+N is less than 0.00008% at a 32-ohm with 2500mW output power and less than 0.00007% at a 300-ohm load and 300mW output. L30 II has three gain settings: -14dB, OdB, and 16.5dB. Improved gain settings can cover a range of needs to meet the needs of different headphones, from low-sensitivity full-sized over-ears to high-sensitivity IEMs. With the help of low noise 0.3uV, even IEMs will not hear any background noise. The TOPPING L30 II best pairs with TOPPING's new DAC E30 II. The TOPPING L30 II and E30 II have fully matched design languages and styles, and L30 II is suitable for almost all kinds of headphones and pairs well with E30 II. This DAC & Amp pairing will take your listening experience to new heights. Active speakers can be conjugated using the L30 II and E30 II. Connect the two outputs of L30 II to headphones & active speakers. You can listen to music on active speakers or headphones by toggling the L30 II's outputs.
DESIGNED TO BE FUNCTIONAL WITH NUMEROUS INPUTS & OUTPUTS AND BUNDLED WITH ACCESSORIES
TOPPING has designed the L30 II to have a compact form factor. The TOPPING L30 II builds on the lineage and is easy to use, generating confidence for it to last for years. The front panel consists of an output switch to toggle between PRE output (RCA output) or HPA output (Headphone Output) or turn off. It also has a gain switch with H/M/L respectively to 16.5dB/0dB/-14dB. The L30 II has a power indicator on which the light will always be ON when the L30 II is turning ON and will turn OFF when the unit; is turned OFF. It also blinks to indicate unexpected output. The front panel also has a 6.35mm headphone output jack and a volume knob to adjust the volume. The rear panel has numerous inputs and outputs for easy connectivity and compatibility. It consists of right and left channel single-ended RCA input and output and a power input socket (AC15V/1A 50Hz/60Hz). The TOPPING L30 II comes with thoughtful accessories to get you started. The package includes an AC adapter, a 6.35mm to 3.5mm converter, a user manual, and a warranty card.
| THD+N@1 kHz A-WT | <0.00006% @Output=500 mW (32Ω) <0.00005% @Output=80 mW (300Ω) |
| THD @20-20 KHZ 90 KBW | <0.00008% @Output=500 mW (32Ω) <0.00007% @Output=80 mW (300Ω) |
| SNR@MAX OUT 1 KHZ A-WT | 144dB |
| DYNAMIC RANGE @1 KHZ A-WT | 144dB |
| FREQUENCY RESPONSE | 20 Hz-40 kHz(±0.05dB) |
| OUTPUT LEVEL | 14Vpp @G=L 31Vpp @G=M 37Vpp @G=H |
| AP MEASURED NOISE LEVEL (A-WT) | <0.7uVrms @G=L <0.7uVrmsuVrms @G=M <1.5uVrms @G=H |
| ACTUAL NOISE LEVEL* (A-WT) | <0.3uVrms @G=L <0.3uVrms @G=M <1.4uVrms @G=H |
| *The actual noise level is obtained by boosting the noise of L30 by 40 dB using a low noise amplifier in front of the APx555B then dividing the measured noise by 100 times. | |
| CHANNEL CROSSTALK @1 KHZ | -92dB |
| INPUT SENSITIVITY | 25Vrms @G=L 11.2Vrms @G=M 2.0Vrms @G=H |
| GAIN | -14.0dB @G=L 0dB @G=M 16.5dB @G=H |
| OUTPUT IMPEDANCE | <0.1Ω |
| OUTPUT POWER | 3500 mW X 2 @16Ω THD+N<0.1% 2700 mW X 2 @32Ω THD+N<0.1% 2000 mW X 2 @64Ω THD+N<0.1% 560 mW X 2 @300Ω THD+N<0.1% |
| LOAD IMPEDANCE | >8Ω |
| THD+N@1 KHZ A-WT | <0.00006% |
| THD @20-20 KHZ 90 kBW | <0.00007% |
| SNR@MAX OUT 1 KHZ A-WT | 144dB |
| DYNAMIC RANGE @1 KHZ A-WT | 144dB |
| FREQUENCY RESPONSE | 20 Hz-40 kHz(±0.05dB) |
| OUTPUT LEVEL | 14Vpp @G=L 31Vpp @G=M 37Vpp @G=H |
| AP MEASURED NOISE LEVEL (A-WT) | <0.7uVrms @G=L <0.7uVrms @G=M <1.5uVrms @G=H |
| ACTUAL NOISE LEVEL* (A-WT) | <0.3uVrms @G=L <0.3uVrms @G=M <1.4uVrms @G=H |
| *The actual noise level is obtained by boosting the noise of L30 by 40 dB using a low noise amplifier in front of the APx555B then dividing the measured noise by 100 times. | |
| CHANNEL CROSSTALK @1 KHZ | -92dB |
| INPUT SENSITIVITY | 25Vrms @G=L 11.2Vrms @G=M 2.0Vrms @G=H |
| GAIN | -14.0dB @G=L 0dB @G=M 16.5dB @G=H |
| OUTPUT IMPEDANCE | 20Ω |
| BOX CONTENTS | 1. TOPPING L30 II |
| 2. AC Adapter | |
| 3. 6.35 mm to 3.5 mm adapter | |
| 4. User Manual | |
| 5. Warranty card |
OTHER DETAILS
| GENERIC NAME | Headphone Amplifier |
| COUNTRY OF ORIGIN | China |
| IMPORTER DETAILS | Importers Name: Ferrari Video Address: 63/18, 1st Main Road, Gandhi Nagar, Chennai - 600020 Contact No: 044-24420733 |
| DIMENSIONS | 29 x 21 x 8 CM |
| NET QUANTITY | 1 |
| MANUFACTURER DETAILS | Name: Tok Shun Co., Limited Address: 1318-19, 13/F, Hollywood Plaza, 610 Nathan Road, HK. |
| PACKAGE CONTENTS | TOPPING L30 II AC Adapter 6.35 Mm To 3.5 Mm Adapter User ManuaL, Warranty Card |
|
User Manual | L30 II
Desktop Headphone Amplifier
|
What isthe warranty period on the TOPPING L30 II?
All TOPPING products come with 1 year of warranty. To claim warranty read more on TOPPINGWarranty here.
Where is the TOPPING brand based?
Topping is a brand based in Guangzhou, China.
What is the amplifier module used in TOPPING L30 II?
The TOPPING L30 II has an NFCA headphone amplifier module.
How is the NFCA module better than the others?
A composite amplifier consists of two or more operational amplifiers cascaded together, with a negative-feedback loop around the entire network. The Composite amplifiers (also described as nested-feedback amplifiers) widen the bandwidth at high gain, boost slew rates, lower distortion, reduce output DC offset, and lessen noise.
How many gain settings are available with the TOPPING L30 II?
The TOPPING L30 II has 3 level gain settings H/M/L respectively to 16.5dB/0dB/-14dB.
What is the output power like on L30 II?
3500mW x 2 @16 Ohms THD+N<0.1%
2700mW x 2 @32 Ohms THD+N<0.1%
2000mW x 2 @64 Ohms THD+N<0.1%
560mW x 2 @300 Ohms THD+N<0.1%
Is it compatible with TOPPING E30 II?
Yes, The TOPPING L30 II and E30 II have fully matched design languages and styles, and L30 II is suitable for almost all kinds of headphones and pairs well with E30 II. This DAC & Amp pairing will take your listening experience to new heights. The L30 II and E30 II can be used in conjugation with active speakers. Connect the two outputs of L30 II to headphones & active speakers. You can listen to music on active speakers or headphones by toggling the L30 II's outputs.
What does the package include?
The TOPPING L30 II comes with thoughtful accessories to get you started. The package includes an AC adapter, a 6.35mm to 3.5mm adapter, a user manual, and a warranty card.
Don't sweat it, this
Topping - L30 II comes with a 1 Year warranty
from TOPPING that covers manufacturing defects.
All products featured on Headphone Zone are backed by an original manufacturer's warranty.
Read more about TOPPING's warranty in India.
Prime Audio Recommended
Prime Audio
Sep, 2022
"Very good build quality, small size, and aesthetics, L30 II is silent with efficient IEMs and has high power for full-sized cans, L30 II has 3 levels of amplifier gain, Budget price point."
Read More
"The L30 II is compatible with almost any kind of headphones, including high-sensitivity IEMs. In terms of output power, the L30 II can push up to 2500mW @ 32Ω which is enough to drive almost any headphones."
Read MoreThis product is rated 5.0 of 5.0 stars.
It has received 1 review.
Customer Reviews
Sounds thin, lifeless, flat, lacking bass and dynamics and has a harsh timbre in treble. Even if the DAC outputs full bodied natural sound, this amp makes that sound thin, lifeless and then presents it to the headphones. Tried with multiple Dacs and headphones but same thing. Also the unit gets very hot when in use
We really appreciate the genuine feedback, we'll share your thoughts with the brand as well!
Very clean sounding amp. I could never believe an amplifier would improve sound quality so much till I tried them. The bass is more thumpy and dynamic, very clear vocals and I can understand the lyrics now and well extended treble with not a hint of distortion at any volume level and thanks to gain switches I can use it with both IEM and headphones. Pairs very well with my mojo and hifiman HE400SE.
Great review! Thanks for taking the time to write it. We're glad to hear that our product has helped you improve your sound quality.
Meh
I bought it this week and it was delivered all in time as HPZ said it would. The sound is amazing and honestly I love it. But I decided to return it because I faced an issue where the volume knob had too much resistance when going from 25% volume to 75%. Every time I tried turning it up or down in this range, I was afraid that I might break it. :(
We really appreciate the genuine feedback, we'll share your thoughts with the brand as well!
❤️
Thank you for the review! we appreciate it.
