Topping - E30 II
Desktop Digital To Analog Converter (DAC)GET 18% GST INPUT
One of the reasons headphones and earphones in India are more expensive than overseas is because of the Goods &
Services Tax in India.
Don't let the GST input go to waste especially if you can avail an offset.
All products sold on Headphone Zone carry a GST compliant invoice and all products sold include an 18% GST.
Simply enter your GST number at the time of checkout.
Browse EMI Plans
Low Cost EMI Options through Credit Cards
ICICI Bank
3
Low Cost EMI
₹ 4,449
₹ 348
₹ 280
6
Low Cost EMI
₹ 2,269
₹ 613
₹ 496
9
15.99%
₹ 1,542
₹ 881
12
15.99%
₹ 1,179
₹ 1,153
18
15.99%
₹ 817
₹ 1,707
24
15.99%
₹ 636
₹ 2,275
HDFC Bank
3
Low Cost EMI
₹ 4,449
₹ 348
₹ 280
6
Low Cost EMI
₹ 2,269
₹ 613
₹ 496
9
16%
₹ 1,542
₹ 882
12
16%
₹ 1,179
₹ 1,154
18
16%
₹ 817
₹ 1,708
24
16%
₹ 636
₹ 2,276
SBI Bank
3
Low Cost EMI
₹ 4,453
₹ 359
₹ 289
6
Low Cost EMI
₹ 2,262
₹ 575
₹ 463
9
15%
₹ 1,536
₹ 826
12
15%
₹ 1,173
₹ 1,080
18
16%
₹ 817
₹ 1,708
24
16%
₹ 636
₹ 2,276
Axis Bank
3
Low Cost EMI
₹ 4,449
₹ 348
₹ 280
6
Low Cost EMI
₹ 2,269
₹ 613
₹ 496
9
16%
₹ 1,542
₹ 882
12
16%
₹ 1,167
₹ 1,007
18
16%
₹ 817
₹ 1,708
24
16%
₹ 636
₹ 2,276
Other EMI Options through Credit Cards
Citi Bank
3
14%
₹ 4,434
₹ 304
6
14%
₹ 2,256
₹ 536
9
16%
₹ 1,542
₹ 882
12
16%
₹ 1,179
₹ 1,154
18
16%
₹ 817
₹ 1,708
24
16%
₹ 636
₹ 2,276
Kotak Mahindra Bank
Tenure
Interest%
Installment
Interest
3
16%
₹ 4,449
₹ 348
6
16%
₹ 2,269
₹ 613
9
16%
₹ 1,542
₹ 882
12
16%
₹ 1,179
₹ 1,154
18
16%
₹ 817
₹ 1,708
24
16%
₹ 636
₹ 2,276
RBL Bank
3
13%
₹ 4,427
₹ 283
6
14%
₹ 2,256
₹ 536
9
15%
₹ 1,536
₹ 826
12
15%
₹ 1,173
₹ 1,080
18
15%
₹ 811
₹ 1,598
24
15%
₹ 630
₹ 2,128
Standard Chartered Bank
3
13%
₹ 4,427
₹ 283
6
13%
₹ 2,249
₹ 497
9
14%
₹ 1,530
₹ 770
12
14%
₹ 1,167
₹ 1,007
INDUSIND Bank
3
14%
₹ 4,434
₹ 304
6
14%
₹ 2,256
₹ 536
9
15%
₹ 1,536
₹ 826
12
15%
₹ 1,173
₹ 1,080
18
15%
₹ 811
₹ 1,598
24
15%
₹ 630
₹ 2,128
HSBC Bank
3
12.50%
₹ 4,424
₹ 272
6
12.50%
₹ 2,246
₹ 478
9
13.50%
₹ 1,527
₹ 742
12
13.50%
₹ 1,164
₹ 970
18
13.50%
₹ 802
₹ 1,433
YES Bank
3
13%
₹ 4,427
₹ 283
6
13%
₹ 2,249
₹ 497
9
14%
₹ 1,530
₹ 770
12
14%
₹ 1,167
₹ 1,007
18
15%
₹ 811
₹ 1,598
24
15%
₹ 630
₹ 2,128
Bank of Baroda
3
13%
₹ 4,427
₹ 283
6
14%
₹ 2,256
₹ 536
9
14%
₹ 1,530
₹ 770
12
15%
₹ 1,173
₹ 1,080
18
15%
₹ 811
₹ 1,598
24
16%
₹ 636
₹ 2,276
American Express
3
14%
₹ 4,434
₹ 304
6
14%
₹ 2,256
₹ 536
9
14%
₹ 1,530
₹ 770
12
14%
₹ 1,167
₹ 1,007
18
15%
₹ 811
₹ 1,598
24
15%
₹ 630
₹ 2,128
Talk to a Headphone Guru
Club Audiophile
Join Club Audiophile to begin your pursuit of great sound. Earn points and save on every purchase.
READ MORE
Why Topping is Special
Designed in China
Established & Reputed
Trust us, our reputation in the audio world speaks for itself!
This headphone or gear comes from a well-respected brand known for its high-quality audio equipment, so you can be confident in your purchase.
If you see a product marked as “🎖️ Established & Reputed”, it means you're getting a top-tier device from a brand that's earned its stripes in the audio industry.
Revered by Audiophiles
Audiophiles can be really picky and tough to impress and if the audiophile community says something sounds good, you can bet it's great!
This headphone or gear has gained recognition and admiration from audiophiles, who are known for their discerning taste in high-fidelity audio. They appreciate its precision, attention to detail and its ability to deliver an immersive sonic experience.
If you see a product marked as "🙌🏻 Revered by Audiophiles", it means that it meets the highest standards of sound quality and performance, making it a top choice for anyone who values exceptional audio experiences.
Specialist
A masterpiece from the experts who know audio inside and out!
This headphone or gear is crafted by specialists who know their stuff, ensuring every detail is perfect.
If you see a product marked as “🌟 Specialist”, it means you're choosing a device designed by experts who specialize in creating this specific category of device.
Why we love this DAC/Amp
Value for Money
Great sound always doesn't have to come with a fancy price tag.
Every once in a while we come across a product that give you a lot more value for the price.
If you see products marked as "🥜 Value For Money" you can be sure you're getting a great bang for your buck.
For Enthusiasts on a Budget
We are here to help you find the best bang for your buck.
This headphone or gear is made for all passionate hobbyists who want top-notch gear without breaking the bank.
If you see a product marked as “🪴 For Enthusiasts on a Budget”, get ready to indulge in your music with high-quality, affordable products that keep your wallet happy and your enthusiasm alive!
Incredibly Popular
Some things deserve all the attention.
This headphone or gear is a crowd favourite, winning over fans everywhere with its undeniable audio quality.
If you see products marked as “🥇 Incredibly Popular”, you’re opting for a tried-and-true choice that’s loved by many, ensuring you're getting something that’s proven to be awesome and widely acclaimed.
For Audiophiles at Home
Cause music hit differently when you are in your own space.
This headphone or gear is perfect for those who demand exceptional sound quality in their personal sanctuary.
If you see products marked as “🏠 For Audiophiles at Home”, get ready to transform your living space into an audiophile's paradise, with rich, immersive sound that makes every listening session a masterpiece.
Connect With Cable
This device comes with multiple connectivity options. Be sure to check if your source and output support these input and output options.
Why it Sounds Amazing
DAC Chip
Know the secret to your pristine audio.
This headphone or gear reveals the secret sauce behind superior audio quality, highlighting the presence of a high-performance DAC chip for pristine sound reproduction.
If you see products marked as “⚙️ DAC Chip”, expect to experience your music with unparalleled clarity, detail, and fidelity, ensuring that every note and nuance is faithfully reproduced for your listening pleasure.

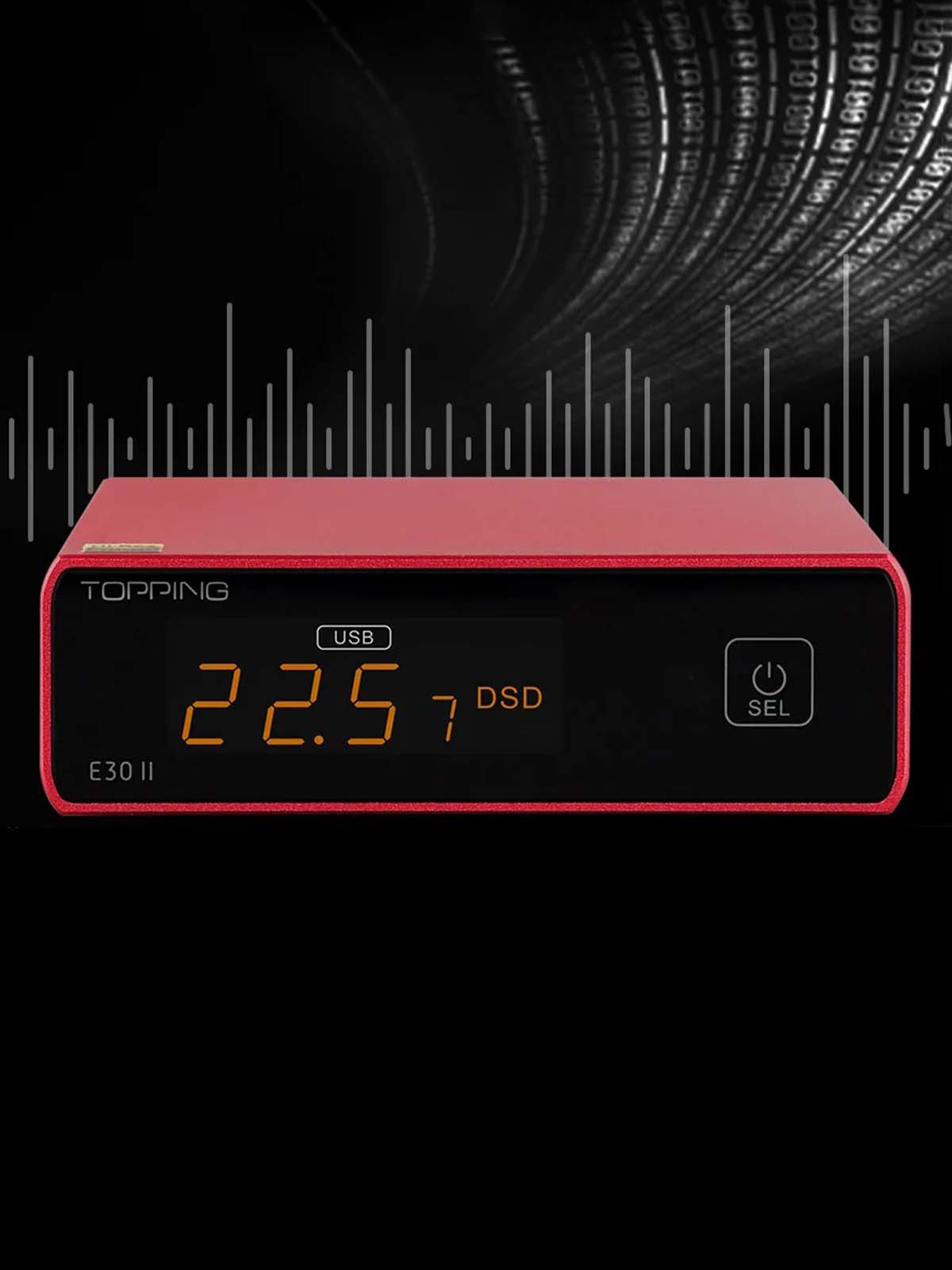

Sampling Rate And Bit Depth
Ever wonder how those ones and zeros on your computer magically transform into the rich melodies that fill your room?
The secret lies in a tiny device called a Digital-to-Analog Converter (DAC). Think of it as a translator, taking the digital code of your music and meticulously sculpting it back into a smooth, analog wave that your speakers can understand. But just like a sculptor needs the right tools, achieving audio nirvana with a DAC depends on two key factors: sampling rate and bit depth.
Sampling Rate:
Imagine your favourite song as a complex rollercoaster track. The sampling rate refers to how often the DAC takes measurements of this digital track, measured in kHz (kilohertz) or thousands of times per second. A higher sampling rate, like 96 kHz, is like taking a ton of pictures of the track, capturing every twist and turn with incredible detail. Lower rates, like the standard 44.1 kHz used in CDs, are like taking snapshots at a theme park – fun, but you might miss some of the subtler details that make the ride truly exhilarating.
Bit Depth:
Now, think about the sculptor's tools. Bit depth refers to the precision of each measurement the DAC takes. Imagine the number of colours available to the sculptor. With higher bit depth (e.g., 24 bits compared to 16 bits), each measurement can capture a wider range of values. This allows the DAC to recreate subtler variations in the sound wave, resulting in richer and more nuanced audio. It's like having a broader colour palette for building a more detailed and lifelike sculpture of the sound.
Topping has exceeded expectations with the E30 II, delivering a product that surpasses its price range in terms of performance. The sonic performance and technical features of the E30 II are truly remarkable, making it highly recommended for anyone seeking exceptional audio quality.
About RAGHAV SOMANI
Raghav Somani is the Founder & CEO of Headphone Zone. An avid audiophile and musician since 2008, his choice of headphones include STAX Electrostats, Audeze LCD 3, and for music on the go, the JH Audio Roxanne + Astell&Kern SP1000 is never too far away. On his playlist, you'll find A.R. Rahman, Michael Jackson, and the Eagles.
DESCRIPTION

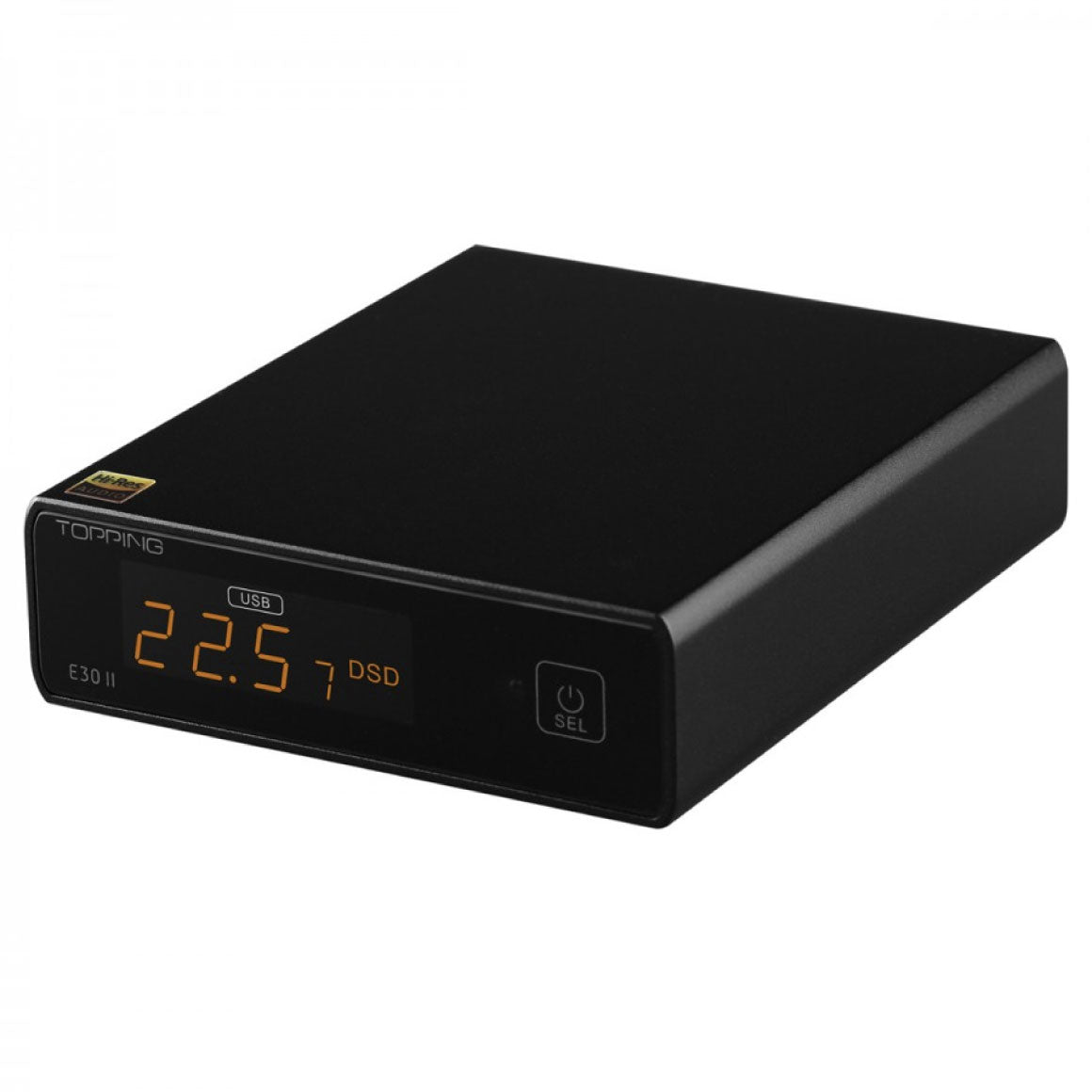

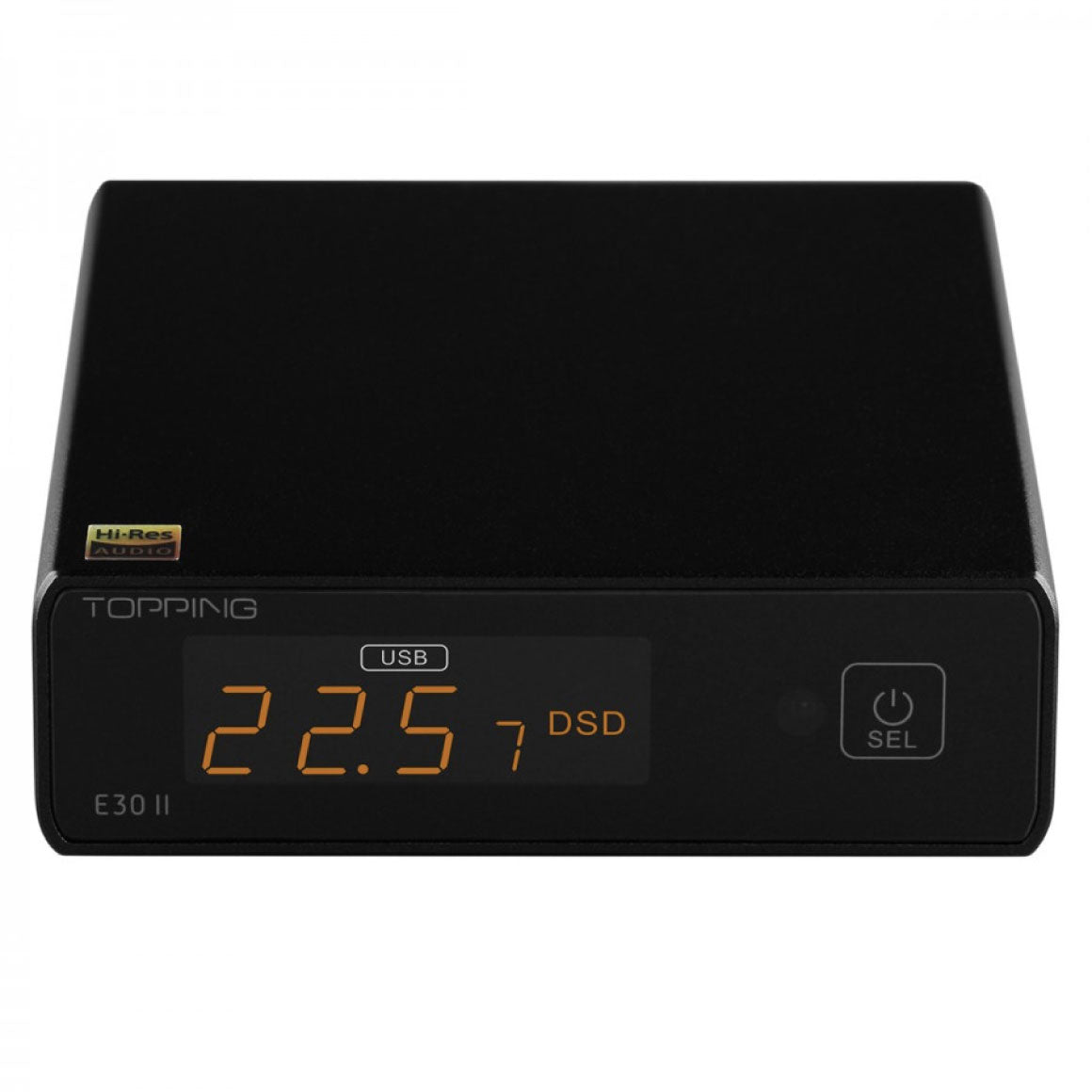

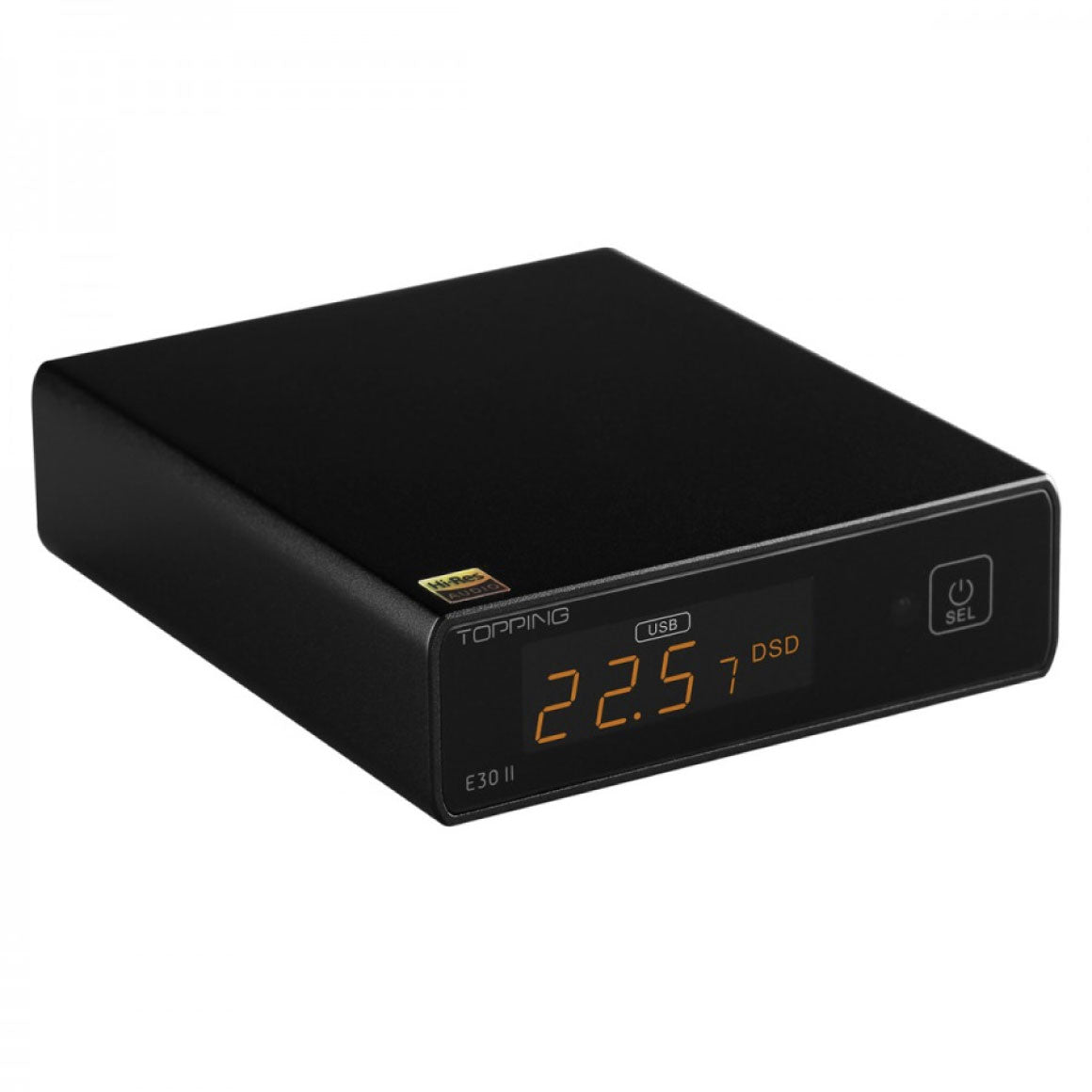

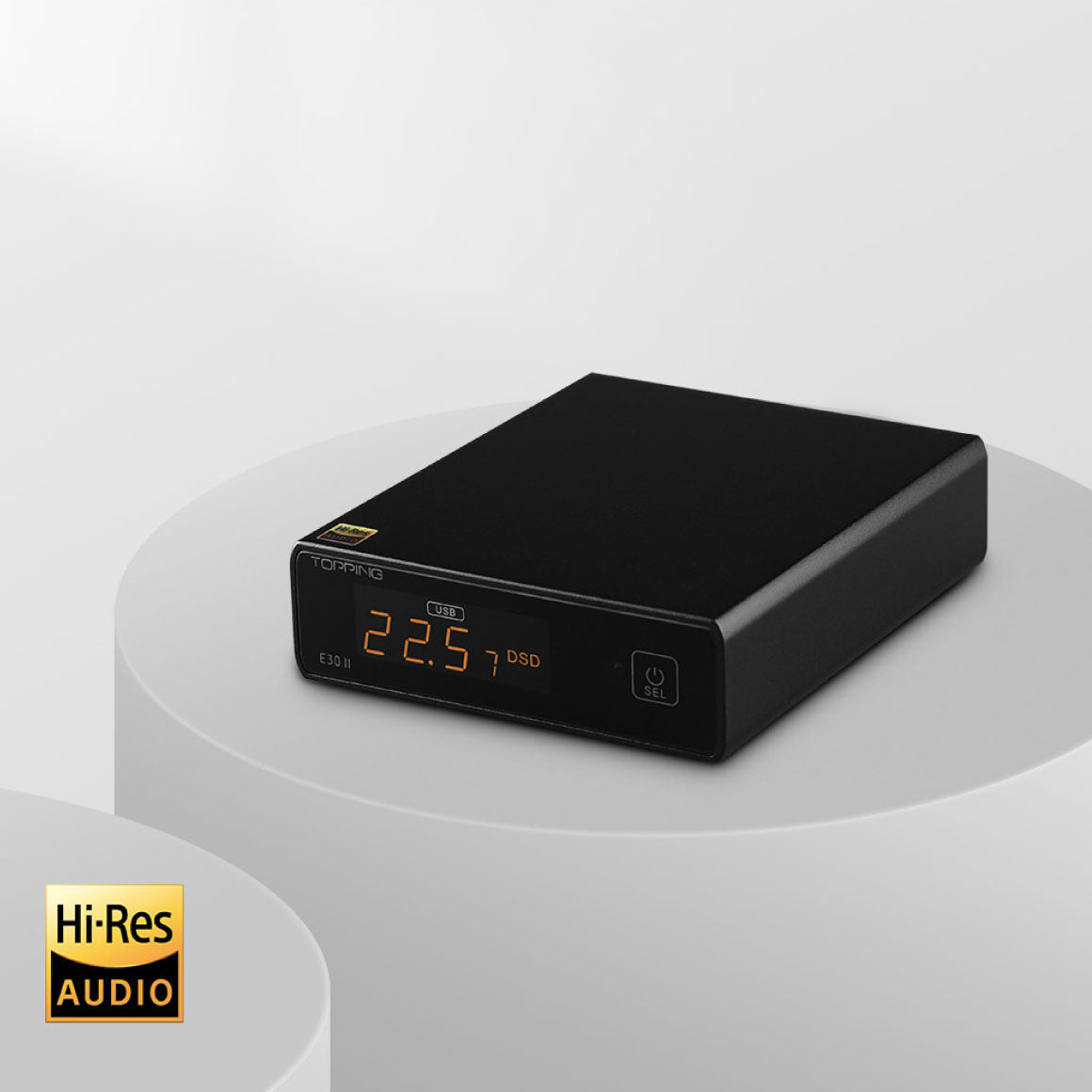

TOPPING PRESENTS THE ALL-NEW HI-RES CERTIFIED E30 II DAC, SUCCESSOR TO THE POPULAR E30
TOPPING has been the pioneer in producing some of the cleanest and distortion-free DACs. The TOPPING E30 was well-received across the globe and was the pick for the audiophile community. It was clean and precise with spectacular digital to analogue conversion capabilities. TOPPING is proudly introducing the E30 II successor to the E30. TOPPING designed the E30 II to be superior to the E30 in all aspects. It has dual AKM4493S chips, in contrast to the single AKM4493 chipset on the E30 and is also Hi-Res certified. The TOPPING E30 II is more stable and has better compatibility with its digital processing. The signal-to-noise and distortion ratio (SINAD) of 119dB is also increased by 4dB as opposed to 115dB on the E30. The signal-to-noise ratio (SNR) of 123dB is also increased by 3dB as opposed to 120dB on the E30. The TOPPING E30 II has superior noise suppression capability and better stability. You may experience and live the music you are listening to with the TOPPING E30 II.

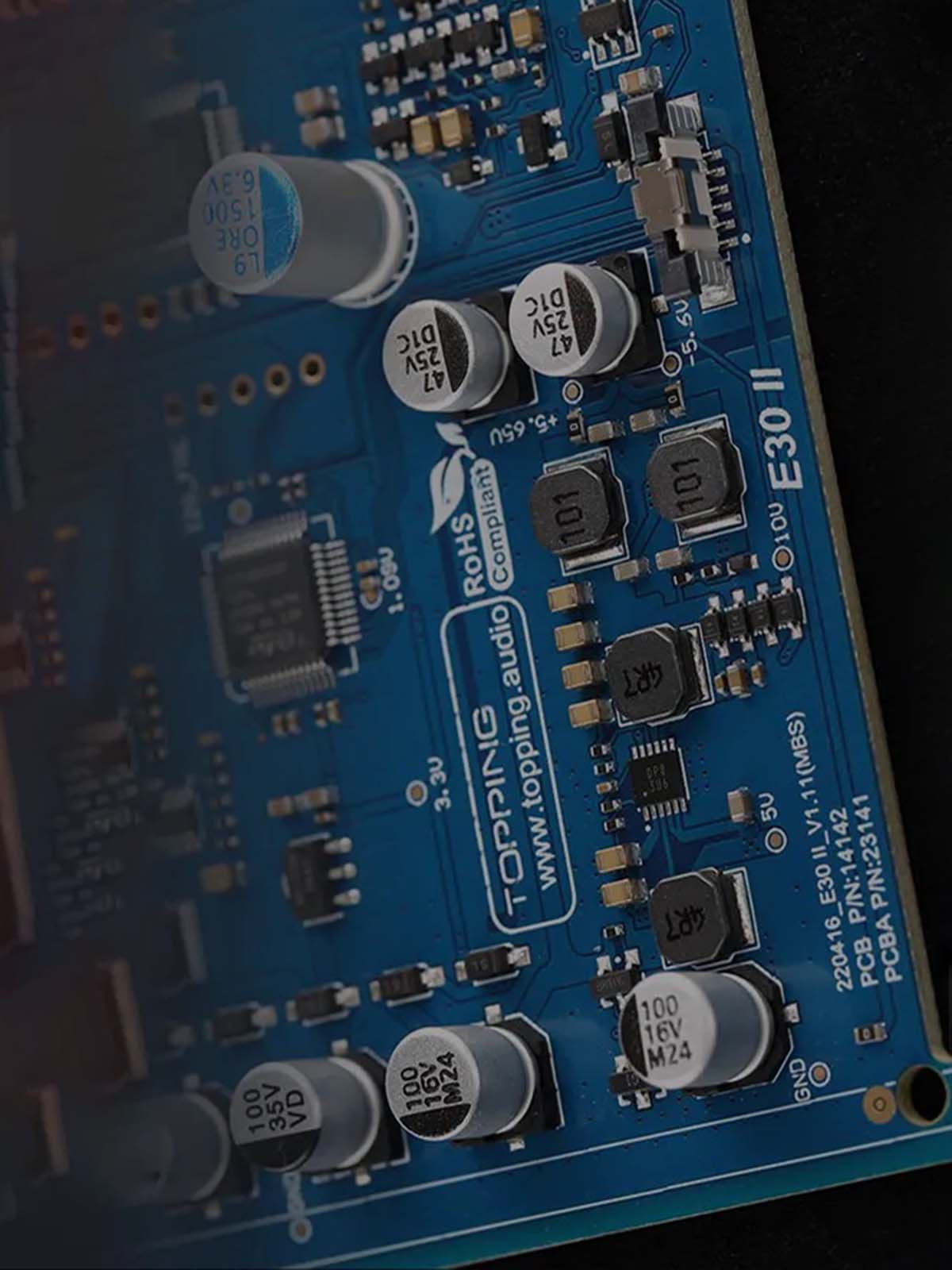

FEATURES AKM DAC CHIPSET THAT PROVIDES CLEAN AND JITTER-FREE DIGITAL TO ANALOGUE CONVERSION AND SUPPORTS PREAMP FUNCTIONALITIES
The E30 II uses two sub-flagship AK4493S chips of AKM's VELVET Sound technology. The AK4493SEQ is a stereo premium 32-bit DAC with VELVETSOUND™ technology, achieving industry-leading low distortion characteristics and wide dynamic range. The AK4493SEQ integrates a switched capacitor filter "OSR Doubler", making it capable of supporting wide range signals and achieving low out-of-band noise while realising low power consumption. Moreover, the AK4493SEQ has six types of 32-bit digital filters, realising simple and flexible sound tuning in various applications. TOPPING has designed the E30 II with two AK4493S; in parallel to achieve better performance and noise reduction ability than a single chip. The TOPPING E30 II supports PCM (Pulse Code Modulation) 44.1kHz-768kHz/16bit-32bit and native DSD64-DSD512 (Direct Stream Digital) and DoP (DSD over PCM) with USB input. With COAX/OPT input it supports 44.1kHz-192kHz/16bit-24bit. The TOPPING E30 II also can fix to maximum output level to work as a pure DAC. This design enables the DSD signal to; bypass the DATT Soft Mute and AE Modulator to provide pure/direct DSD performance. The E30 II has a built-in volume control function that can adjust the volume from -99dB to OdB by using the remote control, so you can directly connect E30 II to a power amplifier or active speakers and control the volume of E30 II through the remote control.
COMPATIBLE WITH A 5V POWER SUPPLY THAT DELIVERS ULTRA-LOW NOISE FUSED WITH DISCRETE LNRD AND DAC FILTER FUNCTION
The TOPPING E30 II uses a DC5V; for power supply, which can be easily accessible almost everywhere. You can power it up by the USB port of a PC, mobile phone charger or even a power bank. The built-in protection circuit will protect the E30 II and prompt on the screen after connecting to the wrong power supply. Many electronic devices generate interference that makes the device generate noise and interfere with signals that cause distortion. The engineers at TOPPING have designed the E30 II with a Discrete LNRD circuit (low noise reference driver) to address noise interference issues. The Discrete LNRD circuit filters out the noise of various 5V power inputs and provides a stable power supply of ultra-low noise reference level for E30 II. With this technology, the noise floor of E30 II is lower than 1.5uV. For you to personalise how your music should sound, E30 II provides various filter modes. It has six filter modes under PCM decoding and two under DSD decoding that modifies; the details slightly and bring your music to life.
NOTE: The DAC filter function is not the same as the EQ function.
TURN YOUR DEVICES INTO A HI-FI SOURCE WITH EASY PLUG & PLAY CONNECTIVITY, AUTO ON/OFF FUNCTIONALITY AND EASY COMPATIBILITY WITH L30 II
Experience the magic of E30 II as it provides various inputs that will turn your devices into a Hi-Fi source. The optical and coaxial input of E30 II supports up to 24bit/192kHz audio, which is suitable for digital turntables, disk players, set-top boxes, and game consoles so that traditional equipment can also give a new sound. The USB input of the E30 II has a wide range of compatibility: Windows 10, 11, Mac, Linux, iOS, and Android plug-and-play. Only for Windows ASIO applications; you need to; install the driver and set it up. The USB hardware on the E30 II has XMOS XU208 and Thesycon custom driver (applicable to Windows, other systems are free of driver), which is stable and reliable. The TOPPING E30 II has auto On/Off functionality. It will automatically turn ON and set to the input to which the signal is valid. And when the E30 II's selection is not valid for 1 minute, E30 II will turn off automatically. The TOPPING L30 II and E30 II have fully matched design languages and styles, and L30 II is suitable for almost all kinds of headphones and pairs well with E30 II. This DAC & Amp pairing will take your listening experience to new heights.

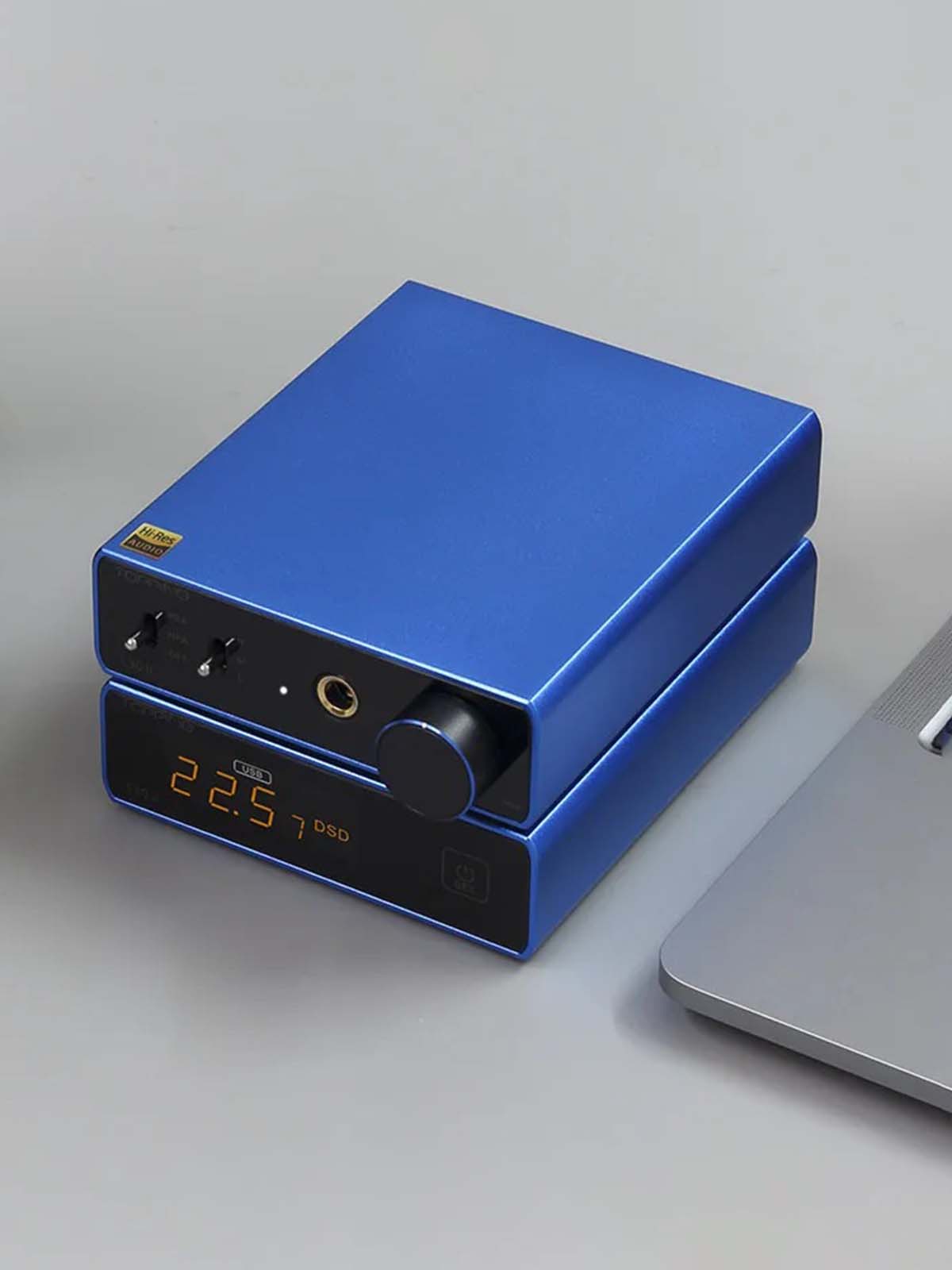

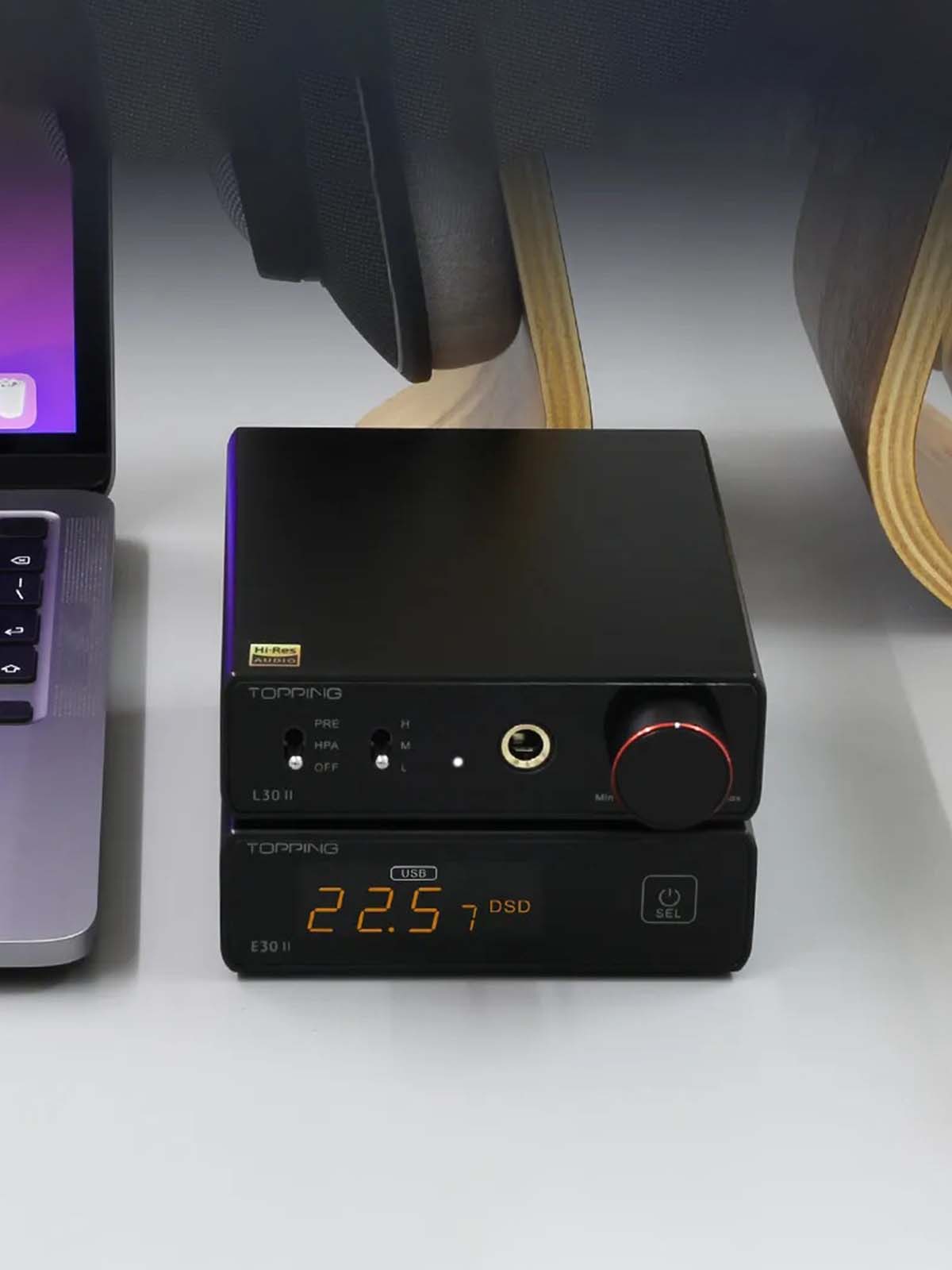

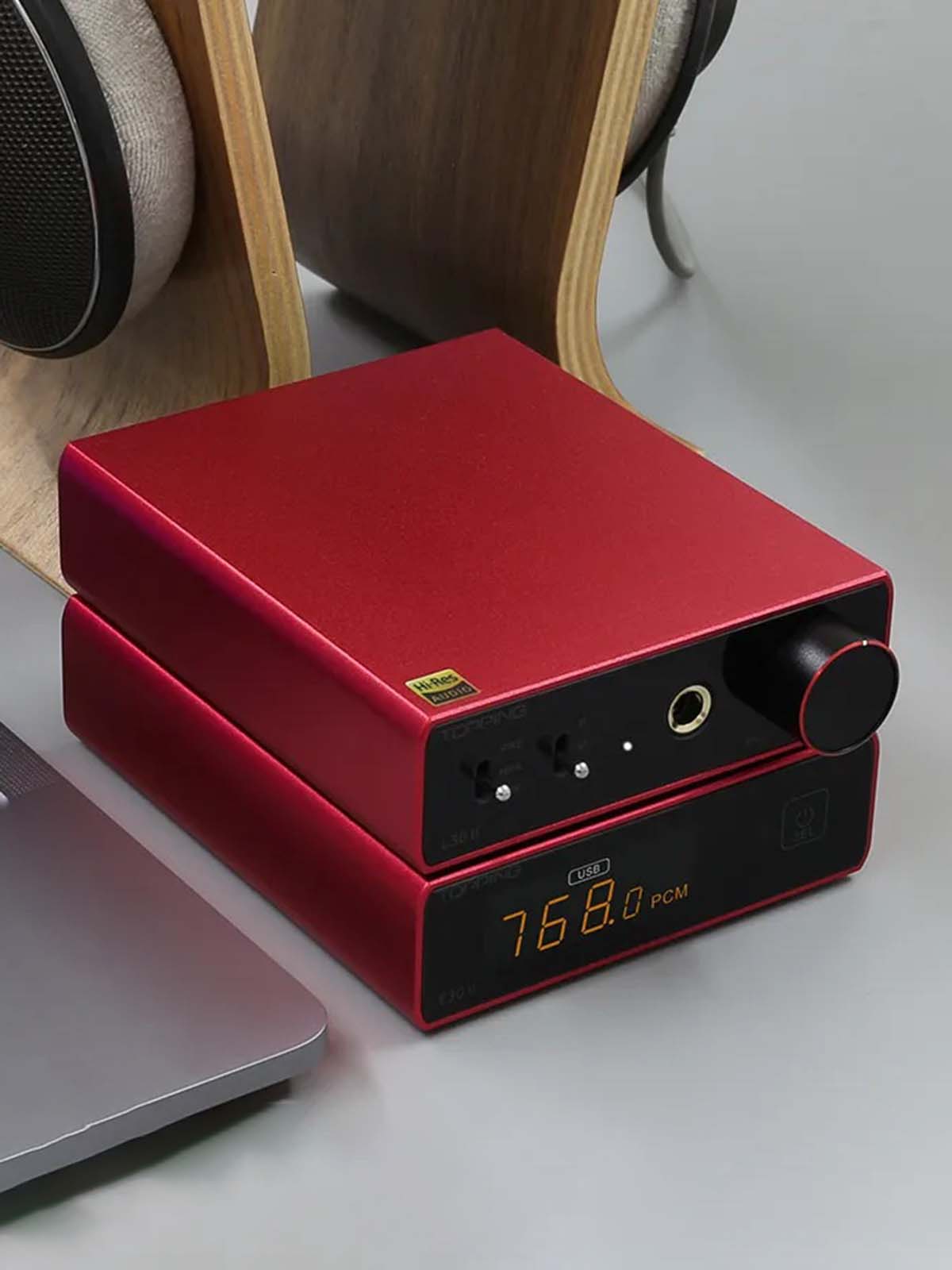

BUILT AND DESIGNED TO PERFECTION WITH THOUGHTFUL INPUTS AND OUTPUTS, REMOTE CONTROL, AND COMES BUNDLED WITH ACCESSORIES
TOPPING has designed its DACs & Amps to have a compact form factor. The TOPPING E30 II builds on it and is easy to use, generating confidence for it to last for years. The front panel has an LED screen that displays the sampling rates and inputs. It also has a remote control receiver and multi-function touch button for easy operation at your fingertips. The rear panel has numerous inputs and outputs for easy compatibility and operability. It consists of right and left channel single-ended RCA outputs, Coaxial SPDIF (Sony/Philips Digital Interconnect Format) input, Optical SPDIF, USB input, and power input (DC5V/1A). The TOPPING E30 II comes with a fully functional remote which allows you to control the device from the comfort of your couch. The package includes a USB cable, DC cable, user manual, and warranty card.
NOTE: It does not come with a 5V power adapter.
SPECS
USB IN | PCM : 44.1 kHz-768kHz 16 bit-32 Bit DSD (NATIVE) : DSD64-DSD512 DSD (DoP) : DSD64-DSD256 |
USB IN | PCM : 44.1 kHz-768kHz 16 bit-32 Bit DSD (NATIVE) : DSD64-DSD512 DSD (DoP) : DSD64-DSD256 |
THD+N @ 1KHZ (A-WT) | <0.00015% |
THD @90KBW (NO-WT) | <0.00060% @20-20kHz |
SNR @A-WT | 123dB @ 1kHz |
DYNAMIC RANGE @A-WT | 123dB @ 1kHz |
FREQUENCY RESPONSE | 20Hz-20kHz (+0.3dB) 20Hz-40kHz (+0.8dB) |
OUTPUT LEVEL | 2.1 Vrms @0dBFS |
NOISE @A-WT | <1.5uVrms |
CHANNEL CROSSTALK @1KHZ | -132dB |
CHANNEL BALANCE | <0.3dB |
OUTPUT IMPEDANCE | 20Ω |

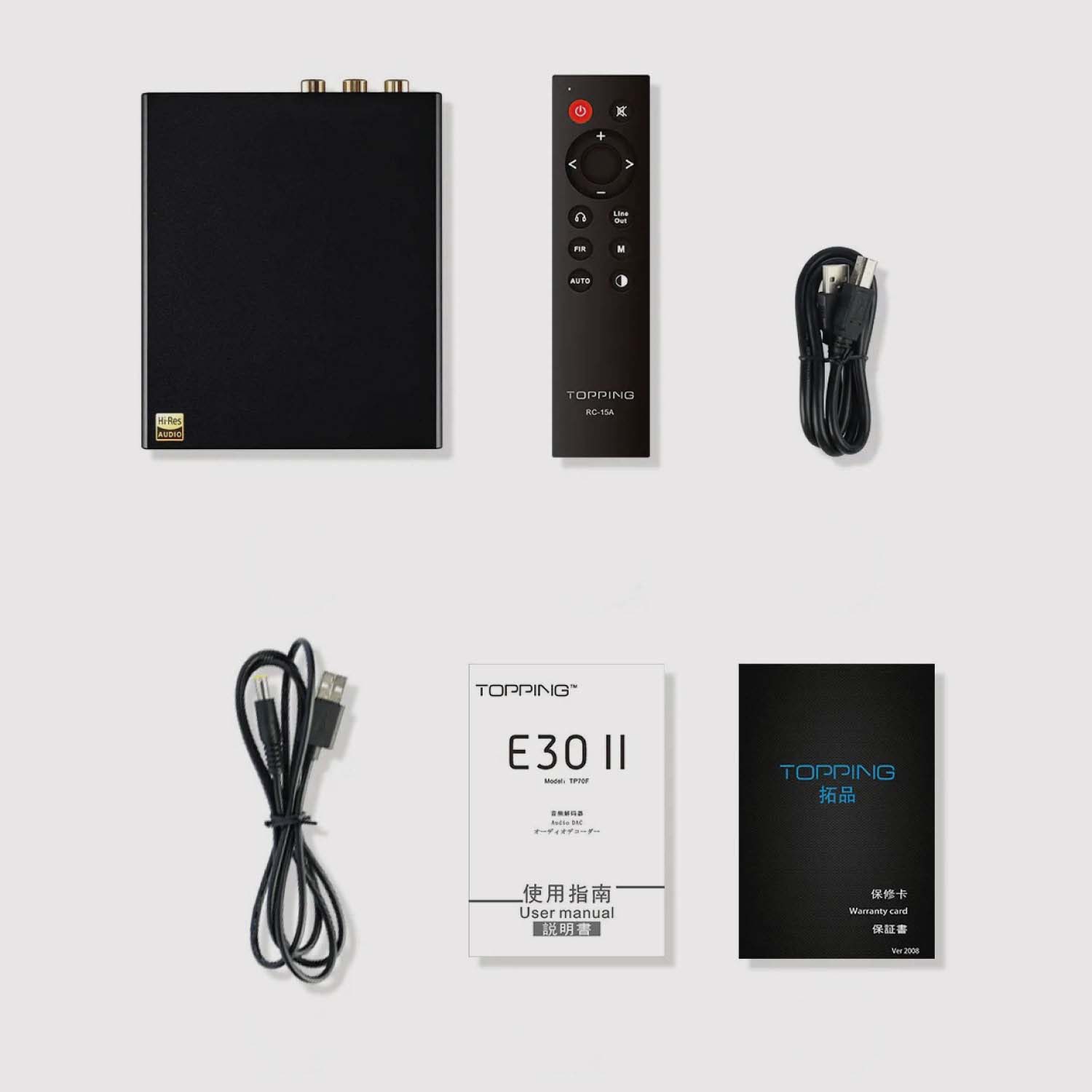

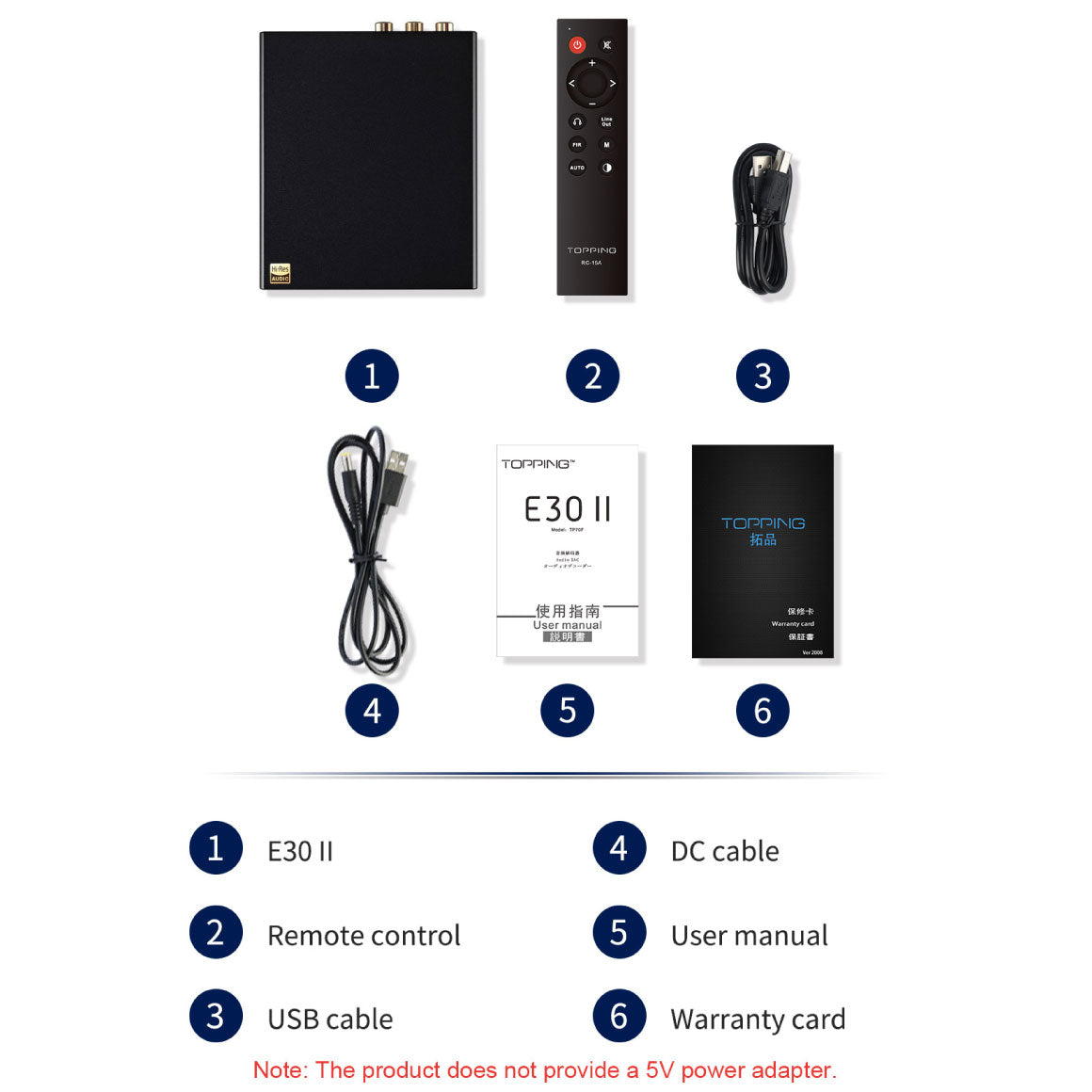

BOX CONTENTS | 1. TOPPING E30 |
2. DC Cable | |
3. USB Cable | |
4. Remote Control | |
5. User Manual | |
6. Warranty Card | |
NOTE: The product does not provide a 5V power adapter. |
OTHER DETAILS
GENERIC NAME | Digital Audio Converter |
COUNTRY OF ORIGIN | China |
IMPORTER DETAILS | Importers Name: Ferrari Video Address: 63/18, 1st Main Road, Gandhi Nagar, Chennai - 600020 Contact No: 044-24420733 |
NET QUANTITY | 1 |
MANUFACTURER DETAILS | Name: Tok Shun Co., Limited Address: 1318-19, 13/F, Hollywood Plaza, 610 Nathan Road, HK. |
PACKAGE CONTENTS | TOPPING E30 DC Cable USB Cable Remote ControL, User Manual |
User Manual | E30 II
Desktop Digital To Analog Converter (DAC)
|
FAQs
What isthe warranty period on the TOPPING E30 II?
All TOPPING products come with 1 year of warranty. To claim warranty read more on TOPPINGWarranty here.
Where is the TOPPING brand based?
TOPPING is a brand based in Guangzhou, China.
What DAC chip is incorporated in TOPPING E30 II?
TOPPING E30 II features dual AKM4493S chips from AKM.
What are the sampling and decoding rates supported by TOPPING E30 II?
The TOPPING E30 II supports PCM (Pulse Code Modulation) 44.1kHz-768kHz/16bit-32bit and native DSD64-DSD512 (Direct Stream Digital) and DoP (DSD over PCM) with USB input. With COAX/OPT input it supports 44.1kHz-192kHz/16bit-24bit.
What is the XMOS chip used in TOPPING E30 II?
The USB hardware on the E30 II has XMOS XU208 and Thesycon custom driver.
Does it come with a remote?
Yes, it does come with a fully functional remote.
What are the various filter modes like on TOPPING E30 II?
For you to personalise how your music should sound, E30 II provides various filter modes. It has six filter modes under PCM decoding and two under DSD decoding that modifies; the details slightly and brings your music to life.
What operating systems are supported while using the USB input on the TOPPING E30 II?
The USB input of the TOPPING E30 II has a wide range of compatibility: Windows 10, 11, Mac, Linux, iOS, and Android plug-and-play. Only for Windows ASIO applications; you need to; install the driver and set it up.

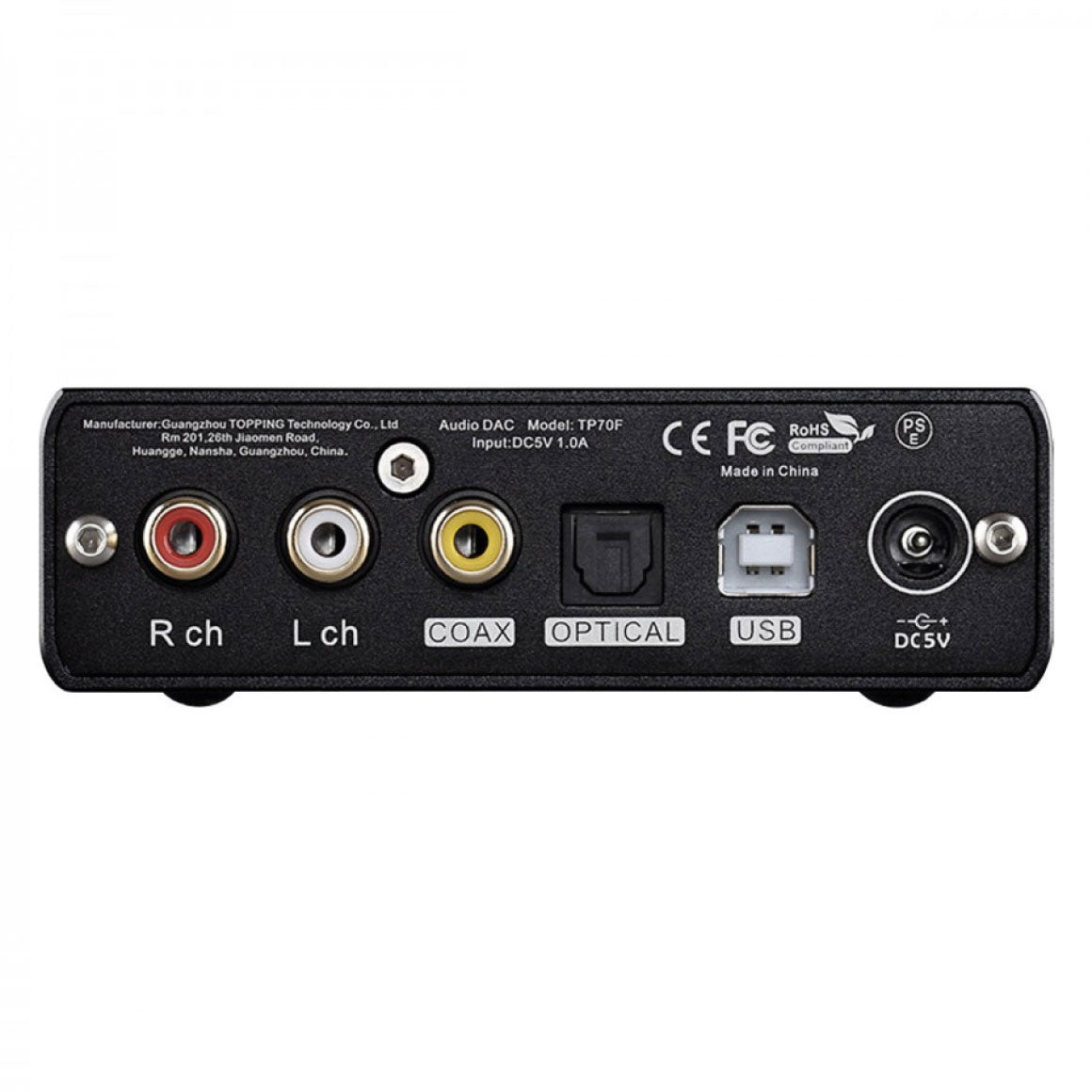

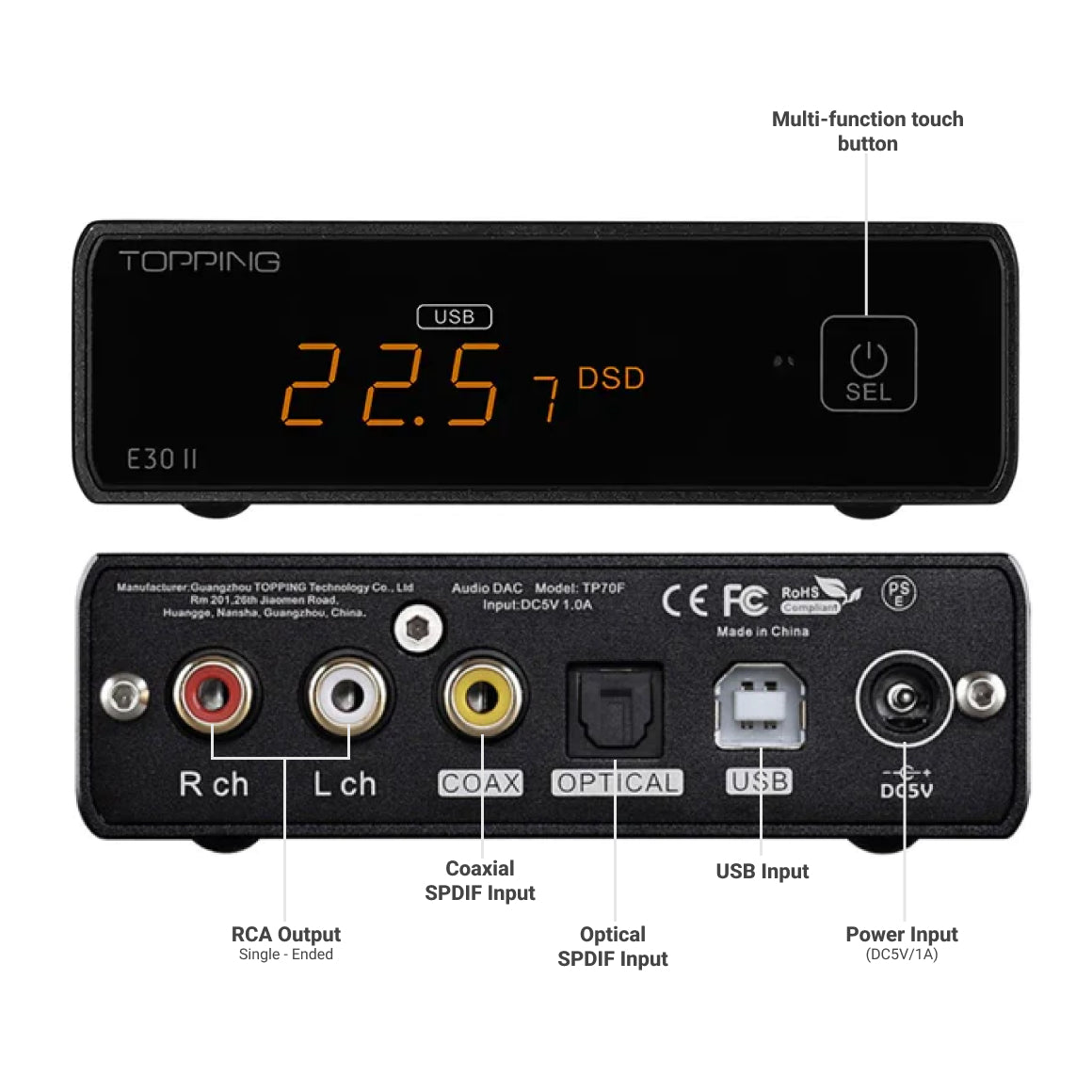

What are the various inputs and outputs like on TOPPING E30 II?
The rear panel on TOPPING E30 II has numerous inputs and outputs for easy compatibility and operability. It consists of right and left channel single-ended RCA outputs, Coaxial SPDIF (Sony/Philips Digital Interconnect Format) input, Optical SPDIF, USB input, and power input (DC5V/1A).
How can the device be powered?
The TOPPING E30 II uses a DC5V; for power supply, which can be easily accessible almost everywhere. You can power it up by the USB port of a PC, mobile phone charger or even a power bank.
What does the package include?
The package includes a USB cable, DC cable, user manual, and warranty card.
TOPPING PRESENTS THE ALL-NEW HI-RES CERTIFIED E30 II DAC, SUCCESSOR TO THE POPULAR E30
TOPPING has been the pioneer in producing some of the cleanest and distortion-free DACs. The TOPPING E30 was well-received across the globe and was the pick for the audiophile community. It was clean and precise with spectacular digital to analogue conversion capabilities. TOPPING is proudly introducing the E30 II successor to the E30. TOPPING designed the E30 II to be superior to the E30 in all aspects. It has dual AKM4493S chips, in contrast to the single AKM4493 chipset on the E30 and is also Hi-Res certified. The TOPPING E30 II is more stable and has better compatibility with its digital processing. The signal-to-noise and distortion ratio (SINAD) of 119dB is also increased by 4dB as opposed to 115dB on the E30. The signal-to-noise ratio (SNR) of 123dB is also increased by 3dB as opposed to 120dB on the E30. The TOPPING E30 II has superior noise suppression capability and better stability. You may experience and live the music you are listening to with the TOPPING E30 II.
FEATURES AKM DAC CHIPSET THAT PROVIDES CLEAN AND JITTER-FREE DIGITAL TO ANALOGUE CONVERSION AND SUPPORTS PREAMP FUNCTIONALITIES
The E30 II uses two sub-flagship AK4493S chips of AKM's VELVET Sound technology. The AK4493SEQ is a stereo premium 32-bit DAC with VELVETSOUND™ technology, achieving industry-leading low distortion characteristics and wide dynamic range. The AK4493SEQ integrates a switched capacitor filter "OSR Doubler", making it capable of supporting wide range signals and achieving low out-of-band noise while realising low power consumption. Moreover, the AK4493SEQ has six types of 32-bit digital filters, realising simple and flexible sound tuning in various applications. TOPPING has designed the E30 II with two AK4493S; in parallel to achieve better performance and noise reduction ability than a single chip. The TOPPING E30 II supports PCM (Pulse Code Modulation) 44.1kHz-768kHz/16bit-32bit and native DSD64-DSD512 (Direct Stream Digital) and DoP (DSD over PCM) with USB input. With COAX/OPT input it supports 44.1kHz-192kHz/16bit-24bit. The TOPPING E30 II also can fix to maximum output level to work as a pure DAC. This design enables the DSD signal to; bypass the DATT Soft Mute and AE Modulator to provide pure/direct DSD performance. The E30 II has a built-in volume control function that can adjust the volume from -99dB to OdB by using the remote control, so you can directly connect E30 II to a power amplifier or active speakers and control the volume of E30 II through the remote control.
COMPATIBLE WITH A 5V POWER SUPPLY THAT DELIVERS ULTRA-LOW NOISE FUSED WITH DISCRETE LNRD AND DAC FILTER FUNCTION
The TOPPING E30 II uses a DC5V; for power supply, which can be easily accessible almost everywhere. You can power it up by the USB port of a PC, mobile phone charger or even a power bank. The built-in protection circuit will protect the E30 II and prompt on the screen after connecting to the wrong power supply. Many electronic devices generate interference that makes the device generate noise and interfere with signals that cause distortion. The engineers at TOPPING have designed the E30 II with a Discrete LNRD circuit (low noise reference driver) to address noise interference issues. The Discrete LNRD circuit filters out the noise of various 5V power inputs and provides a stable power supply of ultra-low noise reference level for E30 II. With this technology, the noise floor of E30 II is lower than 1.5uV. For you to personalise how your music should sound, E30 II provides various filter modes. It has six filter modes under PCM decoding and two under DSD decoding that modifies; the details slightly and bring your music to life.
NOTE: The DAC filter function is not the same as the EQ function.
TURN YOUR DEVICES INTO A HI-FI SOURCE WITH EASY PLUG & PLAY CONNECTIVITY, AUTO ON/OFF FUNCTIONALITY AND EASY COMPATIBILITY WITH L30 II
Experience the magic of E30 II as it provides various inputs that will turn your devices into a Hi-Fi source. The optical and coaxial input of E30 II supports up to 24bit/192kHz audio, which is suitable for digital turntables, disk players, set-top boxes, and game consoles so that traditional equipment can also give a new sound. The USB input of the E30 II has a wide range of compatibility: Windows 10, 11, Mac, Linux, iOS, and Android plug-and-play. Only for Windows ASIO applications; you need to; install the driver and set it up. The USB hardware on the E30 II has XMOS XU208 and Thesycon custom driver (applicable to Windows, other systems are free of driver), which is stable and reliable. The TOPPING E30 II has auto On/Off functionality. It will automatically turn ON and set to the input to which the signal is valid. And when the E30 II's selection is not valid for 1 minute, E30 II will turn off automatically. The TOPPING L30 II and E30 II have fully matched design languages and styles, and L30 II is suitable for almost all kinds of headphones and pairs well with E30 II. This DAC & Amp pairing will take your listening experience to new heights.
BUILT AND DESIGNED TO PERFECTION WITH THOUGHTFUL INPUTS AND OUTPUTS, REMOTE CONTROL, AND COMES BUNDLED WITH ACCESSORIES
TOPPING has designed its DACs & Amps to have a compact form factor. The TOPPING E30 II builds on it and is easy to use, generating confidence for it to last for years. The front panel has an LED screen that displays the sampling rates and inputs. It also has a remote control receiver and multi-function touch button for easy operation at your fingertips. The rear panel has numerous inputs and outputs for easy compatibility and operability. It consists of right and left channel single-ended RCA outputs, Coaxial SPDIF (Sony/Philips Digital Interconnect Format) input, Optical SPDIF, USB input, and power input (DC5V/1A). The TOPPING E30 II comes with a fully functional remote which allows you to control the device from the comfort of your couch. The package includes a USB cable, DC cable, user manual, and warranty card.
NOTE: It does not come with a 5V power adapter.
USB IN | PCM : 44.1 kHz-768kHz 16 bit-32 Bit DSD (NATIVE) : DSD64-DSD512 DSD (DoP) : DSD64-DSD256 |
USB IN | PCM : 44.1 kHz-768kHz 16 bit-32 Bit DSD (NATIVE) : DSD64-DSD512 DSD (DoP) : DSD64-DSD256 |
THD+N @ 1KHZ (A-WT) | <0.00015% |
THD @90KBW (NO-WT) | <0.00060% @20-20kHz |
SNR @A-WT | 123dB @ 1kHz |
DYNAMIC RANGE @A-WT | 123dB @ 1kHz |
FREQUENCY RESPONSE | 20Hz-20kHz (+0.3dB) 20Hz-40kHz (+0.8dB) |
OUTPUT LEVEL | 2.1 Vrms @0dBFS |
NOISE @A-WT | <1.5uVrms |
CHANNEL CROSSTALK @1KHZ | -132dB |
CHANNEL BALANCE | <0.3dB |
OUTPUT IMPEDANCE | 20Ω |
BOX CONTENTS | 1. TOPPING E30 |
2. DC Cable | |
3. USB Cable | |
4. Remote Control | |
5. User Manual | |
6. Warranty Card | |
NOTE: The product does not provide a 5V power adapter. |
OTHER DETAILS
GENERIC NAME | Digital Audio Converter |
COUNTRY OF ORIGIN | China |
IMPORTER DETAILS | Importers Name: Ferrari Video Address: 63/18, 1st Main Road, Gandhi Nagar, Chennai - 600020 Contact No: 044-24420733 |
NET QUANTITY | 1 |
MANUFACTURER DETAILS | Name: Tok Shun Co., Limited Address: 1318-19, 13/F, Hollywood Plaza, 610 Nathan Road, HK. |
PACKAGE CONTENTS | TOPPING E30 DC Cable USB Cable Remote ControL, User Manual |
User Manual | E30 II
Desktop Digital To Analog Converter (DAC)
|
What isthe warranty period on the TOPPING E30 II?
All TOPPING products come with 1 year of warranty. To claim warranty read more on TOPPINGWarranty here.
Where is the TOPPING brand based?
TOPPING is a brand based in Guangzhou, China.
What DAC chip is incorporated in TOPPING E30 II?
TOPPING E30 II features dual AKM4493S chips from AKM.
What are the sampling and decoding rates supported by TOPPING E30 II?
The TOPPING E30 II supports PCM (Pulse Code Modulation) 44.1kHz-768kHz/16bit-32bit and native DSD64-DSD512 (Direct Stream Digital) and DoP (DSD over PCM) with USB input. With COAX/OPT input it supports 44.1kHz-192kHz/16bit-24bit.
What is the XMOS chip used in TOPPING E30 II?
The USB hardware on the E30 II has XMOS XU208 and Thesycon custom driver.
Does it come with a remote?
Yes, it does come with a fully functional remote.
What are the various filter modes like on TOPPING E30 II?
For you to personalise how your music should sound, E30 II provides various filter modes. It has six filter modes under PCM decoding and two under DSD decoding that modifies; the details slightly and brings your music to life.
What operating systems are supported while using the USB input on the TOPPING E30 II?
The USB input of the TOPPING E30 II has a wide range of compatibility: Windows 10, 11, Mac, Linux, iOS, and Android plug-and-play. Only for Windows ASIO applications; you need to; install the driver and set it up.
What are the various inputs and outputs like on TOPPING E30 II?
The rear panel on TOPPING E30 II has numerous inputs and outputs for easy compatibility and operability. It consists of right and left channel single-ended RCA outputs, Coaxial SPDIF (Sony/Philips Digital Interconnect Format) input, Optical SPDIF, USB input, and power input (DC5V/1A).
How can the device be powered?
The TOPPING E30 II uses a DC5V; for power supply, which can be easily accessible almost everywhere. You can power it up by the USB port of a PC, mobile phone charger or even a power bank.
What does the package include?
The package includes a USB cable, DC cable, user manual, and warranty card.
Don't sweat it, this
Topping - E30 II comes with a 1 Year warranty
from TOPPING that covers manufacturing defects.
All products featured on Headphone Zone are backed by an original manufacturer's warranty.
Read more about TOPPING's warranty in India.
The Audiophile's Choice For Precision and Accuracy
Explore CollectionPrime Audio Recommended
Prime Audio
Sep, 2022
"The E30 II is a capable little DAC, with a bold orange display you will likely love or hate, featuring preamp functionality and a basic remote. The remote is a blessing for set up, Budget price point."
Read More"The E30 II only needs to be turned On or Off so for me, it works best as a pure DAC rather than a preamp. It’s basically a set-and-forget unit that’s always on standby when you need it."
Read MoreThis product is rated 4.7 of 5.0 stars.
It has received 6 reviews.
