DESCRIPTION

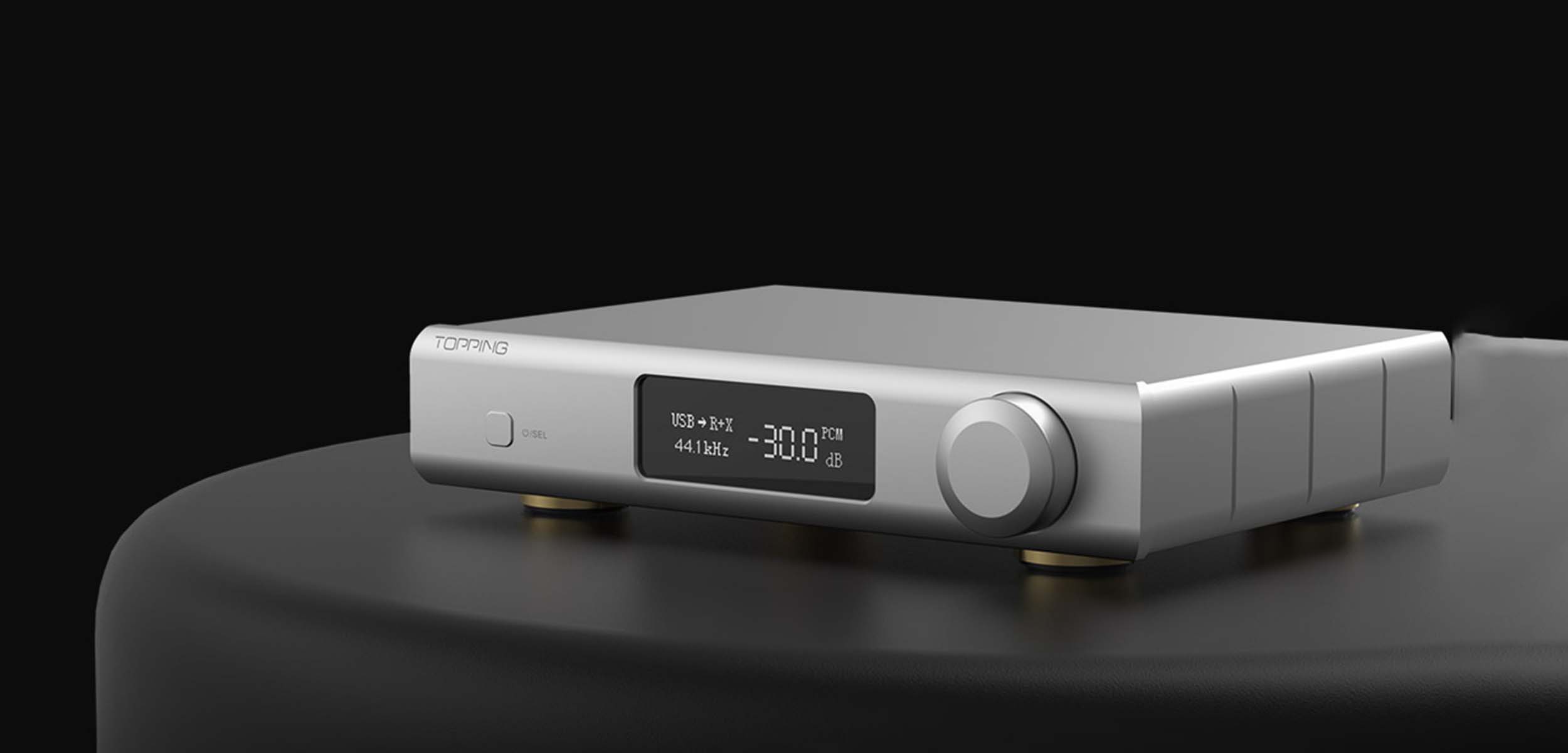

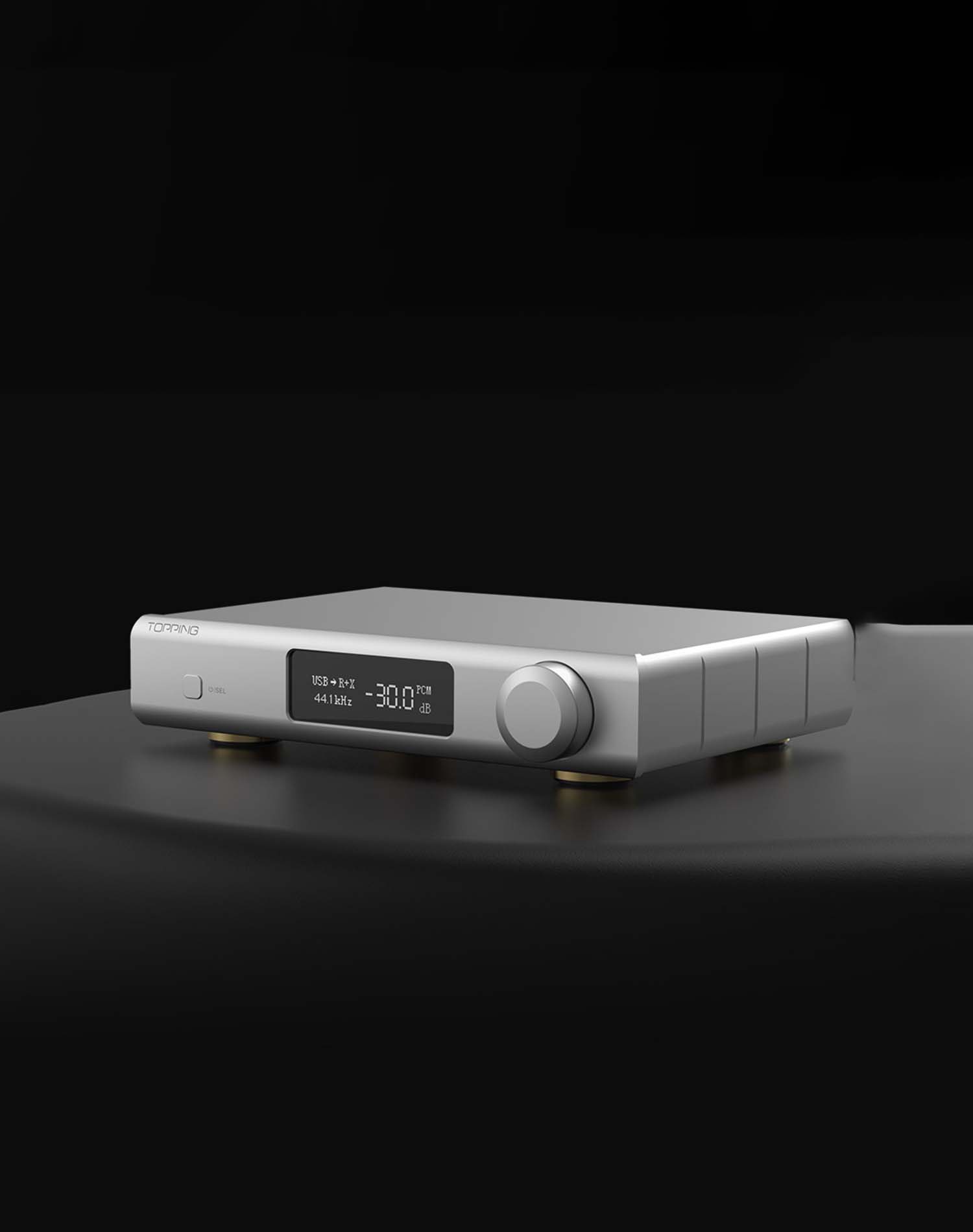

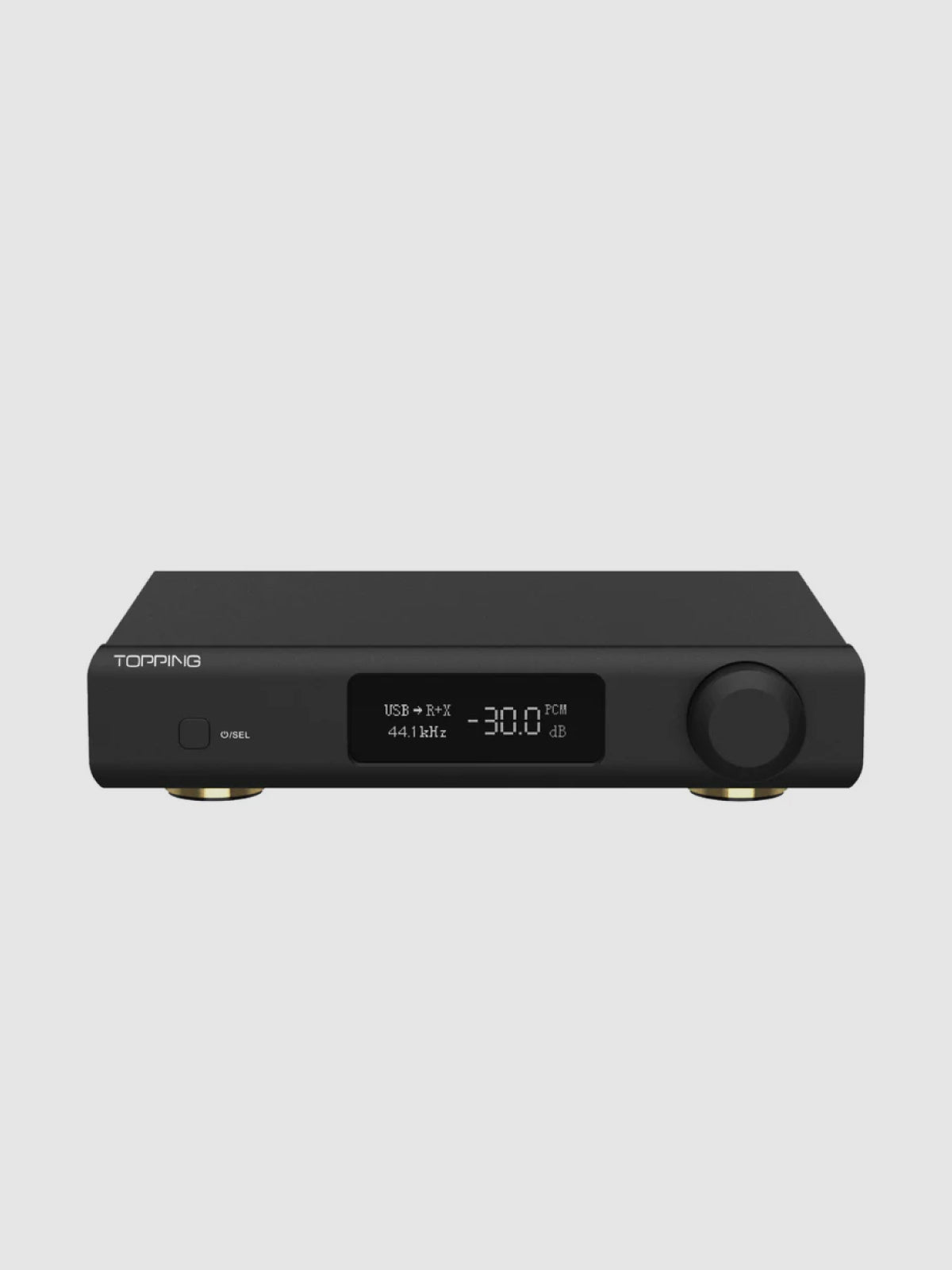

TOPPING UPGRADES ITS BEST-SELLING DAC WITH THE INTRODUCTION OF THE D90 III SABRE
Topping's flagship desktop DAC has returned, setting new standards for audio excellence. Featuring two cutting-edge ES9039SPRO DAC chips, this fully balanced decoder achieves remarkable fidelity with an impressive 135dB SNR and < 0.000045% THD+N. The enhanced Bluetooth 5.1 chip ensures faster and more stable wireless connectivity. Additionally, a newly implemented CPLD effectively reduces jitter, while the inclusion of a 12V trigger facilitates seamless integration with other Topping devices, offering enhanced convenience for audio enthusiasts.

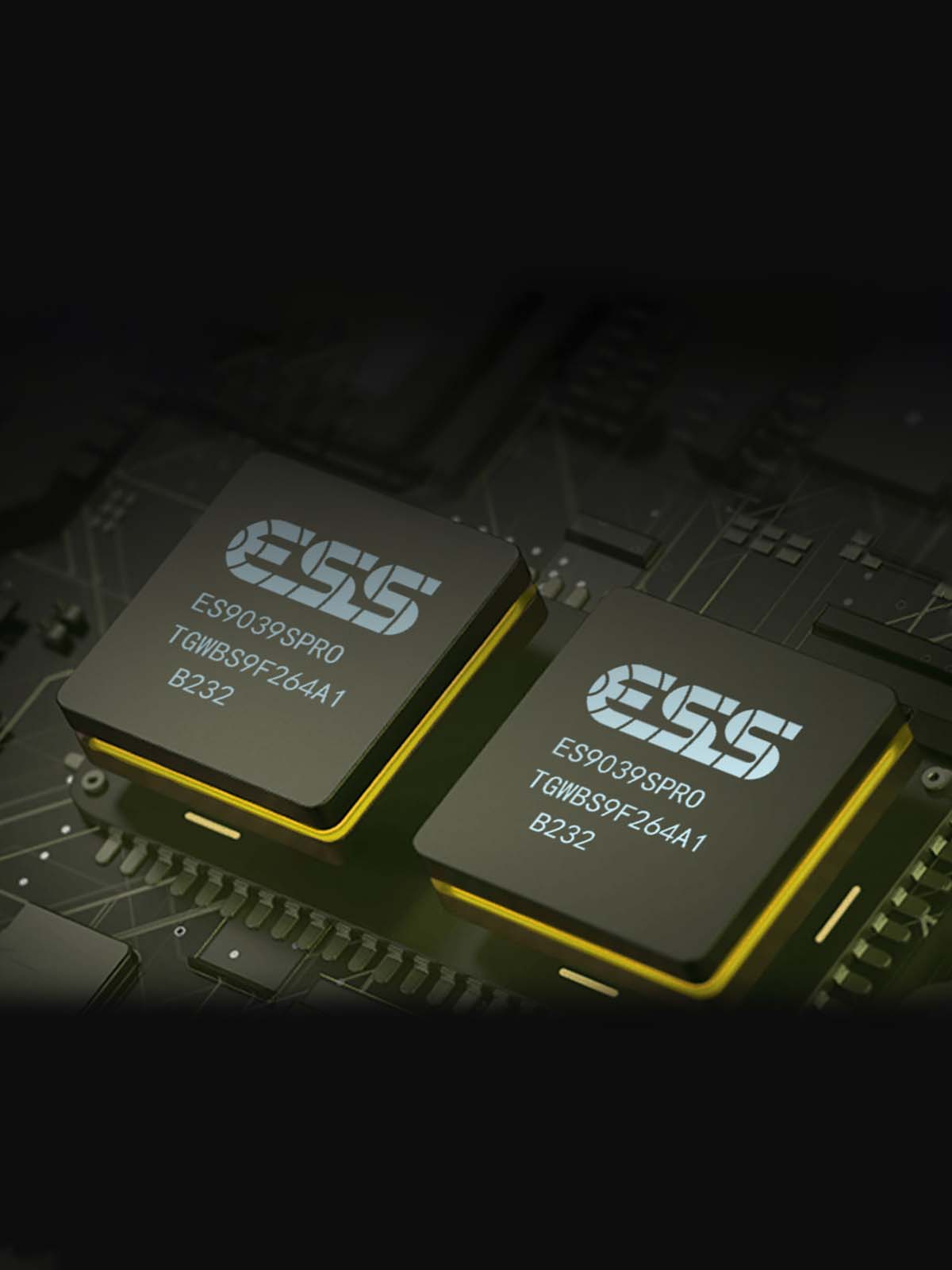

FEATURES TWO DAC CHIPS AND A BRAND NEW I/V CONVERSION CIRCUIT FOR CLEAN AUDIO
At the core of the Topping D90 III Sabre lies a dual-chip configuration featuring two ES9039SPRO chips. This innovative setup allows each audio channel to operate independently, resulting in elevated performance metrics such as a higher Signal-to-Noise Ratio (135dB), an expanded dynamic range, and a notable reduction in distortion (< 0.000045% THD+N). Compared to its predecessor, this dual-chip implementation significantly enhances overall performance. Taking a step further, Topping has incorporated a newly designed I/V conversion circuit for superior audio reproduction. This circuit, with its reduced distortion and noise levels, is not only more efficient but also occupies less space. Engineered to push the boundaries of physics, this circuit maximises the potential of the DAC chip, delivering optimal performance.
A FULL-FLEDGED MQA DECODER REVEALING SONIC MAGIC THAT ARTISTS CREATE IN STUDIOS
MQA, or Master Quality Authenticated, represents an audio
codec that undergoes studio approval and authentication. The process initiates with
audio capturing and recording, followed by MQA folding the file, a method known as
"music origami," making it suitable for streaming. The primary aim is to deliver
audio surpassing CD quality on any device and to provide the original master
recording experience when coupled with an MQA decoder. With a complete MQA decoder,
the Topping D90 III Sabre meticulously unfolds MQA files, ensuring the highest
attainable audio quality. This procedure employs precise file and platform-specific
DAC compensation and management, unveiling the authentic musical craftsmanship
created by artists in recording studios.

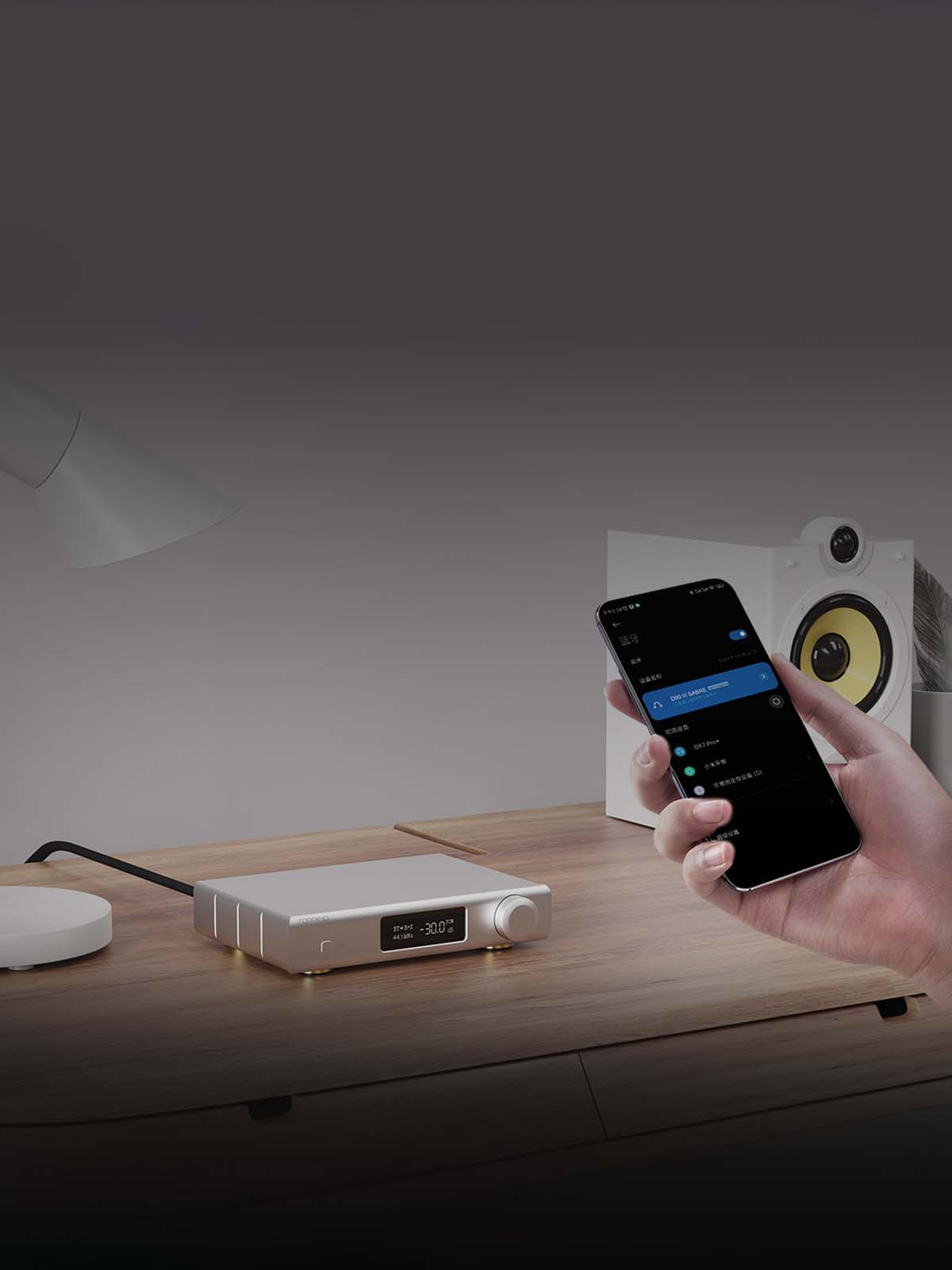

EXPERIENCE PLUG-AND-PLAY CONVENIENCE ALONG WITH BLUETOOTH 5.1 CONNECTIVITY
With convenient plug-and-play functionality, the Topping D90 III
Sabre can be effortlessly paired with a wide range of audio devices compatible with Windows
10, MAC, Linux, iOS, or Android. It's important to note that when using the Topping D90 III
Sabre with a PC, you'll need to install and configure a custom XMOS XU316 and Thesycon ASIO
driver (specifically for Windows 10). In contrast, Mac users won't require a driver. The
Topping D90 III Sabre is certified for Hi-Res Audio Wireless and LDAC, featuring a QCC5125
chipset that supports Bluetooth 5.1 connectivity. This chipset expands compatibility with
various audio codecs, including SBC, AAC, aptX HD, aptX-Adaptive, and LDAC, allowing for
wireless transmission of high-quality audio up to 96kHz/24bit, delivering a music experience
surpassing CD quality.

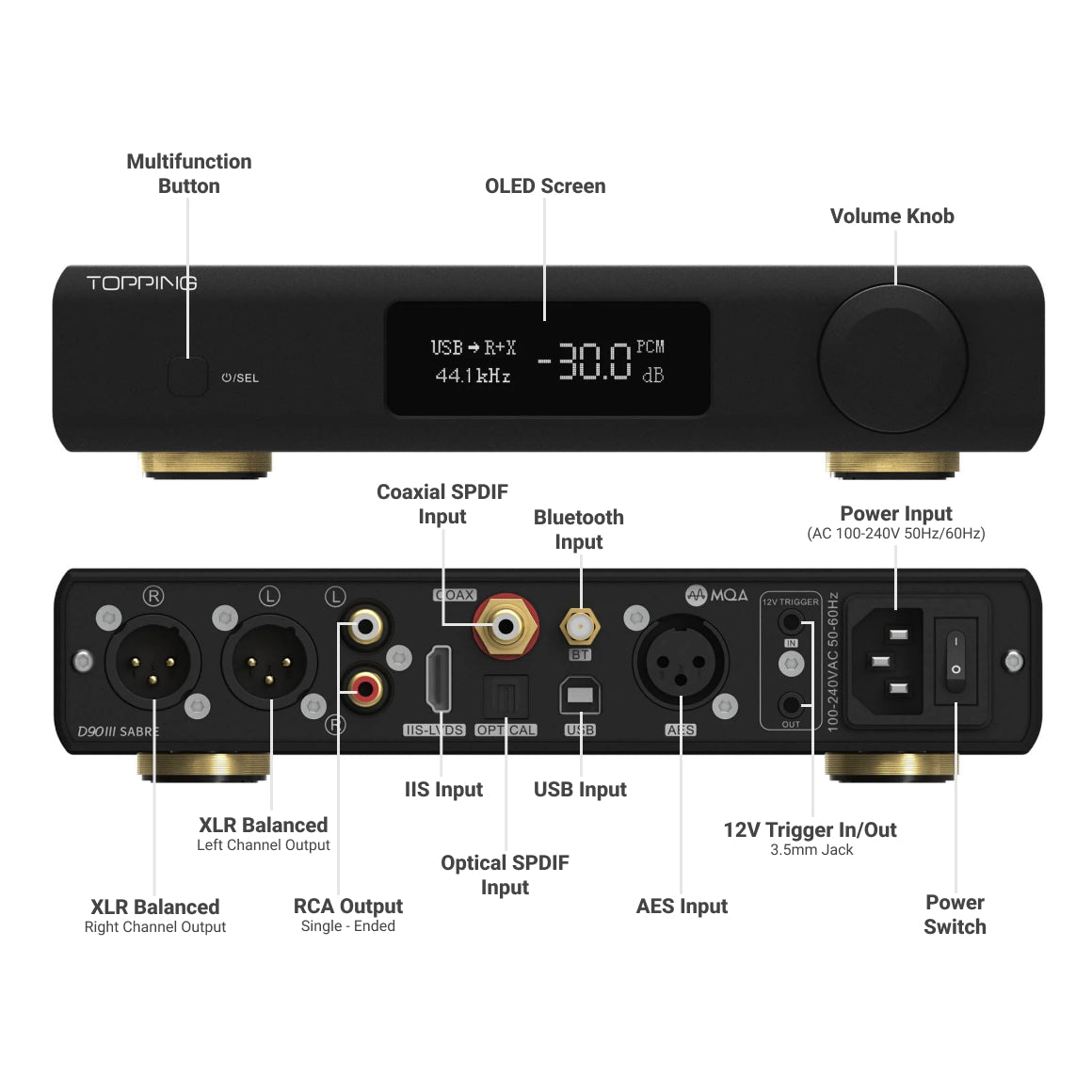

JITTER-FREE & MQA DECODE ENABLED USB, COAXIAL, OPTICAL, AES & BLUETOOTH AUDIO INPUTS
The incorporation of XMOS XU316 in the Topping D90 III Sabre enables comprehensive MQA decoding, supporting PCM up to 32bit/768kHz and native DSD512. MQA support extends beyond USB input, encompassing Coaxial, Optical, and AES inputs. This broad compatibility ensures the enjoyment of music at a quality surpassing that of CD. All mentioned inputs are compatible with the three MQA formats: Renderer, MQA, and MQA Studio. Regardless of the chosen input, the D90SE consistently delivers a jitter-free output by utilising CLPD to process the clock and optimise the digital signal, reducing the jitter to as low as -160dB.

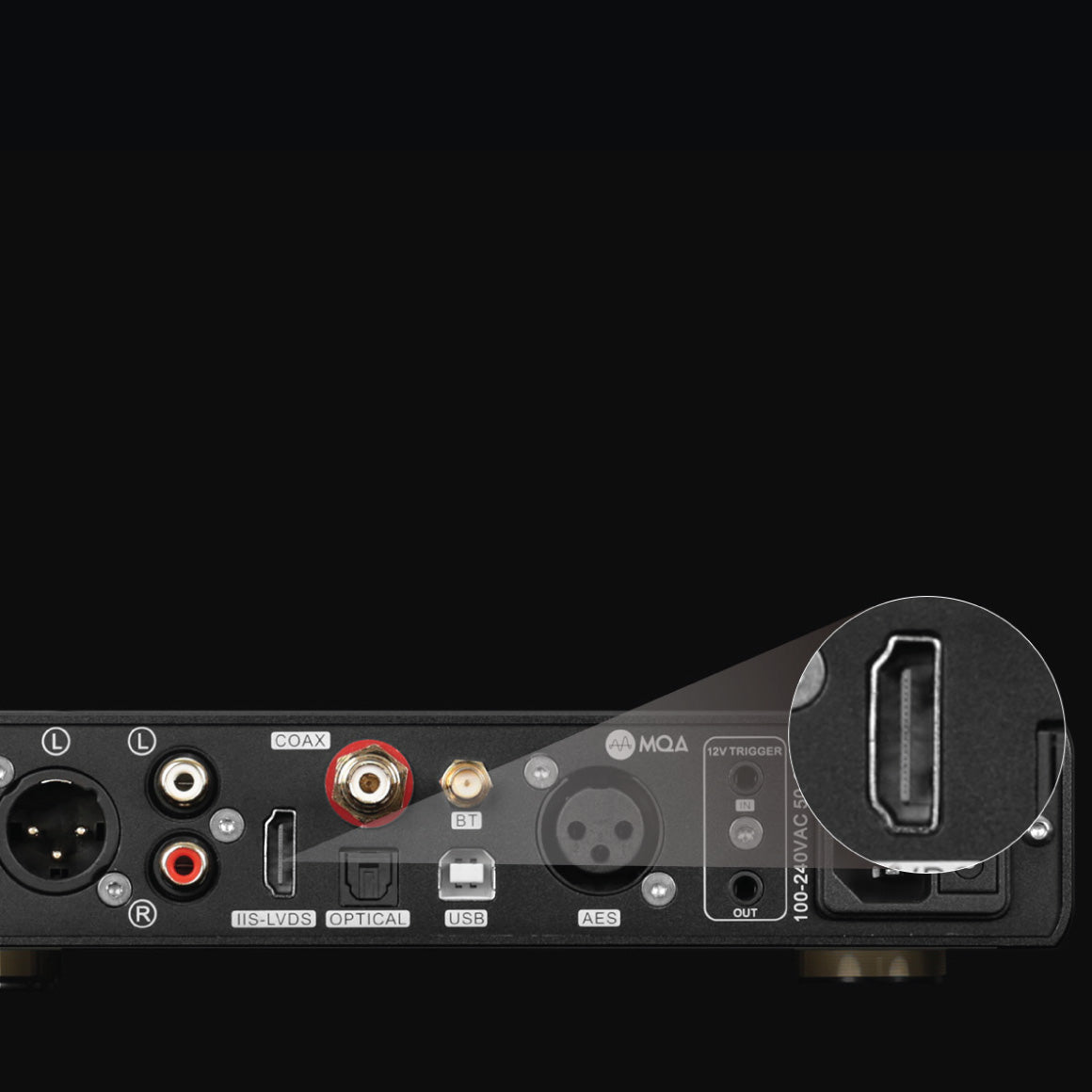

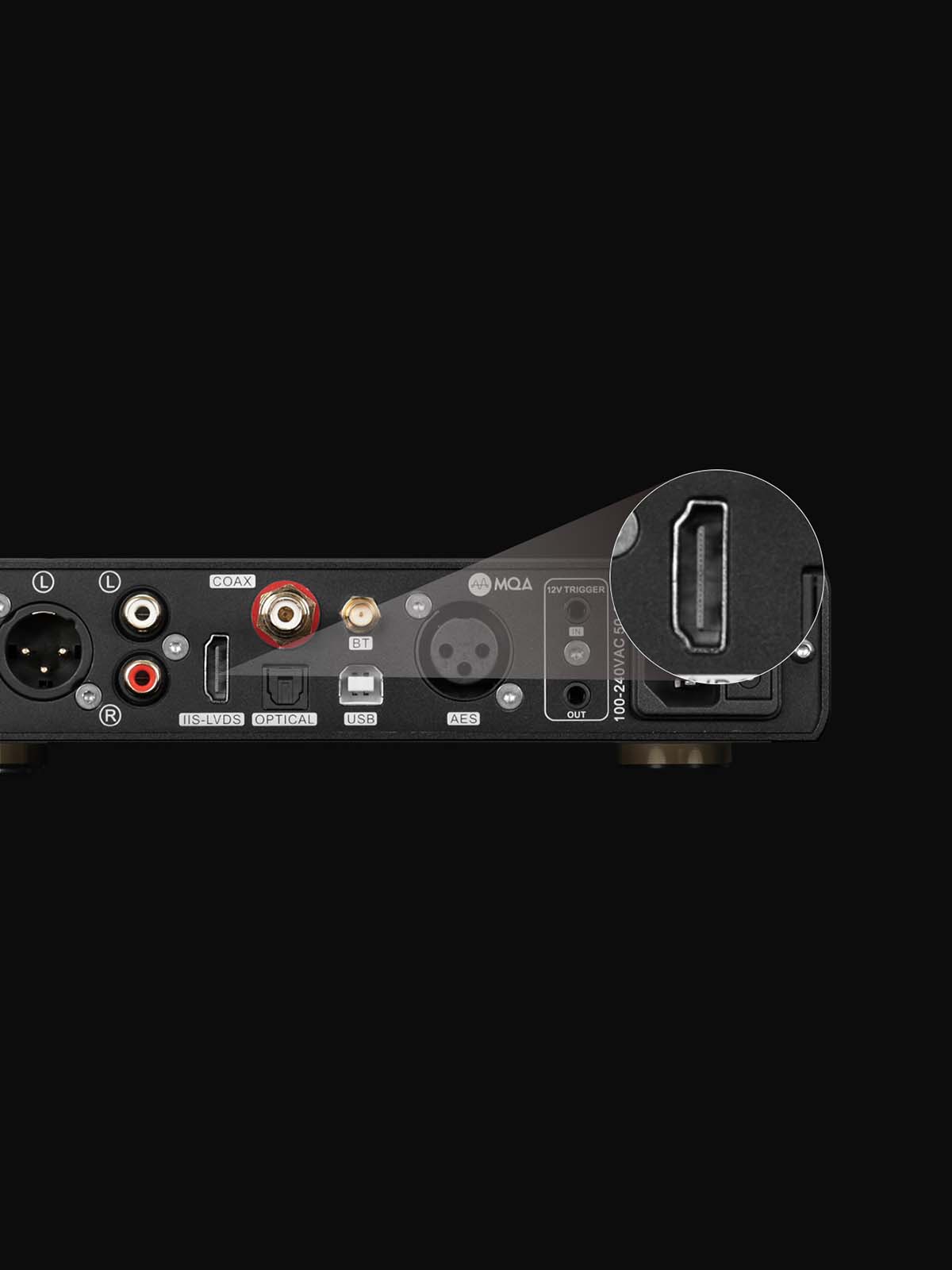

A DEDICATED IIS INPUT WITH MULTIPLE SETTINGS THAT SUPPORTS PCM & NATIVE DSD DECODING
If you prefer to direct the IIS signal straight to the DAC chip of the Topping D90 III Sabre, utilise the HDMI cable for enhanced audio decoding. The dedicated IIS input on the Topping D90 III Sabre, supporting PCM up to 32bit/768kHz and native DSD512, seamlessly interfaces with nearly all digital devices using HDMI to transmit IIS signals. Explore various settings on the IIS input, including phase settings, DSD channel configurations, and DSD indicator pin selection settings. The Topping D90 III Sabre offers flexibility in IIS mode selection, including options like DSD FLAG 15, DSD FLAG 14, IIS DSDR LRCLK, IIS DSDR DATA, IIS PHASE STD, and IIS PHASE REV. It is compatible with a wide range of digital interfaces.

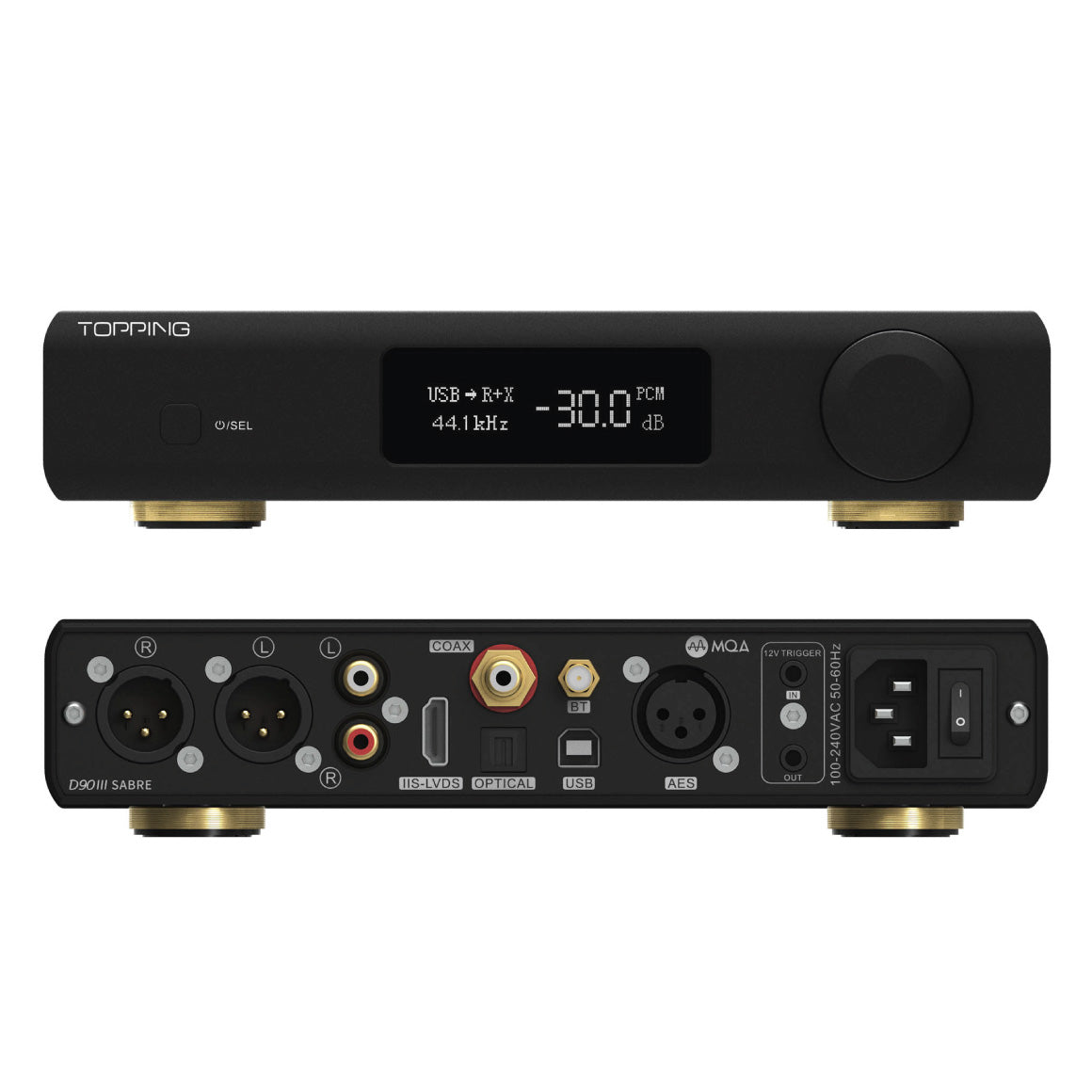

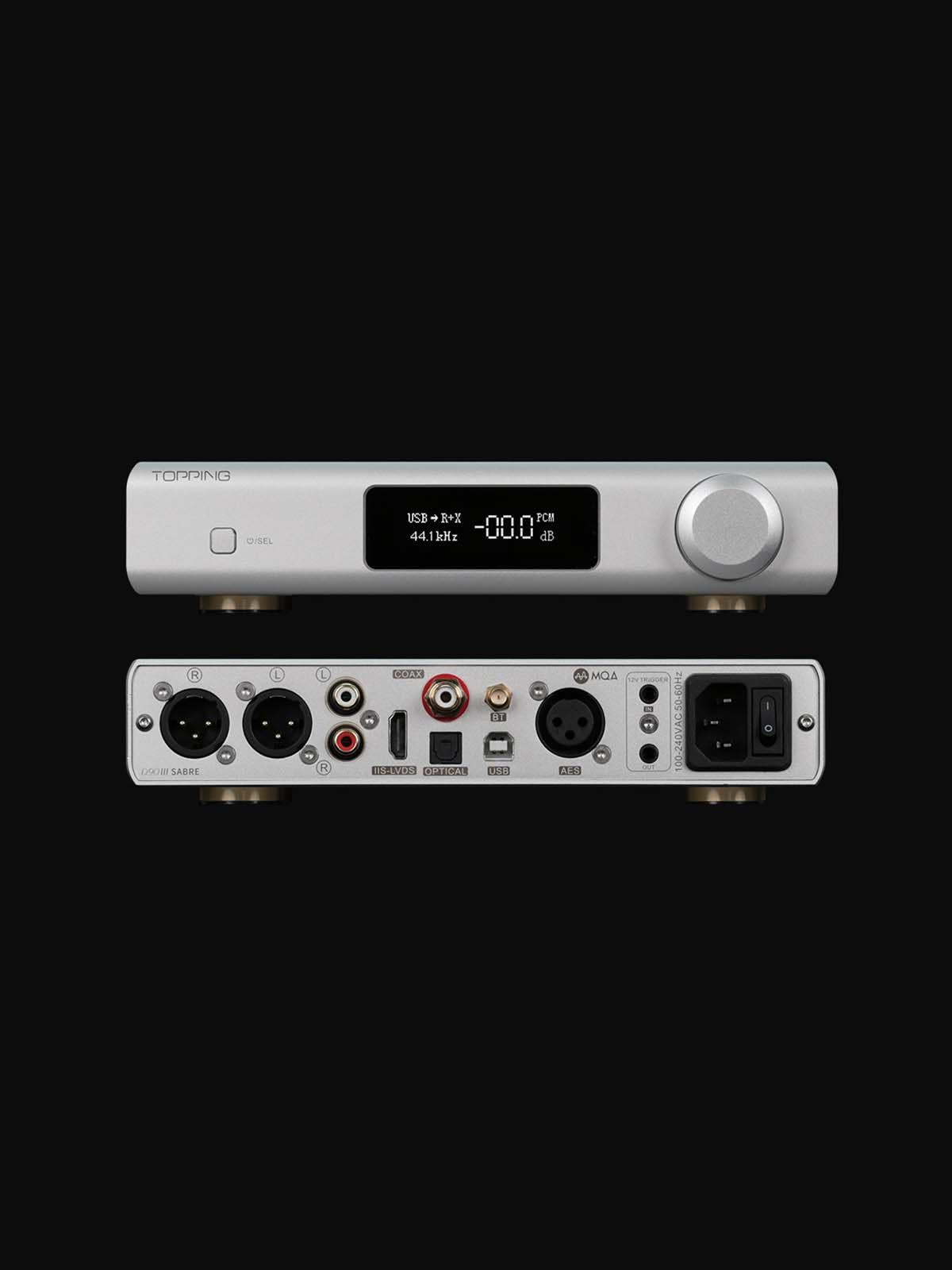

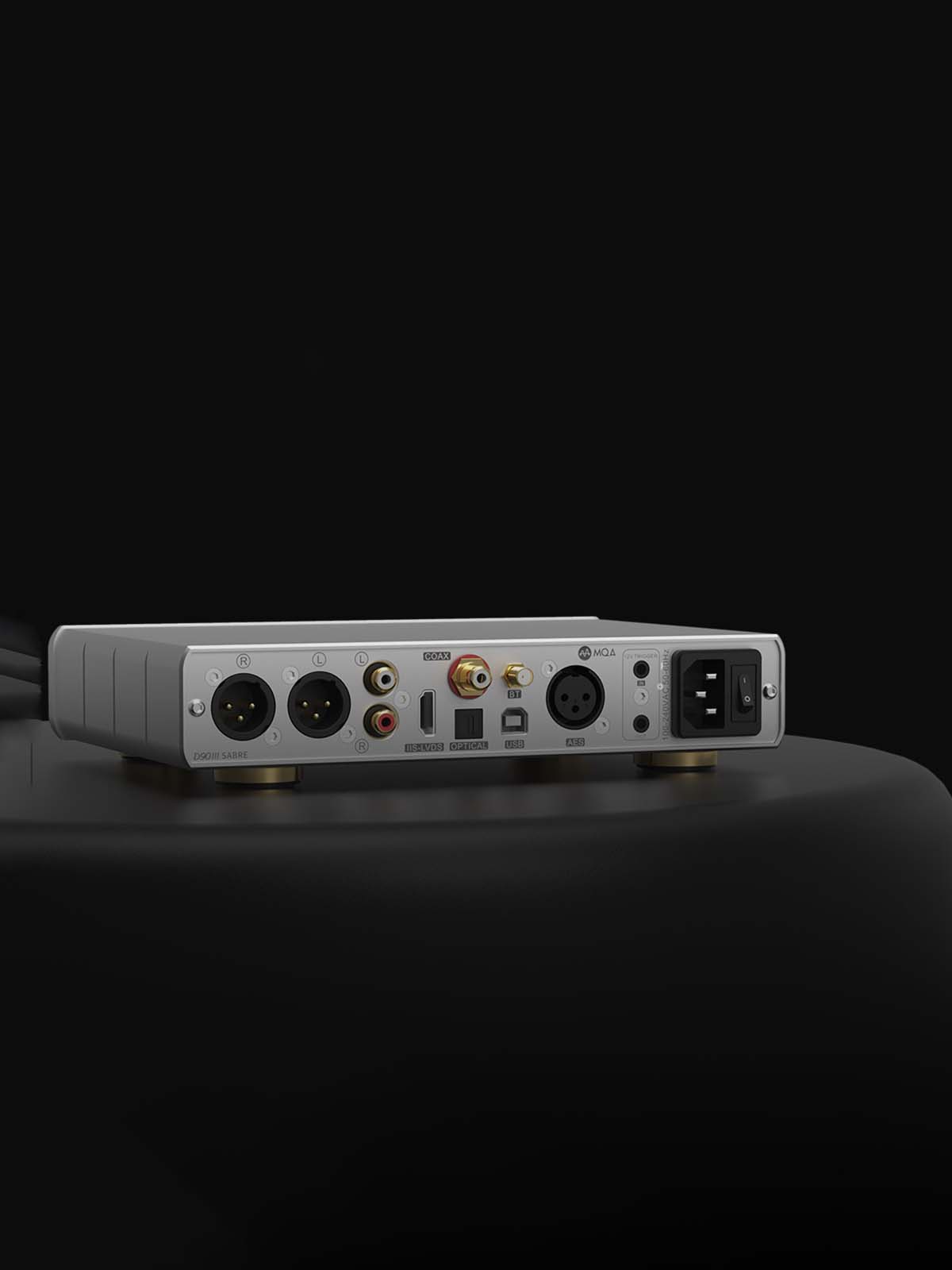

SELECTABLE BALANCED XLR AND SINGLE-ENDED RCA OUTPUTS FOR EASY CONNECTIVITY
Equipped with both balanced XLR and single-ended RCA outputs, the Topping D90 III Sabre provides ample flexibility for various audio configurations. You can opt for "XLR only," "RCA only," or "XLR+RCA" selectable outputs to suit different applications. For expanded versatility, the Topping D90 III Sabre offers XLR outputs at 4V/5V and RCA outputs at 2V/2.5V, elevating audio performance to new heights. Choosing XLR 4V and RCA 2V allows compatibility with a broader range of devices while opting for XLR 5V and RCA 2.5V enhances performance to a higher level.

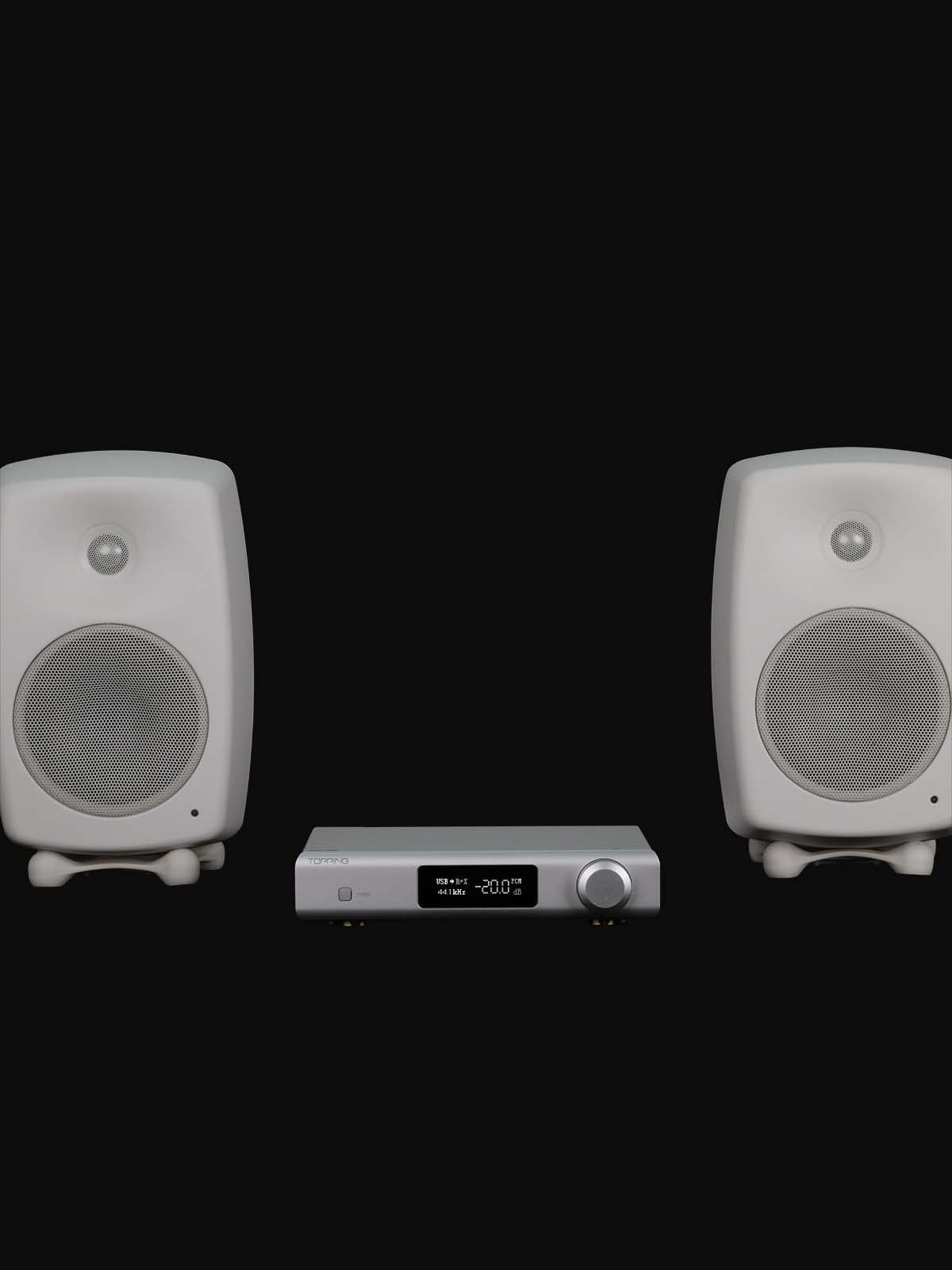

EXACT CONTROL OVER YOUR VOLUME OUTPUT WITH DAC + PRE-AMPLIFIER MODE AND 12V TRIGGER
While the Topping D90 III Sabre can function in the DAC mode, offering a fixed output level, it also provides the option to operate in DAC+Preamplifier mode. In this mode, you have the flexibility to adjust the volume output using either the front panel controls or the included remote control. For optimal results, consider pairing the Topping D90 III Sabre with a power amplifier or monitor speakers. The 2.4G Bluetooth remote control remains unaffected by obstacles, allowing for flexible and convenient control from a distance, enhancing overall usability. Additionally, the D90 III SABRE is equipped with 12V Trigger input and output, supporting triggering by other devices and actively triggering other devices to switch on and off synchronously.

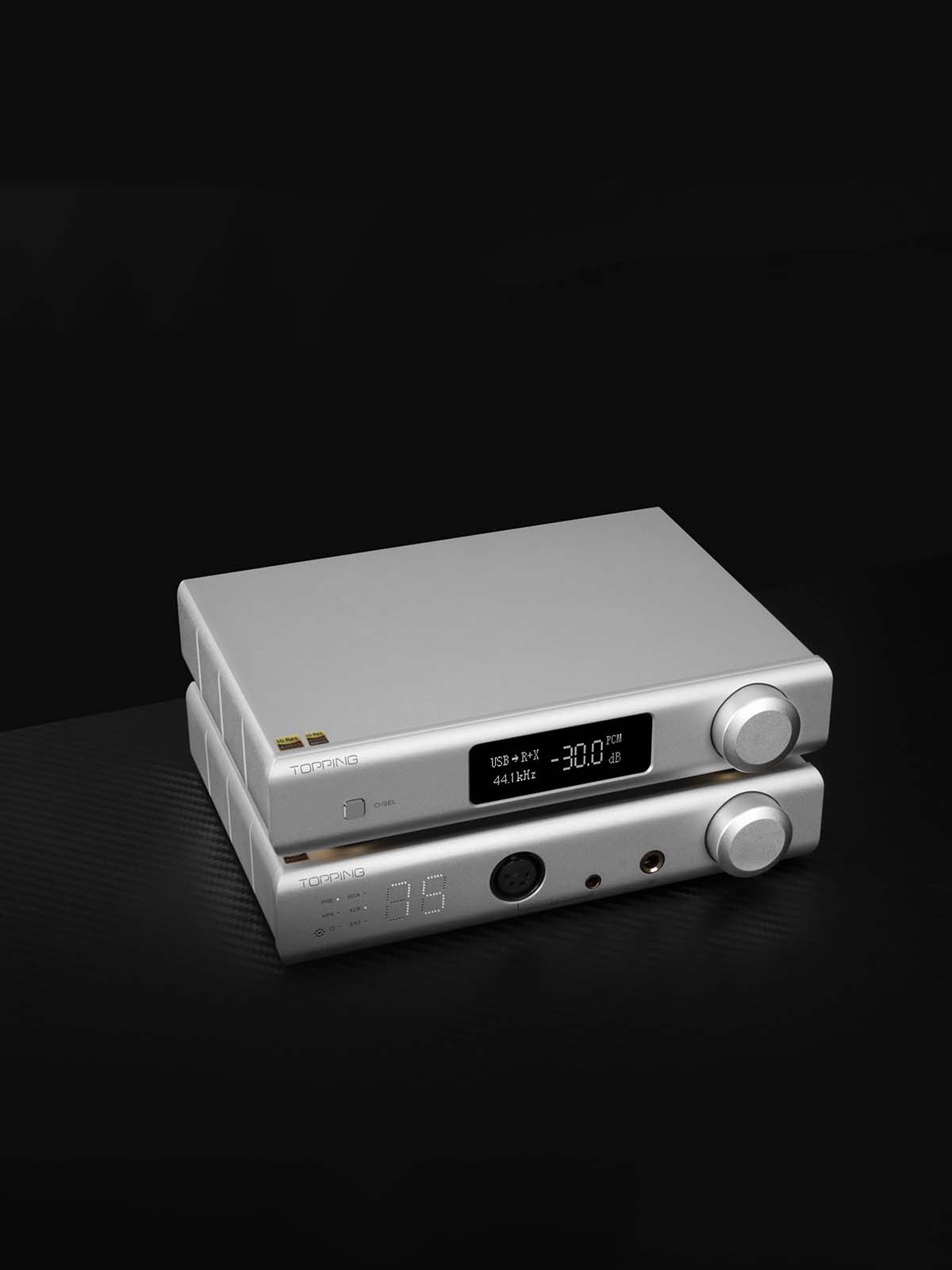

PAIRS WITH ALMOST ALL HEADPHONE AMPS BUT WORKS BEST WITH THE TOPPING A90D AMPLIFIER
Designed with a fully balanced NFCA module, the Topping D90 III Sabre delivers ultra-low noise at 0.2uV, ultra-low THD+N at 0.000055%, and a 0.1-ohm output impedance. Thanks to its broad gain setting and high output voltage, the Topping D90 III Sabre is compatible with a wide range of headphone amplifiers. For an optimal audio setup, it is recommended to pair the Topping D90 III Sabre with the TOPPING A90D headphone amplifier. The RCA output of the Topping D90 III Sabre provides 2.1Vrms @0dBFS (4VMode) and 2.6Vrms @0dBFS (5VMode), while the XLR output offers 4.2Vrms @0dBFS (4VMode) and 5.2Vrms @0dBFS (5VMode). Both the RCA and XLR outputs have an output impedance of 100Ω.
SPECS
THD+N @A-WT | < 0.00006% @1kHz |
THD @NO-WT 90KBW | < 0.0003% @20-20kHz |
SNR @A-WT | 129dB @1kHz |
DYNAMIC RANGE @A-WT | 129dB @1kHz |
FREQUENCY RESPONSE | 20Hz-20kHz (±0.1dB) 20Hz-40kHz (±0.3dB) |
OUTPUT LEVEL | 2.1 Vrms @0dBFS (4V Mode) 2.6Vrms @0dBFS (5V Mode) |
NOISE @A-WT | < 1.1uVrms |
CHANNEL CROSSTALK | -133dB @1kHz |
CHANNEL BALANCE | 0.3 dB |
OUTPUT IMPEDANCE | 50Ω |
THD+N @A-WT | < 0.000045% @1kHz |
THD @NO-WT 90KBW | < 0.0001% @20-20kHz |
SNR @A-WT | 135dB @1kHz |
DYNAMIC RANGE @A-WT | 135dB @1kHz |
FREQUENCY RESPONSE | 20Hz-20kHz (±0.1dB)
20Hz-40kHz (±0.3dB) |
OUTPUT LEVEL | 4.2Vrms @0dBFS (4V Mode)
5.2Vrms @0dBFS (5V Mode) |
NOISE @A-WT | < 1.1uVrms |
CHANNEL CROSSTALK | -149dB @1kHz |
CHANNEL BALANCE | 0.3 dB |
OUTPUT IMPEDANCE | 100Ω |

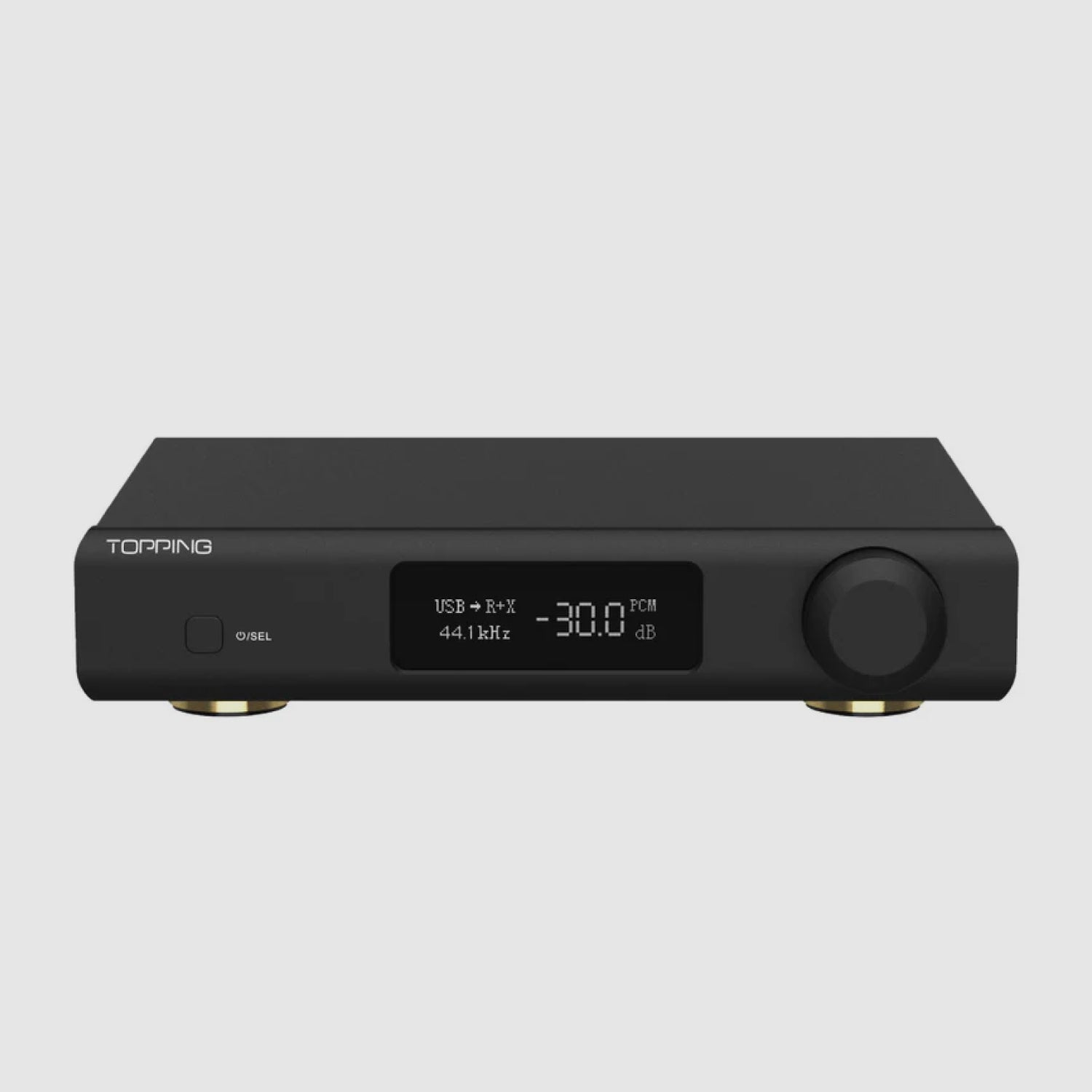

BOX CONTENTS | 1. TOPPING D90III SABRE |

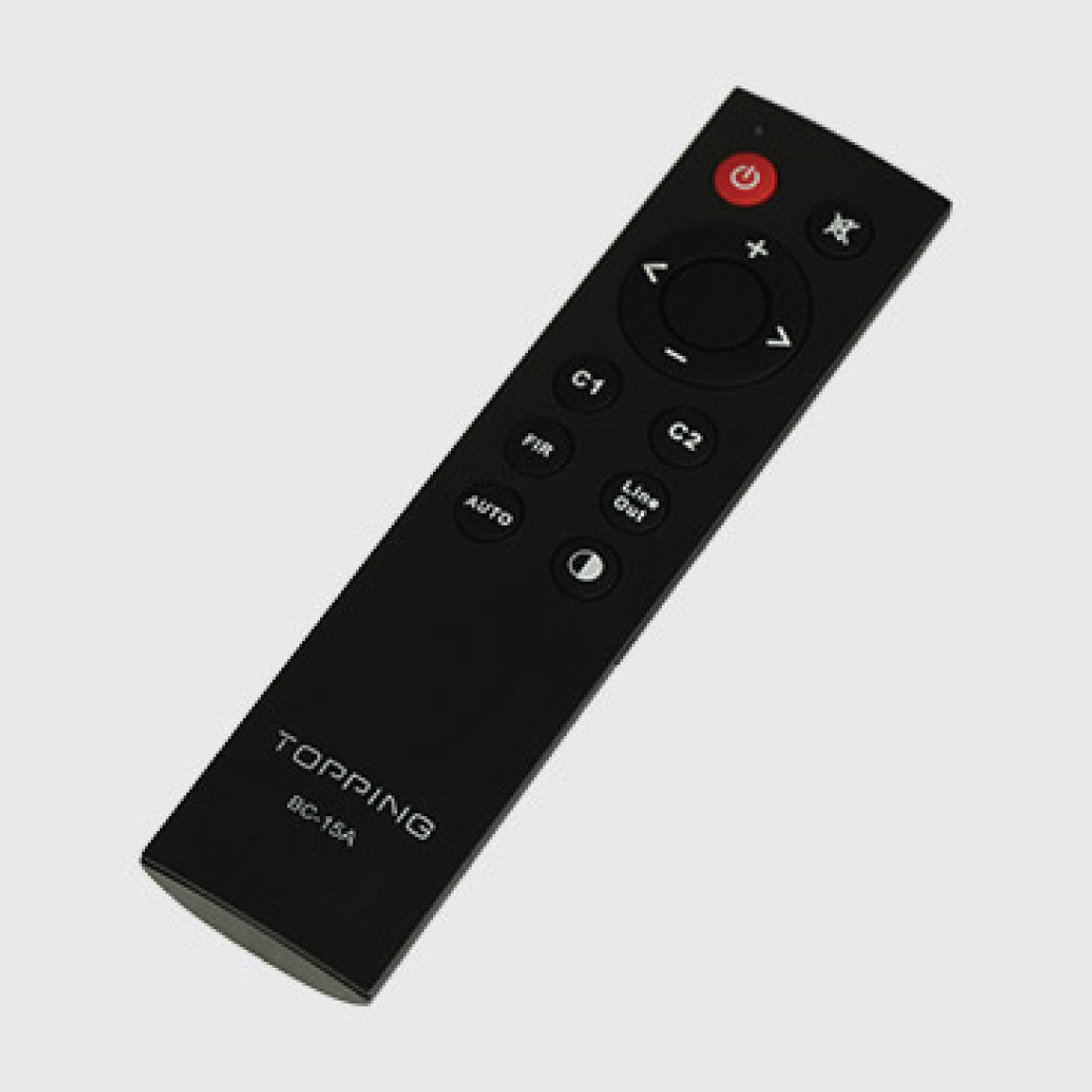

2. Bluetooth Remote Control | |
3. USB cable | |
4. AC cable | |
5. Bluetooth antenna | |
6. Product Information Card |
OTHER DETAILS
GENERIC NAME | Digital Audio Converter |
IMPORTER DETAILS | Importers Name: Ferrari Video Address: 63/18, 1st Main Road, Gandhi Nagar, Chennai - 600020 Contact No: 044-24420733 |
DIMENSIONS | 22.2 x 16 x 4.5 CM |
NET QUANTITY | 1 |
MANUFACTURER DETAILS | Name: Tok Shun Co., Limited Address: 1318-19, 13/F, Hollywood Plaza, 610 Nathan Road, HK. |
PACKAGE CONTENTS | TOPPING D90III SABRE Bluetooth Remote ControL, USB Cable AC Cable Bluetooth Antenna Product Information Card |
User Manual | D90III SABRE
Desktop Digital To Analog Converter (DAC)
|
TOPPING UPGRADES ITS BEST-SELLING DAC WITH THE INTRODUCTION OF THE D90 III SABRE
Topping's flagship desktop DAC has returned, setting new standards for audio excellence. Featuring two cutting-edge ES9039SPRO DAC chips, this fully balanced decoder achieves remarkable fidelity with an impressive 135dB SNR and < 0.000045% THD+N. The enhanced Bluetooth 5.1 chip ensures faster and more stable wireless connectivity. Additionally, a newly implemented CPLD effectively reduces jitter, while the inclusion of a 12V trigger facilitates seamless integration with other Topping devices, offering enhanced convenience for audio enthusiasts.
FEATURES TWO DAC CHIPS AND A BRAND NEW I/V CONVERSION CIRCUIT FOR CLEAN AUDIO
At the core of the Topping D90 III Sabre lies a dual-chip configuration featuring two ES9039SPRO chips. This innovative setup allows each audio channel to operate independently, resulting in elevated performance metrics such as a higher Signal-to-Noise Ratio (135dB), an expanded dynamic range, and a notable reduction in distortion (< 0.000045% THD+N). Compared to its predecessor, this dual-chip implementation significantly enhances overall performance. Taking a step further, Topping has incorporated a newly designed I/V conversion circuit for superior audio reproduction. This circuit, with its reduced distortion and noise levels, is not only more efficient but also occupies less space. Engineered to push the boundaries of physics, this circuit maximises the potential of the DAC chip, delivering optimal performance.
A FULL-FLEDGED MQA DECODER REVEALING SONIC MAGIC THAT ARTISTS CREATE IN STUDIOS
MQA, or Master Quality Authenticated, represents an audio
codec that undergoes studio approval and authentication. The process initiates with
audio capturing and recording, followed by MQA folding the file, a method known as
"music origami," making it suitable for streaming. The primary aim is to deliver
audio surpassing CD quality on any device and to provide the original master
recording experience when coupled with an MQA decoder. With a complete MQA decoder,
the Topping D90 III Sabre meticulously unfolds MQA files, ensuring the highest
attainable audio quality. This procedure employs precise file and platform-specific
DAC compensation and management, unveiling the authentic musical craftsmanship
created by artists in recording studios.
EXPERIENCE PLUG-AND-PLAY CONVENIENCE ALONG WITH BLUETOOTH 5.1 CONNECTIVITY
With convenient plug-and-play functionality, the Topping D90 III
Sabre can be effortlessly paired with a wide range of audio devices compatible with Windows
10, MAC, Linux, iOS, or Android. It's important to note that when using the Topping D90 III
Sabre with a PC, you'll need to install and configure a custom XMOS XU316 and Thesycon ASIO
driver (specifically for Windows 10). In contrast, Mac users won't require a driver. The
Topping D90 III Sabre is certified for Hi-Res Audio Wireless and LDAC, featuring a QCC5125
chipset that supports Bluetooth 5.1 connectivity. This chipset expands compatibility with
various audio codecs, including SBC, AAC, aptX HD, aptX-Adaptive, and LDAC, allowing for
wireless transmission of high-quality audio up to 96kHz/24bit, delivering a music experience
surpassing CD quality.
JITTER-FREE & MQA DECODE ENABLED USB, COAXIAL, OPTICAL, AES & BLUETOOTH AUDIO INPUTS
The incorporation of XMOS XU316 in the Topping D90 III Sabre enables comprehensive MQA decoding, supporting PCM up to 32bit/768kHz and native DSD512. MQA support extends beyond USB input, encompassing Coaxial, Optical, and AES inputs. This broad compatibility ensures the enjoyment of music at a quality surpassing that of CD. All mentioned inputs are compatible with the three MQA formats: Renderer, MQA, and MQA Studio. Regardless of the chosen input, the D90SE consistently delivers a jitter-free output by utilising CLPD to process the clock and optimise the digital signal, reducing the jitter to as low as -160dB.
A DEDICATED IIS INPUT WITH MULTIPLE SETTINGS THAT SUPPORTS PCM & NATIVE DSD DECODING
If you prefer to direct the IIS signal straight to the DAC chip of the Topping D90 III Sabre, utilise the HDMI cable for enhanced audio decoding. The dedicated IIS input on the Topping D90 III Sabre, supporting PCM up to 32bit/768kHz and native DSD512, seamlessly interfaces with nearly all digital devices using HDMI to transmit IIS signals. Explore various settings on the IIS input, including phase settings, DSD channel configurations, and DSD indicator pin selection settings. The Topping D90 III Sabre offers flexibility in IIS mode selection, including options like DSD FLAG 15, DSD FLAG 14, IIS DSDR LRCLK, IIS DSDR DATA, IIS PHASE STD, and IIS PHASE REV. It is compatible with a wide range of digital interfaces.
SELECTABLE BALANCED XLR AND SINGLE-ENDED RCA OUTPUTS FOR EASY CONNECTIVITY
Equipped with both balanced XLR and single-ended RCA outputs, the Topping D90 III Sabre provides ample flexibility for various audio configurations. You can opt for "XLR only," "RCA only," or "XLR+RCA" selectable outputs to suit different applications. For expanded versatility, the Topping D90 III Sabre offers XLR outputs at 4V/5V and RCA outputs at 2V/2.5V, elevating audio performance to new heights. Choosing XLR 4V and RCA 2V allows compatibility with a broader range of devices while opting for XLR 5V and RCA 2.5V enhances performance to a higher level.
EXACT CONTROL OVER YOUR VOLUME OUTPUT WITH DAC + PRE-AMPLIFIER MODE AND 12V TRIGGER
While the Topping D90 III Sabre can function in the DAC mode, offering a fixed output level, it also provides the option to operate in DAC+Preamplifier mode. In this mode, you have the flexibility to adjust the volume output using either the front panel controls or the included remote control. For optimal results, consider pairing the Topping D90 III Sabre with a power amplifier or monitor speakers. The 2.4G Bluetooth remote control remains unaffected by obstacles, allowing for flexible and convenient control from a distance, enhancing overall usability. Additionally, the D90 III SABRE is equipped with 12V Trigger input and output, supporting triggering by other devices and actively triggering other devices to switch on and off synchronously.
PAIRS WITH ALMOST ALL HEADPHONE AMPS BUT WORKS BEST WITH THE TOPPING A90D AMPLIFIER
Designed with a fully balanced NFCA module, the Topping D90 III Sabre delivers ultra-low noise at 0.2uV, ultra-low THD+N at 0.000055%, and a 0.1-ohm output impedance. Thanks to its broad gain setting and high output voltage, the Topping D90 III Sabre is compatible with a wide range of headphone amplifiers. For an optimal audio setup, it is recommended to pair the Topping D90 III Sabre with the TOPPING A90D headphone amplifier. The RCA output of the Topping D90 III Sabre provides 2.1Vrms @0dBFS (4VMode) and 2.6Vrms @0dBFS (5VMode), while the XLR output offers 4.2Vrms @0dBFS (4VMode) and 5.2Vrms @0dBFS (5VMode). Both the RCA and XLR outputs have an output impedance of 100Ω.
THD+N @A-WT | < 0.00006% @1kHz |
THD @NO-WT 90KBW | < 0.0003% @20-20kHz |
SNR @A-WT | 129dB @1kHz |
DYNAMIC RANGE @A-WT | 129dB @1kHz |
FREQUENCY RESPONSE | 20Hz-20kHz (±0.1dB) 20Hz-40kHz (±0.3dB) |
OUTPUT LEVEL | 2.1 Vrms @0dBFS (4V Mode) 2.6Vrms @0dBFS (5V Mode) |
NOISE @A-WT | < 1.1uVrms |
CHANNEL CROSSTALK | -133dB @1kHz |
CHANNEL BALANCE | 0.3 dB |
OUTPUT IMPEDANCE | 50Ω |
THD+N @A-WT | < 0.000045% @1kHz |
THD @NO-WT 90KBW | < 0.0001% @20-20kHz |
SNR @A-WT | 135dB @1kHz |
DYNAMIC RANGE @A-WT | 135dB @1kHz |
FREQUENCY RESPONSE | 20Hz-20kHz (±0.1dB)
20Hz-40kHz (±0.3dB) |
OUTPUT LEVEL | 4.2Vrms @0dBFS (4V Mode)
5.2Vrms @0dBFS (5V Mode) |
NOISE @A-WT | < 1.1uVrms |
CHANNEL CROSSTALK | -149dB @1kHz |
CHANNEL BALANCE | 0.3 dB |
OUTPUT IMPEDANCE | 100Ω |
BOX CONTENTS | 1. TOPPING D90III SABRE |
2. Bluetooth Remote Control | |
3. USB cable | |
4. AC cable | |
5. Bluetooth antenna | |
6. Product Information Card |
OTHER DETAILS
GENERIC NAME | Digital Audio Converter |
IMPORTER DETAILS | Importers Name: Ferrari Video Address: 63/18, 1st Main Road, Gandhi Nagar, Chennai - 600020 Contact No: 044-24420733 |
DIMENSIONS | 22.2 x 16 x 4.5 CM |
NET QUANTITY | 1 |
MANUFACTURER DETAILS | Name: Tok Shun Co., Limited Address: 1318-19, 13/F, Hollywood Plaza, 610 Nathan Road, HK. |
PACKAGE CONTENTS | TOPPING D90III SABRE Bluetooth Remote ControL, USB Cable AC Cable Bluetooth Antenna Product Information Card |
User Manual | D90III SABRE
Desktop Digital To Analog Converter (DAC)
|
Don't sweat it, this
Topping - D90III SABRE comes with a 1 Year warranty
on the DAC and 6 months on the battery
from TOPPING that covers manufacturing defects.
All products featured on Headphone Zone are backed by an original manufacturer's warranty.
Read more about TOPPING's warranty in India.
The Audiophile's Choice For Precision and Accuracy
Explore CollectionHave a question? Get in touch!
Check out the most common questions our customers ask. Still have questions? Talk to our Headphone Gurus.
What is the warranty period on the TOPPING D90III SABRE and how do I claim warranty?
How does the dual-chip configuration with ES9039SPRO chips enhance audio performance?
What is the significance of the MQA decoding feature in the TOPPING D90III SABRE?
Does the TOPPING D90III SABRE offer plug-and-play functionality?
What audio inputs are supported by the TOPPING D90III SABRE, and does it include Bluetooth connectivity?
Can I use the TOPPING D90III SABRE as a preamplifier?
What are the output specifications for the RCA and XLR outputs of the TOPPING D90III SABRE?
This product has no reviews yet.
