STAX - SRM-D10
Portable Electrostatic EnergiserUnfortunately, even if we desire to, we won't be able to resurrect this product. The Museum is where we pay our respects to end-of-life, old, archived, but not forgotten products. This page was made with a lot of love and will live on for posterity. What to say, we're sentimental people. 😔
While this product is gone forever, here are others we recommend
This product is rated 5.0 of 5.0 stars.
It has received 2 reviews.
Customer Reviews
As promised by the brand the DRM D10 is a beast in many ways. Loved the choice suggested by the headphone gurus.
Thank You

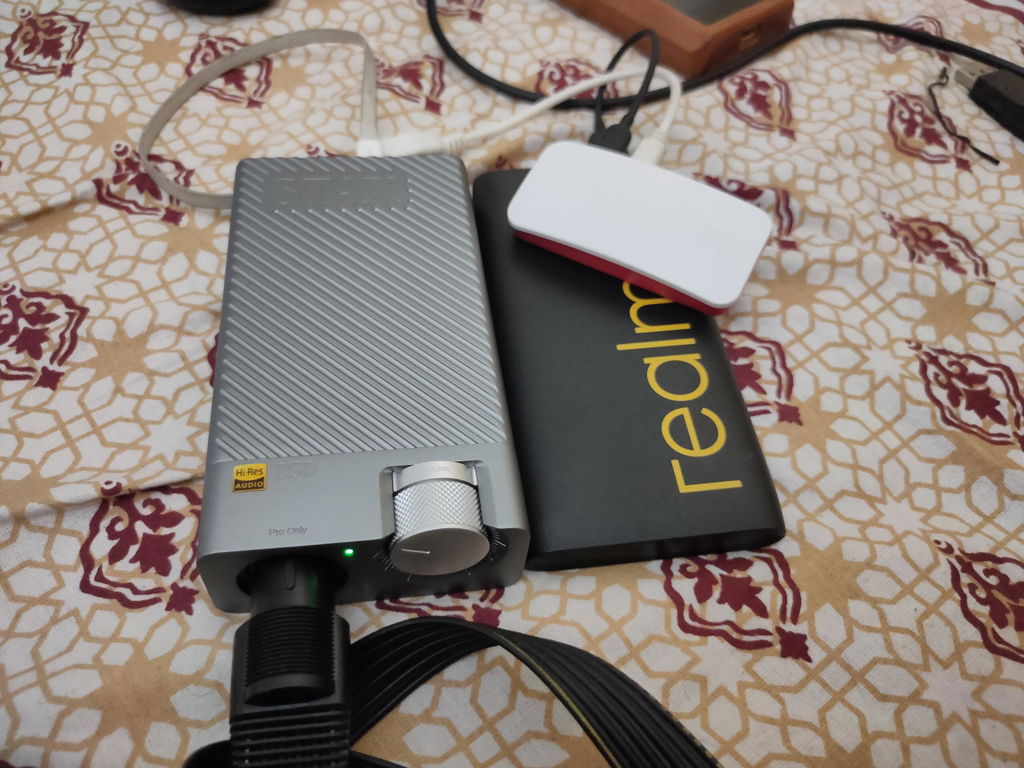

I had a desire of making one portable STAX setup. Components in Top to Bottom Order:
1. Rpi Zero 2w running RopieeeXL and being used as HQP NAA via Roon
2. D10
3. 10k MAh power bank
Now I can wirelessly stream DSD128 natively to my L700s. 🙂
Sound: To my not so tuned ears, it is enjoyable and analytical at the same time. I was impressed nonetheless! ESS is well known for being analytical.
P.S I also own 007Ta and 353x. The soundstage is definitely narrower but it doesn't take away anything from the enjoyment and that estat sound.
A recommended buy!
Designed in
Japan
Ideal for Audiophiles
Best Suited for Portable Use
Metal
Build
DESCRIPTION
THE ULTIMATE ELECTROSTATIC DAC/AMP, CONNECT EASILY
Experience Hi-Res audio with the SRM-D10. The specially tuned DAC supports up to DSD128 (5.6MHz) and PC 384 kHz playback with an XMOS USB interface. The superior built-in amplifier is resistant to high voltage and offers a great performance. With its 3.5mm analogue input and MicroUSB digital input, the SRM-D10 makes connecting to your PC, Mac, DAP or just about any other audio player easy. The 5-pin PRO bias STAX Earspeaker output lets you connect to your favourite STAX Earspeaker and enjoy world-class audio in no time.
CARRY IT ANYWHERE, DURABILITY WITH STYLE & LISTEN FOR LONG

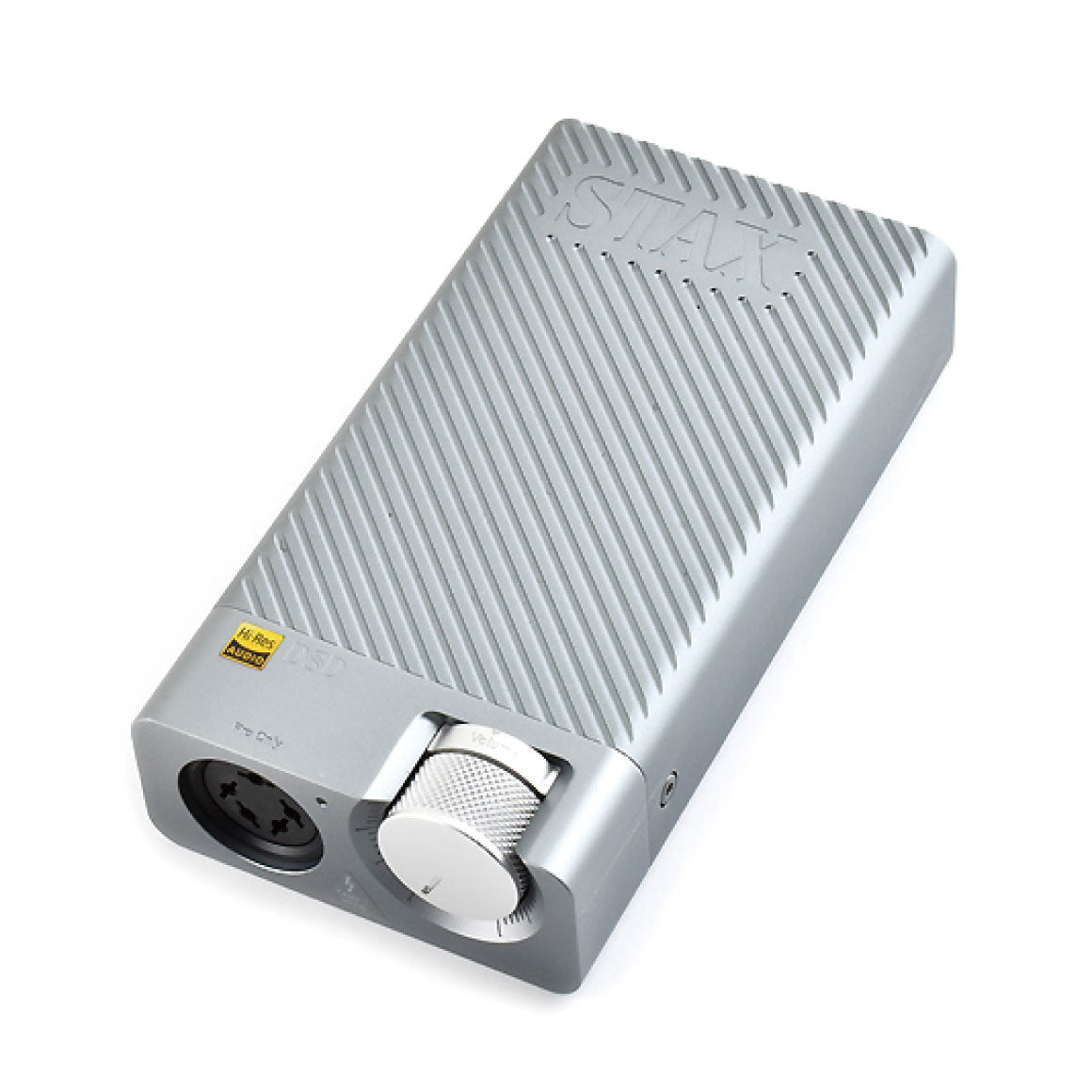

Now you do not need to be tied down to one spot just to listen to pure audio. The SRM-D10 is the very first electrostatic driver in the history of STAX that can be carried around. This high-quality amplifier can drive your favourite STAX Earspeakers when on-the-go. For additional durability and style, the SRM-D10 features an aluminium chassis. This case has been treated with multiple processes for a better shielding and velvety texture. Say goodbye to heaps of wires and wall outlets with the SRM-D10. The built-in rechargeable battery gives you 4.5 hours of battery life when using the analogue input and 3.5 hours of battery life when using the digital input.
SPECS
| FREQUENCY RESPONSE | 20 Hz – 40 kHz (+0dB,-3dB) |
| GAIN | 53dB (450 times) |
| HIGH HARMONIC DISTORTION | 0.025% / 1 kHz-10KHz |
| INPUT IMPEDANCE | 10 KΩ(analog input) |
| MAX. OUTPUT VOLTAGE | 200Vr.m.s / 100 Hz-10KHz |
| STANDARD BIAS VOLTAGE | DC 580V |
| SUPPLY VOLTAGE | DC 14V |
| VOLTAGE | 100-240V/50-60HZ |
| BATTERY OPERATING TIME | 4.5hour(analog input) / 3.5hour(digital input) |
| RATED INPUT LEVEL | 230mV (100V output) |
| MAX. INPUT LEVEL | 10V (minimum volume in analog input) |
| RECOMMENDED OPERATING TEMPERATURE | 0-35°C, <90% RH (No condensation) |

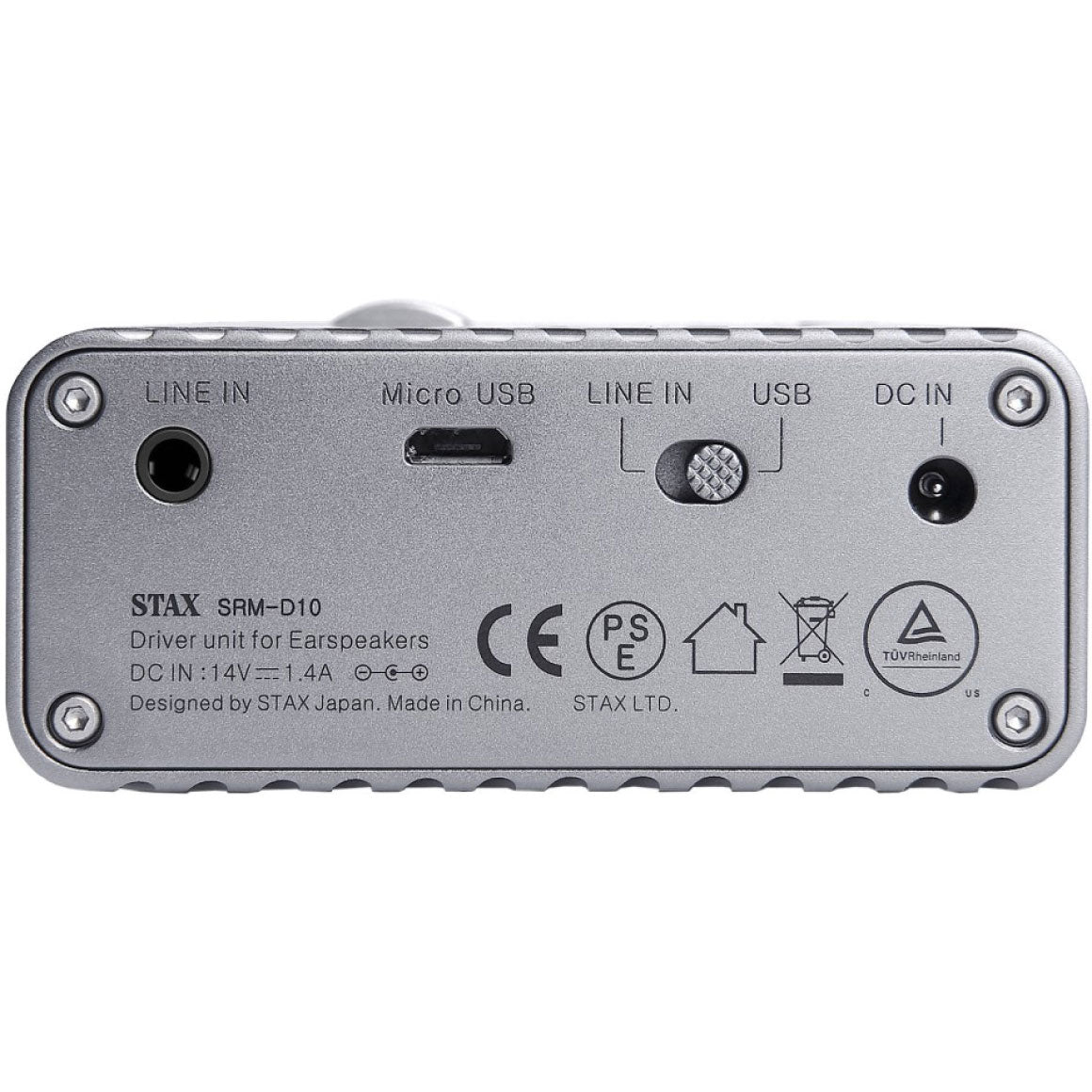

| SIGNAL INPUT | MicroUSB digital input, 3.5 mm analog input |
| POWER CONSUMPTION | 6.4W (USB input)、5W (analog input) |
| DIMENSIONS | 75W×32H×141Dmm |
| WEIGHT | 450g |
| BOX CONTENTS | 1. STAX SRM-D10 |
THE ULTIMATE ELECTROSTATIC DAC/AMP, CONNECT EASILY
Experience Hi-Res audio with the SRM-D10. The specially tuned DAC supports up to DSD128 (5.6MHz) and PC 384 kHz playback with an XMOS USB interface. The superior built-in amplifier is resistant to high voltage and offers a great performance. With its 3.5mm analogue input and MicroUSB digital input, the SRM-D10 makes connecting to your PC, Mac, DAP or just about any other audio player easy. The 5-pin PRO bias STAX Earspeaker output lets you connect to your favourite STAX Earspeaker and enjoy world-class audio in no time.
CARRY IT ANYWHERE, DURABILITY WITH STYLE & LISTEN FOR LONG
Now you do not need to be tied down to one spot just to listen to pure audio. The SRM-D10 is the very first electrostatic driver in the history of STAX that can be carried around. This high-quality amplifier can drive your favourite STAX Earspeakers when on-the-go. For additional durability and style, the SRM-D10 features an aluminium chassis. This case has been treated with multiple processes for a better shielding and velvety texture. Say goodbye to heaps of wires and wall outlets with the SRM-D10. The built-in rechargeable battery gives you 4.5 hours of battery life when using the analogue input and 3.5 hours of battery life when using the digital input.
| FREQUENCY RESPONSE | 20 Hz – 40 kHz (+0dB,-3dB) |
| GAIN | 53dB (450 times) |
| HIGH HARMONIC DISTORTION | 0.025% / 1 kHz-10KHz |
| INPUT IMPEDANCE | 10 KΩ(analog input) |
| MAX. OUTPUT VOLTAGE | 200Vr.m.s / 100 Hz-10KHz |
| STANDARD BIAS VOLTAGE | DC 580V |
| SUPPLY VOLTAGE | DC 14V |
| VOLTAGE | 100-240V/50-60HZ |
| BATTERY OPERATING TIME | 4.5hour(analog input) / 3.5hour(digital input) |
| RATED INPUT LEVEL | 230mV (100V output) |
| MAX. INPUT LEVEL | 10V (minimum volume in analog input) |
| RECOMMENDED OPERATING TEMPERATURE | 0-35°C, <90% RH (No condensation) |
| SIGNAL INPUT | MicroUSB digital input, 3.5 mm analog input |
| POWER CONSUMPTION | 6.4W (USB input)、5W (analog input) |
| DIMENSIONS | 75W×32H×141Dmm |
| WEIGHT | 450g |
| BOX CONTENTS | 1. STAX SRM-D10 |
