DESCRIPTION
NEWLY DESIGNED STAX SRM-500T FOR AN AUDIO EXPERIENCE LIKE NEVER BEFORE

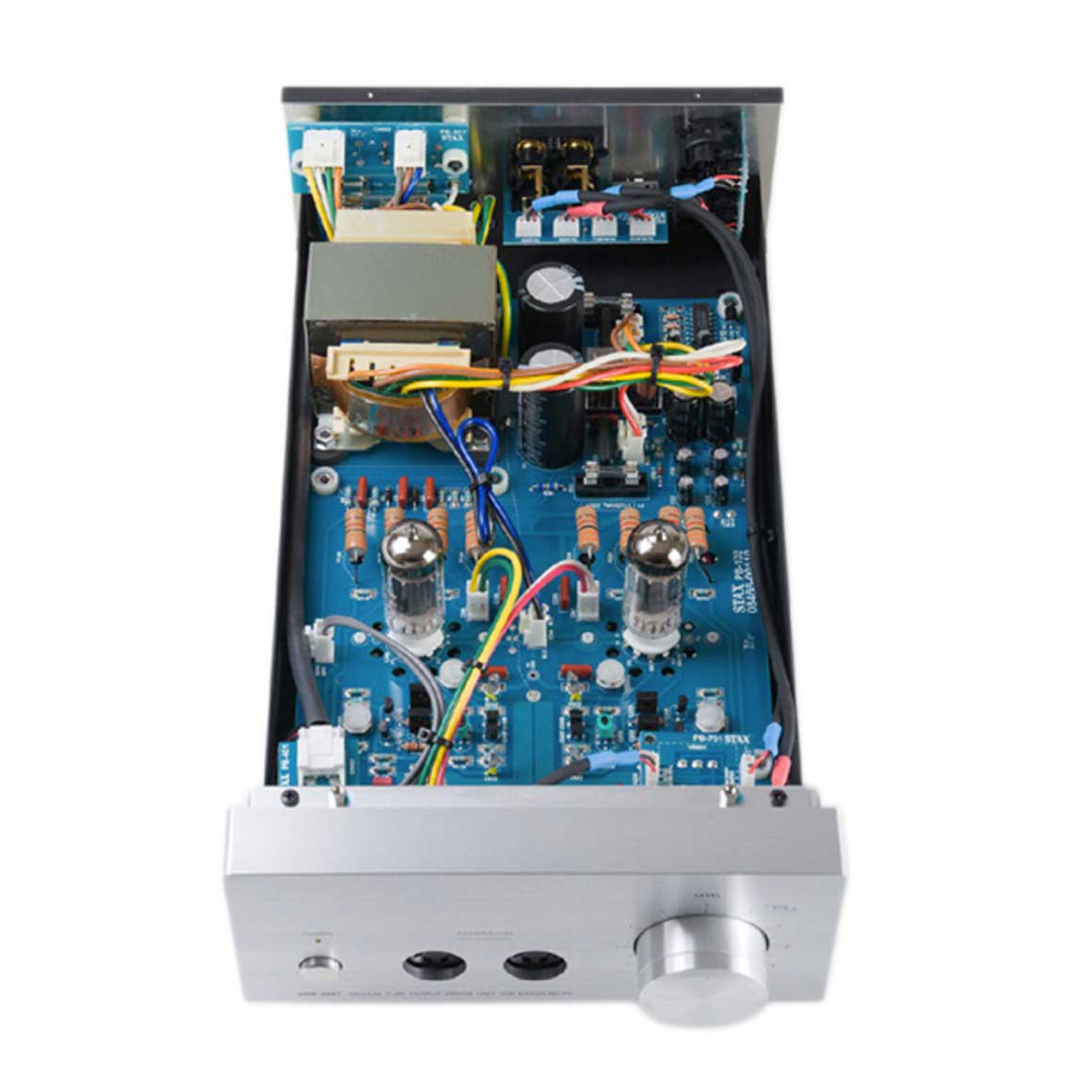

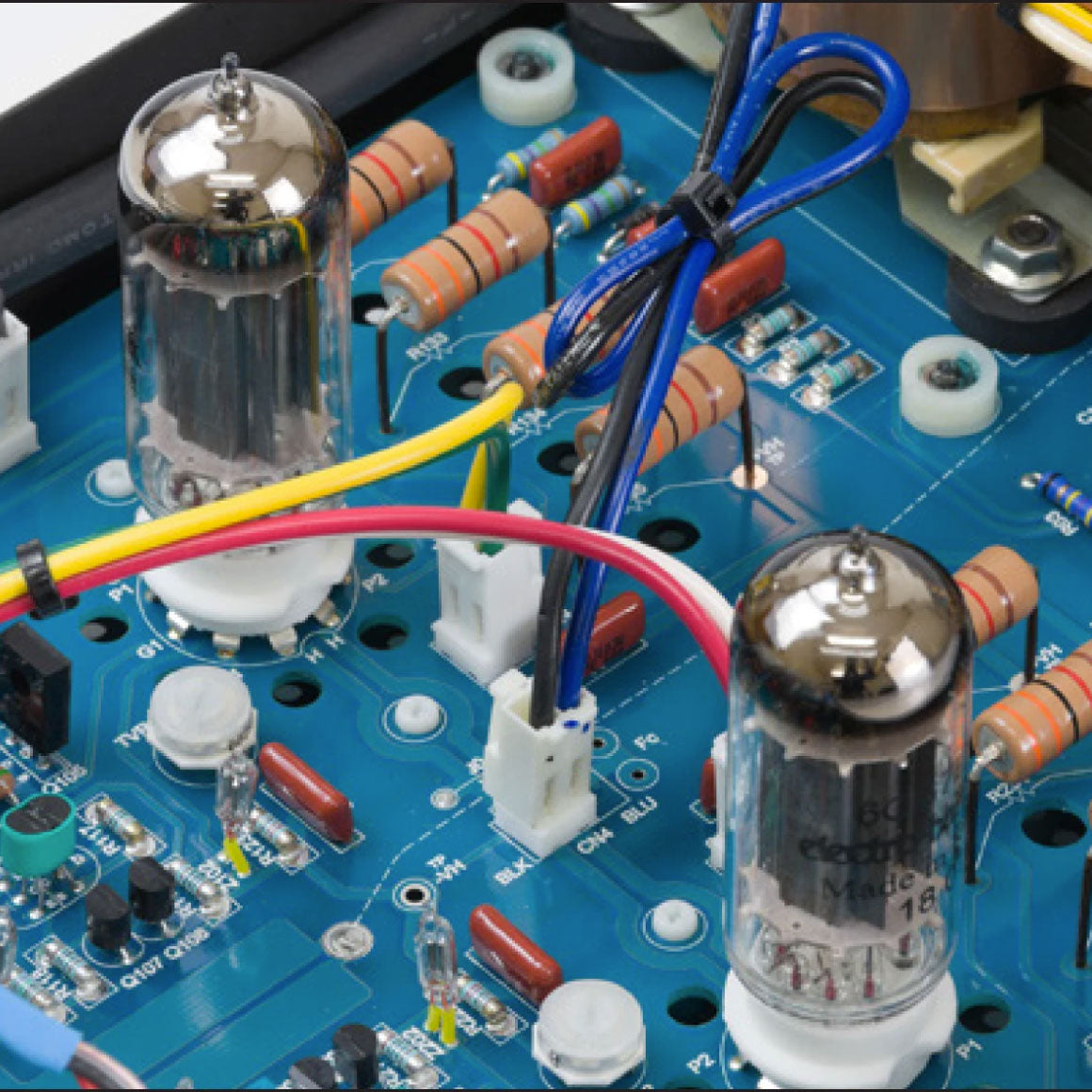

The brand new STAX SRM-500T comes as a replacement for the SRM-006tS. It features a pair of 6FQ7/6CG7 vacuum tube output hybrid DC amplification driver units along with a custom made low noise dual FET. This allows the STAX SRM-500T to deliver a high-value electrostatic driver for best-in-class sonic performance. While still using the traditional circuit design, the SRM-500t is equipped with an upgraded, power-efficient transformer that produces an enhanced sound.
ENGINEERED WITH A REDESIGNED POWER TRANSFORMER TO SERVE OUTSTANDING ACOUSTIC PERFORMANCE
With the conventional power transformer aiding the high voltage circuit, the all-new power-efficient transformer has the winding for the low voltage circuit. This low voltage winding increases the power efficiency of the STAX SRM-500T, saving power while elevating sound up a notch. Add more peace to your music with super-low harmonic distortion at 0.01% or less and a frequency response of up to 90kHz.

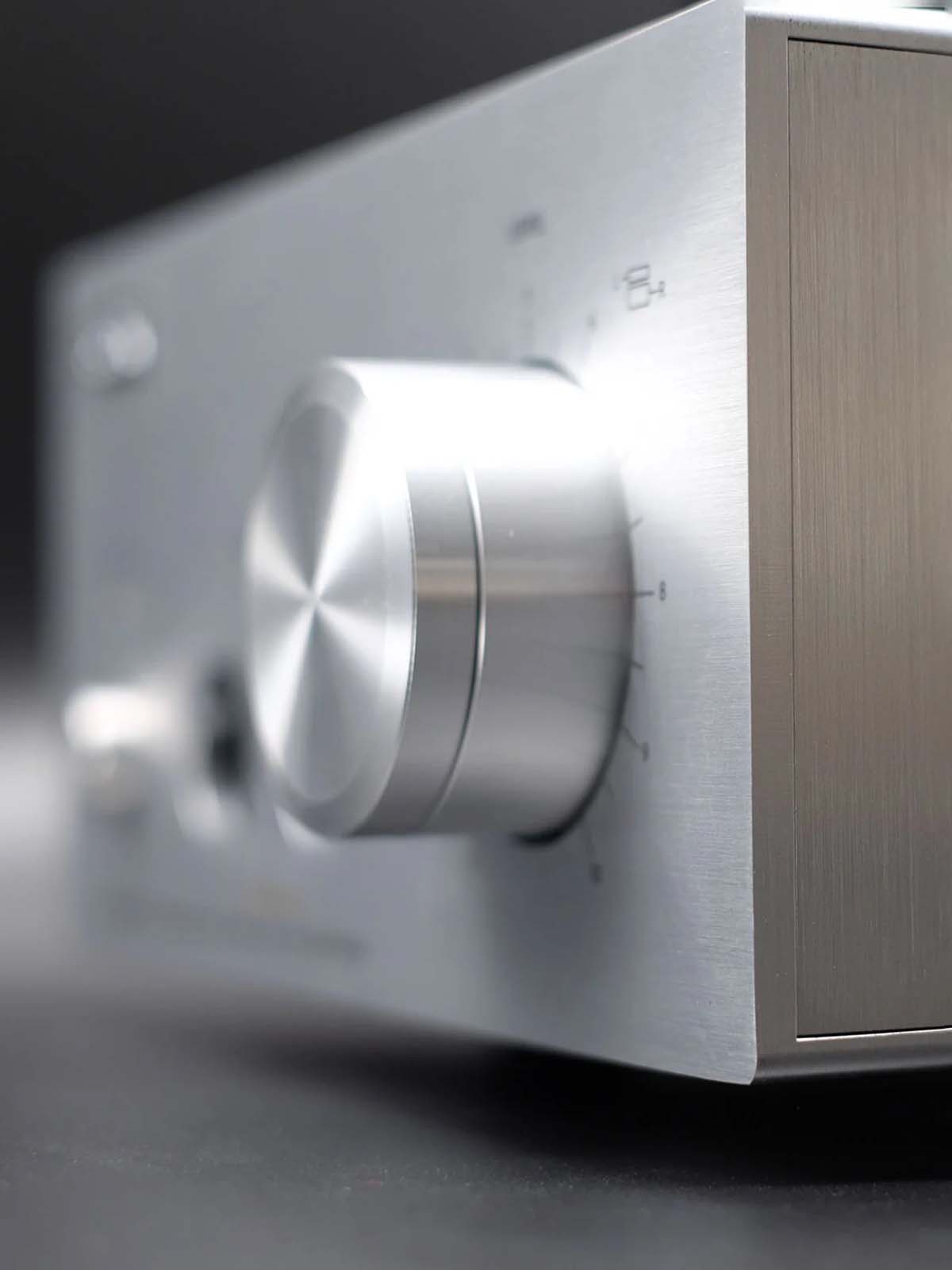

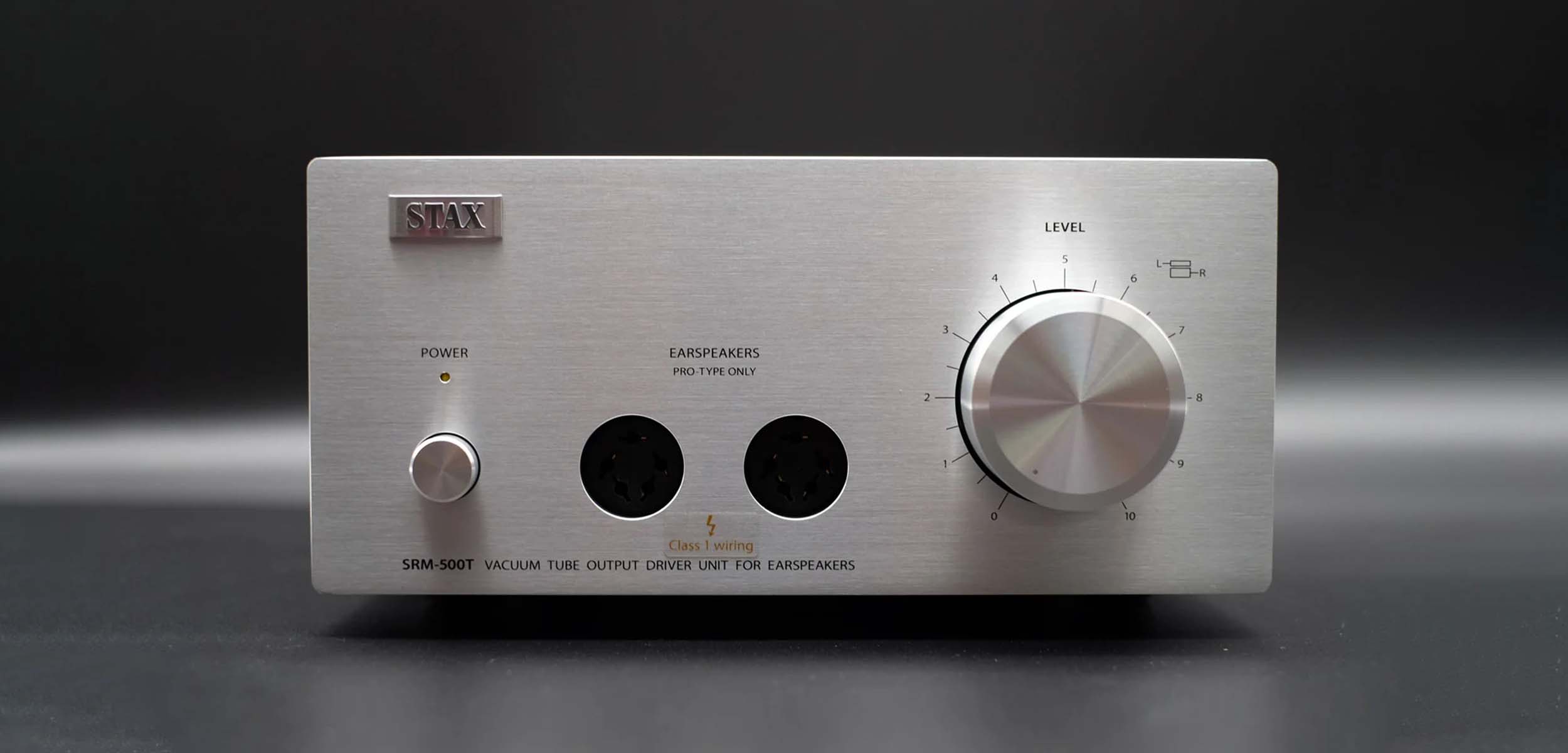

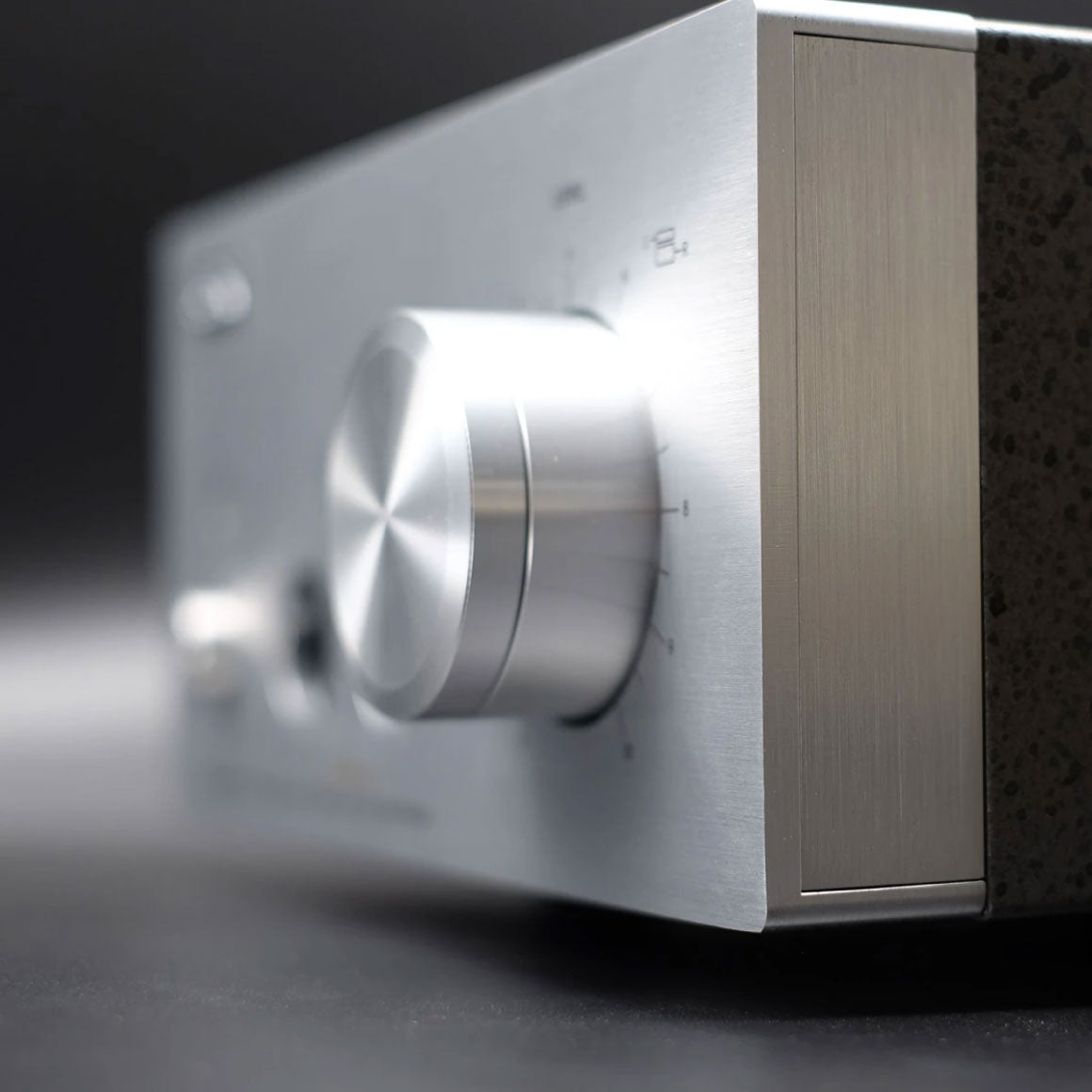

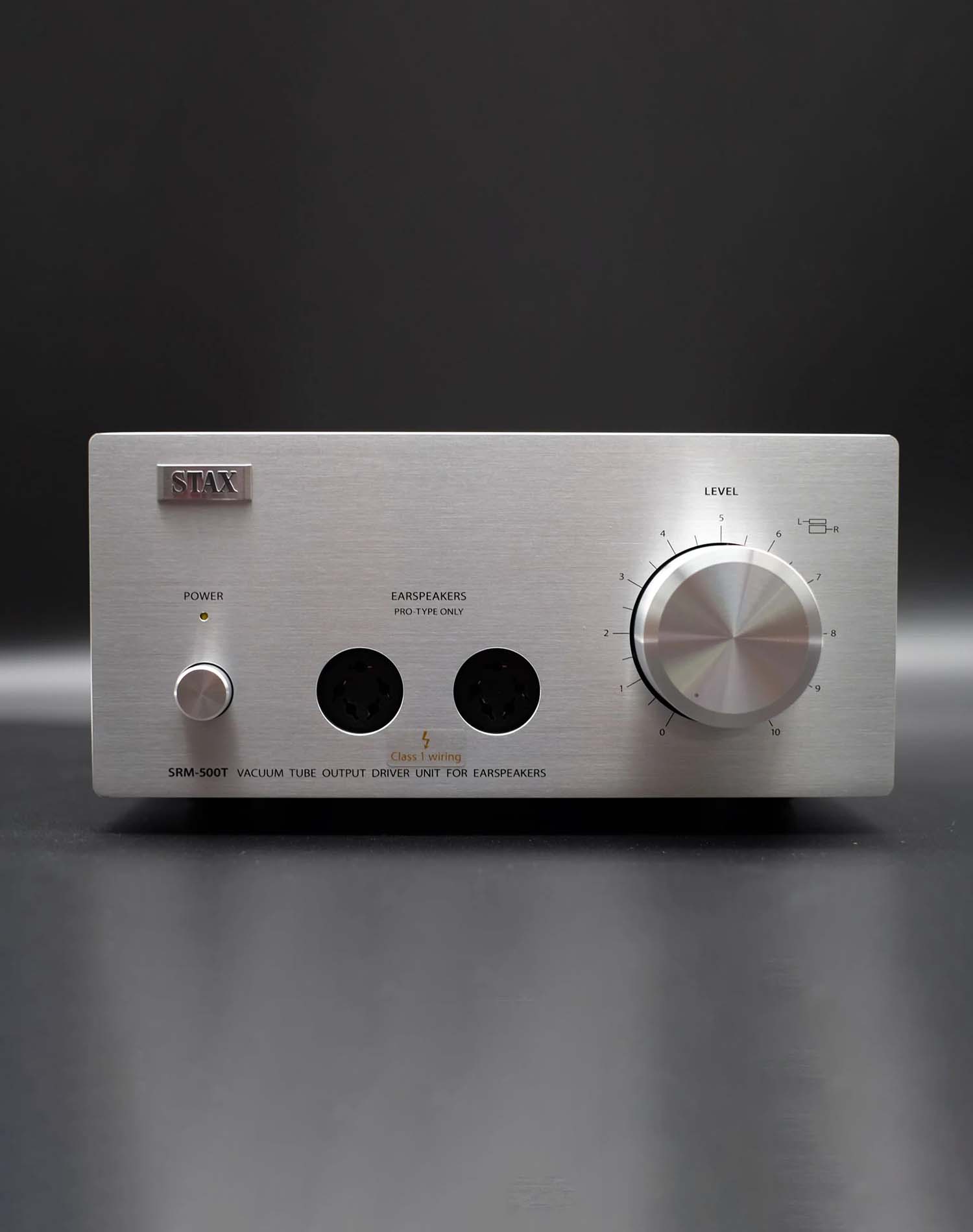

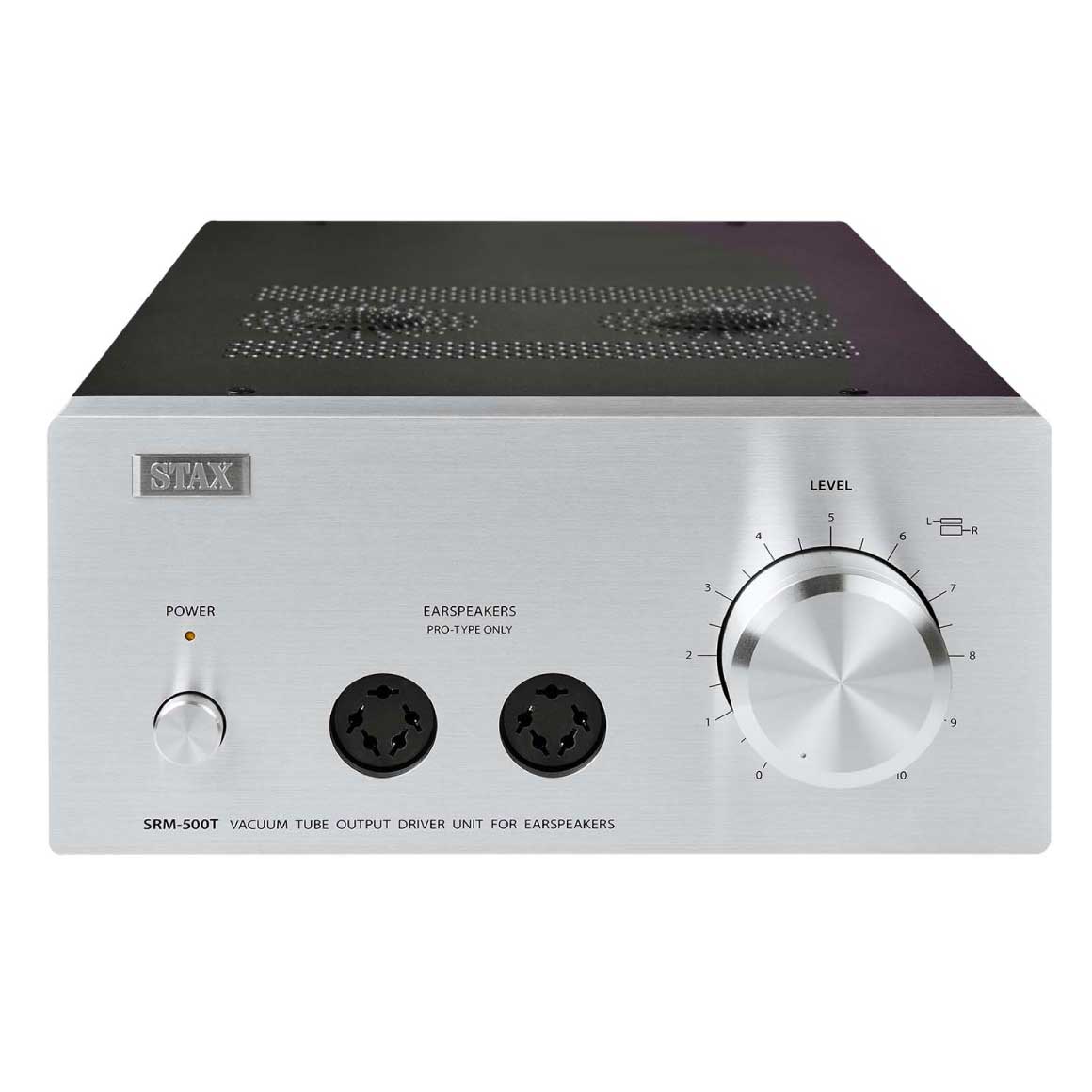

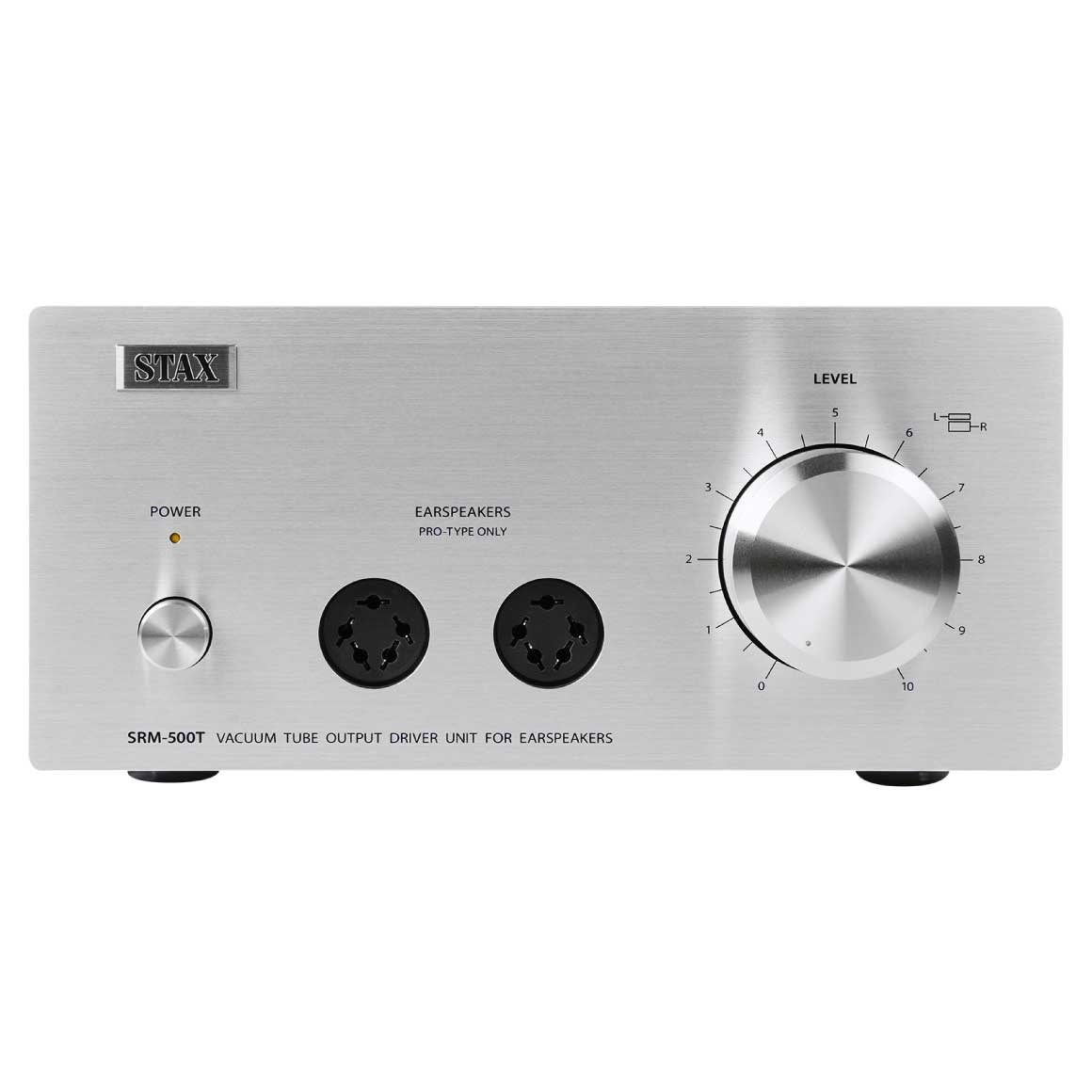

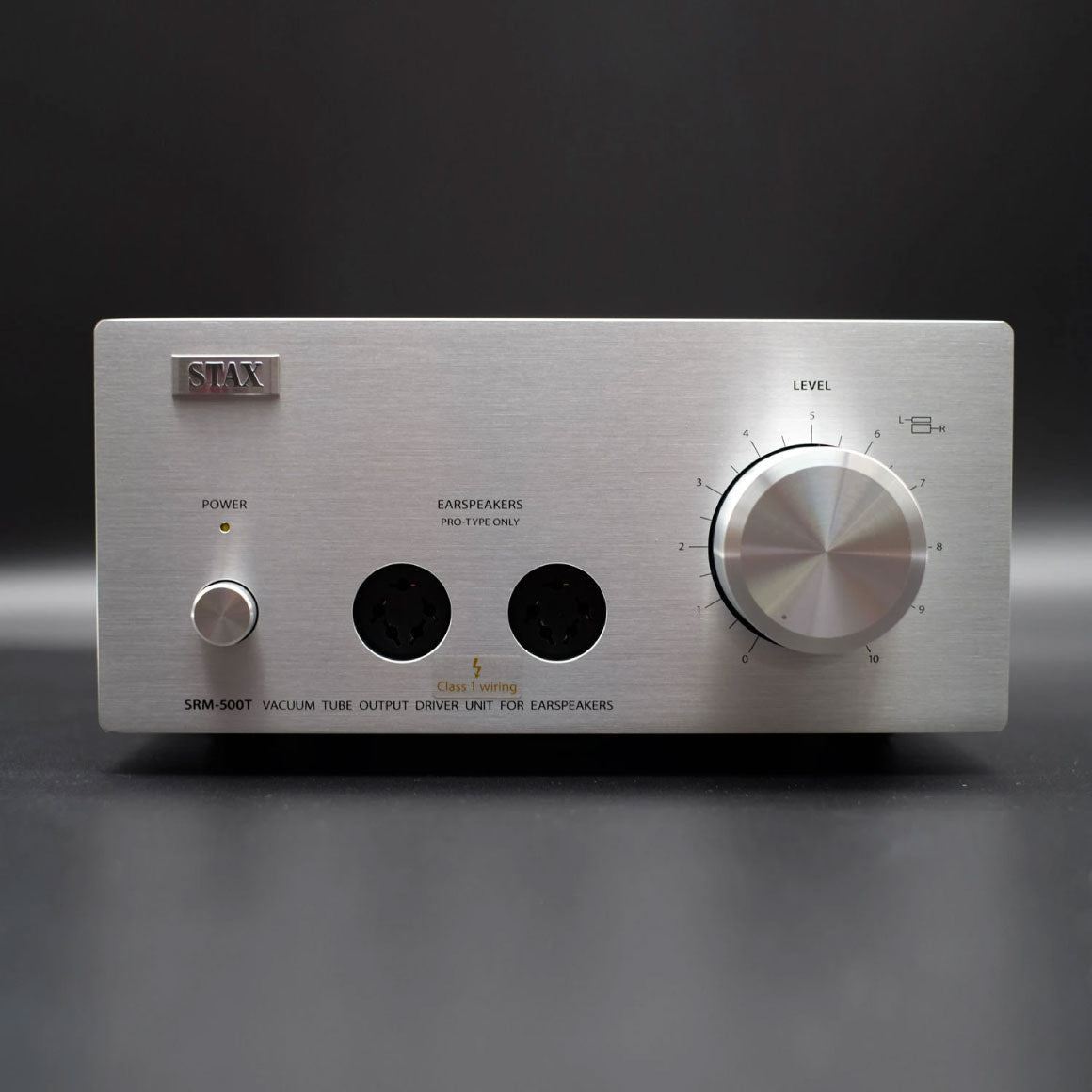

A POWERFUL CHASSIS, DUAL-VOLUME KNOB ALONG WITH RCA & XLR OUTPUTS FOR MORE CONVENIENCE

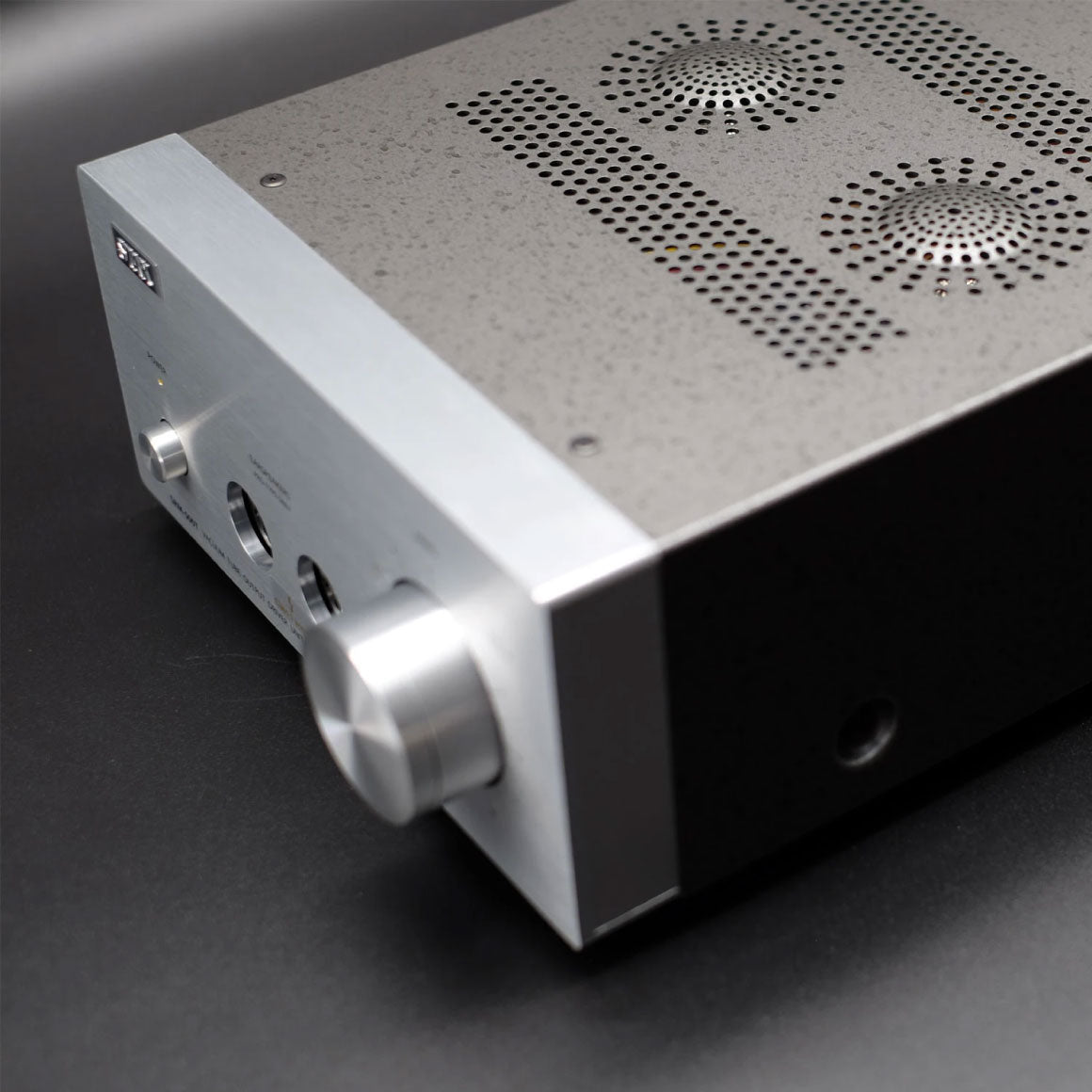

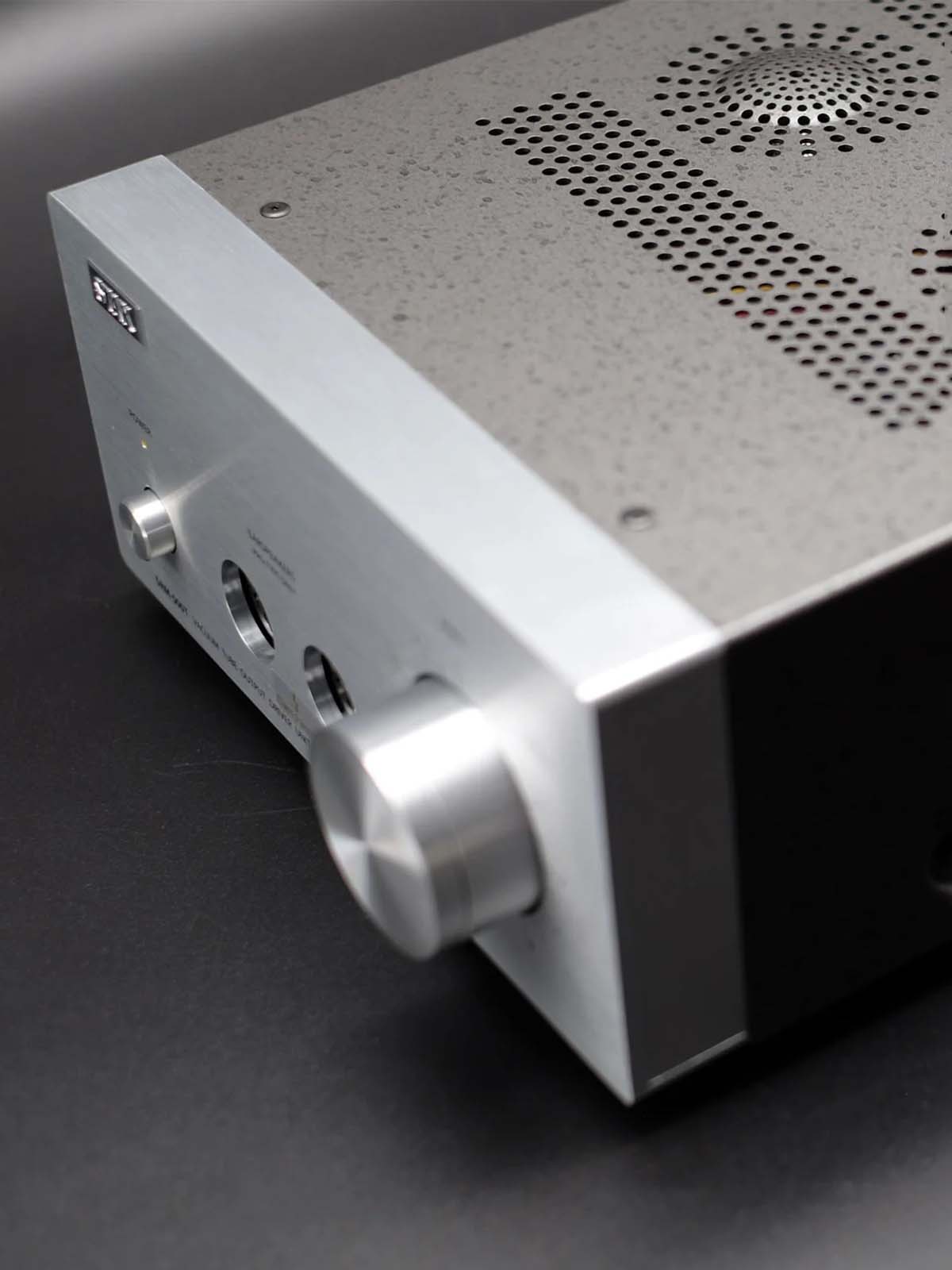

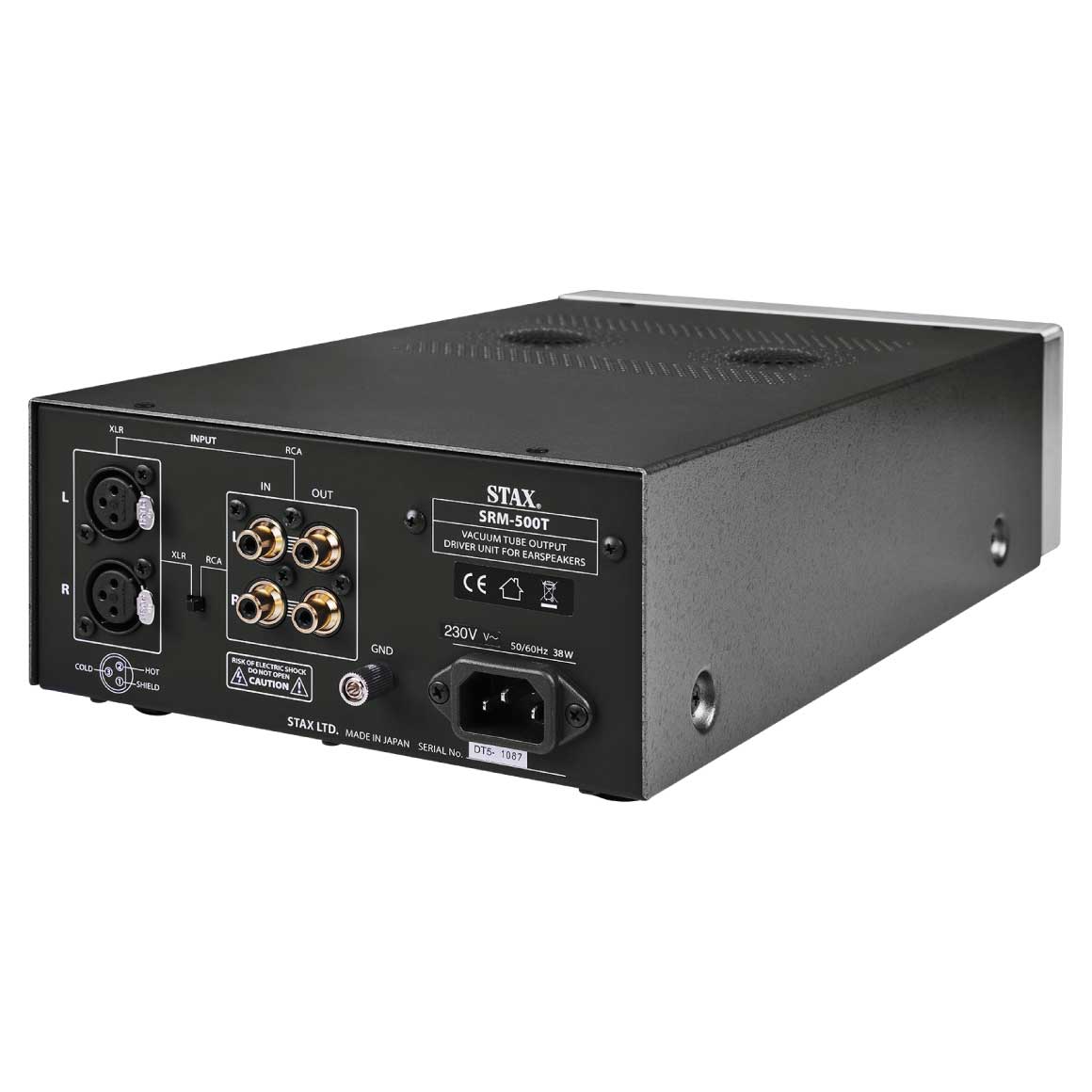

A rigorous and hybrid chassis is also employed in the STAX SRM-500T and it utilises non-magnetic aluminium to eliminate ambient noise and vibrations. Installed with the RCA and XLR mutual exclusion inputs, the SRM-500T also sports a custom-made dual volume knob. This knob along with RCA parallel out functions stays the same as the conventional STAX driver units.
MAKING THE MOST OF TRADITIONAL FEATURES TO OFFER A CLEAR & TRANSPARENT SOUND
One of the biggest traditional features used in the STAX SRM-500T is the comprehensive DC amplifier configuration in the signal circuit that has no coupling condensers. This empowers the SRM-500T to advance superior sound quality and extraordinary performance. With warm and wide audio texture and refined lower mid-range, enjoy your music in a crystal-clear and highly transparent sound.
SPECS
TYPE | FET input + vacuum tube output hybrid DC amplification driver unit |
VACCUM TUBE | 6FQ7/6CG7 |
FREQUENCY RESPONSE | DC - 90 kHz (with one SR-L500 MK2) |
GAIN | 60dB |
HARMONIC DISTORTION | 0.01% or less (1 kHz/100Vrms output) |
INPUT IMPEDANCE | 50kΩ (RCA), 50kΩx 2 (XLR) |
MAXIMUM OUTPUT VOLTAGE | 300Vrms (1 kHz) |
BIAS VOLTAGE | DC 580V |
OPERATING TEMPERATURE / HUMIDITY | 0 to 35 degrees C / less than 90% (non condensing) |

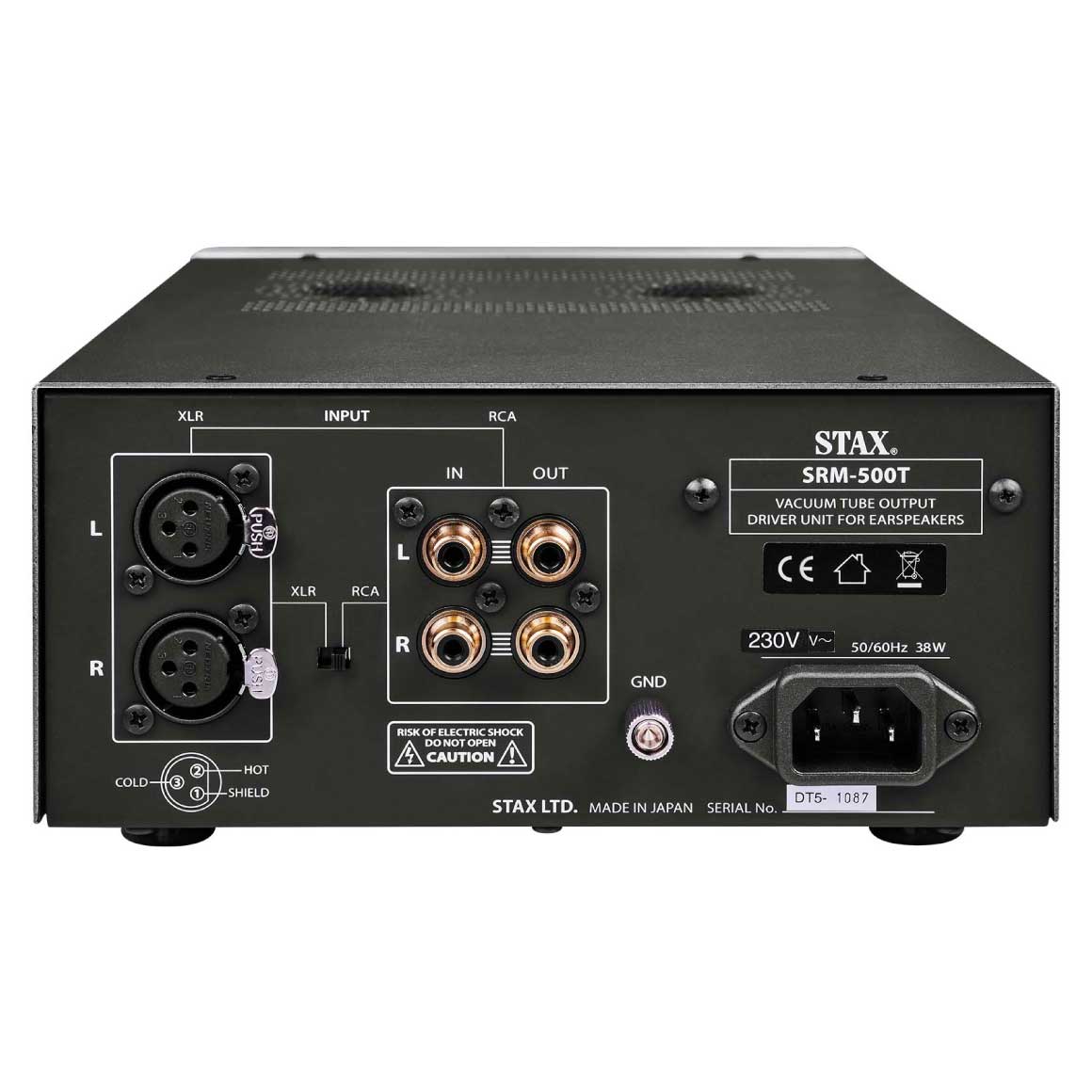

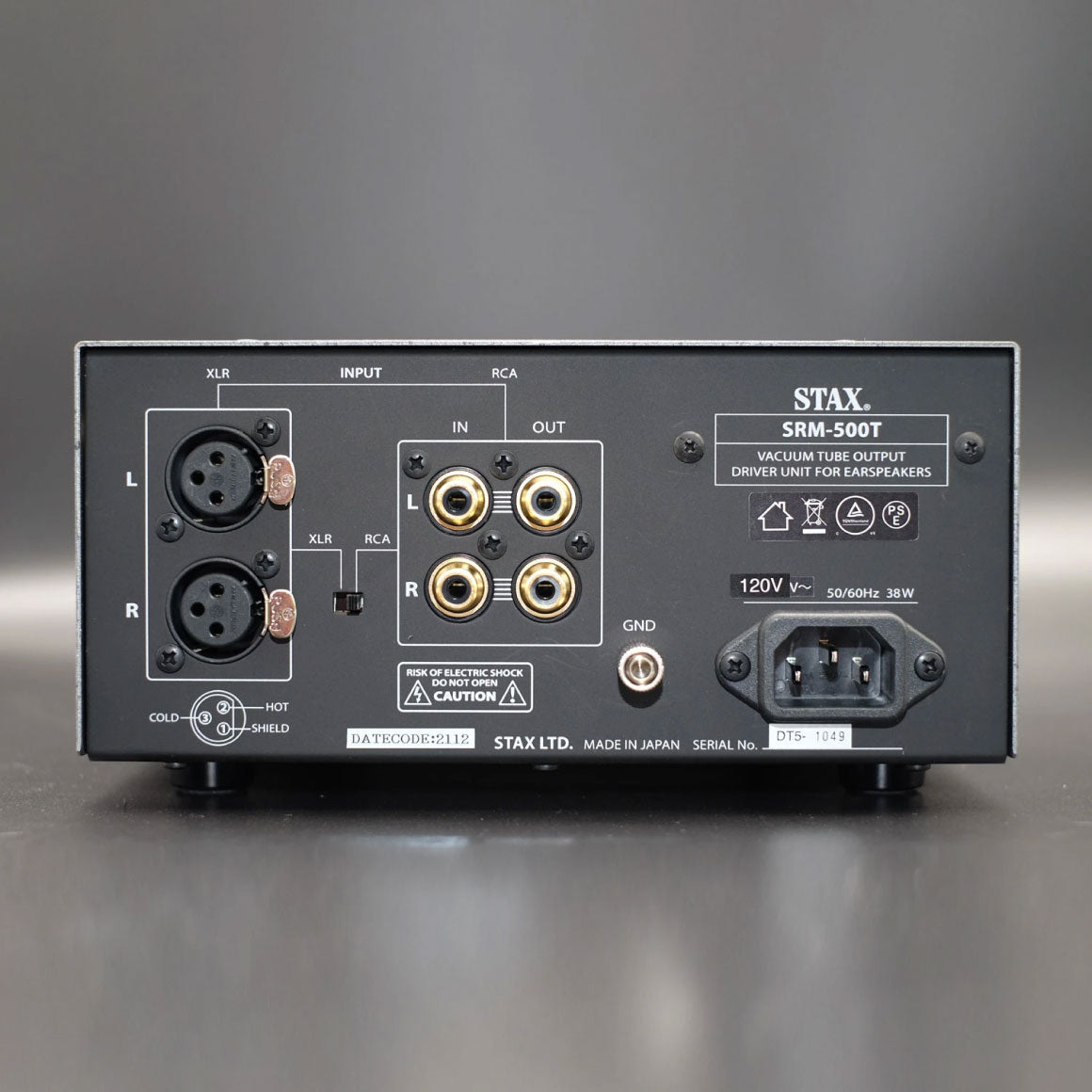

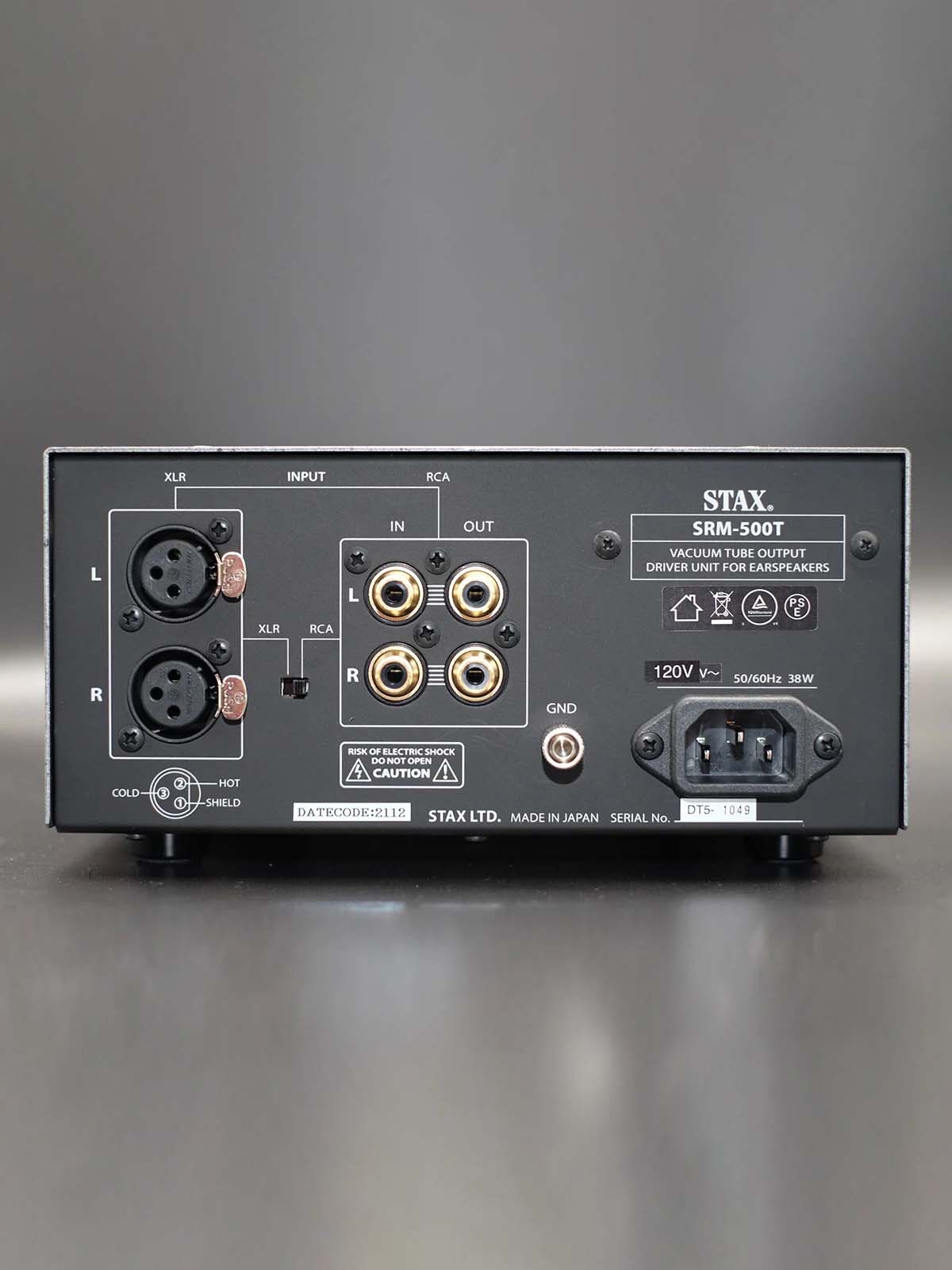

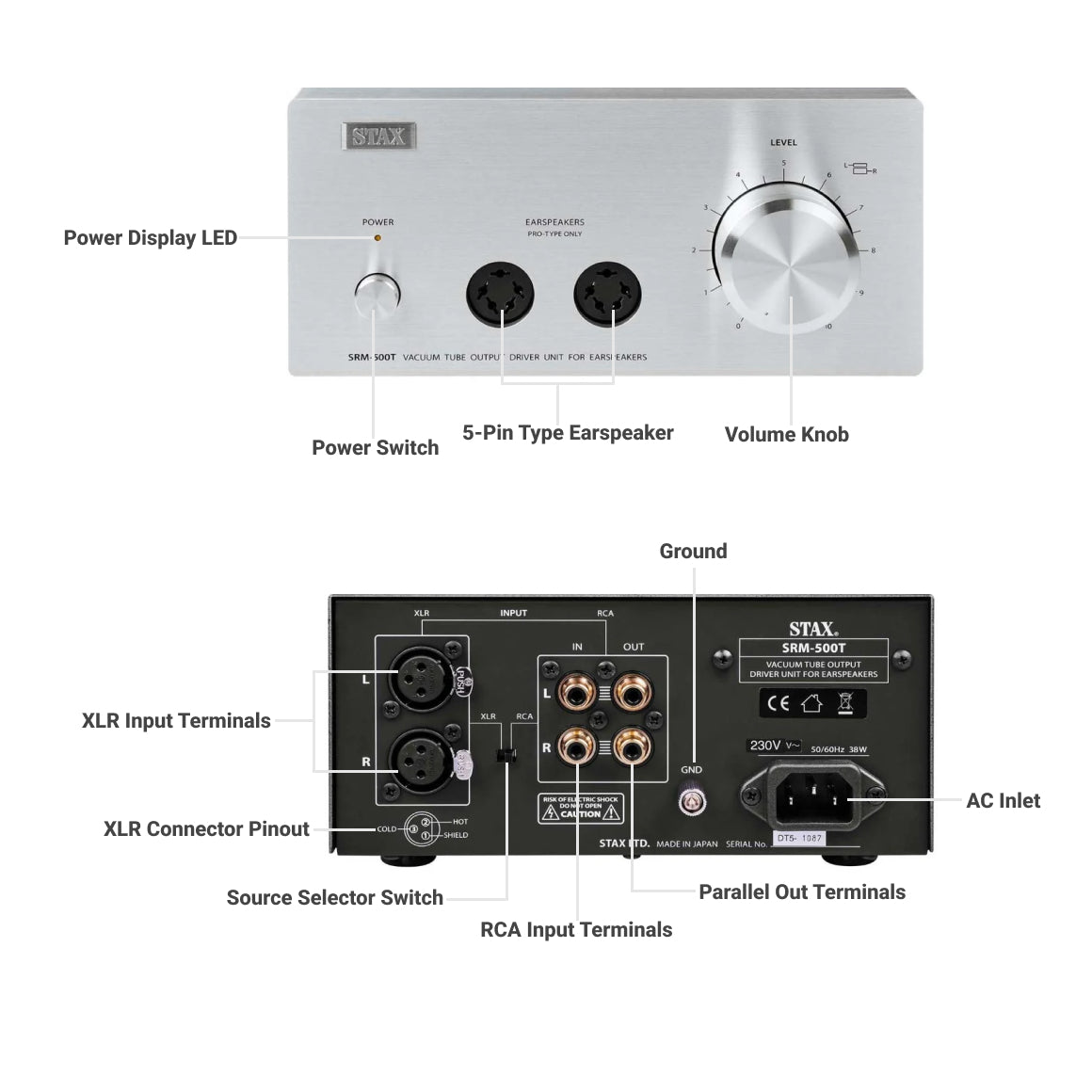

INPUT TERMINAL | RCA x 1, XLR x 1(mutual exclusion input) |
POWER CONSUMPTION | 38W |
OUTPUT | RCA parallel output |
DIMENSIONS | 195 (W) x 102 (H) x 376 (D) mm (maximum protruding portion included) |
WEIGHT | 3.4kg |
BOX CONTENTS | 1. STAX SRM-500T |
OTHER DETAILS
GENERIC NAME | Energiser |
IMPORTER DETAILS | Importers Name: Ferrari Video Address: 63/18, 1st Main Road, Gandhi Nagar, Chennai - 600020 Contact No: 044-24420733 |
NET QUANTITY | 1 |
MANUFACTURER DETAILS | Name: Edifier International Limited Address: Room 2101, 21st floor, The L. Plaza, 367-375 Queen's Road Central, Hong Kong |
PACKAGE CONTENTS | STAX SRM-500T |
User Manual | SRM-500T
Electrostatic Energiser For STAX Heaphones
|
FAQs
What is the warranty? How do I claim it?
All STAX products come with a year warranty. You can simply get in touch with us to claim the warranty.Click here.
What sort of device is the STAX SRM-500T? Why do I need it?
The STAX SRM-500T is a driver unit. A driver unit is like an amplifier. It converts electrical signals from your audio player into music when it reaches your headphones. It is mainly used for headphones and earphones that have a high impedance. Find out more here.
