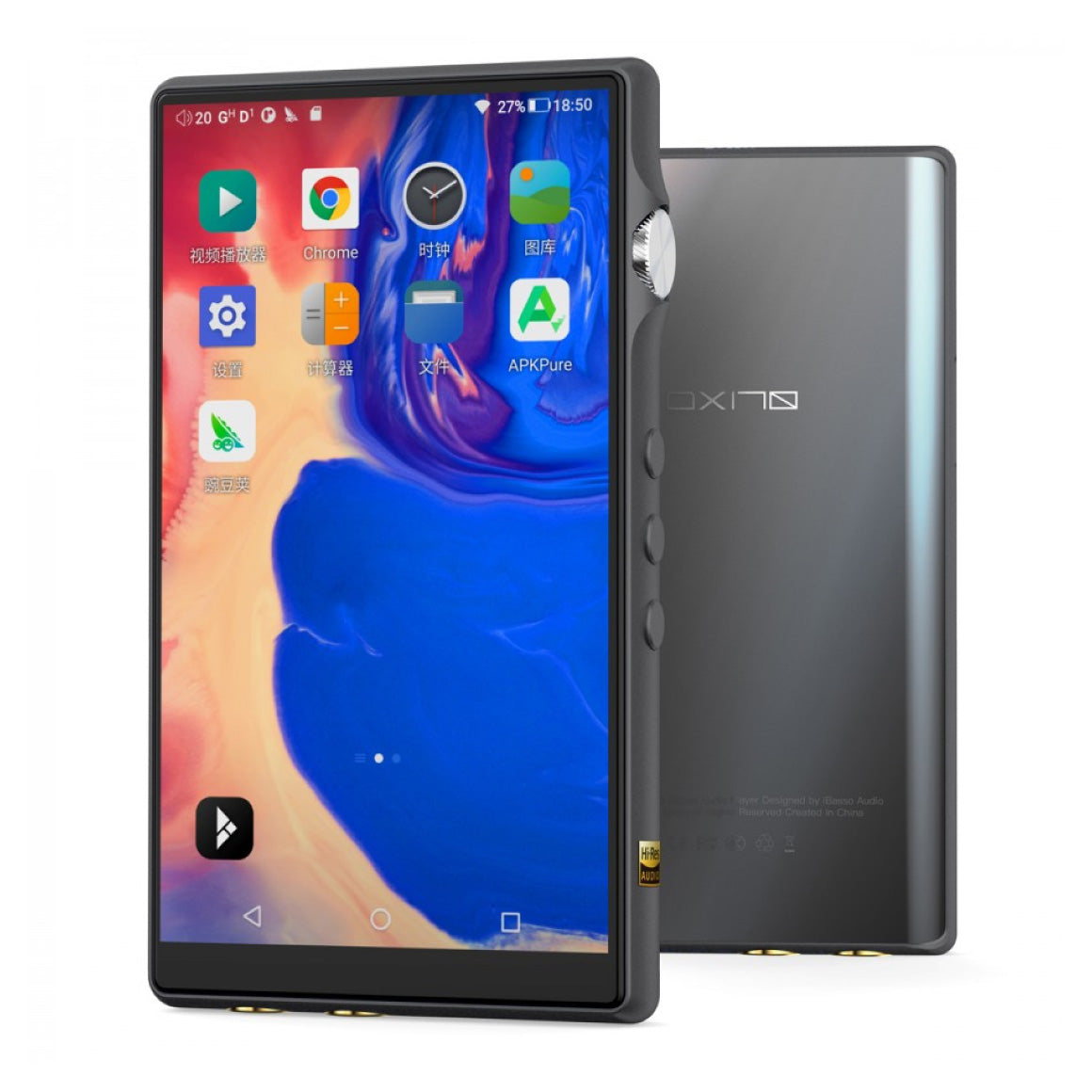

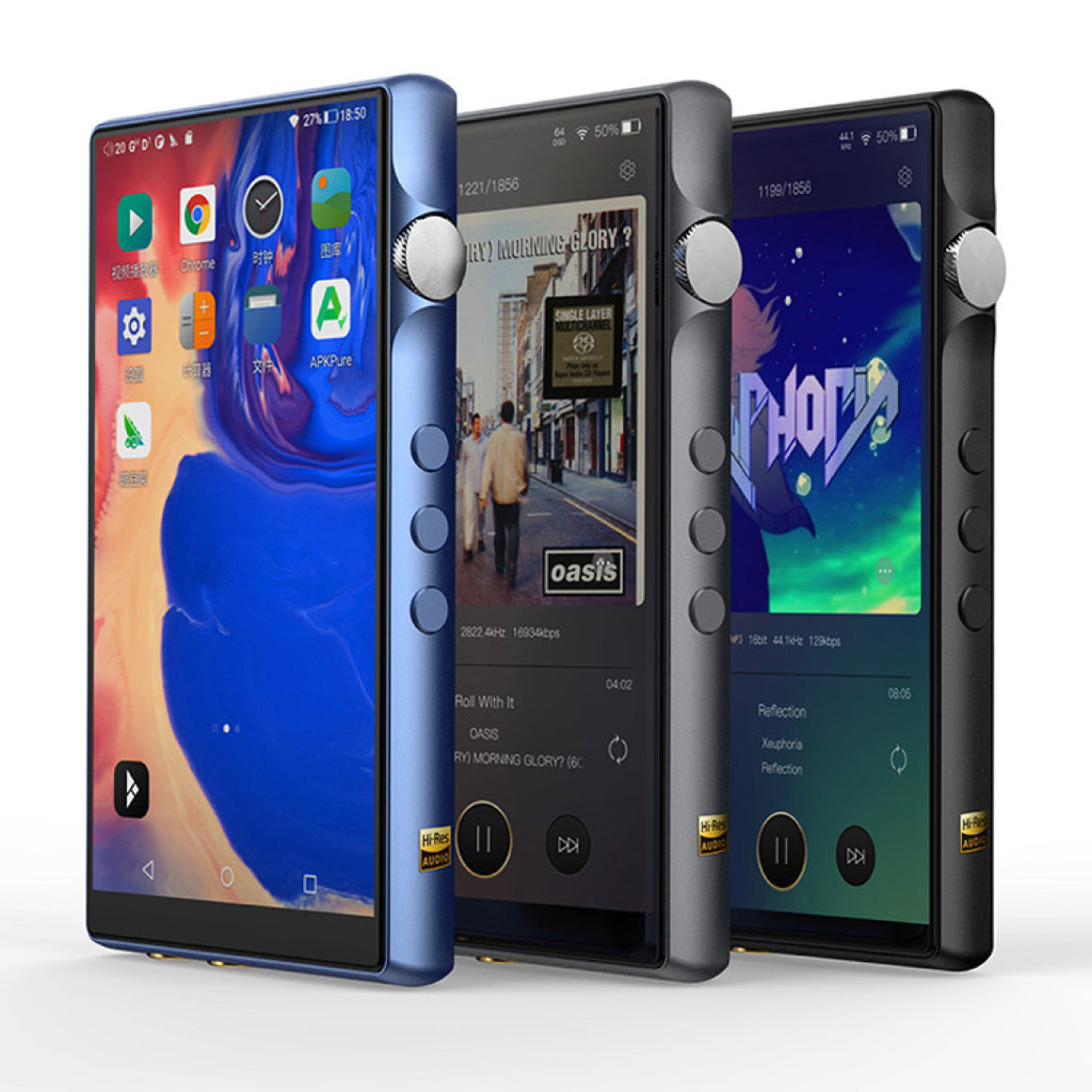

iBasso - DX170
Portable Digital Audio PlayerUnfortunately, even if we desire to, we won't be able to resurrect this product. The Museum is where we pay our respects to end-of-life, old, archived, but not forgotten products. This page was made with a lot of love and will live on for posterity. What to say, we're sentimental people. 😔
While this product is gone forever, here are others we recommend
Why iBasso is Special
Designed in China
Established & Reputed
Trust us, our reputation in the audio world speaks for itself!
This headphone or gear comes from a well-respected brand known for its high-quality audio equipment, so you can be confident in your purchase.
If you see a product marked as “🎖️ Established & Reputed”, it means you're getting a top-tier device from a brand that's earned its stripes in the audio industry.
Born in 2006
Why we love this DAP
Premium Economy
Sensible spending and class above in quality.
This headphone or gear offers top-notch sound and performance without much impact on your pocket, promising a delightful experience that exceeds your expectations at an economical price point.
If you see a product marked as “💎 Premium Economy," it indicates that you're getting a high-quality audio product with exceptional sound clarity and reliable performance, all at a budget-friendly price.
For Enthusiasts on a Budget
We are here to help you find the best bang for your buck.
This headphone or gear is made for all passionate hobbyists who want top-notch gear without breaking the bank.
If you see a product marked as “🪴 For Enthusiasts on a Budget”, get ready to indulge in your music with high-quality, affordable products that keep your wallet happy and your enthusiasm alive!
Audiophile Community Favourite
This headphone or gear has a seal of approval from our audiophile community.
It is hit among the pickiest of audio enthusiasts. It comes with two thumbs up and is the community’s and one of our favourites.
If you see a product marked as “🦋 Audiophile Community Favourite”, you're in for a sonic treat with top-tier sound quality that will make your ears swoon and elevate your listening experience to new heights!
Use Wirelessly with Bluetooth
Enjoy the convenience of seamless wireless connectivity
This headphone or gear indicates that the product supports wireless connectivity via Bluetooth, freeing you from the tangles of cords and cables.
If you see products marked as “✂️ Use Wirelessly with Bluetooth”, enjoy the freedom to stream music, make calls, and more, all without being tethered to your device, giving you the flexibility to move around and multitask with ease.
Battery Life
No need to be connected to the power socket with these devices.
This headphone or gear promises long-lasting battery performance, ensuring your device keeps up with your adventures without missing a beat.
If you see products marked as “⏳ Battery Life”, be rest assured that you'll enjoy extended usage time, whether it's for uninterrupted music playback, extended gaming sessions, or all-day productivity, keeping you powered up throughout your day.
Battery Capacity
Power that keeps your music going.
This headphone or gear has ample battery capacity, promising you plenty of juice to power through your day with gusto.
If you see products marked as “🔋 Battery Capacity”, rejoice in the knowledge that your device is equipped with a robust battery, providing you with extended usage time and reducing the frequency of recharges, so you can focus on your favourite tracks.
Storage
Storage is important. Even in this era of streaming music, you’d want to make sure you have enough space to store your amazing collection of music on your player. Imagine a long flight, it’s your offline files you’re going to be listening to.
Keeping your entire collection of Hi-Resolution music in one place is the most convenient way of carrying your music library. However, Hi-Resolution files are heavy. Most songs in a FLAC format can be about 100mb per track. So more space is always better.
Most players support both internal storage and expandable storage via an external memory card. Make sure you check both - the internal memory on players, and consider the maximum supported size of the expandable storage. It’s best to keep your library of offline files in expandable storage and use the internal storage for saving files from streaming apps.
At the time of writing this article, MicroSD cards for 256 GB were easily available and affordable for less than Rs. 2000. Higher capacity cards are also available, but that seems to be the sweet spot.
Built like a Tank
No need to worry about durability.
If you're seeking a headphone or gear with a strong, rugged build, this snapshot indicates that this is the one for you.
If you see a product marked with “🪖 Built like a Tank", it means this product is crafted with metal in its design, ensuring exceptional robustness and durability.
Why it Sounds Amazing
DAC Chip
Know the secret to your pristine audio.
This headphone or gear reveals the secret sauce behind superior audio quality, highlighting the presence of a high-performance DAC chip for pristine sound reproduction.
If you see products marked as “⚙️ DAC Chip”, expect to experience your music with unparalleled clarity, detail, and fidelity, ensuring that every note and nuance is faithfully reproduced for your listening pleasure.
Power Output
When you need that juice to get the best out of your products.
This headphone or gear packs a punch, revealing the product's impressive power output capabilities, ensuring it can handle even the most demanding products with ease.
If you see products marked as “🚀 Power Output”, you're in for a treat with robust performance for driving high-fidelity products without breaking a sweat.
DESCRIPTION
COMING AS A SUCCESSOR TO THE DX160, IBASSO INTRODUCES THE ALL-NEW AND UPGRADED DX170
iBasso is renowned for creating reference-level DAPs that have served as industry benchmarks. The team of experts at iBasso, engineers products that go through extensive research and development before being made available to consumers. The DX170 is an improvement to the original DX160, which was a success for iBasso. The brand-new DX170 is a DAP and was developed using more than ten years of tuning and design expertise, building on the remarkable performance of earlier generations. With a new, faster Rockchip SoC, new Cirrus Logics DAC Chips, an updated Android OS, and many other features, iBasso has entirely redesigned its mid-level series. The DX170 hosts recent Cirrus Logic audio decoding DAC chips. In contrast to the DX160, which had two CS43198 DAC chips, the new DX170 has dual CS43131 DAC chips, which are part of Cirrus Logics' most recent DAC generation. The iBasso DX170 is a suitable successor with comparable sound qualities, the latest version of Android, and a more user-friendly UI.
FEATURES DUAL CIRRUS LOGIC DAC CHIPS AND 8X MQA SUPPORT TO PRESENT CLEAN AND PRISTINE SOUND
On the DX170, iBasso included a Dual DAC chipset. The dual CS43131 DAC chips are built into the DX170 to offer exceptional performance with extremely low THD+N and high SNR values. These 32-Bit DAC chips deliver the highest calibre of audio signal decoding possible! With careful tuning and adjustment, the DX170 not only maintains the transparency and exquisiteness of CS43131 but also improves the melody and realism of the music, whether you're utilising the 3.5mm single-ended or 4.4mm balanced output. The iBasso DX170 supports native DSD256 signals, high-resolution 32-bit/384kHZ PCM signals, and full 8x MQA decoding. Prepare to enjoy your favourite Hi-Res audio anytime, anyplace, with the DX170.
UTILISING FPGA MASTER TECHNOLOGY TO DELIVER JITTER-FREE AUDIO
The FPGA-Master technology created by iBasso is used by the DX170. As the SoC's (System On Chip) audio system controller, the FPGA-Master is crucial to signal reproduction and maintaining signal integrity. It does so by directly requesting audio data from the SoC. Utilising two NDK femtosecond oscillators, it synchronises and creates all audio clocks simultaneously to produce a fully synchronised single clock source. In addition, jitter is drastically reduced by the FPGA and NDK oscillators, delivering a clean digital audio signal.
ENJOY A SEAMLESS WIRELESS LISTENING EXPERIENCE WITH BLUETOOTH 5.0 + 5G WIFI SUPPORT ALONG WITH DUAL OUTPUTS
With the introduction of wireless technology, the world has gone surreal for streaming music without having to deal with the annoyance of wires. The engineers created the DX170 with Bluetooth and WiFi capabilities so that consumers can stream music wirelessly. Thanks to an upgraded internal antenna, the DX170 provides outstanding coverage. The DX170 supports 2.4 & 5 GHz (b/g/n/ac) with WiFi6. The DX170 has Bluetooth 5.0 capability, as well as an improved antenna that allows for longer transmission distances and stronger signals. The DX170 hosts a 3.5mm Single-Ended and 4.4mm Balanced Output delivering an output power of 3.5mm Single-Ended and 4.4mm Balanced Output, respectively.

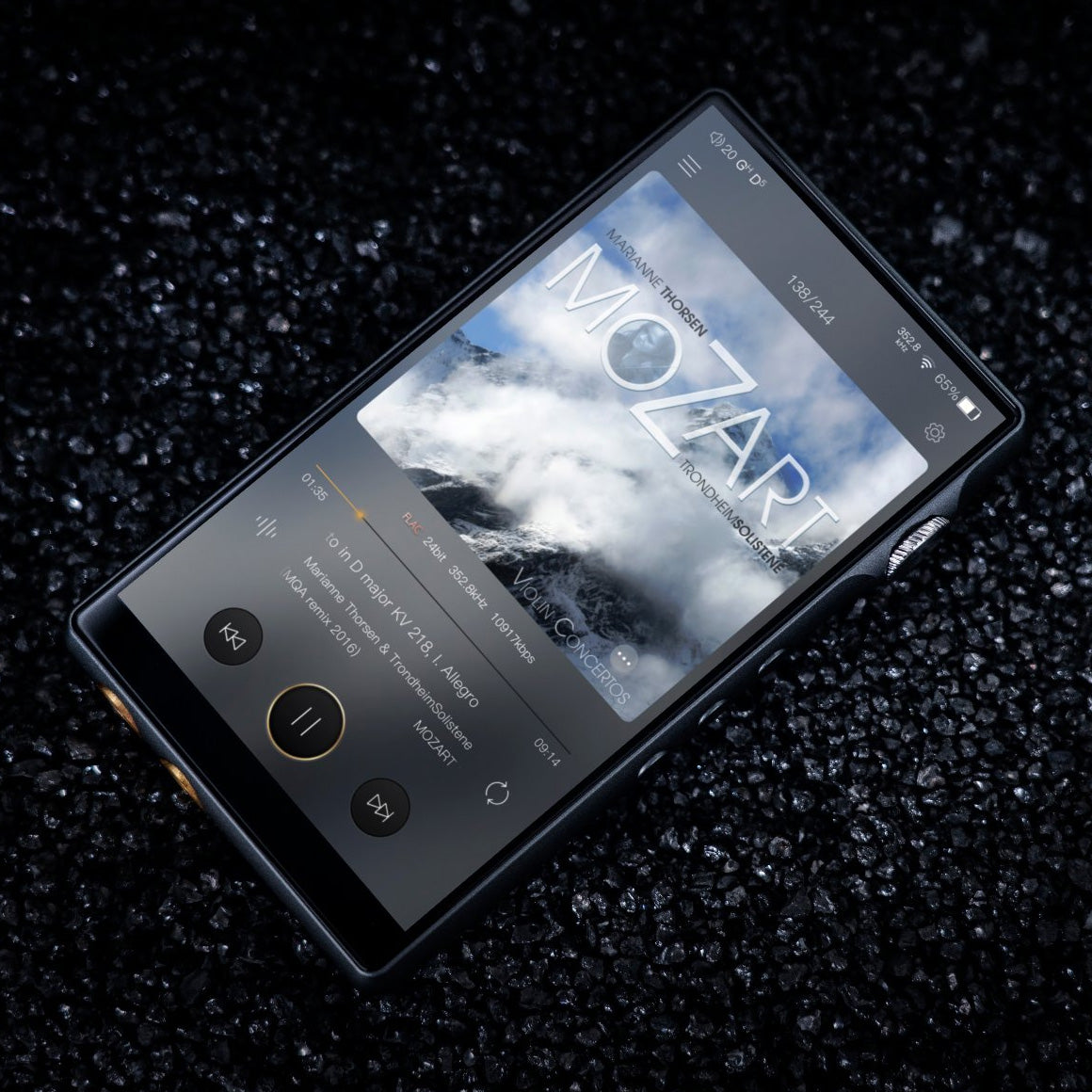

DELIVERING A WHOPPING 11 HOURS OF PLAYTIME AND EMBEDDED WITH 5 INCH SCREEN
What's the most important aspect of portable digital audio players? The way they sound, yes, definitely, but you need enough battery power for an uninterrupted listening experience. This is what the engineers at iBasso paid attention to in engineering DX170 to accommodate a 3.8V 3200 mAh battery delivering up to 11 hours of playtime. However, the play time varies with different resolutions, volume used and headphone/IEM loads. The DX170 supports USB3.0. How about you owning a DAP that has a high-resolution screen with touch controls? You have nowhere to look for as the iBasso DX170 features a 5-inch full-screen display with a thin bezel and with In-Call capacitive touch panel. The screen resolution is 1080P Full HD, with superior colour reproduction in digital audio players.

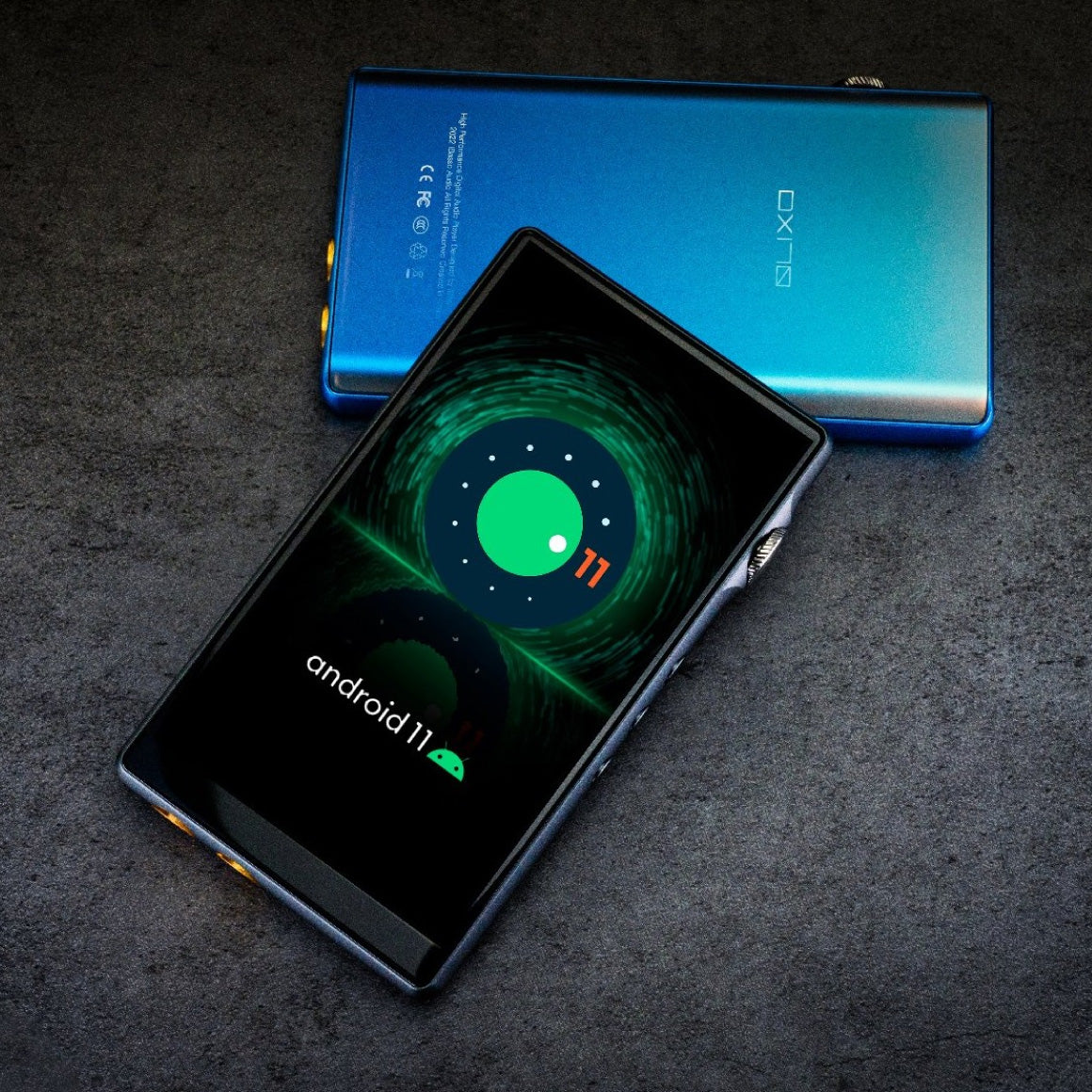

EXPERIENCE SMOOTH PERFORMANCE WITH ROCKCHIP QUAD-CORE SOC AND ANDROID 11 OS
The latest DX170 has a high-end SoC chip created by Rockchip in its core. The DX170 comes with a Rockchip RK4566 4-core SoC chip from iBasso. It is a chipset that offers a fluid user interface and supports multitasking. The DX170 runs on the latest Android 11 operating system. Due to the quick system responsiveness, it is seamless to use. The Android 11 system debuted in the mid-range player, with a more smooth and intuitive user interface. Users are free to install APKs and take advantage of internet streaming's convenience. The DX170 uses a "Non-SRC" version of Android 11 and inherits the system architecture of iBasso players. The DX170 has 2GB RAM and 32GB built-in storage with an extended micro SD card slot, making it easy to install more apps and store lossless files. The iBasso - DX170 is as smooth as some of the latest smartphones available on the market, making the user interface lively and fast.
SPECS
DAC | Dual CS43131 |

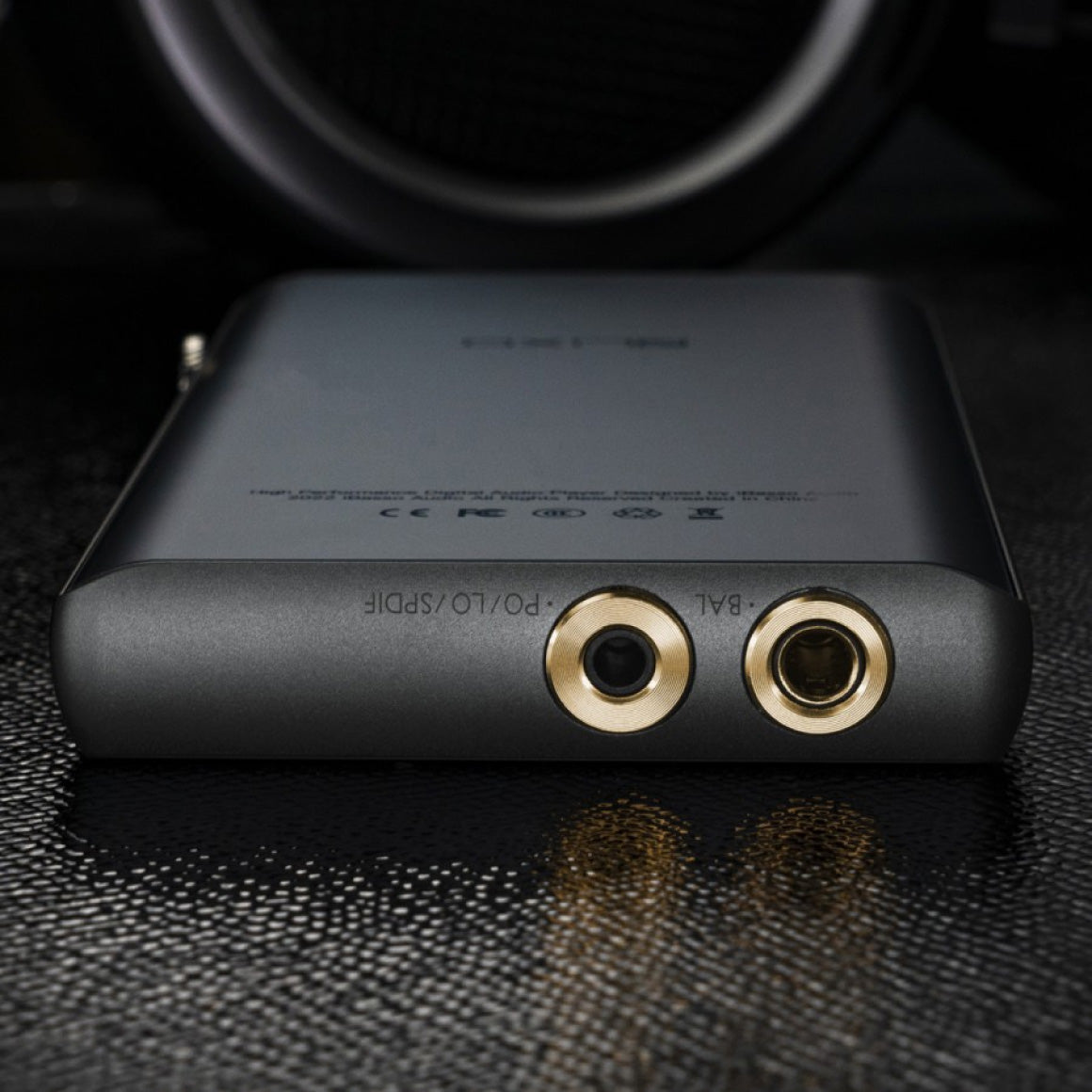

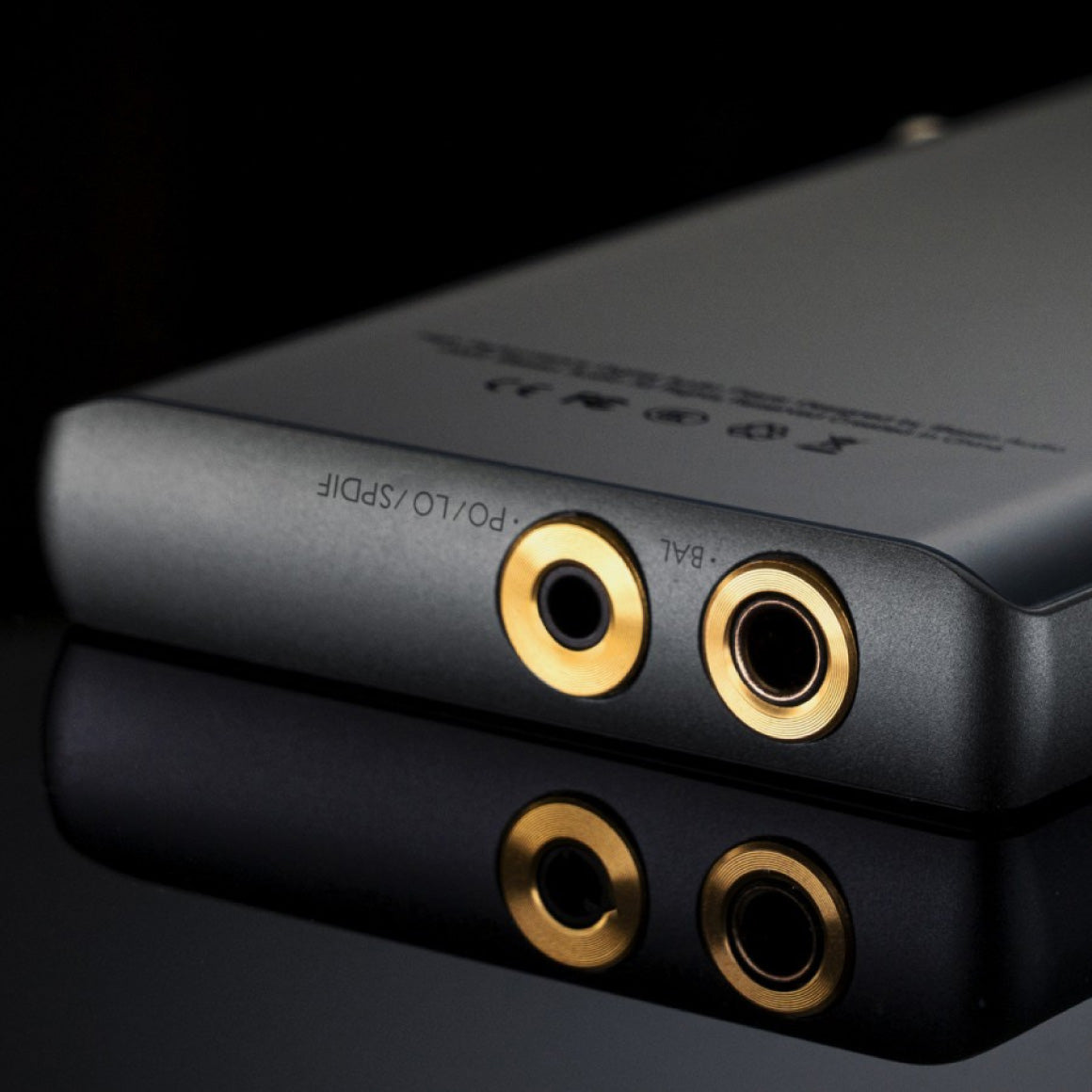

OUTPUT PORTS | 3.5mm phone out/line out/coaxial out, 4.4mm balanced phone out, USB output |
SCREEN | Sharp 5.0inch, 1080*1920P, with on-cell capacitive touch panel |
SAMPLE RATE | PCM: 8kHz - 384kHz (8/16/24/32bits) |
NATIVE DSD | DSD64/128/256 |
SOC | RK3566 |
RAM | 2G |
ROM | 32G |
MICRO SD | Support SDHC & SDXC up to 2TB |
WIFI | 802.11b/g/n/ac (2.4GHz/5GHz) |
BLUETOOTH | V5.0 |
QUICK CHARGE | QC3.0, PD2.0, & MTK PE Plus quick charge, support 12V, 9V/1.5A quick charge and compatible with BC1.2 USB charge |
USB DAC FUNCTION | PCM: 8kHz - 384kHz (8/16/24/32bits)
DoP DSD64/128 |
AUDIO FORMATS SUPPORTED | MQA, APE, FLAC, WAV, WMA, AAC, ALAC, AIFF, OGG, MP3, DFF, DSF, DXD, CUE, ISO |
SIZE | 124.5mm*70mm*15mm (4.9inch*2.76inch*0.59inch) |
WEIGHT | 165g (5.82oz) |
AVERAGE PLAY TIME | 11 hours. (The play time varies with different resolutions and headphone/IEM loads.) |
OUTPUT LEVEL | 6.4Vrms |
FREQUENCY RESPONSE | 10Hz~40kHz +/-0.15dB |
S/N | 130dB |
THD+N | 0.00022% (no load)
0.00022% (32Ω load, 3Vrms) |
CROSSTALK | -125dB |
OUTPUT LEVEL | 3.2Vrms |
FREQUENCY RESPONSE | 10Hz~40kHz +/-0.15dB |
S/N | 125dB |
THD+N | 0.0004% (no load)
0.0007% (32Ω load, 3Vrms) |
CROSSTALK | -115dB |
OUTPUT LEVEL | 3.2Vrms |
FREQUENCY RESPONSE | 10Hz~40kHz +/-0.15dB |
S/N | 125dB |
THD+N | 0.00035% (no load) |
CROSSTALK | -113dB |
BOX CONTENTS | 1. iBasso DX170 Player |
2. USB C Cable | |
3. Clear TPU Protection Case | |
4. Screen Protector | |
5. Quick Start Guide | |
6. Warranty Card |
