The Next Level All-In-One Flagship Device That Makes Your Music Listening Experience A Pure Delight

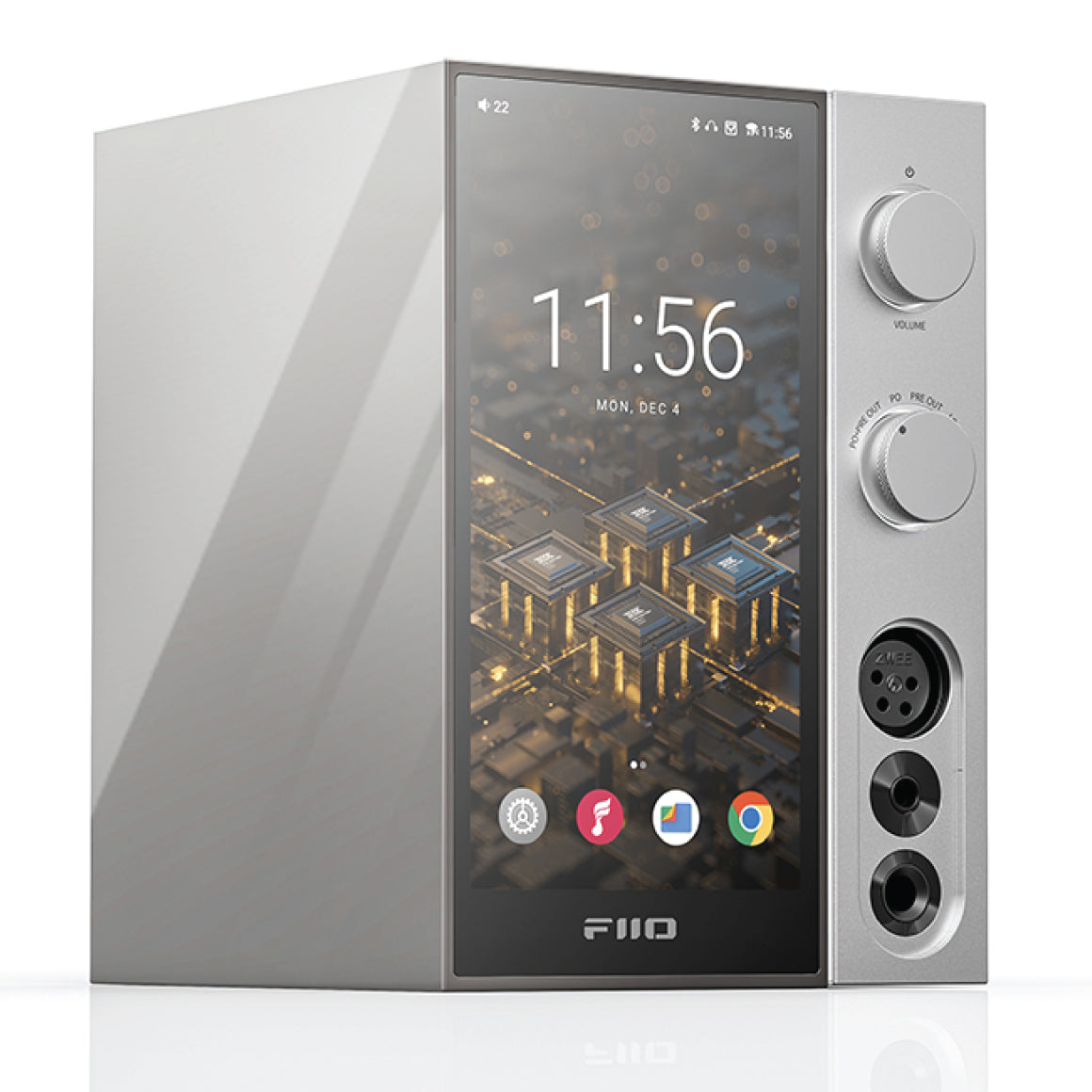

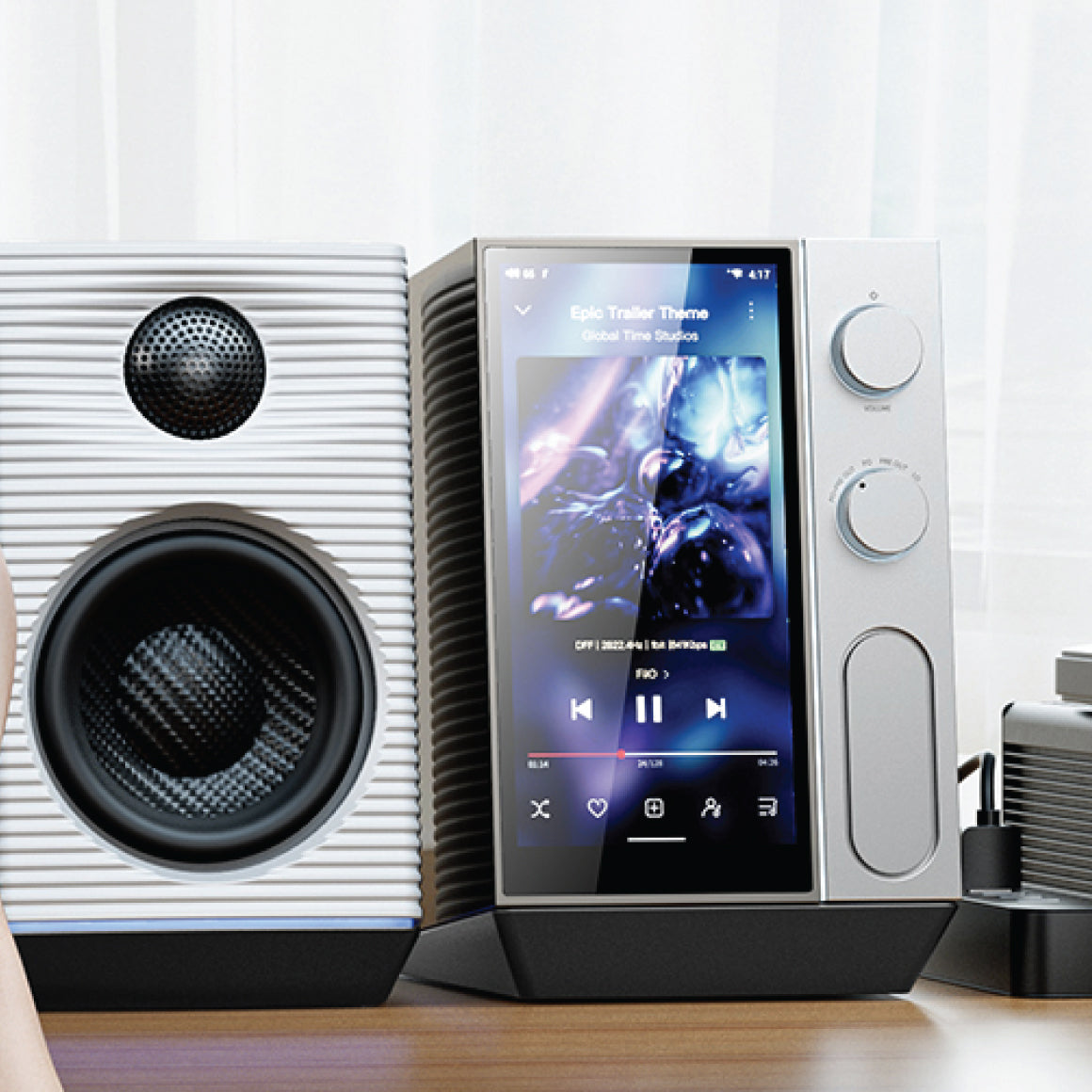

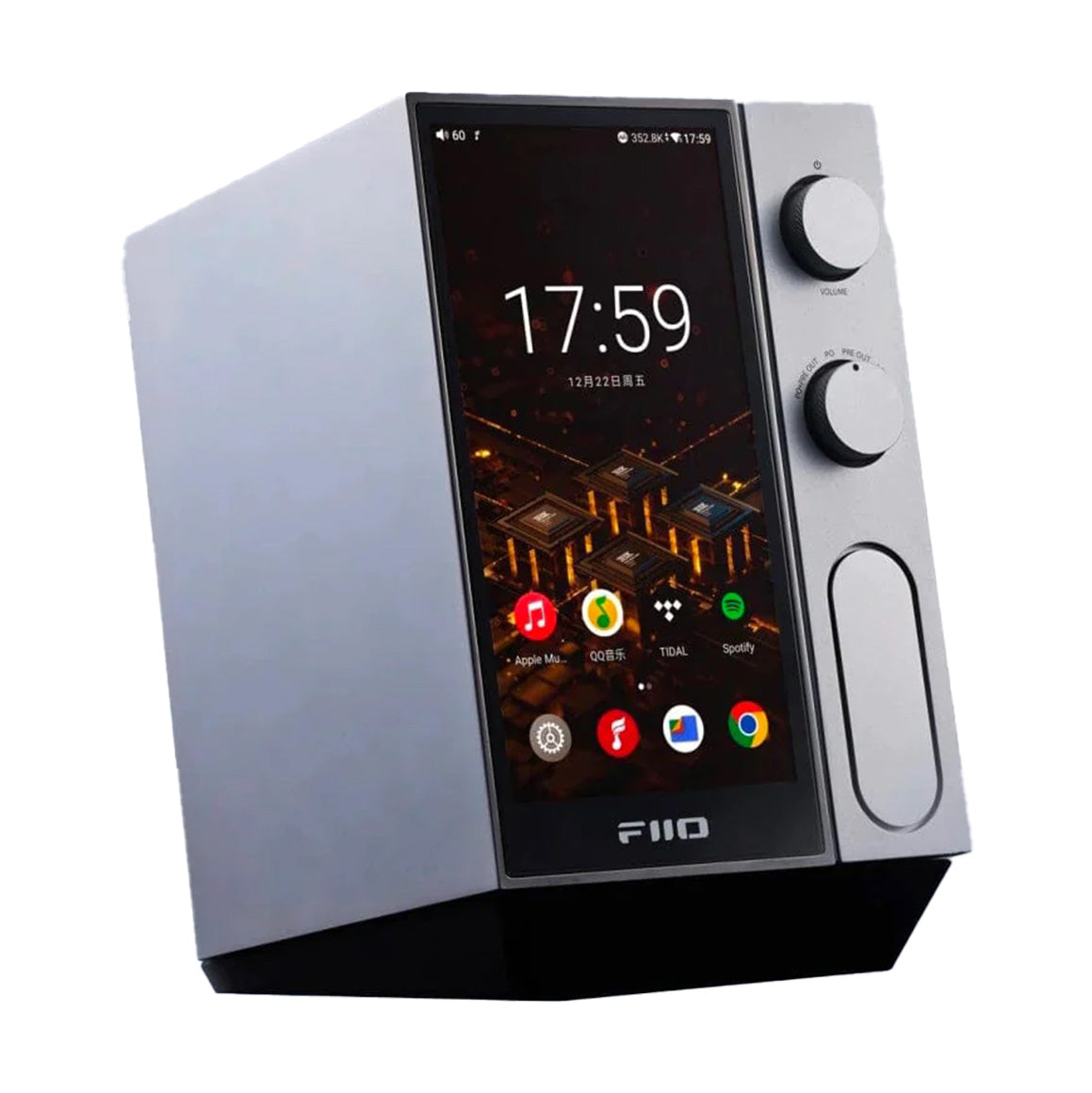

The FiiO R9, a top-tier all-in-one digital media streamer, seamlessly combines flagship-grade transmission, decoding, headphone amplification, and preamp features in a single device, boasting an extensive array of inputs and outputs, ten operating modes, an Android open OS, a 6-inch FHD+ Portrait screen, and a luxurious metal bicolor design for a thoroughly enhanced desktop HiFi experience.

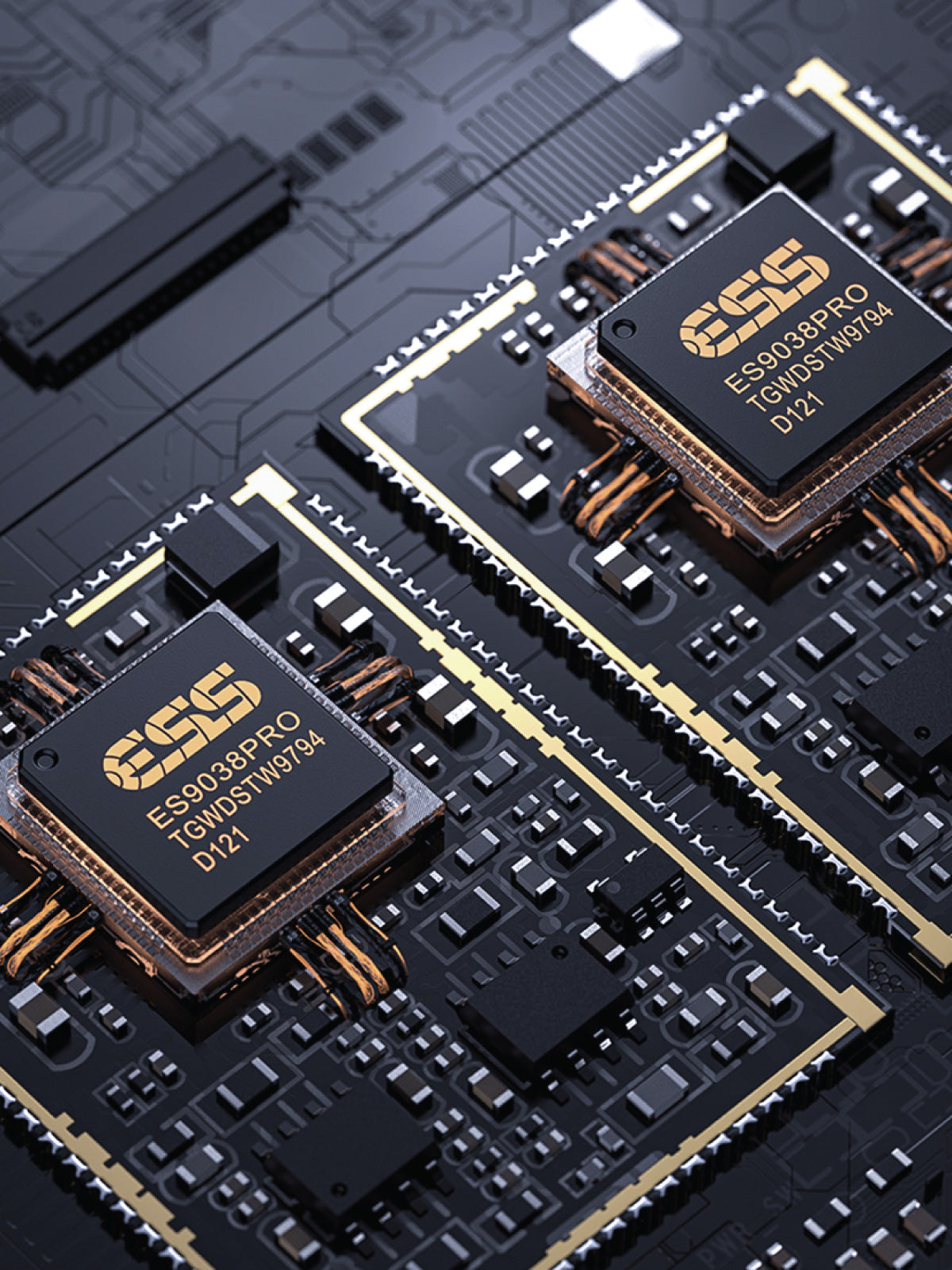

Utilizing the proven ES9038PRO DAC featured in previous models like M17, Q7, K9 Pro SS, and M15S, the R9 leverages dual ES9038PRO DACs, dedicated to the left and right channels. Each DAC chip comprises 8 independent D/A converters, arranged in parallel for fully differential output, delivering precise, clear, and full sound quality with impressive -122dB THD+N and 132dB DNR.
Featuring an advanced 8-channel THX AAA 788+ headphone amplifier, the R9 employs a four-way fully balanced design, with headphone amps connected in parallel for improved transient performance. The optimized circuit layout and efficient heat dissipation, facilitated by comb-shaped heat sinks, enable continuous and stable high-power output, reaching an impressive 7300mW per channel at 32 ohms, marking a 102% increase compared to the R7.
The FiiO R9 achieves remarkable audio performance through its five-stage audio architecture, featuring precision-crafted IV, LPF, gain, pre-amplification, and current expansion stages. Utilizing OPA2211 op-amps manufactured with the silicon-germanium (SiGe) CMOS process, the chip ensures exceptional performance. With a variable gain and variable power supply voltage design, the R9 offers 5 levels of gain, providing precise control over your preferred listening volume. Whether using IEMs or demanding headphones, a superior listening experience is guaranteed.

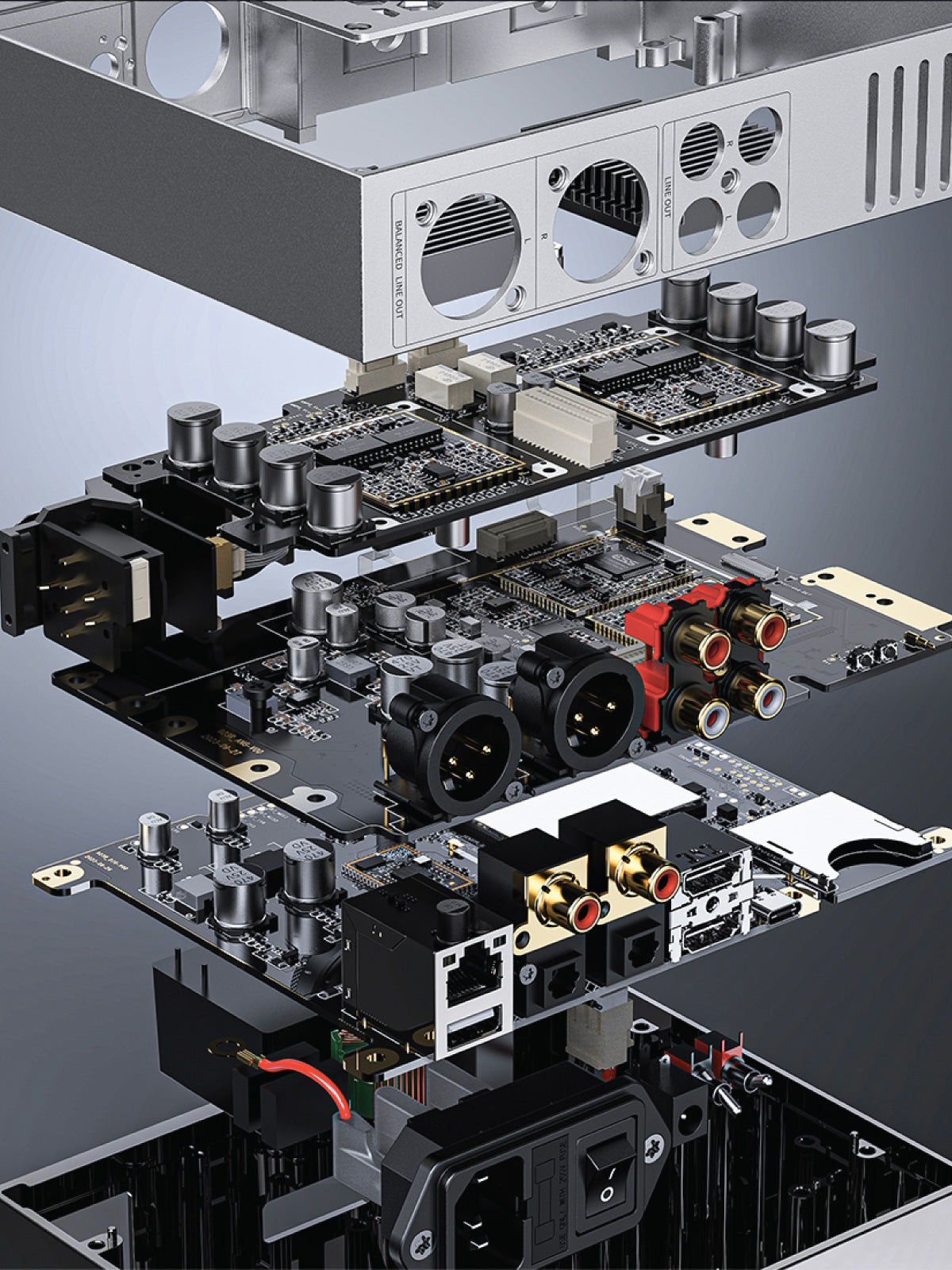

The R9 incorporates separate boards for its internal power supply, digital components, DAC, and headphone amplifier, with additional metal shields isolating the DAC and THX headphone amp sections. This meticulous separation of the four crucial elements in the audio circuit prevents crosstalk, guaranteeing accurate, clean, and dynamic audio signal processing and output.

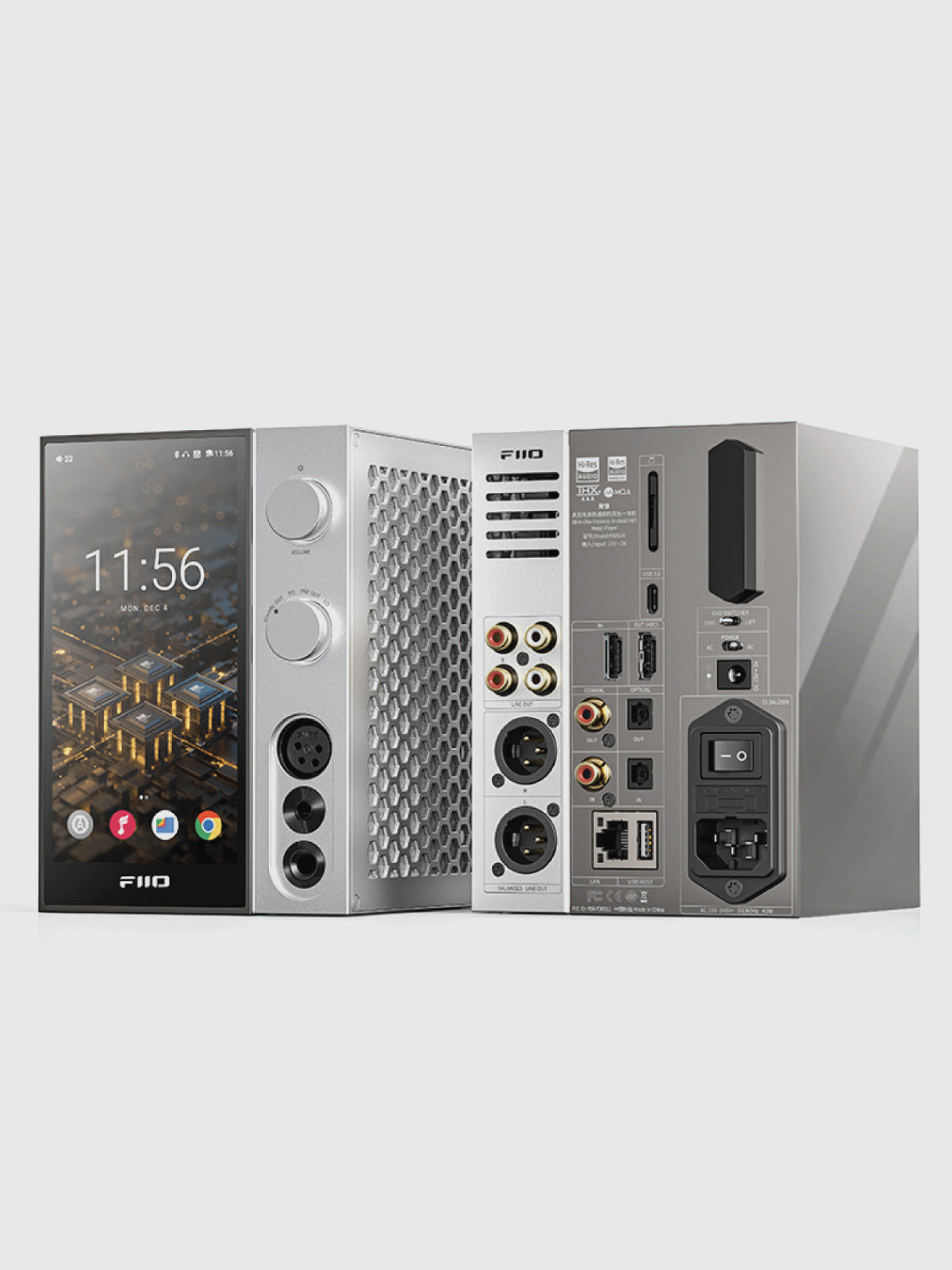

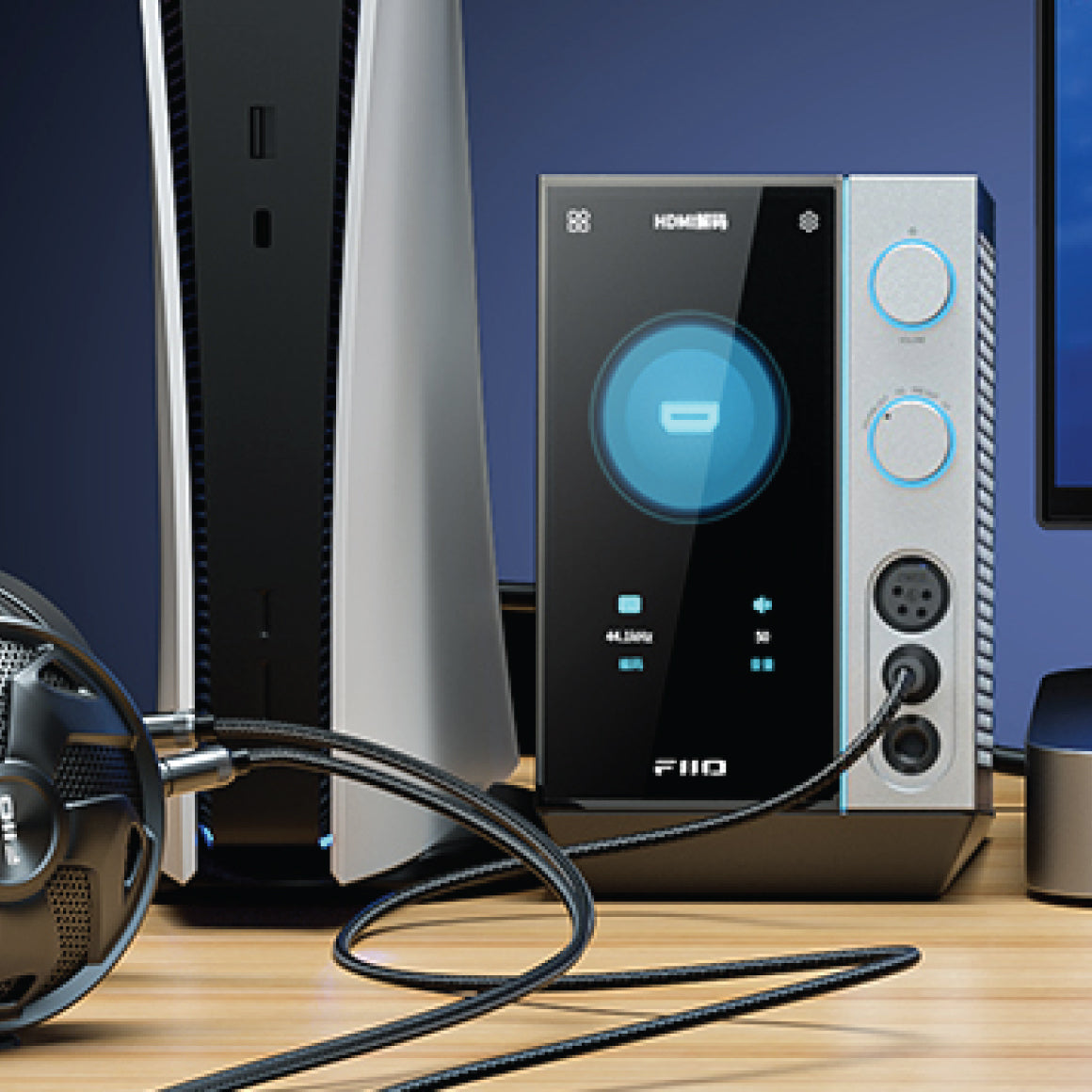

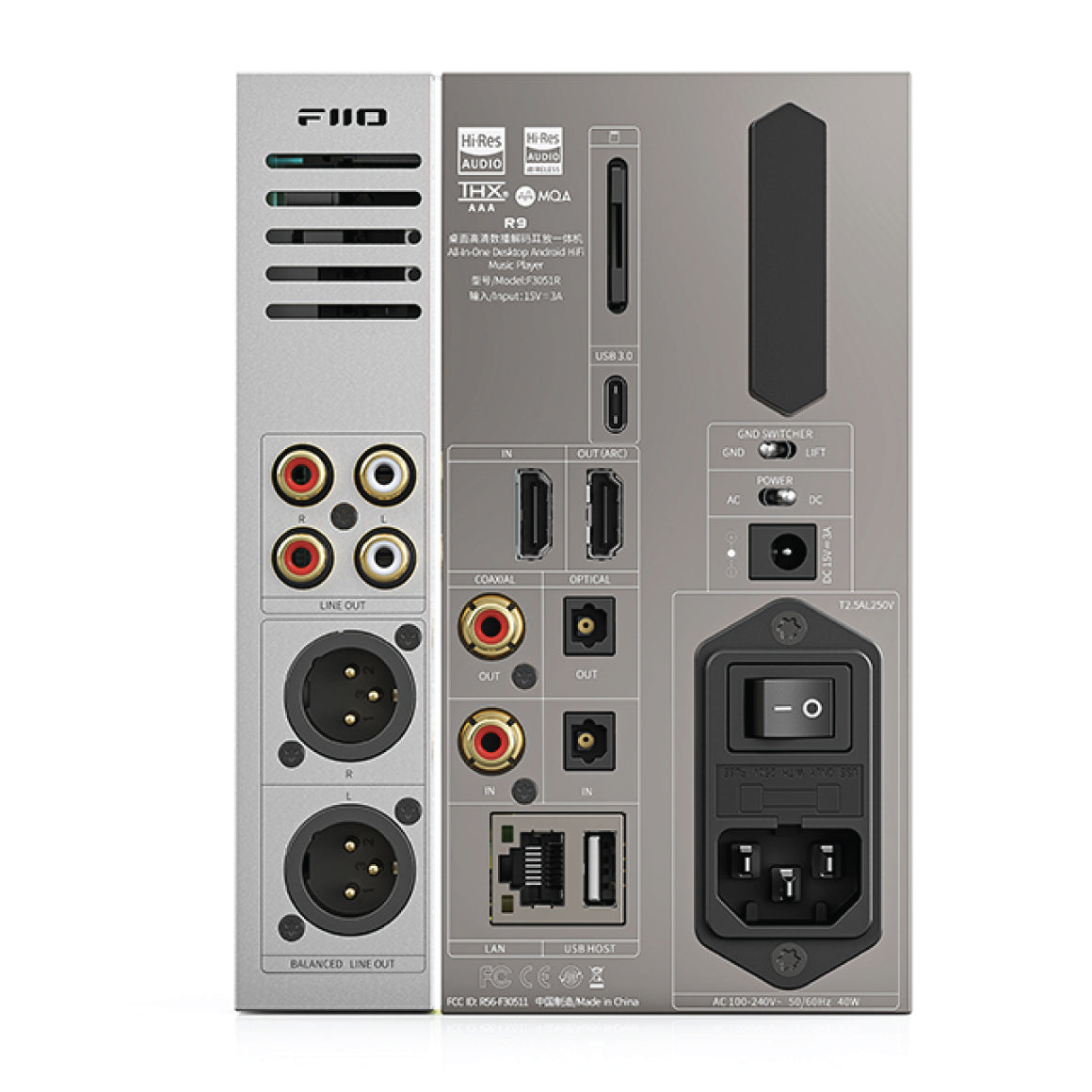

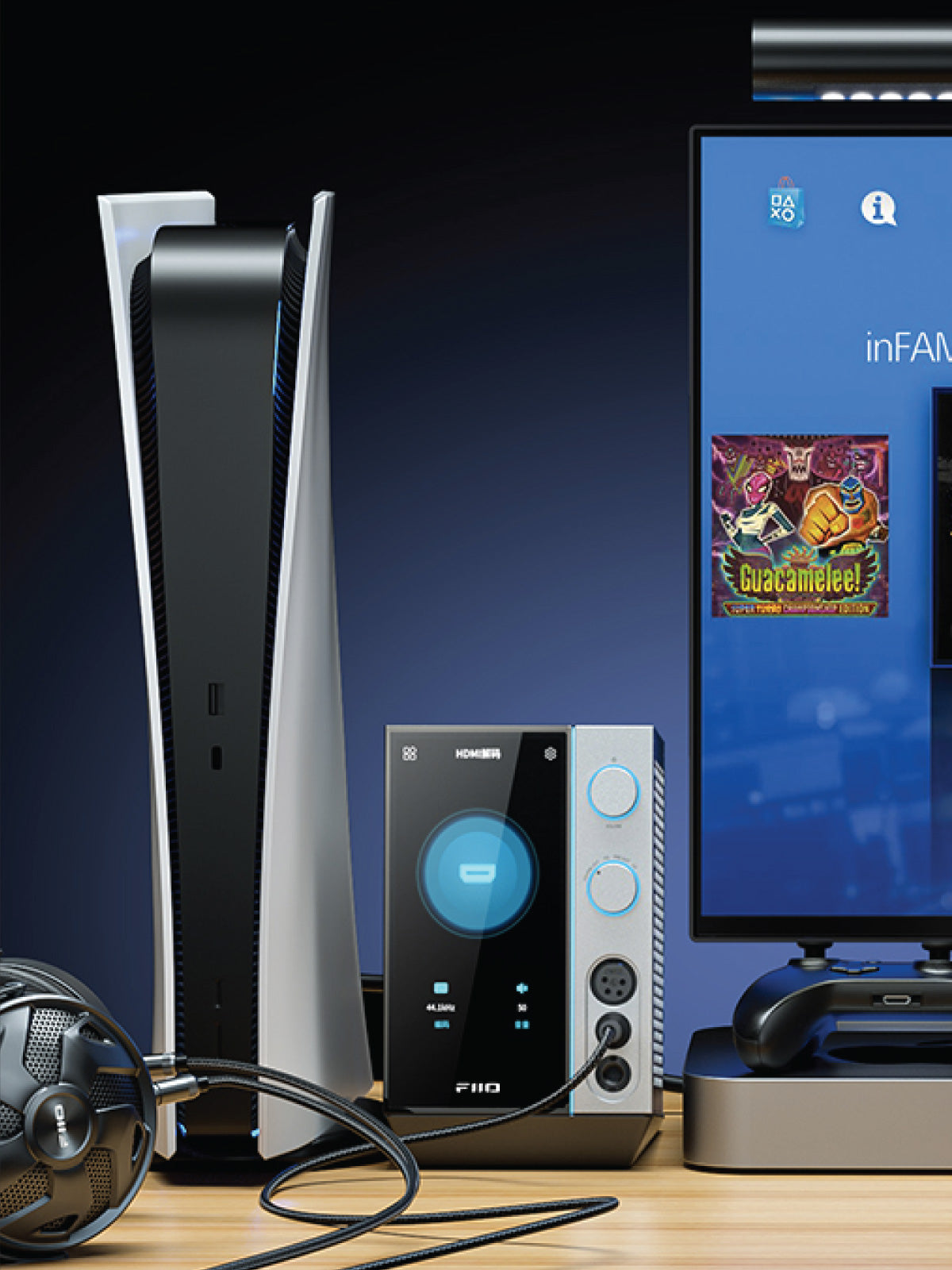

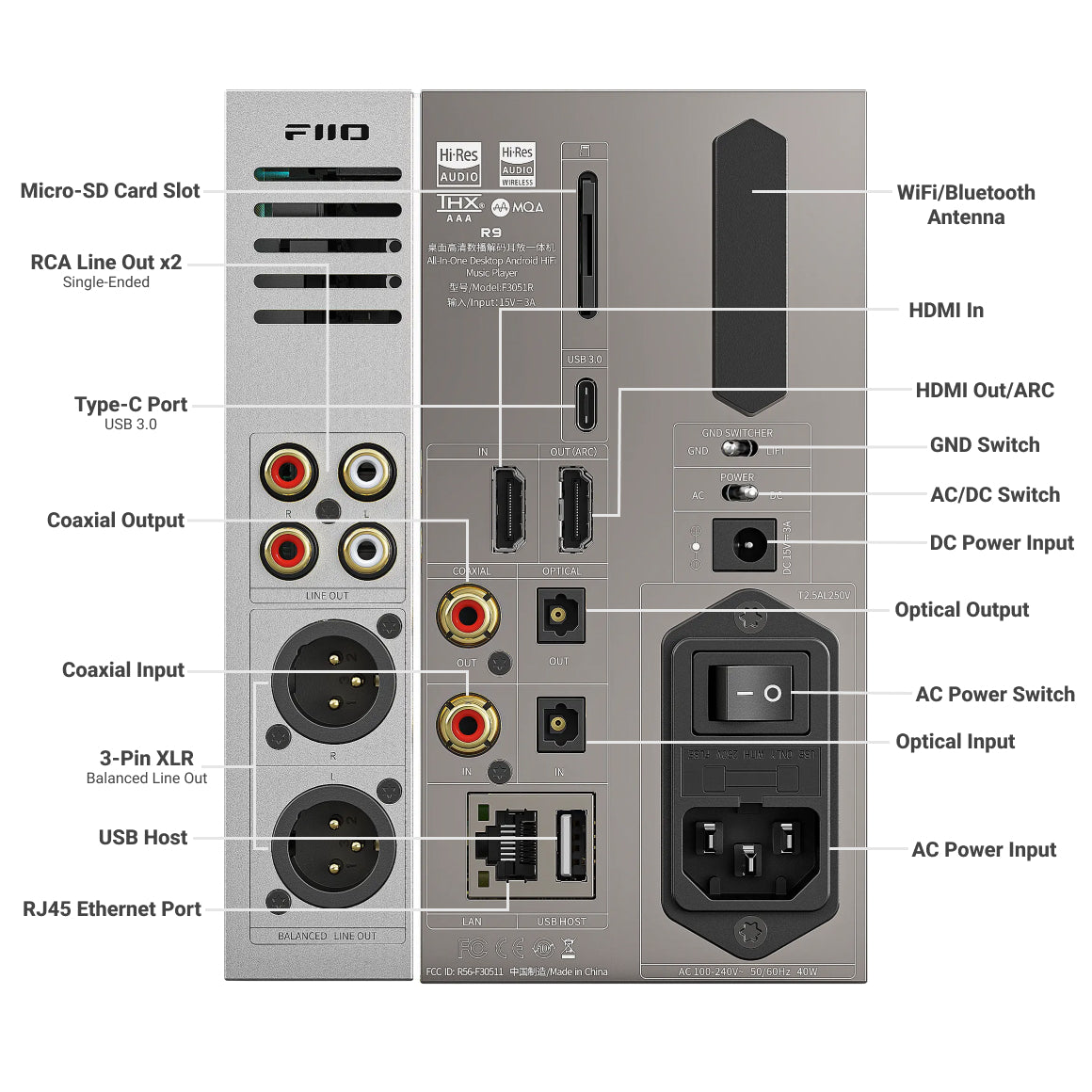

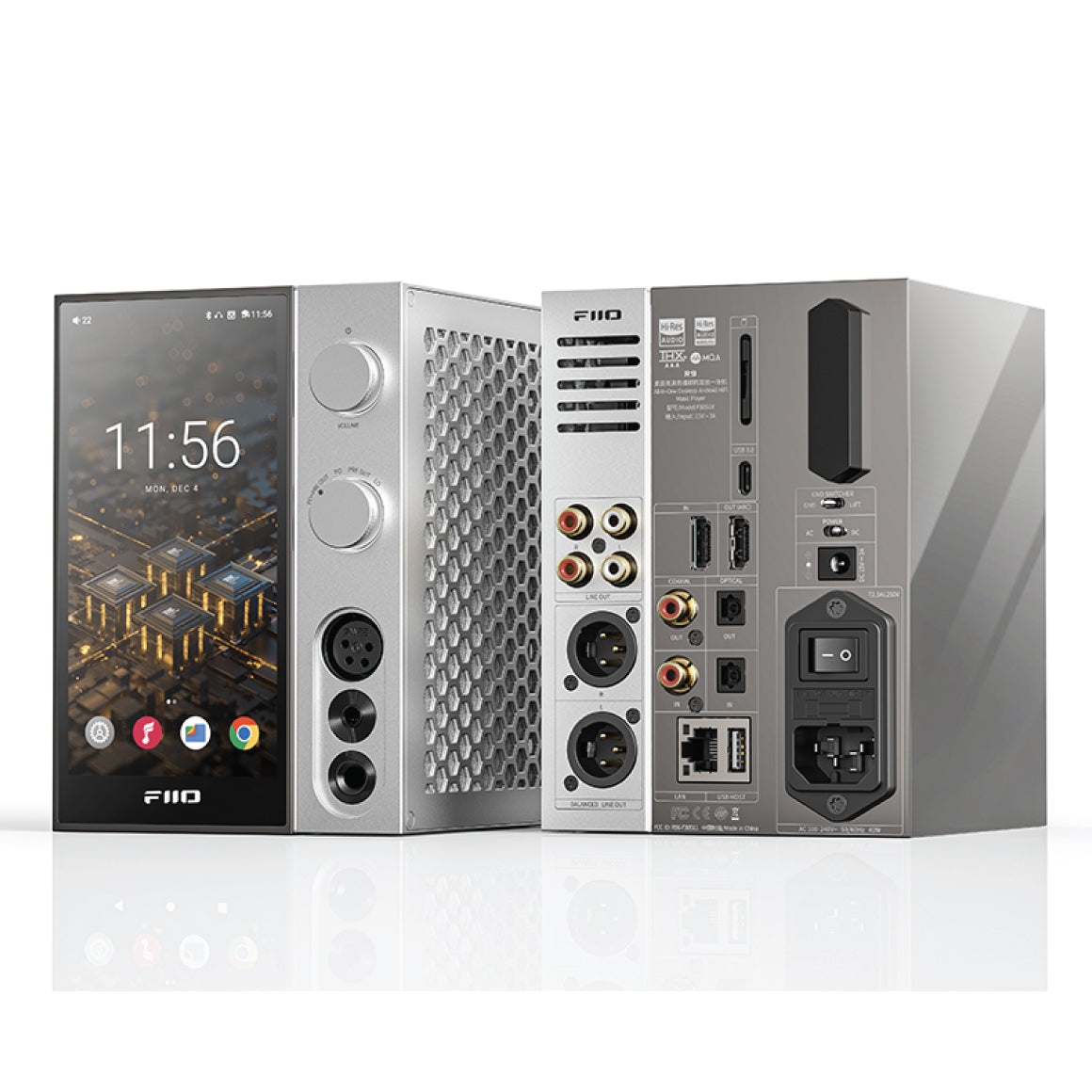

The FiiO R9 features connectivity far beyond what you would expect from a device with which you can quickly and easily build a desktop HiFi system with the R7 as the heart of it. The front panel has 6.35mm (SE), 4-pin XLR & 4.4mm Balanced headphone outputs. The rear panel is where the magic lies. It hosts a microSD card slot which supports up to 2TB if you like to play offline files on the go. It has Single-Ended RCA and 3-pin XLR Balanced lineouts. Surprisingly it also has a USB host interface that supports external USB devices like decoders, hard disks, keyboards, and expansion hubs. It also offers Optical & Coaxial IN/OUT and an Ethernet port for wired connection to a network. The USB Type-C port (USB 3.0) on the R9 supports data transfer, DP output mode, USB DAC, and USB HOST-related functions. The R9 has a Bluetooth and WiFi antenna embedded into the rear panel with a power switch allowing you to switch between DC or AC power supply seamlessly.
The FiiO R9 supports Bluetooth connectivity through a dedicated Qualcomm chip, featuring standards such as LDAC, aptX HD, AptX, SBC, and AAC. The operation is designed to be user-friendly, with dedicated buttons for the most commonly used parameters.

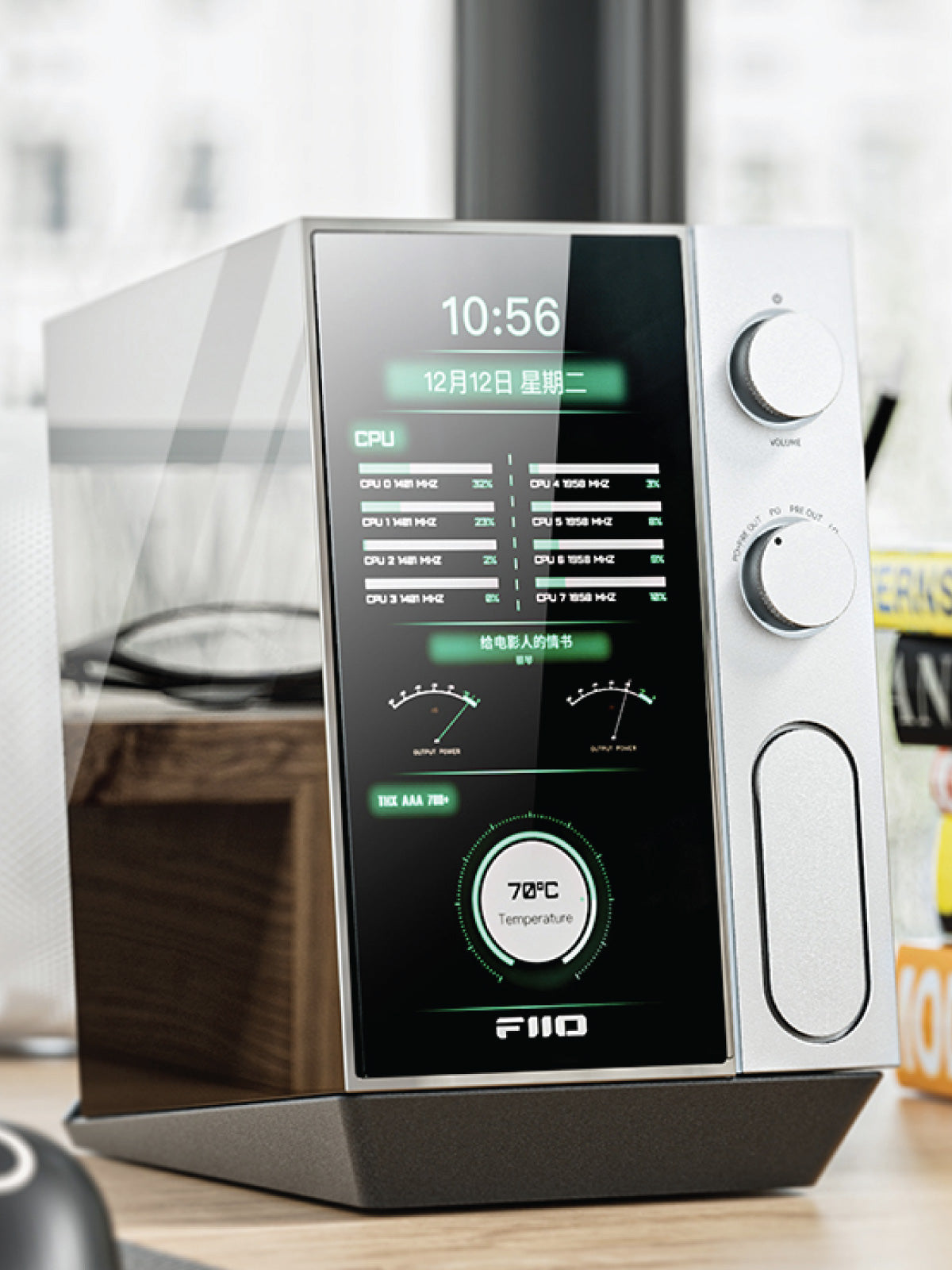

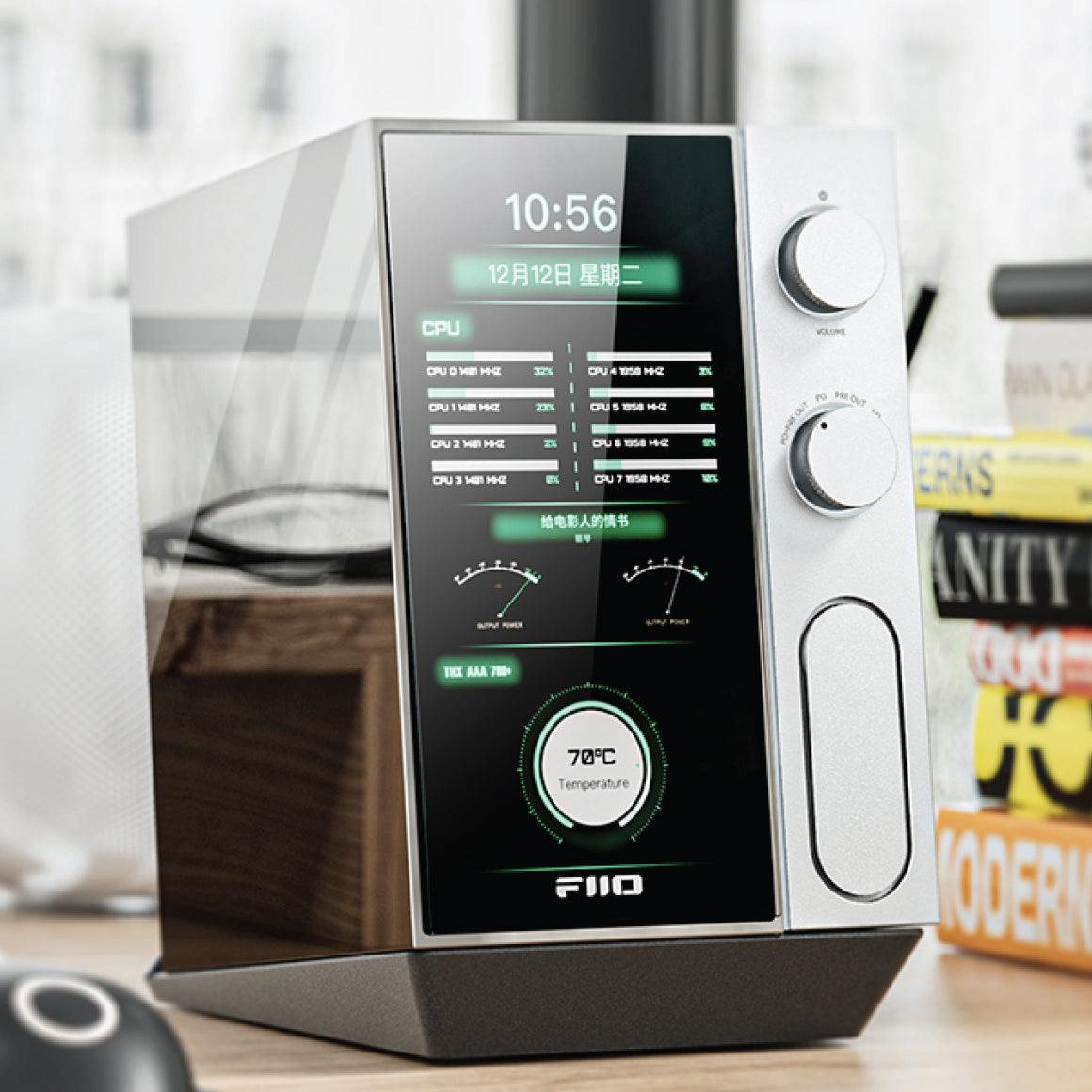

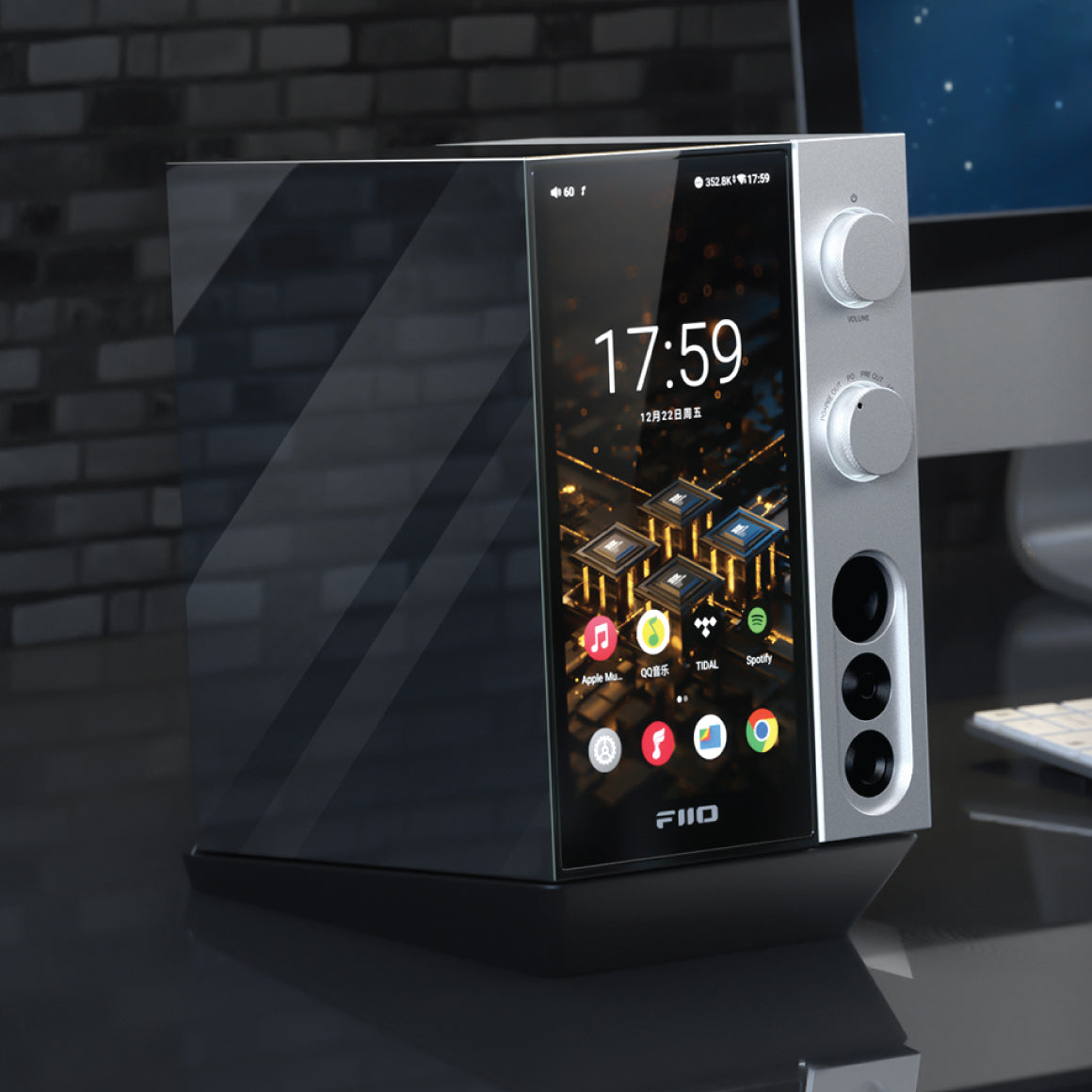

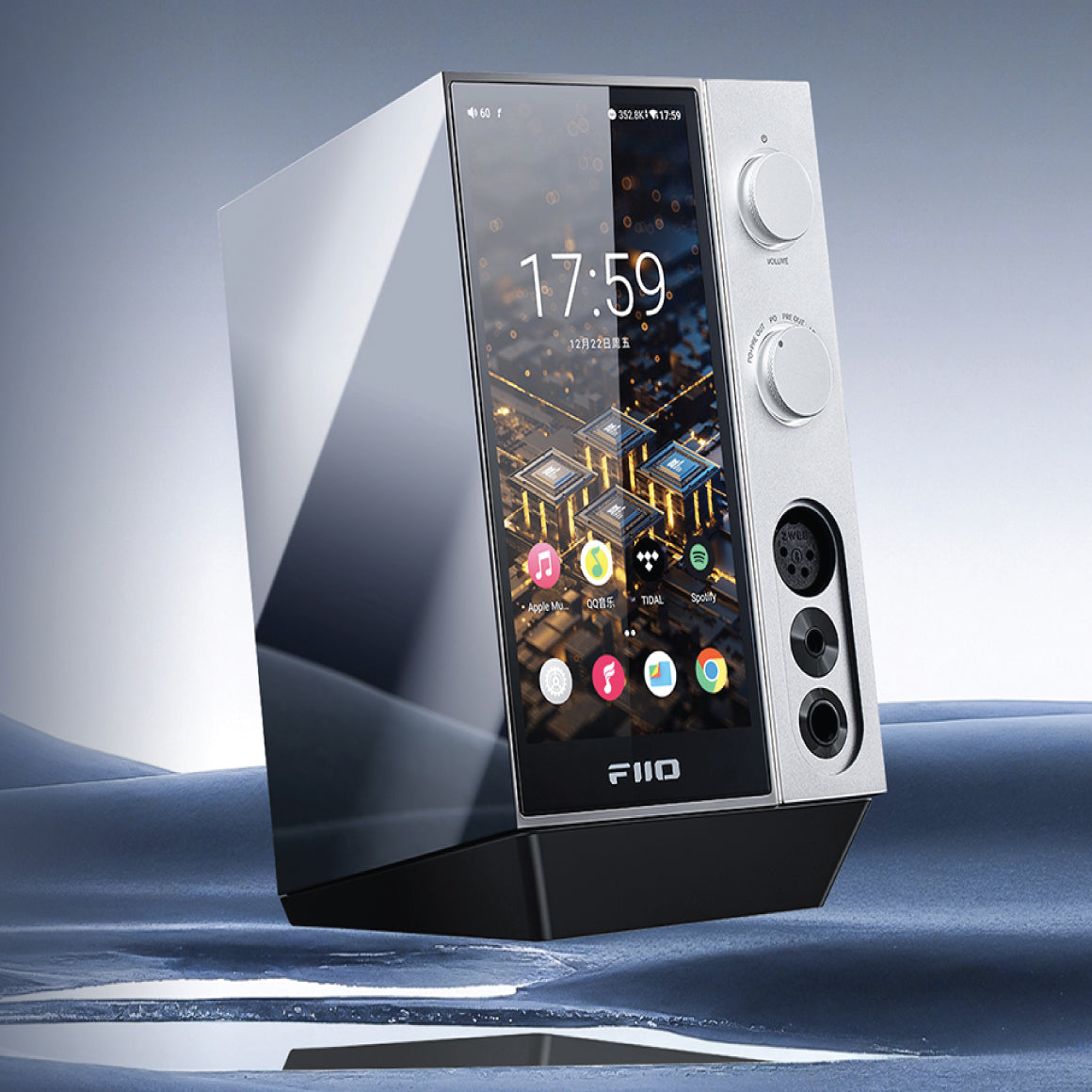

The R9 is equipped with a spacious 6-inch HD screen, providing an elevated user experience. The vertical (portrait) display, paired with the open Android OS, ensures intuitive navigation and allows users to effortlessly install and use third-party streaming music and other applications. The Android OS is meticulously refined to eliminate concerns about app compatibility issues.

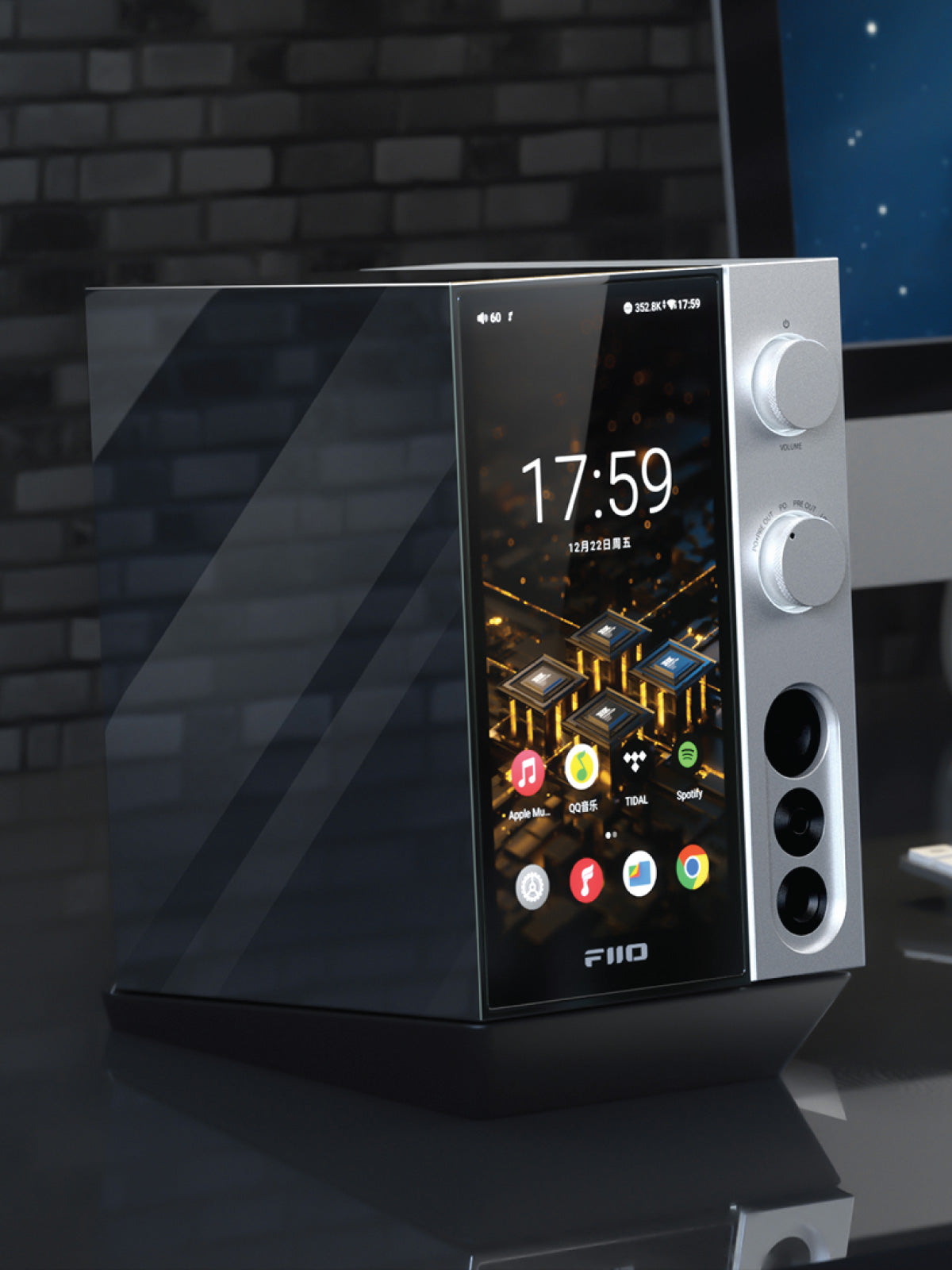

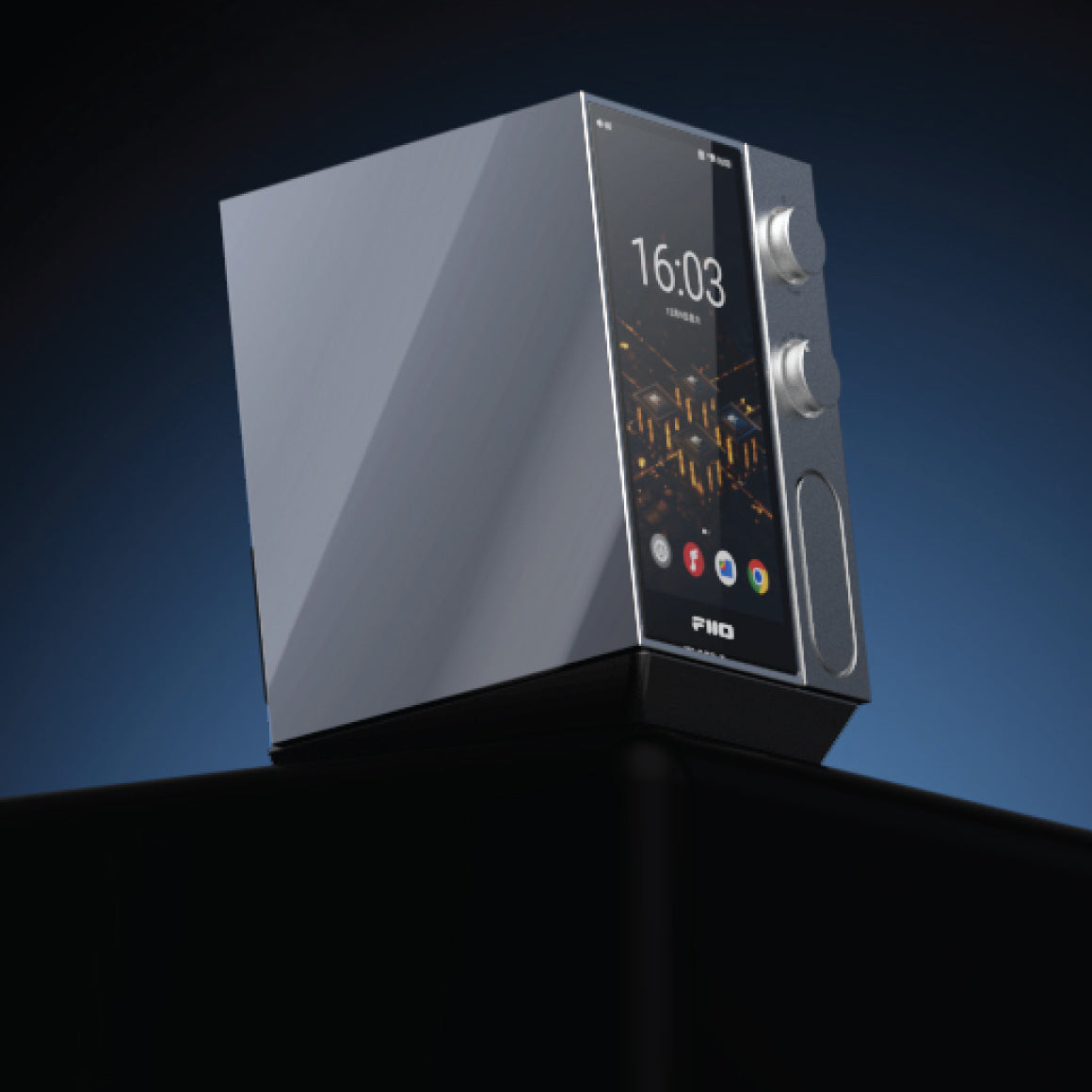

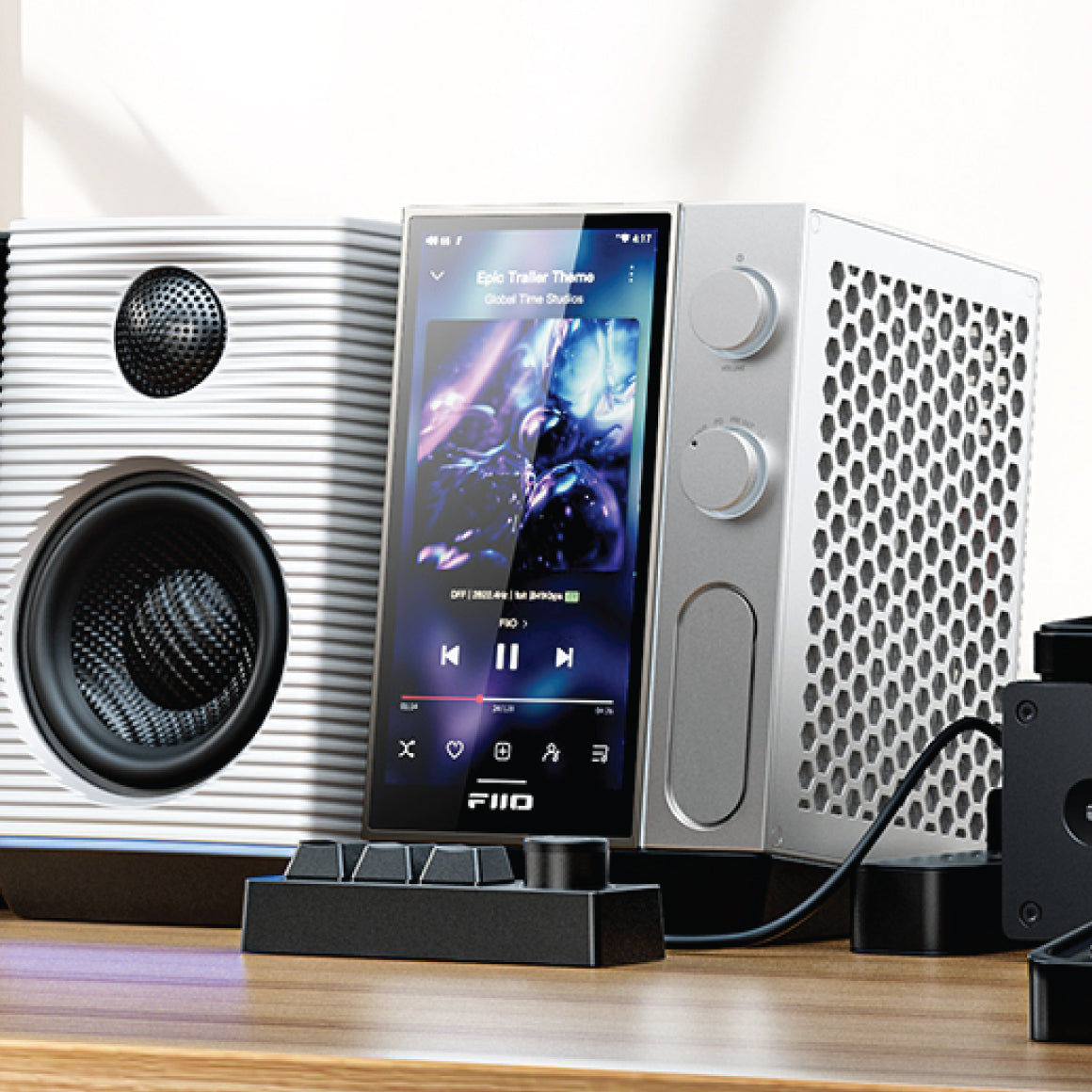

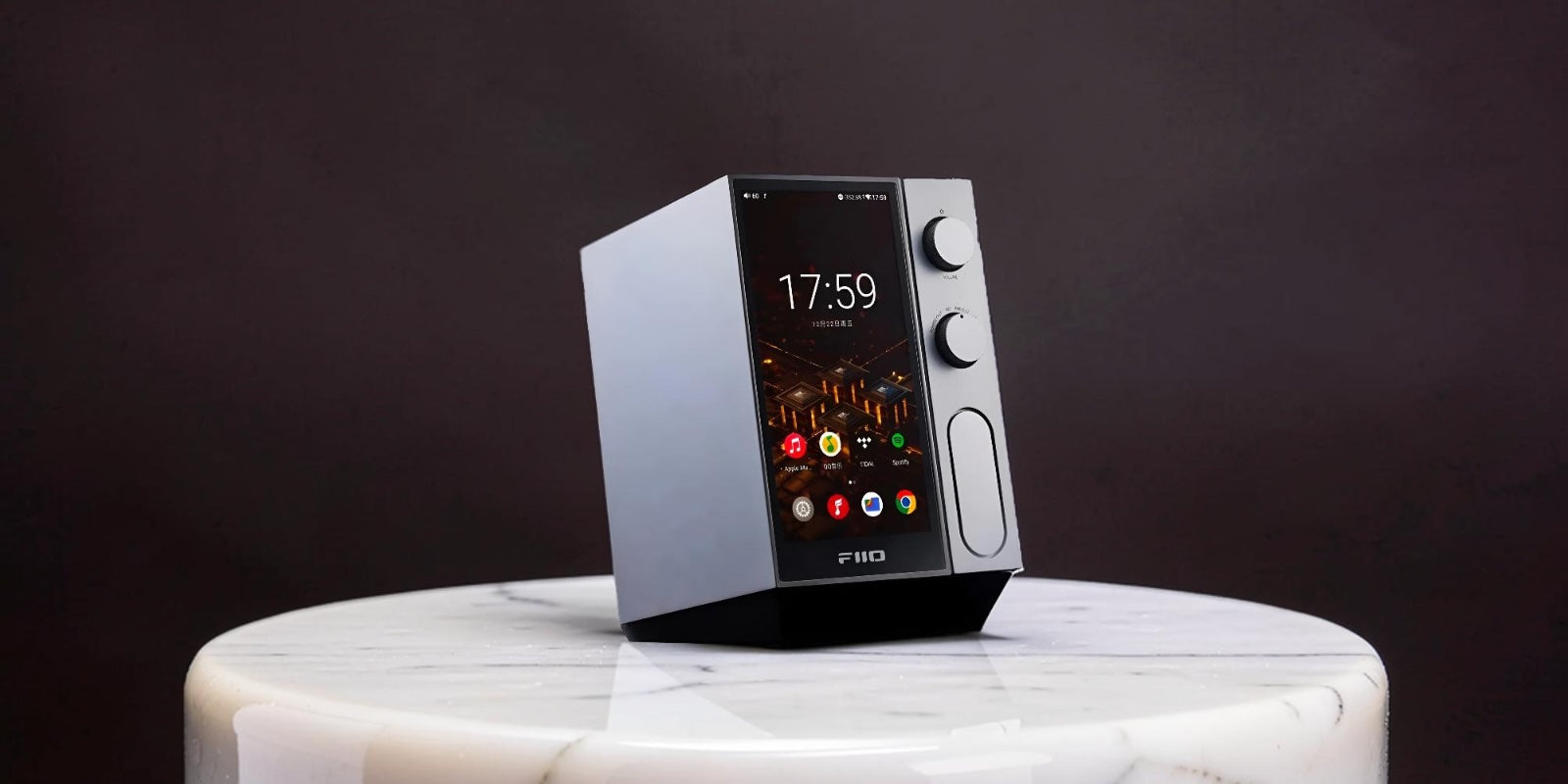

The R9 showcases a flagship aesthetic with its distinctive metallic bicolor design reminiscent of luxury cars. Its body incorporates a protective layer of body-colored 4H PET, preventing fingerprints and scratches. The high-density metal body enhances durability, reducing deformation and minimizing sound performance degradation due to vibrations, ensuring the stable delivery of high-quality music.
Utilizing the proven ES9038PRO DAC featured in previous models like M17, Q7, K9 Pro SS, and M15S, the R9 leverages dual ES9038PRO DACs, dedicated to the left and right channels. Each DAC chip comprises 8 independent D/A converters, arranged in parallel for fully differential output, delivering precise, clear, and full sound quality with impressive -122dB THD+N and 132dB DNR.
Featuring an advanced 8-channel THX AAA 788+ headphone amplifier, the R9 employs a four-way fully balanced design, with headphone amps connected in parallel for improved transient performance. The optimized circuit layout and efficient heat dissipation, facilitated by comb-shaped heat sinks, enable continuous and stable high-power output, reaching an impressive 7300mW per channel at 32 ohms, marking a 102% increase compared to the R7.
The FiiO R9 achieves remarkable audio performance through its five-stage audio architecture, featuring precision-crafted IV, LPF, gain, pre-amplification, and current expansion stages. Utilizing OPA2211 op-amps manufactured with the silicon-germanium (SiGe) CMOS process, the chip ensures exceptional performance. With a variable gain and variable power supply voltage design, the R9 offers 5 levels of gain, providing precise control over your preferred listening volume. Whether using IEMs or demanding headphones, a superior listening experience is guaranteed.
The R9 incorporates separate boards for its internal power supply, digital components, DAC, and headphone amplifier, with additional metal shields isolating the DAC and THX headphone amp sections. This meticulous separation of the four crucial elements in the audio circuit prevents crosstalk, guaranteeing accurate, clean, and dynamic audio signal processing and output.
The FiiO R9 features connectivity far beyond what you would expect from a device with which you can quickly and easily build a desktop HiFi system with the R7 as the heart of it. The front panel has 6.35mm (SE), 4-pin XLR & 4.4mm Balanced headphone outputs. The rear panel is where the magic lies. It hosts a microSD card slot which supports up to 2TB if you like to play offline files on the go. It has Single-Ended RCA and 3-pin XLR Balanced lineouts. Surprisingly it also has a USB host interface that supports external USB devices like decoders, hard disks, keyboards, and expansion hubs. It also offers Optical & Coaxial IN/OUT and an Ethernet port for wired connection to a network. The USB Type-C port (USB 3.0) on the R9 supports data transfer, DP output mode, USB DAC, and USB HOST-related functions. The R9 has a Bluetooth and WiFi antenna embedded into the rear panel with a power switch allowing you to switch between DC or AC power supply seamlessly.
The FiiO R9 supports Bluetooth connectivity through a dedicated Qualcomm chip, featuring standards such as LDAC, aptX HD, AptX, SBC, and AAC. The operation is designed to be user-friendly, with dedicated buttons for the most commonly used parameters.
The R9 is equipped with a spacious 6-inch HD screen, providing an elevated user experience. The vertical (portrait) display, paired with the open Android OS, ensures intuitive navigation and allows users to effortlessly install and use third-party streaming music and other applications. The Android OS is meticulously refined to eliminate concerns about app compatibility issues.
The R9 showcases a flagship aesthetic with its distinctive metallic bicolor design reminiscent of luxury cars. Its body incorporates a protective layer of body-colored 4H PET, preventing fingerprints and scratches. The high-density metal body enhances durability, reducing deformation and minimizing sound performance degradation due to vibrations, ensuring the stable delivery of high-quality music.

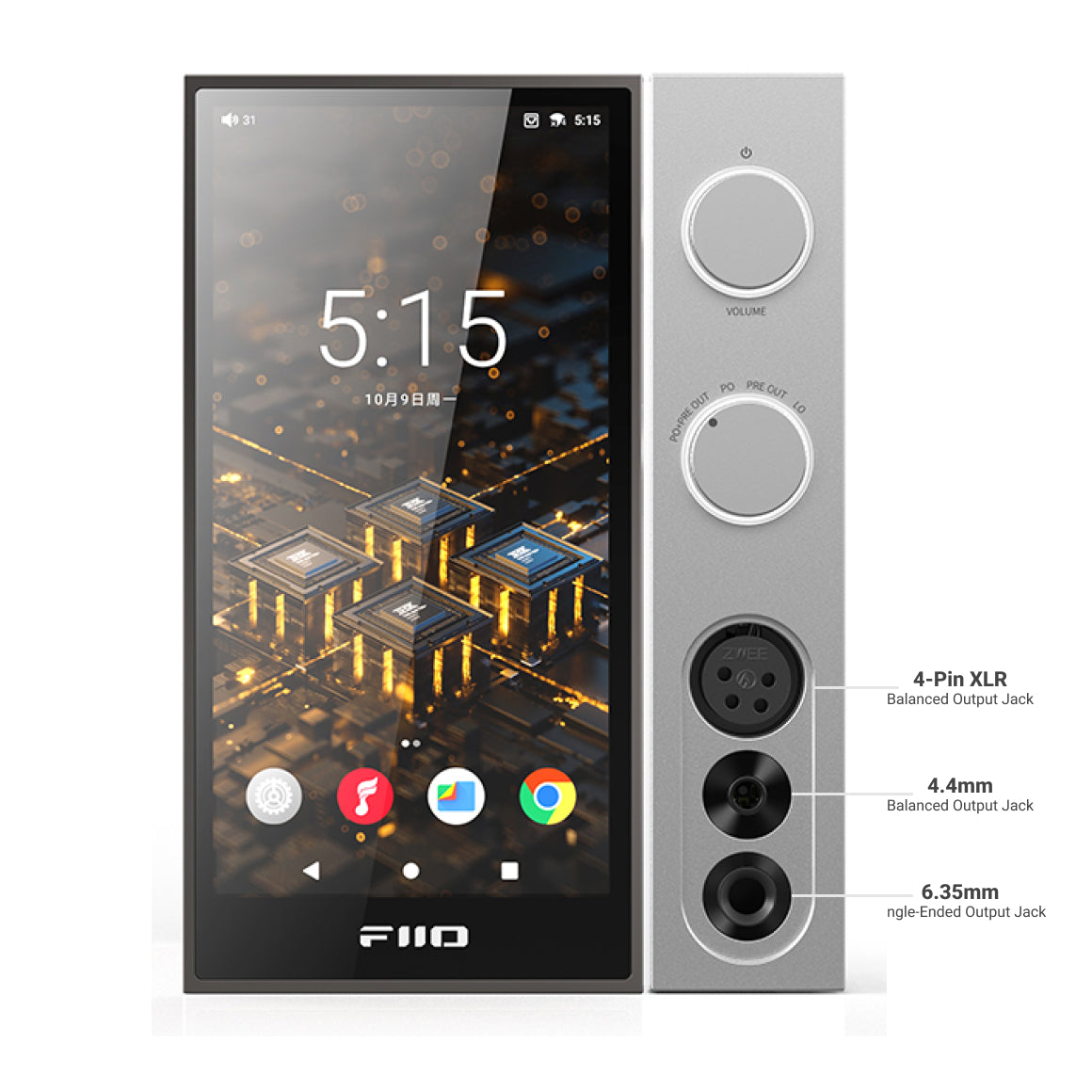

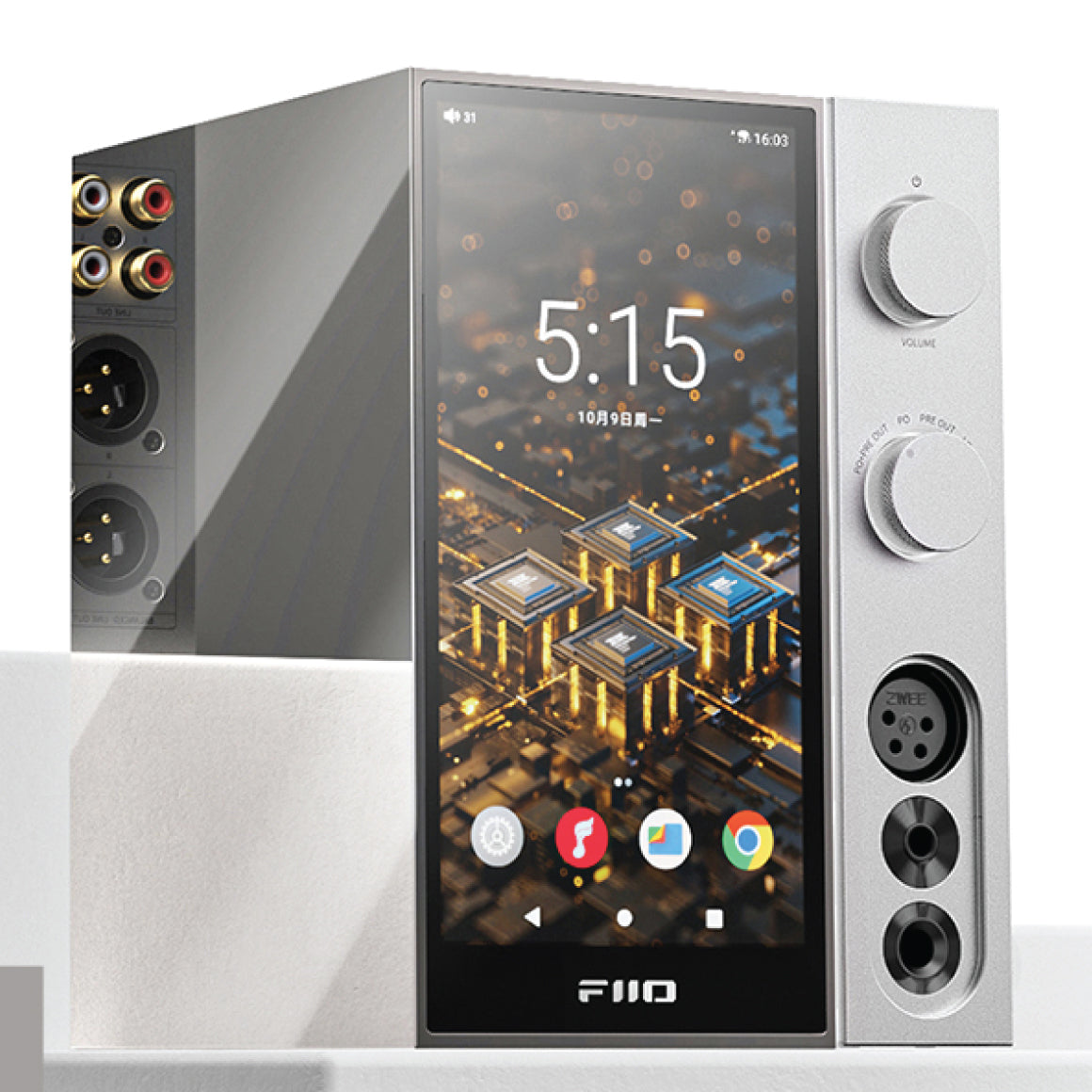

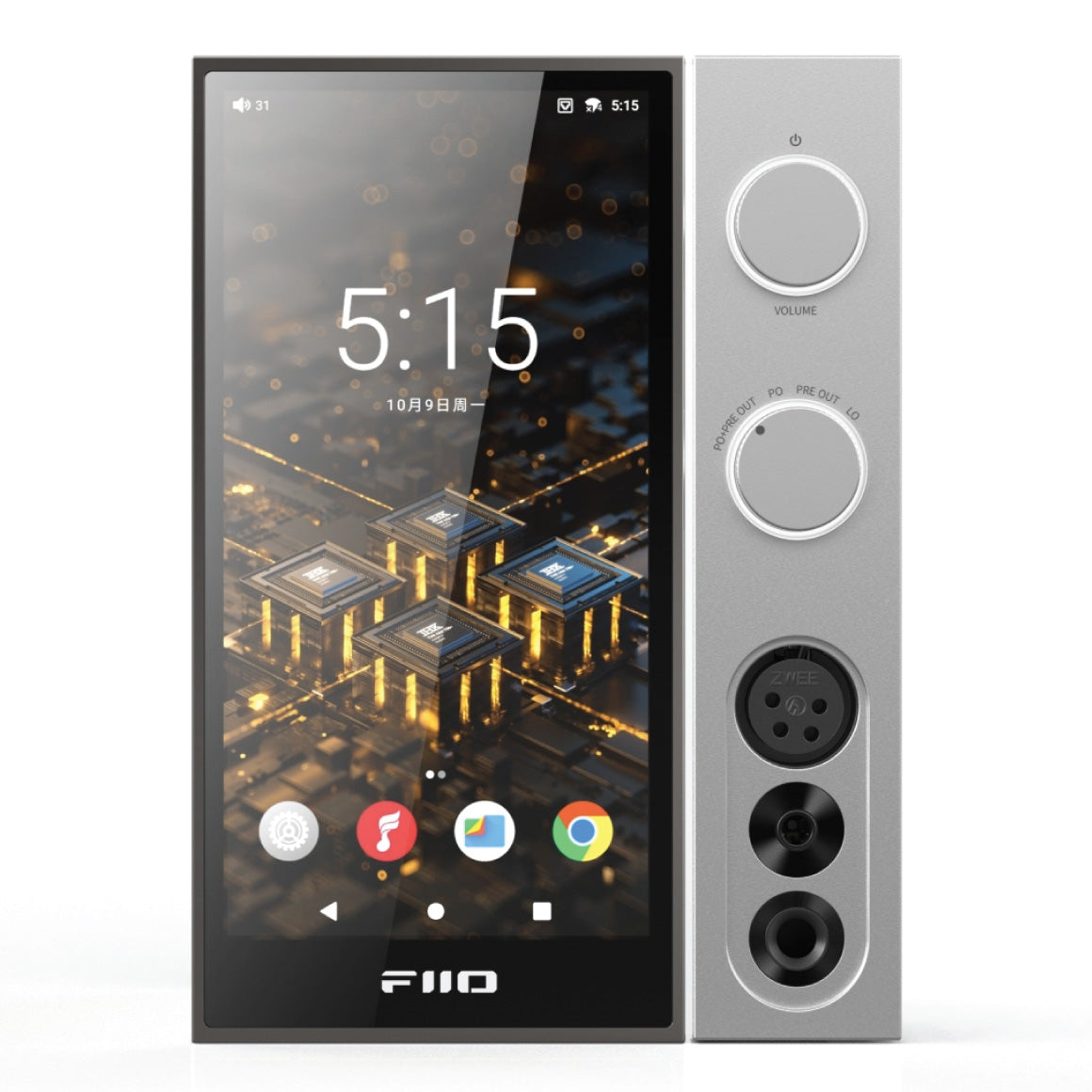

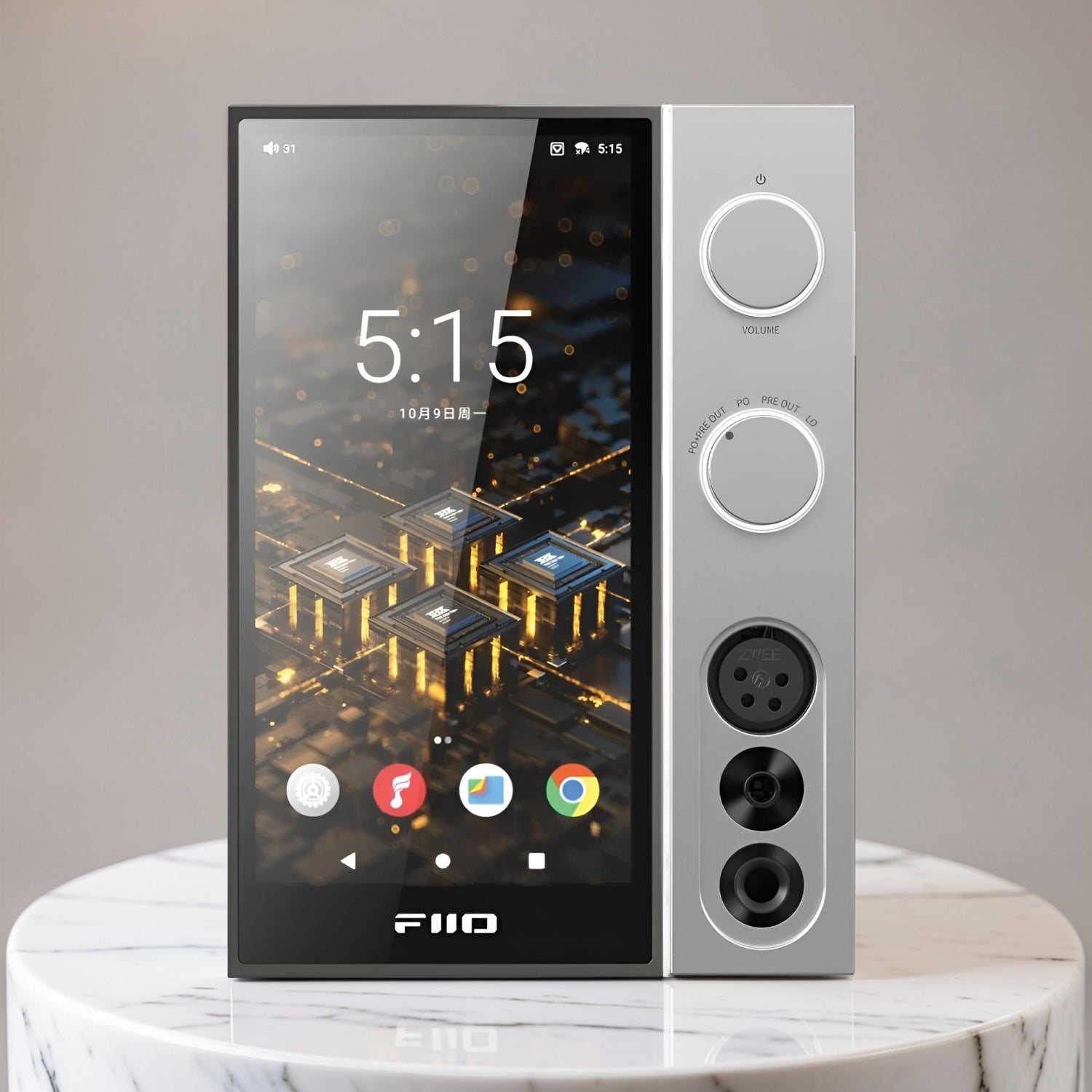

4-Pin XLR Headphone Jack
The Balanced connection decreases crosstalk and interference caused by the balanced output configuration resulting in improved audio signal integrity. As a result, the sound is reproduced with improved channel separation and increased dynamic range, making it cleaner and more accurate.
4.4mm Pentaconn Headphone Jack
The Balanced connection decreases crosstalk and interference caused by the balanced output configuration resulting in improved audio signal integrity. As a result, the sound is reproduced with improved channel separation and increased dynamic range, making it cleaner and more accurate.
6.35mm Headphone Jack
This is the most commonly found headphone jack with which you can pair your less power-demanding headphones. The larger size of the jack provides a secure connection that is less prone to accidental disconnection or damage, ensuring a stable audio signal.
Volume Control
R9 has a smooth volume knob that has 120 steps of volume control and it also displays the gain which you are currently at when you are toggling between the perfect volume for your set of speakers or headphones.

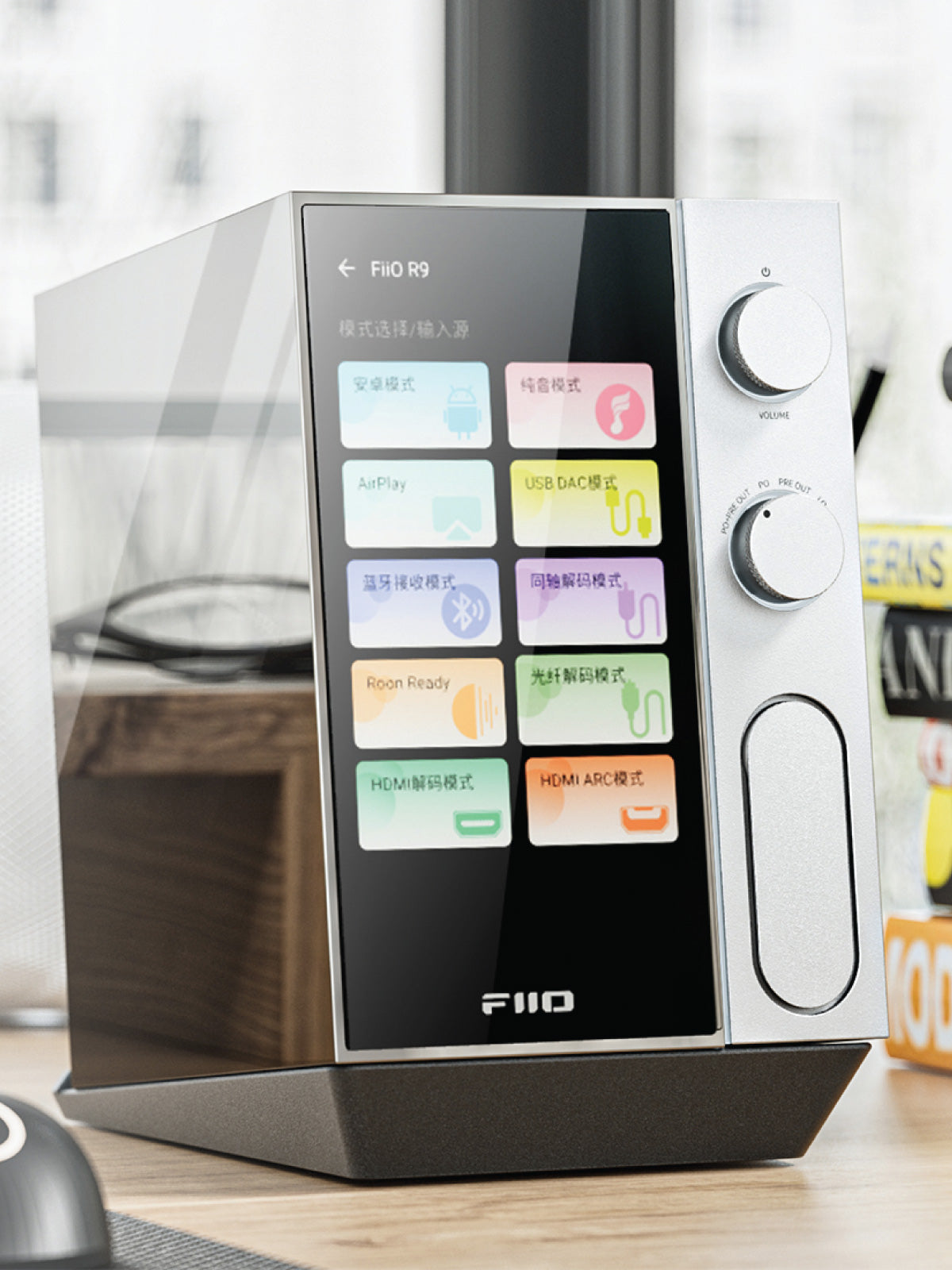

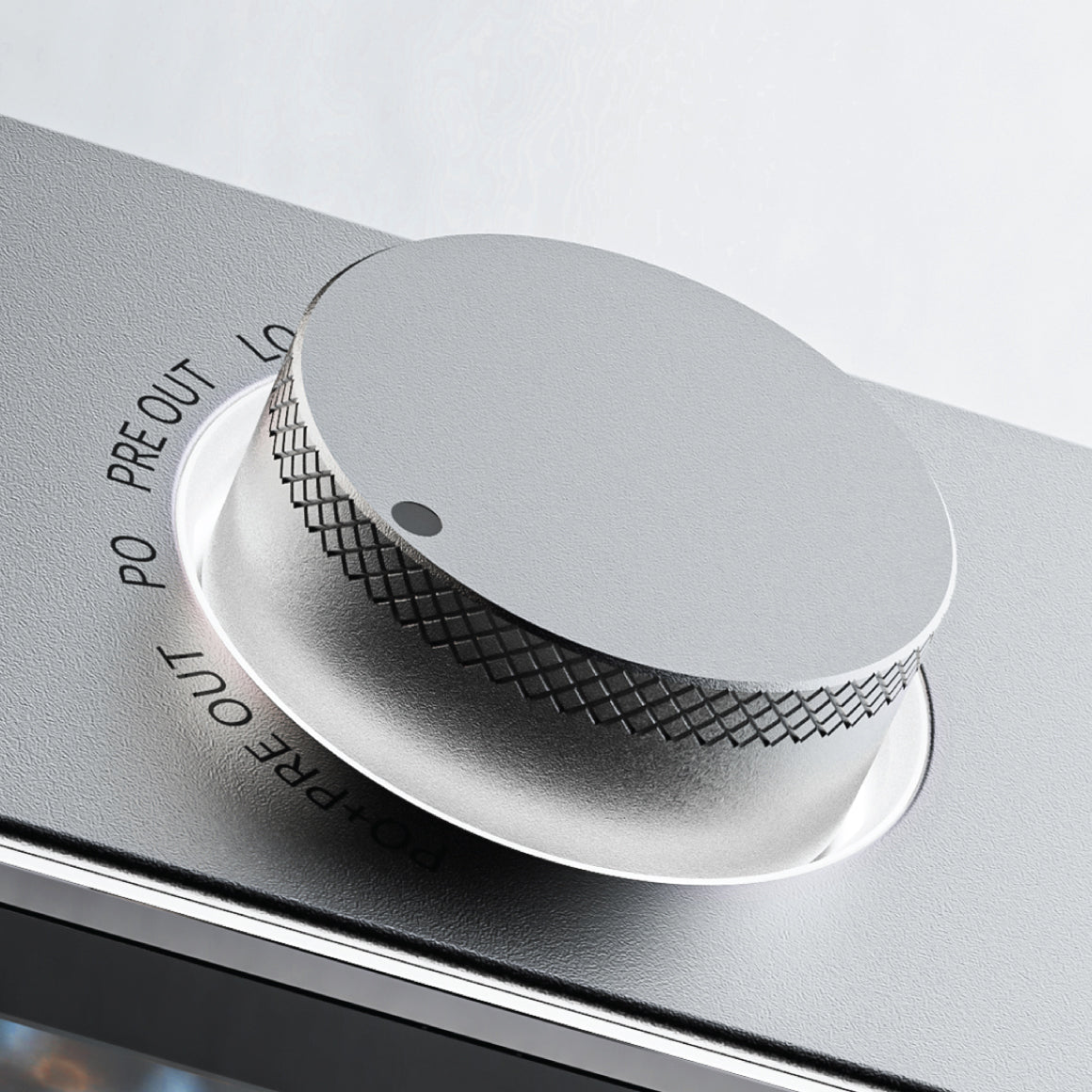

The R9 offers a versatile experience with ten operating modes, providing flexibility for various audio scenarios. These modes include Android mode for third-party apps and major streaming services, pure tone mode for an exclusive immersive music experience, USB DAC mode for enhanced sound from computers/smartphones, Bluetooth receiver mode supporting aptX adaptive/LDAC codecs, AirPlay mode for wireless connection to iOS devices, Roon Ready mode for serious music enthusiasts, coaxial/optical input modes for high-end audio decoding, HDMI input mode for devices like game consoles/Blu-ray players/set-top boxes, and HDMI ARC mode for audio return from TVs/projectors.
- PO + PRE-OUT
The R9 allows you to switch between your devices and listening modes using the control knob. You can use the R9 in PO+PRE OUT mode, wherein you can connect your powered speakers and your preferred choice of headphones at the same time. Provided outputs are RCA and XLR for connection for PRE-OUT mode. - PO
The phone out (PO) mode is simple and can be used when you just want to listen to your preferred choice of headphones. - PRE-OUT

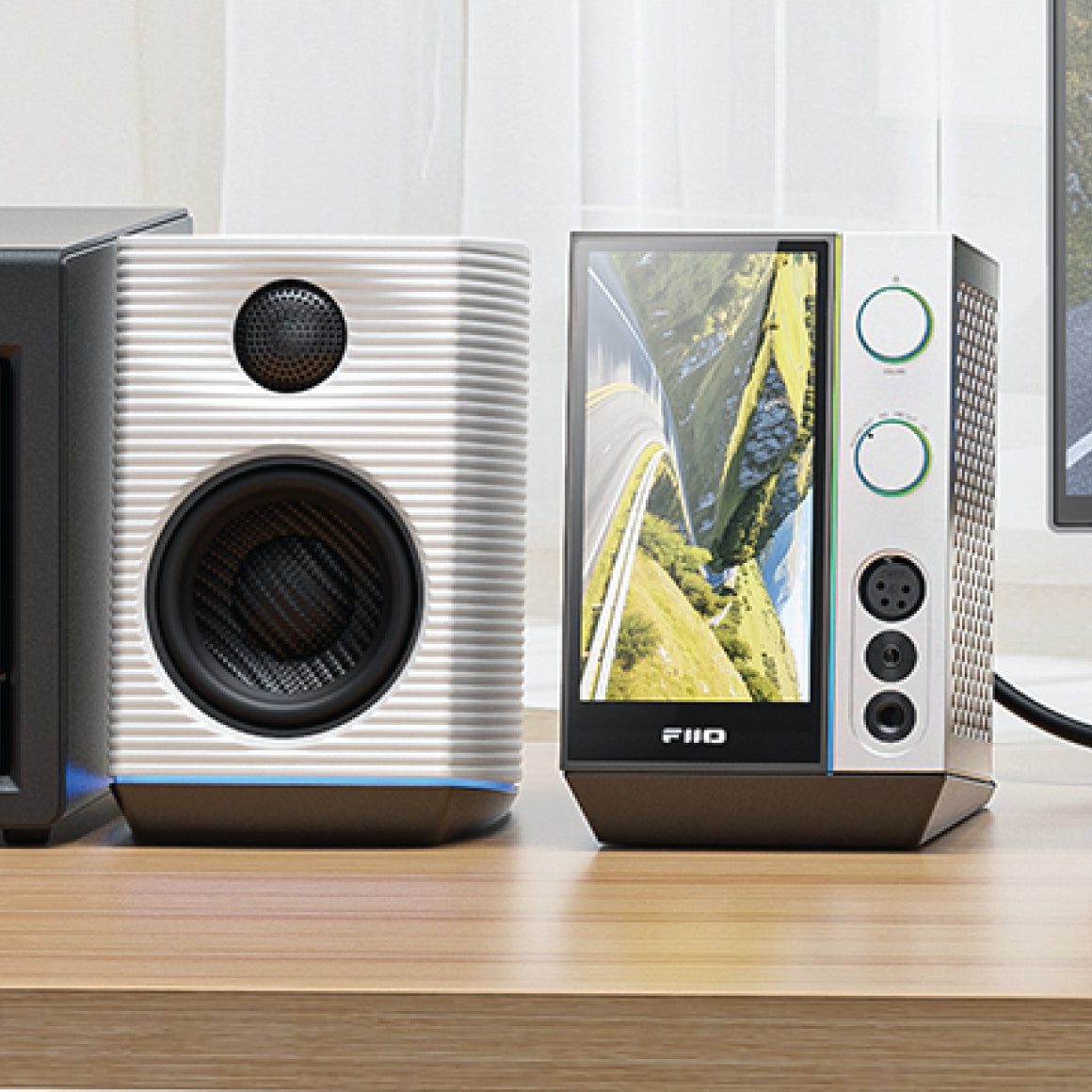

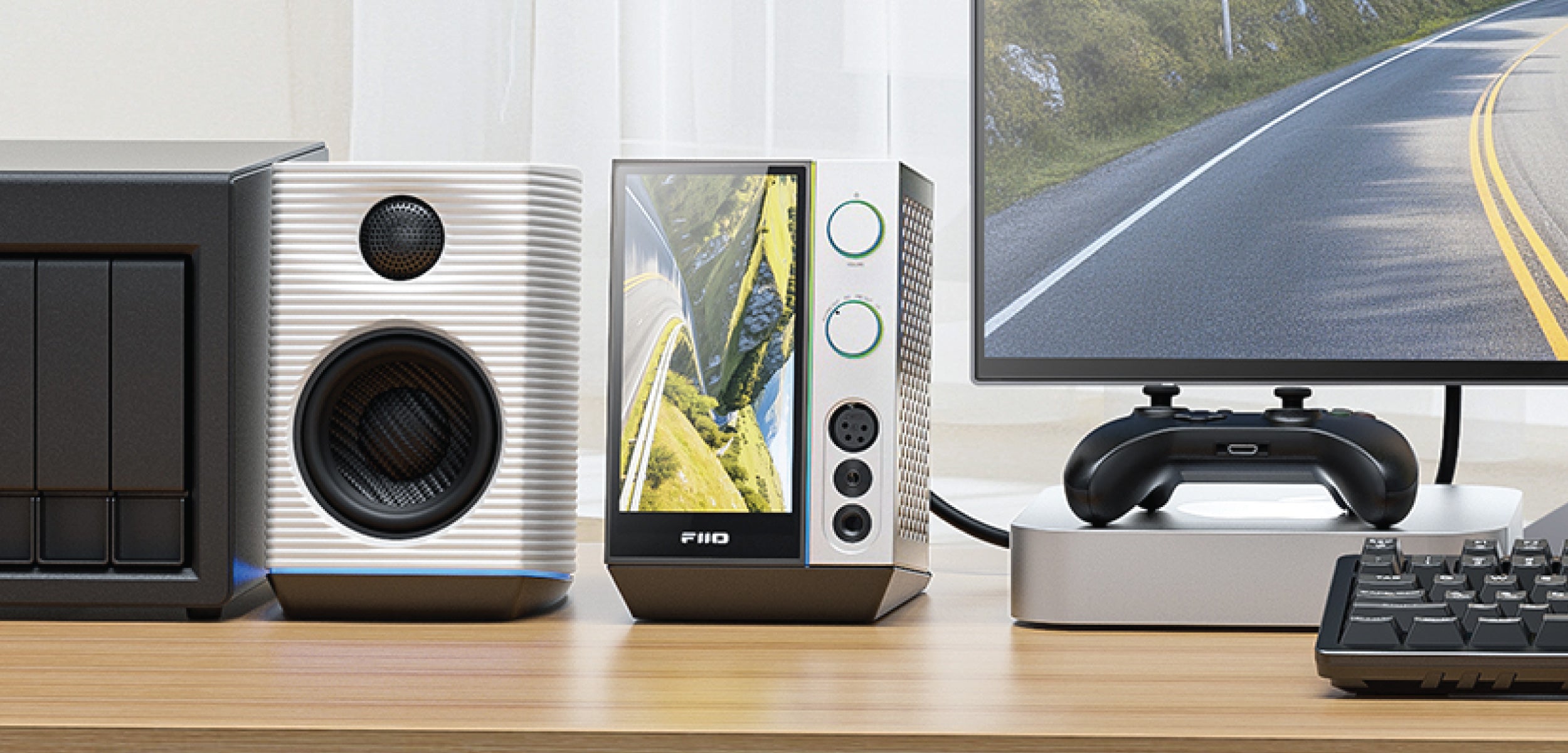

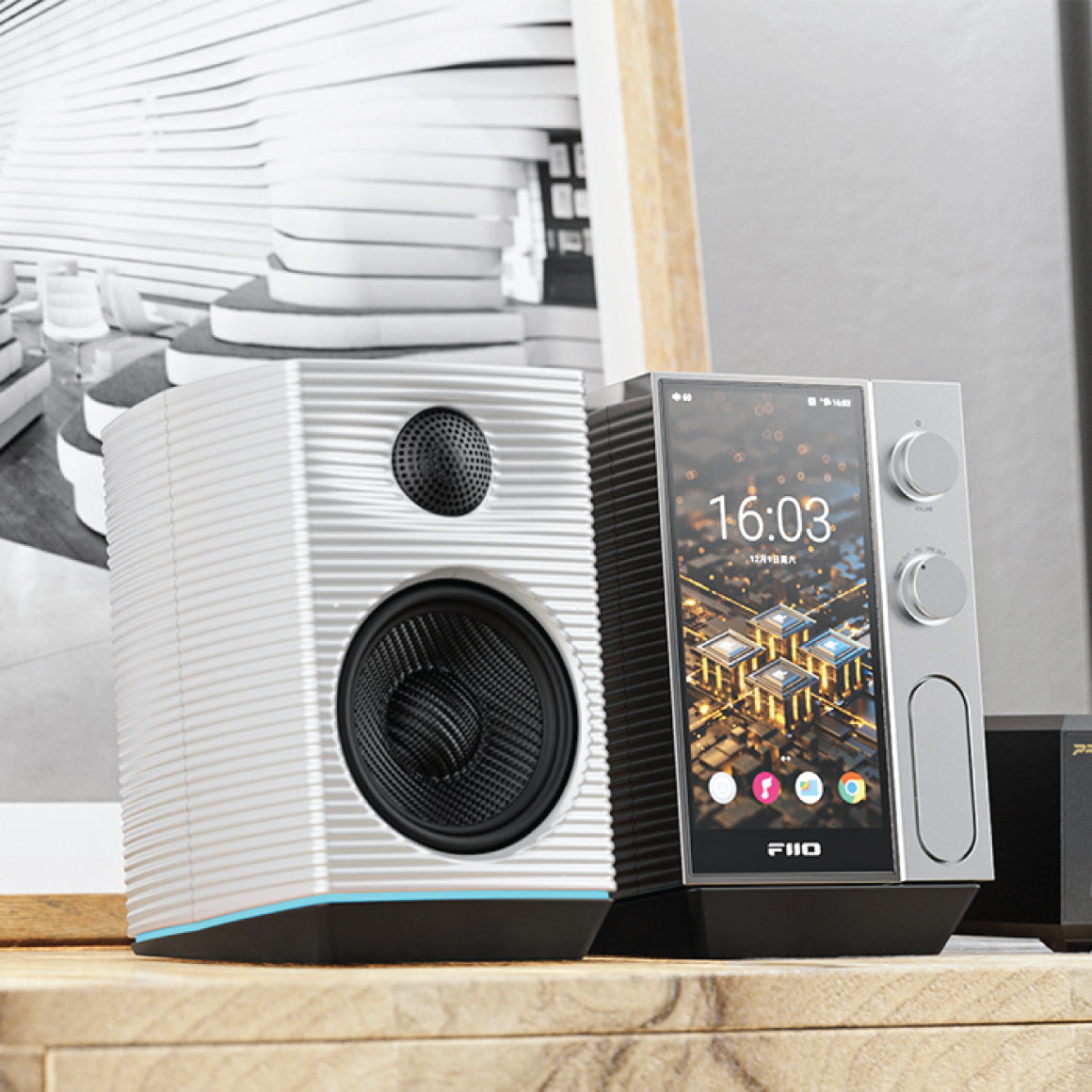

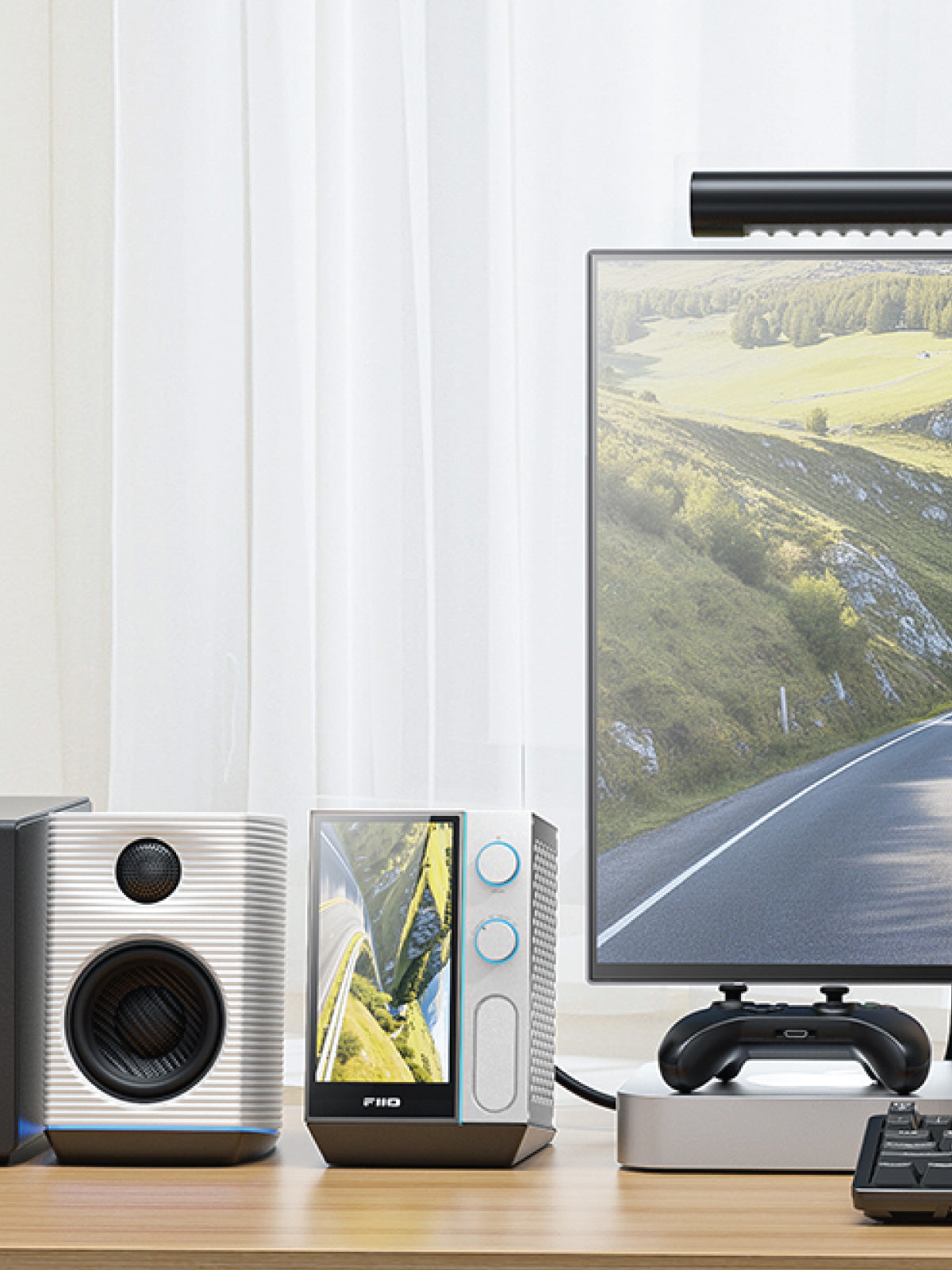

This mode allows you to pair your powered monitors and use the R9 as the source and a preamp for your powered speakers. Provided outputs are RCA and XLR for connection for PRE-OUT mode. - LO
Line out (LO) mode allows you to pair your powered monitors and use the R9 as the source and a preamp for your powered speakers. Provided outputs are RCA and XLR for connection in LO mode.

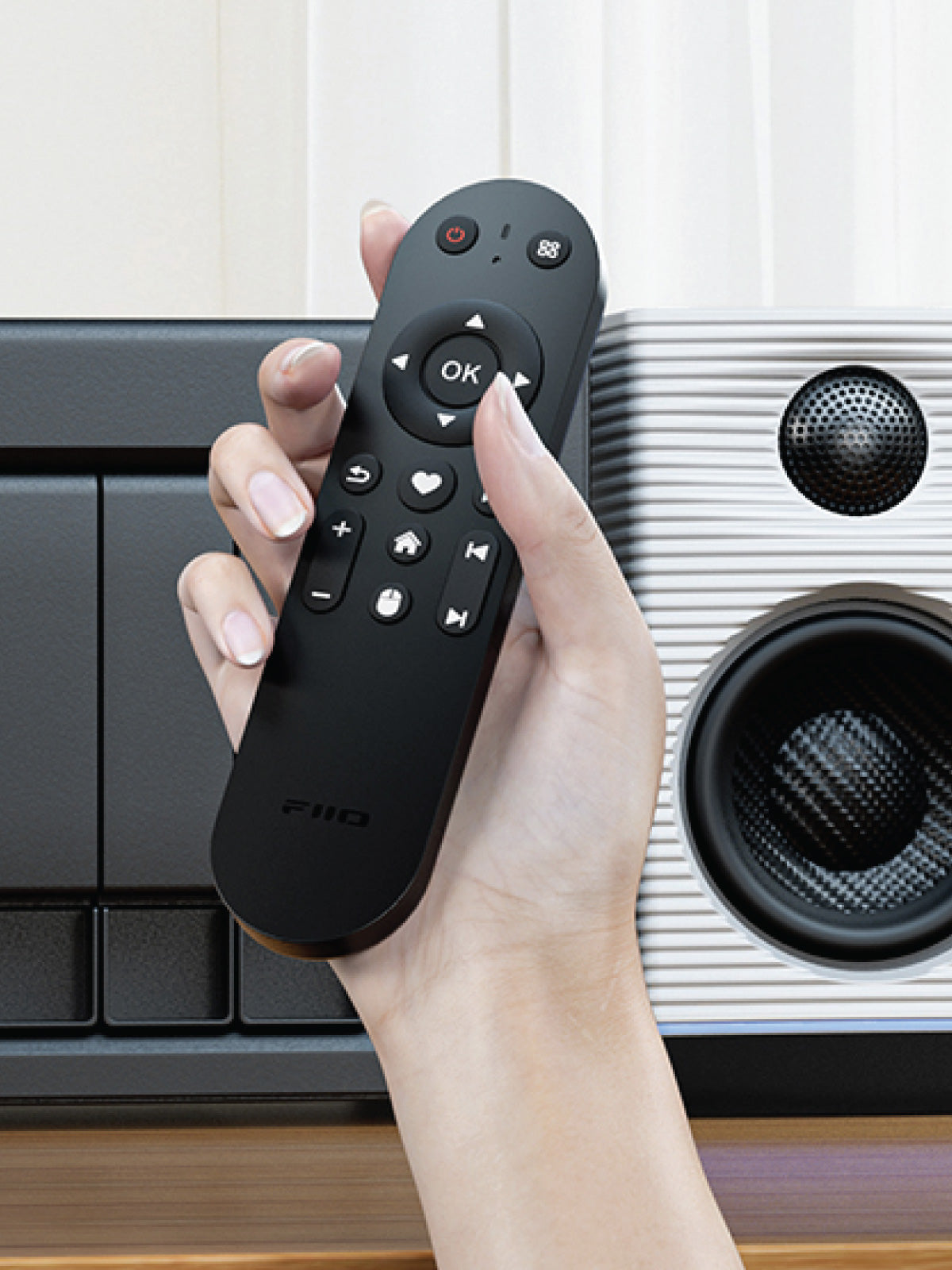

Want to listen to your music without having to get up? The RM3 bluetooth remote control allows you to control music from a distance through buttons and gestures even for complex operations.

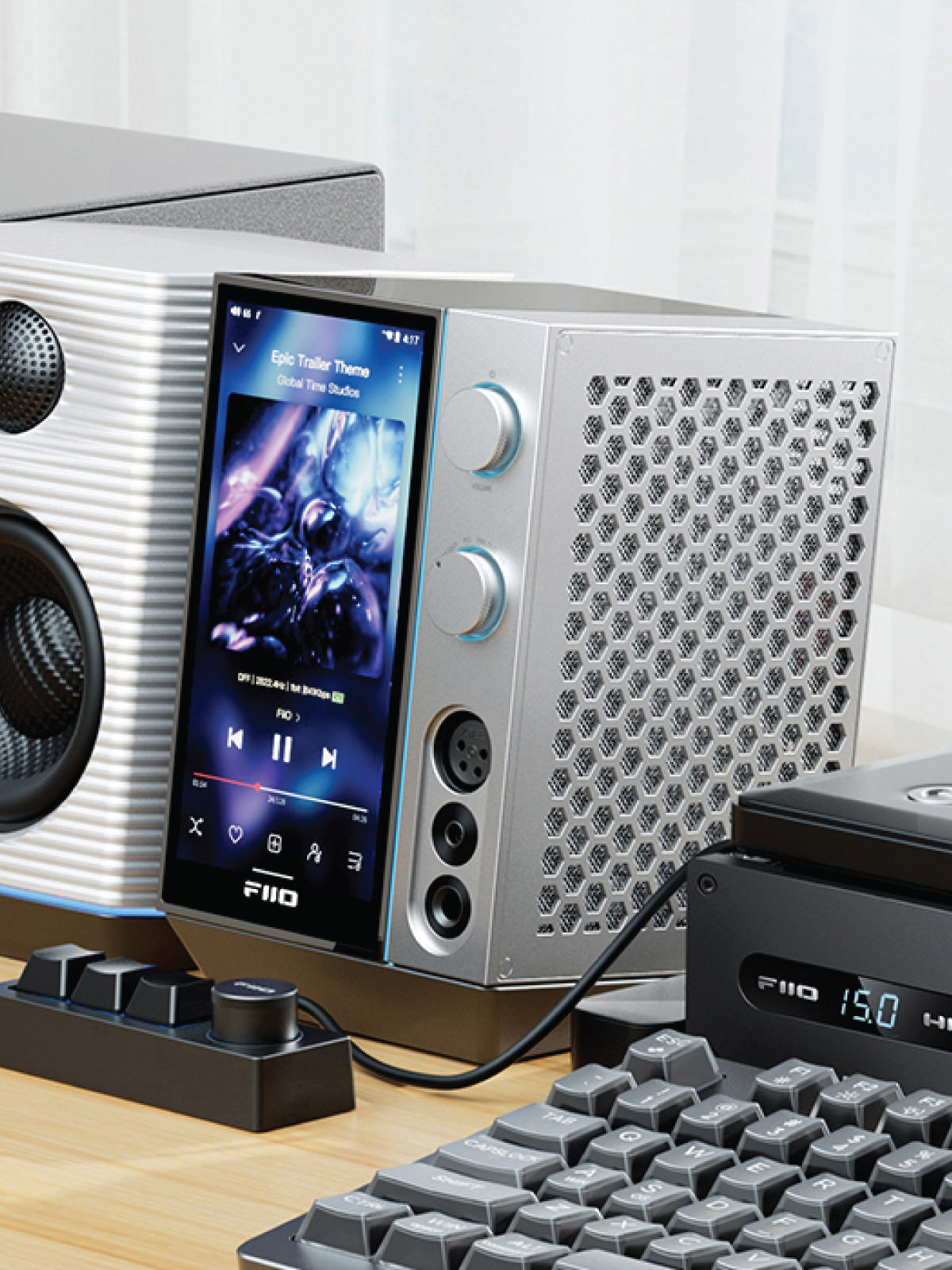

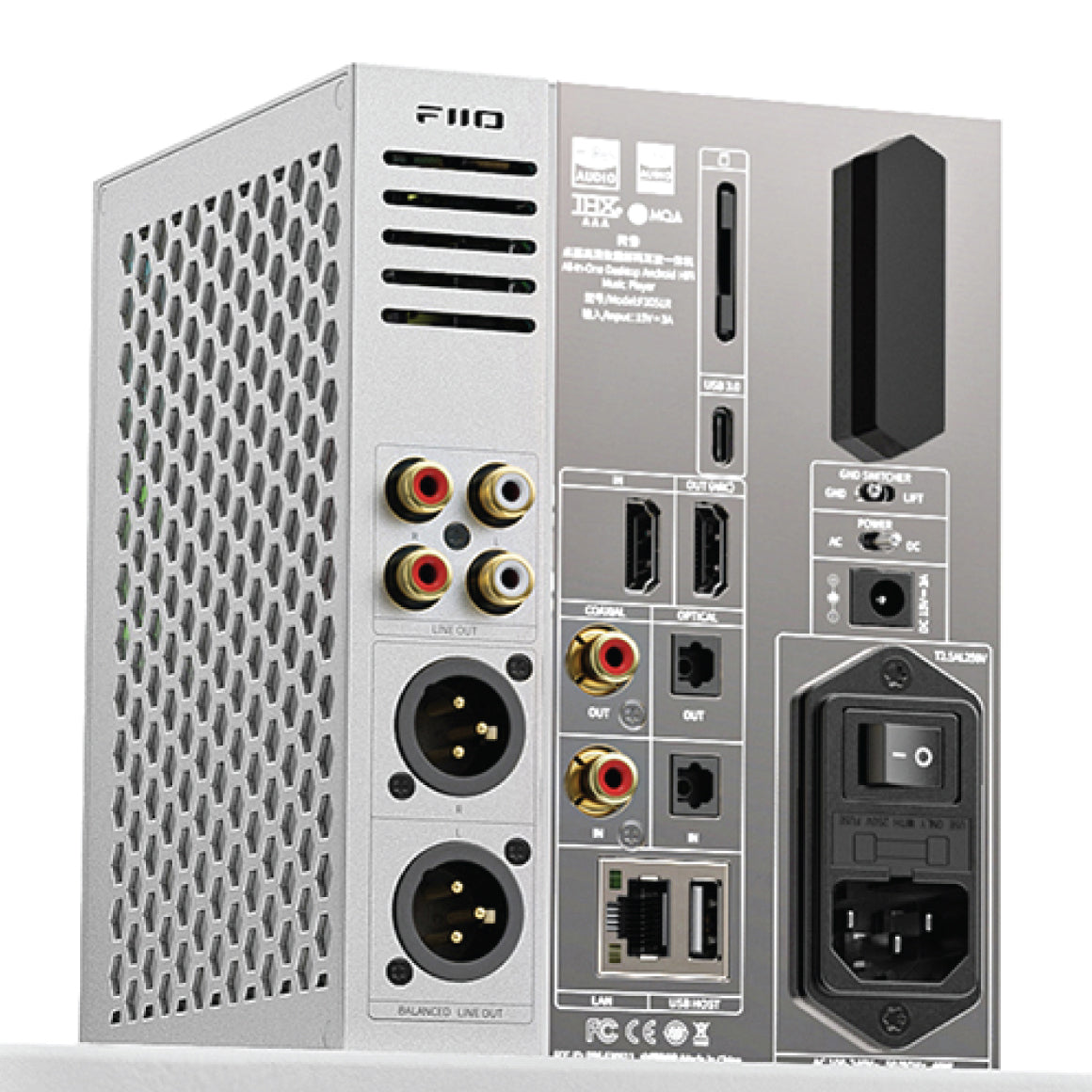

The side honeycomb vents serve as both heat dissipators and as a futuristic touch; A recessed rear panel means more elegant wire connections and less clutter. The seamless WiFi/Bluetooth antenna packs many capabilities in a simple square inch. The customizable RGB lights give your desktop setup some extra personality.
The R9 offers a versatile experience with ten operating modes, providing flexibility for various audio scenarios. These modes include Android mode for third-party apps and major streaming services, pure tone mode for an exclusive immersive music experience, USB DAC mode for enhanced sound from computers/smartphones, Bluetooth receiver mode supporting aptX adaptive/LDAC codecs, AirPlay mode for wireless connection to iOS devices, Roon Ready mode for serious music enthusiasts, coaxial/optical input modes for high-end audio decoding, HDMI input mode for devices like game consoles/Blu-ray players/set-top boxes, and HDMI ARC mode for audio return from TVs/projectors.
- PO + PRE-OUT
The R9 allows you to switch between your devices and listening modes using the control knob. You can use the R9 in PO+PRE OUT mode, wherein you can connect your powered speakers and your preferred choice of headphones at the same time. Provided outputs are RCA and XLR for connection for PRE-OUT mode. - PO
The phone out (PO) mode is simple and can be used when you just want to listen to your preferred choice of headphones. - PRE-OUT
This mode allows you to pair your powered monitors and use the R9 as the source and a preamp for your powered speakers. Provided outputs are RCA and XLR for connection for PRE-OUT mode. - LO
Line out (LO) mode allows you to pair your powered monitors and use the R9 as the source and a preamp for your powered speakers. Provided outputs are RCA and XLR for connection in LO mode.
Want to listen to your music without having to get up? The RM3 bluetooth remote control allows you to control music from a distance through buttons and gestures even for complex operations.
The side honeycomb vents serve as both heat dissipators and as a futuristic touch; A recessed rear panel means more elegant wire connections and less clutter. The seamless WiFi/Bluetooth antenna packs many capabilities in a simple square inch. The customizable RGB lights give your desktop setup some extra personality.

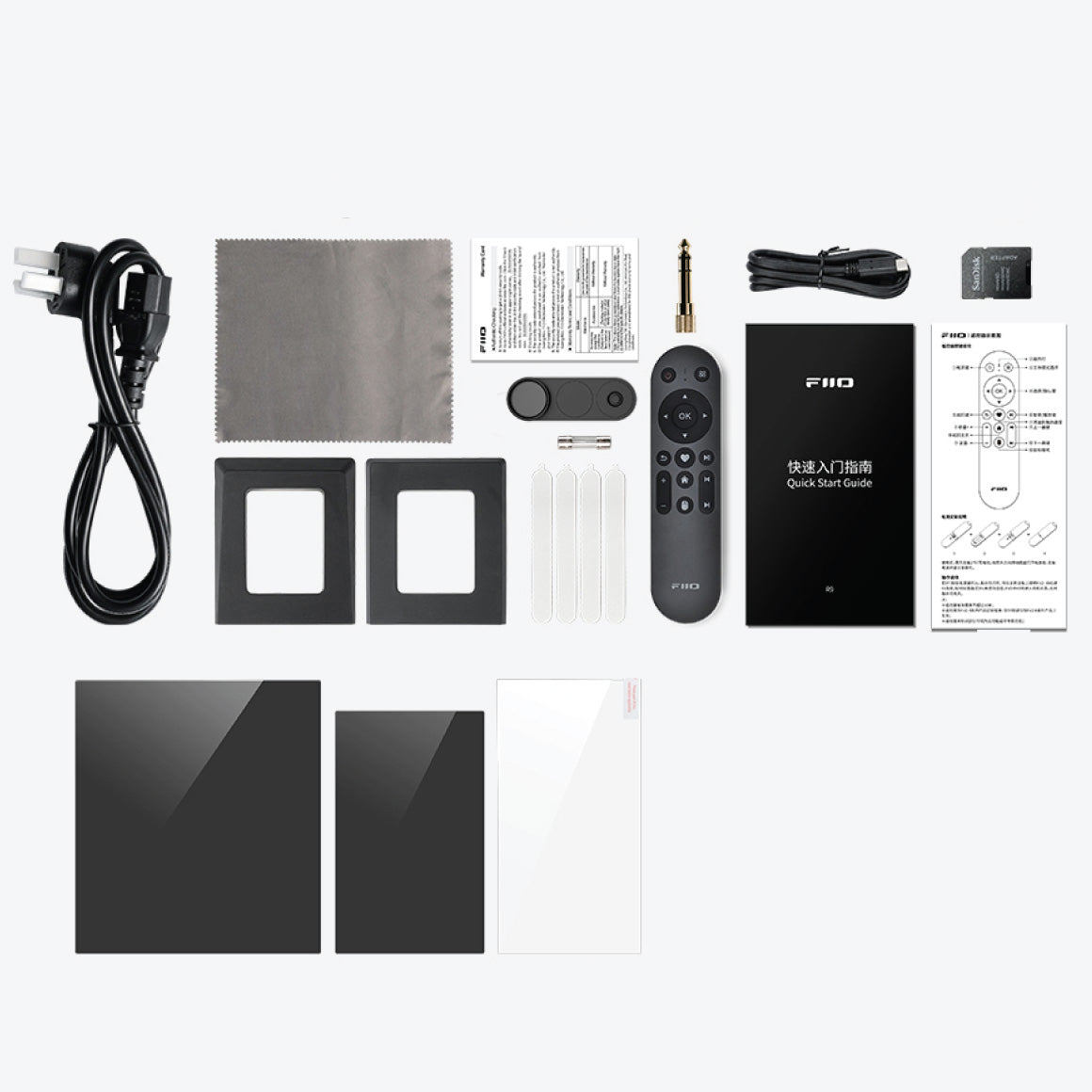

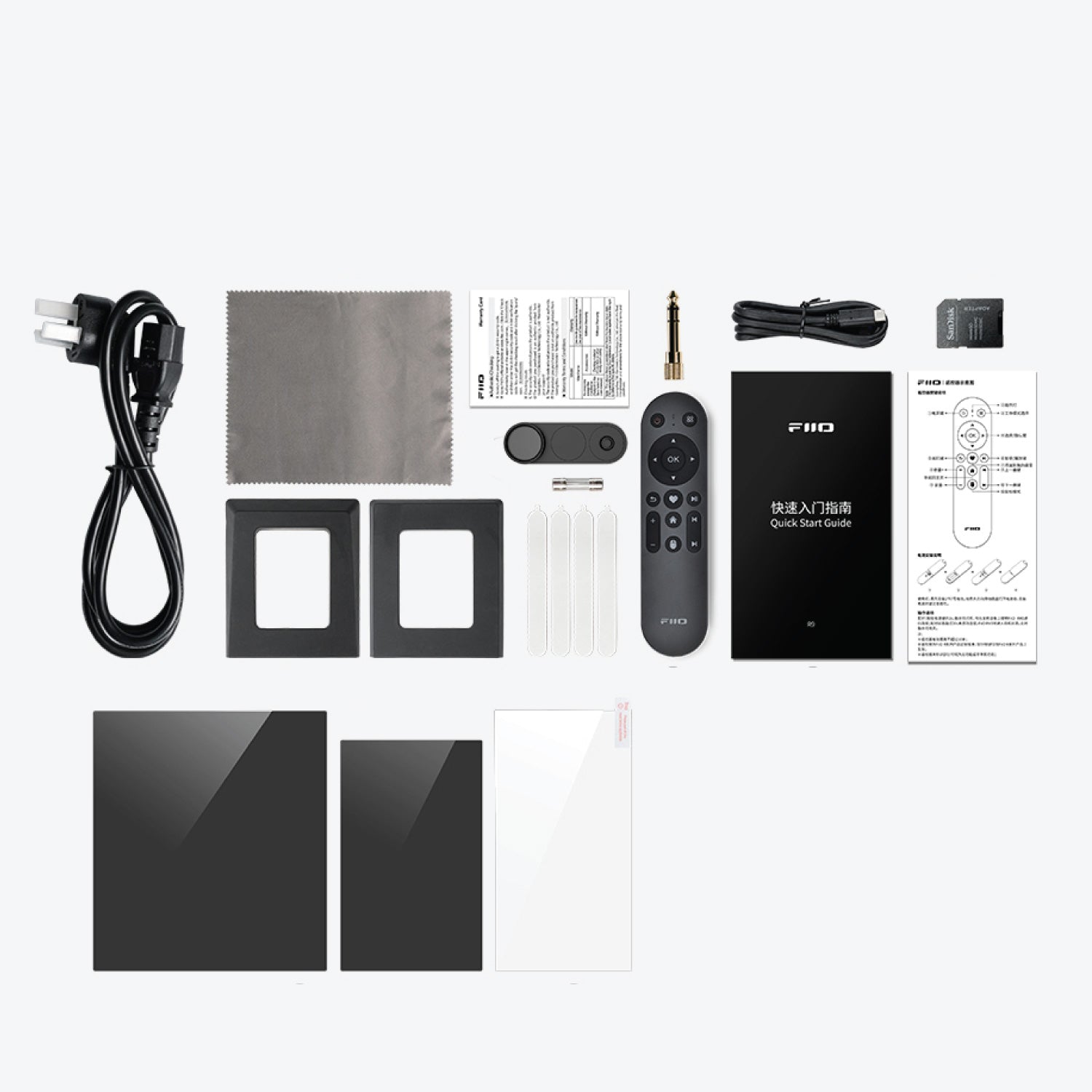

Accessories To Get You Started
1. AC power cord x1
2. Base x2
3. Silicone double-sided tape x4
4. RM3 Bluetooth remote x1
5. Quick start guide x1
6. RM3 tips card x1
7. MicroSD card holder x1 (pre-installed)
8. USB cable x1
9. Headphone adapter x1
10. Warranty card x1
11. Cleaning cloth x1
12. Dust cover plug x1
13. Fuse x1
14. PET electroplated film x2 (pre-installed)
15. Tempered film x1 (pre-installed)
The FiiO R9 is an incredibly versatile and practical all-in-one streamer, DAC, and headphone amplifier that offers possibly the most comprehensive set of I/O options, well customized to seamlessly integrate into desktop or speaker setup.
All You Need To Know About The FiiO R9
4.4mm (Balanced)
4-Pin XLR (Balanced)
6.35mm (Single-Ended)
Ultra High
L+R≥3500mW+3500mW (16Ω, THD+N＜1%)
L+R≥2100mW+2100mW (32Ω,THD+N<1%)
L+R≥245mW+245mW (300Ω,THD+N<1%)
Super High
L+R≥2250mW +2250mW(16Ω,THD+N<1%)
L+R≥1400mW +1400mW(32Ω,THD+N<1%)
L+R≥125mW+125mW (300Ω,THD+N<1%)
Ultra High
L+R≥3500mW+3500mW (16Ω,THD+N<1%)
L+R≥7300mW+7300mW (32Ω,THD+N<1%)
L+R≥1000mW+1000mW (300Ω,THD+N<1%)
Super High
L+R≥3500mW+3500mW (16Ω,THD+N<1%)
L+R≥4500mW +4500mW(32Ω,THD+N<1%)
L+R≥490mW+490mW (300Ω,THD+N<1%)
6-Inch HD
64GB/About 46GB
Ultra high gain/Super high gain/High gain/Medium gain/Low gain
Single SD card, supports up to 2TB theoretically
V5.1
SBC/AAC/aptx/aptx-LL/aptx-HD/aptx-Adaptive/LDAC
USB DAC: Supports up to 768kHz/32bit; DSD512 (Native)
Local decoding: Supports up to 384kHz/32bit; DSD256 (Native)
USB Audio: 768kHz/32bit; DSD512 (DoP/D2P/Native)
Coaxial IN: Supports up to 192kHz/24bit
Optical IN: Supports up to 96kHz/24bit
Coaxial out: Supports up to 384kHz/24bit; DSD128 (D2P/DOP)
Optical out: Supports up to 192kHz/24bit
HDMI IN: Supports up to 192kHz/24bit
HDMI OUT: Supports up to 192kHz/24bit
SoC: Qualcomm Snapdragon 660; DAC: ES9038Pro*2
Amp: 8-channel THX AAA 788+
USB decoding: XU316
Bluetooth: WCN3980 (transmission), QCC5125 (reception)
Android mode/Pure Music mode/USB DAC mode/Bluetooth Receiving mode/AirPlay mode/Coaxial decoding mode/Roon Ready/Optical decoding mode/HDMI IN mode/HDMI ARC mode
XLR3 BAL port
RCA* 2
Input
USB, Optical, Coaxial, Bluetooth
Output
RCA, XLR, Optical, Coaxial
100M Ethernet port
Supports upgrade through local storage+microSD card+OTA
Encoder knob (supports volume adjustment and power on)*1+Output selection knob*1
Type-C USB3.0*1+USB A*1 (data transmission)
Android: WiFi and Bluetooth controls
iOS: Bluetooth control
Supported DC 15V/≥3A; AC 100-240V~50/60Hz (either-or)
1. FiiO R9 Digital Audio Player
2. AC power cord x1
3. Base x2
4. Silicone double-sided tape x4
5. RM3 Bluetooth remote x1
6. Quick start guide x1
7. RM3 tips card x1
8. MicroSD card holder x1 (pre-installed)
9. USB cable x1
10. Headphone adapter x1
11. Warranty card x1
12. Cleaning cloth x1
13. Dust cover plug x1
14. Fuse x1
15. PET electroplated film x2 (pre-installed)
16. Tempered film x1 (pre-installed)
Other Details
| Generic Name | Digital Audio Player |
| Importer Details | Importers Name: Ferrari Video Address: 63/18, 1st Main Road, Gandhi Nagar, Chennai - 600020 Contact No: 044-24420733 |
| Dimensions | 136.6 x 75.7 x 17.6mm |
| Net Quantity | 1 |
| Manufacturer Details | Name: HK JADE Audio Technology CO., Limited Address: Room 1508, 15/F, Yalam Central Studio II, 625 Nathan Road, Kowloon, CHINA |
| Package Contents | FiiO R9 AC power cord x1 Base x2 Silicone double-sided tape x4 RM3 Bluetooth remote x1 Quick start guide x1 RM3 tips card x1 MicroSD card holder x1 (pre-installed) USB cable x1 Headphone adapter x1 Warranty card x1 Cleaning cloth x1 Dust cover plug x1 Fuse x1 PET electroplated film x2 (pre-installed) Tempered film x1 (pre-installed) |
Manuals & Guides
User Manual | R9
All In One Desktop Player
Manuals & Guides
User Manual | R9
All In One Desktop Player
Don't sweat it, this
FiiO - R9 comes with a 1 Year warranty
from FiiO that covers manufacturing defects.
All products featured on Headphone Zone are backed by an original manufacturer's warranty.
Read more about FiiO's warranty in India.
Upto 7300mW+7300mW @32Ω
Upto 3650mW+3650mW @32Ω
4.4mm (Balanced)
4-Pin XLR (Balanced)
6.35mm (Single-Ended)
4.4mm (Balanced)
4-Pin XLR (Balanced)
6.35mm (Single-Ended)
Input:
USB, Optical, Coaxial, Bluetooth
Output:
RCA, XLR, Optical, Coaxial
Input: USB, Optical, Coaxial, Bluetooth
Output: RCA, XLR, Optical, Coaxial
Dual ESS Sabre ES9038PRO
ESS Sabre ES9068AS
Version: 5.1
Codecs: SBC/AAC/aptx/aptx-LL/aptx-HD/aptx-Adaptive/LDAC
Version: 5.0
Codecs: AAC/SBC/AptX/AptX HD/LDAC/LHDC
6-Inch HD (2160 * 1080)
4.97 Inches (720 * 1280) Full-Fit Screen
SoC: Qualcomm Snapdragon 660
DAC: ES9038Pro*2
Amp: 8-channel THX AAA 788+
USB decoding: XU316
Bluetooth: WCN3980 (transmission), QCC5125 (reception)
Soc: Snapdragon 660
DAC: ES9068AS
AMP: THX AAA-788+ * 2
USB: Snapdragon 660
Frequently Bought Together
TO BE RESTOCKED BY Mid March
Have a question? Get in touch!
Check out the most common questions our customers ask. Still have questions? Talk to our Headphone Gurus.
What is FiiO R9 on the whole?
FiiO R9, an Android-based streaming DAC and headphone amplifier, showcasing an upgraded design with a high-gloss 'fully liquid metal bicolor' body, RGB light strip, and a 6" 1080p touch panel. Initially equipped with Android 10, the R9 is set to receive an upgrade to Android 12 in Q1 2024. Notable improvements include a dedicated Qualcomm Bluetooth chip for aptX, aptX Adaptive, and aptX HD codecs, as well as a shift to dual ESS Labs 9030PRO for D/A conversion, enhancing audio performance. The THX788+ chipset-driven headphone amplifier now boasts eight active channels, delivering a formidable 7 Watts of power for demanding headphones. While retaining the analogue outputs of 2 x RCA and 2 x XLR, the R9 introduces HDMI ARC alongside USB, coaxial, and TOSLINK digital inputs, offering enhanced connectivity, including potential TV audio integration.
What are the various inputs/outputs like?
The front panel has 6.35mm (SE), 4-pin XLR & 4.4mm Balanced headphone outputs. The FiiO R9 gets you covered with the standard and widely used headphone outputs. The rear panel is where the magic lies. It hosts a microSD card slot which supports up to 2TB if you like to play offline files on the go. It has Single-Ended RCA and 3-pin XLR Balanced lineouts. Surprisingly it also has a USB host interface that supports external USB devices like decoders, hard disks, keyboards, and expansion hubs. It also offers Optical & Coaxial IN/OUT and an Ethernet port for wired connection to a network. The USB Type-C port (USB 3.0) on the FiiO R9 supports data transfer, DP output mode, USB DAC, and USB HOST-related functions. The FiiO R9 has a Bluetooth and WiFi antenna embedded into the rear panel with a power switch allowing you to switch between DC or AC power supply.

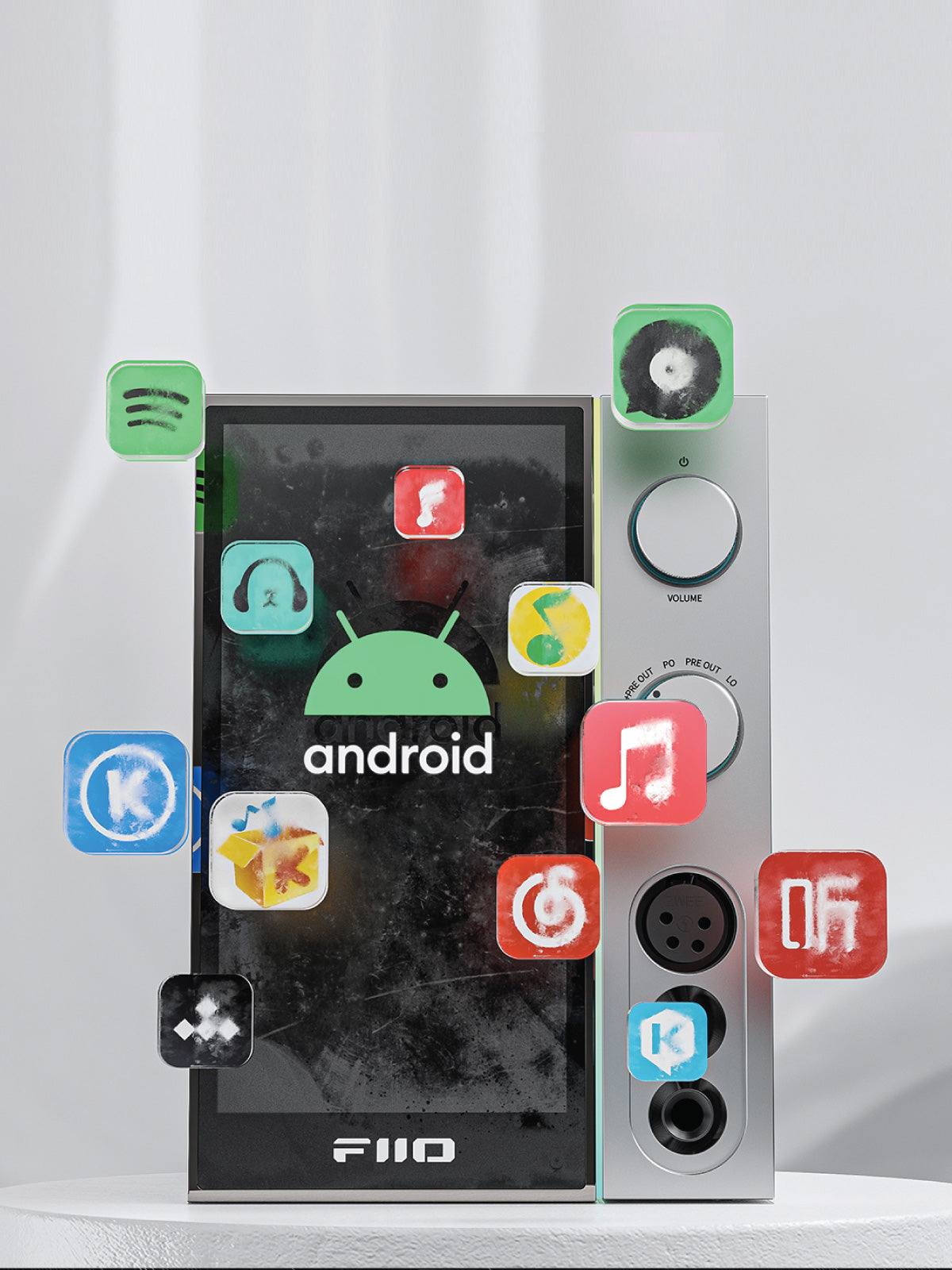

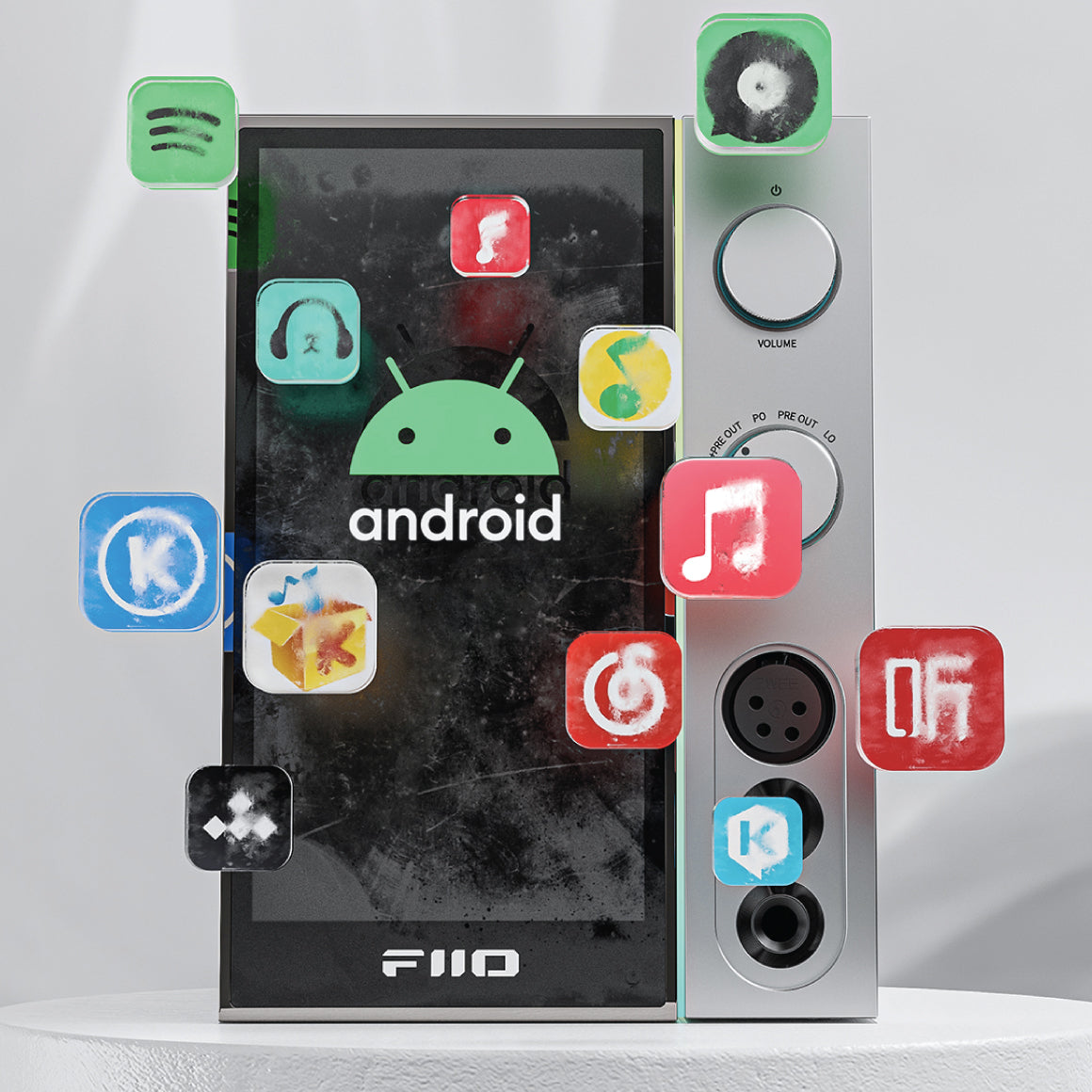

Does it support streaming?
Yep! You can download streaming apps from Google Play Store like Tidal, Spotify, Apple music, etc.
What is the Android version that it supports?
It supports Android Open OS.
What DAC chips are incorporated into the FiiO R9?
For the brand-new FiiO R9 has incorporated dual ESS Sabre ES9038PRO DAC chip in its circuitry.
Recommended Accessories
Customer Reviews
I was using the FIIO K7 AKM version with my own RPI5-based volumio setup for my main music setup. and R9 is a great improvement in terms of Sound quality and tons of connectivity options. there is a learning curve but worth spending time on it. Clear and natural sound. and able to smoothly paly all my offline and online sources well. few quick points to use.
1: use LO setting on the output dial to get a decent and punchy sound. It has two RCA out, use the top one. I noticed low output from the bottom one.
2: It would have been great to have an RCA input or Phono input to make it a complete media hub.
3. I connected a USB3.0 SSD but experienced slow bootup. which is annoying. When I switched to a microsd card this was resolved. Fiio should fix this problem in future firmware.
4; My personal preference is FIIO music app with no eq setting as it gives more natural sound. while paying with eq. I got distortions and clipping in output.
5: I use the PowerAMP app for local music play. I found I cannot use HIRes output option of PwoerAMP R9. Whereas I can use it on my IBasso DX240. this may be resolved in future android versions.
Hey there,
Thank you for taking the time to write this detailed review, we really appreciate the genuine feedback! Your review will definitely help fellow audiophiles to make an informed decision.

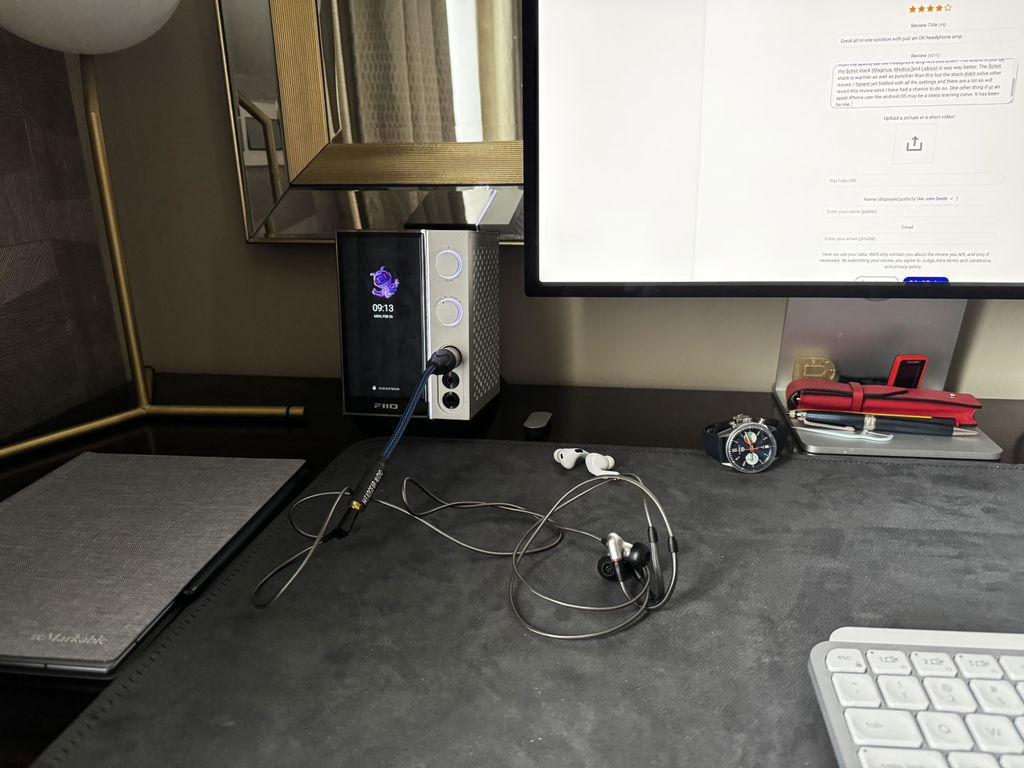

Love the versatility of the unit - it does absolutely everything and connects with almost anything. Needed a solution which would enable me to listen to music while working but not using my desktop or phone as the source. This fit the bill after hearing rave reviews of the R7 this seemed like a step up (at least from the specs) but the overall sound lets this down. It is just ok - my Schiit stack (Magnius, Modius, and Lokius) is way way better. The Schiit stack is warmer as well as punchier than this but the stack didnt solve other issues. I havent yet fiddled with all the settings and there are a lot so will revisit this review once I have had a chance to do so. One other thing if ur an apple iPhone user the android OS may be a steep learning curve. It has been for me. Tested this with Sennheiser IE900s and will be testing this very soon with Meze Advar and Empyrean IIs. As usual shipping (from Chennai to Gurgaon) was extremely fast ordered the previous evening and delivered next day afternoon so kudos to Headphone Zone.
You may also like
