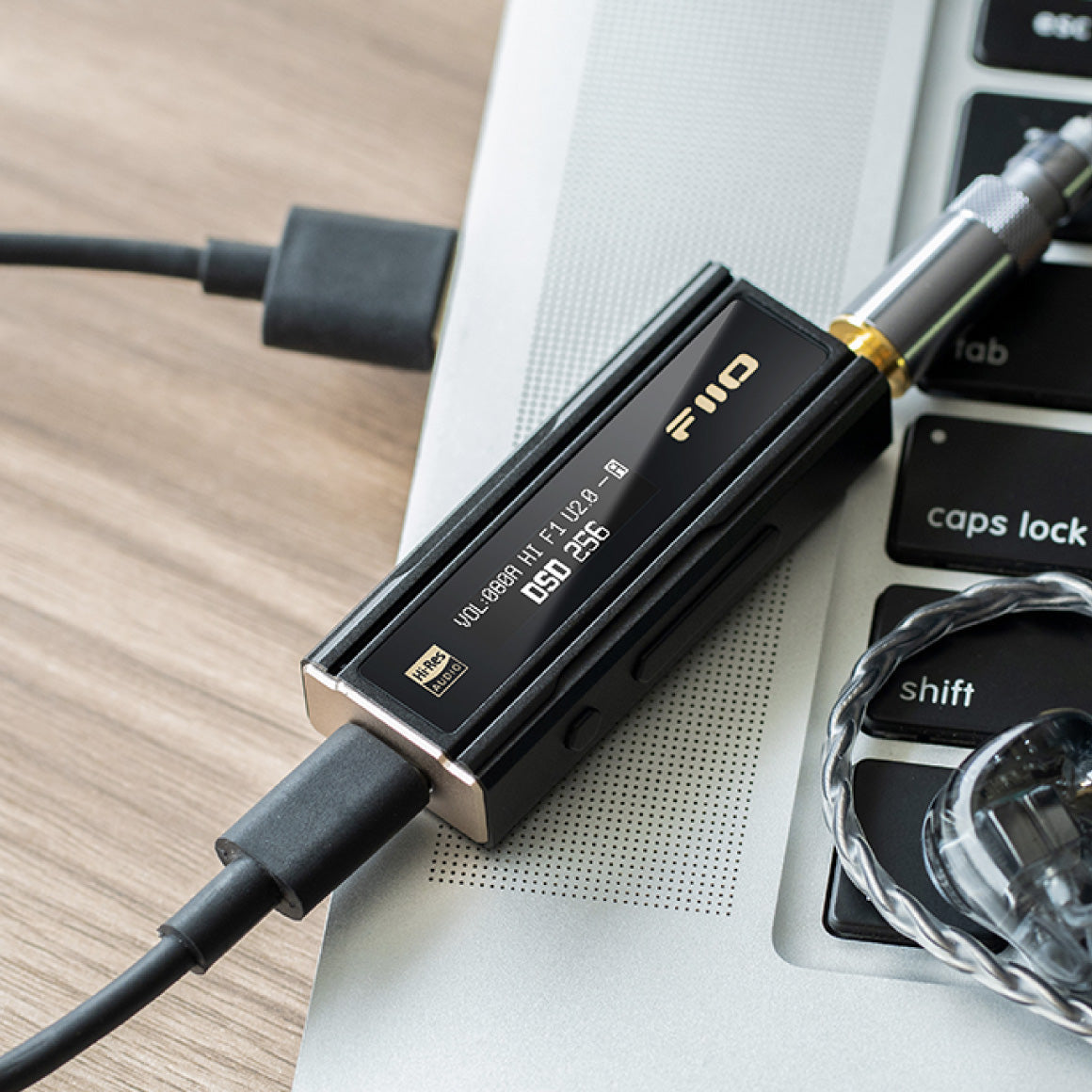

Pair with Laptop via USB
A majority of people use a laptop as the primary source device to listen to music or watch movies. Since the laptop is an essential part of the audio chain there are headphones and devices designed to work a laptop or computer system flawlessly. With the availability of USB connectivity, it becomes easier to pair various devices like an Amp, DAC or even headphones without worrying about drivers or any additional piece of software.
Upto 265mW+265mW @ 32Ω
Power Output
Connect With
USB-C & Lightning
Metal
Build
Super Lightweight
Design
UNBOXED
Headphone Zone Certified Unboxed Units
Unboxed units are as good as new products with the product's packaging being unavailable. These products give you the same satisfaction of new products - but at down-to-earth prices. Usually, the product's packaging may have gotten damaged in transit. Customers use a product once or twice and then return it with opened up packaging.
Customer Returns
Returned headphones are fully functional products that have left the warehouse and therefore can no longer be sold as new as their packaging has been opened. The product may have been used once or twice by the customer who returned it.
Transit Damages
Sometimes we receive headphones in damaged packaging due to shipping accidents. These are brand new headphones with cosmetic flaws on the packaging.
Save Upto 15%
Since you won't get the original packaging, we give you a good discount compared to a new headphone.
Professionally Inspected
A thorough inspection means you receive a 100% working headphone with no sound output issues.
Original Warranty
All unboxed headphones carry the same warranty period as a brand new headphone would.
Unbiased Customer Service
We have the same Headphone Zone customer support experience for Unboxed Products or new products.
Unchanged Replacement Policy
Received a defective Unboxed unit? Return it under our Replacement Policy.
All Original Accessories
The unboxed headphones itself comes with all original accessories.
DESCRIPTION

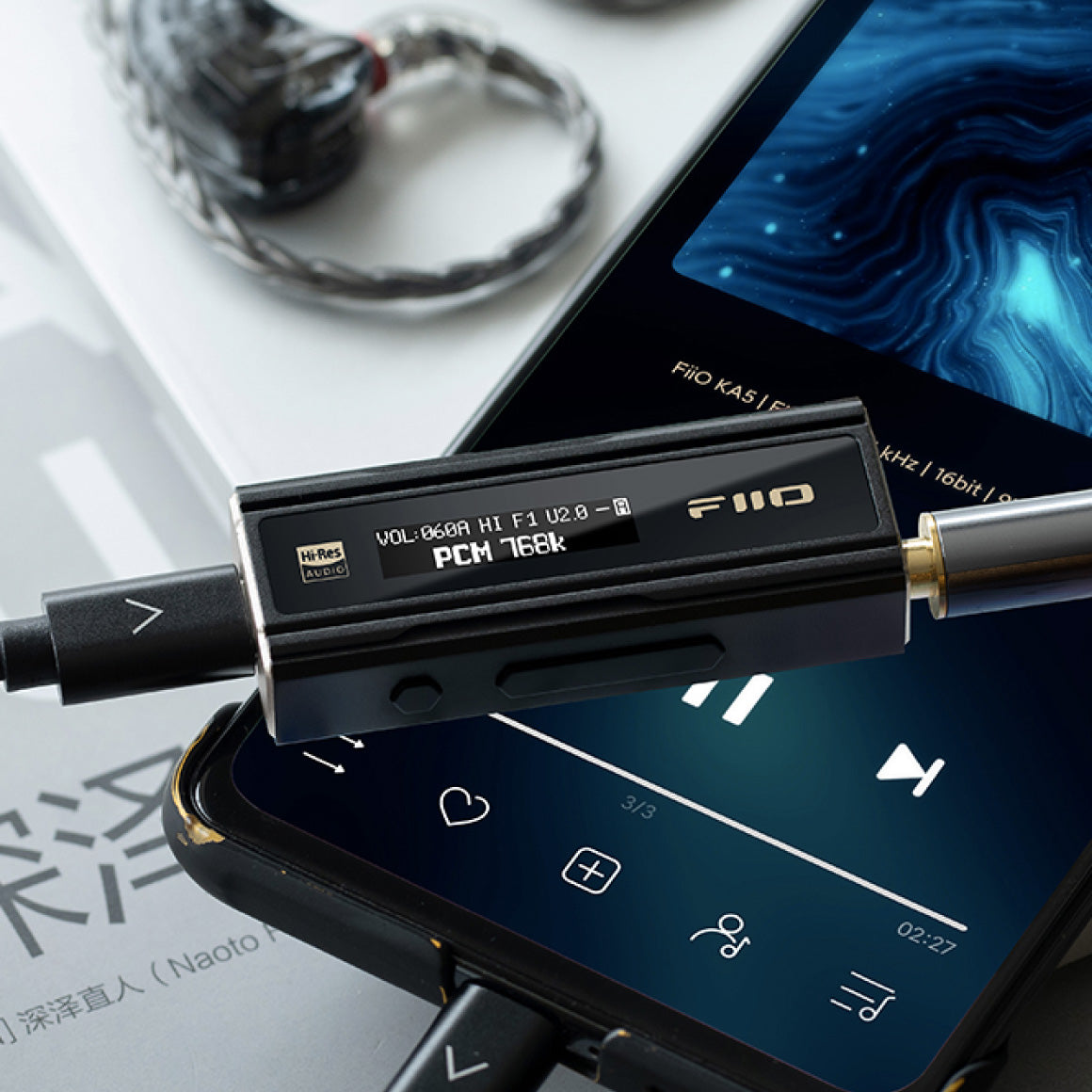

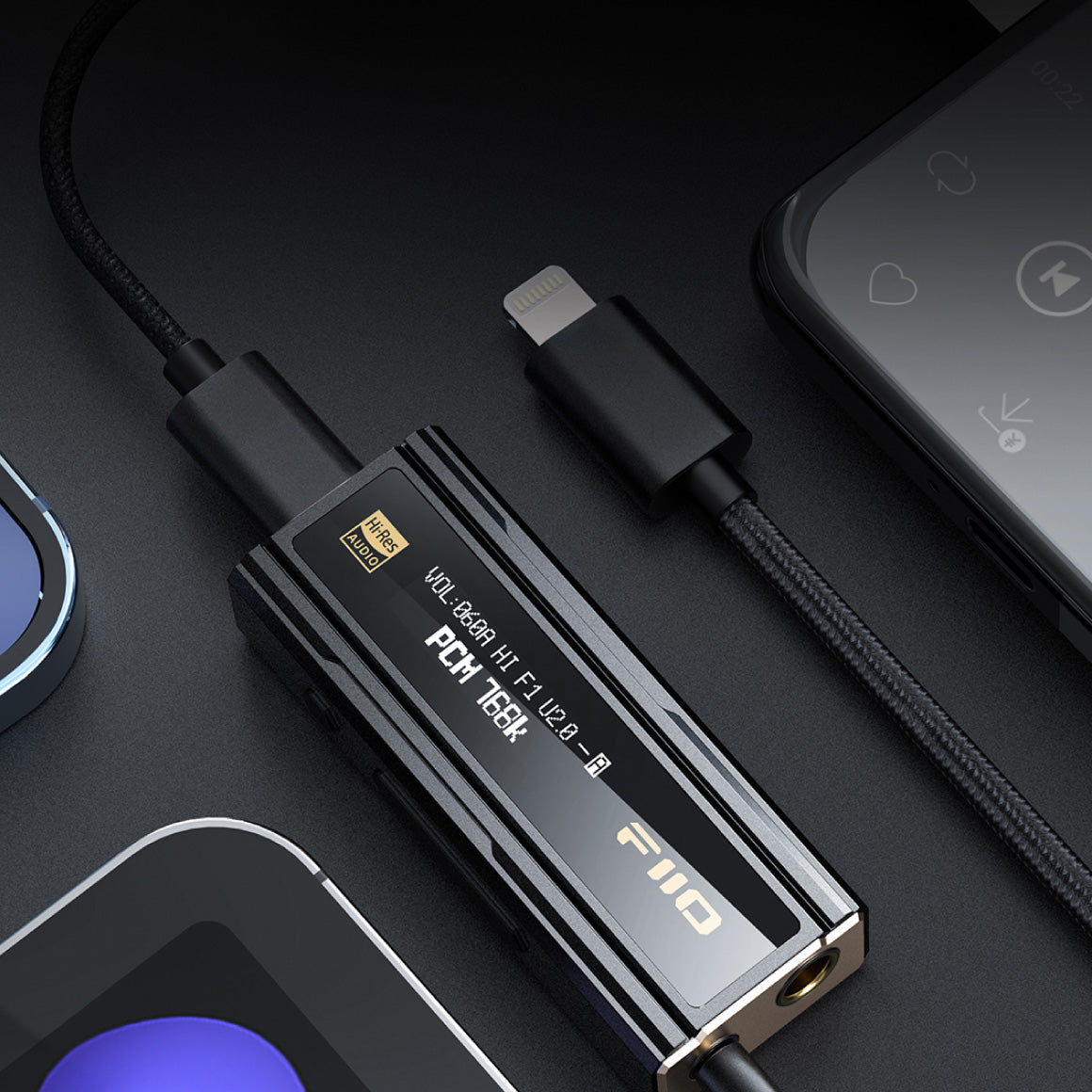

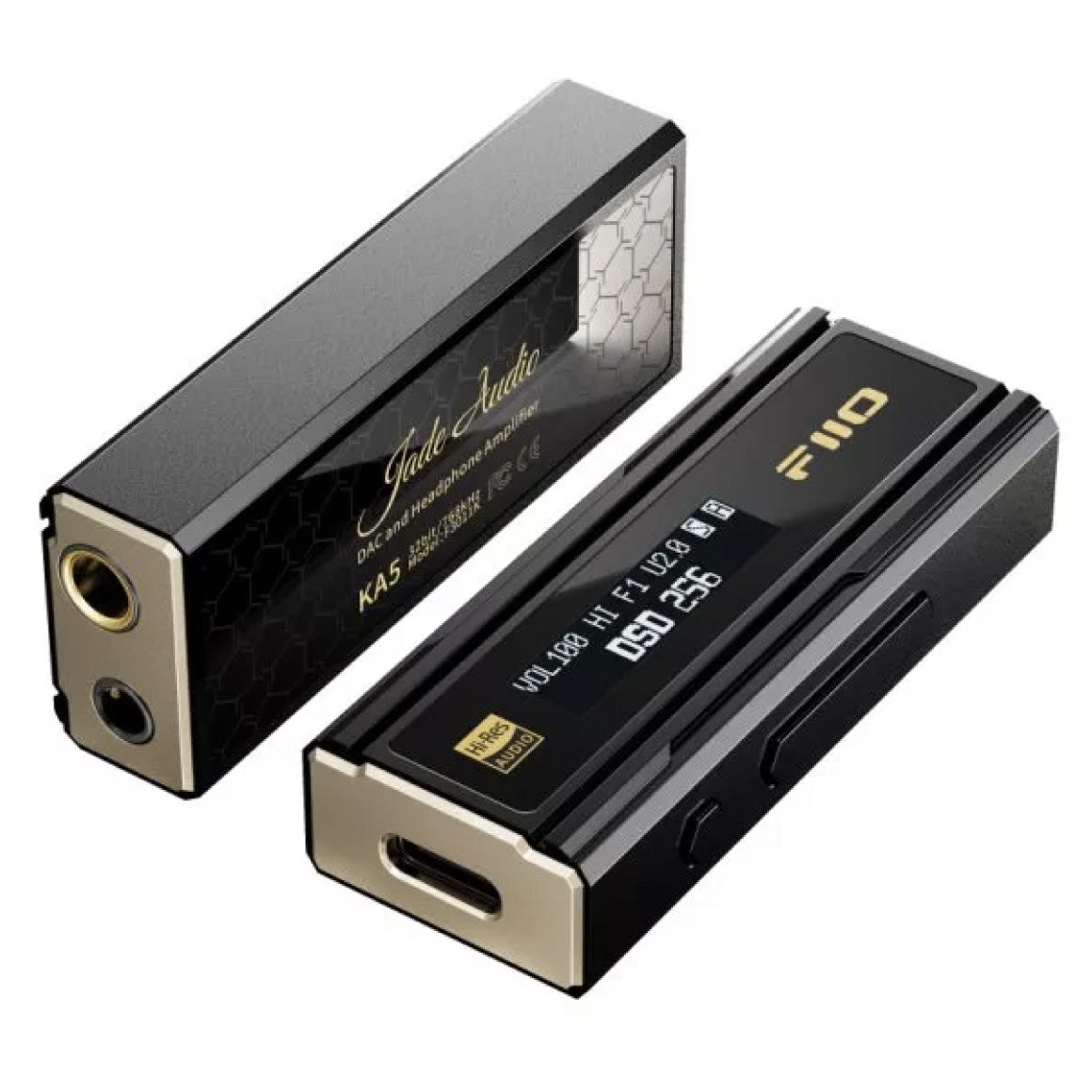

AN ADVANCED USB DONGLE WITH CLASS
FiiO introduces KA5, the highly classy USB DAC & Amp. It is a Hi-Res DAC capable of reproducing subtle nuances in your recording and making them come to life. It is powerful yet has black background i.e even at higher volumes you will not notice any distortion. FiiO has made the KA5 compatible with Android and iOS devices. It is also compatible with Windows and MAC devices. It is sure to surprise you and keep you engaged with your music. Music has never sounded so engaging and full-bodied!

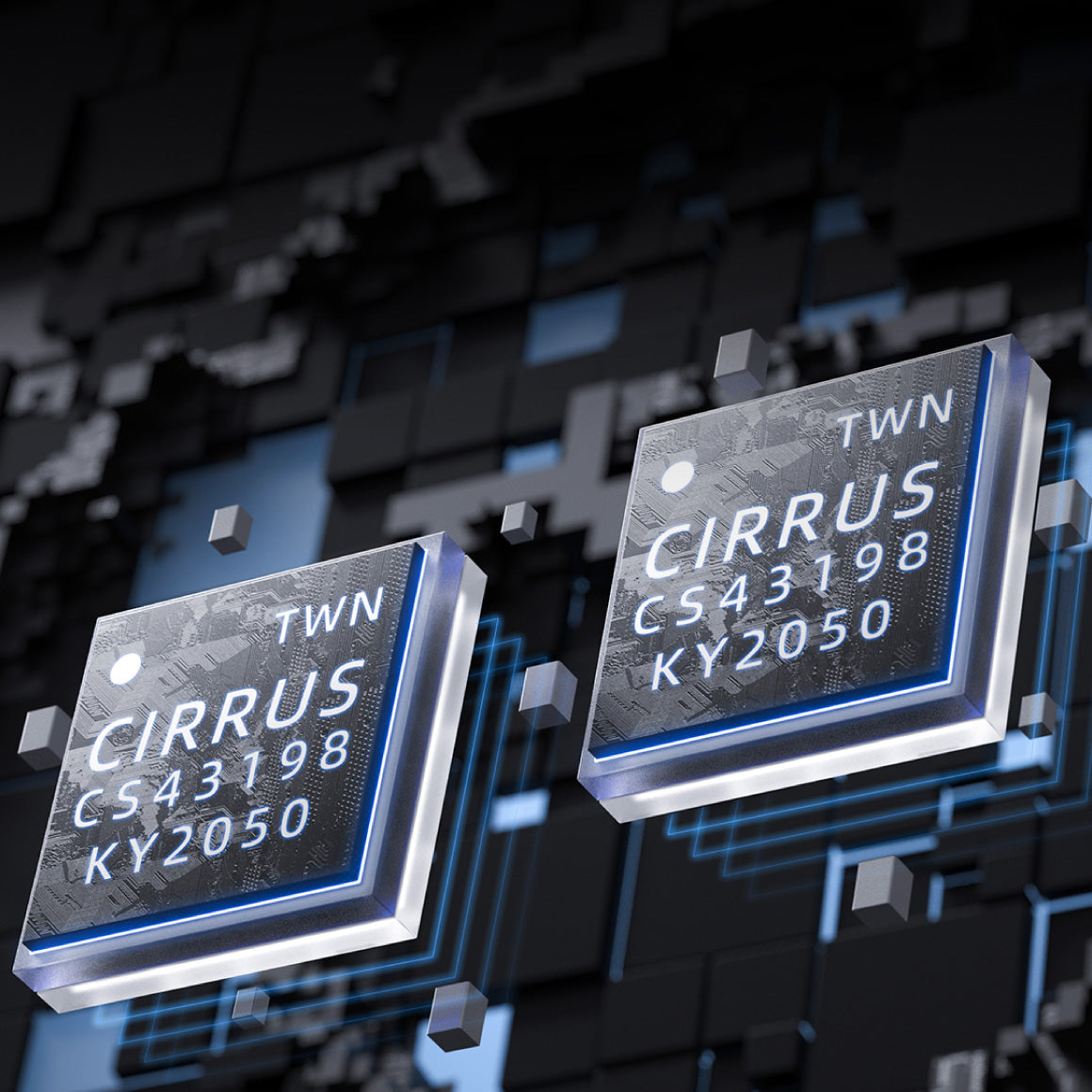

FEATURES DUAL DAC CHIPS FROM CIRRUS LOGIC FOR AN IMMERSIVE LISTENING EXPERIENCE
The FiiO KA5 features Cirrus Logic CS43198 DACs, known for their efficiency and ability to sound good with a wide variety of music, to give you a serious upgrade to the sound. The FiiO KA5 supports up to 32bit/768kHz PCM (Pulse Code Modulation) and DSD256 (Direct Stream Digital) decoding, allowing you to dig into and listen to the heart of your music, no matter what device you may have it connected to. Get an immersive listening experience with the all-new KA5!

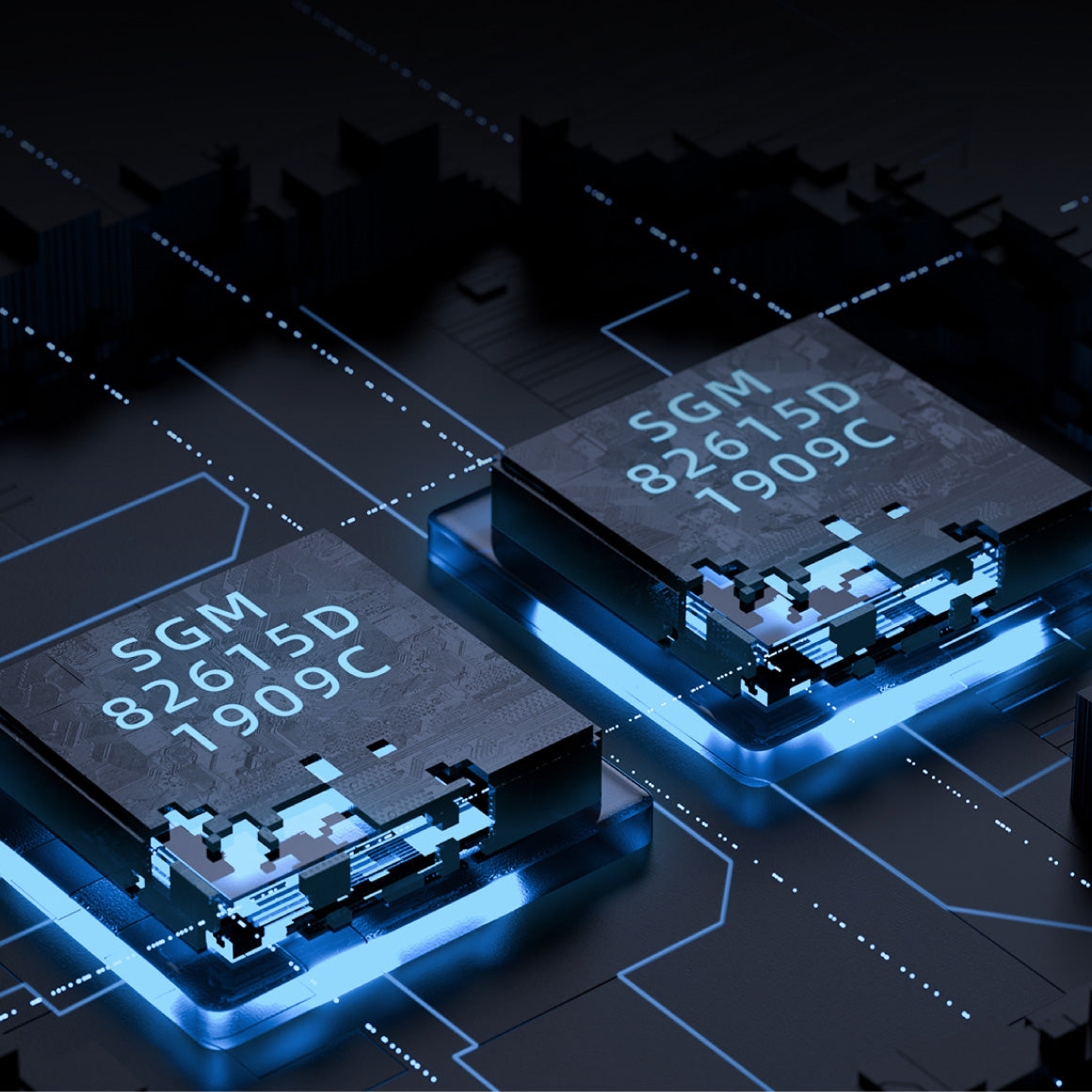

POWERFUL OUTPUT WITH DUAL 8261 AMPS
The FiiO KA5 utilises a 6-layer immersion gold PCB and high-performance ultra-low-noise opamps for powerful, robust sound. It features dual 8261 amplifiers for an even more immersive listening experience. The KA5 offers an output power of 122mW at 32Ω load (Single-ended) and 265mW at 32Ω load Balanced.

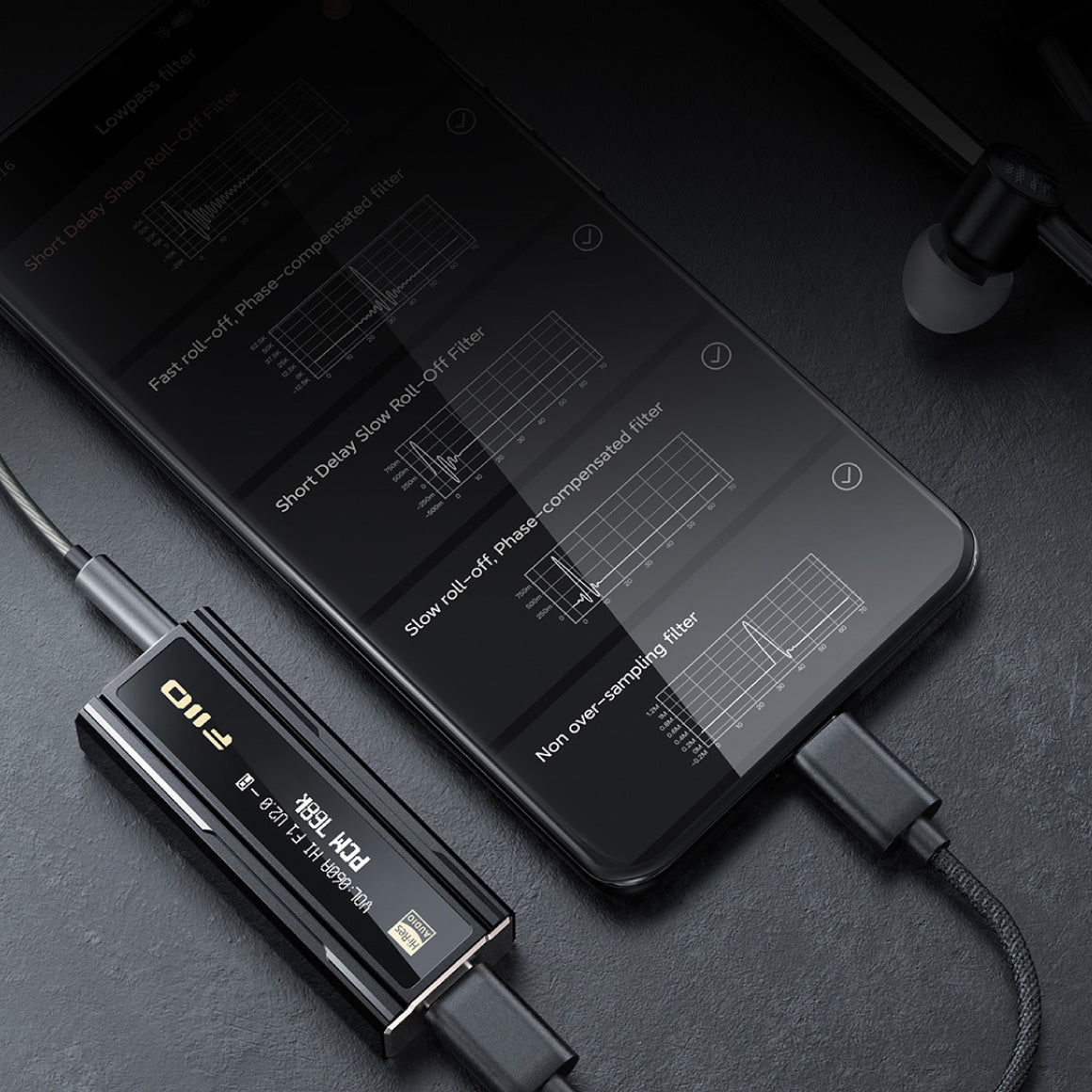

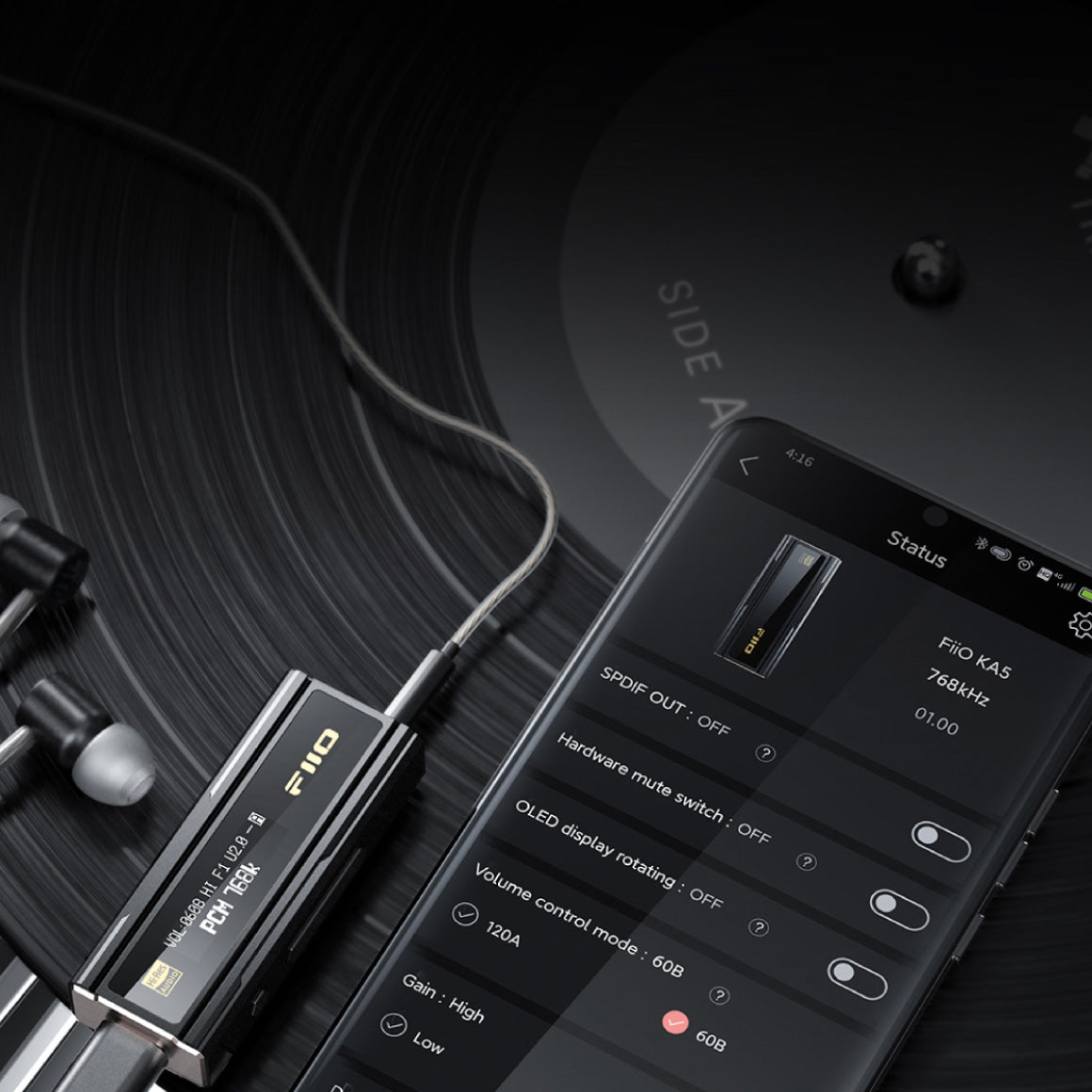

COMPATIBLE WITH THE FIIO COMPANION APP
The aggressive lines of the KA5 give it a bold look, while the carefully designed texture makes it a joy to handle. The 3.5mm output supports SPDIF output. After enabling the SPDIF output in the settings menu (Companion app), the USB audio signals can be converted to SPDIF signals. Connect the KA5 to a higher-end external decoder to set up a better audio system. Besides the local KA5 operating system, you can use the FiiO Control App to take control of the KA5.

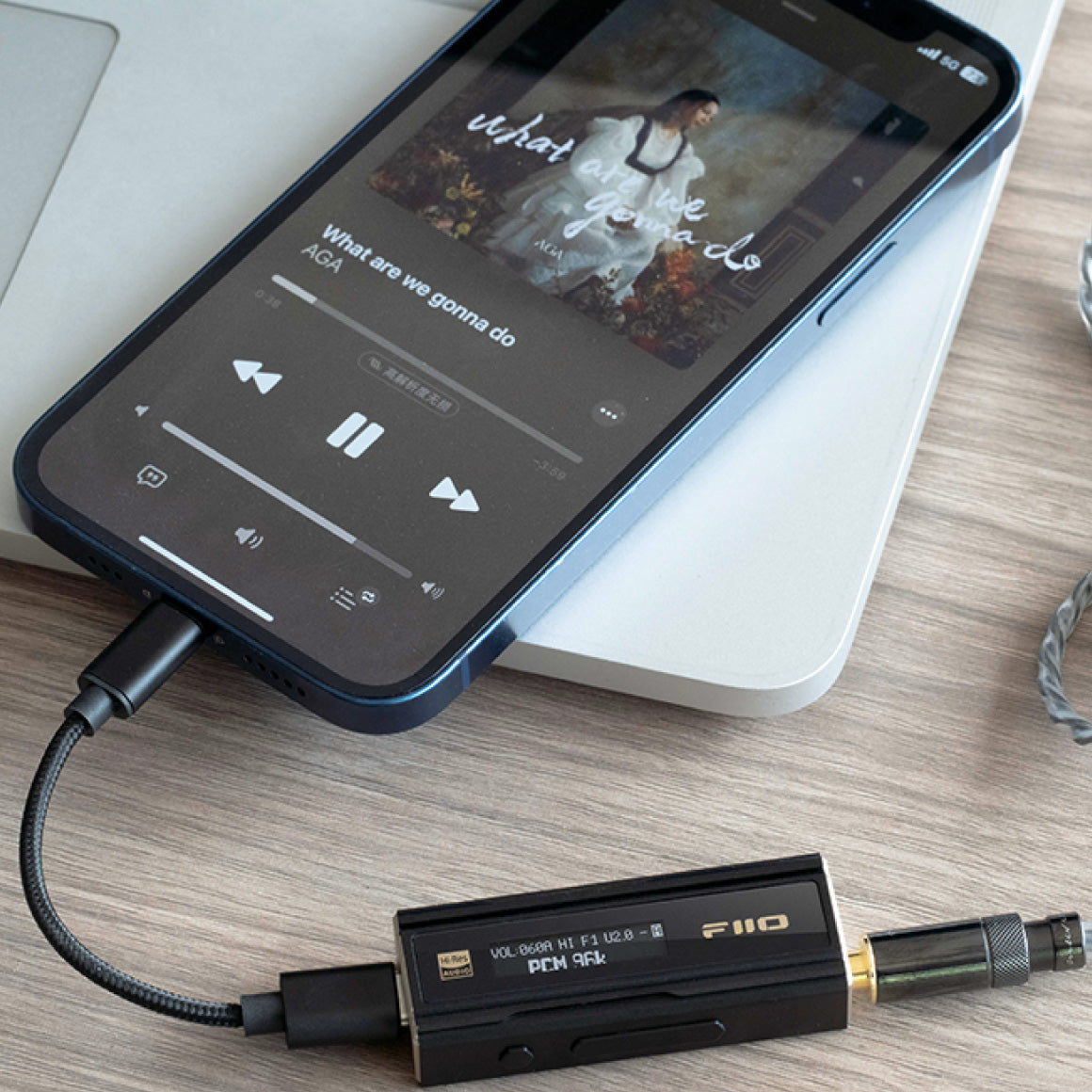

NOTE: The KA5 can only be controlled through the FiiO Control app on an Android device.

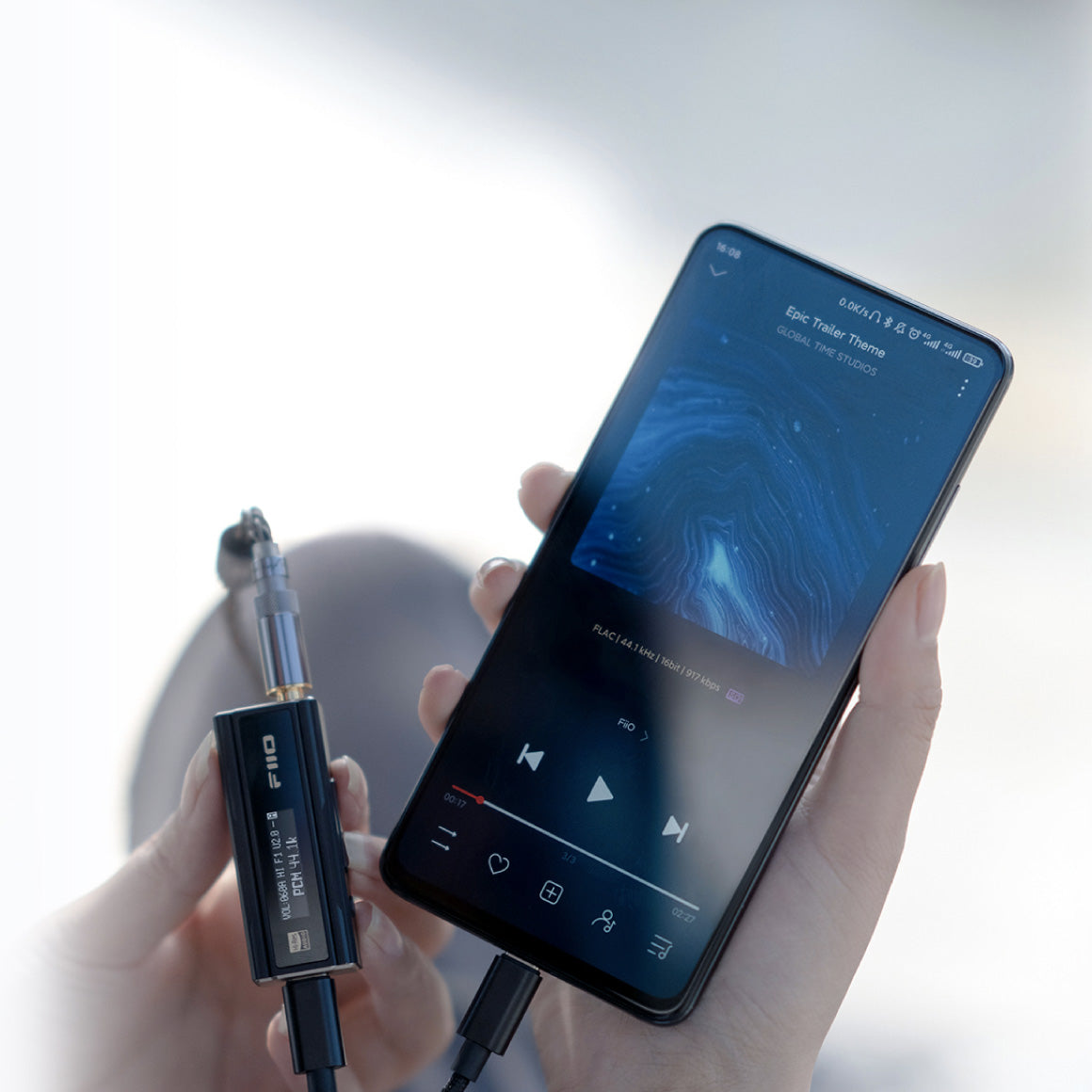

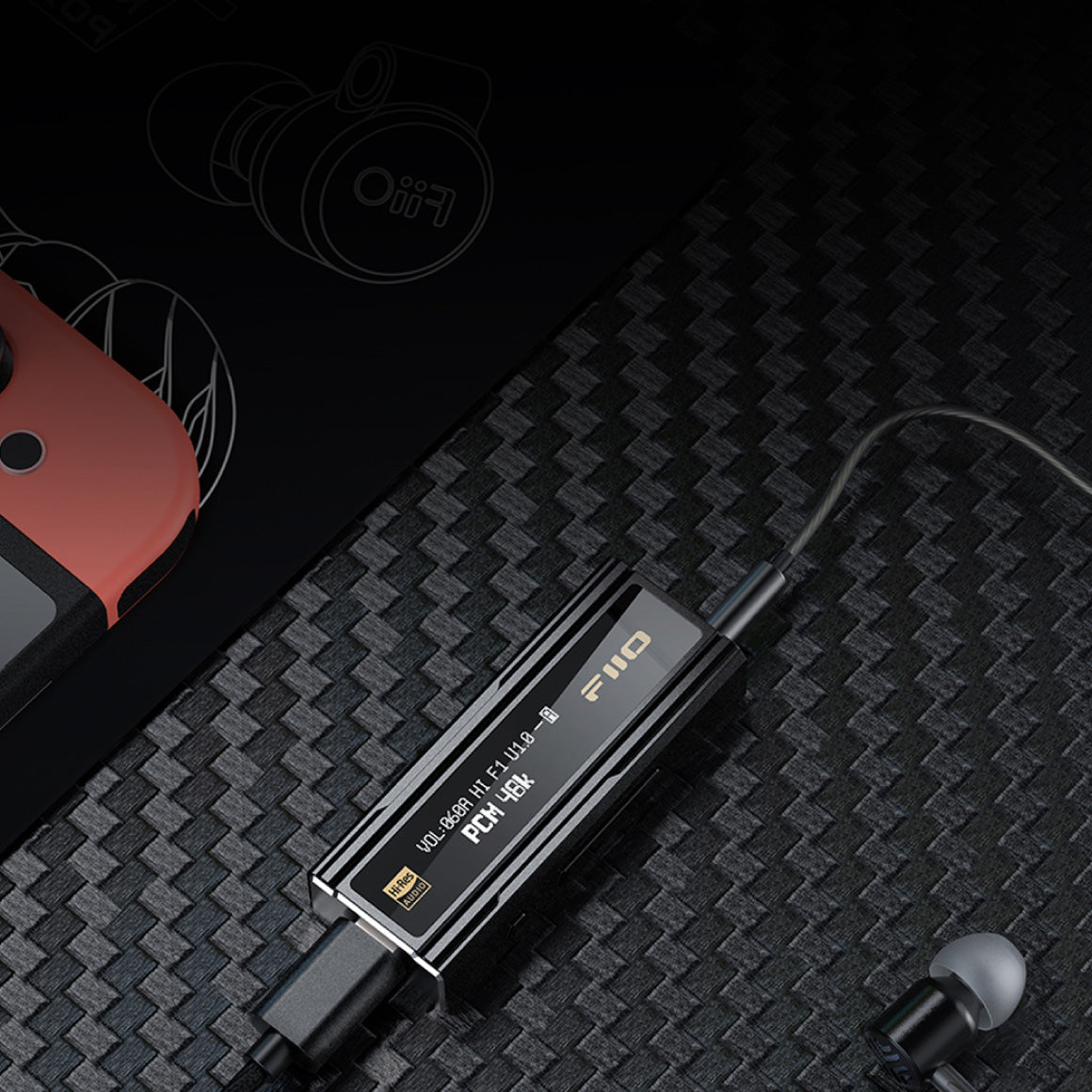

TAKE YOUR GAMING AND LISTENING EXPERIENCE TO NEW LEVELS
Despite the KA5's compact size, it packs a ton of functionality - such as high and low gain, five selectable filters, L/R cha balance, and screen flip. Let the KA5 redefine what a tiny audio dongle can do for you. The KA5 supports UAC2.0 and UAC1.0 modes. With the UAC 1.0 mode, you can connect the KA5 to the Switch and other various devices, allowing you to experience rich and detailed sound effects that make your gaming and listening sessions more immersive and engaging.

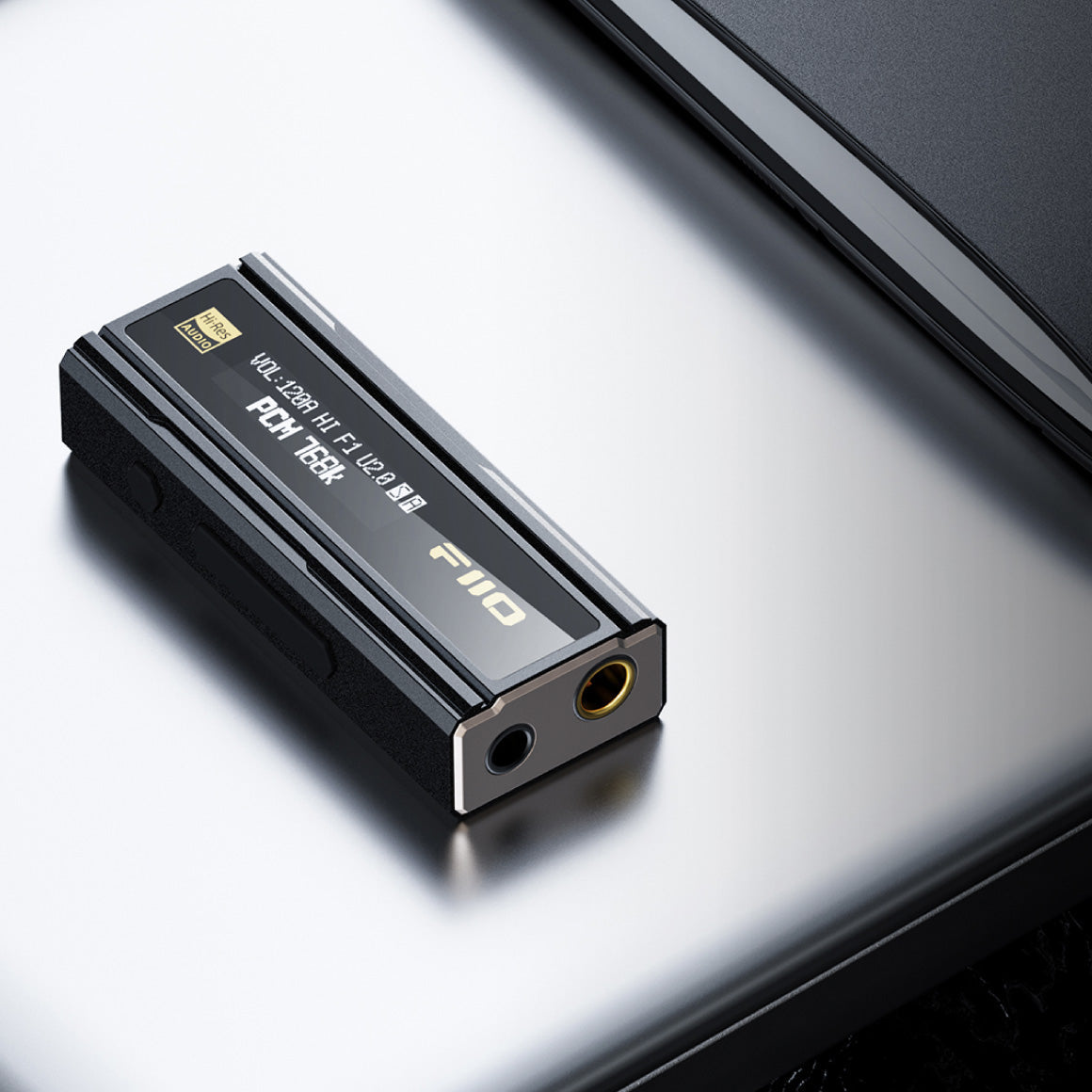

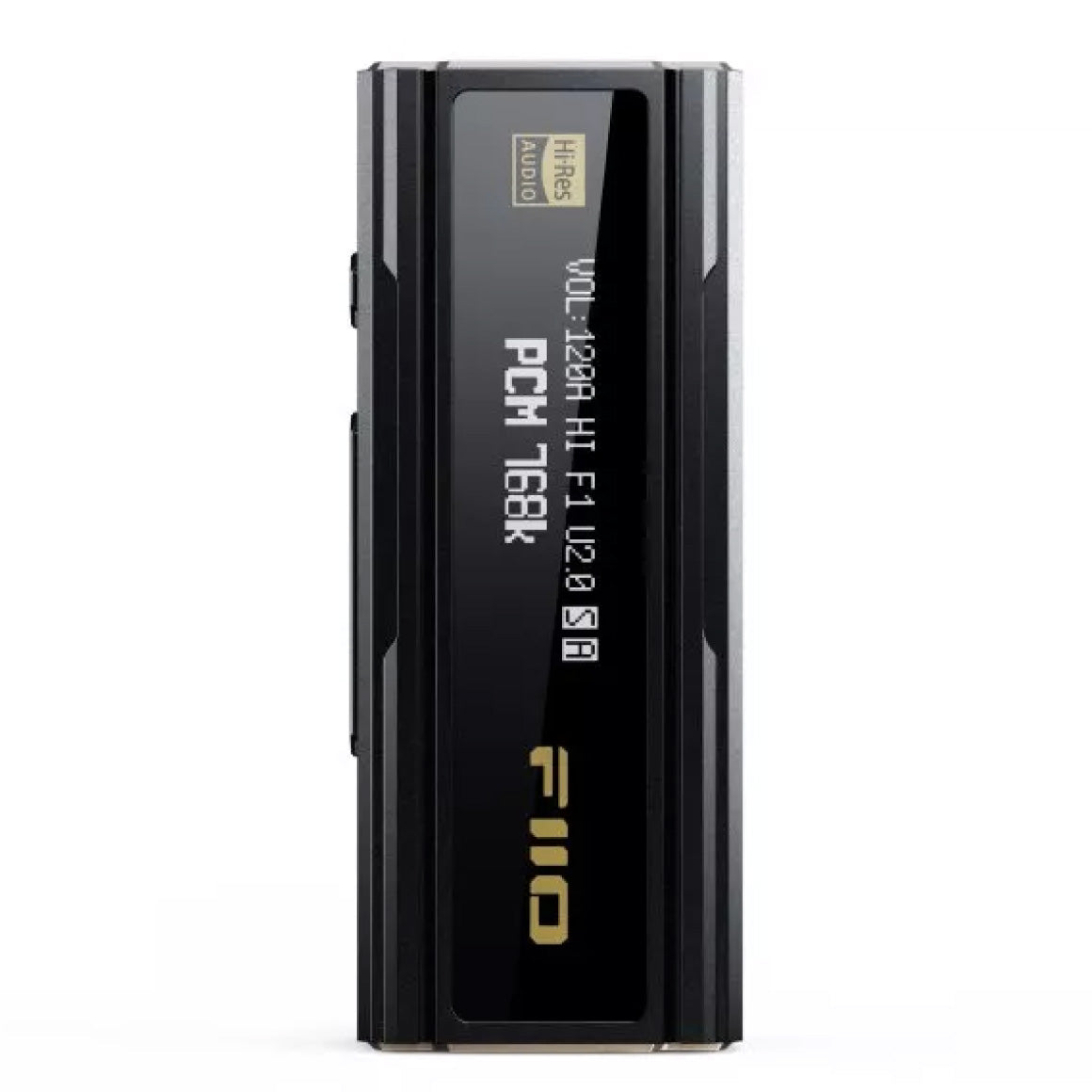

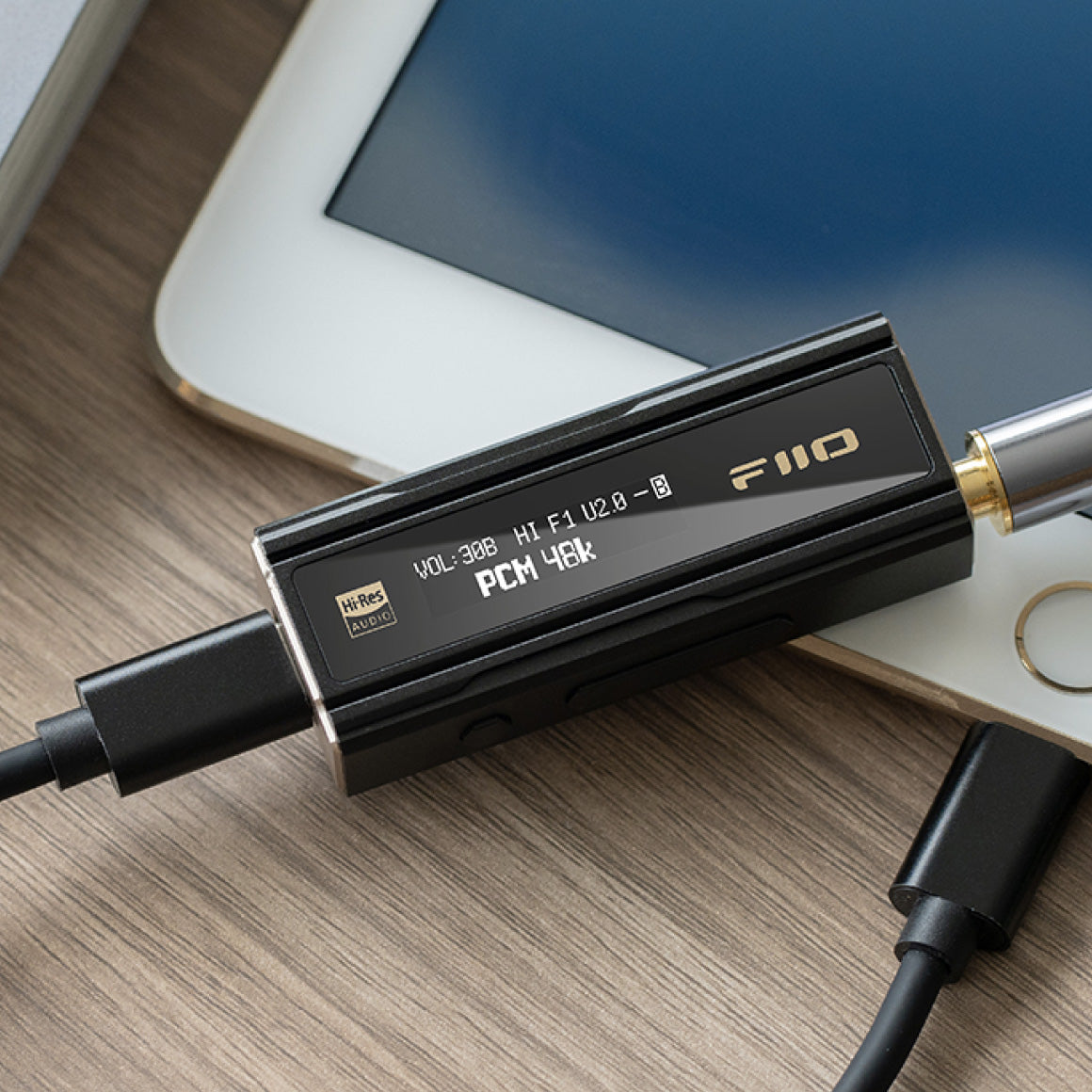

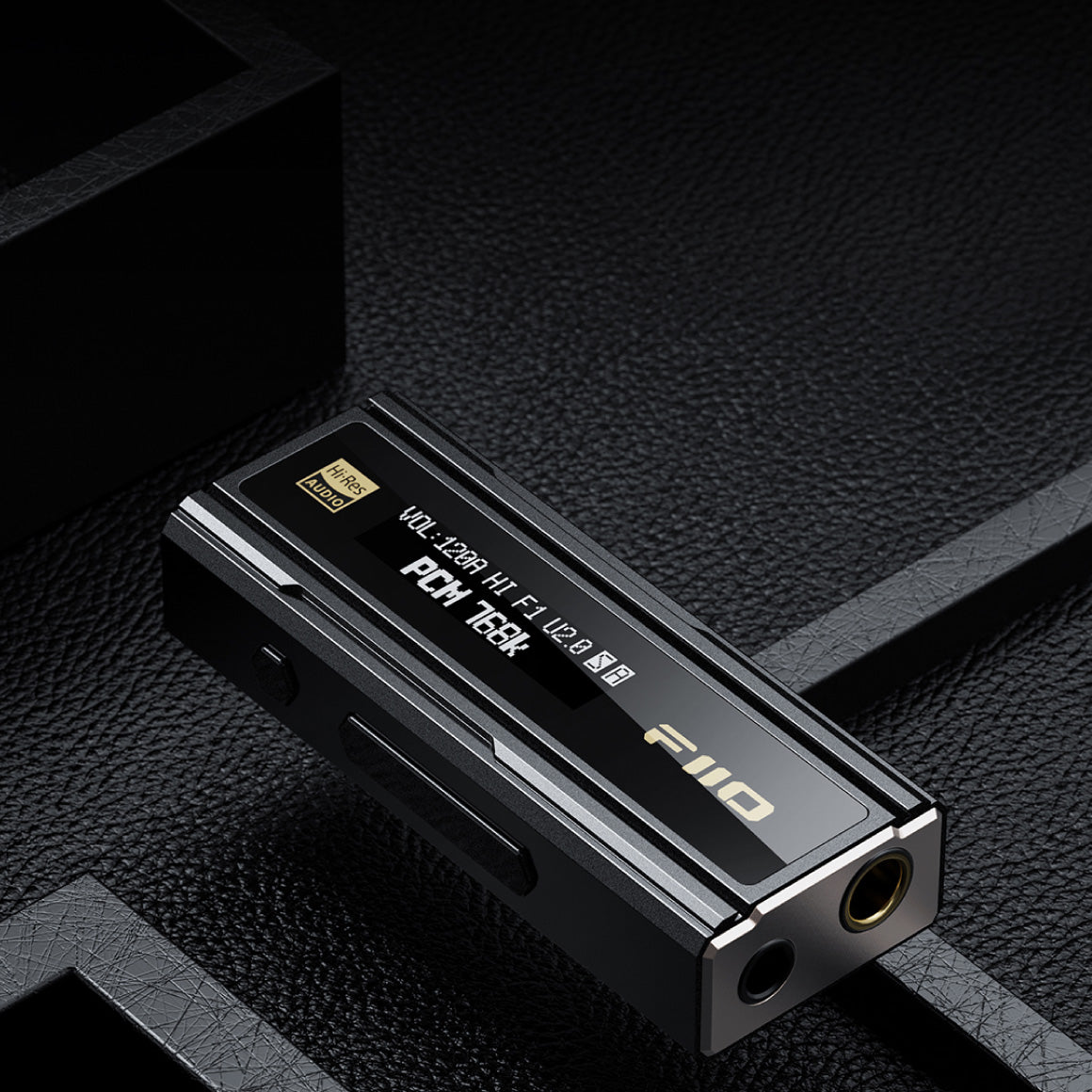

OLED DISPLAY AND PHYSICAL BUTTONS FOR EASY OPERABILITY
The OLED display and physical buttons make navigating the settings menu and looking at the playback display more straightforward and intuitive. In addition, the KA5's built-in MCU processor handles complex operations, further making the KA5 a joy to use. The buttons have two modes for you to have complete control over playback. In A mode, short press once to increase volume 1 level, long press for 2 seconds to play the previous track, and press to go page up in the settings menu. Volume- button acts in the opposite way. In B mode, short press once to play the previous track, long press to increase volume, and press to go page up in the settings menu. Volume- button acts in the opposite way. The KA5 features a detachable cable design, which allows you to switch between the included custom Type-C and Lightning OTG adapter cables depending on your source devices.
SPECS
| NAME/MODEL | KA5 |
| COLOR | Classic black |
| WEIGHT | About 19g |
| SAMPLING RATE DISPLAY | OLED display |

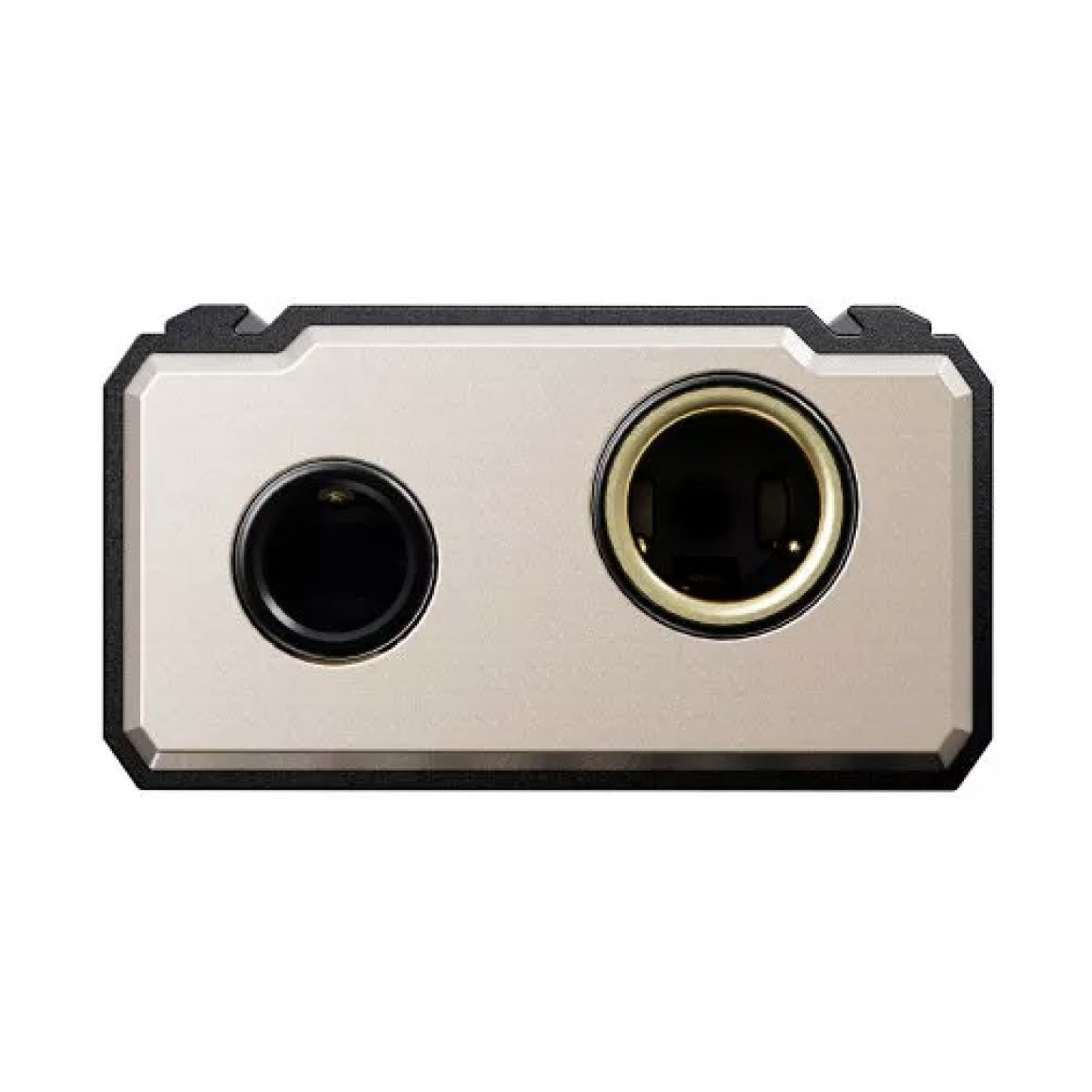

| HEADPHONE OUTPUT | 3.5mm (SIngle-Ended) 4.4mm (Balanced) |
| BALANCED OUTPUT INTERFACE | 4.4mm socket |

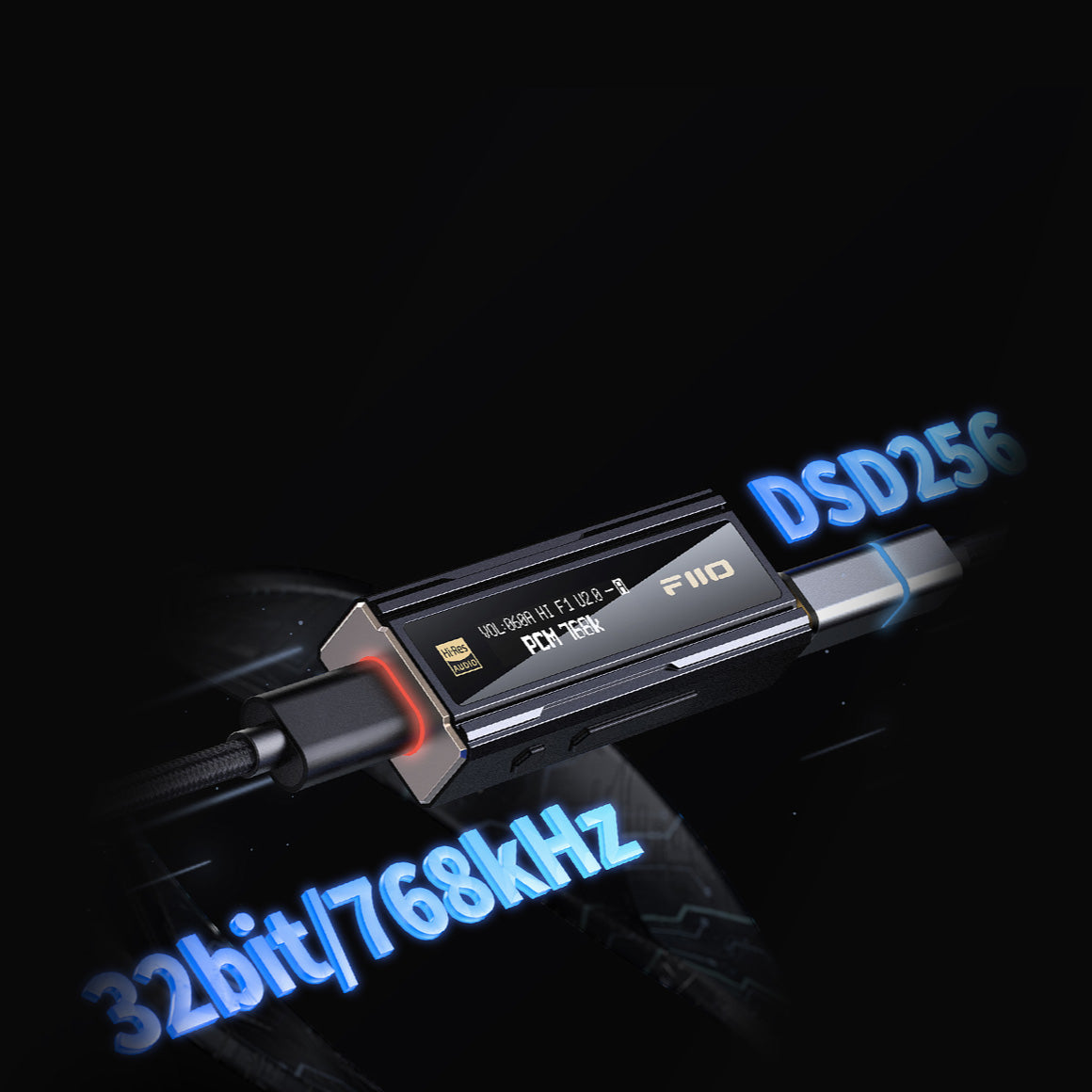

| MAX SAMPLING RATE SUPPORT | 768K/32bit DSD64/128/256 192K/32bit (Coaxial) |
| DAC CHIP | DAC: CS43198 *2 |
| DIMENSIONS | About 56.3*22*12mm |
| HEADPHONE IMPEDANCE | PO: 16~150Ω BAL: 16~300Ω |
| SUPPORT DSD | DSD64/128/256 |
| FIRMWARE UPGRADE | The system firmware can be upgraded using USB |
| FIIO CONTROL | Supported |

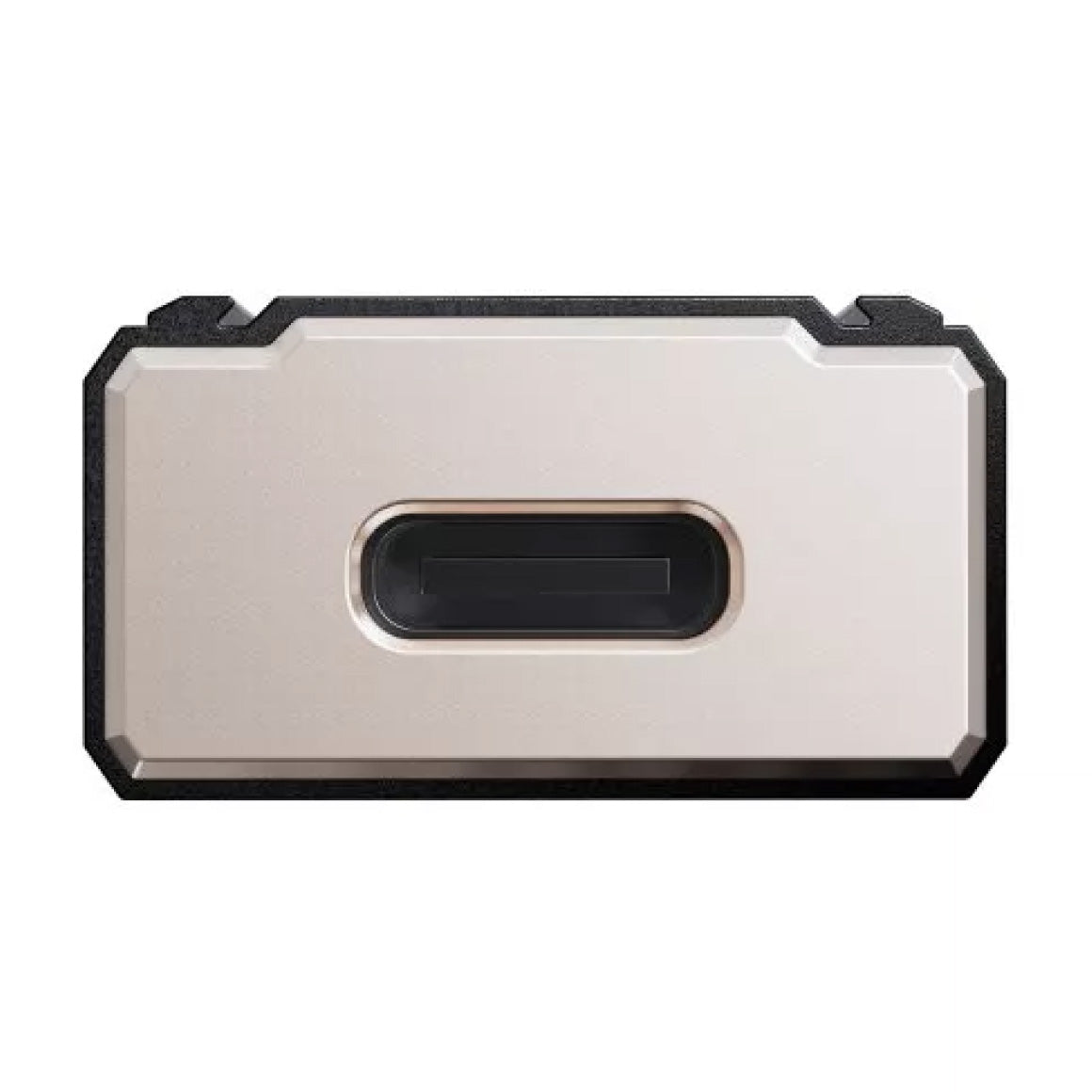

| USB | Type-C USB |
| BUTTONS | Menu selecting, function setting, volume adjusting, song switching |
| OLED DISPLAY | Displays sampling rate and working state |

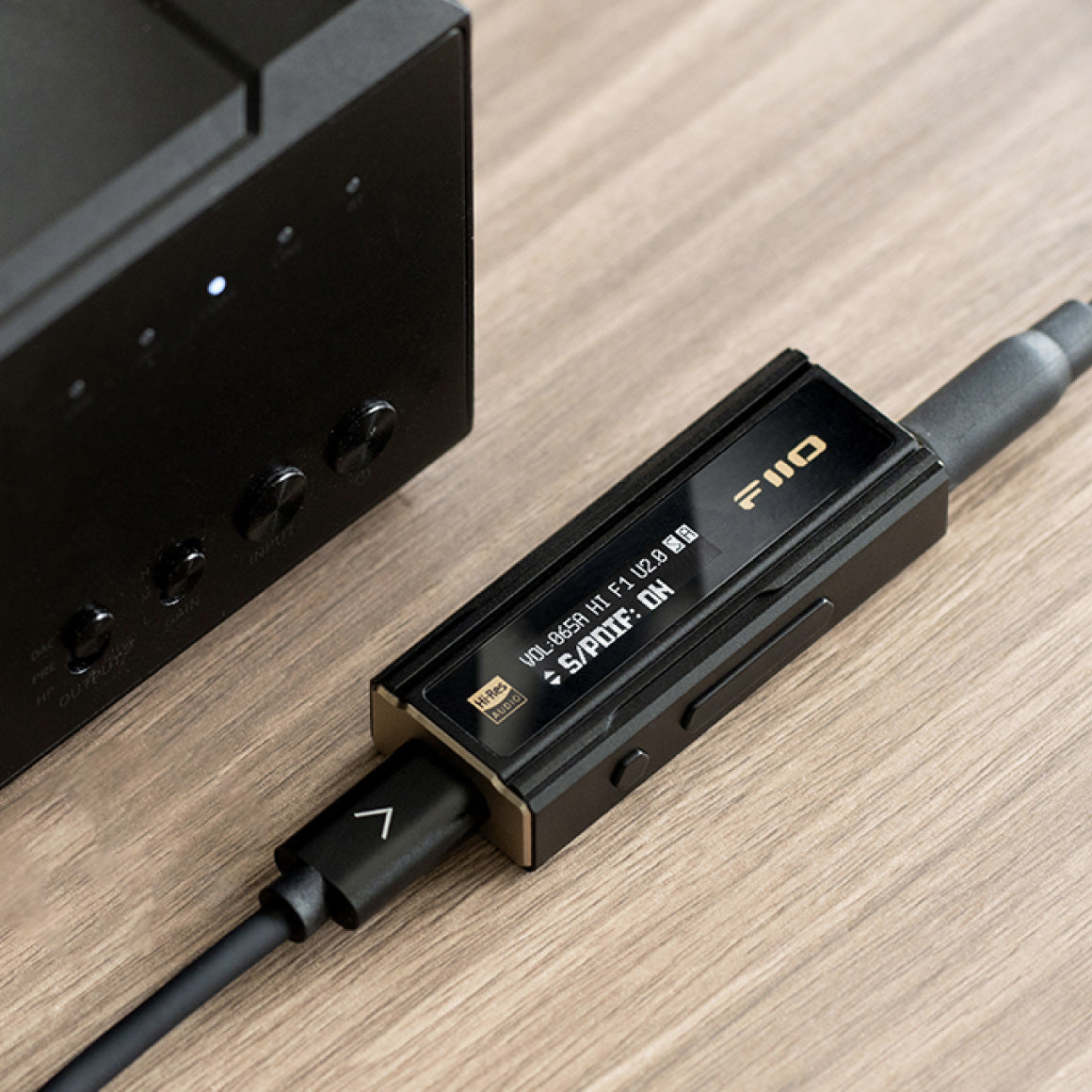

| 3.5MM PORT | Shared single-ended/SPDIF out |
| 4.4MM PORT | Balanced out |
| OUTPUT POWER | L+R≥136mW+136mW (16Ω, THD+N<1%, USB IN) L+R≥122mW+122mW (32Ω, THD+N<1%, USB IN) L+R≥13.5mW+13.5mW (300Ω, THD+N<1%, USB IN) |
| FREQUENCY RESPONSE | 20Hz~20kHz, crosstalk≤0.1dB 20Hz~50kHz, crosstalk≤0.2dB |
| THD+N | <0.00037% (0dB, 32Ω) <0.00035% (0dB, 600Ω) |
| MAX OUTPUT VOLTAGE | ≥1.99V (32Ω, THD+N<1%) ≥2V (600Ω, THD+N<1%) |
| OUTPUT IMPEDANCE | <0.3Ω |
| CHANNEL CROSSTALK | ≥72dB (1kHz, 32Ω) |
| NOISE FLOOR | 1.6uV&1.0uV"A" |
| SNR | ≥124dB (32Ω, A-weighted) ≥126dB (600Ω, A-weighted) |
| OUTPUT POWER | L+R≥154mW+154mW (16Ω, THD+N<1%.USB IN) L+R≥265mW+265mW (32Ω, THD+N<1%, USB IN) L+R≥54mW+54mW (300Ω, THD+N<1%, USB IN) |
| FREQUENCY RESPONSE | 20Hz~20kHz, crosstalk≤0.1dB 20Hz~50kHz, crosstalk≤0.2dB |
| DISTORTION | <0.00037% (-6dB, 32Ω) <0.00024% (0dB, 600Ω) |
| PEAK OUTPUT VOLTAGE | ≥2.9V (32Ω, THD+N<1%) ≥4V (600Ω, THD+N<1%) |
| OUTPUT IMPEDANCE | <0.35Ω |
| CHANNEL SEPARATION | ≥115dB (1kHz, 32Ω) |
| BOTTOM NOISE | 1.8uV&1.1uV"A" |
| SIGNAL-TO-NOISE RATIO | ≥128dB (32Ω A-weighted) ≥130dB (600Ω A-weighted) |

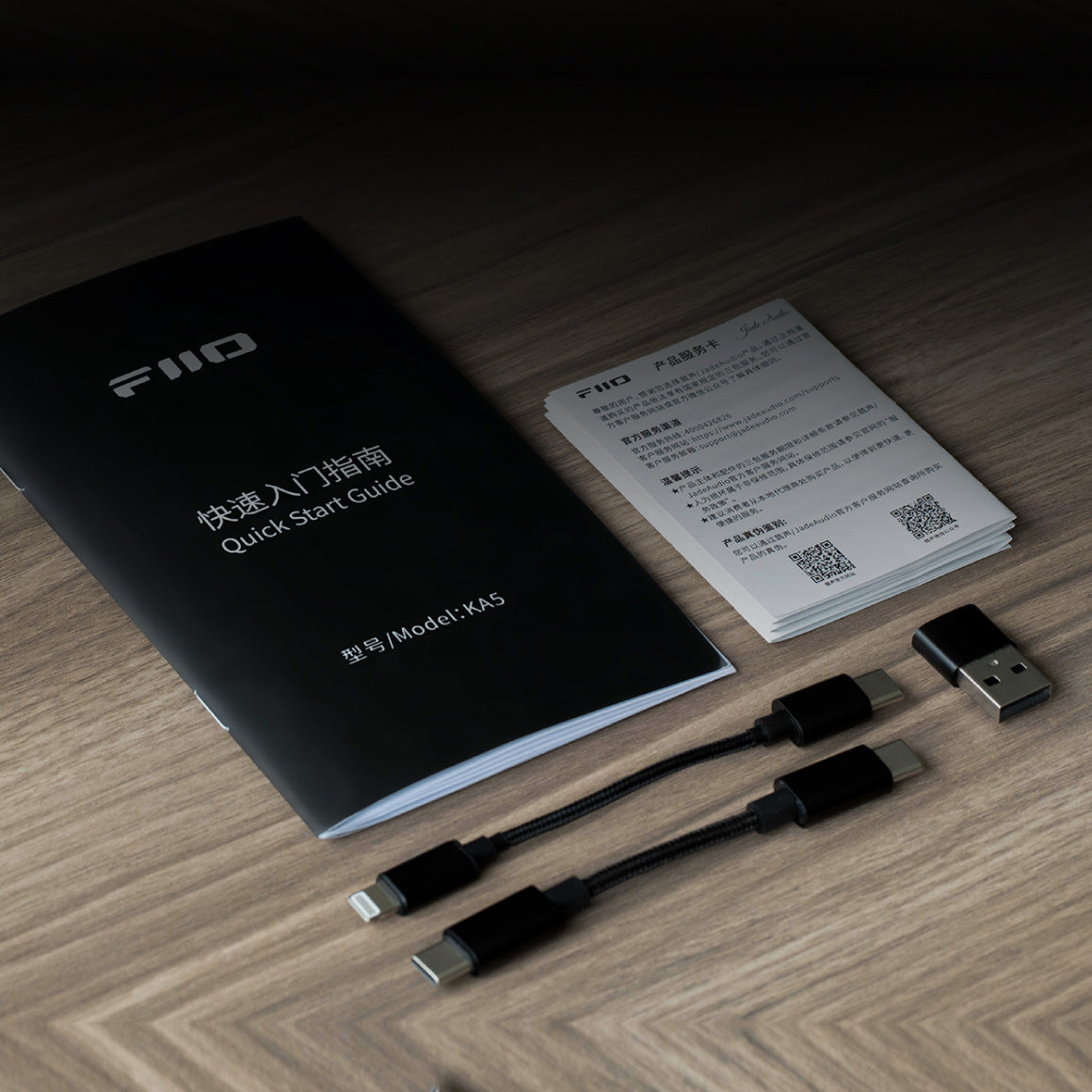

| WHAT YOU WILL GET | 1. FiiO KA5 |
| 2. USB-A male to Type-C female adapter x1 | |
| 3. Type-C to Type-C OTG cable x1 | |
| 4. Type-C to Lightning OTG cable x1 | |
| 5. Manual x1 | |
| 6. Warranty card x1 | |
| WHAT YOU WILL NOT GET | 1. Original packaging of FiiO KA5 |
OTHER DETAILS
| GENERIC NAME | Headphone Amplifier |
| COUNTRY OF ORIGIN | China |
| IMPORTER DETAILS | Importers Name: Ferrari Video Address: 63/18, 1st Main Road, Gandhi Nagar, Chennai - 600020 Contact No: 044-24420733 |
| NET QUANTITY | 1 |
Headphone Zone Certified Unboxed Units
Unboxed units are as good as new products with the product's packaging being unavailable. These products give you the same satisfaction of new products - but at down-to-earth prices. Usually, the product's packaging may have gotten damaged in transit. Customers use a product once or twice and then return it with opened up packaging.
Customer Returns
Returned headphones are fully functional products that have left the warehouse and therefore can no longer be sold as new as their packaging has been opened. The product may have been used once or twice by the customer who returned it.
Transit Damages
Sometimes we receive headphones in damaged packaging due to shipping accidents. These are brand new headphones with cosmetic flaws on the packaging.
Save Upto 15%
Since you won't get the original packaging, we give you a good discount compared to a new headphone.
Professionally Inspected
A thorough inspection means you receive a 100% working headphone with no sound output issues.
Original Warranty
All unboxed headphones carry the same warranty period as a brand new headphone would.
Unbiased Customer Service
We have the same Headphone Zone customer support experience for Unboxed Products or new products.
Unchanged Replacement Policy
Received a defective Unboxed unit? Return it under our Replacement Policy.
All Original Accessories
The unboxed headphones itself comes with all original accessories.
AN ADVANCED USB DONGLE WITH CLASS
FiiO introduces KA5, the highly classy USB DAC & Amp. It is a Hi-Res DAC capable of reproducing subtle nuances in your recording and making them come to life. It is powerful yet has black background i.e even at higher volumes you will not notice any distortion. FiiO has made the KA5 compatible with Android and iOS devices. It is also compatible with Windows and MAC devices. It is sure to surprise you and keep you engaged with your music. Music has never sounded so engaging and full-bodied!
FEATURES DUAL DAC CHIPS FROM CIRRUS LOGIC FOR AN IMMERSIVE LISTENING EXPERIENCE
The FiiO KA5 features Cirrus Logic CS43198 DACs, known for their efficiency and ability to sound good with a wide variety of music, to give you a serious upgrade to the sound. The FiiO KA5 supports up to 32bit/768kHz PCM (Pulse Code Modulation) and DSD256 (Direct Stream Digital) decoding, allowing you to dig into and listen to the heart of your music, no matter what device you may have it connected to. Get an immersive listening experience with the all-new KA5!
POWERFUL OUTPUT WITH DUAL 8261 AMPS
The FiiO KA5 utilises a 6-layer immersion gold PCB and high-performance ultra-low-noise opamps for powerful, robust sound. It features dual 8261 amplifiers for an even more immersive listening experience. The KA5 offers an output power of 122mW at 32Ω load (Single-ended) and 265mW at 32Ω load Balanced.
COMPATIBLE WITH THE FIIO COMPANION APP
The aggressive lines of the KA5 give it a bold look, while the carefully designed texture makes it a joy to handle. The 3.5mm output supports SPDIF output. After enabling the SPDIF output in the settings menu (Companion app), the USB audio signals can be converted to SPDIF signals. Connect the KA5 to a higher-end external decoder to set up a better audio system. Besides the local KA5 operating system, you can use the FiiO Control App to take control of the KA5.
NOTE: The KA5 can only be controlled through the FiiO Control app on an Android device.
TAKE YOUR GAMING AND LISTENING EXPERIENCE TO NEW LEVELS
Despite the KA5's compact size, it packs a ton of functionality - such as high and low gain, five selectable filters, L/R cha balance, and screen flip. Let the KA5 redefine what a tiny audio dongle can do for you. The KA5 supports UAC2.0 and UAC1.0 modes. With the UAC 1.0 mode, you can connect the KA5 to the Switch and other various devices, allowing you to experience rich and detailed sound effects that make your gaming and listening sessions more immersive and engaging.
OLED DISPLAY AND PHYSICAL BUTTONS FOR EASY OPERABILITY
The OLED display and physical buttons make navigating the settings menu and looking at the playback display more straightforward and intuitive. In addition, the KA5's built-in MCU processor handles complex operations, further making the KA5 a joy to use. The buttons have two modes for you to have complete control over playback. In A mode, short press once to increase volume 1 level, long press for 2 seconds to play the previous track, and press to go page up in the settings menu. Volume- button acts in the opposite way. In B mode, short press once to play the previous track, long press to increase volume, and press to go page up in the settings menu. Volume- button acts in the opposite way. The KA5 features a detachable cable design, which allows you to switch between the included custom Type-C and Lightning OTG adapter cables depending on your source devices.
| NAME/MODEL | KA5 |
| COLOR | Classic black |
| WEIGHT | About 19g |
| SAMPLING RATE DISPLAY | OLED display |
| HEADPHONE OUTPUT | 3.5mm (SIngle-Ended) 4.4mm (Balanced) |
| BALANCED OUTPUT INTERFACE | 4.4mm socket |
| MAX SAMPLING RATE SUPPORT | 768K/32bit DSD64/128/256 192K/32bit (Coaxial) |
| DAC CHIP | DAC: CS43198 *2 |
| DIMENSIONS | About 56.3*22*12mm |
| HEADPHONE IMPEDANCE | PO: 16~150Ω BAL: 16~300Ω |
| SUPPORT DSD | DSD64/128/256 |
| FIRMWARE UPGRADE | The system firmware can be upgraded using USB |
| FIIO CONTROL | Supported |
| USB | Type-C USB |
| BUTTONS | Menu selecting, function setting, volume adjusting, song switching |
| OLED DISPLAY | Displays sampling rate and working state |
| 3.5MM PORT | Shared single-ended/SPDIF out |
| 4.4MM PORT | Balanced out |
| OUTPUT POWER | L+R≥136mW+136mW (16Ω, THD+N<1%, USB IN) L+R≥122mW+122mW (32Ω, THD+N<1%, USB IN) L+R≥13.5mW+13.5mW (300Ω, THD+N<1%, USB IN) |
| FREQUENCY RESPONSE | 20Hz~20kHz, crosstalk≤0.1dB 20Hz~50kHz, crosstalk≤0.2dB |
| THD+N | <0.00037% (0dB, 32Ω) <0.00035% (0dB, 600Ω) |
| MAX OUTPUT VOLTAGE | ≥1.99V (32Ω, THD+N<1%) ≥2V (600Ω, THD+N<1%) |
| OUTPUT IMPEDANCE | <0.3Ω |
| CHANNEL CROSSTALK | ≥72dB (1kHz, 32Ω) |
| NOISE FLOOR | 1.6uV&1.0uV"A" |
| SNR | ≥124dB (32Ω, A-weighted) ≥126dB (600Ω, A-weighted) |
| OUTPUT POWER | L+R≥154mW+154mW (16Ω, THD+N<1%.USB IN) L+R≥265mW+265mW (32Ω, THD+N<1%, USB IN) L+R≥54mW+54mW (300Ω, THD+N<1%, USB IN) |
| FREQUENCY RESPONSE | 20Hz~20kHz, crosstalk≤0.1dB 20Hz~50kHz, crosstalk≤0.2dB |
| DISTORTION | <0.00037% (-6dB, 32Ω) <0.00024% (0dB, 600Ω) |
| PEAK OUTPUT VOLTAGE | ≥2.9V (32Ω, THD+N<1%) ≥4V (600Ω, THD+N<1%) |
| OUTPUT IMPEDANCE | <0.35Ω |
| CHANNEL SEPARATION | ≥115dB (1kHz, 32Ω) |
| BOTTOM NOISE | 1.8uV&1.1uV"A" |
| SIGNAL-TO-NOISE RATIO | ≥128dB (32Ω A-weighted) ≥130dB (600Ω A-weighted) |
| WHAT YOU WILL GET | 1. FiiO KA5 |
| 2. USB-A male to Type-C female adapter x1 | |
| 3. Type-C to Type-C OTG cable x1 | |
| 4. Type-C to Lightning OTG cable x1 | |
| 5. Manual x1 | |
| 6. Warranty card x1 | |
| WHAT YOU WILL NOT GET | 1. Original packaging of FiiO KA5 |
OTHER DETAILS
| GENERIC NAME | Headphone Amplifier |
| COUNTRY OF ORIGIN | China |
| IMPORTER DETAILS | Importers Name: Ferrari Video Address: 63/18, 1st Main Road, Gandhi Nagar, Chennai - 600020 Contact No: 044-24420733 |
| NET QUANTITY | 1 |
Don't sweat it, this
FiiO - KA5 (Unboxed) comes with a 1 Year warranty
from FiiO that covers manufacturing defects.
All products featured on Headphone Zone are backed by an original manufacturer's warranty.
Read more about FiiO's warranty in India.
HFN Recommended
Headfonia
March, 2023
"Sound-wise, it’s better on every level, polishing the previous formula with various enhancements like tougher lows, or a wider but sharper soundstage. "
Read More
"From the configuration design, the aggressive lines of the KA5 give it a bold look, while the carefully designed texture makes it a joy to handle."
Read MoreThis product is rated 4.0 of 5.0 stars.
It has received 1 review.
Customer Reviews
Though lacking in support in some areas like no app support for iPhone users, the DAC is worth the buy for it’s fantastic performance.
