FiiO - KA13 (Unboxed)
Portable USB DAC & AmpGET 18% GST INPUT
One of the reasons headphones and earphones in India are more expensive than overseas is because of the Goods & Services Tax in India.
Don't let the GST input go to waste especially if you can avail an offset.
All products sold on Headphone Zone carry a GST compliant invoice and all products sold include an 18% GST.
Simply enter your GST number at the time of checkout.
Browse EMI Plans
ICICI Bank
3
15.99%
₹ 2,053
₹ 161
6
15.99%
₹ 1,047
₹ 283
9
15.99%
₹ 712
₹ 407
12
15.99%
₹ 544
₹ 532
18
15.99%
₹ 377
₹ 788
24
15.99%
₹ 294
₹ 1,050
HDFC Bank
3
16%
₹ 2,053
₹ 161
6
16%
₹ 1,047
₹ 283
9
16%
₹ 712
₹ 407
12
16%
₹ 544
₹ 533
18
16%
₹ 377
₹ 788
24
16%
₹ 294
₹ 1,051
SBI Bank
3
16.5%
₹ 2,055
₹ 166
6
15%
₹ 1,044
₹ 265
9
15%
₹ 709
₹ 381
12
15%
₹ 541
₹ 499
18
16%
₹ 377
₹ 788
24
16%
₹ 294
₹ 1,051
Axis Bank
3
16%
₹ 2,053
₹ 161
6
16%
₹ 1,047
₹ 283
9
16%
₹ 712
₹ 407
12
16%
₹ 539
₹ 465
18
16%
₹ 377
₹ 788
24
16%
₹ 294
₹ 1,051
Citi Bank
3
14%
₹ 2,047
₹ 141
6
14%
₹ 1,041
₹ 247
9
16%
₹ 712
₹ 407
12
16%
₹ 544
₹ 533
18
16%
₹ 377
₹ 788
24
16%
₹ 294
₹ 1,051
Kotak Mahindra Bank
Tenure
Interest%
Installment
Interest
3
16%
₹ 2,053
₹ 161
6
16%
₹ 1,047
₹ 283
9
16%
₹ 712
₹ 407
12
16%
₹ 544
₹ 533
18
16%
₹ 377
₹ 788
24
16%
₹ 294
₹ 1,051
RBL Bank
3
13%
₹ 2,043
₹ 130
6
14%
₹ 1,041
₹ 247
9
15%
₹ 709
₹ 381
12
15%
₹ 541
₹ 499
18
15%
₹ 374
₹ 737
24
15%
₹ 291
₹ 982
Standard Chartered Bank
3
13%
₹ 2,043
₹ 130
6
13%
₹ 1,038
₹ 230
9
14%
₹ 706
₹ 355
12
14%
₹ 539
₹ 465
INDUSIND Bank
3
14%
₹ 2,047
₹ 141
6
14%
₹ 1,041
₹ 247
9
15%
₹ 709
₹ 381
12
15%
₹ 541
₹ 499
18
15%
₹ 374
₹ 737
24
15%
₹ 291
₹ 982
HSBC Bank
3
12.50%
₹ 2,041
₹ 125
6
12.50%
₹ 1,037
₹ 221
9
13.50%
₹ 705
₹ 342
12
13.50%
₹ 537
₹ 448
18
13.50%
₹ 370
₹ 661
YES Bank
3
13%
₹ 2,043
₹ 130
6
13%
₹ 1,038
₹ 230
9
14%
₹ 706
₹ 355
12
14%
₹ 539
₹ 465
18
15%
₹ 374
₹ 737
24
15%
₹ 291
₹ 982
Bank of Baroda
3
13%
₹ 2,043
₹ 130
6
14%
₹ 1,041
₹ 247
9
14%
₹ 706
₹ 355
12
15%
₹ 541
₹ 499
18
15%
₹ 374
₹ 737
24
16%
₹ 294
₹ 1,051
American Express
3
14%
₹ 2,047
₹ 141
6
14%
₹ 1,041
₹ 247
9
14%
₹ 706
₹ 355
12
14%
₹ 539
₹ 465
18
15%
₹ 374
₹ 737
24
15%
₹ 291
₹ 982
Talk to a Headphone Guru
Club Audiophile
Join Club Audiophile to begin your pursuit of great sound. Earn points and save on every purchase.
READ MORE
Chi-Fi
Excellence
Ideal for Audiophiles
These DAC & Amps are designed for discerning music lovers. If audio quality is important to you, a set of DAC & Amps like these would be ideal.
You can expect these DAC & Amps to present you with a refined listening experience. The audio quality exhibited by these DAC & Amps is a beautiful mix of musicality, technical brilliance and high precision.
These DAC & Amps deliver a spacious & open soundstage that makes you feel you are sitting at a live concert. Experience the magic and delve into pure sonic tranquility!
Best Suited for Portable Use
For those who value them, being able to carry their favourite DAC & Amp equipment when they are on the move is invaluable.
These DAC & Amps offer the ultimate portability experience without sacrificing sound quality. If you’re someone who appreciates cutting-edge engineering, quality sound and portability, then look no further.
Designed to be trusty companions, these DAC & Amps are cleverly engineered with the latest technology to offer the ultimate combination of portability & Hi-Fidelity!
Ideal for Commuting
If you’re someone who enjoys listening to music while commuting. These portable Amps & DACs allow you to listen to your favourite track without compromising on the audio quality
4.4mm
Balanced Output
Cirrus Logic CS43131
Dual DAC Chip
550mW+550mW @ 32Ω
Power Output
Pair with Laptop via USB
A majority of people use a laptop as the primary source device to listen to music or watch movies. Since the laptop is an essential part of the audio chain there are headphones and devices designed to work a laptop or computer system flawlessly. With the availability of USB connectivity, it becomes easier to pair various devices like an Amp, DAC or even headphones without worrying about drivers or any additional piece of software.
Connect With
USB-C & Lightning Cable
Metal
Build
Volume Controls
If your DAC & Amps include volume controls or volume rockers, you can easily change the volume with a button press or volume knob turn.
DAC & Amps that have volume controls make its operation incredibly simple; turn up the volume on your smartphone or your source devices and then change the volume on DAC & Amps to the desired level.
This design feature allows you to have complete control over the desired volume according to your listening preferences.
UNBOXED
Headphone Zone Certified Unboxed Units
Unboxed units are as good as new products with the product's packaging being unavailable. These products give you the same satisfaction of new products - but at down-to-earth prices. Usually, the product's packaging may have gotten damaged in transit. Customers use a product once or twice and then return it with opened up packaging.
Customer Returns
Returned headphones are fully functional products that have left the warehouse and therefore can no longer be sold as new as their packaging has been opened. The product may have been used once or twice by the customer who returned it.
Transit Damages
Sometimes we receive headphones in damaged packaging due to shipping accidents. These are brand new headphones with cosmetic flaws on the packaging.
Save Upto 15%
Since you won't get the original packaging, we give you a good discount compared to a new headphone.
Professionally Inspected
A thorough inspection means you receive a 100% working headphone with no sound output issues.
Original Warranty
All unboxed headphones carry the same warranty period as a brand new headphone would.
Unbiased Customer Service
We have the same Headphone Zone customer support experience for Unboxed Products or new products.
Unchanged Replacement Policy
Received a defective Unboxed unit? Return it under our Replacement Policy.
All Original Accessories
The unboxed headphones itself comes with all original accessories.
DESCRIPTION
FIIO INTRODUCES THE UPGRADED VERSION OF THE KA3 DAC AND AMP - THE KA13
After almost two years of refinement, the FiiO KA3 has transformed into the KA13, now functioning as a mini desktop-class DAC and headphone amplifier. This upgraded version integrates a new design, advanced technology, and robust performance into a single device. FiiO's focus on versatility is evident in the KA13, which aims to provide users with a comprehensive USB dongle for a range of high-quality audio experiences. The FiiO x Jade Audio KA13 is a portable USB DAC/AMP with enhanced audio circuitry, featuring desktop-grade amplification that effortlessly drives IEMs and headphones with a solid output of up to 550mW. It incorporates a high-performance Dual DAC chipset with two CS43131 DAC chips for crystal-clear decoding of high-resolution PCM and DSD audio signals. With an exquisite build and an exclusive ambient light display window, the FiiO x Jade Audio KA13 enhances your music enjoyment.
FEATURES DUAL-DAC ARRANGEMENT AND DESKTOP-GRADE AMPLIFICATION STAGE
The FiiO KA13 ensures crystal-clear decoding of Hi-Res sound signals, featuring a premium dual DAC chipset with dual CS43131 32-bit DAC chips. With full support for decoding high-resolution PCM (32-bit/384kHz) and Native DSD256 audio signals, the KA13 takes your audio experience to new heights. This portable DAC incorporates a mini desktop-class amplifier, housing dual 8262 high-power OPAMPs that deliver a robust output of up to 550mW, effortlessly powering most IEMs and even some power-demanding headphones. The combination of two high-performance CS43131 DAC chips and two low-noise SGM8262 op-amps in this "dual-core" configuration ensures exceptional performance, allowing you to rediscover your music collection with newfound details.

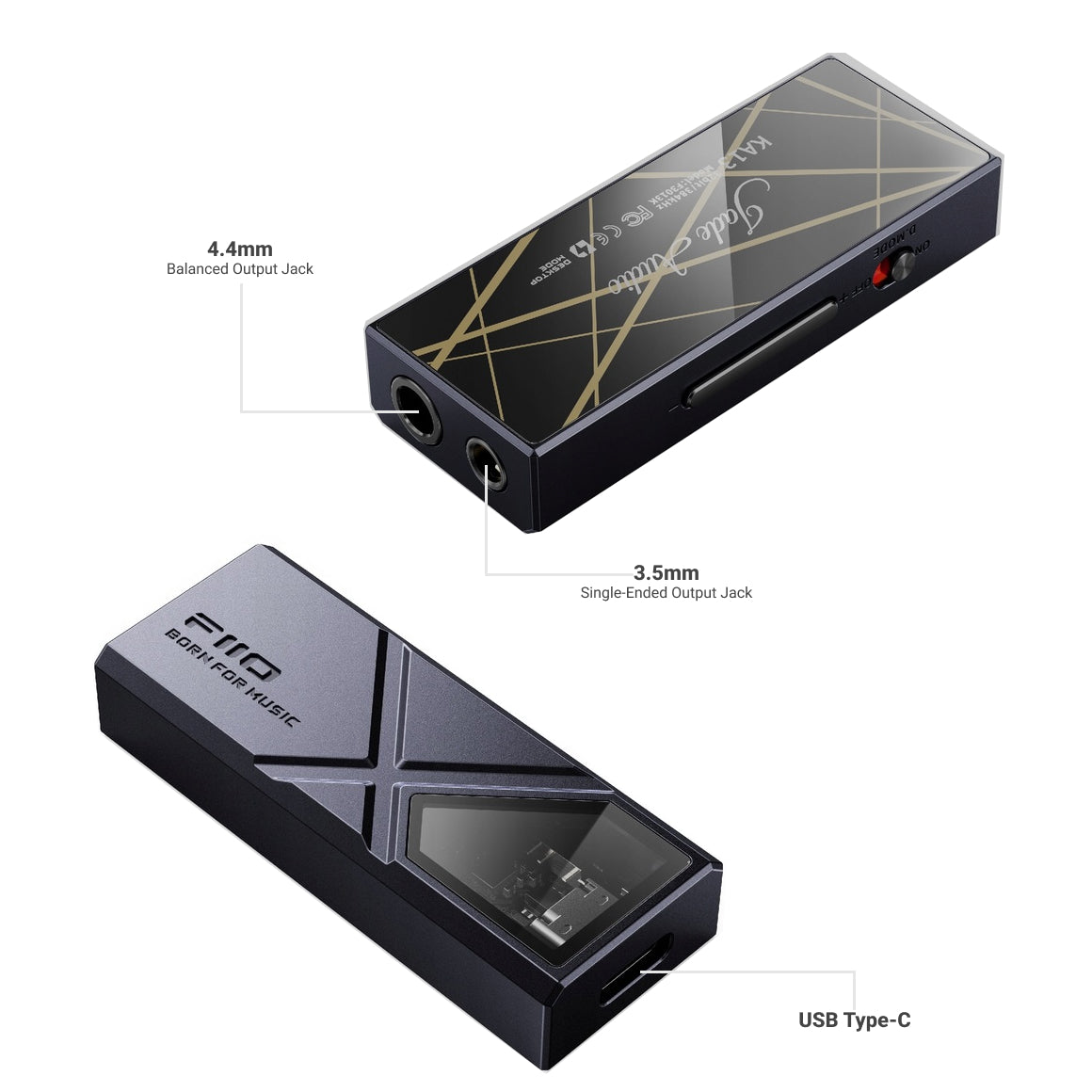

3.5MM AND 4.4MM BALANCED OUTPUT AND DEDICATED RGB AMBIENT LIGHT
The FiiO KA13 offers dual output options, supporting both single-ended and balanced headphone connections through 3.5mm and 4.4mm ports, respectively. The 3.5mm output also functions as a coaxial SPDIF output. FiiO's engineers have skilfully designed the compact dongle to accommodate two headphone outputs, showcasing advancements in packaging capabilities. Additionally, the ambient light window provides quick insight into the audio sampling frequency, assuring you of the playback quality. The RGB light indicators include Light Blue for PCM≤48kHz, Yellow for PCM >48kHz, and Green for DSD signals, adding both aesthetic appeal and practical functionality.

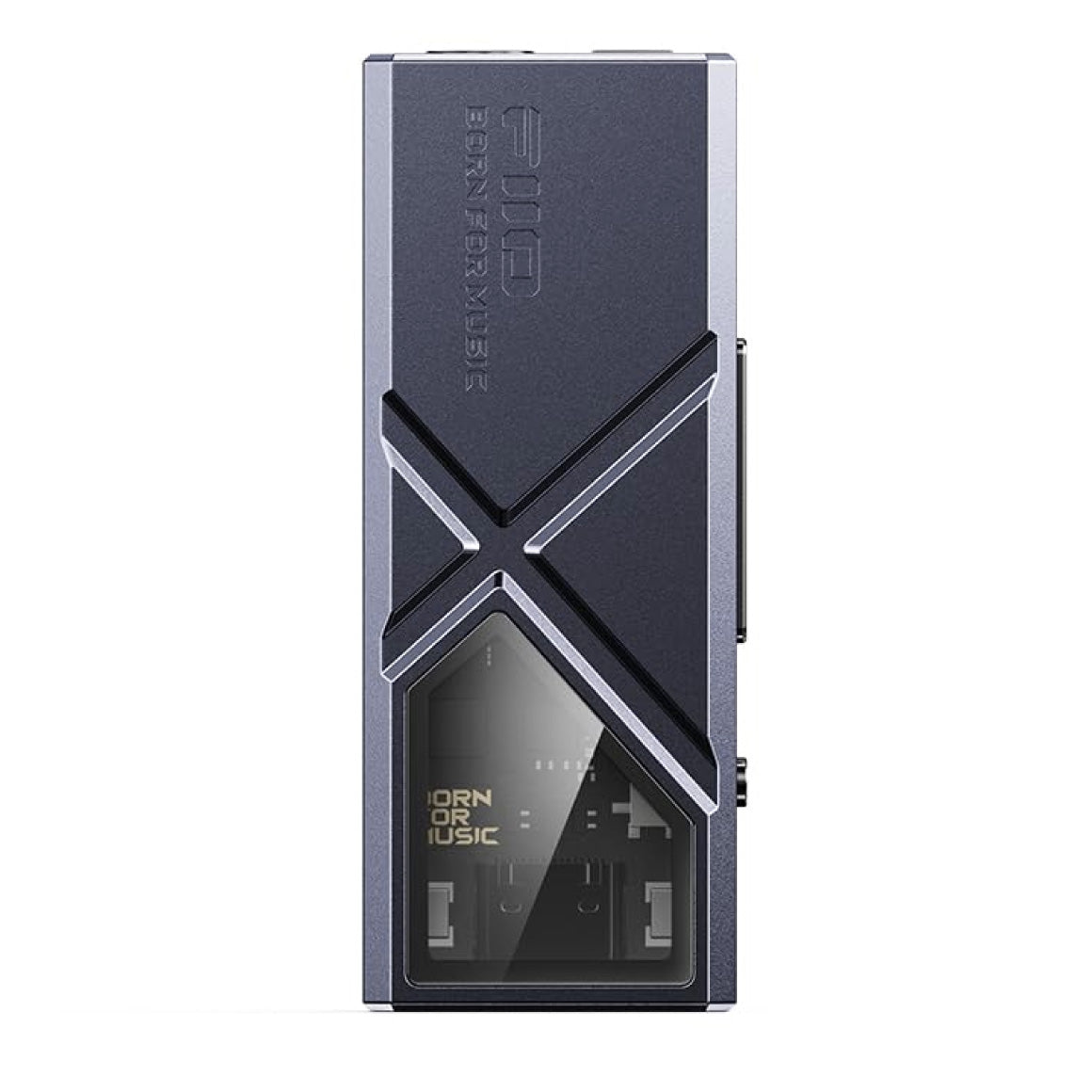

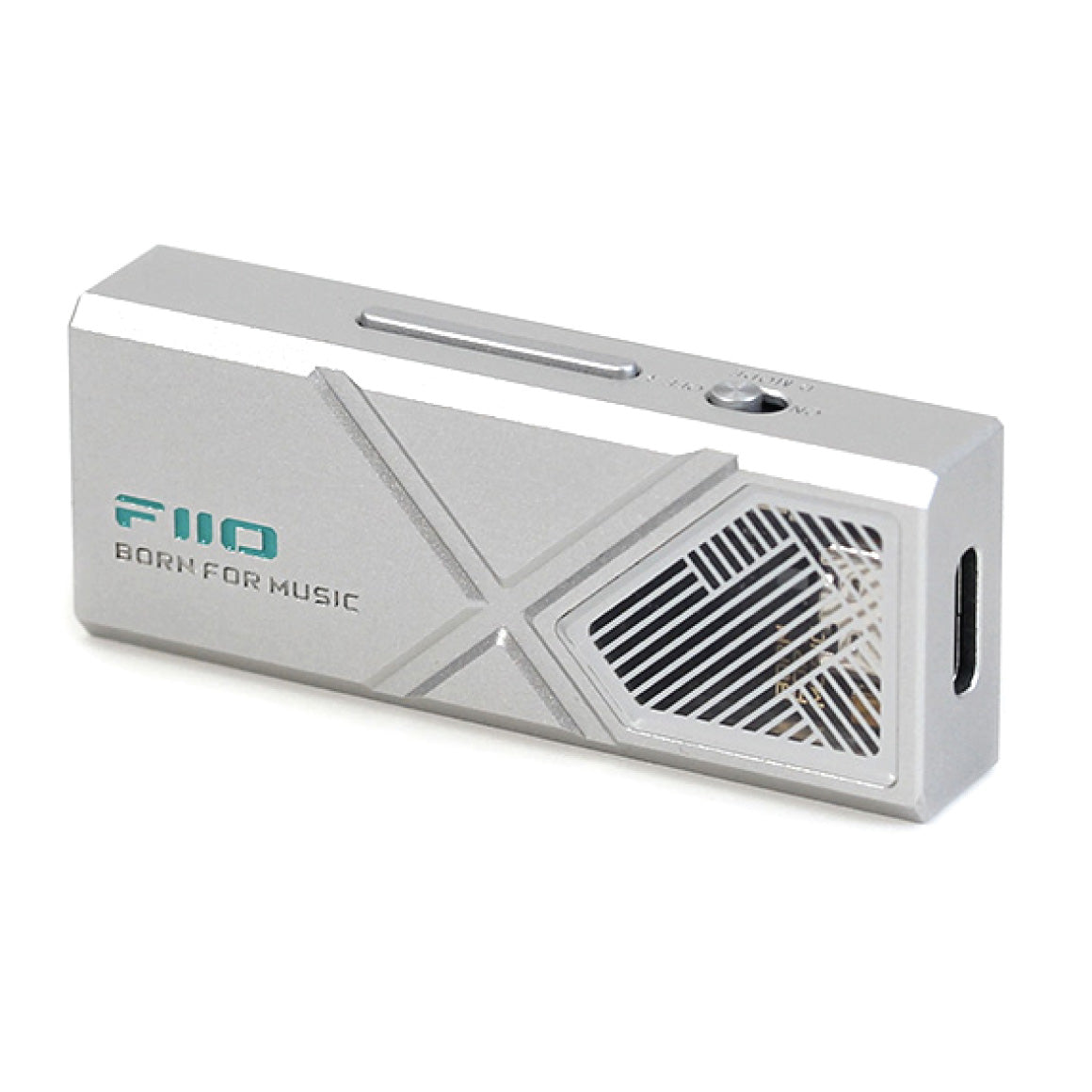

EXQUISITELY BUILT AND BUNDLED WITH 2 CABLES + FIIO CONTROL APP INTEGRATION
The FiiO KA13 boasts a stunning design, featuring a premium metallic chassis and a distinctive ambient glass window that showcases customisable RGB lighting through the FiiO Control app. The CNC metal body exhibits unique lines on the front and exquisite texture on the rear, creating an aggressive yet futuristic appearance that is soft to the touch for enhanced comfort during use. The device supports control via the FiiO Control app, allowing users to conveniently adjust RGB lights, SPDIF output, audio filters, and more. With a detachable cable design and included Type-C and Lightning adapter cables, the KA13 offers versatility for seamless connectivity across various systems, including Android, iOS, Windows, and Mac devices. The FiiO Control App's control over KA13 is supported only on Android Devices. To download the app click here.
SPECS
| HARDWARE SOLUTION | DAC: CS43131 *2 |
| OUTPUT PORTS | 3.5mm (Single-Ended) 4.4mm (Balanced) |
| SAMPLING RATE INDICATION | RGB ambient light |
| ADAPTIVE IMPEDANCE | PO: 16~150Ω BAL: 16~300Ω |
| MAX SUPPORTED SAMPLING RATE | 384K/32bit DSD64/128/256 384K/32bit (coaxial) |
| FIRMWARE UPGRADE | System firmware can be upgraded via USB |
| FIIO CONTROL | Supported |
| DIMENSIONS | About 56.5*22*10.5mm |

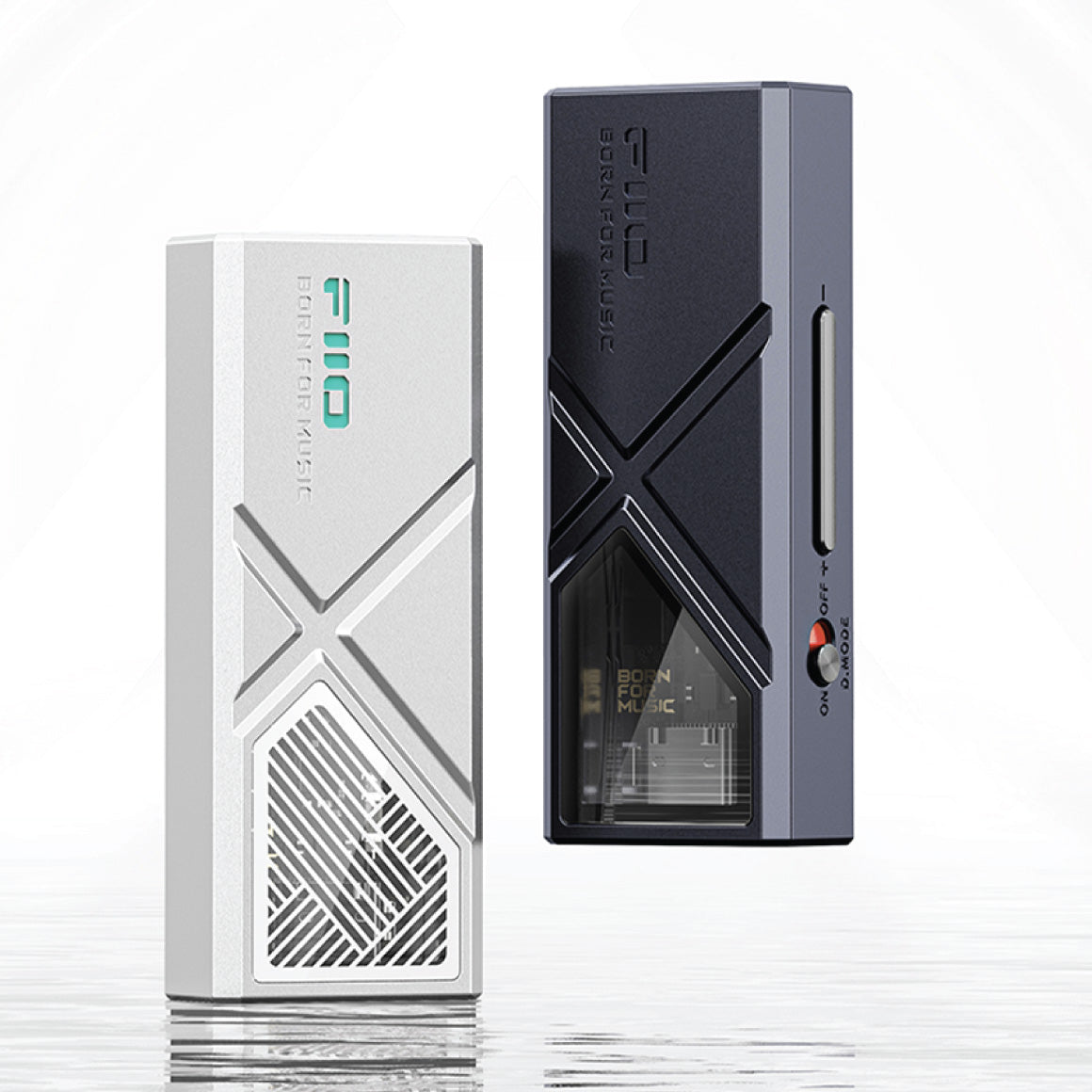

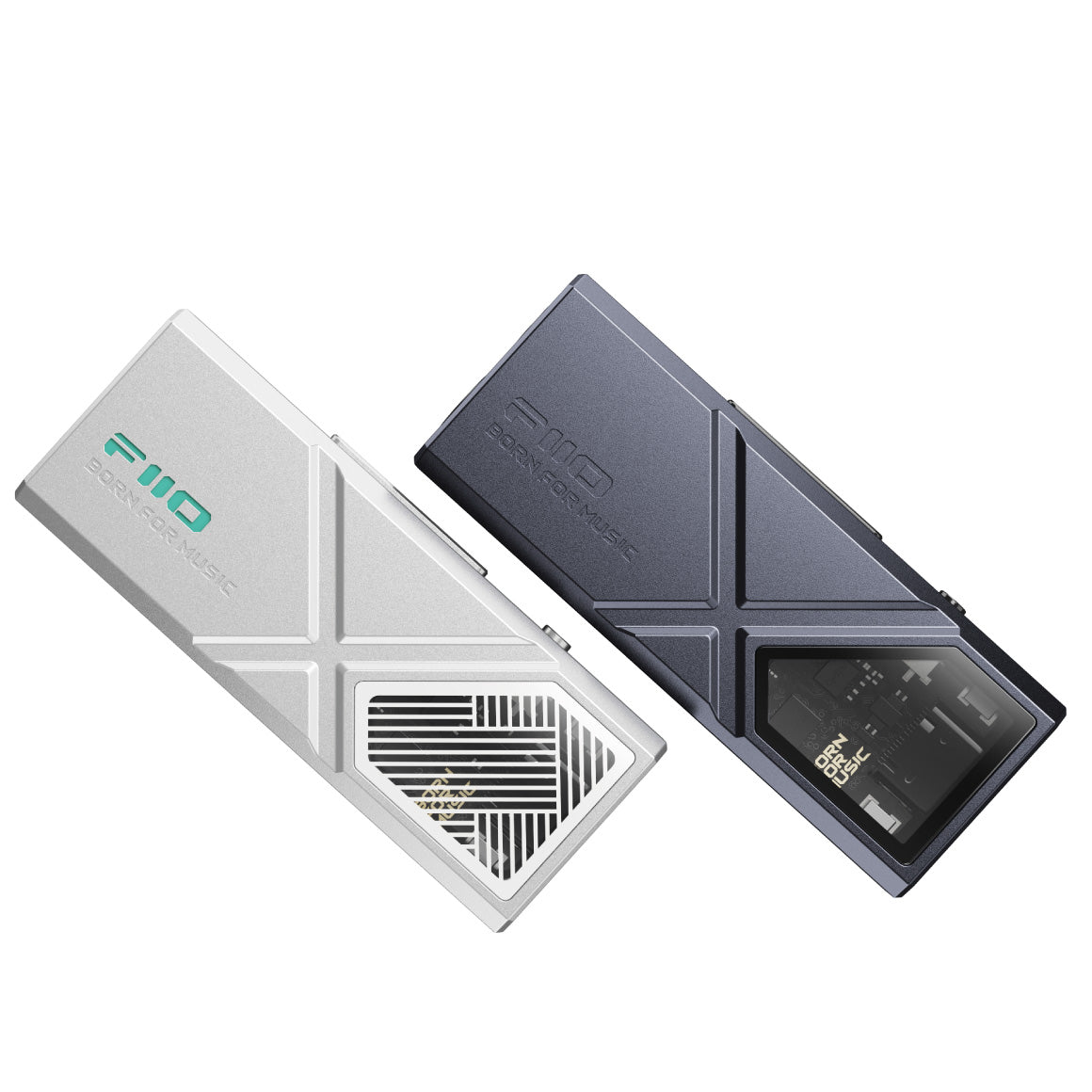

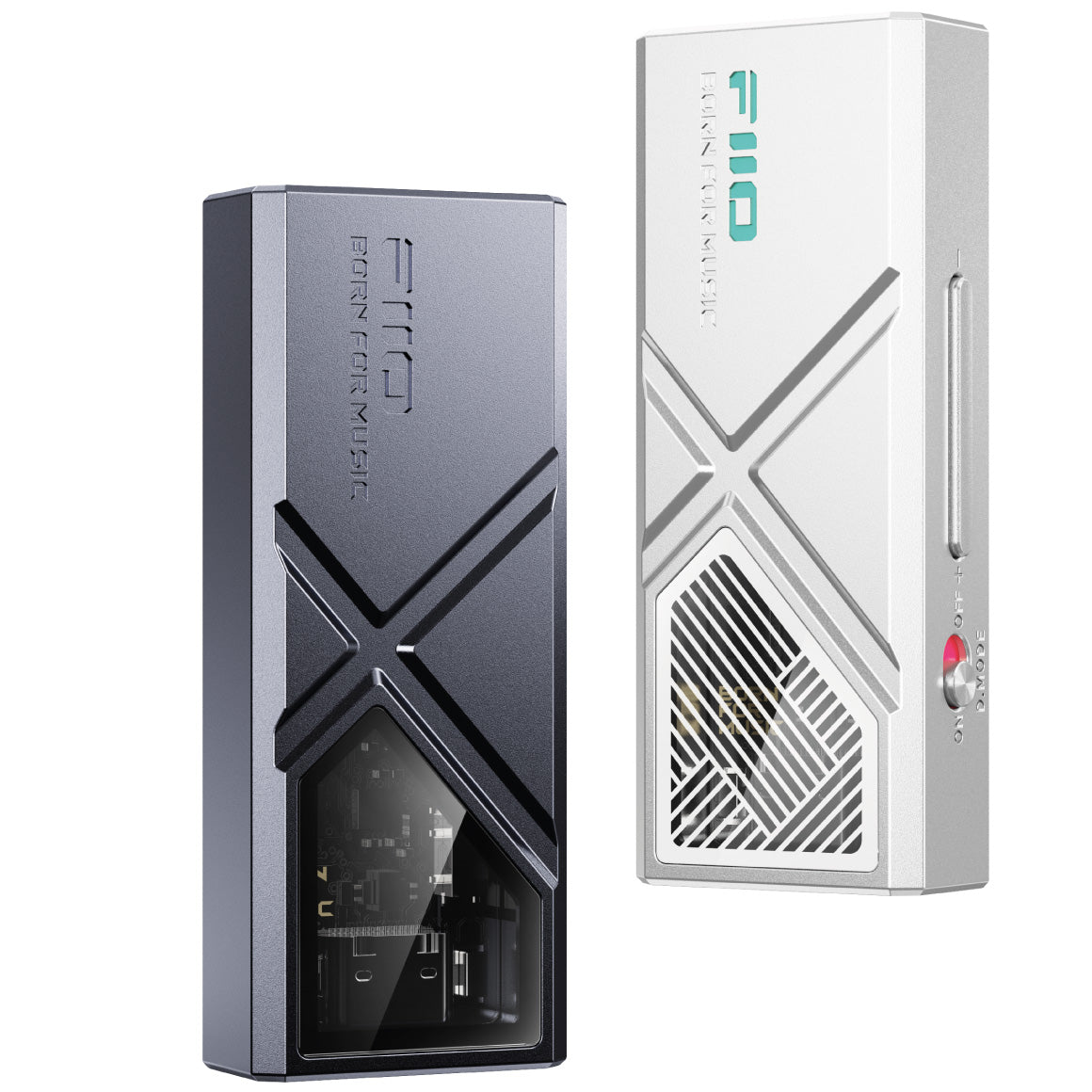

| COLOR | Midnight black/Dawn silver |
| WEIGHT | About 19g |
| USB PORT | Type-C USB |
| PHYSICAL BUTTON | Adjust volume, switch songs |
| TOGGLE SWITCH | Desktop mode switch |
| 3.5MM PLUG | Single-ended/SPDIF output (shared) |
| 4.4MM PLUG | Balanced output |
| OUTPUT POWER | L+R≥290mW+290mW (16Ω, THD+N<1%, USB IN) L+R≥170mW+170mW (32Ω, THD+N<1%, USB IN) L+R≥19.5mW+19.5mW (300Ω, THD+N<1%, USB IN) |
| FREQUENCY RESPONSE | 20Hz~20kHz, damping≤0.1dB 20Hz~50kHz, damping≤0.2dB |
| SNR | ≥122dB (32Ω, A-weighted) |
| THD+N | <0.0005% (0dB, 32Ω) |
| PEAK OUTPUT VOLTAGE | ≥2.3V (32Ω, THD+N<1%) |
| OUTPUT IMPEDANCE | <1.7Ω |
| CROSSTALK | ≥72dB (1kHz, 32Ω) |
| NOISE FLOOR | 2.5uV&1.7uV"A" |
| OUTPUT POWER | L+R≥500mW+500mW (16Ω, THD+N<1%, USB IN) L+R≥550mW+550mW (32Ω, THD+N<1%, USB IN) L+R≥78mW+78mW (300Ω, THD+N<1%, USB IN) |
| FREQUENCY RESPONSE | 20Hz~20kHz, damping≤0.1dB 20Hz~50kHz, damping≤0.1dB |
| SNR | ≥122dB (32Ω, A-weighted) |
| THD+N | <0.0005% (-5dB, 32Ω) |
| PEAK OUTPUT VOLTAGE | ≥4.2V (32Ω, THD+N<1%) |
| OUTPUT IMPEDANCE | <1.8Ω |
| CROSSTALK | ≥110dB (1kHz, 32Ω) |
| NOISE FLOOR | 4.6uV&3.1uV"A" |

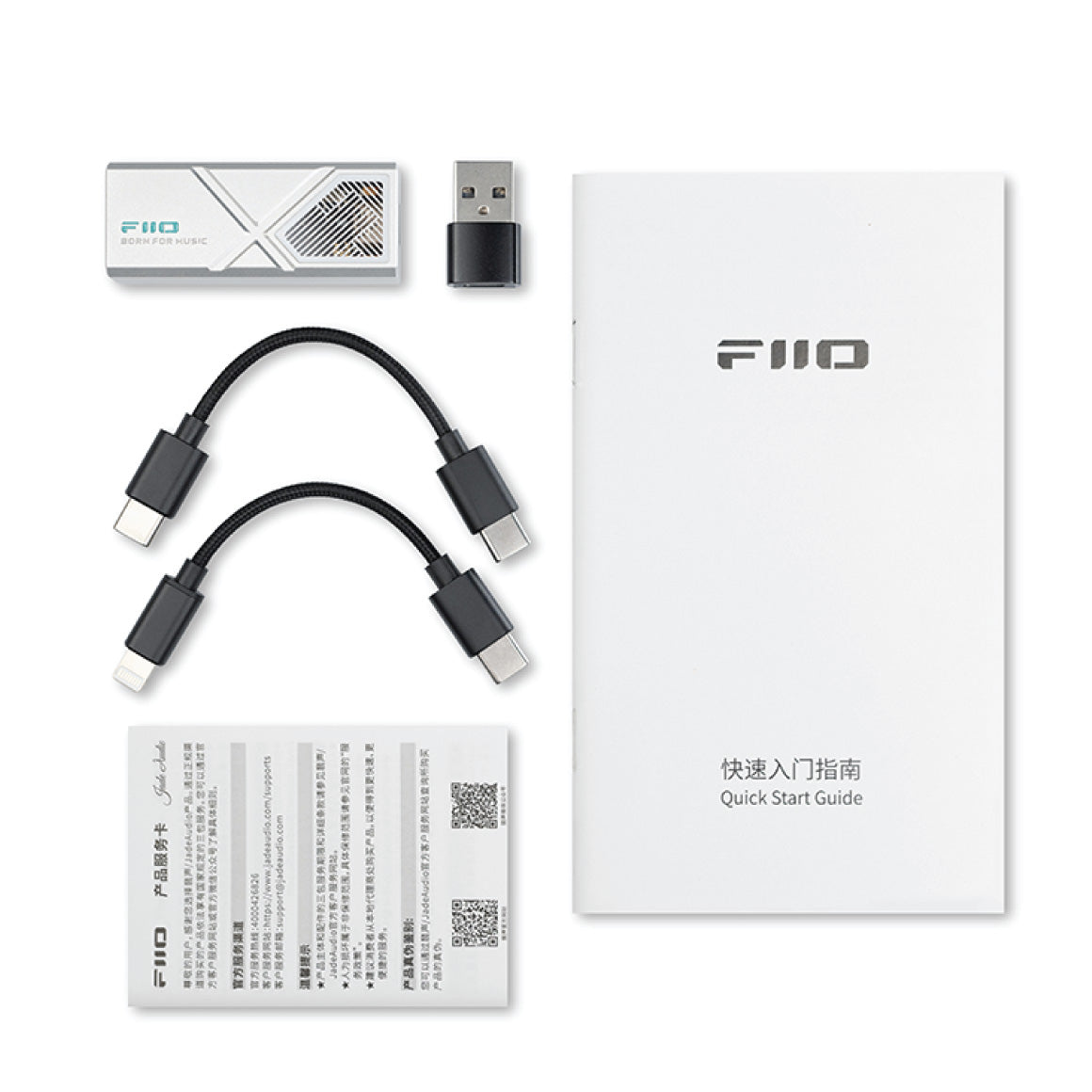

| WHAT YOU WILL GET | 1. FiiO KA13 |
| 2. Type-C to Type-C Cable | |
| 3. Type-C to Lightning Cable | |
| 4. Type-C to USB-A Cable | |
| 5. Manual | |
| 6. Warranty Card | |
| WHAT YOU WILL NOT GET | 1. Original packaging of FiiO KA13 |
OTHER DETAILS
| GENERIC NAME | Headphone Amplifier |
| IMPORTER DETAILS | Ferrari Video Address: 63/18, 1st Main Road, Gandhi Nagar, Chennai - 600020 Contact No: 044-24420733 |
| NET QUANTITY | 1 |
Quick Start Guide | KA13
Portable USB DAC & Amp
|
FAQs

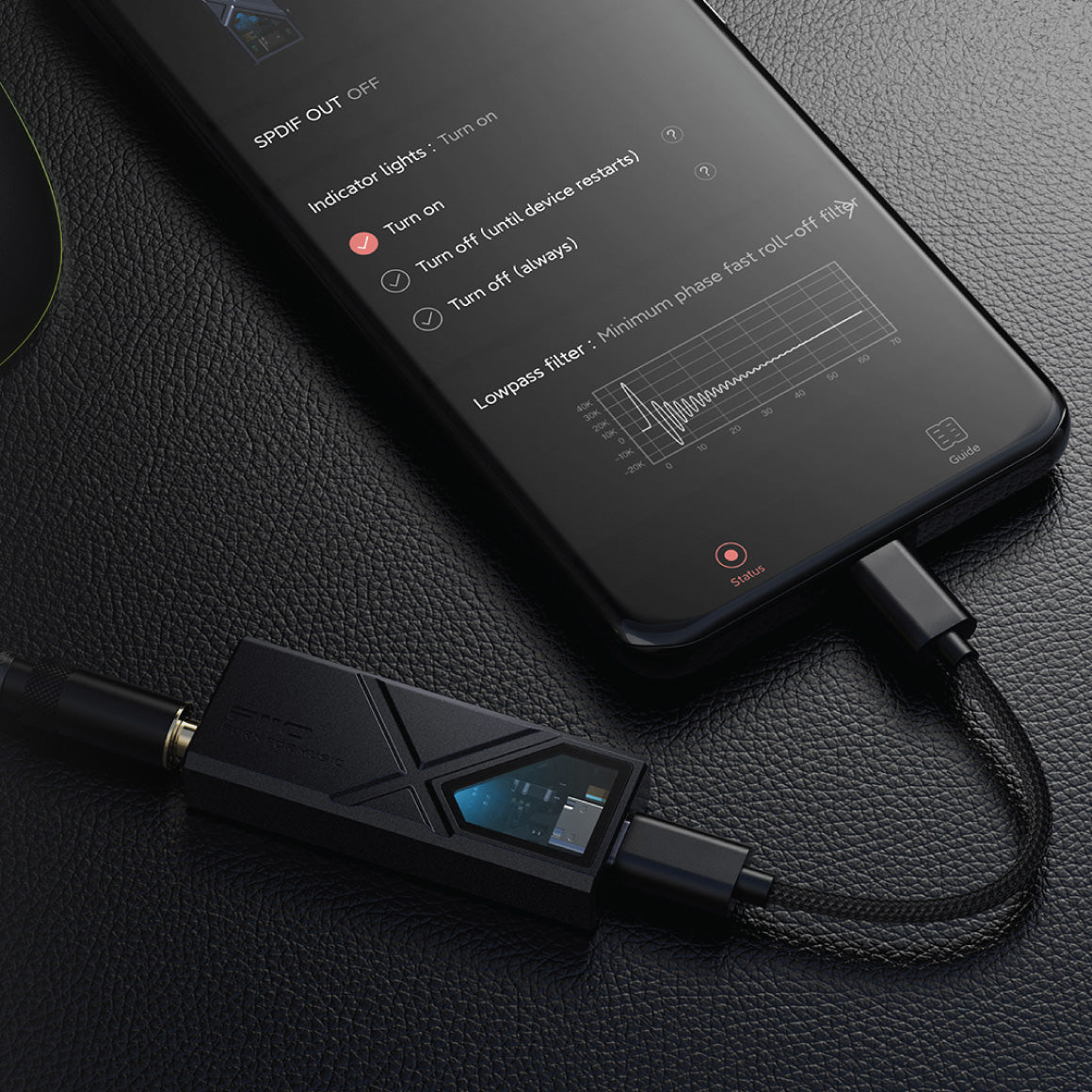

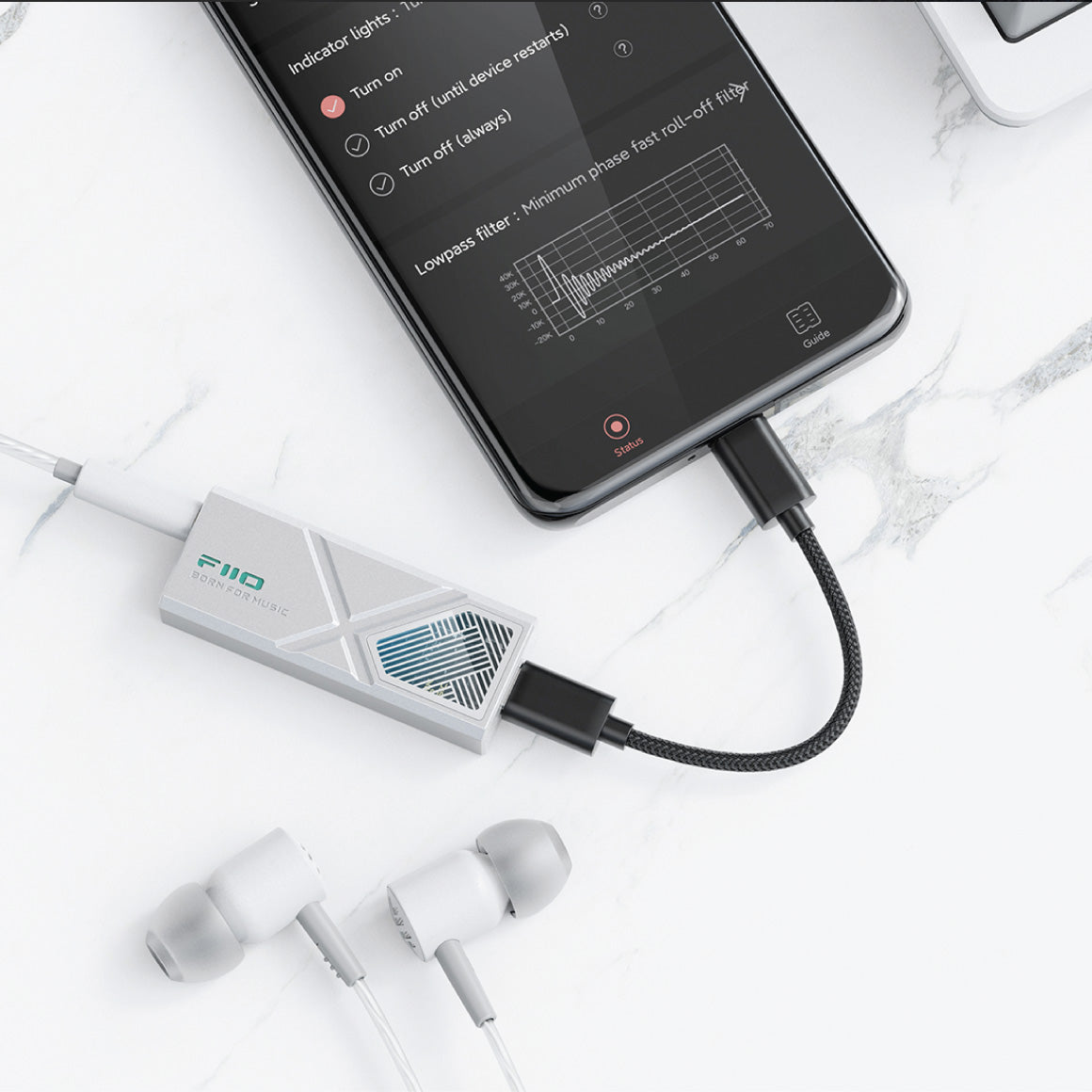

How to control the KA13 via the FiiO Control APP in Android mobile phone?
Connect the KA13 to the Android mobile phone via the USB c to c adapter that comes with the KA13.
You could search “FiiO Control” in any application market to download it. Or directly download the APK file: Click here.
After adjusting the setting for KA13 in FiiO Control APP, the buttons in KA13 will not work again before FiiO Control APP returns to the homepage. (You could click the return icon in the top left corner for returning to homepage)
Note:
1.The KA13 could not be controlled via the iOS version FiiO Control APP. But after adjusting the setting in KA13 or in Android FiiO Control, the settings will be saved.
2.Please update the FiiO Control APP to latest version first.

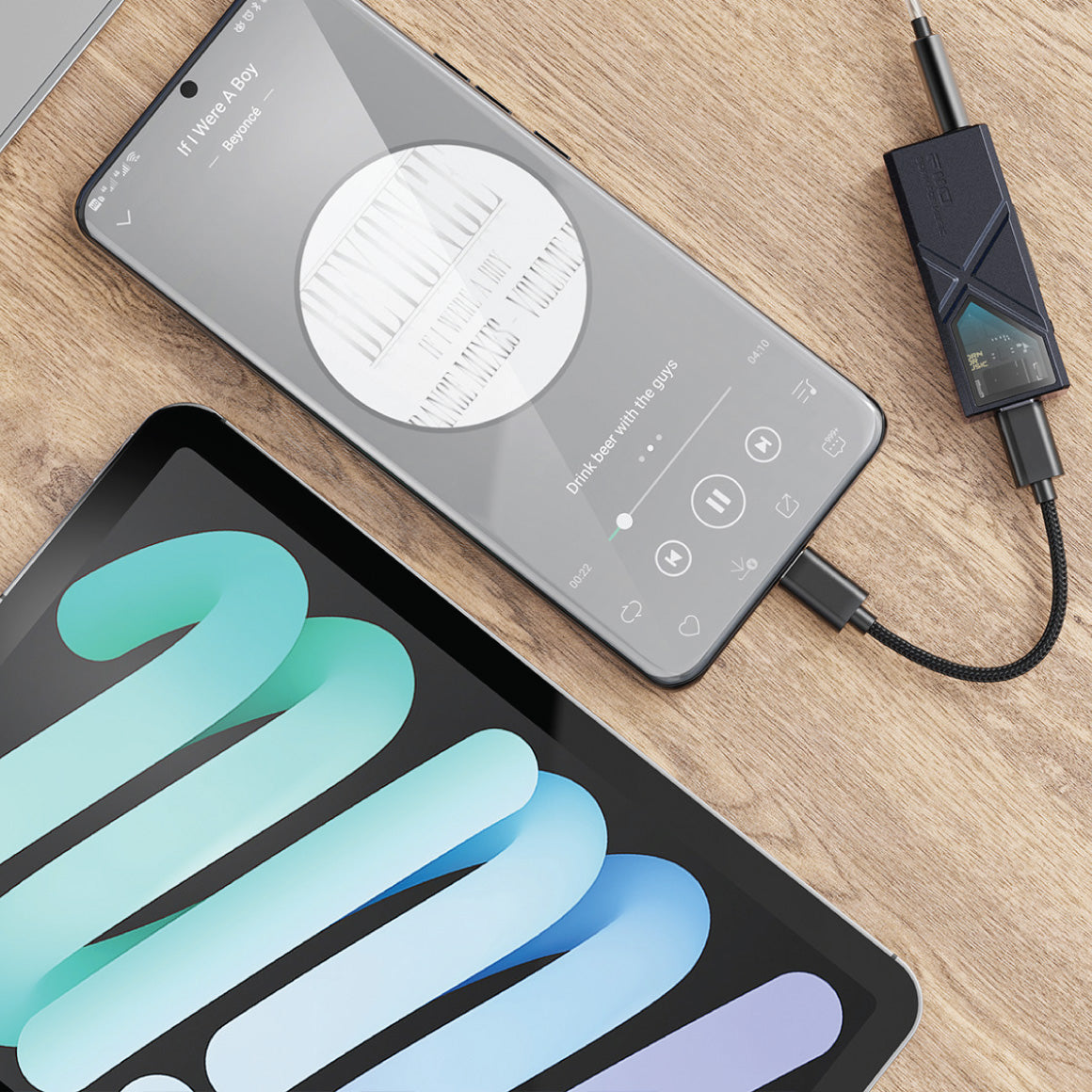

How to use the KA13 as a USB DAC for mobile phones?
[Android-based phone/PAD]
Use the TypeC-TypeC data cable to connect the KA13 to a mobile phone. So you can directly enjoy high-quality music by playing songs.
Notes:
1. A compatibility issue may occur to certain Android mobile phones or music players due to system and hardware differences.
2. Some mobile phones are required to turn on the OTG function, so as to use the KA13 normally.For detailed settings please consult the support of mobile phones.
3. Some mobile phones may show the 'non-certified Type-C digital headphone'notification. You can ignore the message and use it normally.
【iPhone/iPad】
Use the Lightning-TypeC OTG adapter to connect the KA13 to an iPhone/iPad/iPod. So you can directly enjoy high-quality music by playing songs.
Notes:
1.Only supports iOS10.0.2 and above. Apple devices below this version cannot be supported because of the iOS itself.
2.Since there are limitations for iPhone to power the external USB device, the KA13 with high output power may have stuttering or no sound problems at extreme volume.
About the Exclusive USB Audio Access Mode
Due to system and hardware differences of certain Android mobile phones, there may be some permission conflicts and compatibility issues when they are working in the Exclusive USB Audio Access Mode. Here are some situations we have noticed.
1.For some mobile phones with no physical volume buttons (such as the HUAWEI Mate30 Pro), in the FiiO Music app USB Audio Access Mode, you can adjust the volume by sliding on the current playback page to bring up the volume bar.
2.For some mobile phones, third-party apps are forbidden in the background by default in their power management policies. This will cause a stop on the playback after a few seconds when the music app is working in the Exclusive USB Audio Access Mode. If it happens, please set the app to stay working while asleep in the battery management setting of the mobile phone.
3.When the music app is working under the Exclusive USB Audio Access Mode, the sound may be stuttered or paused when operating other apps. We are working on this issue. It is suggested to focus on listening to music when using the Exclusive USB Audio Access Mode, or disable the Exclusive USB Audio Access Mode when listening to music.
How to use the KA13 as a USB DAC for computers?
[Windows PC]
1.It runs drive-free in Windows 10 and above systems.
2.Install the FiiO USB DAC driver. It supports ASIO output for further DSD256. Please click the link here to download the driver: Click here.
3.On the menu of settings - audio output device of the playback software, select 'FiiO KA13' and then connect the KA13 to the headphones to listen to music.
DSD track playback settings: Click here.
[MAC computer]
MAC systems do not need a driver. If connecting to a Type-C port of the computer, use a Type-C to Type-C cable for direct connection. If connecting to a USB-A port, use a USB-A to Type-C cable for connection. Please select 'FiiO KA13' as the audio output device on the computer.
[Linux PC]
Linux system also runs drive-free. Theoretically, connecting the KA13 directly to a Linux computer would work. But since there are too many versions, we cannot guarantee all systems are compatible. So, if the connection fails, it is suggested to change the data cable or USB port to troubleshoot the problem. Otherwise, the failed recognition means nonsupport.
Music stutters on some Windows computers due to the driver
(1) It is due to the different power management policies of some computers.
Please go to the settings menu of Control panel->Hardware and Sound->Power options to disable the 'USB selective suspend setting' and then restart the computer.
(2) If the problem still exists, please go to the Power options->PCI Express and turn off Link State Power management.
(3) If it still can't be solved, please choose the driver-less mode. Uninstall the DAC driver and ASIO, and then choose the KA13 as the output device.
Can I connect the KA13 with the NS or PS5?
No, the KA13 doesn't support UAC 1.0 mode. So it is could not work with NS or PS5 via USB connection.

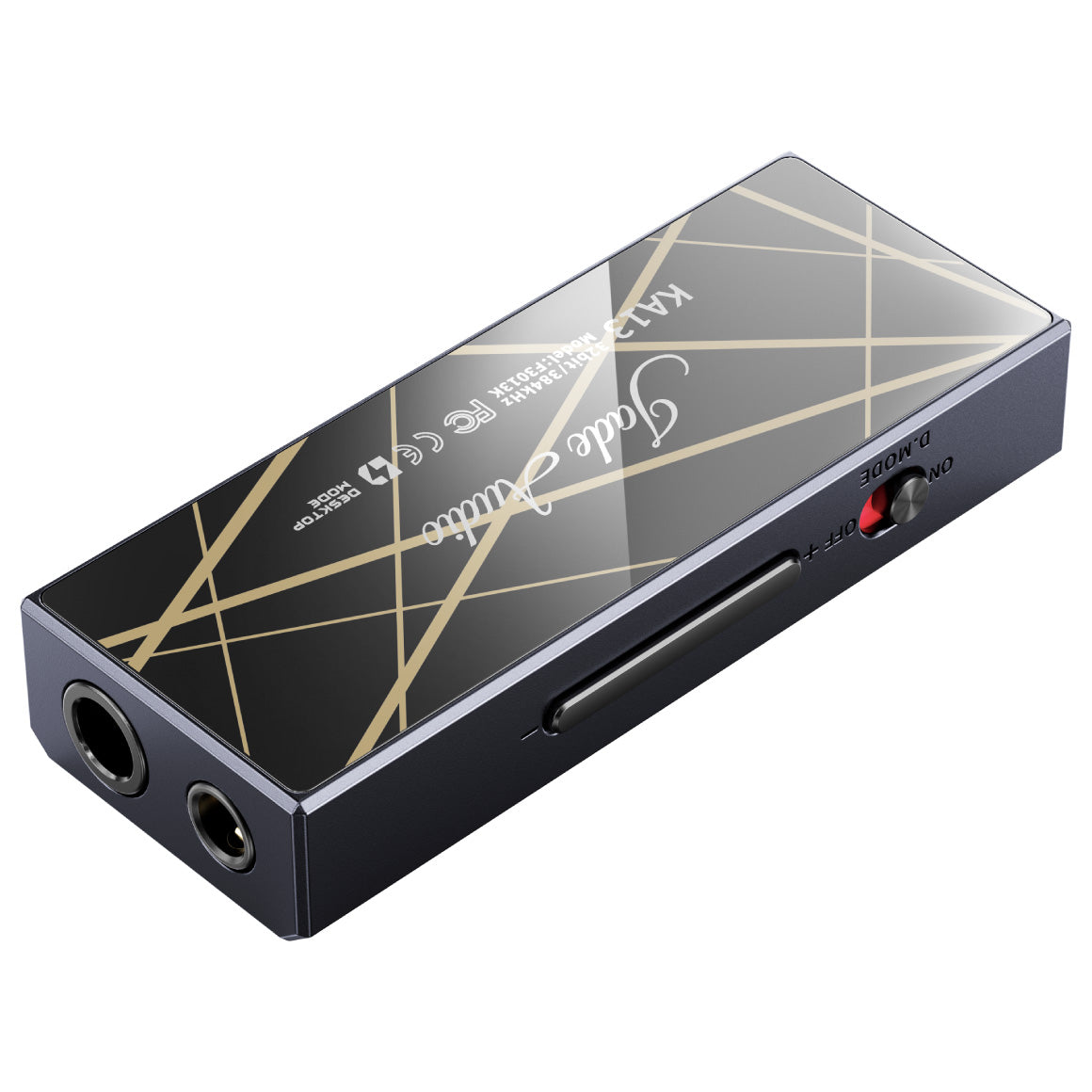

How to enable the desktop mode in KA13? When should I enable it?
When the D.MODE is toggled to ON, the desktop mode is on. The output power and gain of KA13 could be higher. It is recommended to drive high-impedance headphones or the device which is hard to be driven.
When the D.MODE is toggled to OFF, the desktop mode is off. The KA13 is used for daily music enjoying and driving the low-impedance headphones.
Does the desktop mode of KA13 need extra power supply?
The traditional USB dongle is limited in output power in order to be compatible with more mobile phones. Especially for Apple devices, there are limitations for iPhone to power the external USB device. If the output powe of a USB dongle is too high,there may be stuttering or no sound problems when exceeding the power supply capacity of the LT port.
In fact, the output current of most Android mobile phones is high enough. The desktop mode designed for KA13 is intended to give users one more option. When the desktop mode is on, the output power will be higher. When the desktop mode is off, The KA13 could be suitable for some mobile phones with small output current such as iPhones.
Besides, the new iPhones have also changed to TC port, so maybe KA13 can also support such a high output power when connecting to new iPhones. Therefore, the desktop mode of KA13 is for users to balance the conflict between compatibility and output power.
With such a high output power of KA13, will the battery life of the mobile phone be greatly affected?
Generally, the higher the the rated output power of the USB dongle, the higher supplied power is requireed from the mobile phone which will lead to a decrease in the battery life of the mobile phone.
However, we also need to check the actual situation when using products with high output output. For example, for high impedance headphones, what is needed is a high voltage without high current. And for particularly low impedance headphones, the need is for high current but not high voltage.
And in general, audio devices with high output power usually have higher output voltage and higher output current in order to drive high/low impedance headphones better.
What is the warranty like and who should I contact?
FiiO offers a one year warranty. If you need to claim warranty, you can contact us. We are quite friendly people, just saying. You can read more about warranty here.
Headphone Zone Certified Unboxed Units
Unboxed units are as good as new products with the product's packaging being unavailable. These products give you the same satisfaction of new products - but at down-to-earth prices. Usually, the product's packaging may have gotten damaged in transit. Customers use a product once or twice and then return it with opened up packaging.
Customer Returns
Returned headphones are fully functional products that have left the warehouse and therefore can no longer be sold as new as their packaging has been opened. The product may have been used once or twice by the customer who returned it.
Transit Damages
Sometimes we receive headphones in damaged packaging due to shipping accidents. These are brand new headphones with cosmetic flaws on the packaging.
Save Upto 15%
Since you won't get the original packaging, we give you a good discount compared to a new headphone.
Professionally Inspected
A thorough inspection means you receive a 100% working headphone with no sound output issues.
Original Warranty
All unboxed headphones carry the same warranty period as a brand new headphone would.
Unbiased Customer Service
We have the same Headphone Zone customer support experience for Unboxed Products or new products.
Unchanged Replacement Policy
Received a defective Unboxed unit? Return it under our Replacement Policy.
All Original Accessories
The unboxed headphones itself comes with all original accessories.
FIIO INTRODUCES THE UPGRADED VERSION OF THE KA3 DAC AND AMP - THE KA13
After almost two years of refinement, the FiiO KA3 has transformed into the KA13, now functioning as a mini desktop-class DAC and headphone amplifier. This upgraded version integrates a new design, advanced technology, and robust performance into a single device. FiiO's focus on versatility is evident in the KA13, which aims to provide users with a comprehensive USB dongle for a range of high-quality audio experiences. The FiiO x Jade Audio KA13 is a portable USB DAC/AMP with enhanced audio circuitry, featuring desktop-grade amplification that effortlessly drives IEMs and headphones with a solid output of up to 550mW. It incorporates a high-performance Dual DAC chipset with two CS43131 DAC chips for crystal-clear decoding of high-resolution PCM and DSD audio signals. With an exquisite build and an exclusive ambient light display window, the FiiO x Jade Audio KA13 enhances your music enjoyment.
FEATURES DUAL-DAC ARRANGEMENT AND DESKTOP-GRADE AMPLIFICATION STAGE
The FiiO KA13 ensures crystal-clear decoding of Hi-Res sound signals, featuring a premium dual DAC chipset with dual CS43131 32-bit DAC chips. With full support for decoding high-resolution PCM (32-bit/384kHz) and Native DSD256 audio signals, the KA13 takes your audio experience to new heights. This portable DAC incorporates a mini desktop-class amplifier, housing dual 8262 high-power OPAMPs that deliver a robust output of up to 550mW, effortlessly powering most IEMs and even some power-demanding headphones. The combination of two high-performance CS43131 DAC chips and two low-noise SGM8262 op-amps in this "dual-core" configuration ensures exceptional performance, allowing you to rediscover your music collection with newfound details.
3.5MM AND 4.4MM BALANCED OUTPUT AND DEDICATED RGB AMBIENT LIGHT
The FiiO KA13 offers dual output options, supporting both single-ended and balanced headphone connections through 3.5mm and 4.4mm ports, respectively. The 3.5mm output also functions as a coaxial SPDIF output. FiiO's engineers have skilfully designed the compact dongle to accommodate two headphone outputs, showcasing advancements in packaging capabilities. Additionally, the ambient light window provides quick insight into the audio sampling frequency, assuring you of the playback quality. The RGB light indicators include Light Blue for PCM≤48kHz, Yellow for PCM >48kHz, and Green for DSD signals, adding both aesthetic appeal and practical functionality.
EXQUISITELY BUILT AND BUNDLED WITH 2 CABLES + FIIO CONTROL APP INTEGRATION
The FiiO KA13 boasts a stunning design, featuring a premium metallic chassis and a distinctive ambient glass window that showcases customisable RGB lighting through the FiiO Control app. The CNC metal body exhibits unique lines on the front and exquisite texture on the rear, creating an aggressive yet futuristic appearance that is soft to the touch for enhanced comfort during use. The device supports control via the FiiO Control app, allowing users to conveniently adjust RGB lights, SPDIF output, audio filters, and more. With a detachable cable design and included Type-C and Lightning adapter cables, the KA13 offers versatility for seamless connectivity across various systems, including Android, iOS, Windows, and Mac devices. The FiiO Control App's control over KA13 is supported only on Android Devices. To download the app click here.
| HARDWARE SOLUTION | DAC: CS43131 *2 |
| OUTPUT PORTS | 3.5mm (Single-Ended) 4.4mm (Balanced) |
| SAMPLING RATE INDICATION | RGB ambient light |
| ADAPTIVE IMPEDANCE | PO: 16~150Ω BAL: 16~300Ω |
| MAX SUPPORTED SAMPLING RATE | 384K/32bit DSD64/128/256 384K/32bit (coaxial) |
| FIRMWARE UPGRADE | System firmware can be upgraded via USB |
| FIIO CONTROL | Supported |
| DIMENSIONS | About 56.5*22*10.5mm |
| COLOR | Midnight black/Dawn silver |
| WEIGHT | About 19g |
| USB PORT | Type-C USB |
| PHYSICAL BUTTON | Adjust volume, switch songs |
| TOGGLE SWITCH | Desktop mode switch |
| 3.5MM PLUG | Single-ended/SPDIF output (shared) |
| 4.4MM PLUG | Balanced output |
| OUTPUT POWER | L+R≥290mW+290mW (16Ω, THD+N<1%, USB IN) L+R≥170mW+170mW (32Ω, THD+N<1%, USB IN) L+R≥19.5mW+19.5mW (300Ω, THD+N<1%, USB IN) |
| FREQUENCY RESPONSE | 20Hz~20kHz, damping≤0.1dB 20Hz~50kHz, damping≤0.2dB |
| SNR | ≥122dB (32Ω, A-weighted) |
| THD+N | <0.0005% (0dB, 32Ω) |
| PEAK OUTPUT VOLTAGE | ≥2.3V (32Ω, THD+N<1%) |
| OUTPUT IMPEDANCE | <1.7Ω |
| CROSSTALK | ≥72dB (1kHz, 32Ω) |
| NOISE FLOOR | 2.5uV&1.7uV"A" |
| OUTPUT POWER | L+R≥500mW+500mW (16Ω, THD+N<1%, USB IN) L+R≥550mW+550mW (32Ω, THD+N<1%, USB IN) L+R≥78mW+78mW (300Ω, THD+N<1%, USB IN) |
| FREQUENCY RESPONSE | 20Hz~20kHz, damping≤0.1dB 20Hz~50kHz, damping≤0.1dB |
| SNR | ≥122dB (32Ω, A-weighted) |
| THD+N | <0.0005% (-5dB, 32Ω) |
| PEAK OUTPUT VOLTAGE | ≥4.2V (32Ω, THD+N<1%) |
| OUTPUT IMPEDANCE | <1.8Ω |
| CROSSTALK | ≥110dB (1kHz, 32Ω) |
| NOISE FLOOR | 4.6uV&3.1uV"A" |
| WHAT YOU WILL GET | 1. FiiO KA13 |
| 2. Type-C to Type-C Cable | |
| 3. Type-C to Lightning Cable | |
| 4. Type-C to USB-A Cable | |
| 5. Manual | |
| 6. Warranty Card | |
| WHAT YOU WILL NOT GET | 1. Original packaging of FiiO KA13 |
OTHER DETAILS
| GENERIC NAME | Headphone Amplifier |
| IMPORTER DETAILS | Ferrari Video Address: 63/18, 1st Main Road, Gandhi Nagar, Chennai - 600020 Contact No: 044-24420733 |
| NET QUANTITY | 1 |
|
Quick Start Guide | KA13
Portable USB DAC & Amp
|
How to control the KA13 via the FiiO Control APP in Android mobile phone?
Connect the KA13 to the Android mobile phone via the USB c to c adapter that comes with the KA13.
You could search “FiiO Control” in any application market to download it. Or directly download the APK file: Click here.
After adjusting the setting for KA13 in FiiO Control APP, the buttons in KA13 will not work again before FiiO Control APP returns to the homepage. (You could click the return icon in the top left corner for returning to homepage)
Note:
1.The KA13 could not be controlled via the iOS version FiiO Control APP. But after adjusting the setting in KA13 or in Android FiiO Control, the settings will be saved.
2.Please update the FiiO Control APP to latest version first.
How to use the KA13 as a USB DAC for mobile phones?
[Android-based phone/PAD]
Use the TypeC-TypeC data cable to connect the KA13 to a mobile phone. So you can directly enjoy high-quality music by playing songs.
Notes:
1. A compatibility issue may occur to certain Android mobile phones or music players due to system and hardware differences.
2. Some mobile phones are required to turn on the OTG function, so as to use the KA13 normally.For detailed settings please consult the support of mobile phones.
3. Some mobile phones may show the 'non-certified Type-C digital headphone'notification. You can ignore the message and use it normally.
【iPhone/iPad】
Use the Lightning-TypeC OTG adapter to connect the KA13 to an iPhone/iPad/iPod. So you can directly enjoy high-quality music by playing songs.
Notes:
1.Only supports iOS10.0.2 and above. Apple devices below this version cannot be supported because of the iOS itself.
2.Since there are limitations for iPhone to power the external USB device, the KA13 with high output power may have stuttering or no sound problems at extreme volume.
About the Exclusive USB Audio Access Mode
Due to system and hardware differences of certain Android mobile phones, there may be some permission conflicts and compatibility issues when they are working in the Exclusive USB Audio Access Mode. Here are some situations we have noticed.
1.For some mobile phones with no physical volume buttons (such as the HUAWEI Mate30 Pro), in the FiiO Music app USB Audio Access Mode, you can adjust the volume by sliding on the current playback page to bring up the volume bar.
2.For some mobile phones, third-party apps are forbidden in the background by default in their power management policies. This will cause a stop on the playback after a few seconds when the music app is working in the Exclusive USB Audio Access Mode. If it happens, please set the app to stay working while asleep in the battery management setting of the mobile phone.
3.When the music app is working under the Exclusive USB Audio Access Mode, the sound may be stuttered or paused when operating other apps. We are working on this issue. It is suggested to focus on listening to music when using the Exclusive USB Audio Access Mode, or disable the Exclusive USB Audio Access Mode when listening to music.
How to use the KA13 as a USB DAC for computers?
[Windows PC]
1.It runs drive-free in Windows 10 and above systems.
2.Install the FiiO USB DAC driver. It supports ASIO output for further DSD256. Please click the link here to download the driver: Click here.
3.On the menu of settings - audio output device of the playback software, select 'FiiO KA13' and then connect the KA13 to the headphones to listen to music.
DSD track playback settings: Click here.
[MAC computer]
MAC systems do not need a driver. If connecting to a Type-C port of the computer, use a Type-C to Type-C cable for direct connection. If connecting to a USB-A port, use a USB-A to Type-C cable for connection. Please select 'FiiO KA13' as the audio output device on the computer.
[Linux PC]
Linux system also runs drive-free. Theoretically, connecting the KA13 directly to a Linux computer would work. But since there are too many versions, we cannot guarantee all systems are compatible. So, if the connection fails, it is suggested to change the data cable or USB port to troubleshoot the problem. Otherwise, the failed recognition means nonsupport.
Music stutters on some Windows computers due to the driver
(1) It is due to the different power management policies of some computers.
Please go to the settings menu of Control panel->Hardware and Sound->Power options to disable the 'USB selective suspend setting' and then restart the computer.
(2) If the problem still exists, please go to the Power options->PCI Express and turn off Link State Power management.
(3) If it still can't be solved, please choose the driver-less mode. Uninstall the DAC driver and ASIO, and then choose the KA13 as the output device.
Can I connect the KA13 with the NS or PS5?
No, the KA13 doesn't support UAC 1.0 mode. So it is could not work with NS or PS5 via USB connection.
How to enable the desktop mode in KA13? When should I enable it?
When the D.MODE is toggled to ON, the desktop mode is on. The output power and gain of KA13 could be higher. It is recommended to drive high-impedance headphones or the device which is hard to be driven.
When the D.MODE is toggled to OFF, the desktop mode is off. The KA13 is used for daily music enjoying and driving the low-impedance headphones.
Does the desktop mode of KA13 need extra power supply?
The traditional USB dongle is limited in output power in order to be compatible with more mobile phones. Especially for Apple devices, there are limitations for iPhone to power the external USB device. If the output powe of a USB dongle is too high,there may be stuttering or no sound problems when exceeding the power supply capacity of the LT port.
In fact, the output current of most Android mobile phones is high enough. The desktop mode designed for KA13 is intended to give users one more option. When the desktop mode is on, the output power will be higher. When the desktop mode is off, The KA13 could be suitable for some mobile phones with small output current such as iPhones.
Besides, the new iPhones have also changed to TC port, so maybe KA13 can also support such a high output power when connecting to new iPhones. Therefore, the desktop mode of KA13 is for users to balance the conflict between compatibility and output power.
With such a high output power of KA13, will the battery life of the mobile phone be greatly affected?
Generally, the higher the the rated output power of the USB dongle, the higher supplied power is requireed from the mobile phone which will lead to a decrease in the battery life of the mobile phone.
However, we also need to check the actual situation when using products with high output output. For example, for high impedance headphones, what is needed is a high voltage without high current. And for particularly low impedance headphones, the need is for high current but not high voltage.
And in general, audio devices with high output power usually have higher output voltage and higher output current in order to drive high/low impedance headphones better.
What is the warranty like and who should I contact?
FiiO offers a one year warranty. If you need to claim warranty, you can contact us. We are quite friendly people, just saying. You can read more about warranty here.
Don't sweat it, this
FiiO - KA13 (Unboxed) comes with a 1 Year warranty
from FiiO that covers manufacturing defects.
All products featured on Headphone Zone are backed by an original manufacturer's warranty.
Read more about FiiO's warranty in India.
Life Style Award
VGP
Nov, 2023
Best Choice Award
Hamza Tech
Nov, 2023
"The FiiO KA13 is otherwise a very good source for the money, although I mostly recommend it for people who like the aesthetics and find themselves in need of the extra power that's best used with a desktop PC or laptop."
Read More
"The KA13 is a benchmark for the sheer amount of power it brings to the table, and in such a compact form! I am pleased to have finally found a portable source that does justice to demanding gear like the Final E5000, Sennheiser HD650, and the notorious Yinman 600 ohm."
Read MoreThis product is rated 5.0 of 5.0 stars.
It has received 2 reviews.
Customer Reviews
The FiiO KA13 is a compact portable DAC (Digital-to-Analog Converter) that proves to be a game-changer for smartphone users seeking enhanced audio quality. As someone who's been struggling with the limitations of my phone's built-in audio, the KA13 has been a revelation. Right off the bat, the dual output options – 3.5mm and 4.4mm balanced – offer versatility for various headphone setups. When paired with high-quality IEMs and a balanced cable, the KA13 truly shines, unveiling nuances in music that were previously hidden. The difference in audio quality is most noticeable when using lossless streaming services like Apple Music. While casual listeners might not discern a significant upgrade with standard streaming services, audiophiles will appreciate the improved clarity, soundstage, and detail retrieval. However, the KA13 isn't without its drawbacks. The companion app leaves much to be desired. While it offers some presets, the lack of a proper equalizer is disappointing. The app's responsiveness and user interface could also use some improvements, as it can be sluggish and unintuitive at times. Despite these quirks, the FiiO KA13 delivers where it matters most – sound quality. It's a solid choice for those looking to elevate their mobile listening experience, provided they can manage the battery drain and app limitations. For audiophiles on a budget, the KA13 offers a taste of high-end audio in a portable package.
Thank you so much for taking the time to share your thoughts on the FiiO KA13. We are thrilled to hear that it has been a game-changer for your audio experience and that you have noticed a significant improvement in sound quality. We appreciate your feedback.
This is my first DAC (Fiio KA13) which i am pairing with KZ zxn pro x . I been using this iem from 2021 and it is a wonderful product as well .I regularly listen to music while travelling and was testing this DAC for more than a week . These are my opinions about the DAC
> Music is much more clear and sharp
> there is no noise at all
> the instrument seperatons are highly noticable .( in Normal songs acoustic instrument kinds of blend inside the mix but this DAC really make you notice these.)
> sharpness of kz iem in higher freqencies is reduced to a much more pleasurable audio experience.
> bass is much more crisp and natural.
> DAC will get slight warm and remains constant at this temperature which is not an issue.
Overall its a wonderful audio experience and i feels its worth the price.
Thank you for your detailed review of the FiiO KA13 DAC. We are thrilled to hear that it has enhanced your listening experience with the KZ zxn pro x IEMs. Happy listening!
