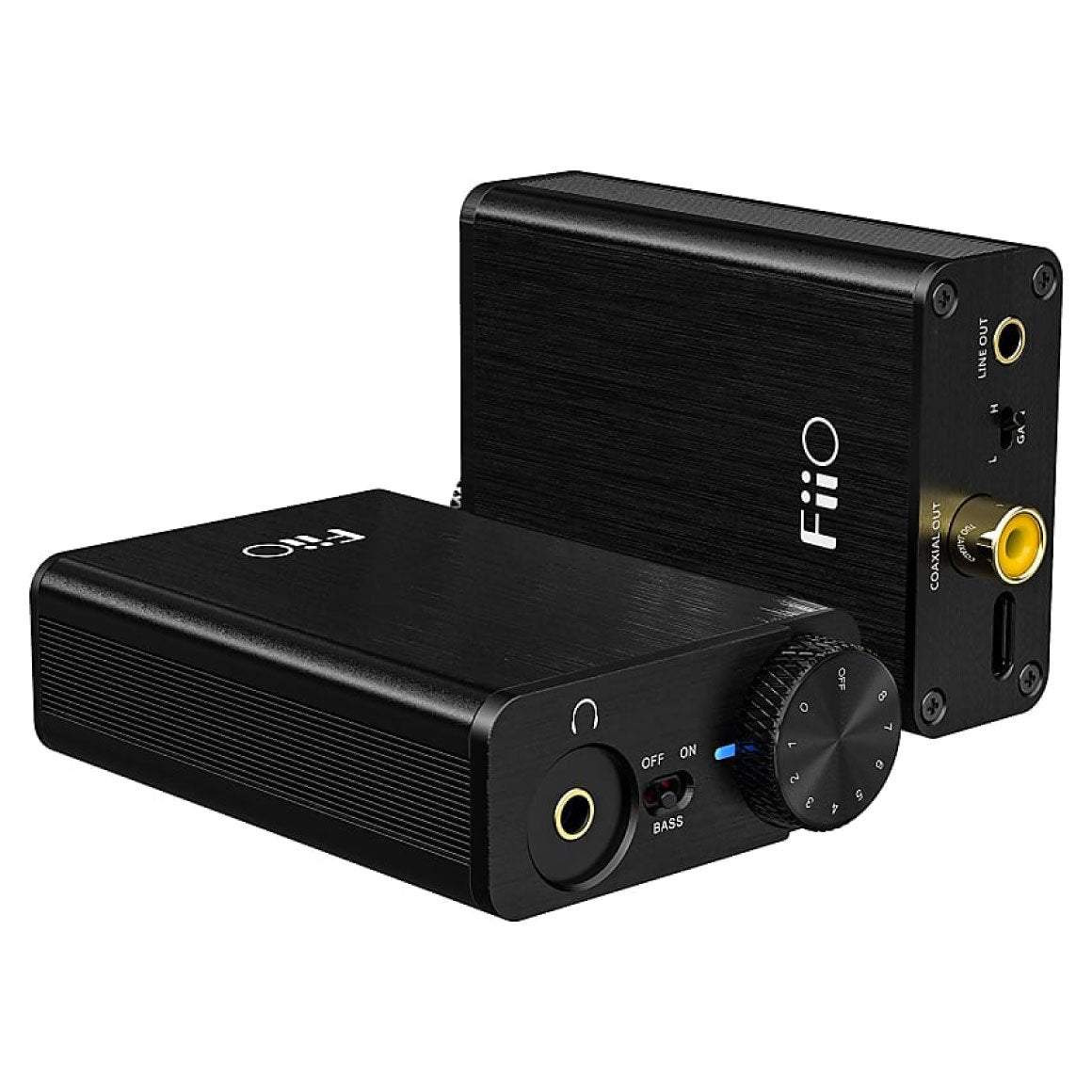

FiiO - E10K
Portable DAC & Headphone AmpUnfortunately, even if we desire to, we won't be able to resurrect this product. The Museum is where we pay our respects to end-of-life, old, archived, but not forgotten products. This page was made with a lot of love and will live on for posterity. What to say, we're sentimental people. 😔
While this product is gone forever, here are others we recommend
Customer Reviews

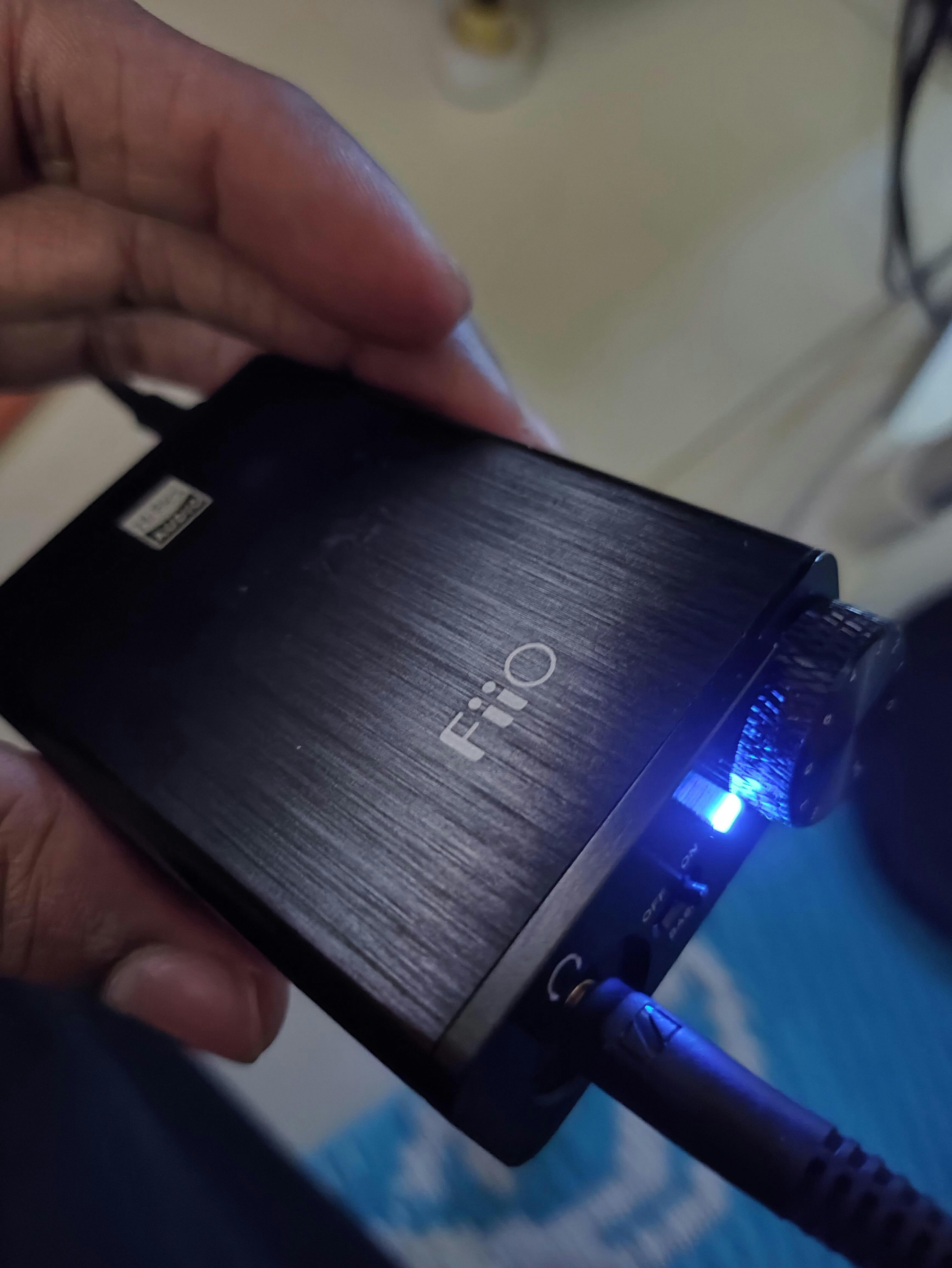

I am not an audiophile, but I can say for sure this little thing is special ! I got this to get a better, cleaner audio source than my integrated motherboard soundcard, and this thing delivers!
Hey Bhargav, thanks a lot for your amazing review!
This will make a significant improvement in audio quality over built-in PC audio.
Tested with Sennheiser HD 599 & OneOdio Pro10.
Watching movies in a silent environment is a bliss with HD 599. Rich audio experience.
Bass Boost is a bonus.. Which we don't get in other dac|amps.
Best budget DAC|AMP....
Hey Jagadish, thank you so much for the awesome review!
You can't really go wrong with this DAC at this price point and size. It's perfect if you're a college student like me who can't keep a proper audiophile setup but you still want a proper listening experience. Pairs well with portable equipment like your laptop or your phone since you'll be travelling constantly.
We're really happy that you have such great thoughts about the product and thanks for the amazing review!
Paired it with my dt770 80ohms and it feels like i have unlocked a new level xD, its really good !
Hey there, nothing makes us happier than knowing you loved your purchase, hope you had a comfortable shopping experience and thank you for the great review and ratings!

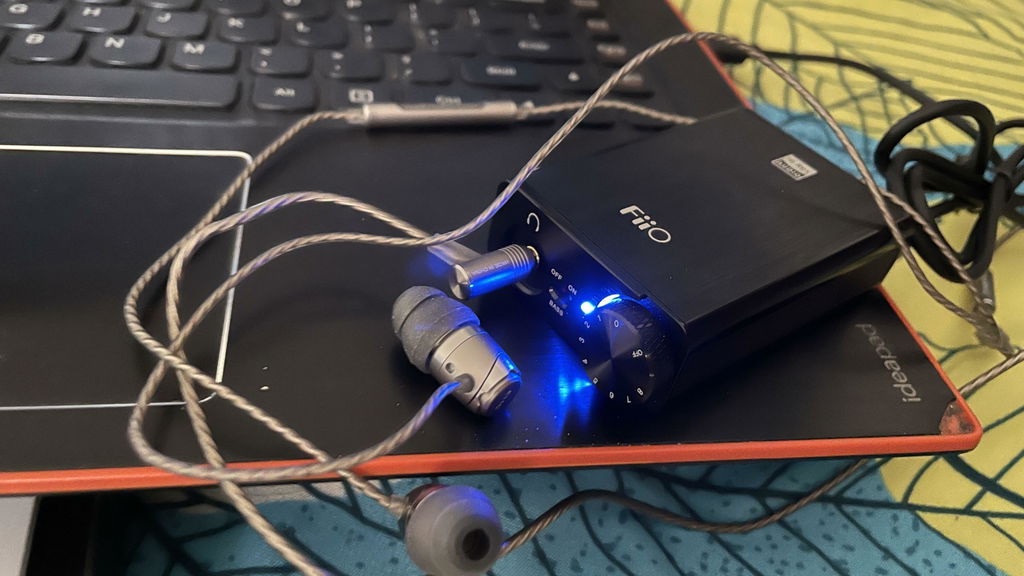

Amazing dac/amp for such a compact form factor and cheap too. Very handy, I got the older version with micro USB but still works fine! I use it for my ath-m50x as well as IEMs.
We're really happy that you have such great thoughts about the product and thanks for the amazing review!
Been extensively using laptop onboard jack so this is a great improvement in audio quality.
The difference is more pronounced on higher volumes.
Overall satisfied! It's smaller in size than i anticipated.
Hey there, nothing makes us happier than knowing you loved your purchase, hope you had a comfortable shopping experience and thank you for the great review and ratings!
FiiO - E10K
FiiO - E10K
Thank you for awesome ratings, Drake Xahu!
Chi-Fi
Excellence
Ideal for Audiophiles
Best Suited for Portable Use
Pair with Laptop via USB
A majority of people use a laptop as the primary source device to listen to music or watch movies. Since the laptop is an essential part of the audio chain there are headphones and devices designed to work a laptop or computer system flawlessly. With the availability of USB connectivity, it becomes easier to pair various devices like an Amp, DAC or even headphones without worrying about drivers or any additional piece of software.
Connect With
USB-C
200 mW @ 32 Ω
Power Output
DAC Chip
You may not even realise it, but most of us use a digital-to-analogue converter (commonly known as a DAC) daily. Built into your computers, tablets and smartphones, a DAC is fundamental to unlocking the convenience of digital music. Any device that acts as a digital sound source will need a DAC to convert digital audio to analog. A DAC converts the digital information stored in “0s and 1s” into an analog signal that's passed to speakers or headphones and ultimately our ear. In short, DACs play a large part in making digital music hearable.
While this technical process is undoubtedly impressive, the DAC embedded into your smartphones or laptops is nowhere good enough to listen to your favourite music recordings in high quality. So, if you want to listen to music in high quality, an external DAC is essential to allow headphones or speakers to perform at their potential. An external DAC, first and foremost, will improve audio quality dramatically.
Super Lightweight
Design
Volume Controls
A lot of power even for the most demanding of headphones, an excellent build, and the versatility to take it along on the road makes the E10K a yesteryear hero and an all-time favourite.
About RAGHAV SOMANI
Raghav Somani is the Founder & CEO of Headphone Zone. An avid audiophile and musician since 2008, his choice of headphones include STAX Electrostats, Audeze LCD 3, and for music on the go, the JH Audio Roxanne + Astell&Kern SP1000 is never too far away. On his playlist, you'll find A.R. Rahman, Michael Jackson, and the Eagles.
DESCRIPTION
REVISED VERSION OF A CLASSIC, NOW WITH AN ADVANCED DAC AND LOWER FLOOR NOISE
One of the notable developments in the FiiO E10K is its all-new PCM5102 chip. This chip brings about significant improvements in the functionality of the E10K like, reduced delays and improved audio quality without any phase shift. Even when you are changing tracks you can experience low silence intervals. Equipped with a low-pass filter and bass boost circuits, the E10K has the lowest noise floor under all conditions. It has a output power of 200mW @32Ω and a USB decoding sample rate of 24 bit / 96kHz.
IMPROVED AMPLIFICATION STAGE AND A HIGHLY DURABLE & PORTABLE DESIGN

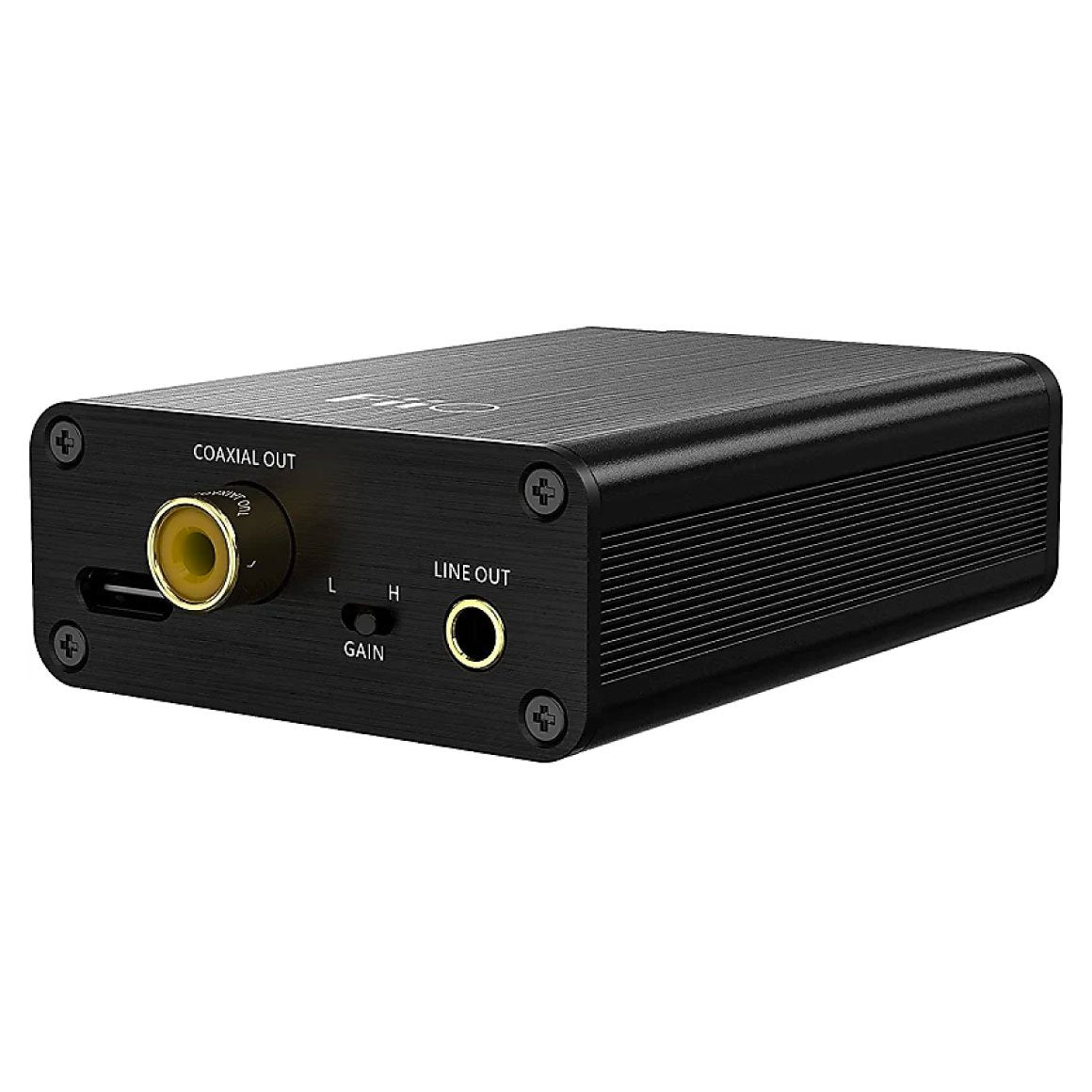

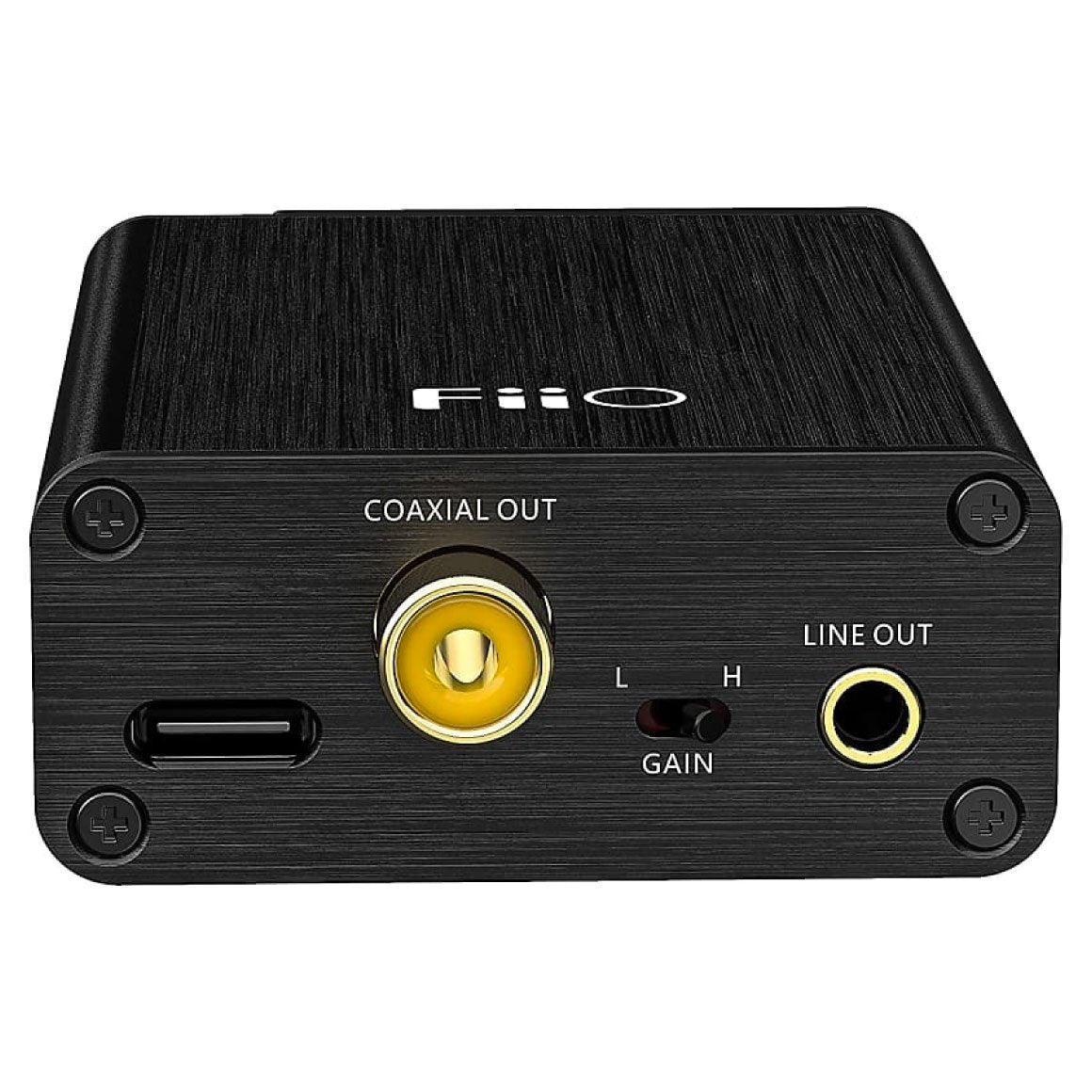

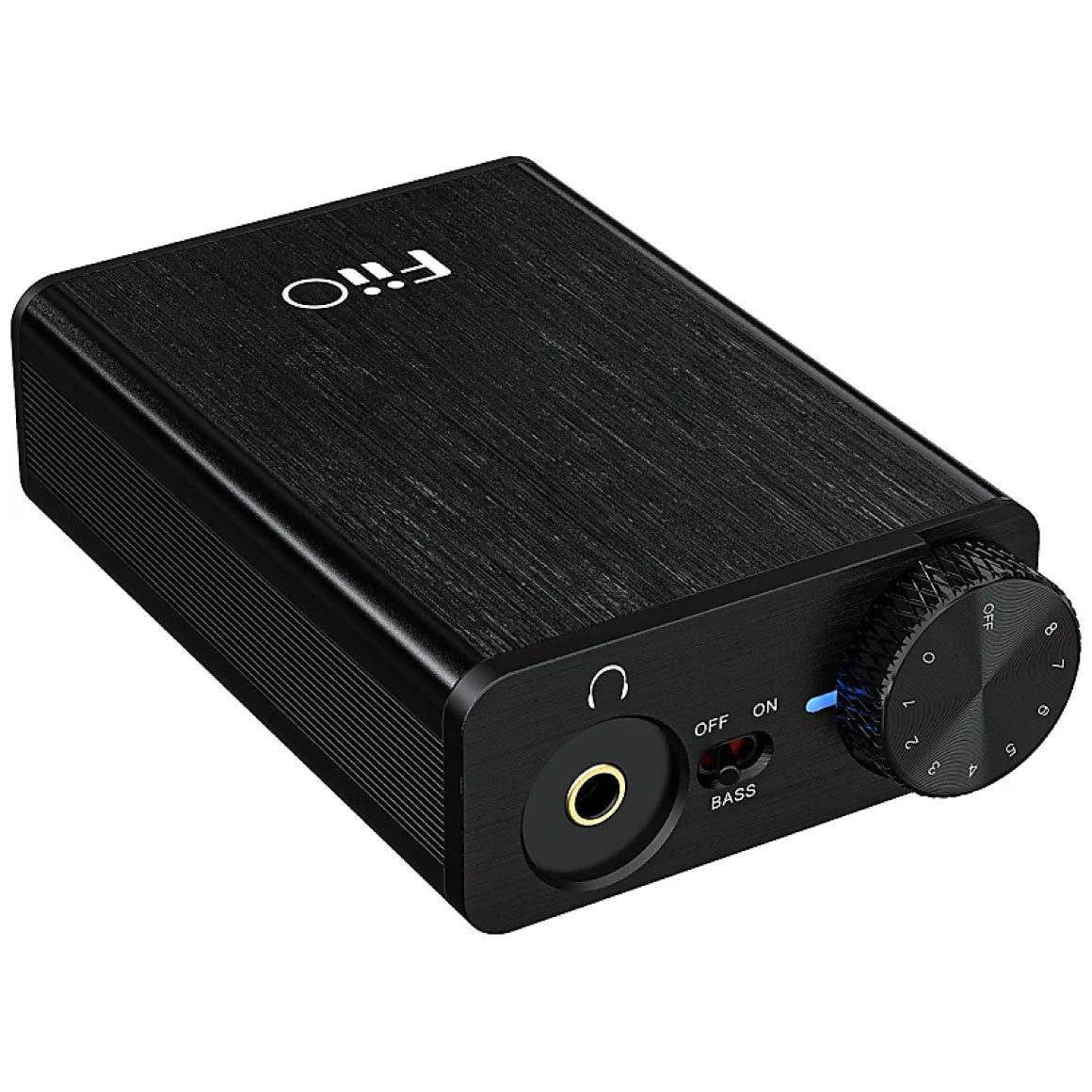

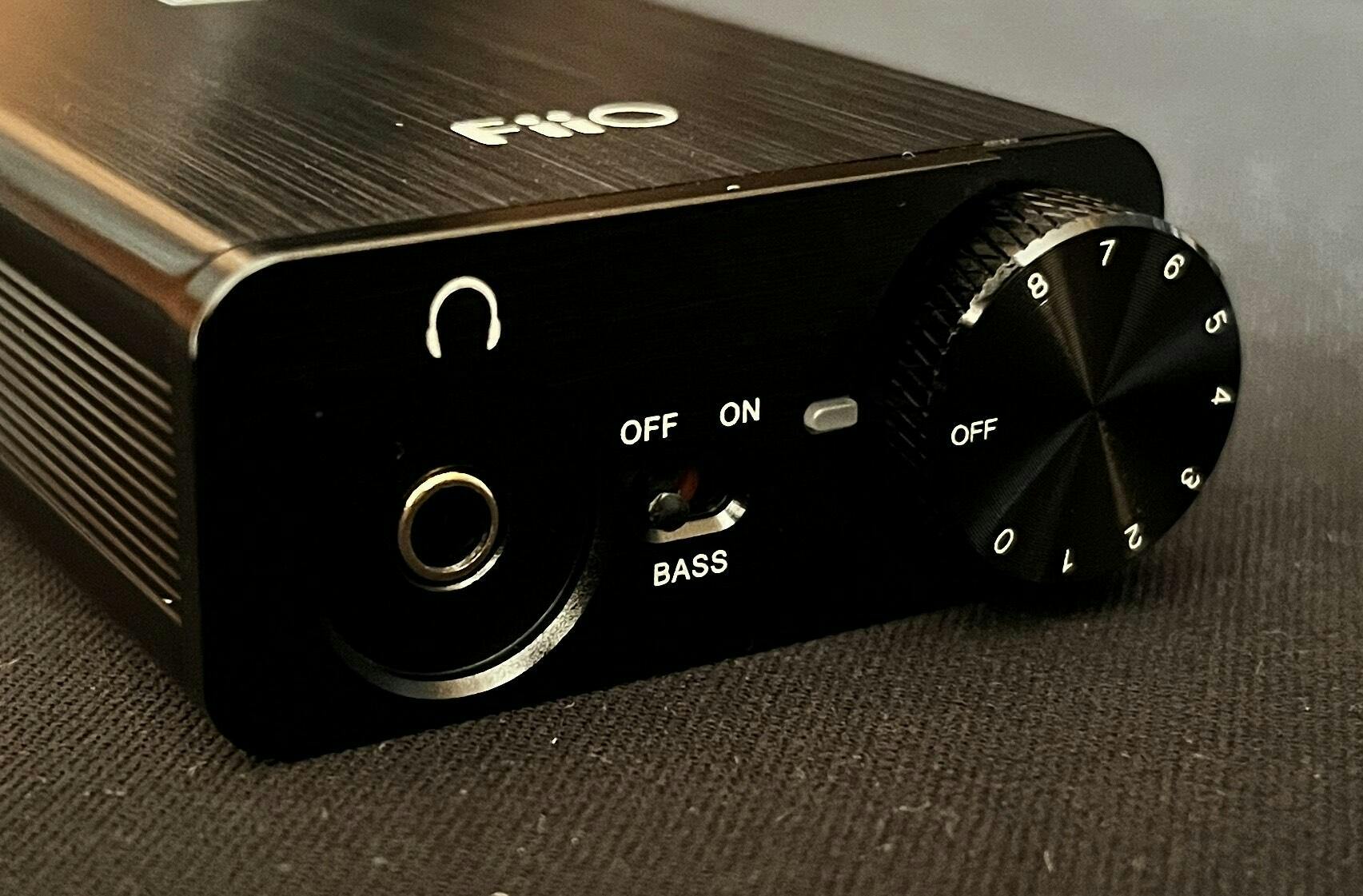

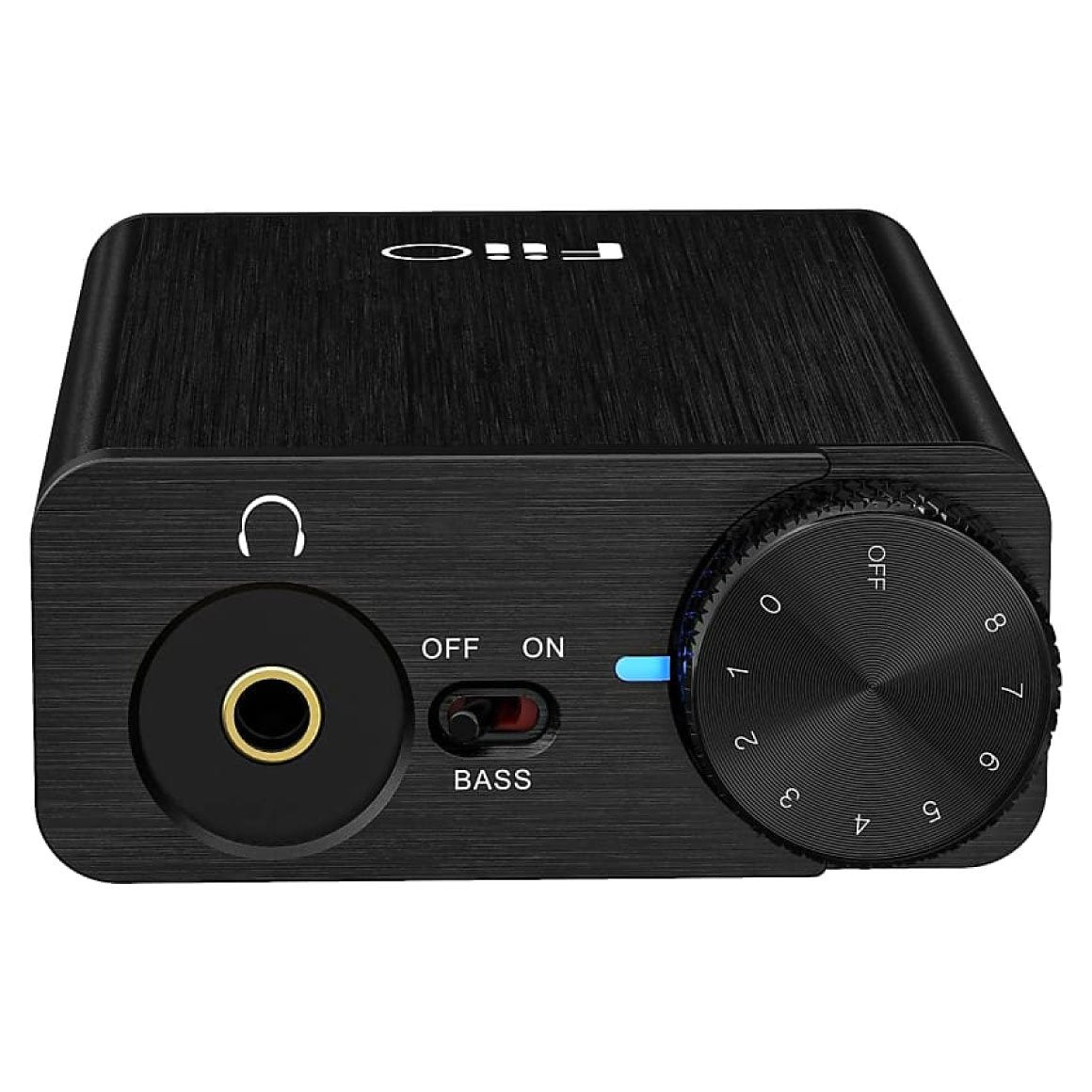

Installed with a brand new LMH8643 amplification op amp, the FiiO E10K now has a buffer design that takes care of the transient response and the driving power. This headphone amplifier is compact, portable and durable than ever before, thanks to its brushed aluminium shell and chassis. It comes with a Micro USB/Type-C input, coaxial output and a 3.5 mm stereo Jack headphone output. It also has an ALPS Potentiometer volume control to take easy control over the volume, gain settings and a bass boost.
E10K-TC FEATURING XMOS CHIP AND TYPE-C CONNECTOR
Keeping up with the times, the E10K-TC comes embedded with the flagship XMOS XUF208 chip for more efficient USB decoding. This, compared to the E10K is a substantial upgrade and is further enhanced by USB Audio Class 2.0 and PCM format supports up to 32bit/384kHz sampling rates for detailed audio. The E10K-TC has been equipped with a USB Type-C connection to allow compatibility with various modern devices and at the same time, the headphone/line/coaxial (up to 24 bit/192kHz) outputs make it easier to connect to other pieces of equipment. These additions are truly thoughtful and truly keeping in tune with technological advancements.
SPECS
| MODEL NAME | E10K |
| COLOR AVAILABLE | Black |
| WEIGHT | 78 g |
| DIMENSIONS | 49.1 mm×80 mm×21 mm |
| DAC Chip | PCM5102 |
| POWER SOURCE | Micro USB/Standard USB Type-C Connector |
| HEADPHONE OUTPUT | 3.5 mm stereo Jack |
| COAXIAL DIGITAL OUTPUT | Stereo PCM |
| COAXIAL OUTPUT | Type-C: 192kHz/24 BIT |
| SAMPLE RATE (USB DECODING) | Micro USB: Maximum of 24 BIT/96kHz Type-C: Upto 32 Bit/384kHz |
| VOLUME CONTROL | ALPS Potentiometer |
| BASS BOOST | Yes |
| DRIVE ABILITY | 16~150 Ω |
| POWER INPUT | recommend DC5V 500mA |
| BATTERY CAPACITY | N/A |
| BATTERY LIFE | N/A |
| OUTPUT POWER | 200 mW (32 Ω/THD+N＜1%) |
| CHARGING TIME | N/A |
| THD | ＜0.006% (1 kHz) |
| OUTPUT IMPEDANCE | ＜1.04 Ω |
| FREQUENCY RESPONSE | 20 Hz~20 kHz |
| SNR | Micro USB:＞105 dB （A-weighted） Type-C: ≥114 dB |
| SUPPORTED S/N RATION | ≥108 dB |
| INPUT SENSITIVITY | N/A |
| MAX INPUT LEVEL | N/A |
| CROSSTALK | ≥70 dB (1 kHz) |
| CHANNEL IMBALANCE | ＜0.4 dB |
| GAIN | 1.6 dB (GAIN=L) 8.8 dB (GAIN=H) |
| BASS BOOST RANGE | N/A |
| MAX OUTPUT CURRENT | 81.6 mA |
| MICRO USB VERSION | 1. FiiO E10K |
| 2. usb to micro usb cable | |
| 3. 6-rubber stick | |
| 4. warranty card and users guide |
| TYPE-C VERSION | 1. FiiO E10K-TC |
REVISED VERSION OF A CLASSIC, NOW WITH AN ADVANCED DAC AND LOWER FLOOR NOISE
One of the notable developments in the FiiO E10K is its all-new PCM5102 chip. This chip brings about significant improvements in the functionality of the E10K like, reduced delays and improved audio quality without any phase shift. Even when you are changing tracks you can experience low silence intervals. Equipped with a low-pass filter and bass boost circuits, the E10K has the lowest noise floor under all conditions. It has a output power of 200mW @32Ω and a USB decoding sample rate of 24 bit / 96kHz.
IMPROVED AMPLIFICATION STAGE AND A HIGHLY DURABLE & PORTABLE DESIGN
Installed with a brand new LMH8643 amplification op amp, the FiiO E10K now has a buffer design that takes care of the transient response and the driving power. This headphone amplifier is compact, portable and durable than ever before, thanks to its brushed aluminium shell and chassis. It comes with a Micro USB/Type-C input, coaxial output and a 3.5 mm stereo Jack headphone output. It also has an ALPS Potentiometer volume control to take easy control over the volume, gain settings and a bass boost.
E10K-TC FEATURING XMOS CHIP AND TYPE-C CONNECTOR
Keeping up with the times, the E10K-TC comes embedded with the flagship XMOS XUF208 chip for more efficient USB decoding. This, compared to the E10K is a substantial upgrade and is further enhanced by USB Audio Class 2.0 and PCM format supports up to 32bit/384kHz sampling rates for detailed audio. The E10K-TC has been equipped with a USB Type-C connection to allow compatibility with various modern devices and at the same time, the headphone/line/coaxial (up to 24 bit/192kHz) outputs make it easier to connect to other pieces of equipment. These additions are truly thoughtful and truly keeping in tune with technological advancements.
| MODEL NAME | E10K |
| COLOR AVAILABLE | Black |
| WEIGHT | 78 g |
| DIMENSIONS | 49.1 mm×80 mm×21 mm |
| DAC Chip | PCM5102 |
| POWER SOURCE | Micro USB/Standard USB Type-C Connector |
| HEADPHONE OUTPUT | 3.5 mm stereo Jack |
| COAXIAL DIGITAL OUTPUT | Stereo PCM |
| COAXIAL OUTPUT | Type-C: 192kHz/24 BIT |
| SAMPLE RATE (USB DECODING) | Micro USB: Maximum of 24 BIT/96kHz Type-C: Upto 32 Bit/384kHz |
| VOLUME CONTROL | ALPS Potentiometer |
| BASS BOOST | Yes |
| DRIVE ABILITY | 16~150 Ω |
| POWER INPUT | recommend DC5V 500mA |
| BATTERY CAPACITY | N/A |
| BATTERY LIFE | N/A |
| OUTPUT POWER | 200 mW (32 Ω/THD+N＜1%) |
| CHARGING TIME | N/A |
| THD | ＜0.006% (1 kHz) |
| OUTPUT IMPEDANCE | ＜1.04 Ω |
| FREQUENCY RESPONSE | 20 Hz~20 kHz |
| SNR | Micro USB:＞105 dB （A-weighted） Type-C: ≥114 dB |
| SUPPORTED S/N RATION | ≥108 dB |
| INPUT SENSITIVITY | N/A |
| MAX INPUT LEVEL | N/A |
| CROSSTALK | ≥70 dB (1 kHz) |
| CHANNEL IMBALANCE | ＜0.4 dB |
| GAIN | 1.6 dB (GAIN=L) 8.8 dB (GAIN=H) |
| BASS BOOST RANGE | N/A |
| MAX OUTPUT CURRENT | 81.6 mA |
| MICRO USB VERSION | 1. FiiO E10K |
| 2. usb to micro usb cable | |
| 3. 6-rubber stick | |
| 4. warranty card and users guide |
| TYPE-C VERSION | 1. FiiO E10K-TC |
Don't sweat it, this
FiiO - E10K comes with a 1 Year warranty
from FiiO that covers manufacturing defects.
All products featured on Headphone Zone are backed by an original manufacturer's warranty.
Read more about FiiO's warranty in India.
"The bottom line for people upgrading from a computer's headphone jack the new E10k has great power for a very small device and is insanely better in power and volume."
Read More
"E10K still has a 3.5mm headphone out on the front and a coaxial and 3.5mm Line OUT on the back. the E10K still is tiny, measures 79 x 49.1 x 21 mm and weighs only 78g."
Read More
"Tiny, versatile, low noise floor, cost. Decent DAC, pretty powerful amp, quite clean sound, metal connectors, great aluminum housing, Base boost is the best."
Read More
