ddHiFi - TC35B Type-C to 3.5mm
Audio Adapter For AndroidUnfortunately, even if we desire to, we won't be able to resurrect this product. The Museum is where we pay our respects to end-of-life, old, archived, but not forgotten products. This page was made with a lot of love and will live on for posterity. What to say, we're sentimental people. 😔
While this product is gone forever, here are others we recommend
DESCRIPTION
SMALLER THAN SMALL

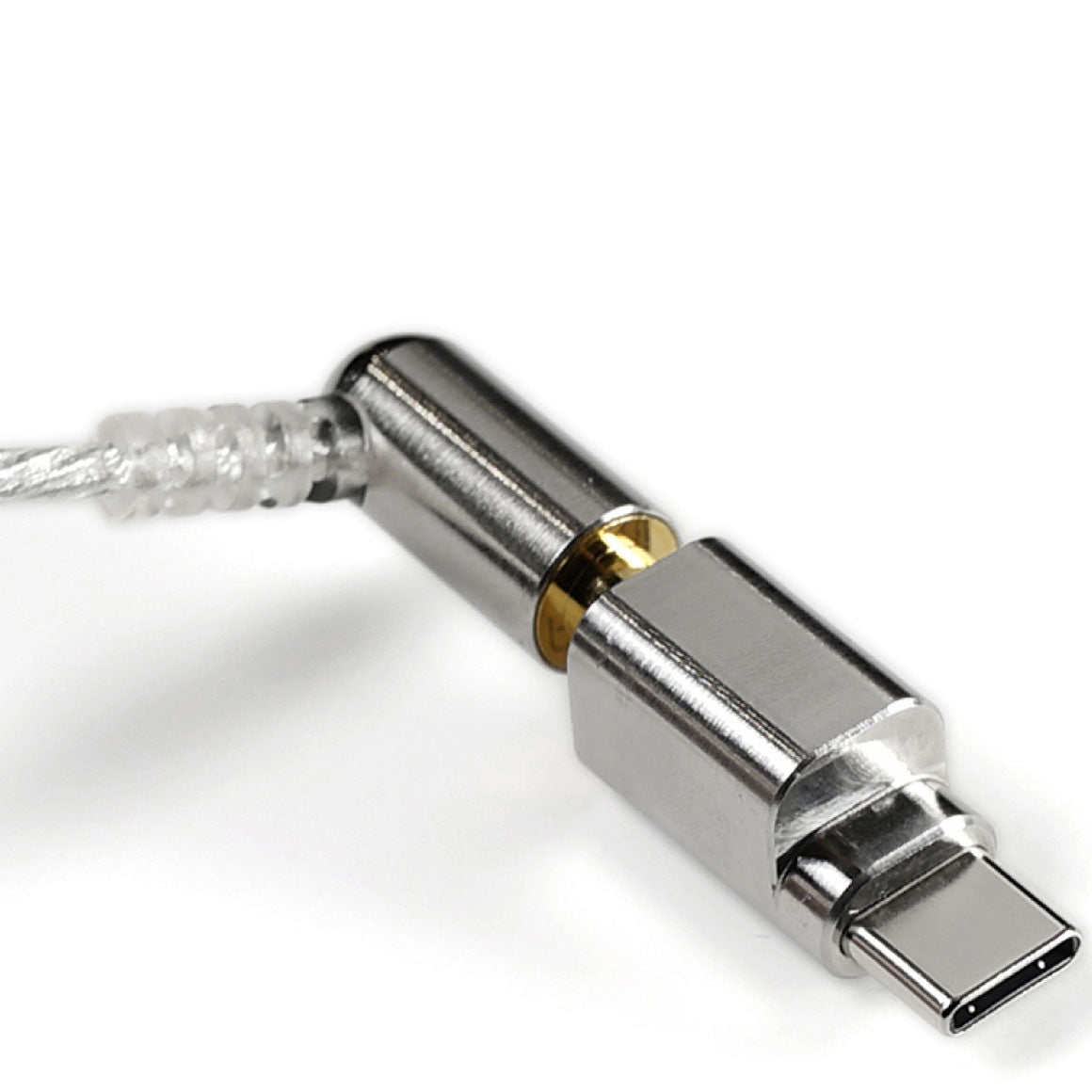

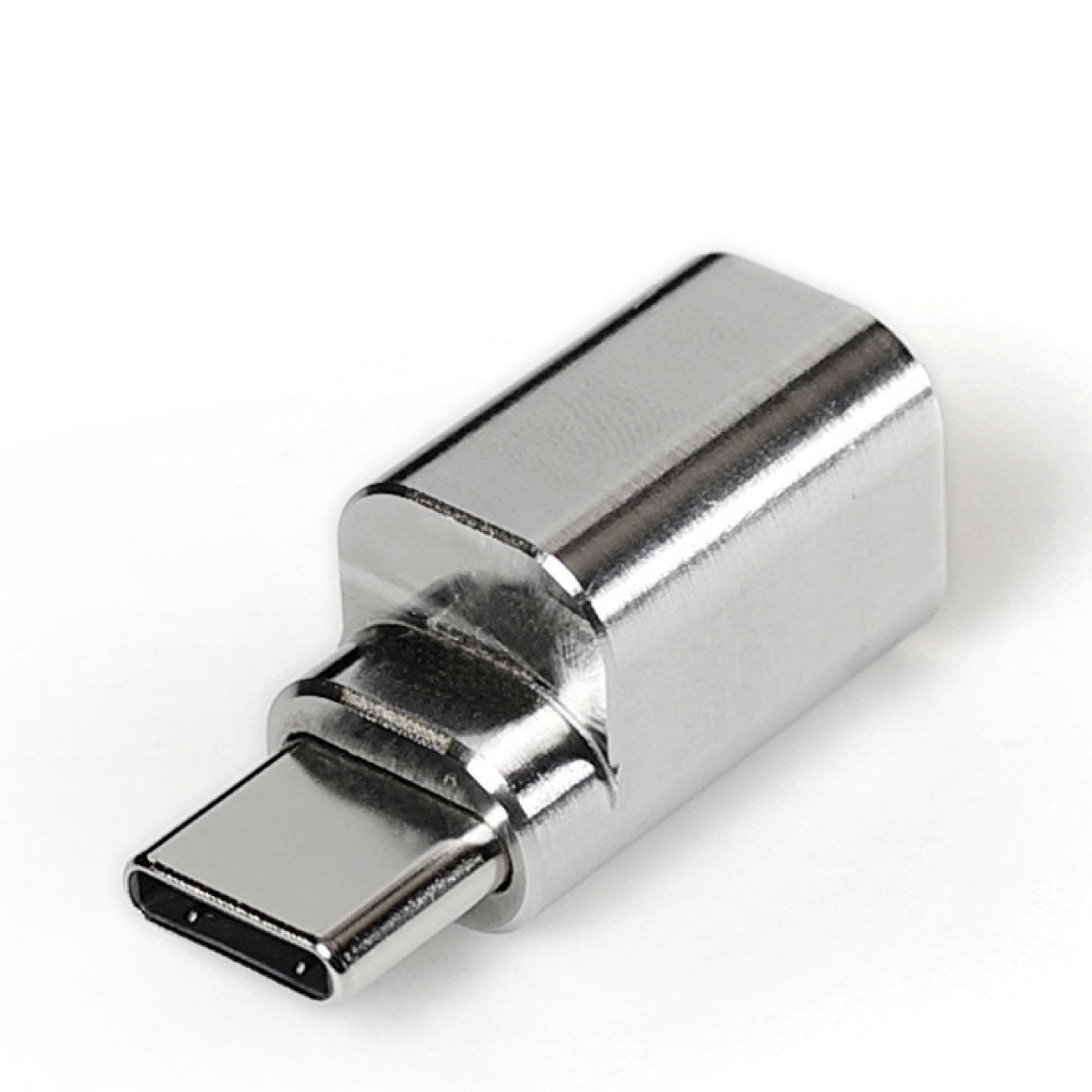

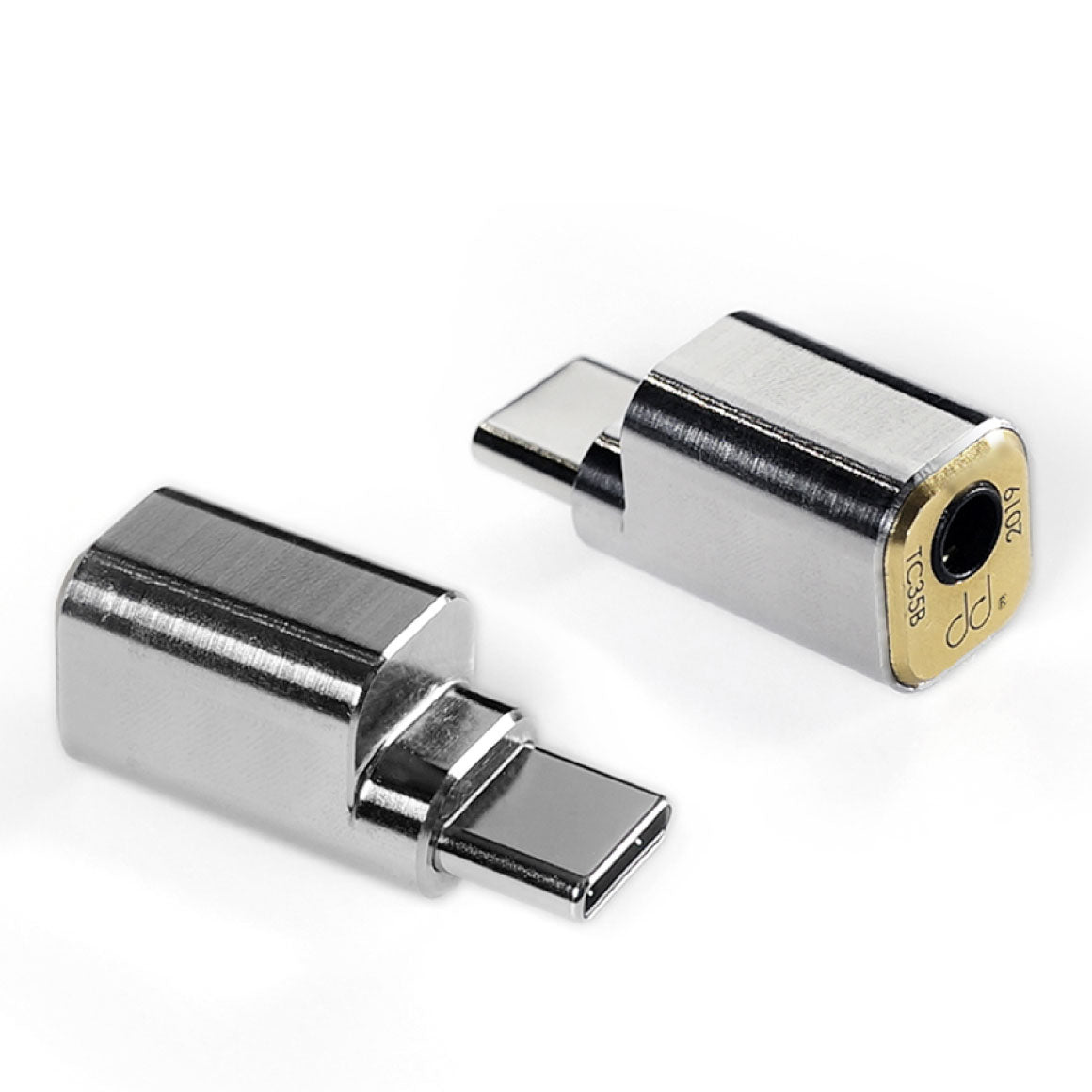

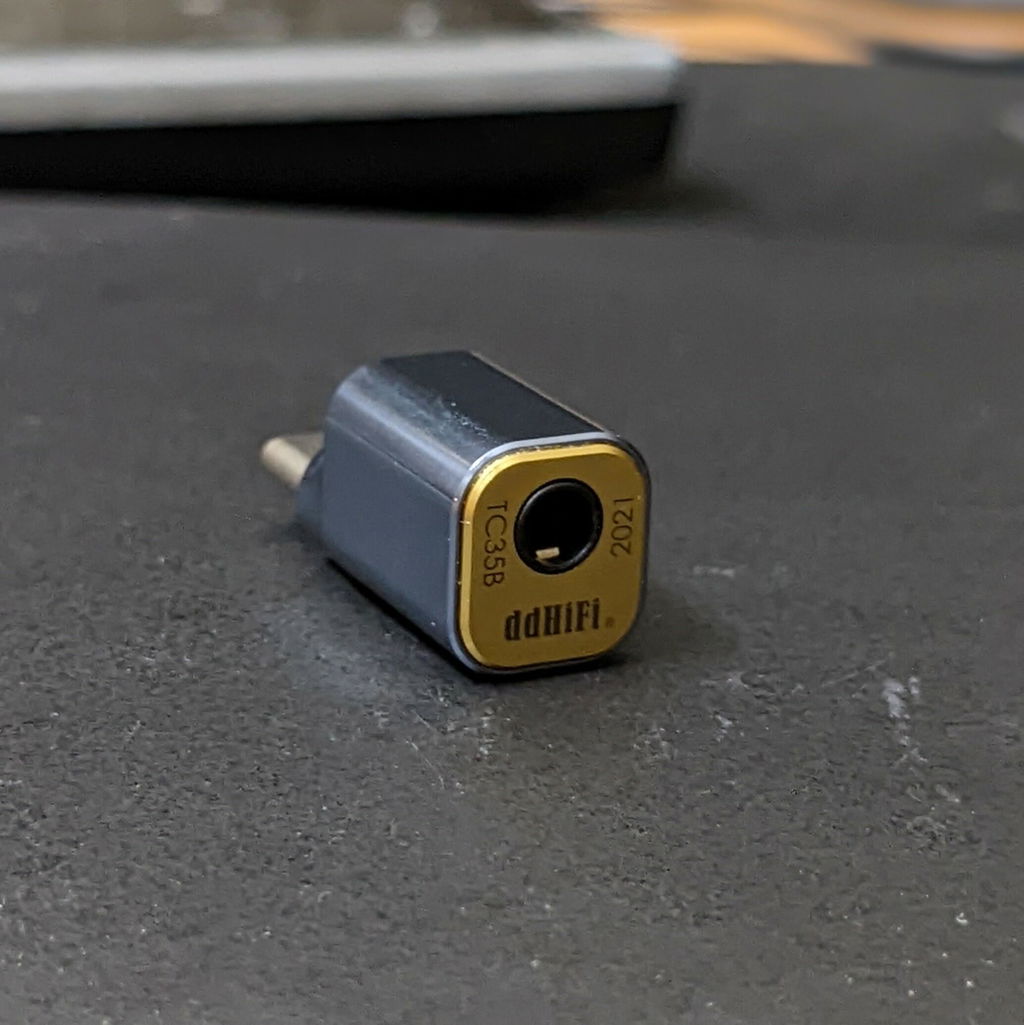

This little 3.5mm Jack to USB Type-C Adapter is very attractive with a minimalistic design. The outer shell of the TC35B jack adaptor is chosen to be built with Type 316 stainless steel which has superior corrosion and heat resistance. The high-quality steel makes the housing very strong, reliable and secure enough for daily use. By hollowing out the inside and insulation processing, the adaptor is easily prepared to pack the Type-C plug, 3.5mm socket, circuit board and other elements in an ultimate compact way.

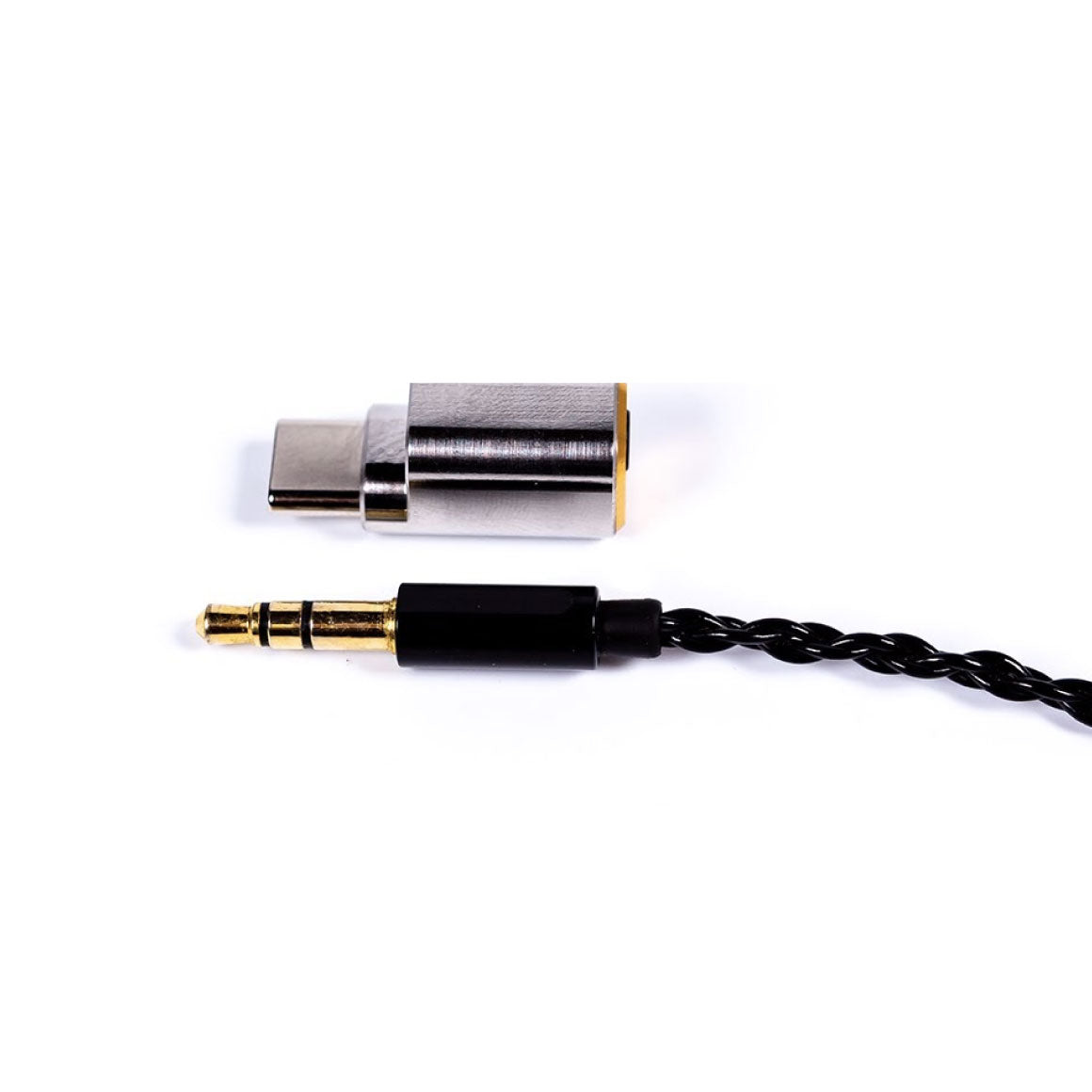

AS SHORT AS THE JACK OF THE EARPHONES- IT COULDN'T BE SHORTER
The adaptor gets damaged easily if it is too long because it is supposed to be placed at the bottom of the phone. By taking this into consideration, ddHiFi has designed the TC35B to be as short as possible by reducing the distance between the components. And by placing the components precisely in such a way, you get an even more compact adaptor.
EARPHONES PLUGGED IN? DETECTS AUTOMATICALLY
The TC35B won't work if the earphones are not plugged in even though it is connected to the phone or computer. The adaptor is intellectually created to detect and recognize the earphones when they are plugged in. It is also compatible with CTIA standard earphones. One can answer phone calls, use controls like play/pause, volume and track selection when CTIA standard earphones with microphone and controls are plugged in.
*NOTE: Volume controls on Apple headphones is not supported.*

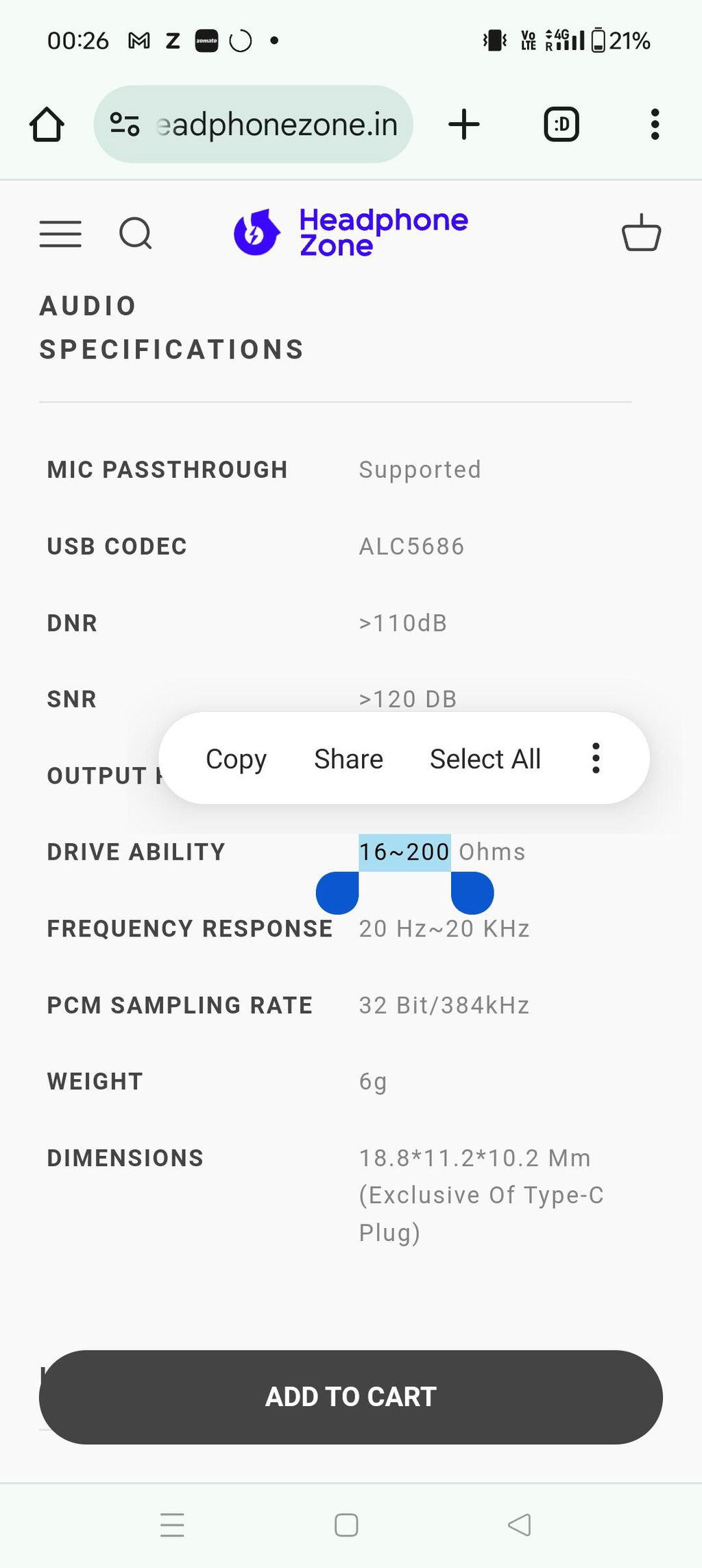

SPECS
| MIC PASSTHROUGH | Supported |
| USB CODEC | ALC5686 |
| DNR | >110dB |
| SNR | >120 dB |
| OUTPUT POWER | 130 mW@32 ohm |
| DRIVE ABILITY | 16~200 Ohms |
| FREQUENCY RESPONSE | 20 Hz~20 kHz |
| PCM SAMPLING RATE | 32 Bit/384kHz |
| WEIGHT | 6g |
| DIMENSIONS | 18.8*11.2*10.2 mm (Exclusive of Type-C Plug) |
| BOX CONTENTS |
1. ddHifi TC35B
|
