Cayin - iDAP-8
Digital Audio StreamerGET 18% GST INPUT
One of the reasons headphones and earphones in India are more expensive than overseas is because of the Goods &
Services Tax in India.
Don't let the GST input go to waste especially if you can avail an offset.
All products sold on Headphone Zone carry a GST compliant invoice and all products sold include an 18% GST.
Simply enter your GST number at the time of checkout.
Browse EMI Plans
Low Cost EMI Options through Credit Cards
ICICI Bank
3
Low Cost EMI
₹ 44,493
₹ 3,480
₹ 2,804
6
Low Cost EMI
₹ 22,688
₹ 6,130
₹ 4,959
9
15.99%
₹ 15,424
₹ 8,814
12
15.99%
₹ 11,794
₹ 11,533
18
15.99%
₹ 8,171
₹ 17,073
24
15.99%
₹ 6,365
₹ 22,750
HDFC Bank
3
Low Cost EMI
₹ 44,494
₹ 3,482
₹ 2,804
6
Low Cost EMI
₹ 22,689
₹ 6,134
₹ 4,959
9
16%
₹ 15,424
₹ 8,820
12
16%
₹ 11,795
₹ 11,540
18
16%
₹ 8,171
₹ 17,084
24
16%
₹ 6,365
₹ 22,765
SBI Bank
3
Low Cost EMI
₹ 44,530
₹ 3,591
₹ 2,888
6
Low Cost EMI
₹ 22,624
₹ 5,746
₹ 4,627
9
15%
₹ 15,362
₹ 8,259
12
15%
₹ 11,733
₹ 10,803
18
16%
₹ 8,171
₹ 17,084
24
16%
₹ 6,365
₹ 22,765
Axis Bank
3
Low Cost EMI
₹ 44,494
₹ 3,482
₹ 2,804
6
Low Cost EMI
₹ 22,689
₹ 6,134
₹ 4,959
9
16%
₹ 15,424
₹ 8,820
12
16%
₹ 11,672
₹ 10,068
18
16%
₹ 8,171
₹ 17,084
24
16%
₹ 6,365
₹ 22,765
Other EMI Options through Credit Cards
Citi Bank
3
14%
₹ 44,348
₹ 3,045
6
14%
₹ 22,560
₹ 5,360
9
16%
₹ 15,424
₹ 8,820
12
16%
₹ 11,795
₹ 11,540
18
16%
₹ 8,171
₹ 17,084
24
16%
₹ 6,365
₹ 22,765
Kotak Mahindra Bank
Tenure
Interest%
Installment
Interest
3
16%
₹ 44,494
₹ 3,482
6
16%
₹ 22,689
₹ 6,134
9
16%
₹ 15,424
₹ 8,820
12
16%
₹ 11,795
₹ 11,540
18
16%
₹ 8,171
₹ 17,084
24
16%
₹ 6,365
₹ 22,765
RBL Bank
3
13%
₹ 44,275
₹ 2,827
6
14%
₹ 22,560
₹ 5,360
9
15%
₹ 15,362
₹ 8,259
12
15%
₹ 11,733
₹ 10,803
18
15%
₹ 8,110
₹ 15,980
24
15%
₹ 6,303
₹ 21,278
Standard Chartered Bank
3
13%
₹ 44,275
₹ 2,827
6
13%
₹ 22,495
₹ 4,973
9
14%
₹ 15,300
₹ 7,701
12
14%
₹ 11,672
₹ 10,068
INDUSIND Bank
3
14%
₹ 44,348
₹ 3,045
6
14%
₹ 22,560
₹ 5,360
9
15%
₹ 15,362
₹ 8,259
12
15%
₹ 11,733
₹ 10,803
18
15%
₹ 8,110
₹ 15,980
24
15%
₹ 6,303
₹ 21,278
HSBC Bank
3
12.50%
₹ 44,239
₹ 2,718
6
12.50%
₹ 22,463
₹ 4,780
9
13.50%
₹ 15,269
₹ 7,422
12
13.50%
₹ 11,642
₹ 9,701
18
13.50%
₹ 8,018
₹ 14,334
YES Bank
3
13%
₹ 44,275
₹ 2,827
6
13%
₹ 22,495
₹ 4,973
9
14%
₹ 15,300
₹ 7,701
12
14%
₹ 11,672
₹ 10,068
18
15%
₹ 8,110
₹ 15,980
24
15%
₹ 6,303
₹ 21,278
Bank of Baroda
3
13%
₹ 44,275
₹ 2,827
6
14%
₹ 22,560
₹ 5,360
9
14%
₹ 15,300
₹ 7,701
12
15%
₹ 11,733
₹ 10,803
18
15%
₹ 8,110
₹ 15,980
24
16%
₹ 6,365
₹ 22,765
American Express
3
14%
₹ 44,348
₹ 3,045
6
14%
₹ 22,560
₹ 5,360
9
14%
₹ 15,300
₹ 7,701
12
14%
₹ 11,672
₹ 10,068
18
15%
₹ 8,110
₹ 15,980
24
15%
₹ 6,303
₹ 21,278
Talk to a Headphone Guru
Club Audiophile
Join Club Audiophile to begin your pursuit of great sound. Earn points and save on every purchase.
READ MORE
Why Cayin is Special
Designed in China
Established & Reputed
Trust us, our reputation in the audio world speaks for itself!
This headphone or gear comes from a well-respected brand known for its high-quality audio equipment, so you can be confident in your purchase.
If you see a product marked as “🎖️ Established & Reputed”, it means you're getting a top-tier device from a brand that's earned its stripes in the audio industry.
Revered by Audiophiles
Audiophiles can be really picky and tough to impress and if the audiophile community says something sounds good, you can bet it's great!
This headphone or gear has gained recognition and admiration from audiophiles, who are known for their discerning taste in high-fidelity audio. They appreciate its precision, attention to detail and its ability to deliver an immersive sonic experience.
If you see a product marked as "🙌🏻 Revered by Audiophiles", it means that it meets the highest standards of sound quality and performance, making it a top choice for anyone who values exceptional audio experiences.
Born in 1993
Why we love this DAP
Premium Economy
Sensible spending and class above in quality.
This headphone or gear offers top-notch sound and performance without much impact on your pocket, promising a delightful experience that exceeds your expectations at an economical price point.
If you see a product marked as “💎 Premium Economy," it indicates that you're getting a high-quality audio product with exceptional sound clarity and reliable performance, all at a budget-friendly price.
Serious Audiophiles Only
Diving deeper into exploring the hobby is never enough.
If you're an audiophile on a hunt for a device that meets your high standards, this is one such headphone or gear designed for discerning audiophiles like you in mind.
If you see a product marked with “🦈 Serious Audiophiles Only" we assure you that this device can match your depth of knowledge and expertise to take your passion for audio to the next level.
For Audiophiles at Home
Cause music hit differently when you are in your own space.
This headphone or gear is perfect for those who demand exceptional sound quality in their personal sanctuary.
If you see products marked as “🏠 For Audiophiles at Home”, get ready to transform your living space into an audiophile's paradise, with rich, immersive sound that makes every listening session a masterpiece.
Use Wirelessly with Bluetooth
Enjoy the convenience of seamless wireless connectivity
This headphone or gear indicates that the product supports wireless connectivity via Bluetooth, freeing you from the tangles of cords and cables.
If you see products marked as “✂️ Use Wirelessly with Bluetooth”, enjoy the freedom to stream music, make calls, and more, all without being tethered to your device, giving you the flexibility to move around and multitask with ease.
Storage
Storage is important. Even in this era of streaming music, you’d want to make sure you have enough space to store your amazing collection of music on your player. Imagine a long flight, it’s your offline files you’re going to be listening to.
Keeping your entire collection of Hi-Resolution music in one place is the most convenient way of carrying your music library. However, Hi-Resolution files are heavy. Most songs in a FLAC format can be about 100mb per track. So more space is always better.
Most players support both internal storage and expandable storage via an external memory card. Make sure you check both - the internal memory on players, and consider the maximum supported size of the expandable storage. It’s best to keep your library of offline files in expandable storage and use the internal storage for saving files from streaming apps.
At the time of writing this article, MicroSD cards for 256 GB were easily available and affordable for less than Rs. 2000. Higher capacity cards are also available, but that seems to be the sweet spot.
Built like a Tank
No need to worry about durability.
If you're seeking a headphone or gear with a strong, rugged build, this snapshot indicates that this is the one for you.
If you see a product marked with “🪖 Built like a Tank", it means this product is crafted with metal in its design, ensuring exceptional robustness and durability.
Connect With Cable
This device comes with multiple connectivity options. Be sure to check if your source and output support these input and output options.
Why it Sounds Amazing
Power: 45W Toroidal Transformer
DESCRIPTION

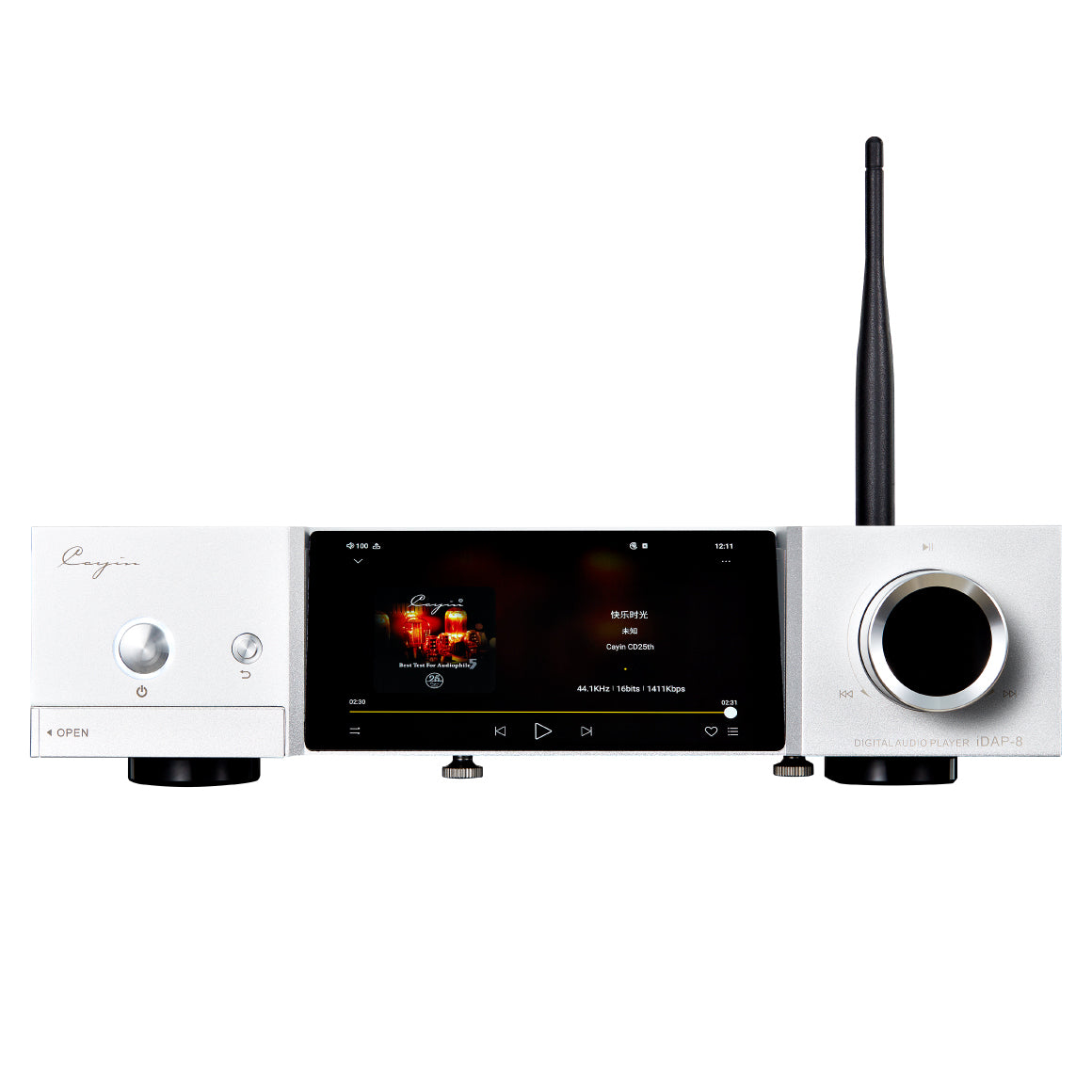

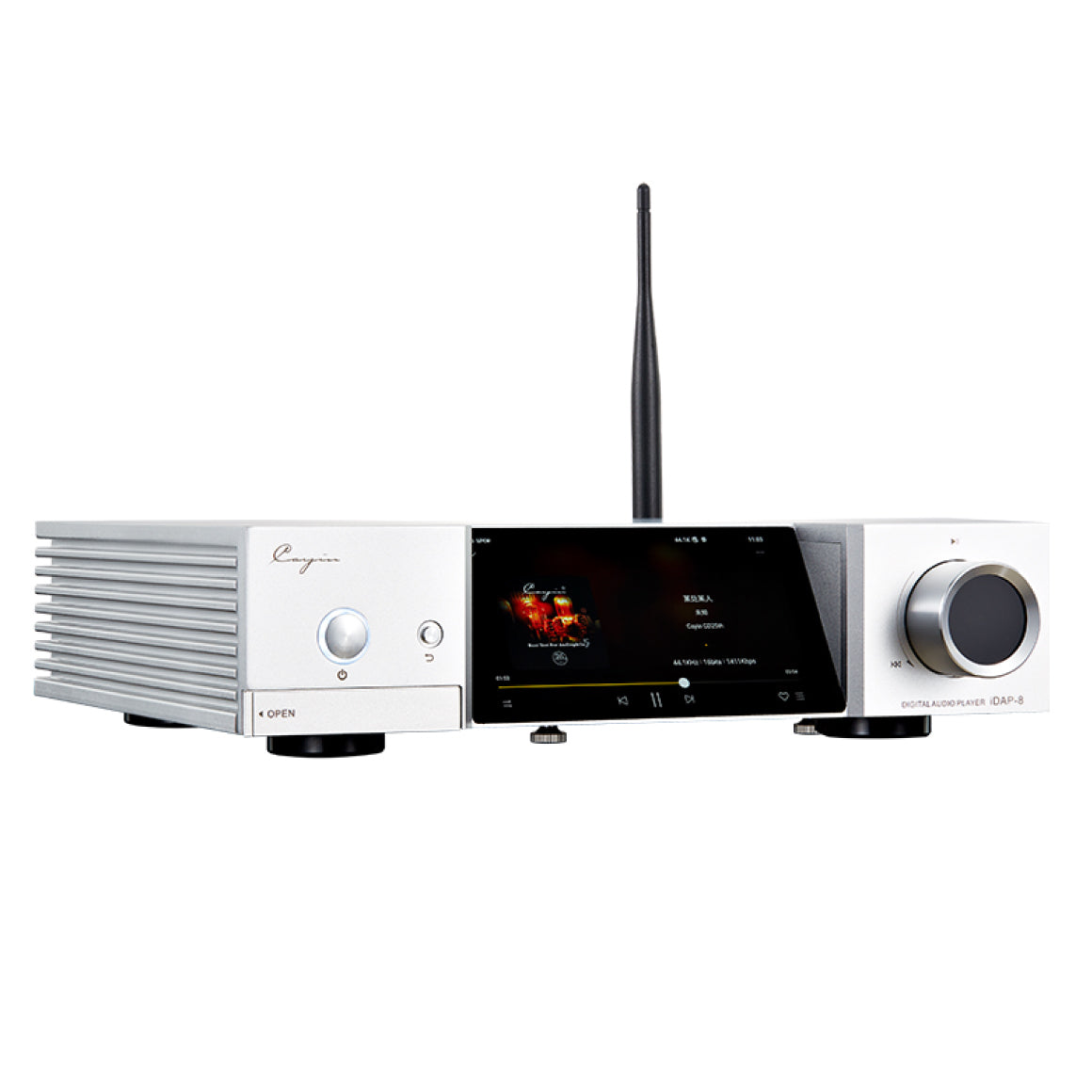

CAYIN INTRODUCES AN ALL-NEW DIGITAL AUDIO STREAMER - THE iDAP 8
Cayin introduces a high-performance digital audio streamer to complete the esteemed i-series range of products. The all-new Cayin iDAP-8 provides 6GB of RAM and 128GB of storage, offering ample space and smooth performance with your music library. It has an Android-based system for accessing music and other additional apps, offering further availability of sources. You can seamlessly connect your devices with I2S and SPDIF digital outputs (AES/EBU, Optical Coaxial) and a USB audio digital output option in the Cayin iDAP-8. It also supports Gigabit LAN and NAS connectivity, dual WiFi (2.4GHz / 5GHz) support, Bluetooth LDAC, HiByCast and HiByLink capabilities. The Cayin iDAP-8 combines advanced features with premium i-series design elements, a 5" FHD TFT multi-touch screen and convenient Universal BLE remote control, providing a comprehensive and immersive music listening experience.

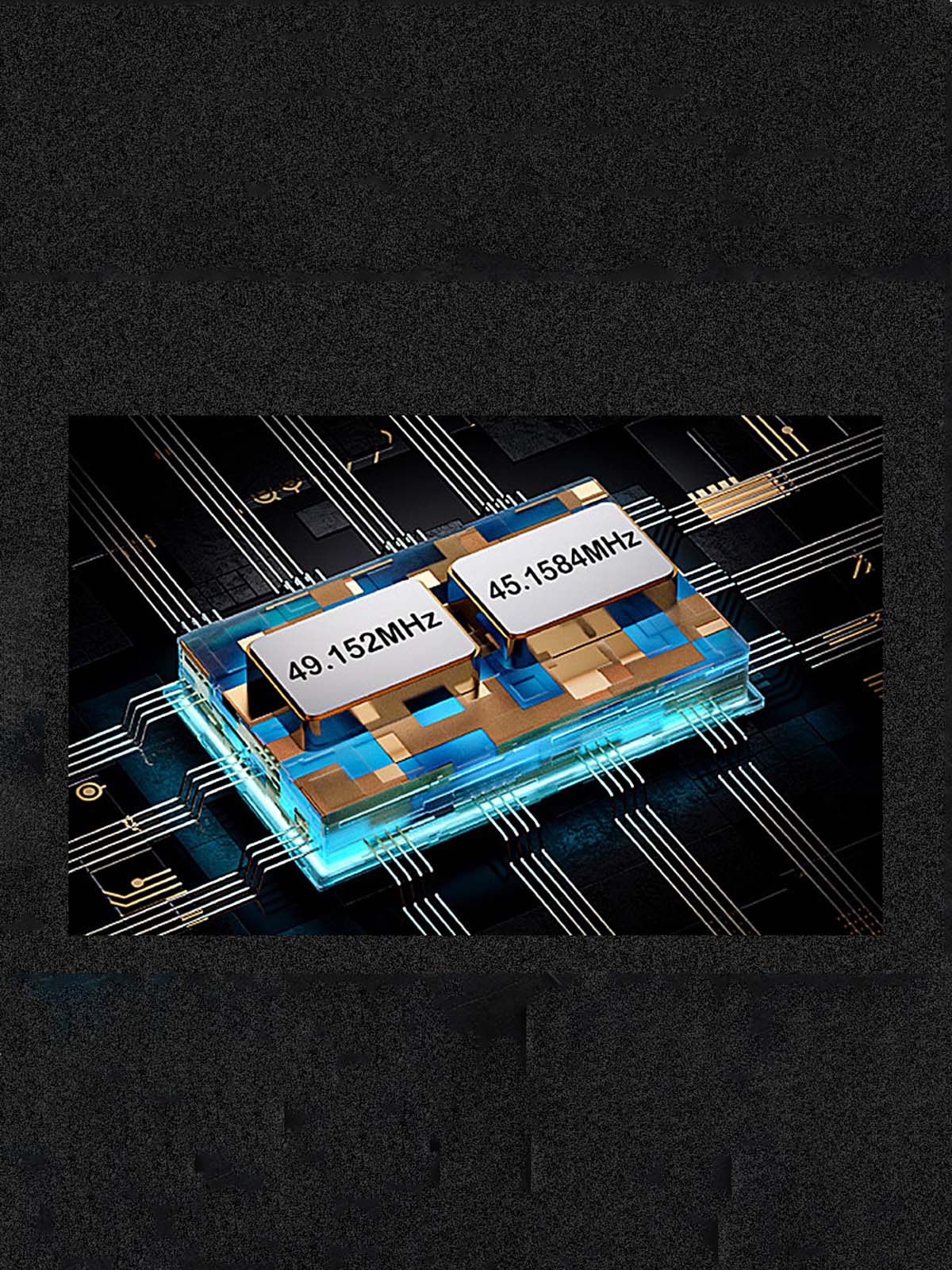

EMBEDDED WITH HIGH-QUALITY COMPONENTS FOR ACCURATE AUDIO DELIVERY
The Cayin iDAP-8 is meticulously crafted with premium components to ensure
exceptional sound quality. It utilizes specialized Accusilicon audio-grade active femtosecond oscillators,
including 45.1584MHz for DSD and multiples of 44.1kHz and 49.152MHz for multiples of 48kHz. The components
in the Cayin iDAP-8 are embedded to eliminate unwanted digital artefacts such as noise, clicks, pops, or
distortions that can degrade sound quality. It also ensures accurate conversion and minimizing jitter in
your audio with ultra-low phase noise at 200fS (@100MHz). The Cayin iDAP-8 utilizes a Qualcomm SDM660
eight-core processor for accelerated audio data read and write speeds. This processor in iDAP-8 enables
high-performance data processing and efficient multitasking across various storage sources like internal
storage, SD card, USB and hard disk.

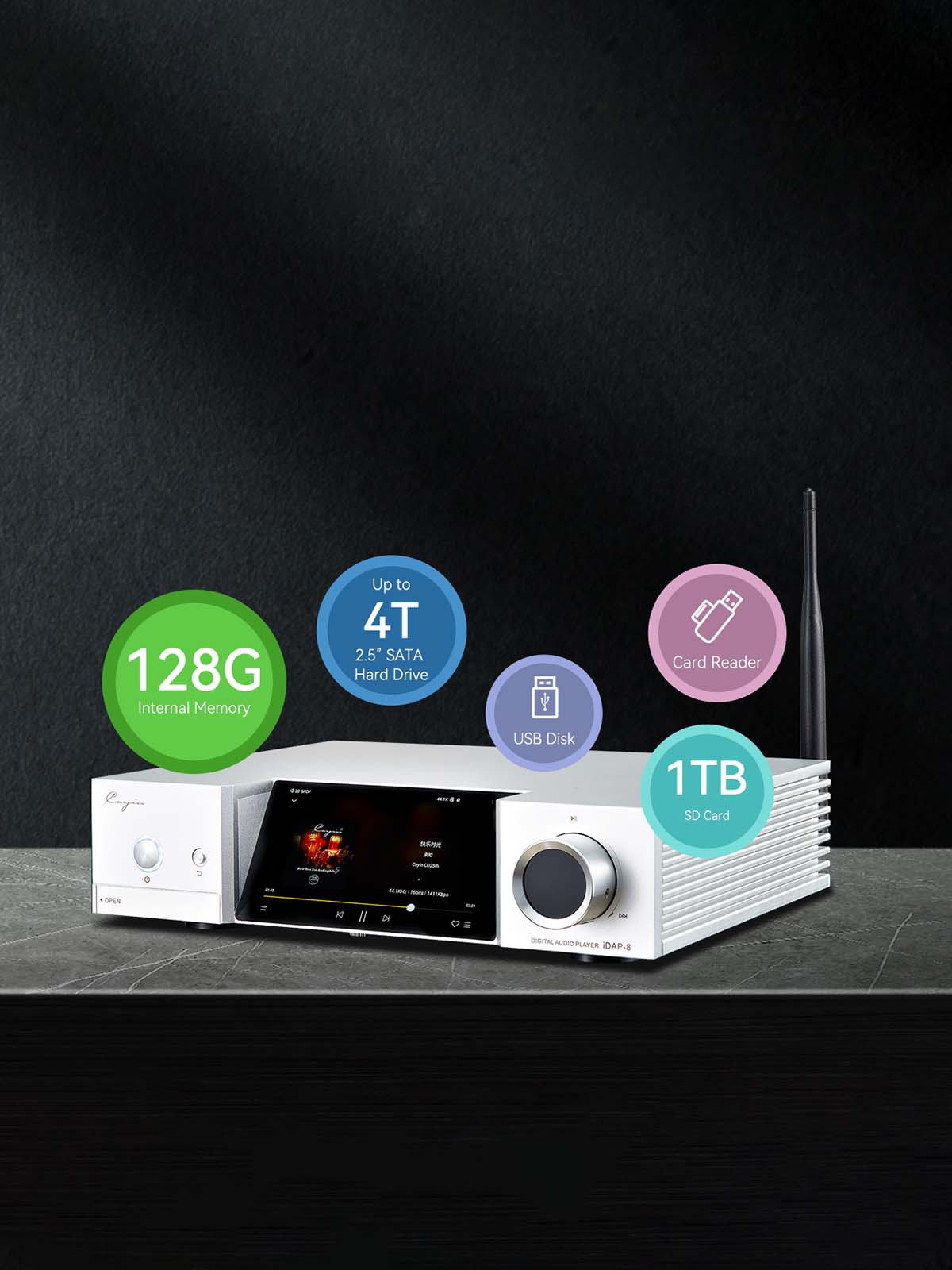

EXPANDABLE STORAGE AND ONLINE STREAMING WITH ANDROID-BASED OPERATING SYSTEM
The Cayin iDAP-8 features a fully Android-based audio system, enabling you to enjoy music from diverse online sources. The Cayin iDAP-8 includes pre-installed music apps and allows you to install additional apps, providing you with a personalized music experience right out of the box. The Cayin iDAP-8 digital audio player offers expandable storage options for a vast music library. It includes a dedicated slot for HDD/SSD with SATA3.0 interface, supporting up to 4TB 2.5-inch drives (hard disk or SSD). You can create your local music library, accessible through different music player apps. The Cayin iDAP-8 allows playback from internal memory (up to 128GB), SD cards, USB disks (1TB), and external drives (up to 4TB via SATA HDD/SSD or SD card).
EQUIPPED WITH IN-HOUSE DESIGNED TOROIDAL TRANSFORMERS FOR POWER SUPPLY
The Cayin iDAP-8 is equipped with an in-house high-quality power supply transformer. It features a 45W toroidal transformer wound with high-purity copper enamelled wire and specialized shielding packaging. The toroidal transformers in the Cayin iDAP-8 are designed with symmetry and minimized stray magnetic fields, resulting in lower noise and electromagnetic interference than other transformers. Additionally, the iDAP-8 incorporates circuit protection measures to reduce magnetic and noise interference, ultimately improving its audio performance. The compact yet robust power supply system of the Cayin iDAP-8 guarantees an exceptional music-listening experience without compromising on power delivery.

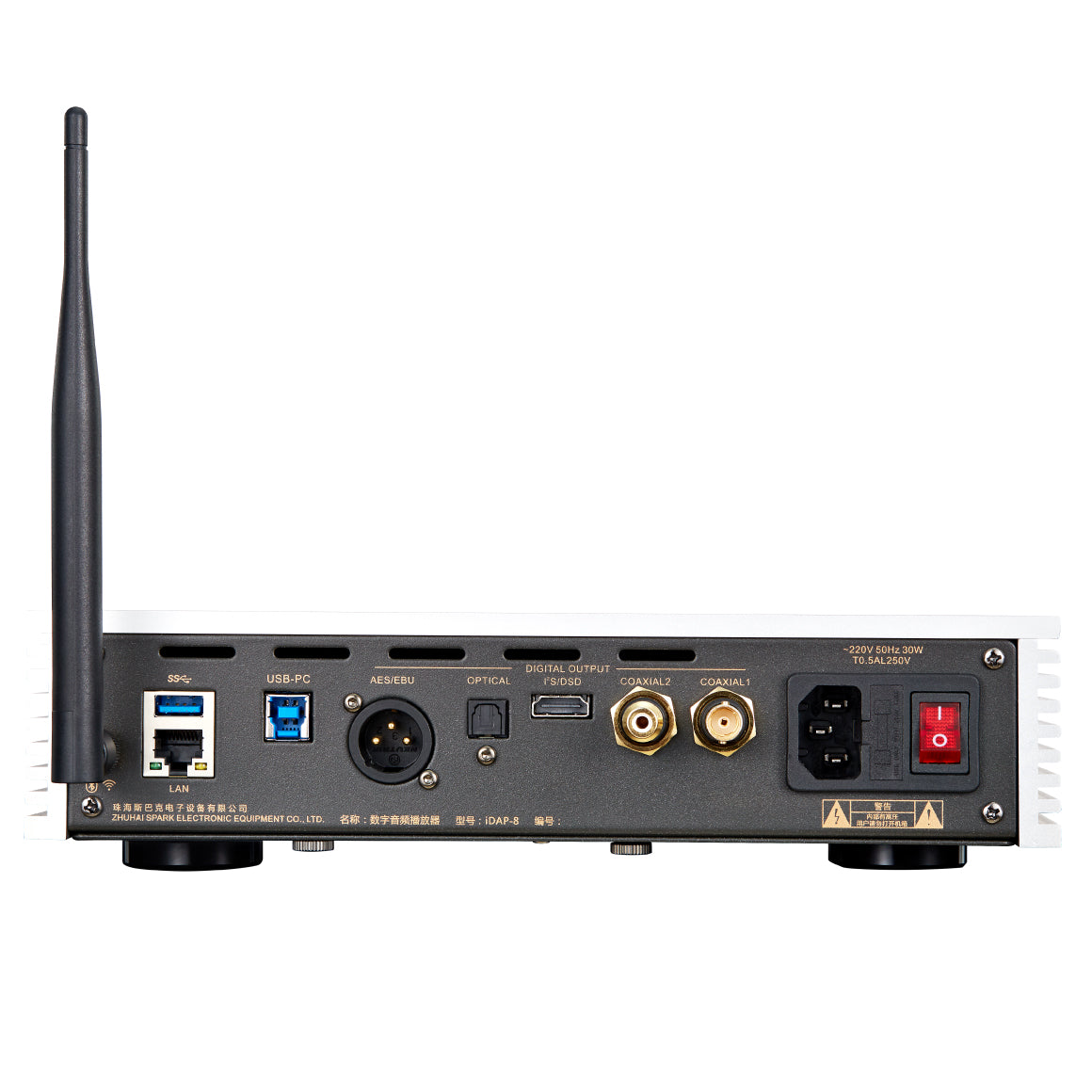

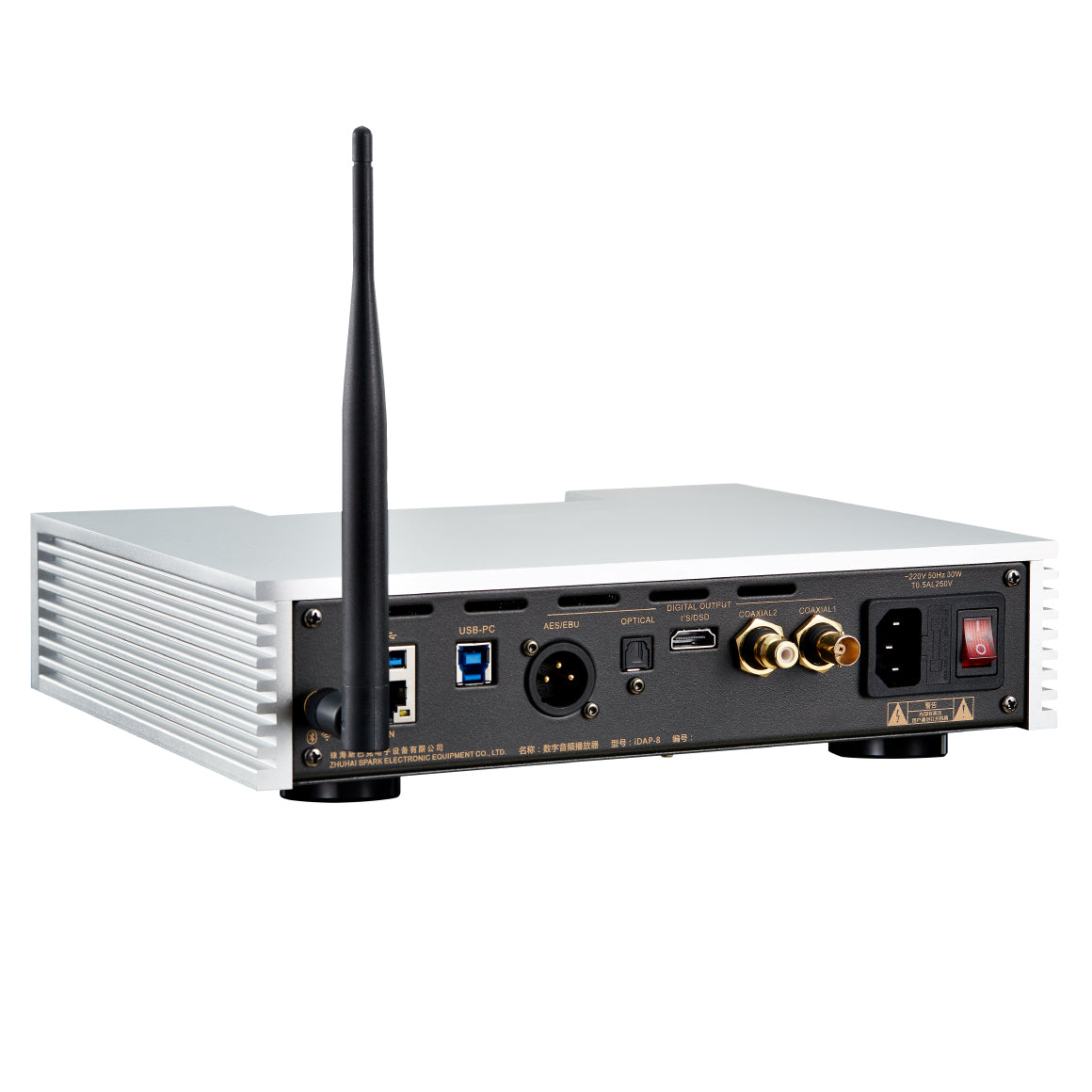

OFFERS VERSATILE WIRED AND WIRELESS CONNECTIVITY TO CONNECT TO VARIOUS DEVICES

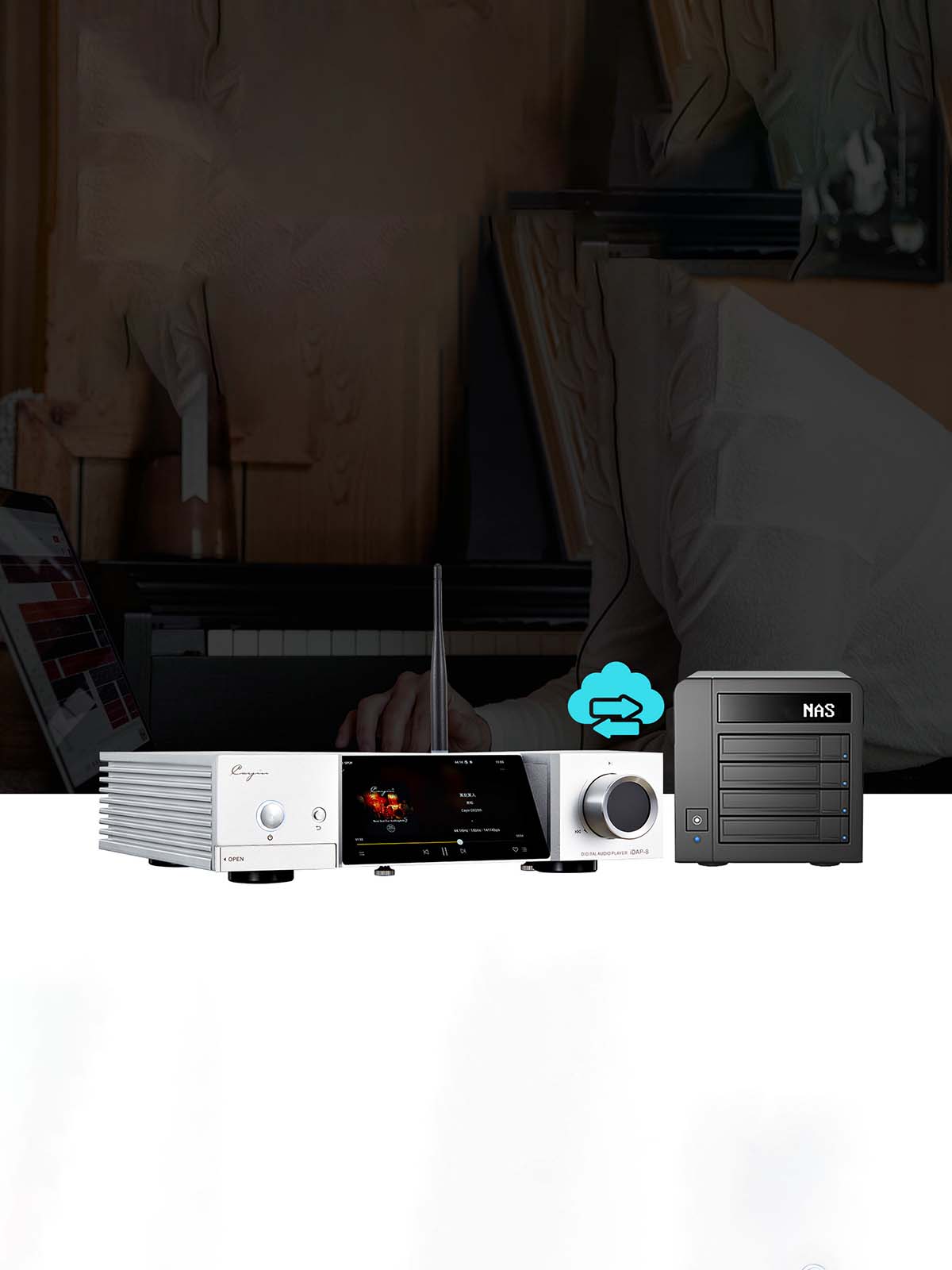

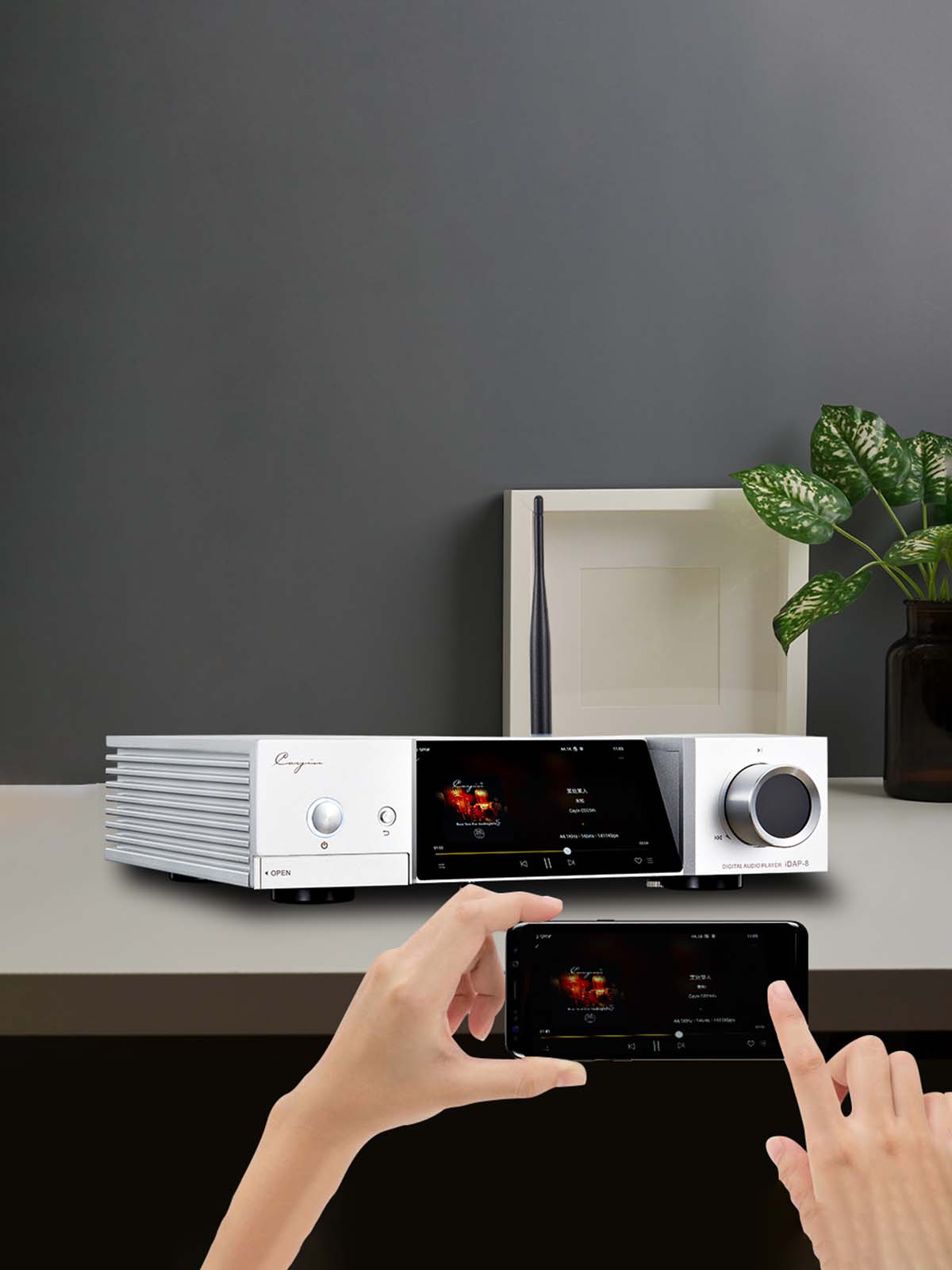

The Cayin iDAP-8 offers instant access to networked music libraries and supports browsing and playback on LAN. It enables direct playback from NAS, allowing you to access music files conveniently without downloading the audio files in the internal storage of the digital streamer. Apart from LAN, the CAyin iDAP-8 provides high-speed wired and wireless connections, including Wi-Fi Direct with 2.4GHz and 5GHz options and Gigabit Ethernet. It also supports online streaming and features various digital output options such as I2S (HDMI), USB DAC (USB-A) and multiple S/PDIF formats (AES/EBU, BNC, RCA, OPTICAL), ensuring compatibility with a wide range of audio systems.

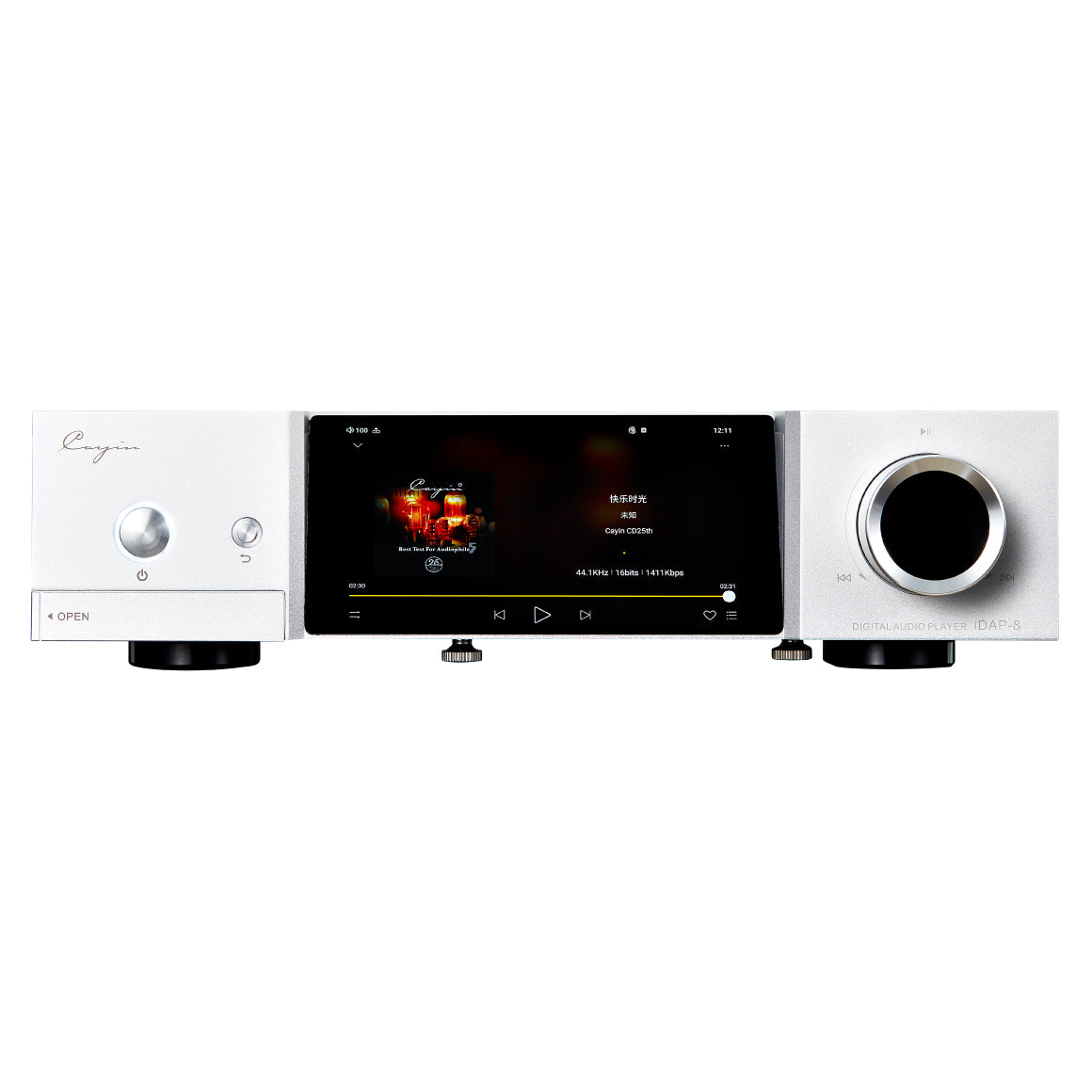

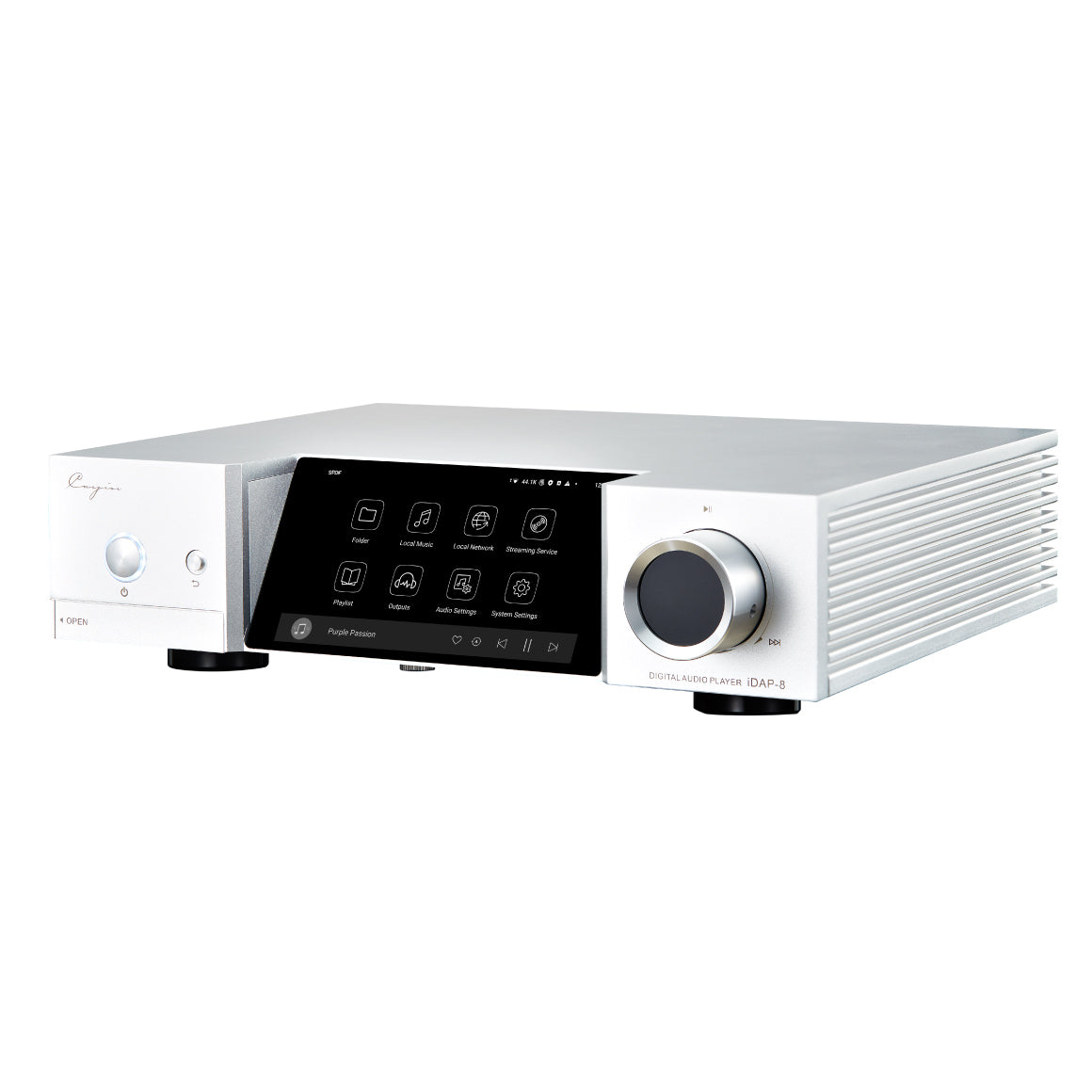

METICULOUSLY CRAFTED WITH USER-FRIENDLY FEATURES FOR ELEVATED USER EXPERIENCE
Cayin has featured the iDAP-8 with an all-new UI design, contributing to a visually interactive music experience. It features a 5" FHD TFT multi-touch screen for crisp text and graphics and a high-resolution album art display. The UI is intuitive, well-organized and comprehensive, with ergonomic design principles including a 59° tilted screen for easy viewing and control. You can choose from various control options like the touch screen, physical buttons, menu knob. It also supports HibyCast ( for Android , for iOS) screen mirroring on iOS/Android devices and HibyLink BT resource sharing for an elevated music streaming experience. The Cayin iDAP-8 also allows you the flexibility to navigate local and online music libraries across different scenarios with a Universal BLE (Bluetooth Low Energy) Remote Controller.

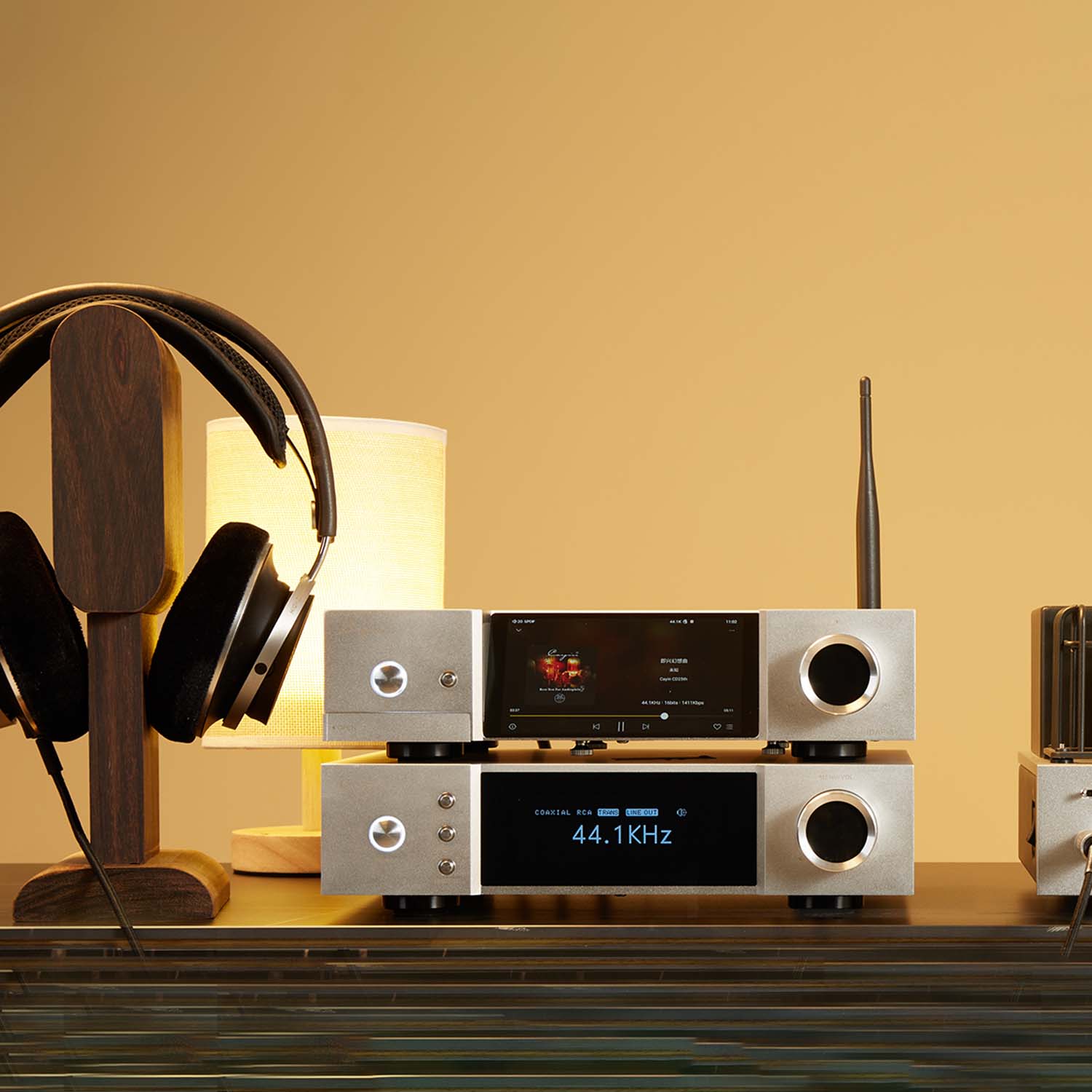

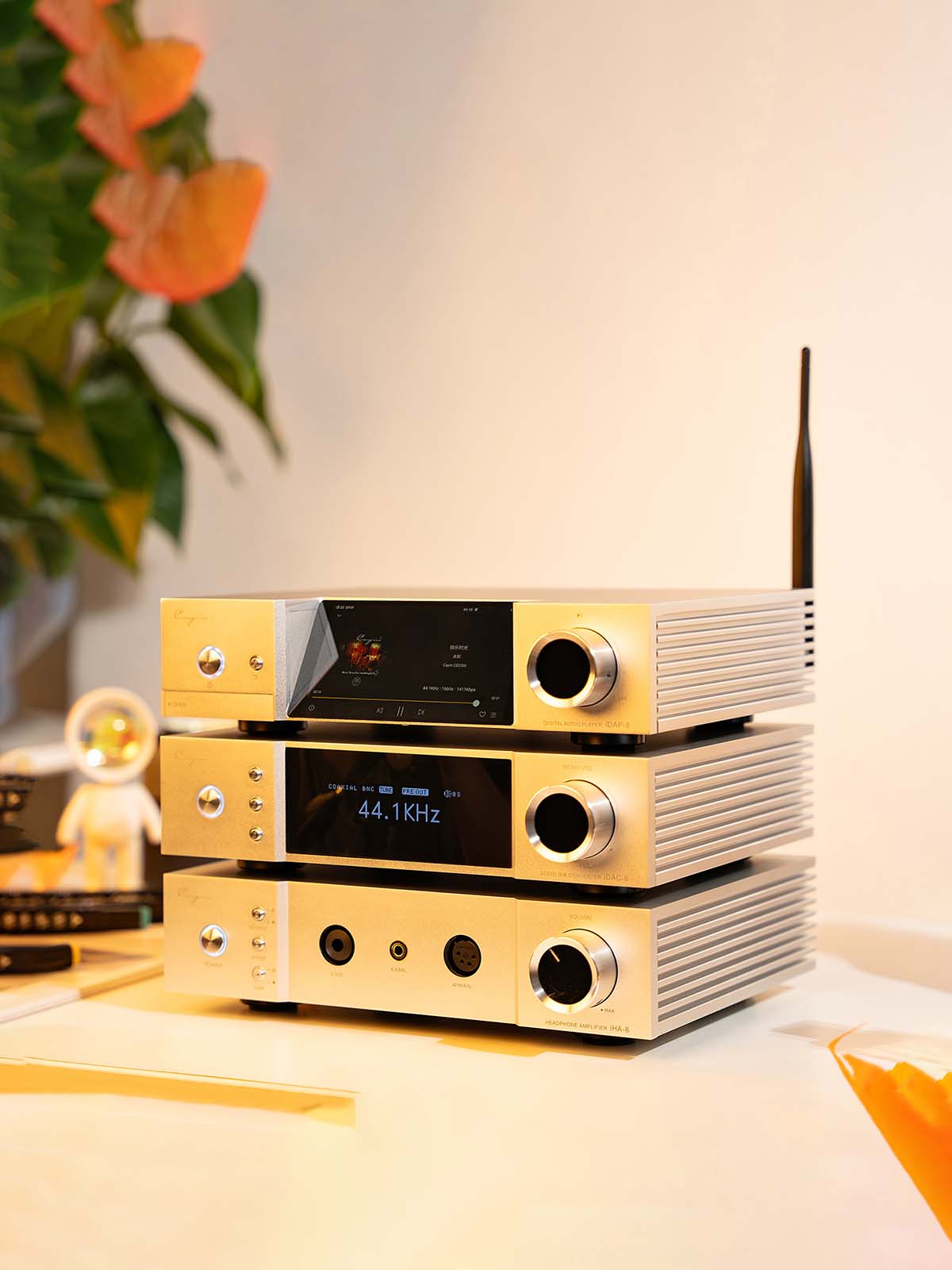

PAIR YOUR iDAP-8 WITH THE iDAC-8 AND iHA-8 FOR AN ELEVATED LISTENING EXPERIENCE
Cayin has designed the iDAP 8 to seamlessly blend with the Cayin i-series lineup, ensuring a cohesive and harmonious aesthetic. Its design features an exquisite and compact structure that complements the aesthetics of its companions, the iDAC-8 DAC and the iHA-8 headphone amplifier. This similar design language across the i-series products enhances their visual appeal and ensures an elevated audio experience. Its design incorporates an L-shaped aluminium cover plate, precision mold extrusion, CNC precision machining, fine sandblasting and anodized surface treatment, resulting in a durable and visually appealing texture that remains uniform. This design approach reflects Cayin's commitment to craftsmanship and attention to detail.
SPECS
MCU | Snapdragon 660 2.2GHz |
MEMORY | 6GB LPDDR4 RAM |
STORAGE | 128GB Internal Storage; 2.5" SATA3.0 x1 (up to 4TB) SD x1 (up to 1TB); External USB |
OSCILLATOR | Accusilicon Ultra-low 20ppm phase noise Femtosecond Oscillator x 2 |
ANTENNA | 2.4G/5G 5dBi High Gain |

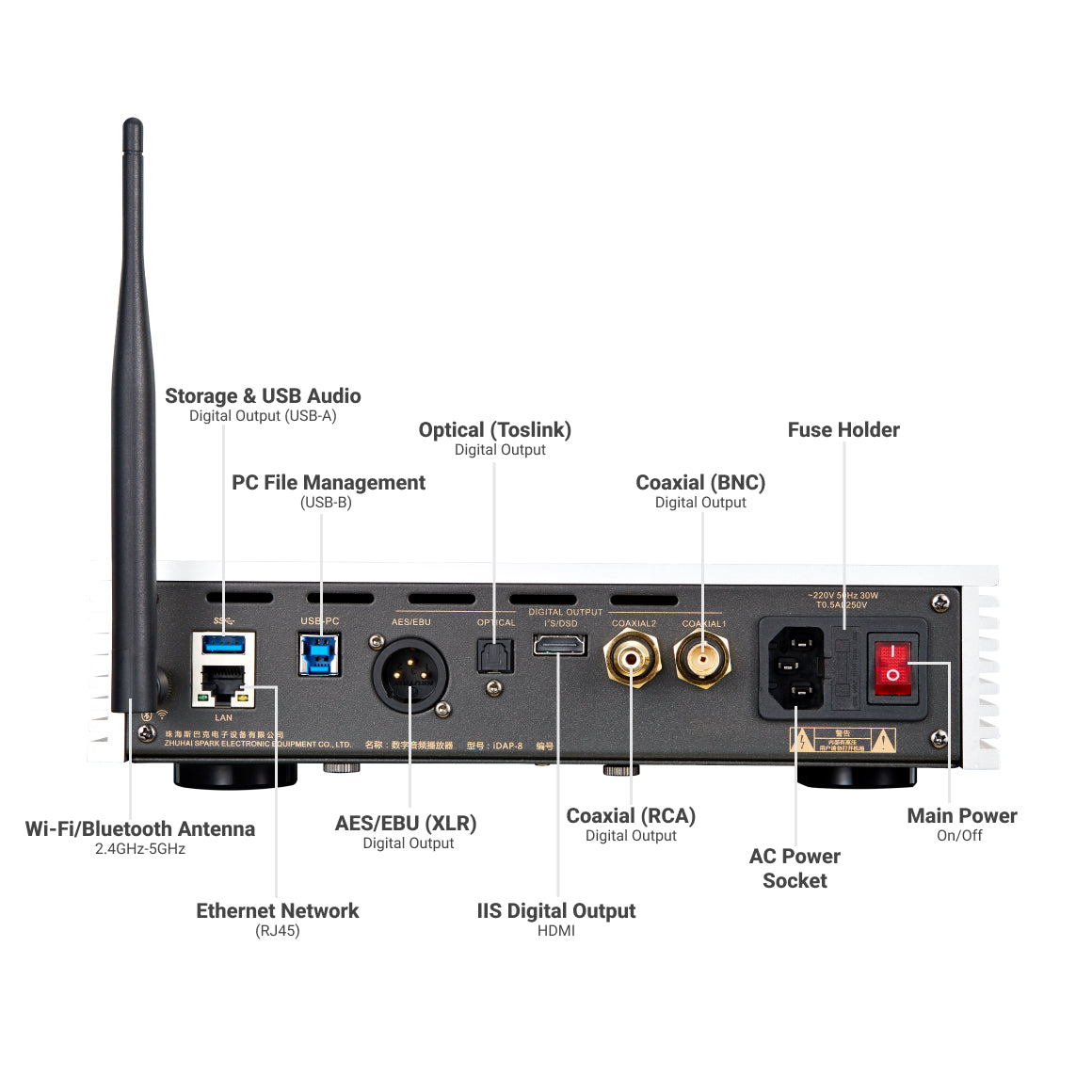

DIGITAL INTERFACE | I2S, USB Audio, AES/EBU, Optical, Coaxial (RCA), Coaxial (BNC) |
DISPLAY | 5" FHD (1920 x 1080) TFT Multi-point Touch Screen |
POWER | 45W toroidal transformer |
PHYSICAL CONTROL | Standby On/Off, Return Control Playback Control Knob |
WEIGHT | ~4.4kg |
SYSTEM | Customized Android 9 |
GOOGLE PLAY | Pre Installed |
FILE FORMAT | DSF/DFF/SACD-ISO/ FLAC/AIFF/WAV/APE/ALAC/ WMA/MP3/AAC/OGG/Opus |
PREINSTALLED APPLICATIONS | Cayin Music HiByMusic (with HiByCast) |
LOSSLESS | DTA Bypass Android SRC |
LAN | IEEE 802.3/IEEE 802.3u Support 1000M/100M/10M |
WI-FI | 2.4GHz/5GHz EEE 802.11a/b/g/n/ac |
BLUETOOTH | BTv5.0 + BR/EDR + BLE |
FIRMWARE UPDATE | USB / SD / OTA |
DIMENSION | 270x215x70 (mm) (L×W×H) |
I2S | Connector: HDMI Type A
(The device transmits I2S signal with HDMI connector, it is not compatible with standard
HDMI device) PCM Output: 16Bit to 32Bit, 44.1kHz to 768kHz DSD Output: DSD-64 to DSD512 (22.6MHz) |
USB DAC OUT | Connector: USB Type-A PCM Output: 16Bit to 32Bit, 44.1kHz to 768kHz DSD Output: DSD-64 to DSD512 (22.6MHz) |
AES/EBU | Connector: XLR Male PCM Output: 16Bit to 24Bit, 44.1kHz to 192kHz DSD Output: DoP64 (DSD over PCM 2.82MHz) |
COAXIAL | Connector: RCA, BNC PCM Output: 16Bit to 24Bit, 44.1kHz to 192kHz DSD Output: DoP64 (DSD over PCM 2.82MHz) |
OPTICAL | Connector: TOSLINK PCM Output: 16Bit to 24Bit, 44.1kHz to 192kHz DSD Output: DoP64 (DSD over PCM 2.82MHz) |
BLUETOOTH | BTv5.0 Transmit Codec: LDAC (up to 96kHz), UAT (up to 192kHz), AAC (up to 48kHz), SBC (up to 48kHz) Receive Codec: LDAC (up to 96kHz), UAT (up to 192kHz), AAC (up to 48kHz), SBC (up to 48kHz) |
DSD | Format : Bit-Rate : Sampling Freq. DSF : 1bit : 2.8MHz-22.6MHz DFF : 1bit : 2.8MHz-22.6MHz SACD-ISO : 1bit : 2.8MHz Remark : Native, DoP, D2P (PCM 88.2kHz) Supports DST Encoded DFF and SACD-ISO |
PCM | Format : Bit-Rate : Sampling Freq. WAV : 16bit - 32bit : 32kHz - 768kHz AIF/AIFF : 16bit - 32bit : 32kHz - 768kHz M4A (ALAC) : 16bit - 32bit : 32kHz - 192kHz FLAC : 16bit - 24bit : 32kHz - 192kHz APE (Fast) : 16bit - 24bit : 32kHz - 768kHz APE (Normal) : 16bit - 24bit : 32kHz - 768kHz APE (Extra High) : 16bit - 24bit : 32kHz - 192kHz APE (Insane) : 16bit - 24bit : 32kHz - 192kHz WMA Lossless : 16bit - 24bit : 32kHz - 96kHz WMA : 16bit - 24bit : 32kHz - 96kHz MP3 : 8bit - 16bit : 32kHz - 48kHz AAC : 8bit - 16bit : 32kHz - 48kHz OGG : 8bit - 16bit : 32kHz - 48kHz OPUS : 16bit : 32kHz - 48kHz Remark : Supports DTS encoded WAV Supports CUE and LRC 64kHz Sampling not supported |
BOX CONTENTS | 1. Cayin iDAP-8 |
2. WiFi/ Bluetooth Antenna x1 piece | |
3. Power Cord x1 piece | |
4. Warranty Card x 1 copy | |
5. Replacement Fuss x2 units | |
6. User Manual x1 copy |
OTHER DETAILS
GENERIC NAME | Digital Audio Player |
IMPORTER DETAILS | Importers Name: Ferrari Video Address: 63/18, 1st Main Road, Gandhi Nagar, Chennai - 600020 Contact No: 044-24420733 |
NET QUANTITY | 1 |
MANUFACTURER DETAILS | Name: Zhuhai Spark Electronic Equipment Co.,Ltd. Address: No.9 Lianfa Road Shuanglin Zone Liangang Industrial Park Zhuhai City Guangdong Province China, Postcode: 519045 |
PACKAGE CONTENTS | Cayin IDAP-8 WiFi/ Bluetooth Antenna X1 Piece Power Cord X1 Piece Warranty Card X 1 Copy Replacement Fuss X2 UnitS, User Manual X1 Copy |
User Manual | iDAP-8
Digital Audio Streamer
|
CAYIN INTRODUCES AN ALL-NEW DIGITAL AUDIO STREAMER - THE iDAP 8
Cayin introduces a high-performance digital audio streamer to complete the esteemed i-series range of products. The all-new Cayin iDAP-8 provides 6GB of RAM and 128GB of storage, offering ample space and smooth performance with your music library. It has an Android-based system for accessing music and other additional apps, offering further availability of sources. You can seamlessly connect your devices with I2S and SPDIF digital outputs (AES/EBU, Optical Coaxial) and a USB audio digital output option in the Cayin iDAP-8. It also supports Gigabit LAN and NAS connectivity, dual WiFi (2.4GHz / 5GHz) support, Bluetooth LDAC, HiByCast and HiByLink capabilities. The Cayin iDAP-8 combines advanced features with premium i-series design elements, a 5" FHD TFT multi-touch screen and convenient Universal BLE remote control, providing a comprehensive and immersive music listening experience.
EMBEDDED WITH HIGH-QUALITY COMPONENTS FOR ACCURATE AUDIO DELIVERY
The Cayin iDAP-8 is meticulously crafted with premium components to ensure
exceptional sound quality. It utilizes specialized Accusilicon audio-grade active femtosecond oscillators,
including 45.1584MHz for DSD and multiples of 44.1kHz and 49.152MHz for multiples of 48kHz. The components
in the Cayin iDAP-8 are embedded to eliminate unwanted digital artefacts such as noise, clicks, pops, or
distortions that can degrade sound quality. It also ensures accurate conversion and minimizing jitter in
your audio with ultra-low phase noise at 200fS (@100MHz). The Cayin iDAP-8 utilizes a Qualcomm SDM660
eight-core processor for accelerated audio data read and write speeds. This processor in iDAP-8 enables
high-performance data processing and efficient multitasking across various storage sources like internal
storage, SD card, USB and hard disk.
EXPANDABLE STORAGE AND ONLINE STREAMING WITH ANDROID-BASED OPERATING SYSTEM
The Cayin iDAP-8 features a fully Android-based audio system, enabling you to enjoy music from diverse online sources. The Cayin iDAP-8 includes pre-installed music apps and allows you to install additional apps, providing you with a personalized music experience right out of the box. The Cayin iDAP-8 digital audio player offers expandable storage options for a vast music library. It includes a dedicated slot for HDD/SSD with SATA3.0 interface, supporting up to 4TB 2.5-inch drives (hard disk or SSD). You can create your local music library, accessible through different music player apps. The Cayin iDAP-8 allows playback from internal memory (up to 128GB), SD cards, USB disks (1TB), and external drives (up to 4TB via SATA HDD/SSD or SD card).
EQUIPPED WITH IN-HOUSE DESIGNED TOROIDAL TRANSFORMERS FOR POWER SUPPLY
The Cayin iDAP-8 is equipped with an in-house high-quality power supply transformer. It features a 45W toroidal transformer wound with high-purity copper enamelled wire and specialized shielding packaging. The toroidal transformers in the Cayin iDAP-8 are designed with symmetry and minimized stray magnetic fields, resulting in lower noise and electromagnetic interference than other transformers. Additionally, the iDAP-8 incorporates circuit protection measures to reduce magnetic and noise interference, ultimately improving its audio performance. The compact yet robust power supply system of the Cayin iDAP-8 guarantees an exceptional music-listening experience without compromising on power delivery.
OFFERS VERSATILE WIRED AND WIRELESS CONNECTIVITY TO CONNECT TO VARIOUS DEVICES
The Cayin iDAP-8 offers instant access to networked music libraries and supports browsing and playback on LAN. It enables direct playback from NAS, allowing you to access music files conveniently without downloading the audio files in the internal storage of the digital streamer. Apart from LAN, the CAyin iDAP-8 provides high-speed wired and wireless connections, including Wi-Fi Direct with 2.4GHz and 5GHz options and Gigabit Ethernet. It also supports online streaming and features various digital output options such as I2S (HDMI), USB DAC (USB-A) and multiple S/PDIF formats (AES/EBU, BNC, RCA, OPTICAL), ensuring compatibility with a wide range of audio systems.
METICULOUSLY CRAFTED WITH USER-FRIENDLY FEATURES FOR ELEVATED USER EXPERIENCE
Cayin has featured the iDAP-8 with an all-new UI design, contributing to a visually interactive music experience. It features a 5" FHD TFT multi-touch screen for crisp text and graphics and a high-resolution album art display. The UI is intuitive, well-organized and comprehensive, with ergonomic design principles including a 59° tilted screen for easy viewing and control. You can choose from various control options like the touch screen, physical buttons, menu knob. It also supports HibyCast ( for Android , for iOS) screen mirroring on iOS/Android devices and HibyLink BT resource sharing for an elevated music streaming experience. The Cayin iDAP-8 also allows you the flexibility to navigate local and online music libraries across different scenarios with a Universal BLE (Bluetooth Low Energy) Remote Controller.
PAIR YOUR iDAP-8 WITH THE iDAC-8 AND iHA-8 FOR AN ELEVATED LISTENING EXPERIENCE
Cayin has designed the iDAP 8 to seamlessly blend with the Cayin i-series lineup, ensuring a cohesive and harmonious aesthetic. Its design features an exquisite and compact structure that complements the aesthetics of its companions, the iDAC-8 DAC and the iHA-8 headphone amplifier. This similar design language across the i-series products enhances their visual appeal and ensures an elevated audio experience. Its design incorporates an L-shaped aluminium cover plate, precision mold extrusion, CNC precision machining, fine sandblasting and anodized surface treatment, resulting in a durable and visually appealing texture that remains uniform. This design approach reflects Cayin's commitment to craftsmanship and attention to detail.
MCU | Snapdragon 660 2.2GHz |
MEMORY | 6GB LPDDR4 RAM |
STORAGE | 128GB Internal Storage; 2.5" SATA3.0 x1 (up to 4TB) SD x1 (up to 1TB); External USB |
OSCILLATOR | Accusilicon Ultra-low 20ppm phase noise Femtosecond Oscillator x 2 |
ANTENNA | 2.4G/5G 5dBi High Gain |
DIGITAL INTERFACE | I2S, USB Audio, AES/EBU, Optical, Coaxial (RCA), Coaxial (BNC) |
DISPLAY | 5" FHD (1920 x 1080) TFT Multi-point Touch Screen |
POWER | 45W toroidal transformer |
PHYSICAL CONTROL | Standby On/Off, Return Control Playback Control Knob |
WEIGHT | ~4.4kg |
SYSTEM | Customized Android 9 |
GOOGLE PLAY | Pre Installed |
FILE FORMAT | DSF/DFF/SACD-ISO/ FLAC/AIFF/WAV/APE/ALAC/ WMA/MP3/AAC/OGG/Opus |
PREINSTALLED APPLICATIONS | Cayin Music HiByMusic (with HiByCast) |
LOSSLESS | DTA Bypass Android SRC |
LAN | IEEE 802.3/IEEE 802.3u Support 1000M/100M/10M |
WI-FI | 2.4GHz/5GHz EEE 802.11a/b/g/n/ac |
BLUETOOTH | BTv5.0 + BR/EDR + BLE |
FIRMWARE UPDATE | USB / SD / OTA |
DIMENSION | 270x215x70 (mm) (L×W×H) |
I2S | Connector: HDMI Type A
(The device transmits I2S signal with HDMI connector, it is not compatible with standard
HDMI device) PCM Output: 16Bit to 32Bit, 44.1kHz to 768kHz DSD Output: DSD-64 to DSD512 (22.6MHz) |
USB DAC OUT | Connector: USB Type-A PCM Output: 16Bit to 32Bit, 44.1kHz to 768kHz DSD Output: DSD-64 to DSD512 (22.6MHz) |
AES/EBU | Connector: XLR Male PCM Output: 16Bit to 24Bit, 44.1kHz to 192kHz DSD Output: DoP64 (DSD over PCM 2.82MHz) |
COAXIAL | Connector: RCA, BNC PCM Output: 16Bit to 24Bit, 44.1kHz to 192kHz DSD Output: DoP64 (DSD over PCM 2.82MHz) |
OPTICAL | Connector: TOSLINK PCM Output: 16Bit to 24Bit, 44.1kHz to 192kHz DSD Output: DoP64 (DSD over PCM 2.82MHz) |
BLUETOOTH | BTv5.0 Transmit Codec: LDAC (up to 96kHz), UAT (up to 192kHz), AAC (up to 48kHz), SBC (up to 48kHz) Receive Codec: LDAC (up to 96kHz), UAT (up to 192kHz), AAC (up to 48kHz), SBC (up to 48kHz) |
DSD | Format : Bit-Rate : Sampling Freq. DSF : 1bit : 2.8MHz-22.6MHz DFF : 1bit : 2.8MHz-22.6MHz SACD-ISO : 1bit : 2.8MHz Remark : Native, DoP, D2P (PCM 88.2kHz) Supports DST Encoded DFF and SACD-ISO |
PCM | Format : Bit-Rate : Sampling Freq. WAV : 16bit - 32bit : 32kHz - 768kHz AIF/AIFF : 16bit - 32bit : 32kHz - 768kHz M4A (ALAC) : 16bit - 32bit : 32kHz - 192kHz FLAC : 16bit - 24bit : 32kHz - 192kHz APE (Fast) : 16bit - 24bit : 32kHz - 768kHz APE (Normal) : 16bit - 24bit : 32kHz - 768kHz APE (Extra High) : 16bit - 24bit : 32kHz - 192kHz APE (Insane) : 16bit - 24bit : 32kHz - 192kHz WMA Lossless : 16bit - 24bit : 32kHz - 96kHz WMA : 16bit - 24bit : 32kHz - 96kHz MP3 : 8bit - 16bit : 32kHz - 48kHz AAC : 8bit - 16bit : 32kHz - 48kHz OGG : 8bit - 16bit : 32kHz - 48kHz OPUS : 16bit : 32kHz - 48kHz Remark : Supports DTS encoded WAV Supports CUE and LRC 64kHz Sampling not supported |
BOX CONTENTS | 1. Cayin iDAP-8 |
2. WiFi/ Bluetooth Antenna x1 piece | |
3. Power Cord x1 piece | |
4. Warranty Card x 1 copy | |
5. Replacement Fuss x2 units | |
6. User Manual x1 copy |
OTHER DETAILS
GENERIC NAME | Digital Audio Player |
IMPORTER DETAILS | Importers Name: Ferrari Video Address: 63/18, 1st Main Road, Gandhi Nagar, Chennai - 600020 Contact No: 044-24420733 |
NET QUANTITY | 1 |
MANUFACTURER DETAILS | Name: Zhuhai Spark Electronic Equipment Co.,Ltd. Address: No.9 Lianfa Road Shuanglin Zone Liangang Industrial Park Zhuhai City Guangdong Province China, Postcode: 519045 |
PACKAGE CONTENTS | Cayin IDAP-8 WiFi/ Bluetooth Antenna X1 Piece Power Cord X1 Piece Warranty Card X 1 Copy Replacement Fuss X2 UnitS, User Manual X1 Copy |
User Manual | iDAP-8
Digital Audio Streamer
|
Don't sweat it, this
Cayin - iDAP-8 comes with a 1 Year warranty
from Cayin that covers manufacturing defects.
All products featured on Headphone Zone are backed by an original manufacturer's warranty.
Read more about Cayin's warranty in India.
Elevating Hi-Fi Experiences Since 1993
Explore CollectionHave a question? Get in touch!
Check out the most common questions our customers ask. Still have questions? Talk to our Headphone Gurus.
What is the warranty period on the Cayin iDAP-8 and how do I claim warranty?
What is the storage capacity of the Cayin iDAP-8?
What operating system does the Cayin iDAP-8 use?
What digital output options are available on the Cayin iDAP-8?
What user-friendly features does the Cayin iDAP-8 offer?
This product has no reviews yet.
