Cayin - HA-2A
Desktop Tube AmplifierGET 18% GST INPUT
One of the reasons headphones and earphones in India are more expensive than overseas is because of the Goods &
Services Tax in India.
Don't let the GST input go to waste especially if you can avail an offset.
All products sold on Headphone Zone carry a GST compliant invoice and all products sold include an 18% GST.
Simply enter your GST number at the time of checkout.
Browse EMI Plans
Low Cost EMI Options through Credit Cards
ICICI Bank
3
Low Cost EMI
₹ 37,648
₹ 2,944
₹ 2,373
6
Low Cost EMI
₹ 19,198
₹ 5,187
₹ 4,196
9
15.99%
₹ 13,051
₹ 7,458
12
15.99%
₹ 9,980
₹ 9,758
18
15.99%
₹ 6,914
₹ 14,446
24
15.99%
₹ 5,385
₹ 19,250
HDFC Bank
3
Low Cost EMI
₹ 37,648
₹ 2,946
₹ 2,373
6
Low Cost EMI
₹ 19,198
₹ 5,190
₹ 4,196
9
16%
₹ 13,051
₹ 7,463
12
16%
₹ 9,980
₹ 9,765
18
16%
₹ 6,914
₹ 14,456
24
16%
₹ 5,386
₹ 19,262
SBI Bank
3
Low Cost EMI
₹ 37,679
₹ 3,039
₹ 2,444
6
Low Cost EMI
₹ 19,144
₹ 4,862
₹ 3,915
9
15%
₹ 12,999
₹ 6,989
12
15%
₹ 9,928
₹ 9,141
18
16%
₹ 6,914
₹ 14,456
24
16%
₹ 5,386
₹ 19,262
Axis Bank
3
Low Cost EMI
₹ 37,648
₹ 2,946
₹ 2,373
6
Low Cost EMI
₹ 19,198
₹ 5,190
₹ 4,196
9
16%
₹ 13,051
₹ 7,463
12
16%
₹ 9,876
₹ 8,519
18
16%
₹ 6,914
₹ 14,456
24
16%
₹ 5,386
₹ 19,262
Other EMI Options through Credit Cards
Citi Bank
3
14%
₹ 37,525
₹ 2,577
6
14%
₹ 19,089
₹ 4,535
9
16%
₹ 13,051
₹ 7,463
12
16%
₹ 9,980
₹ 9,765
18
16%
₹ 6,914
₹ 14,456
24
16%
₹ 5,386
₹ 19,262
Kotak Mahindra Bank
Tenure
Interest%
Installment
Interest
3
16%
₹ 37,648
₹ 2,946
6
16%
₹ 19,198
₹ 5,190
9
16%
₹ 13,051
₹ 7,463
12
16%
₹ 9,980
₹ 9,765
18
16%
₹ 6,914
₹ 14,456
24
16%
₹ 5,386
₹ 19,262
RBL Bank
3
13%
₹ 37,464
₹ 2,392
6
14%
₹ 19,089
₹ 4,535
9
15%
₹ 12,999
₹ 6,989
12
15%
₹ 9,928
₹ 9,141
18
15%
₹ 6,862
₹ 13,522
24
15%
₹ 5,333
₹ 18,005
Standard Chartered Bank
3
13%
₹ 37,464
₹ 2,392
6
13%
₹ 19,035
₹ 4,208
9
14%
₹ 12,946
₹ 6,516
12
14%
₹ 9,876
₹ 8,519
INDUSIND Bank
3
14%
₹ 37,525
₹ 2,577
6
14%
₹ 19,089
₹ 4,535
9
15%
₹ 12,999
₹ 6,989
12
15%
₹ 9,928
₹ 9,141
18
15%
₹ 6,862
₹ 13,522
24
15%
₹ 5,333
₹ 18,005
HSBC Bank
3
12.50%
₹ 37,433
₹ 2,300
6
12.50%
₹ 19,007
₹ 4,045
9
13.50%
₹ 12,920
₹ 6,280
12
13.50%
₹ 9,851
₹ 8,209
18
13.50%
₹ 6,785
₹ 12,129
YES Bank
3
13%
₹ 37,464
₹ 2,392
6
13%
₹ 19,035
₹ 4,208
9
14%
₹ 12,946
₹ 6,516
12
14%
₹ 9,876
₹ 8,519
18
15%
₹ 6,862
₹ 13,522
24
15%
₹ 5,333
₹ 18,005
Bank of Baroda
3
13%
₹ 37,464
₹ 2,392
6
14%
₹ 19,089
₹ 4,535
9
14%
₹ 12,946
₹ 6,516
12
15%
₹ 9,928
₹ 9,141
18
15%
₹ 6,862
₹ 13,522
24
16%
₹ 5,386
₹ 19,262
American Express
3
14%
₹ 37,525
₹ 2,577
6
14%
₹ 19,089
₹ 4,535
9
14%
₹ 12,946
₹ 6,516
12
14%
₹ 9,876
₹ 8,519
18
15%
₹ 6,862
₹ 13,522
24
15%
₹ 5,333
₹ 18,005
Talk to a Headphone Guru
Club Audiophile
Join Club Audiophile to begin your pursuit of great sound. Earn points and save on every purchase.
READ MORE
Chi-Fi
Excellence
Ideal for Audiophiles
These DAC & Amps are designed for discerning music lovers. If audio quality is important to you, a set of DAC & Amps like these would be ideal.
You can expect these DAC & Amps to present you with a refined listening experience. The audio quality exhibited by these DAC & Amps is a beautiful mix of musicality, technical brilliance and high precision.
These DAC & Amps deliver a spacious & open soundstage that makes you feel you are sitting at a live concert. Experience the magic and delve into pure sonic tranquility!
Ideal for
Desktop Use
4.4mm & 4-Pin XLR
Balanced Output
Upto 1000mW
Power Output
Connect With
XLR & RCA
Metal
Build
Volume Controls
If your DAC & Amps include volume controls or volume rockers, you can easily change the volume with a button press or volume knob turn.
DAC & Amps that have volume controls make its operation incredibly simple; turn up the volume on your smartphone or your source devices and then change the volume on DAC & Amps to the desired level.
This design feature allows you to have complete control over the desired volume according to your listening preferences.
DESCRIPTION

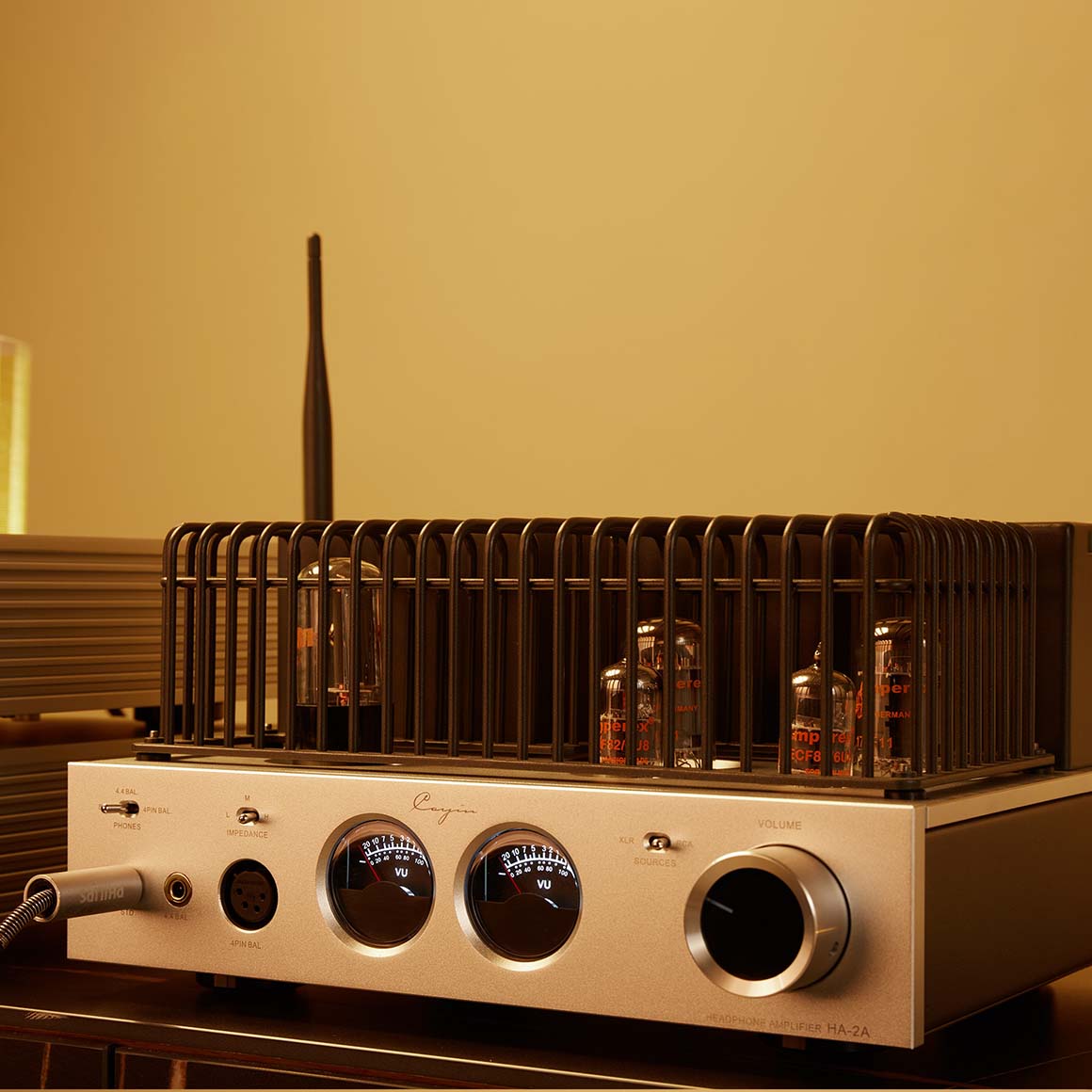

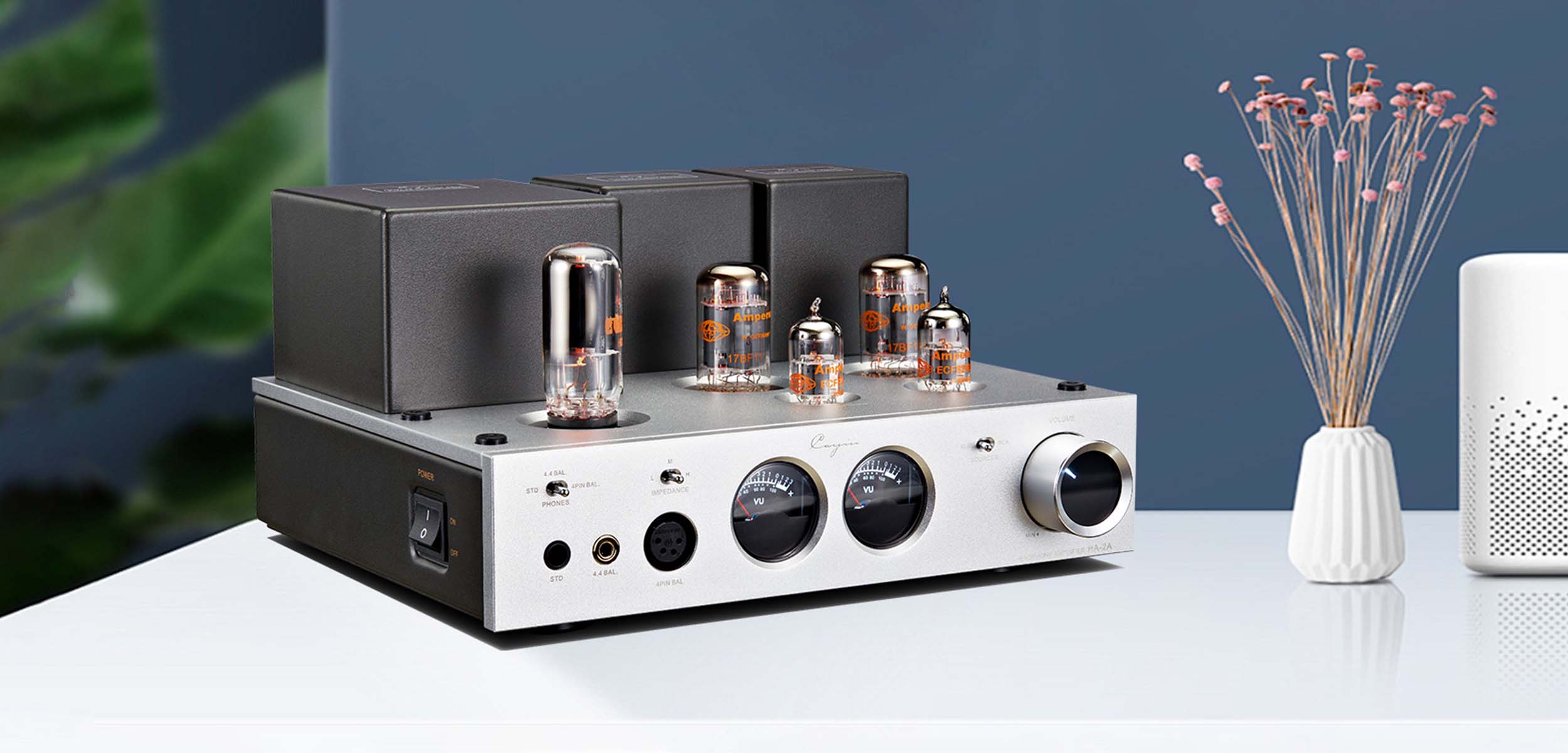

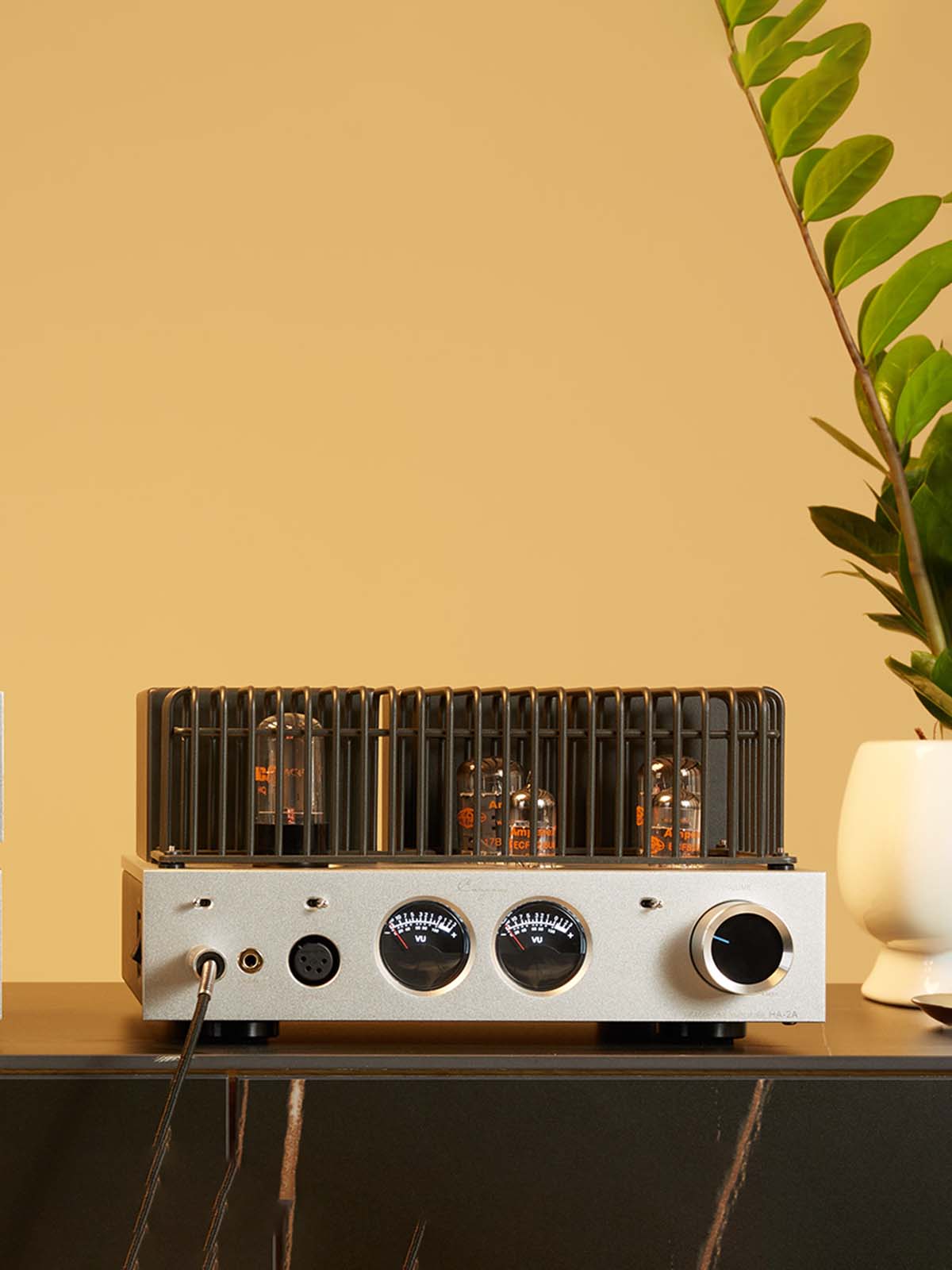

PRESENTING THE ALL-NEW CAYIN HA-2A - DESIGNED WITH VINTAGE VACUUM TUBES
Cayin introduces another precisely crafted amplifier with vintage vacuum tubes to the desktop audio fidelity scene - the Cayin HA-2A. This tube amplifier features a carefully engineered circuit, including five vintage NOS vacuum tubes. These tubes contribute to the exceptional sound quality, characterized by rich detail, a wide soundstage and excellent musicality. Beyond the performance of the vintage NOS vacuum tubes, Cayin has incorporated specific tube types for distinct functions in the amplifier. These include a matched pair of Amperex 17BF11 NOS tubes for single-ended pure Class A power amplification, another matched pair of Amperex ECF82/6U8 NOS tubes for voltage amplification (comprising a high-gain pentode and a medium-gain triode composite tube), and one RCA 17AX4GT NOS rectifier tube for the plate power supply in the preamp stage. Moreover, the amplifier features a specialized single-ended Class A tuning, designed by Cayin engineers for the ultimate performance of the NOS vacuum tubes. The all-new Cayin HA-2A presents you with a balanced, mellow, warm sound signature with rich harmonic characteristics with its meticulous design strategy and quality components.

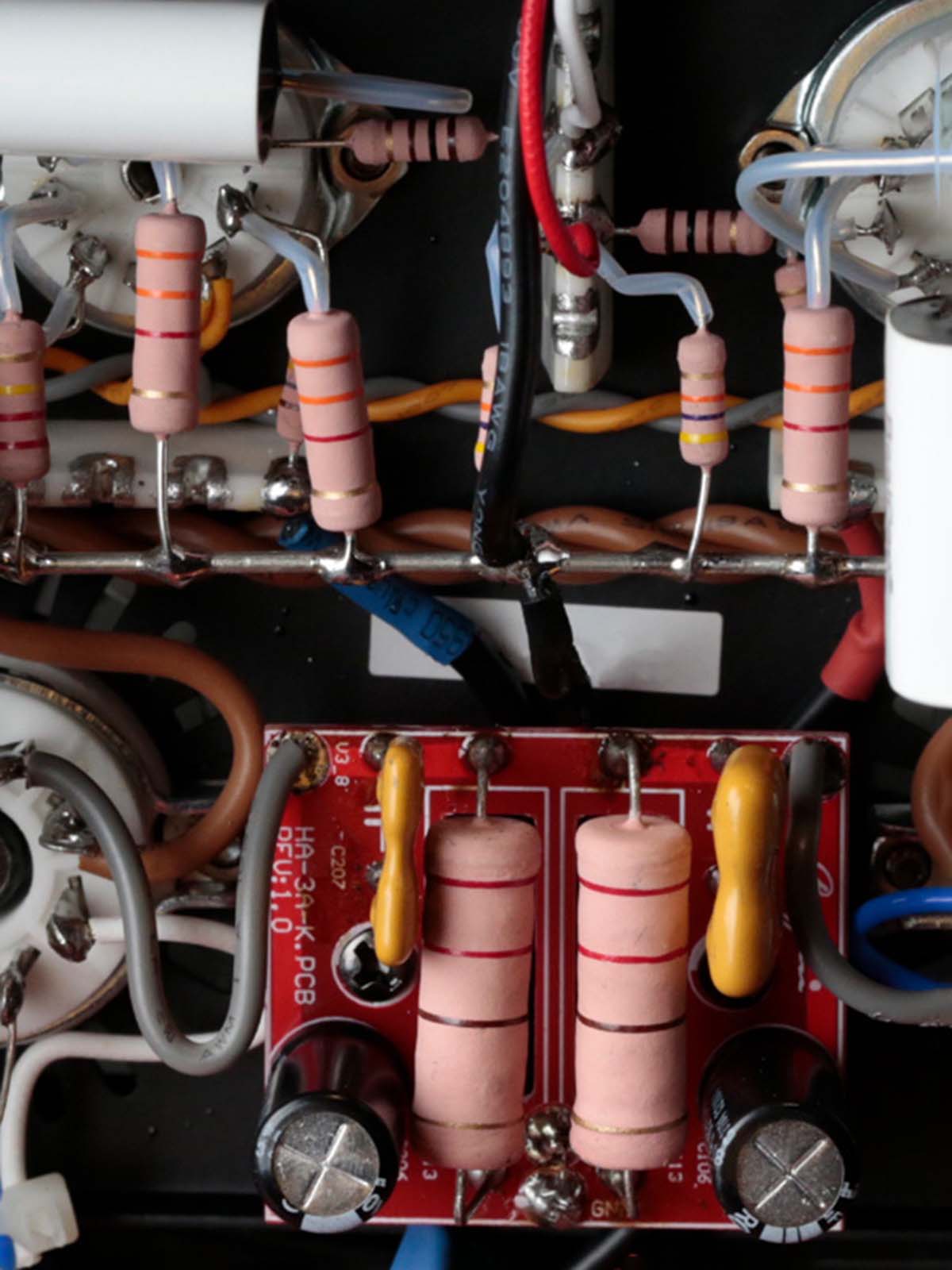

METICULOUSLY ENGINEERED CIRCUIT DESIGN FOR DETAILED SOUND DELIVERY
Cayin ensures reference-grade craftsmanship in the internal design of the HA-2A by utilizing point-to-point wiring techniques in vacuum tube amplifiers. The detailed wiring process is done by experienced professionals who meticulously hand-wire the entire circuit to provide the shortest signal path and meticulous attention to detail. Every aspect of the internal circuits, from tube connections to resistors and capacitors, undergoes soldering and careful routing using premium internal wirings. This approach aims to enhance signal transmission speed and minimize interference throughout the circuit. To elevate your listening pleasure with the Cayin HA-2A, it incorporates a 60-second start-up delay circuit that safeguards the amplification circuit. This circuit reduces the pop noise when switched on and guarantees the vacuum tubes reach optimal warmth before playback, enhancing your overall listening experience.

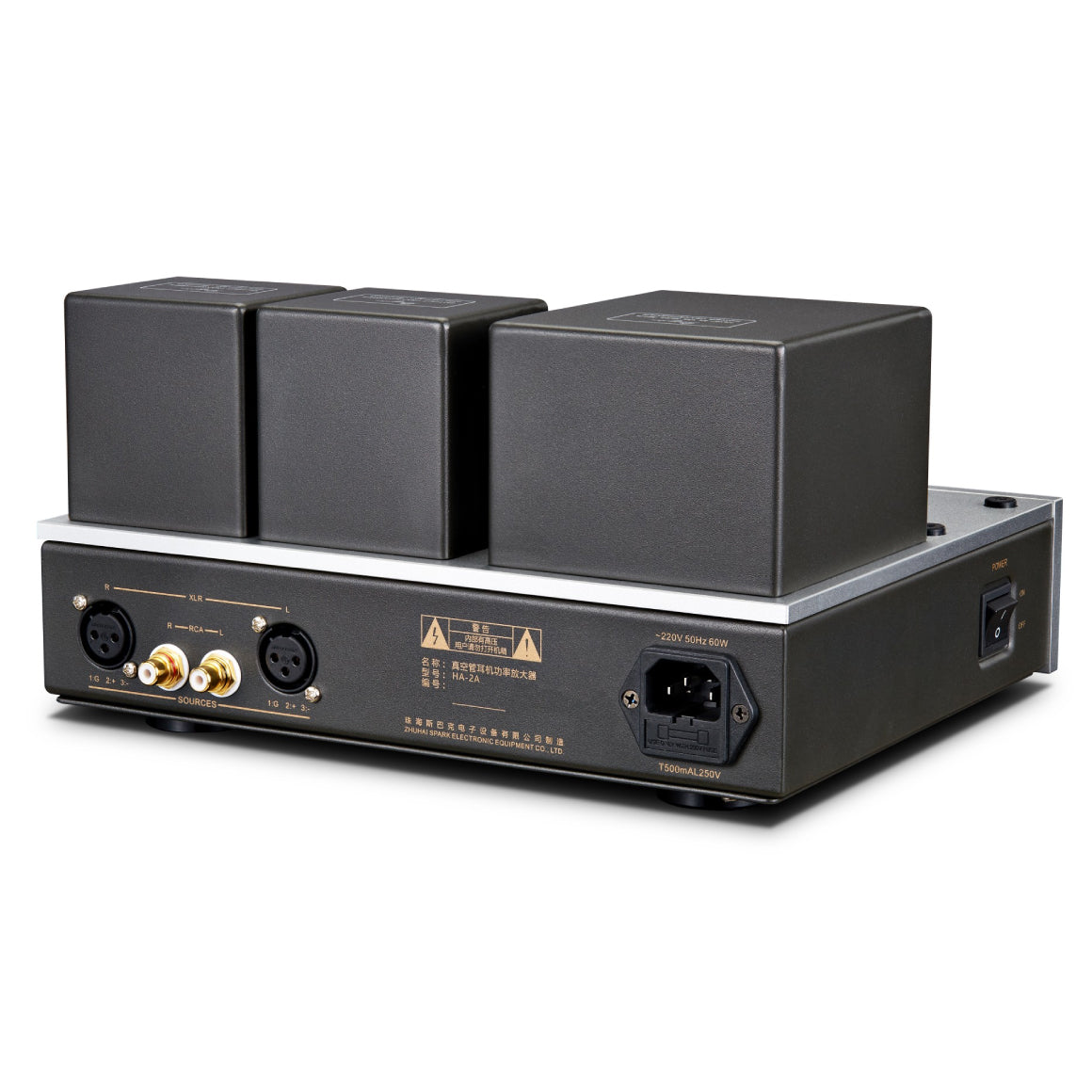

EQUIPPED WITH HIGH-QUALITY POWER TRANSFORMERS FOR DISTORTION FREE SOUND
The Cayin HA-2A tube amplifier showcases Cayin's expertise in crafting tube amplifiers with their in-house developed wide-bandwidth transformers. The transformers, crucial for tube amps, are custom-made with high-quality materials and precise winding techniques. They reduce interference and deliver efficient power with minimal distortion. The output and power transformers are meticulously designed with high-quality Z11 EI-type iron cores from Japan and Cayin's precise hand-winding process. The transformers are housed in fully enclosed metal casings with resin sealing, ensuring ample power delivery, high efficiency and exceptionally low distortion due to reduced magnetic field interference. The Cayin HA-2A also equips a multi-stage filtering system and a low-noise FET voltage regulating circuit, combined with the specially developed Z11 core EI output transformer, to achieve perfect headphone load driving.

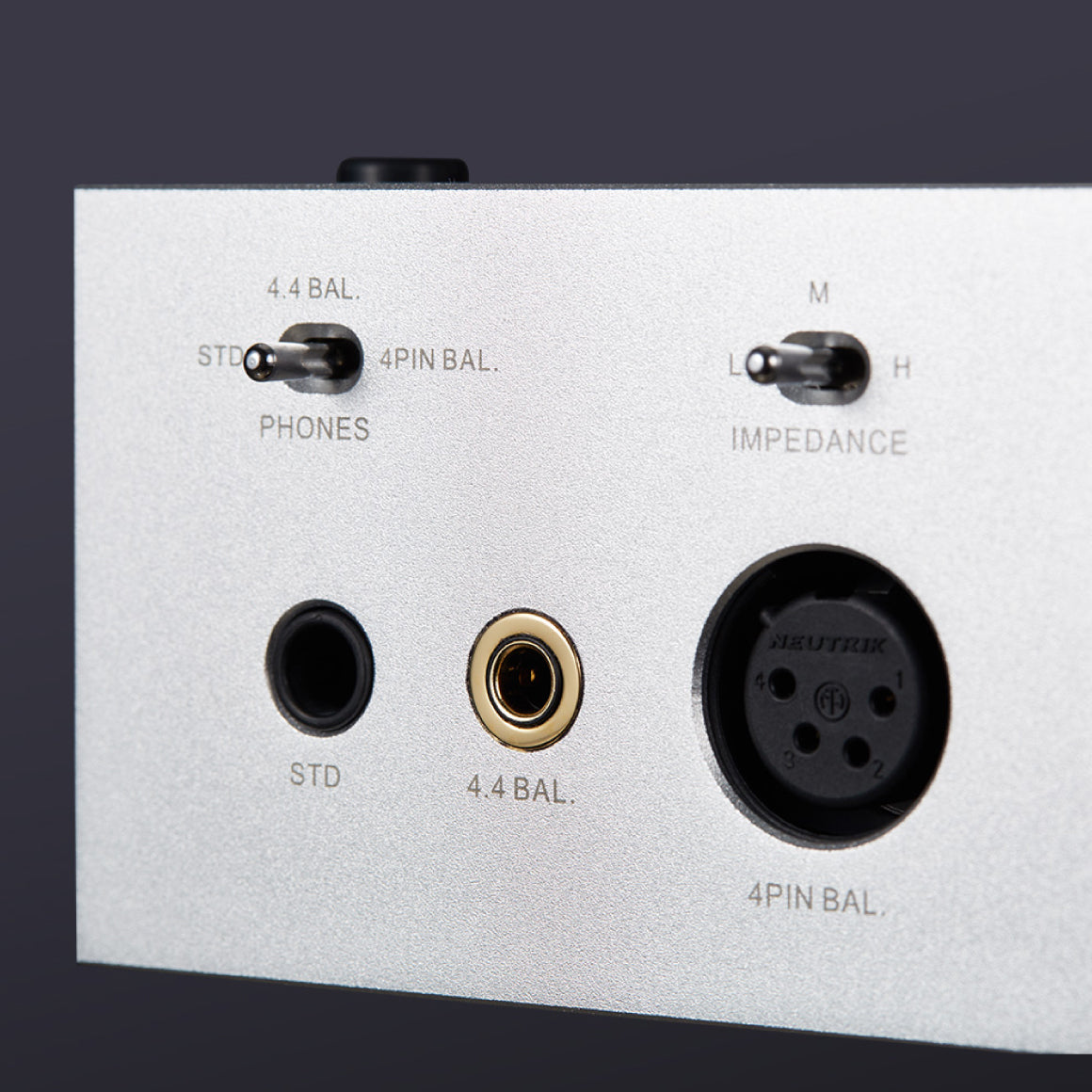

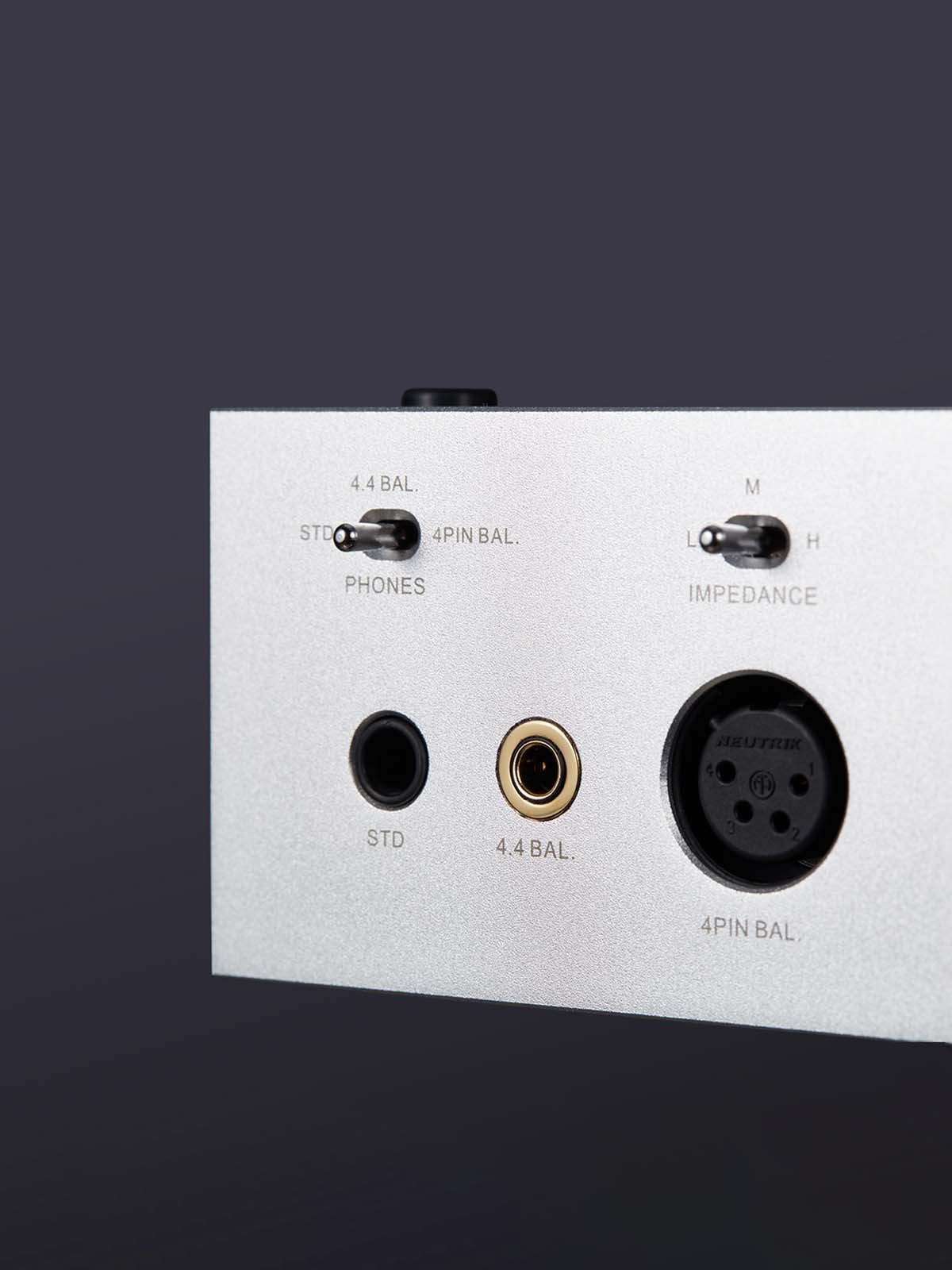

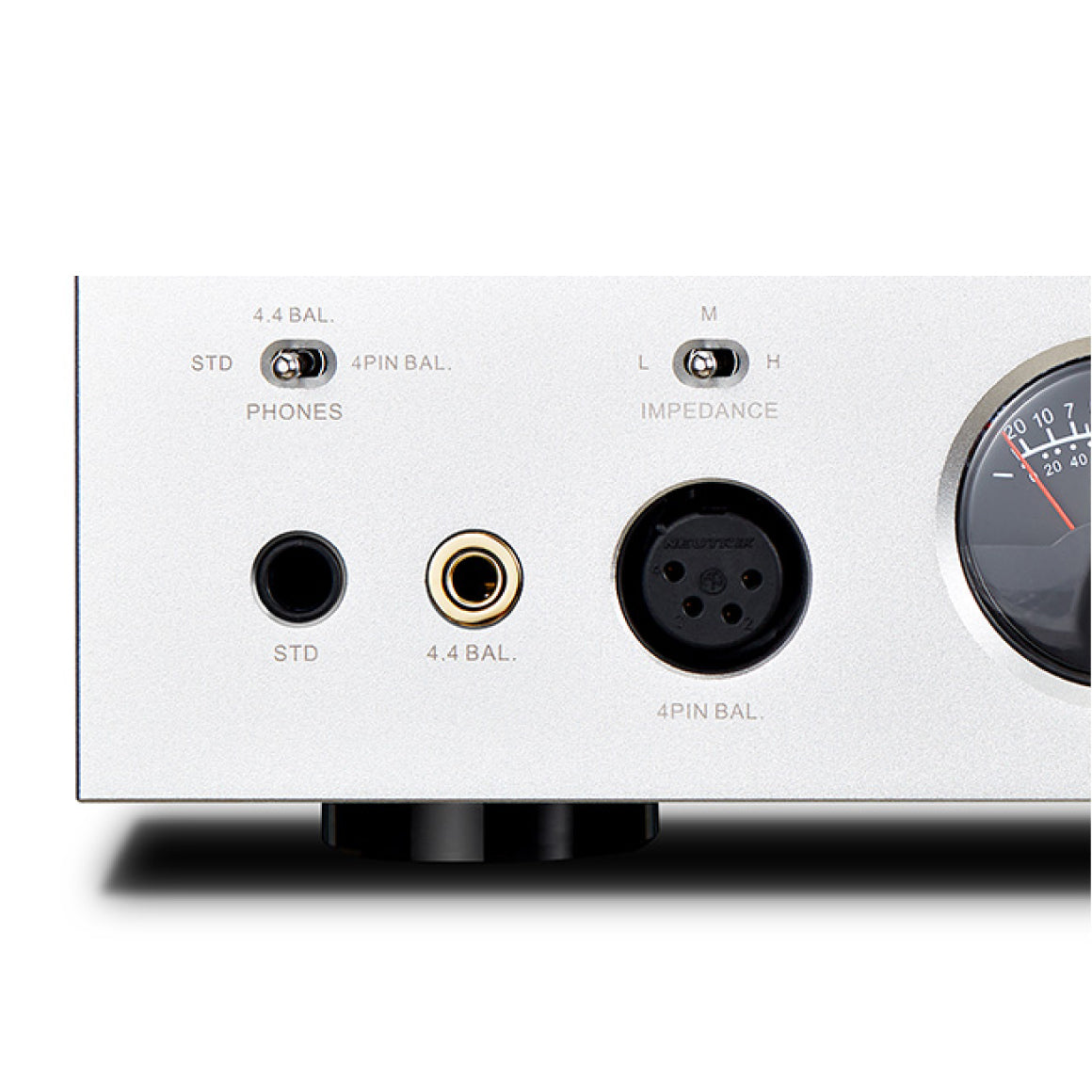

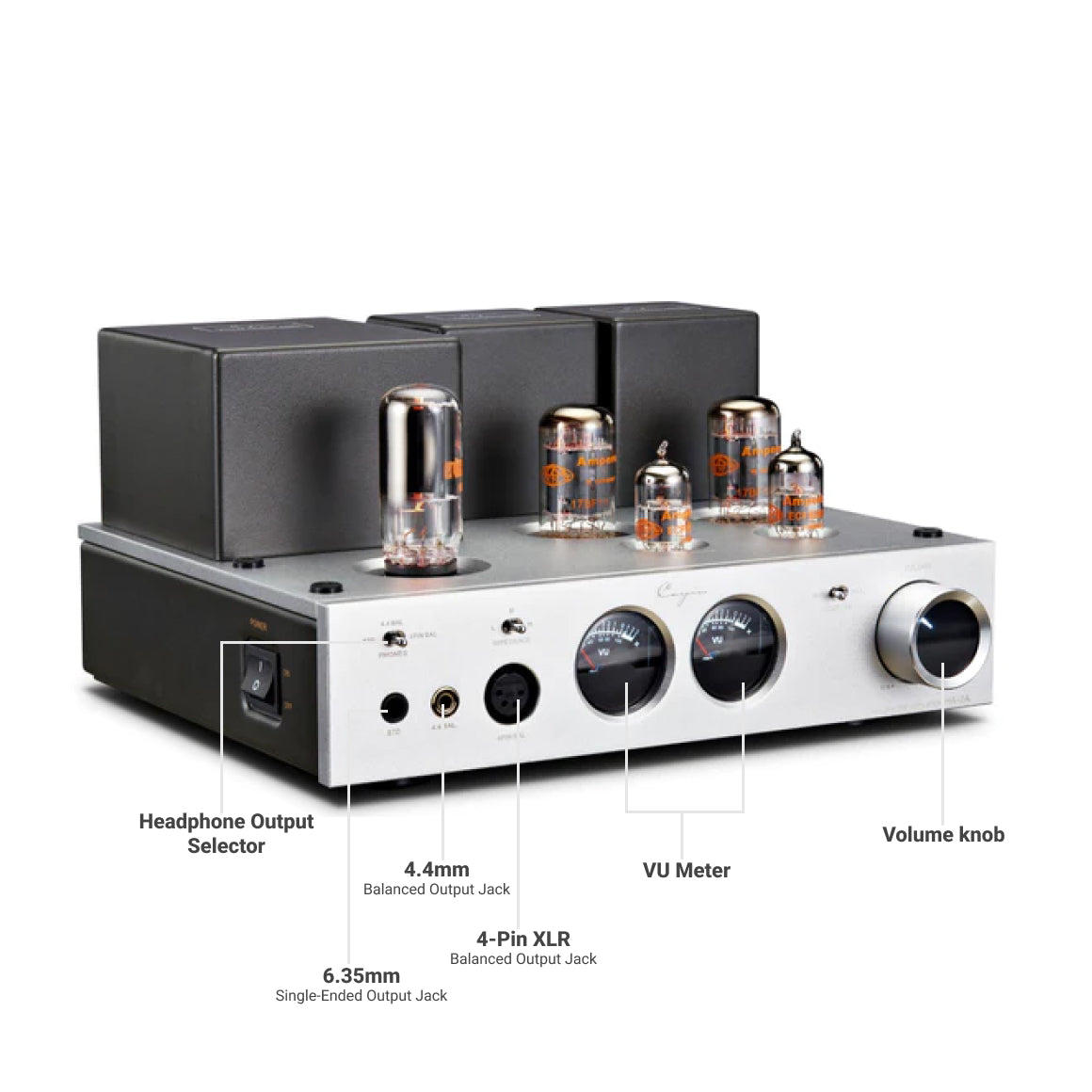

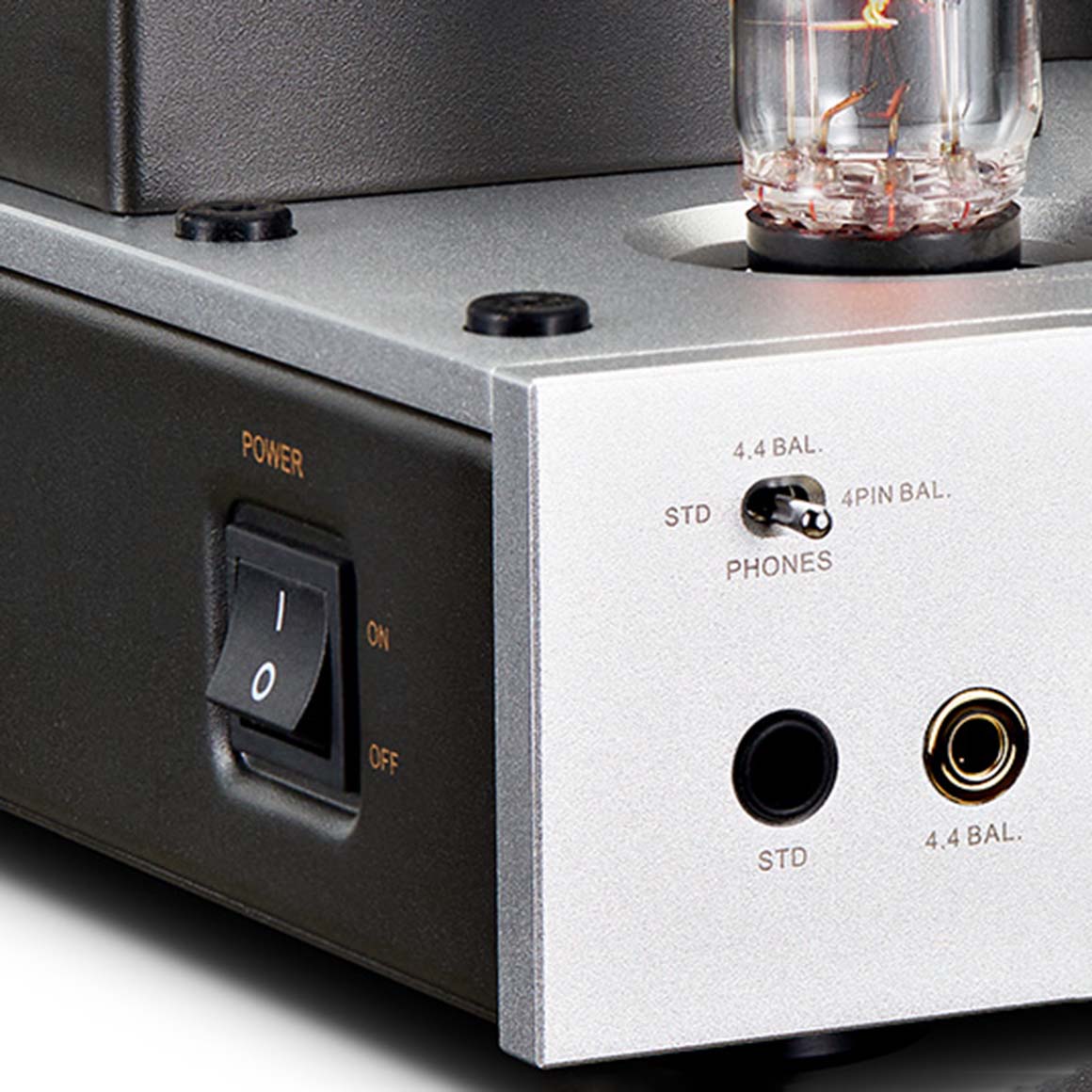

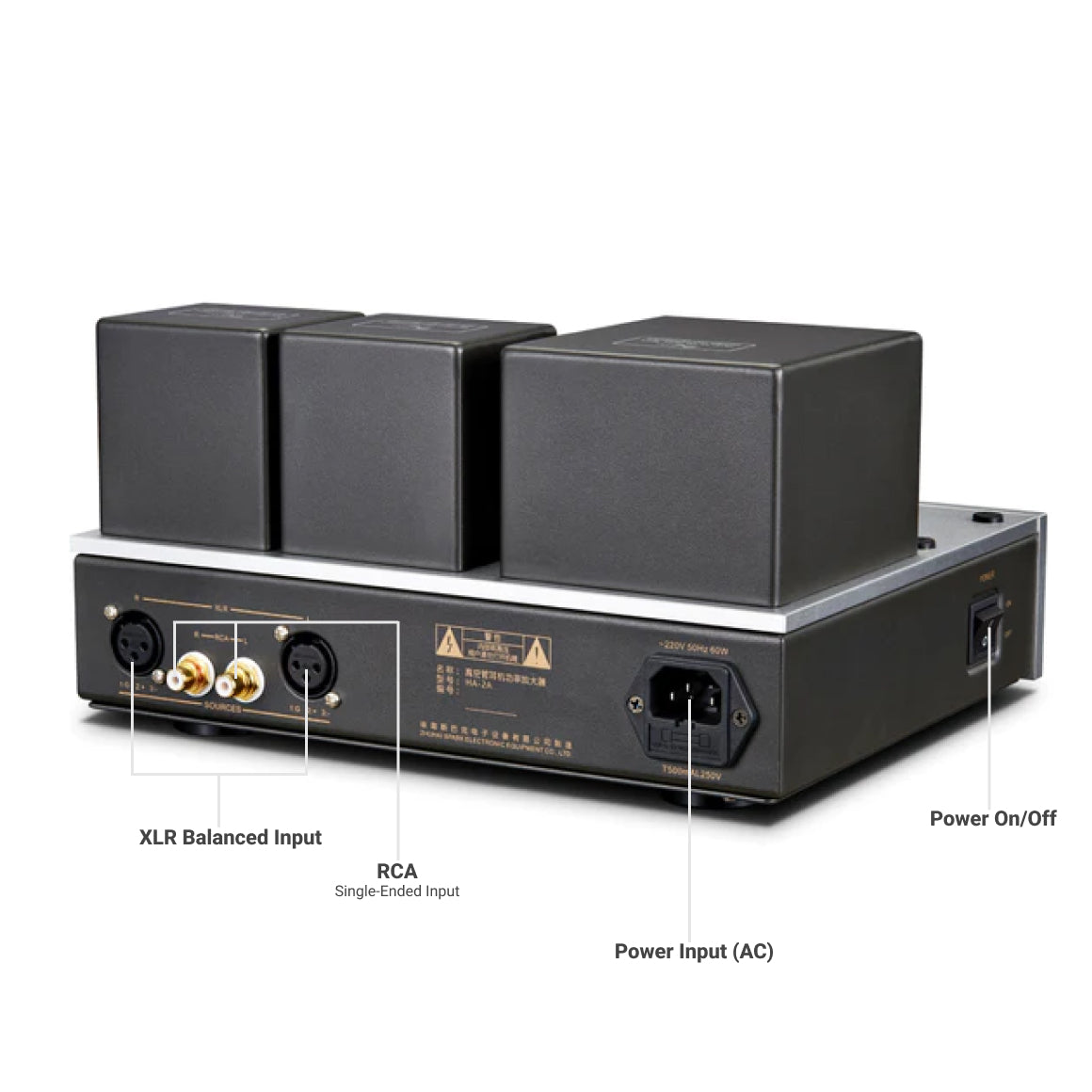

EASY CONNECTIVITY WITH DUAL HEADPHONE OUTPUT AND DUAL ANALOG INPUTS
The Cayin HA-2A features optimized headphone outputs, allowing you the freedom to listen to music with your preferred headphones. It equips a 4-pin XLR connection, designed for high-output demanding headphones. The 4.4mm connection is provided for easy connectivity with high-sensitivity portable headphones. The Cayin HA-2A offers high output power of up to 1000mW per channel and three impedance-matched headphone output settings: High (251Ω ~ 600Ω), Mid (65Ω ~ 250Ω), and Low (8Ω ~ 6482Ω). These settings result in natural sound reproduction with well-defined bass in your music. Moreover, the HA-2A features two analog inputs (XLR and RCA), making it compatible with CD players, DACs, portable players and other audio devices with line-level output.

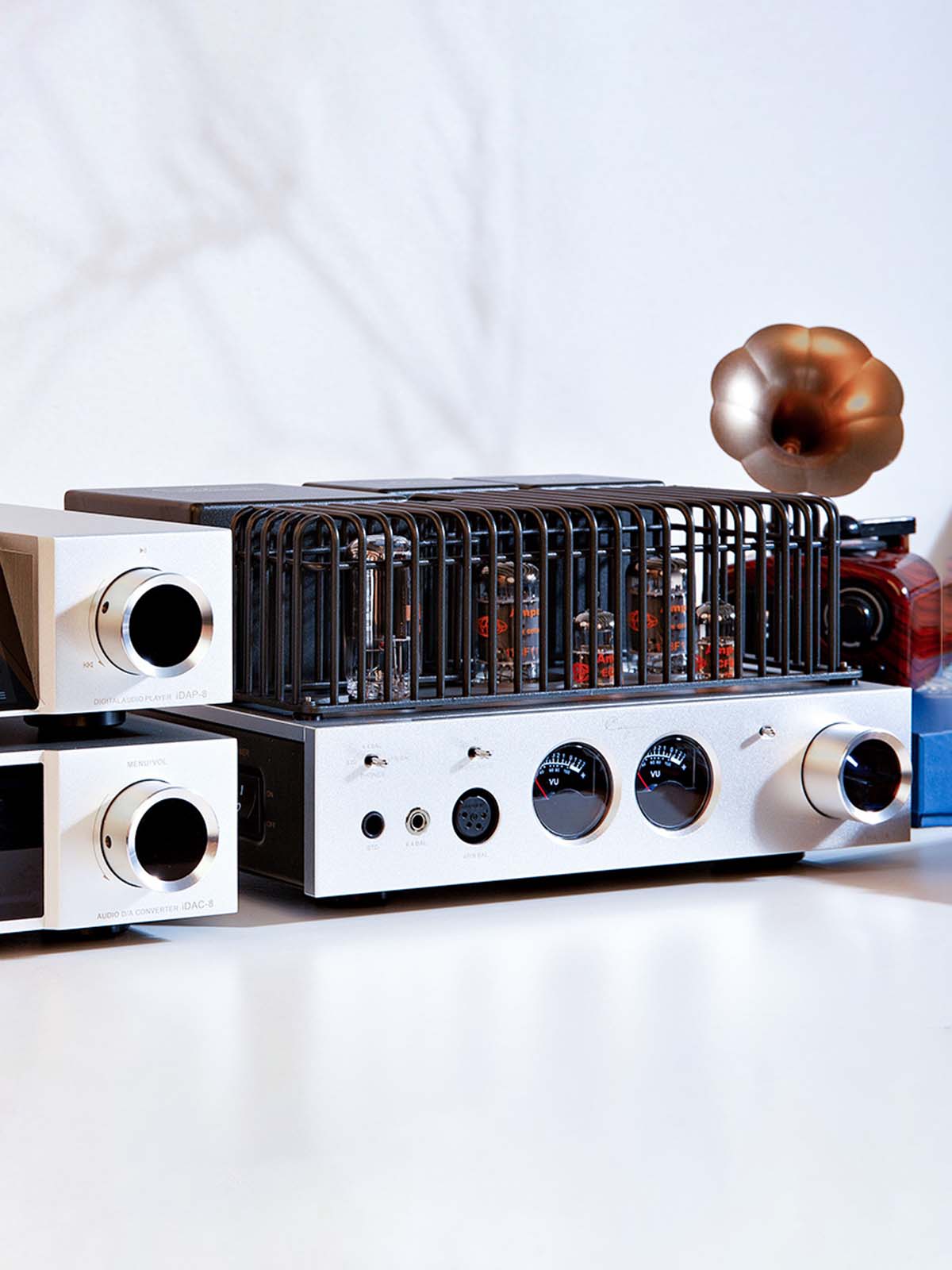

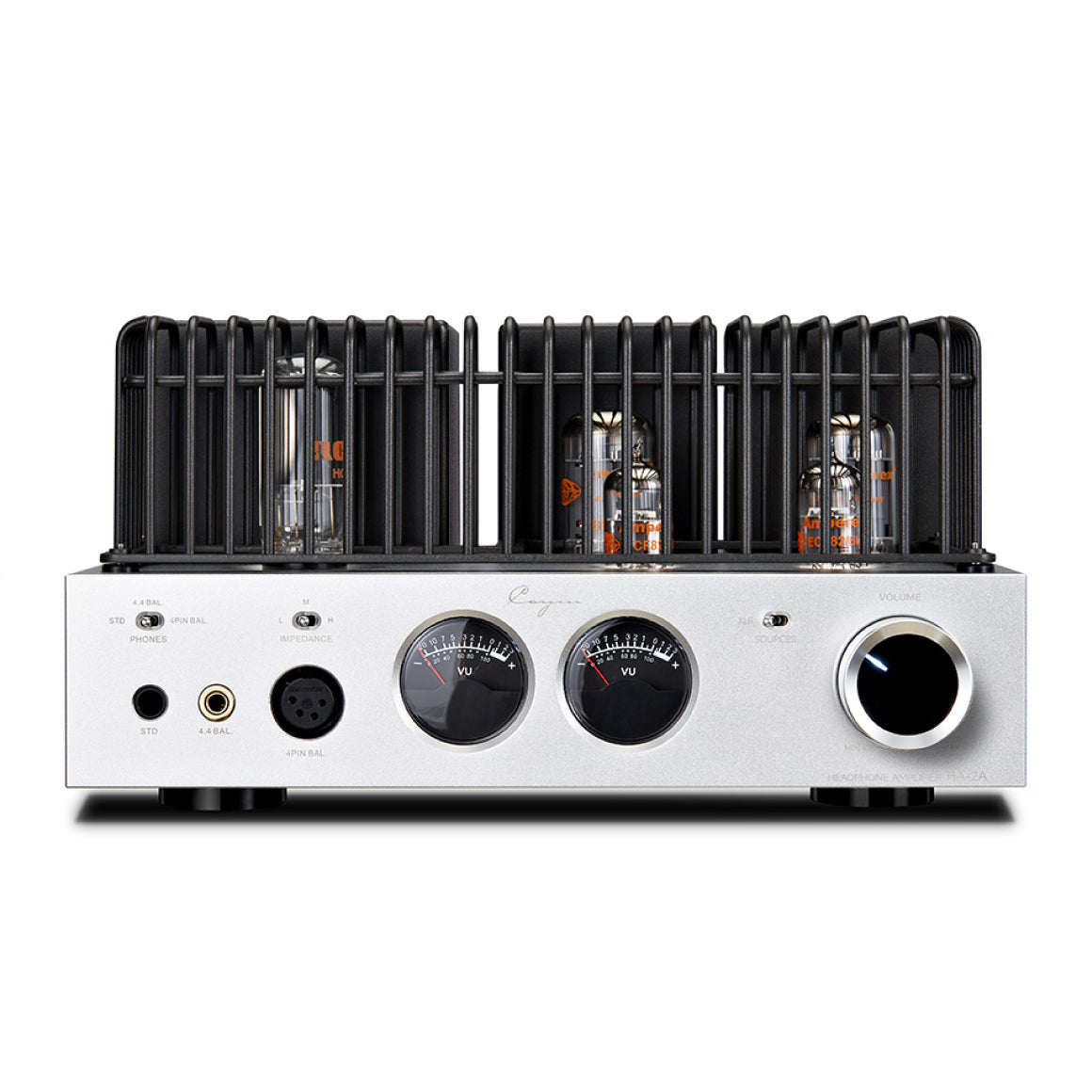

SHOWCASING A UNIFIED DESIGN AESTHETICS WITH OTHER CAYIN DEVICES
The exquisite design of the Cayin HA-2A showcases aesthetics, aligning with Cayin's signature design language witnessed in the Cayin 888 3-piece suit. This design resemblance allows for a unified setup look with other Cayin devices, such as the iDAP-8 Digital Streamer and iDAC-8 DAC. They form a compact desktop system that delivers exceptional audio performance while maintaining a symmetrical visual appeal. Despite its compact and lightweight construction, its dual VU meters with white backlighting add a retro, dynamic flair that catches the eye. The chassis undergoes a meticulous 14-step metal finishing and painting process to achieve a bright, uniform colour with detailed contours complemented by a high-density molecular protective film to maintain its premium shape over time. Above these, the Cayin HA-2A features a vacuum tube protection cage to safeguard the tubes, reduce interference and prevent accidental contact with the heated tubes during operation. It also features an anti-vibration and anti-interference reinforced chassis base to minimize microphonic ringing impacts, vibrations and external interference on the vacuum tubes.
SPECS
| INPUT CONNECTOR | XLR X2, RCA x2 |
| VAC | Output: Amperex 17BF11 X2 Driver: Amperex ECF82/6U8 X2 Rectifier: RCA 17AX4GT |
| DIMENSION | 270mm x 247mm x 143mm |
| WEIGHT | 10kg |
| FUSE | ~220V-240V: T500mAL250V ~100V-120V: T1AL250V |
| OUTPUT TUBE FUSE | T125mAE250V |
| POWER CONSUMPTION | 60W |
| WORKING CONDITION | Temp: 0°C~40°C; Humidity: 20% - 80% |
| STORAGE CONDITION | Temp: -20°C~70°C; Humidity: 20% - 90% |
| RATED OUTPUT* | 4-Pin XLR (BAL): 800mW (L); 900mW (M); 1000mW (H) 4.4mm (BAL): 200mW (L); 300mW (M); 270mW (H) 6.35mm (SE): 330mW (L); 550mW (M); 750mW (H) |
| FREQUENCY RANGE | 20Hz~50kHz ±3dB |
| TH+D | 0.2% (1kHz, 100mW) |
| SENSITIVITY | 450mV-600mW |
| S/N RATIO | 100dB (A-Weighted) |
| HEADPHONE IMPEDANCE | L: 8~64Ω; M: 65~250Ω; H: 251~600Ω |
| HEADPHONE CONNECTOR | 4pin XLR (Balanced), 4.4mm (Balanced), 6.35mm (Single-Ended) |
| VACUUM TUBE | Substitution |
| AMPEREX 17BF11 | 17BF11A |
| AMPEREX ECF82/6U8 | ECF82, 6UG |
| RCA 17AX4GT | 17AX4GTA |
| BOX CONTENTS | 1. Cayin HA-2A |
OTHER DETAILS
| GENERIC NAME | Headphone Amplifier |
| IMPORTER DETAILS | Importers Name: Ferrari Video Address: 63/18, 1st Main Road, Gandhi Nagar, Chennai - 600020 Contact No: 044-24420733 |
| NET QUANTITY | 1 |
| MANUFACTURER DETAILS | Name: Zhuhai Spark Electronic Equipment Co.,Ltd. Address: No.9 Lianfa Road Shuanglin Zone Liangang Industrial Park Zhuhai City Guangdong Province China, Postcode: 519045 |
| PACKAGE CONTENTS | Cayin HA-2A |
User Manual | HA-2A
Desktop Tube Amplifier
|
PRESENTING THE ALL-NEW CAYIN HA-2A - DESIGNED WITH VINTAGE VACUUM TUBES
Cayin introduces another precisely crafted amplifier with vintage vacuum tubes to the desktop audio fidelity scene - the Cayin HA-2A. This tube amplifier features a carefully engineered circuit, including five vintage NOS vacuum tubes. These tubes contribute to the exceptional sound quality, characterized by rich detail, a wide soundstage and excellent musicality. Beyond the performance of the vintage NOS vacuum tubes, Cayin has incorporated specific tube types for distinct functions in the amplifier. These include a matched pair of Amperex 17BF11 NOS tubes for single-ended pure Class A power amplification, another matched pair of Amperex ECF82/6U8 NOS tubes for voltage amplification (comprising a high-gain pentode and a medium-gain triode composite tube), and one RCA 17AX4GT NOS rectifier tube for the plate power supply in the preamp stage. Moreover, the amplifier features a specialized single-ended Class A tuning, designed by Cayin engineers for the ultimate performance of the NOS vacuum tubes. The all-new Cayin HA-2A presents you with a balanced, mellow, warm sound signature with rich harmonic characteristics with its meticulous design strategy and quality components.
METICULOUSLY ENGINEERED CIRCUIT DESIGN FOR DETAILED SOUND DELIVERY
Cayin ensures reference-grade craftsmanship in the internal design of the HA-2A by utilizing point-to-point wiring techniques in vacuum tube amplifiers. The detailed wiring process is done by experienced professionals who meticulously hand-wire the entire circuit to provide the shortest signal path and meticulous attention to detail. Every aspect of the internal circuits, from tube connections to resistors and capacitors, undergoes soldering and careful routing using premium internal wirings. This approach aims to enhance signal transmission speed and minimize interference throughout the circuit. To elevate your listening pleasure with the Cayin HA-2A, it incorporates a 60-second start-up delay circuit that safeguards the amplification circuit. This circuit reduces the pop noise when switched on and guarantees the vacuum tubes reach optimal warmth before playback, enhancing your overall listening experience.
EQUIPPED WITH HIGH-QUALITY POWER TRANSFORMERS FOR DISTORTION FREE SOUND
The Cayin HA-2A tube amplifier showcases Cayin's expertise in crafting tube amplifiers with their in-house developed wide-bandwidth transformers. The transformers, crucial for tube amps, are custom-made with high-quality materials and precise winding techniques. They reduce interference and deliver efficient power with minimal distortion. The output and power transformers are meticulously designed with high-quality Z11 EI-type iron cores from Japan and Cayin's precise hand-winding process. The transformers are housed in fully enclosed metal casings with resin sealing, ensuring ample power delivery, high efficiency and exceptionally low distortion due to reduced magnetic field interference. The Cayin HA-2A also equips a multi-stage filtering system and a low-noise FET voltage regulating circuit, combined with the specially developed Z11 core EI output transformer, to achieve perfect headphone load driving.
EASY CONNECTIVITY WITH DUAL HEADPHONE OUTPUT AND DUAL ANALOG INPUTS
The Cayin HA-2A features optimized headphone outputs, allowing you the freedom to listen to music with your preferred headphones. It equips a 4-pin XLR connection, designed for high-output demanding headphones. The 4.4mm connection is provided for easy connectivity with high-sensitivity portable headphones. The Cayin HA-2A offers high output power of up to 1000mW per channel and three impedance-matched headphone output settings: High (251Ω ~ 600Ω), Mid (65Ω ~ 250Ω), and Low (8Ω ~ 6482Ω). These settings result in natural sound reproduction with well-defined bass in your music. Moreover, the HA-2A features two analog inputs (XLR and RCA), making it compatible with CD players, DACs, portable players and other audio devices with line-level output.
SHOWCASING A UNIFIED DESIGN AESTHETICS WITH OTHER CAYIN DEVICES
The exquisite design of the Cayin HA-2A showcases aesthetics, aligning with Cayin's signature design language witnessed in the Cayin 888 3-piece suit. This design resemblance allows for a unified setup look with other Cayin devices, such as the iDAP-8 Digital Streamer and iDAC-8 DAC. They form a compact desktop system that delivers exceptional audio performance while maintaining a symmetrical visual appeal. Despite its compact and lightweight construction, its dual VU meters with white backlighting add a retro, dynamic flair that catches the eye. The chassis undergoes a meticulous 14-step metal finishing and painting process to achieve a bright, uniform colour with detailed contours complemented by a high-density molecular protective film to maintain its premium shape over time. Above these, the Cayin HA-2A features a vacuum tube protection cage to safeguard the tubes, reduce interference and prevent accidental contact with the heated tubes during operation. It also features an anti-vibration and anti-interference reinforced chassis base to minimize microphonic ringing impacts, vibrations and external interference on the vacuum tubes.
| INPUT CONNECTOR | XLR X2, RCA x2 |
| VAC | Output: Amperex 17BF11 X2 Driver: Amperex ECF82/6U8 X2 Rectifier: RCA 17AX4GT |
| DIMENSION | 270mm x 247mm x 143mm |
| WEIGHT | 10kg |
| FUSE | ~220V-240V: T500mAL250V ~100V-120V: T1AL250V |
| OUTPUT TUBE FUSE | T125mAE250V |
| POWER CONSUMPTION | 60W |
| WORKING CONDITION | Temp: 0°C~40°C; Humidity: 20% - 80% |
| STORAGE CONDITION | Temp: -20°C~70°C; Humidity: 20% - 90% |
| RATED OUTPUT* | 4-Pin XLR (BAL): 800mW (L); 900mW (M); 1000mW (H) 4.4mm (BAL): 200mW (L); 300mW (M); 270mW (H) 6.35mm (SE): 330mW (L); 550mW (M); 750mW (H) |
| FREQUENCY RANGE | 20Hz~50kHz ±3dB |
| TH+D | 0.2% (1kHz, 100mW) |
| SENSITIVITY | 450mV-600mW |
| S/N RATIO | 100dB (A-Weighted) |
| HEADPHONE IMPEDANCE | L: 8~64Ω; M: 65~250Ω; H: 251~600Ω |
| HEADPHONE CONNECTOR | 4pin XLR (Balanced), 4.4mm (Balanced), 6.35mm (Single-Ended) |
| VACUUM TUBE | Substitution |
| AMPEREX 17BF11 | 17BF11A |
| AMPEREX ECF82/6U8 | ECF82, 6UG |
| RCA 17AX4GT | 17AX4GTA |
| BOX CONTENTS | 1. Cayin HA-2A |
OTHER DETAILS
| GENERIC NAME | Headphone Amplifier |
| IMPORTER DETAILS | Importers Name: Ferrari Video Address: 63/18, 1st Main Road, Gandhi Nagar, Chennai - 600020 Contact No: 044-24420733 |
| NET QUANTITY | 1 |
| MANUFACTURER DETAILS | Name: Zhuhai Spark Electronic Equipment Co.,Ltd. Address: No.9 Lianfa Road Shuanglin Zone Liangang Industrial Park Zhuhai City Guangdong Province China, Postcode: 519045 |
| PACKAGE CONTENTS | Cayin HA-2A |
|
User Manual | HA-2A
Desktop Tube Amplifier
|
Don't sweat it, this
Cayin - HA-2A comes with a 1 Year warranty
from Cayin that covers manufacturing defects.
All products featured on Headphone Zone are backed by an original manufacturer's warranty.
Read more about Cayin's warranty in India.
Have a question? Get in touch!
Check out the most common questions our customers ask. Still have questions? Talk to our Headphone Gurus.
What is the warranty period on the Cayin HA-2A and how do I claim warranty?
Does the Cayin HA-2A support balanced headphone connections?
Can the Cayin HA-2A drive high-impedance headphones?
How does the Cayin HA-2A protect tubes and minimize interference?
What finishing process does the Cayin HA-2A chassis undergo?
Which vacuum tubes are used in the Cayin HA-2A?
This product has no reviews yet.
