FiiO - BTR7 (Unboxed)
Portable Bluetooth DAC & AmpGET 18% GST INPUT
One of the reasons headphones and earphones in India are more expensive than overseas is because of the Goods & Services Tax in India.
Don't let the GST input go to waste especially if you can avail an offset.
All products sold on Headphone Zone carry a GST compliant invoice and all products sold include an 18% GST.
Simply enter your GST number at the time of checkout.
Browse EMI Plans
Low Cost EMI Options through Credit Cards
ICICI Bank
3
Low Cost EMI
₹ 4,791
₹ 375
₹ 302
6
Low Cost EMI
₹ 2,443
₹ 660
₹ 534
9
15.99%
₹ 1,661
₹ 949
12
15.99%
₹ 1,270
₹ 1,242
18
15.99%
₹ 880
₹ 1,839
24
15.99%
₹ 685
₹ 2,450
HDFC Bank
3
Low Cost EMI
₹ 4,791
₹ 375
₹ 302
6
Low Cost EMI
₹ 2,443
₹ 661
₹ 534
9
16%
₹ 1,661
₹ 950
12
16%
₹ 1,270
₹ 1,243
18
16%
₹ 880
₹ 1,840
24
16%
₹ 685
₹ 2,451
SBI Bank
3
Low Cost EMI
₹ 4,795
₹ 387
₹ 311
6
Low Cost EMI
₹ 2,436
₹ 619
₹ 498
9
15%
₹ 1,654
₹ 889
12
15%
₹ 1,264
₹ 1,163
18
16%
₹ 880
₹ 1,840
24
16%
₹ 685
₹ 2,451
Axis Bank
3
Low Cost EMI
₹ 4,791
₹ 375
₹ 302
6
Low Cost EMI
₹ 2,443
₹ 661
₹ 534
9
16%
₹ 1,661
₹ 950
12
16%
₹ 1,257
₹ 1,084
18
16%
₹ 880
₹ 1,840
24
16%
₹ 685
₹ 2,451
Other EMI Options through Credit Cards
Citi Bank
3
14%
₹ 4,776
₹ 328
6
14%
₹ 2,429
₹ 577
9
16%
₹ 1,661
₹ 950
12
16%
₹ 1,270
₹ 1,243
18
16%
₹ 880
₹ 1,840
24
16%
₹ 685
₹ 2,451
Kotak Mahindra Bank
Tenure
Interest%
Installment
Interest
3
16%
₹ 4,791
₹ 375
6
16%
₹ 2,443
₹ 661
9
16%
₹ 1,661
₹ 950
12
16%
₹ 1,270
₹ 1,243
18
16%
₹ 880
₹ 1,840
24
16%
₹ 685
₹ 2,451
RBL Bank
3
13%
₹ 4,768
₹ 304
6
14%
₹ 2,429
₹ 577
9
15%
₹ 1,654
₹ 889
12
15%
₹ 1,264
₹ 1,163
18
15%
₹ 873
₹ 1,721
24
15%
₹ 679
₹ 2,291
Standard Chartered Bank
3
13%
₹ 4,768
₹ 304
6
13%
₹ 2,422
₹ 536
9
14%
₹ 1,648
₹ 829
12
14%
₹ 1,257
₹ 1,084
INDUSIND Bank
3
14%
₹ 4,776
₹ 328
6
14%
₹ 2,429
₹ 577
9
15%
₹ 1,654
₹ 889
12
15%
₹ 1,264
₹ 1,163
18
15%
₹ 873
₹ 1,721
24
15%
₹ 679
₹ 2,291
HSBC Bank
3
12.50%
₹ 4,764
₹ 293
6
12.50%
₹ 2,419
₹ 515
9
13.50%
₹ 1,644
₹ 799
12
13.50%
₹ 1,254
₹ 1,045
18
13.50%
₹ 863
₹ 1,544
YES Bank
3
13%
₹ 4,768
₹ 304
6
13%
₹ 2,422
₹ 536
9
14%
₹ 1,648
₹ 829
12
14%
₹ 1,257
₹ 1,084
18
15%
₹ 873
₹ 1,721
24
15%
₹ 679
₹ 2,291
Bank of Baroda
3
13%
₹ 4,768
₹ 304
6
14%
₹ 2,429
₹ 577
9
14%
₹ 1,648
₹ 829
12
15%
₹ 1,264
₹ 1,163
18
15%
₹ 873
₹ 1,721
24
16%
₹ 685
₹ 2,451
American Express
3
14%
₹ 4,776
₹ 328
6
14%
₹ 2,429
₹ 577
9
14%
₹ 1,648
₹ 829
12
14%
₹ 1,257
₹ 1,084
18
15%
₹ 873
₹ 1,721
24
15%
₹ 679
₹ 2,291
Talk to a Headphone Guru
Club Audiophile
Club Audiophile
Join Club Audiophile to begin your pursuit of great sound. Earn points and save on every purchase.
READ MORE
Chi-Fi
Excellence
Ideal for Audiophiles
These DAC & Amps are designed for discerning music lovers. If audio quality is important to you, a set of DAC & Amps like these would be ideal.
You can expect these DAC & Amps to present you with a refined listening experience. The audio quality exhibited by these DAC & Amps is a beautiful mix of musicality, technical brilliance and high precision.
These DAC & Amps deliver a spacious & open soundstage that makes you feel you are sitting at a live concert. Experience the magic and delve into pure sonic tranquility!
Ideal for Taking Calls
Sometimes, DAC & Amps embed a built-in microphone so you can make calls while on the go. If you are someone who is working from home and needs to do a conference call or a video call, you'll benefit from a DAC & Amp with a microphone.
You can expect these DAC & Amps to offer brilliant microphone quality and clear audio without connecting additional peripherals. Just plug them in, and express yourself!
Best Suited for Portable Use
For those who value them, being able to carry their favourite DAC & Amp equipment when they are on the move is invaluable.
These DAC & Amps offer the ultimate portability experience without sacrificing sound quality. If you’re someone who appreciates cutting-edge engineering, quality sound and portability, then look no further.
Designed to be trusty companions, these DAC & Amps are cleverly engineered with the latest technology to offer the ultimate combination of portability & Hi-Fidelity!
Bluetooth with LDAC, aptX HD
aptX Adaptive, aptx LL
Battery Life
DAC & Amps with built-in batteries offer easy operation without the annoyance of wires.
Battery life is a measurement of battery performance. It is the amount of time your DAC & Amps will still have enough juice to power your headphones or IEMs. It can be summed up; as how long a battery will last before your DAC & Amps need to be recharged.
Nothing interferes with your music, thanks to the high-performance and long-lasting battery. No interruptions, just pure sonic bliss!
4.4mm
Balanced Output
ESS Sabre ES9219C
Dual DAC Chip

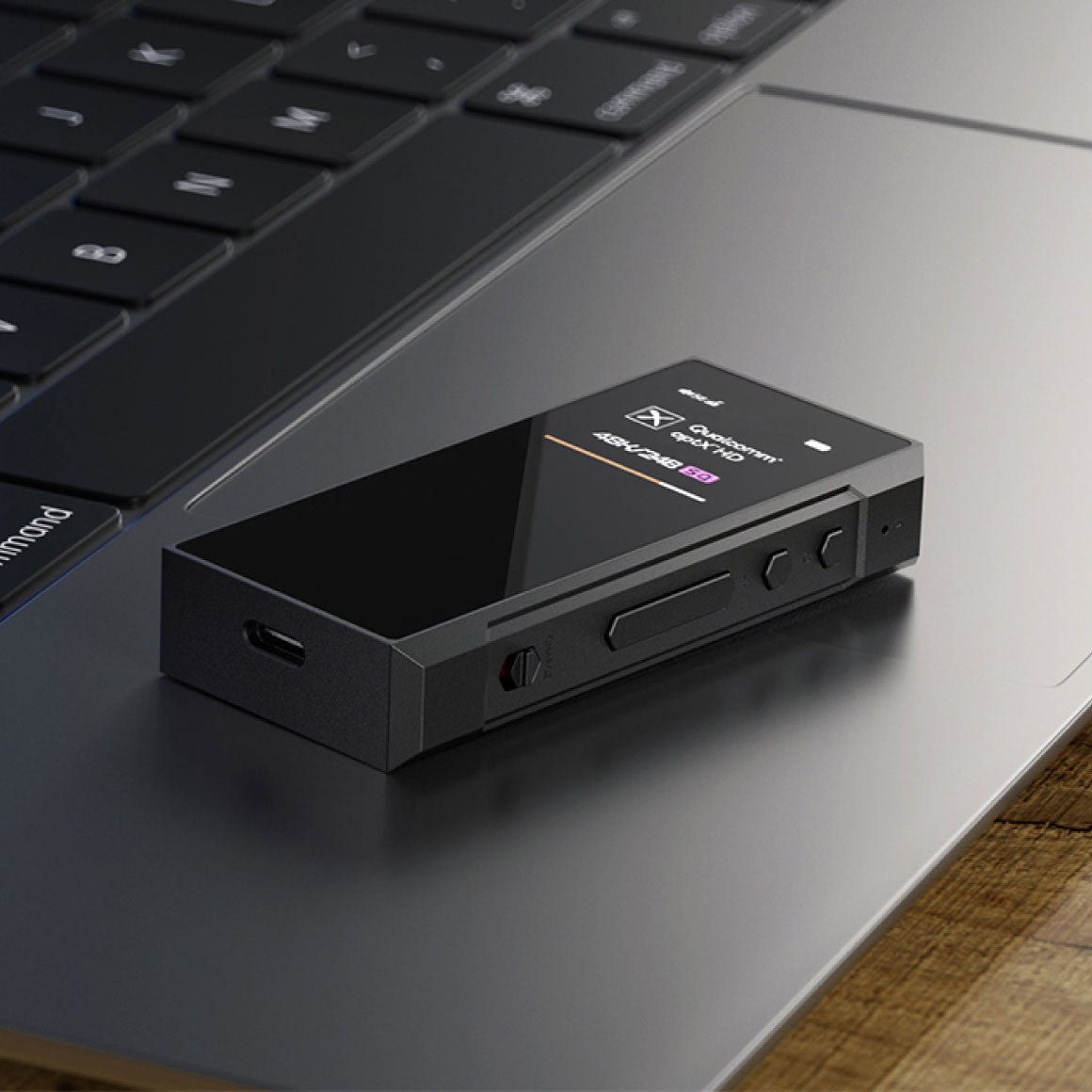

Pair with Laptop via USB
A majority of people use a laptop as the primary source device to listen to music or watch movies. Since the laptop is an essential part of the audio chain there are headphones and devices designed to work a laptop or computer system flawlessly. With the availability of USB connectivity, it becomes easier to pair various devices like an Amp, DAC or even headphones without worrying about drivers or any additional piece of software.
Upto 320mW @32Ω
Power Output
Battery Capacity of
880mAh
UNBOXED
Headphone Zone Certified Unboxed Units
Unboxed units are as good as new products with the product's packaging being unavailable. These products give you the same satisfaction of new products - but at down-to-earth prices. Usually, the product's packaging may have gotten damaged in transit. Customers use a product once or twice and then return it with opened up packaging.
Customer Returns
Returned headphones are fully functional products that have left the warehouse and therefore can no longer be sold as new as their packaging has been opened. The product may have been used once or twice by the customer who returned it.
Transit Damages
Sometimes we receive headphones in damaged packaging due to shipping accidents. These are brand new headphones with cosmetic flaws on the packaging.
Save Upto 15%
Since you won't get the original packaging, we give you a good discount compared to a new headphone.
Professionally Inspected
A thorough inspection means you receive a 100% working headphone with no sound output issues.
Original Warranty
All unboxed headphones carry the same warranty period as a brand new headphone would.
Unbiased Customer Service
We have the same Headphone Zone customer support experience for Unboxed Products or new products.
Unchanged Replacement Policy
Received a defective Unboxed unit? Return it under our Replacement Policy.
All Original Accessories
The unboxed headphones itself comes with all original accessories.
DESCRIPTION

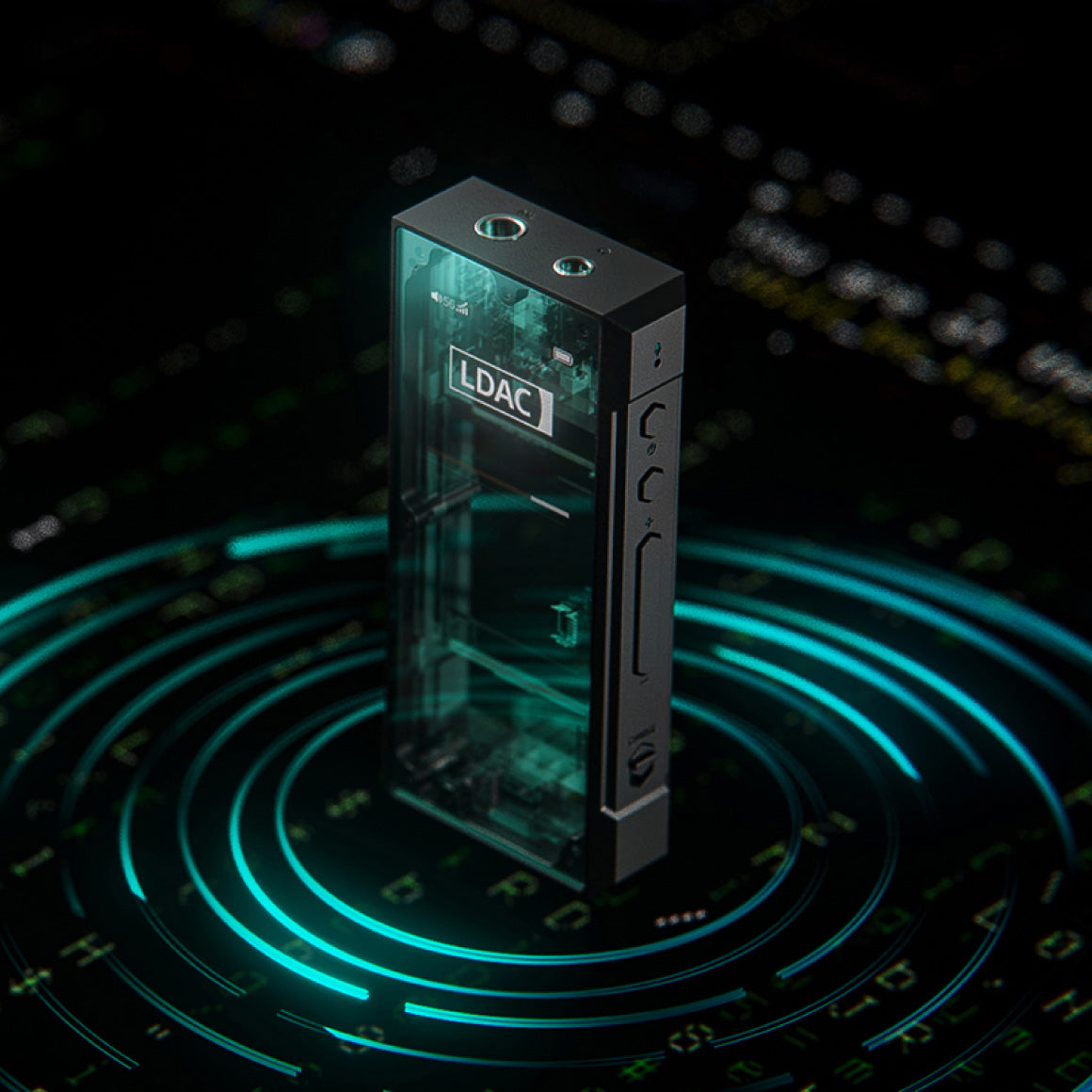

INTRODUCING THE MOST ANTICIPATED PORTABLE DAC & AMPLIFIER - THE FIIO BTR7
FiiO was founded in 2007 and is at the pinnacle of achievement in terms of designing portable audio devices. The brand name FiiO is composed of Fi(fidelity from HiFi) and iO(number 1 & 0), representing the feeling and convenient life that digital brings to life. The engineers at FiiO have a positive and innovative spirit as thriving as spring. FiiO achieved great success and critical acclaim with their previous Bluetooth amplifiers like the BTR5 and BTR3. The new BTR7, which FiiO has introduced, shines in all its splendour. Although the BTR7 is loaded with features, its outstanding sound quality is the most crucial element of its design.
SAY BYE-BYE NOISE AND HELLO TO CLEAN MUSIC WITH DUAL ESS SABRE DAC CHIP AND DUAL THX AMP CHIP
FiiO BTR7 hosts dual ESS Sabre DAC chipsets; It houses two ES9219C DAC chips from ESS Sabre Technologies. The BTR7 contains a twin, high-performance ES9219C DAC processor, a Low Pass Filter, and two THX AAA-28 amplifiers. These components make up the three tiers of HiFi audio architecture. THX AAA™ is the world’s most linear amplifier technology developed for delivering the cleanest level of audio reproduction possible. THX Achromatic Audio Amplifier (THX AAA™) ensures the ultimate no-compromise headphone audio experience by supplying the world’s highest fidelity audio with infinitesimally low-level noise, distortion and power consumption. The BTR7 is the first portable Bluetooth amplifier to utilise two of the THX AAA-28 amplifiers. The materials used to design the audio circuitry are precise, and so is the power supply.
EXPERIENCE A UNIQUE PERSPECTIVE ON THE POWER OF SOUND WITH 8X MQA SUPPORT
The FiiO BTR7 uses separate analogue and digital sections, and a total of 13 LDOs are incorporated for voltage regulation garnering clean and massive power. LDO, which stands for Low Dropout, can operate at a low potential difference between input and output. Sometimes, it's referred to as a saturation or low-loss linear voltage regulator. The engineers at FiiO had a "Eureka" moment when they realised that they could integrate four THX AAA amplifier channels into a small chassis. The BTR7 hosts a balanced audio design, which produces 30% more balanced power output and 88% more single-ended power output than earlier models. Experience a pure sonic voyage with the BTR7, which can capture subtle nuances and every minute detail and dynamic in your music. MQA technology is built into the BTR7, allowing you to replay and stream MQA audio files. MQA (Master Quality Authenticated) 8X rendering captures 100% of the original studio performance.
FEATURING QUALCOMM AND XMOS CHIPS FOR EXCEPTIONAL BLUETOOTH RECEPTION AND WIRED DECODING
FiiO has a reputation for building some of the most elegant and high-performing Bluetooth amplifiers. BTR7 follows the same suit and comes equipped with the Qualcomm QCC5124 Bluetooth chip and XMOS XUF208 USB receiver chips. The XMOS XUF208 is capable of decoding DSD256 and PCM 384kHz files effortlessly for a high-fidelity listening experience. The Qualcomm QCC5124 Bluetooth chip, which has a dual DSP and dual-core CPU architecture and supports Hi-Res formats like LDAC, aptX HD, and aptX Adaptive, as well as more widely used codecs like AAC and SBC, is also included in the FiiO BTR7. It takes Bluetooth playback to new heights in terms of sound quality and ease of use. The revolutionary seamless metal frame antenna design used in the BTR7 by FiiO ensures that Bluetooth connections are more stable and interference-free. The BTR7 can also be connected to your phone as a "dongle," serving as a wired decoder and headphone amplifier. To enter and exit "dongle" mode, only click the "Charge" button once. The BTR7 provides brain-melting sound quality and generous power output without draining the battery of the connected device.

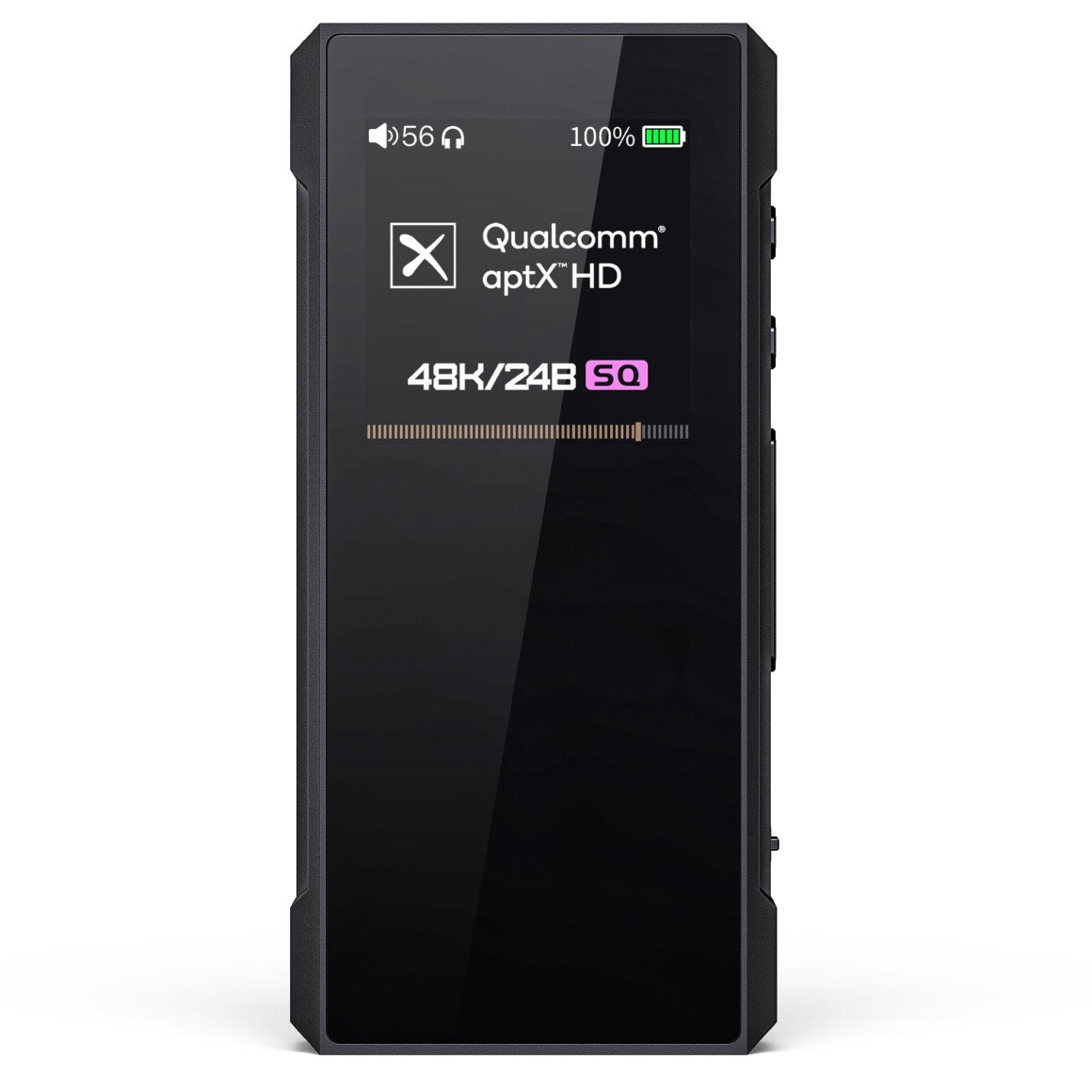

RADIANT AND SLEEK IPS COLOUR DISPLAY FUSED WITH WHOPPING 880 MAH BATTERY
Another example of the BTR7's genius is the display, which has a brand-new, vibrant UI that provides data like volume, power, gain, and audio format in an understandable manner. As a multifunctional Bluetooth amplifier, the BTR7 needs plenty of battery power when used throughout the day. The BTR7 has a whopping 880 mAh battery to support you all through the day. You will be left with enough juice in the device for long listening sessions. The BTR7 also supports Qi wireless charging which takes ≤3 hours to get it fully charged, and charging stops when the battery is full. A full charge of the BTR7 may be achieved in roughly 1.5 hours using USB cable charging, which is effective and quick. The BTR7 has a high-performance lithium polymer battery with a capacity of 880mAh. It delivers about 9 hours of playback with (ACC format, low gain,3.5mm headphone out) and about 8.5 hours (LDAC format, low gain,3.5mm headphone out). With a balanced connection, BTR7 provides about 8 hours (ACC format, low gain,4.4mm headphone out) and about 7.5 hours (LDAC format, low gain,4.4mm headphone out).
NOTE : It is advised to use DC 5V 2A to charge your BTR7.
EXPERIENCE IMPECCABLE OPERABILITY WITH DEDICATED APP, CAR MODE AND THOUGHTFUL INPUT-OUTPUT CAPABILITIES
The BTR7 not only supports in-line controls but also supports control done via a companion app, allowing you to operate it without even taking out the device itself! The equaliser functionality in the companion app allows you to adjust your music to your tastes from your phone/device. There is a car mode functionality, which will switch on and off the BTR7 when you power on the car providing easy operability. The Bluetooth and system firmware can get OTA (Over the Air) updates through the app. Numerous other functionalities can be controlled using the companion app. For example, you can change the volume by holding the volume rocker or skipping songs. The BTR7 includes both single-ended and balanced outputs, 4.4mm pentaconn (balanced) and 3.5mm (single-ended) outputs for compatibility with your collection of IEMs and headphones.
NOTE : If the USB firmware is stable there is no need to update it, but updates can be done via a USB cable if necessary.

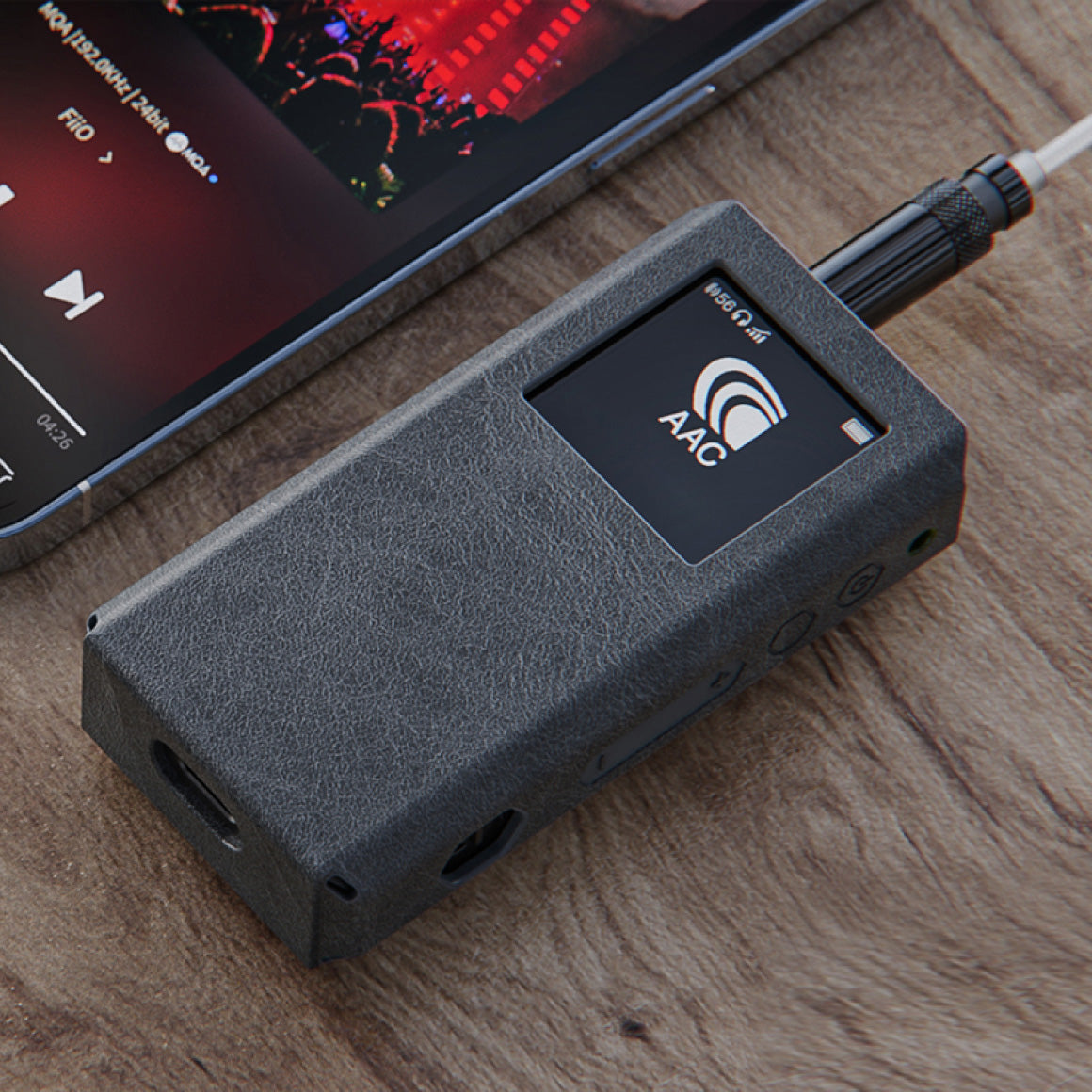

EXCELLENT BUILD QUALITY WITH LAMINATED ALUMINIUM ALLOY BODY AND BUNDLED WITH ACCESSORIES
The BTR7 features the seventh-generation mecha design language, giving its riveting looks. Its comfort and ergonomics optimised laminated aluminium alloy body adds to BTR7's elegance. The BTR7 comes with a carefully chosen Bejirog leatherette case, which was processed and can present different textures under different lights. The BTR7's comprehensive UI information is displayed through precisely carved craftsmanship. Additionally, hot pressing was used to handle the side buttons with concave-convex identifications, resulting in more convenient and comfortable use. The BTR7 is bundled with a wide array of accessories like a type-C USB cable, type-C to the type-C data cable, and a fully functional leatherette case for protection.
NOTE : The BTR7 standard edition includes a type-C to a type-C adapter cable, and the apple edition includes two adapter cables - type-C to type-C and lightning to type-C.
SPECS
| MODEL | BTR7 |
| COLOR AVAILABLE | Black |
| WEIGHT | About 68g |
| DIMENSIONS | About 39.6 x 83.6 x 14.6mm |
| AUDIO INPUT | Bluetooth connection (Bluetooth 5.1 supported) |
| SUPPORTED AUDIO FORMATS | AAC/SBC/aptX/aptX LL/aptX adaptive/aptX HD/LDAC |
| DRIVER-FREE MODE (SWITCH MODE) | Supported |
| IN-VEHICLE MODE | Supported |
| MIC FUNCTION | Yes (Only supports voice calls under Bluetooth mode. Built-in omnidirectional microphone. Only supports the microphone of the CTIA standard headphones.） |
| SE HEADPHONE OUTPUT | 3.5mm stereo port |
| USB PORT | TYPE C (USB2.0) |

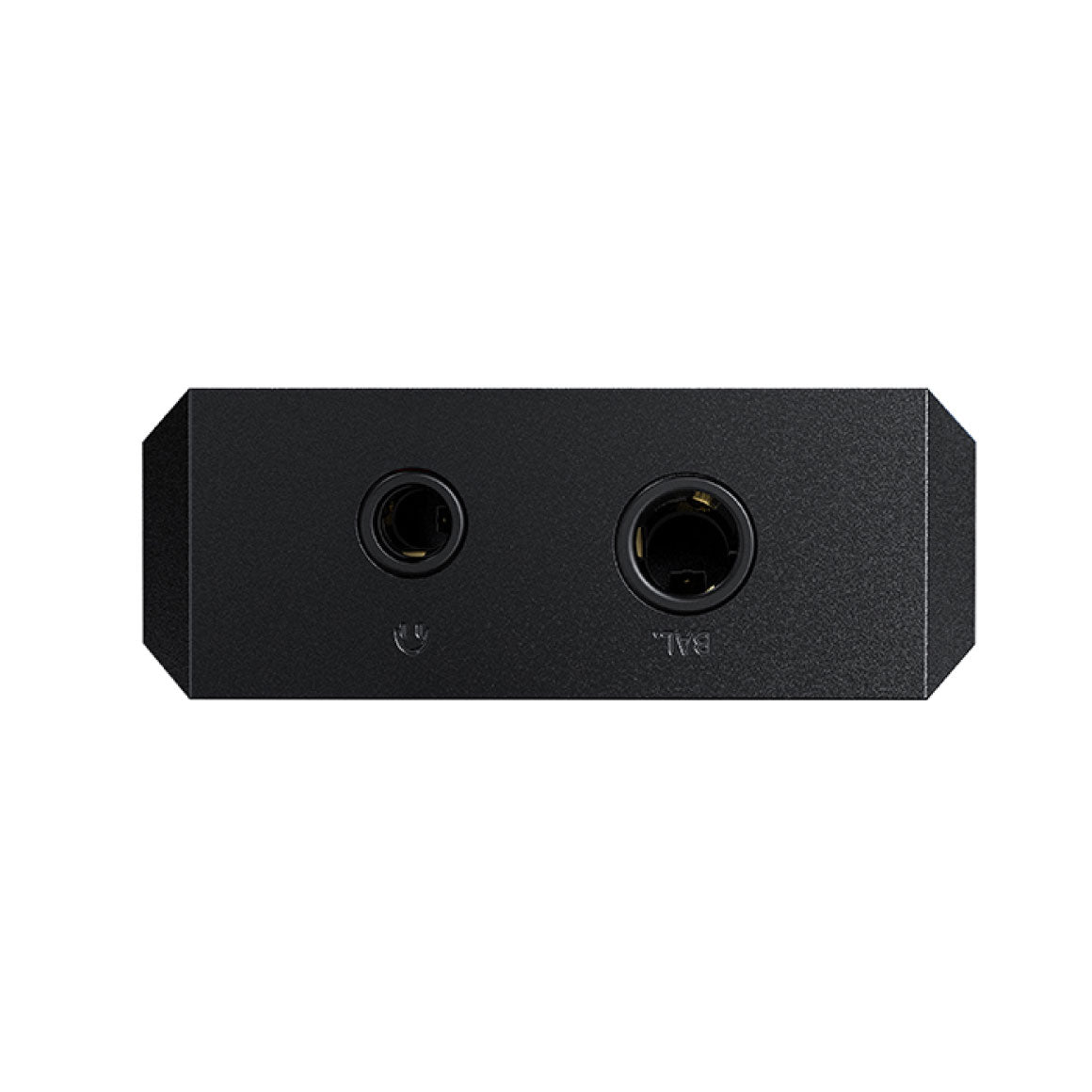

| BALANCED HEADPHONE OUTPUT | 4.4mm port |
| RECOMMENDED HEADPHONE IMPEDANCE | 16~100Ω (PO） 16~150Ω (BAL） |
| CHANNEL BALANCE | ≤0.2dB |
| GAIN | Supported (High/Low) |
| VOLUME CONTROL | Side buttons |
| STATUS INDICATION | Codec, charging status, battery level, volume, sampling rate, menu |
| APP INTERCONNECTION | Supports setting through App |
| BLUETOOTH CODES DISPLAY | Supported |
| CHARGING TIME | Wired charging time: ≤1.5 hours
Wireless charging time: ≤3 hours |
| POWER INPUT | Recommend DC 5V 2A |
| BATTERY CAPACITY | 880mAh |
| BATTERY | About 9 hours (ACC format, low gain, 3.5mm headphone out)
About 8.5 hours (LDAC format, low gain, 3.5mm headphone out) About 8 hours (ACC format, low gain, 4.4mm headphone out) About 7.5 hours (LDAC format, low gain, 4.4mm headphone out) |
| OUTPUT POWER | PO about 165mW (16Ω loaded）
PO about 160mW (32Ω loaded） PO about 18mW (300Ω loaded） BAL about 235mW (16Ω loaded） BAL about 320mW (32Ω loaded） BAL about 40mW (300Ω loaded） |
| FREQUENCY RESPONSE | PO 20Hz~50kHz：±＜0.5dB
PO 20Hz~20KHz：±＜0.1dB BAL 20Hz~50kHz：±＜0.5dB BAL 20Hz~20KHz：±＜0.1dB |
| THD+N | ＜0.00055%(1kHz/-6dB@32Ω)
＜0.00048%(1kHz/-2dB@32Ω) |
| OUTPUT IMPEDANCE | PO≤＜1.2Ω（32Ω loaded）
BAL＜2.8Ω（32Ω loaded |
| NOISE FLOOR | PO＜3uV (dbA）
BAL＜5.5uV (dbA） |
| AMPLITUDE | PO: 2.3Vrms BAL: 3.2Vrms |
| SNR | PO≥≥118dB (dbA)(32Ω dbA)
BAL≥115dB (dbA)(32Ω dbA) |
| CROSSTALK | PO≥75dB
BAL≥107dB |
| SAMPLING RATE SUPPORTED UPTO | 384kHz/32bit (USB DAC） |
| DSD SUPPORT (USB IN) | 384KHz 32bit/ DSD256 |
| HARDWARE SCHEME | DAC: ES9219C *2, USB: XMOS XU208,
AMP: THX_AAA_28*2 |
| WHAT YOU WILL GET (STANDARD EDITION) | 1. FiiO BTR7 |
| 2. Type-C USB cable * 1 | |
| 3. Type-C to Type-C data cable*1 | |
| 4. Leatherette case * 1 | |
| 5. Manual | |
| 6. Warranty Card | |
| WHAT YOU WILL NOT GET (STANDARD EDITION) | 1. Original packaging of FiiO KA1 (Standard Edition) |
| WHAT YOU WILL GET (APPLE EDITION) | 1. FiiO BTR7 |
| 2. Type-C USB cable * 1 | |
| 3. Type-C to Type-C data cable*1 | |
| 4. Lightning to Type-C*1 | |
| 5. Leatherette case * 1 | |
| 6. Manual | |
| 7. Warranty Card | |
| WHAT YOU WILL NOT GET (APPLE EDITION) | 1. Original Packaging Of FiiO BTR7 |
| GENERIC NAME | Headphone Amplifier |
| COUNTRY OF ORIGIN | China |
| IMPORTER DETAILS | Importers Name: Ferrari Video Address: 63/18, 1st Main Road, Gandhi Nagar, Chennai - 600020 Contact No: 044-24420733 |
| NET QUANTITY | 1 |
Headphone Zone Certified Unboxed Units
Unboxed units are as good as new products with the product's packaging being unavailable. These products give you the same satisfaction of new products - but at down-to-earth prices. Usually, the product's packaging may have gotten damaged in transit. Customers use a product once or twice and then return it with opened up packaging.
Customer Returns
Returned headphones are fully functional products that have left the warehouse and therefore can no longer be sold as new as their packaging has been opened. The product may have been used once or twice by the customer who returned it.
Transit Damages
Sometimes we receive headphones in damaged packaging due to shipping accidents. These are brand new headphones with cosmetic flaws on the packaging.
Save Upto 15%
Since you won't get the original packaging, we give you a good discount compared to a new headphone.
Professionally Inspected
A thorough inspection means you receive a 100% working headphone with no sound output issues.
Original Warranty
All unboxed headphones carry the same warranty period as a brand new headphone would.
Unbiased Customer Service
We have the same Headphone Zone customer support experience for Unboxed Products or new products.
Unchanged Replacement Policy
Received a defective Unboxed unit? Return it under our Replacement Policy.
All Original Accessories
The unboxed headphones itself comes with all original accessories.
INTRODUCING THE MOST ANTICIPATED PORTABLE DAC & AMPLIFIER - THE FIIO BTR7
FiiO was founded in 2007 and is at the pinnacle of achievement in terms of designing portable audio devices. The brand name FiiO is composed of Fi(fidelity from HiFi) and iO(number 1 & 0), representing the feeling and convenient life that digital brings to life. The engineers at FiiO have a positive and innovative spirit as thriving as spring. FiiO achieved great success and critical acclaim with their previous Bluetooth amplifiers like the BTR5 and BTR3. The new BTR7, which FiiO has introduced, shines in all its splendour. Although the BTR7 is loaded with features, its outstanding sound quality is the most crucial element of its design.
SAY BYE-BYE NOISE AND HELLO TO CLEAN MUSIC WITH DUAL ESS SABRE DAC CHIP AND DUAL THX AMP CHIP
FiiO BTR7 hosts dual ESS Sabre DAC chipsets; It houses two ES9219C DAC chips from ESS Sabre Technologies. The BTR7 contains a twin, high-performance ES9219C DAC processor, a Low Pass Filter, and two THX AAA-28 amplifiers. These components make up the three tiers of HiFi audio architecture. THX AAA™ is the world’s most linear amplifier technology developed for delivering the cleanest level of audio reproduction possible. THX Achromatic Audio Amplifier (THX AAA™) ensures the ultimate no-compromise headphone audio experience by supplying the world’s highest fidelity audio with infinitesimally low-level noise, distortion and power consumption. The BTR7 is the first portable Bluetooth amplifier to utilise two of the THX AAA-28 amplifiers. The materials used to design the audio circuitry are precise, and so is the power supply.
EXPERIENCE A UNIQUE PERSPECTIVE ON THE POWER OF SOUND WITH 8X MQA SUPPORT
The FiiO BTR7 uses separate analogue and digital sections, and a total of 13 LDOs are incorporated for voltage regulation garnering clean and massive power. LDO, which stands for Low Dropout, can operate at a low potential difference between input and output. Sometimes, it's referred to as a saturation or low-loss linear voltage regulator. The engineers at FiiO had a "Eureka" moment when they realised that they could integrate four THX AAA amplifier channels into a small chassis. The BTR7 hosts a balanced audio design, which produces 30% more balanced power output and 88% more single-ended power output than earlier models. Experience a pure sonic voyage with the BTR7, which can capture subtle nuances and every minute detail and dynamic in your music. MQA technology is built into the BTR7, allowing you to replay and stream MQA audio files. MQA (Master Quality Authenticated) 8X rendering captures 100% of the original studio performance.
FEATURING QUALCOMM AND XMOS CHIPS FOR EXCEPTIONAL BLUETOOTH RECEPTION AND WIRED DECODING
FiiO has a reputation for building some of the most elegant and high-performing Bluetooth amplifiers. BTR7 follows the same suit and comes equipped with the Qualcomm QCC5124 Bluetooth chip and XMOS XUF208 USB receiver chips. The XMOS XUF208 is capable of decoding DSD256 and PCM 384kHz files effortlessly for a high-fidelity listening experience. The Qualcomm QCC5124 Bluetooth chip, which has a dual DSP and dual-core CPU architecture and supports Hi-Res formats like LDAC, aptX HD, and aptX Adaptive, as well as more widely used codecs like AAC and SBC, is also included in the FiiO BTR7. It takes Bluetooth playback to new heights in terms of sound quality and ease of use. The revolutionary seamless metal frame antenna design used in the BTR7 by FiiO ensures that Bluetooth connections are more stable and interference-free. The BTR7 can also be connected to your phone as a "dongle," serving as a wired decoder and headphone amplifier. To enter and exit "dongle" mode, only click the "Charge" button once. The BTR7 provides brain-melting sound quality and generous power output without draining the battery of the connected device.
RADIANT AND SLEEK IPS COLOUR DISPLAY FUSED WITH WHOPPING 880 MAH BATTERY
Another example of the BTR7's genius is the display, which has a brand-new, vibrant UI that provides data like volume, power, gain, and audio format in an understandable manner. As a multifunctional Bluetooth amplifier, the BTR7 needs plenty of battery power when used throughout the day. The BTR7 has a whopping 880 mAh battery to support you all through the day. You will be left with enough juice in the device for long listening sessions. The BTR7 also supports Qi wireless charging which takes ≤3 hours to get it fully charged, and charging stops when the battery is full. A full charge of the BTR7 may be achieved in roughly 1.5 hours using USB cable charging, which is effective and quick. The BTR7 has a high-performance lithium polymer battery with a capacity of 880mAh. It delivers about 9 hours of playback with (ACC format, low gain,3.5mm headphone out) and about 8.5 hours (LDAC format, low gain,3.5mm headphone out). With a balanced connection, BTR7 provides about 8 hours (ACC format, low gain,4.4mm headphone out) and about 7.5 hours (LDAC format, low gain,4.4mm headphone out).
NOTE : It is advised to use DC 5V 2A to charge your BTR7.
EXPERIENCE IMPECCABLE OPERABILITY WITH DEDICATED APP, CAR MODE AND THOUGHTFUL INPUT-OUTPUT CAPABILITIES
The BTR7 not only supports in-line controls but also supports control done via a companion app, allowing you to operate it without even taking out the device itself! The equaliser functionality in the companion app allows you to adjust your music to your tastes from your phone/device. There is a car mode functionality, which will switch on and off the BTR7 when you power on the car providing easy operability. The Bluetooth and system firmware can get OTA (Over the Air) updates through the app. Numerous other functionalities can be controlled using the companion app. For example, you can change the volume by holding the volume rocker or skipping songs. The BTR7 includes both single-ended and balanced outputs, 4.4mm pentaconn (balanced) and 3.5mm (single-ended) outputs for compatibility with your collection of IEMs and headphones.
NOTE : If the USB firmware is stable there is no need to update it, but updates can be done via a USB cable if necessary.
EXCELLENT BUILD QUALITY WITH LAMINATED ALUMINIUM ALLOY BODY AND BUNDLED WITH ACCESSORIES

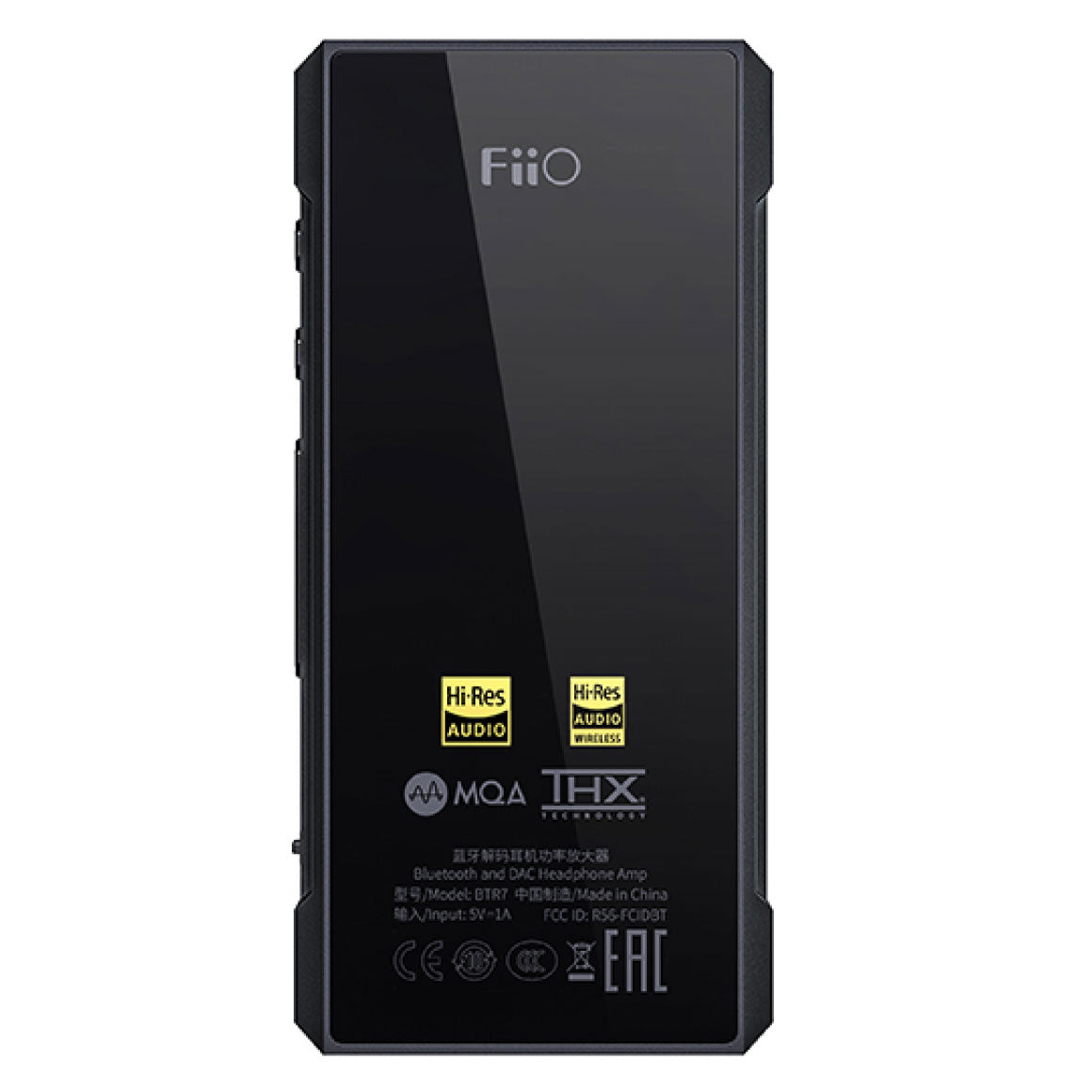

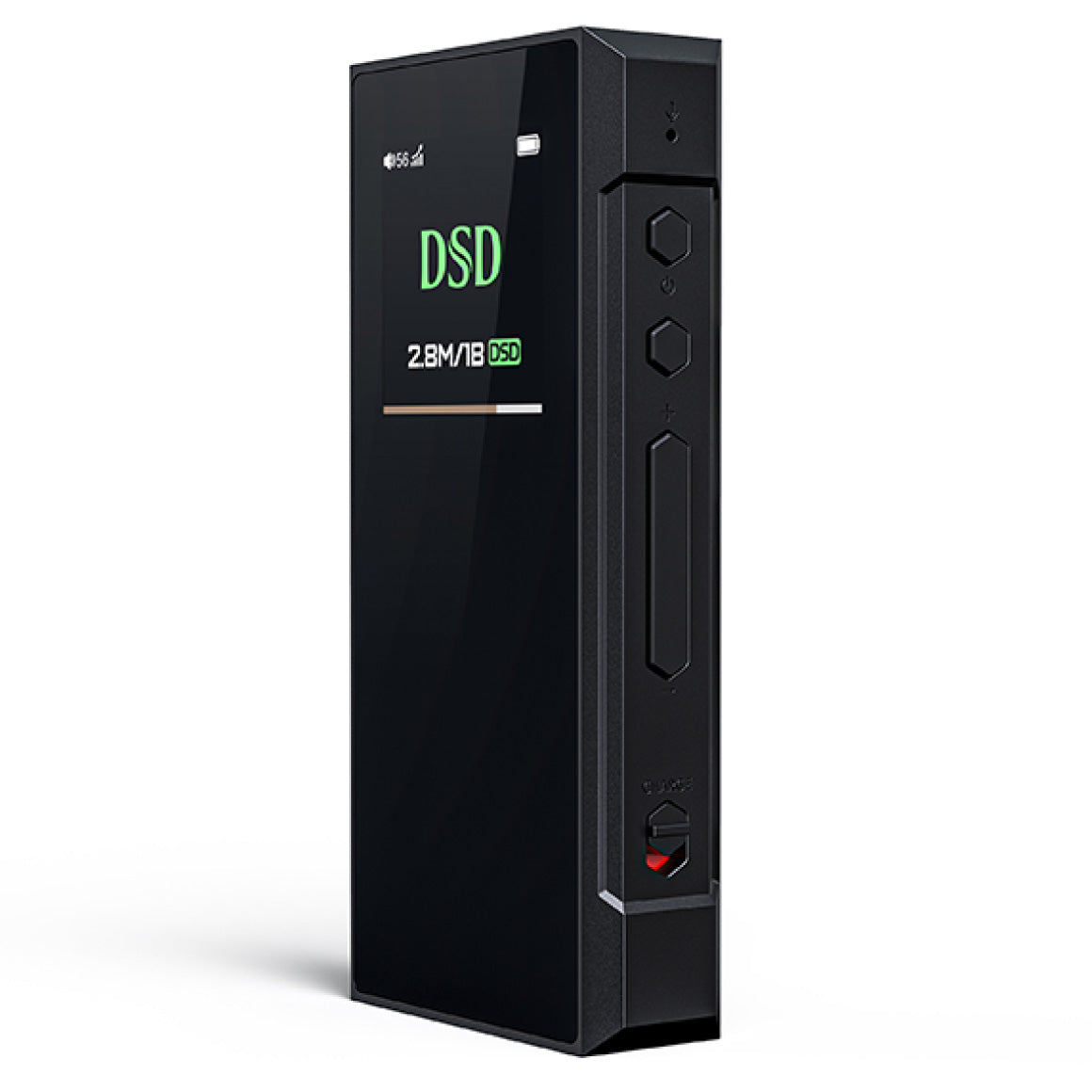

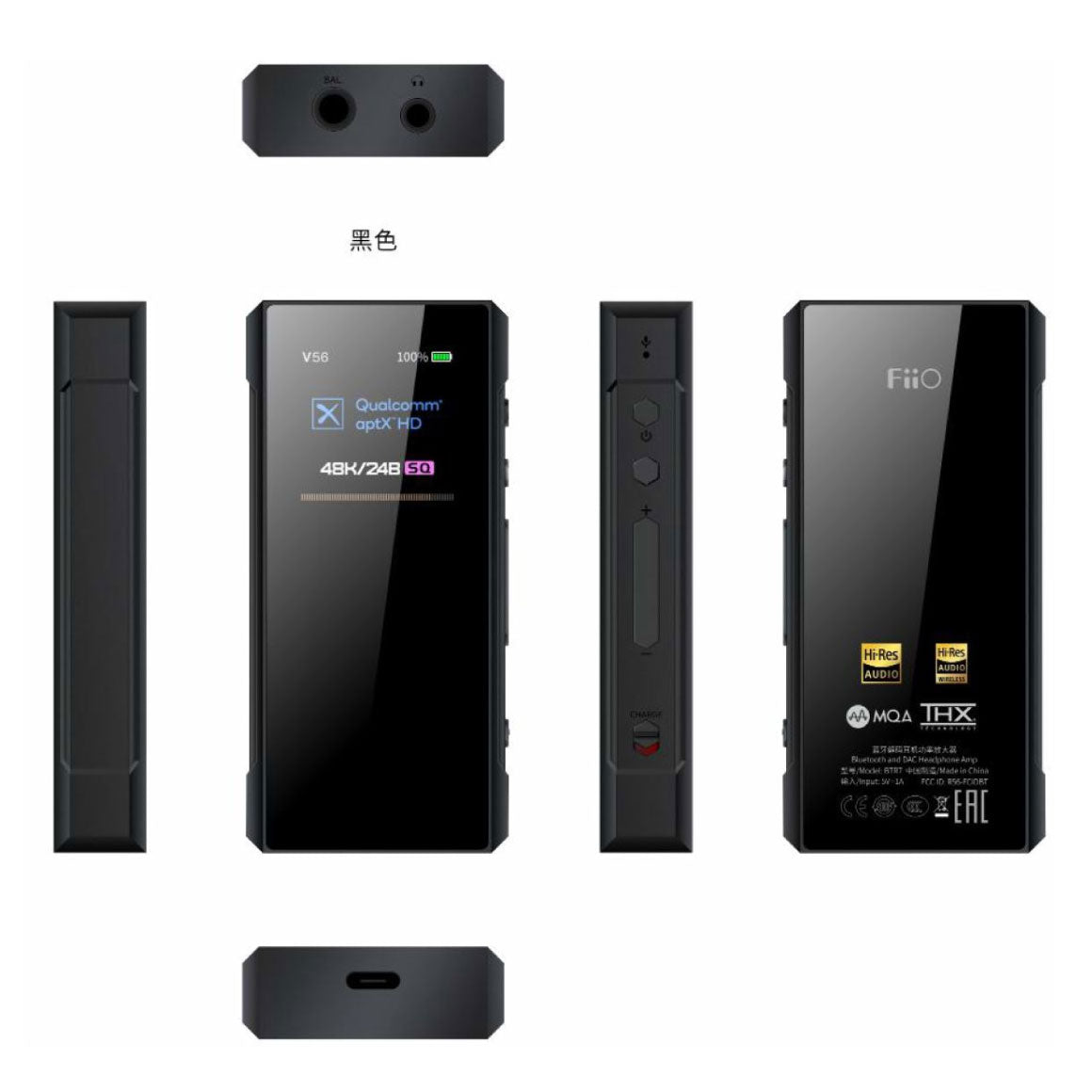

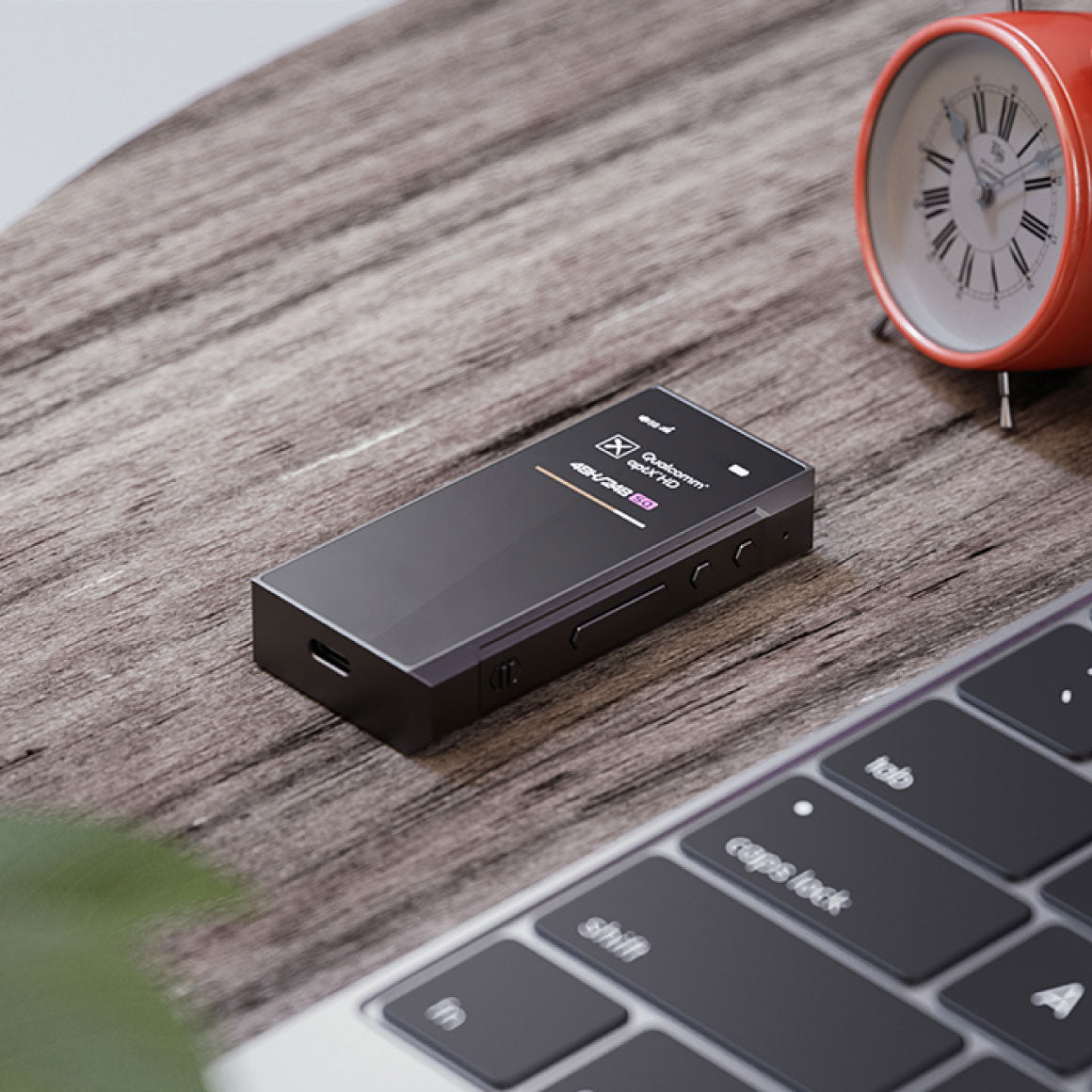

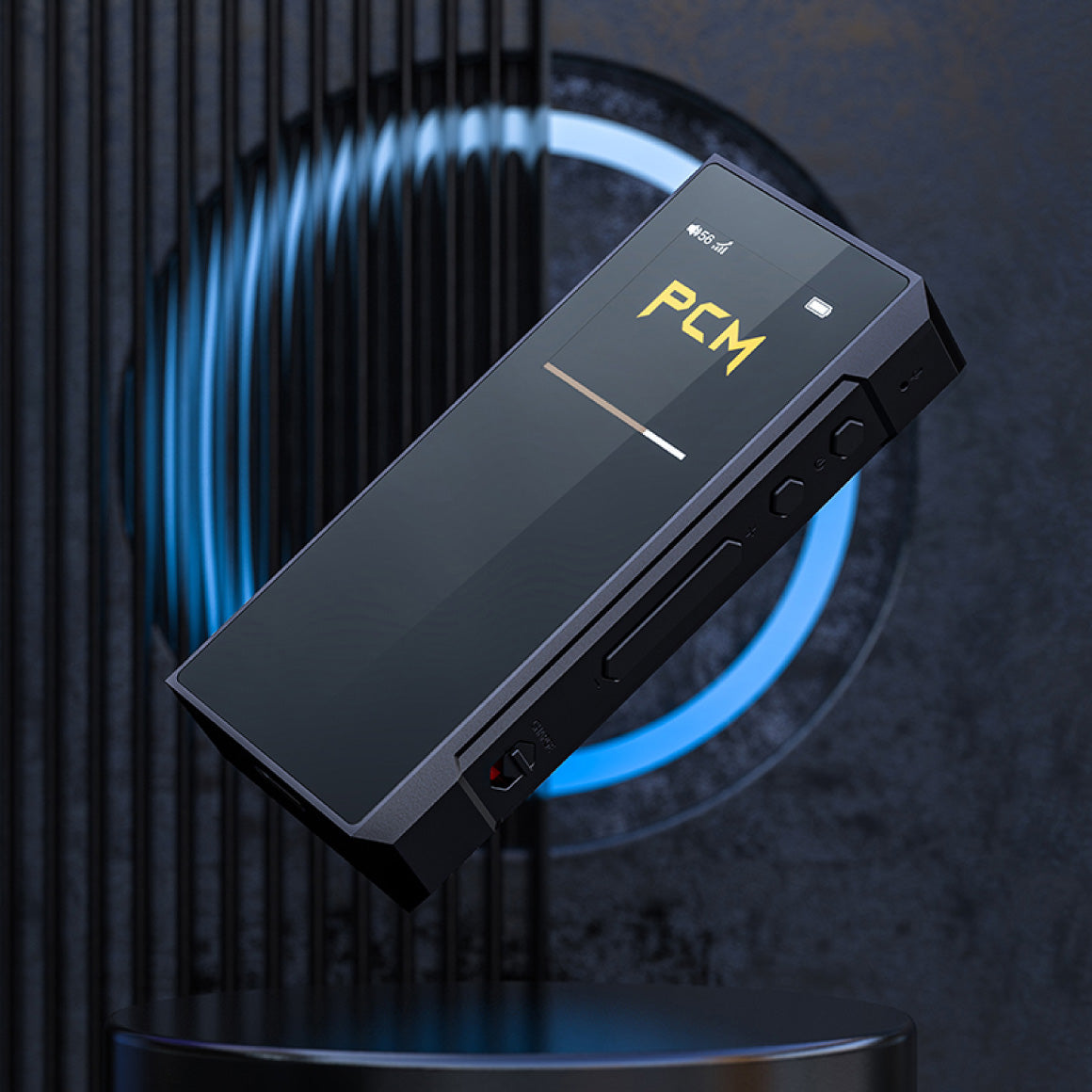

The BTR7 features the seventh-generation mecha design language, giving its riveting looks. Its comfort and ergonomics optimised laminated aluminium alloy body adds to BTR7's elegance. The BTR7 comes with a carefully chosen Bejirog leatherette case, which was processed and can present different textures under different lights. The BTR7's comprehensive UI information is displayed through precisely carved craftsmanship. Additionally, hot pressing was used to handle the side buttons with concave-convex identifications, resulting in more convenient and comfortable use. The BTR7 is bundled with a wide array of accessories like a type-C USB cable, type-C to the type-C data cable, and a fully functional leatherette case for protection.
NOTE : The BTR7 standard edition includes a type-C to a type-C adapter cable, and the apple edition includes two adapter cables - type-C to type-C and lightning to type-C.
| MODEL | BTR7 |
| COLOR AVAILABLE | Black |
| WEIGHT | About 68g |
| DIMENSIONS | About 39.6 x 83.6 x 14.6mm |
| AUDIO INPUT | Bluetooth connection (Bluetooth 5.1 supported) |
| SUPPORTED AUDIO FORMATS | AAC/SBC/aptX/aptX LL/aptX adaptive/aptX HD/LDAC |
| DRIVER-FREE MODE (SWITCH MODE) | Supported |
| IN-VEHICLE MODE | Supported |
| MIC FUNCTION | Yes (Only supports voice calls under Bluetooth mode. Built-in omnidirectional microphone. Only supports the microphone of the CTIA standard headphones.） |
| SE HEADPHONE OUTPUT | 3.5mm stereo port |
| USB PORT | TYPE C (USB2.0) |
| BALANCED HEADPHONE OUTPUT | 4.4mm port |
| RECOMMENDED HEADPHONE IMPEDANCE | 16~100Ω (PO） 16~150Ω (BAL） |
| CHANNEL BALANCE | ≤0.2dB |
| GAIN | Supported (High/Low) |
| VOLUME CONTROL | Side buttons |
| STATUS INDICATION | Codec, charging status, battery level, volume, sampling rate, menu |
| APP INTERCONNECTION | Supports setting through App |
| BLUETOOTH CODES DISPLAY | Supported |
| CHARGING TIME | Wired charging time: ≤1.5 hours
Wireless charging time: ≤3 hours |
| POWER INPUT | Recommend DC 5V 2A |
| BATTERY CAPACITY | 880mAh |
| BATTERY | About 9 hours (ACC format, low gain, 3.5mm headphone out)
About 8.5 hours (LDAC format, low gain, 3.5mm headphone out) About 8 hours (ACC format, low gain, 4.4mm headphone out) About 7.5 hours (LDAC format, low gain, 4.4mm headphone out) |
| OUTPUT POWER | PO about 165mW (16Ω loaded）
PO about 160mW (32Ω loaded） PO about 18mW (300Ω loaded） BAL about 235mW (16Ω loaded） BAL about 320mW (32Ω loaded） BAL about 40mW (300Ω loaded） |
| FREQUENCY RESPONSE | PO 20Hz~50kHz：±＜0.5dB
PO 20Hz~20KHz：±＜0.1dB BAL 20Hz~50kHz：±＜0.5dB BAL 20Hz~20KHz：±＜0.1dB |
| THD+N | ＜0.00055%(1kHz/-6dB@32Ω)
＜0.00048%(1kHz/-2dB@32Ω) |
| OUTPUT IMPEDANCE | PO≤＜1.2Ω（32Ω loaded）
BAL＜2.8Ω（32Ω loaded |
| NOISE FLOOR | PO＜3uV (dbA）
BAL＜5.5uV (dbA） |
| AMPLITUDE | PO: 2.3Vrms BAL: 3.2Vrms |
| SNR | PO≥≥118dB (dbA)(32Ω dbA)
BAL≥115dB (dbA)(32Ω dbA) |
| CROSSTALK | PO≥75dB
BAL≥107dB |
| SAMPLING RATE SUPPORTED UPTO | 384kHz/32bit (USB DAC） |
| DSD SUPPORT (USB IN) | 384KHz 32bit/ DSD256 |
| HARDWARE SCHEME | DAC: ES9219C *2, USB: XMOS XU208,
AMP: THX_AAA_28*2 |
| WHAT YOU WILL GET (STANDARD EDITION) | 1. FiiO BTR7 |
| 2. Type-C USB cable * 1 | |
| 3. Type-C to Type-C data cable*1 | |
| 4. Leatherette case * 1 | |
| 5. Manual | |
| 6. Warranty Card | |
| WHAT YOU WILL NOT GET (STANDARD EDITION) | 1. Original packaging of FiiO KA1 (Standard Edition) |
| WHAT YOU WILL GET (APPLE EDITION) | 1. FiiO BTR7 |
| 2. Type-C USB cable * 1 | |
| 3. Type-C to Type-C data cable*1 | |
| 4. Lightning to Type-C*1 | |
| 5. Leatherette case * 1 | |
| 6. Manual | |
| 7. Warranty Card | |
| WHAT YOU WILL NOT GET (APPLE EDITION) | 1. Original Packaging Of FiiO BTR7 |
| GENERIC NAME | Headphone Amplifier |
| COUNTRY OF ORIGIN | China |
| IMPORTER DETAILS | Importers Name: Ferrari Video Address: 63/18, 1st Main Road, Gandhi Nagar, Chennai - 600020 Contact No: 044-24420733 |
| NET QUANTITY | 1 |
Don't sweat it, this
FiiO - BTR7 (Unboxed) comes with a 1 Year warranty
from FiiO that covers manufacturing defects.
All products featured on Headphone Zone are backed by an original manufacturer's warranty.
Read more about FiiO's warranty in India.
This product has no reviews yet.
